Pic request: how tow hitch receiver is bolted onto the bumper/frame?

Tundra2Maverick(?)

2.5L Hybrid
Well-known member
First Name
Bruce
Joined
Dec 6, 2021
Threads
1
Messages
182
Reaction score
222
Location
Texas
Vehicle(s)
Maverick Hybrid Lariat Base Grp 500A
Engine
2.5L Hybrid
That bar that spans the whole bumper is colloquially called a "crash bar". It, along with the EPS (Styrofoam), is what's primarily supposed to deform and absorb energy from a collision.

The Ford Explorer has a similar setup. The OEM hitch is part of the crash bar itself. An aftermarket hitch for the Explorer bolts to the subframe/unibody structure below the crash bar.

I'd wager that the aftermarket hitches for the Maverick will be similar in that they will bolt to the subframe/unibody below the crash bar. Aftermarket companies generally want easier installation over better (AKA higher) hitch receiver placement. Removing the crash bar requires a lot of disassembly and reassembly, which increases the chances of damaging something in the process.
Ok, my receiver arrived with a bag of 8 bolts and "Instructions". Step 1: an eyeball, a book, and a bumper magically being removed. WTH does that mean? So much for an easy install.

Ford Maverick Pic request: how tow hitch receiver is bolted onto the bumper/frame? Ford Maverick Trailer Hitch Installation Instructions Bumper Removal
Sponsored



Tundra2Maverick(?)

2.5L Hybrid
Well-known member
First Name
Bruce
Joined
Dec 6, 2021
Threads
1
Messages
182
Reaction score
222
Location
Texas
Vehicle(s)
Maverick Hybrid Lariat Base Grp 500A
Engine
2.5L Hybrid

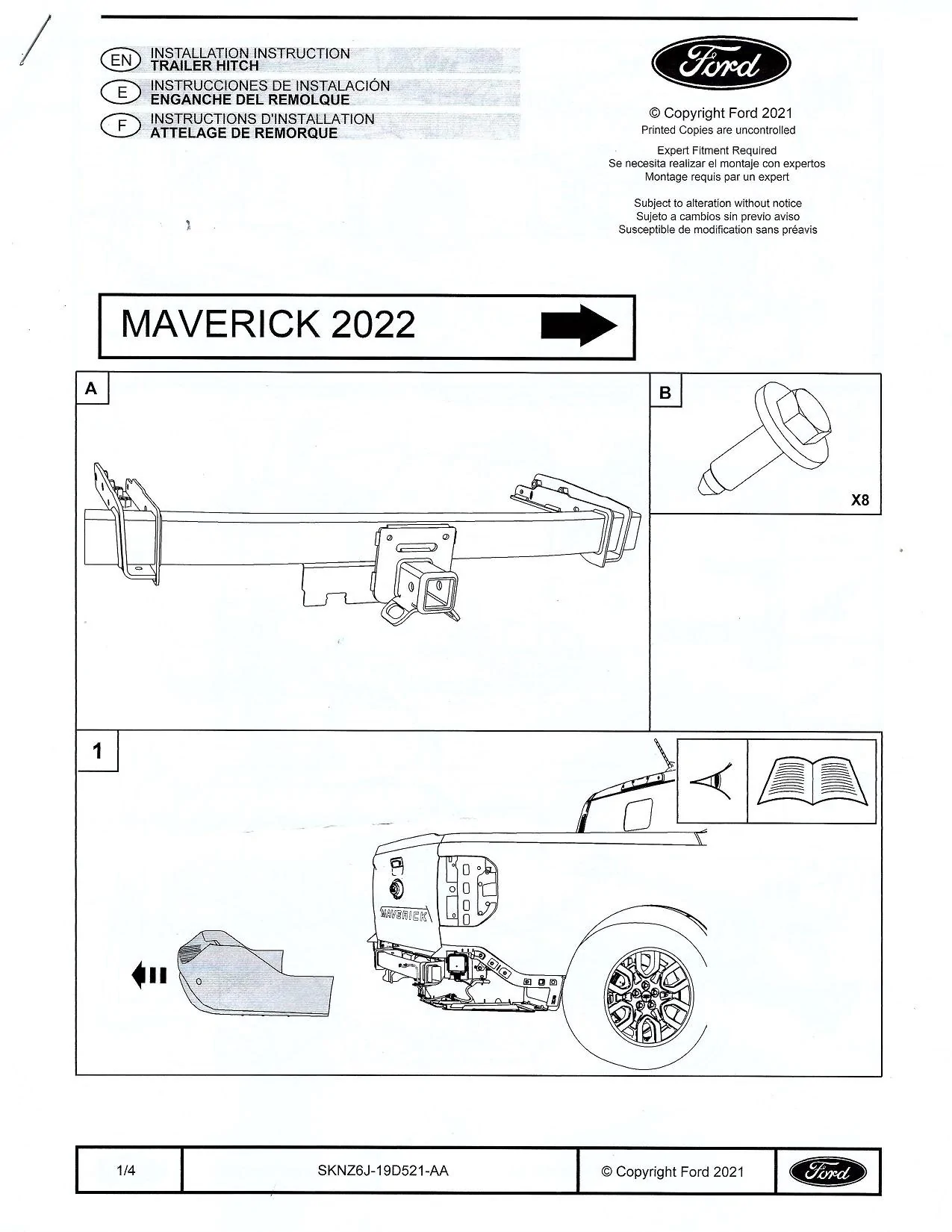

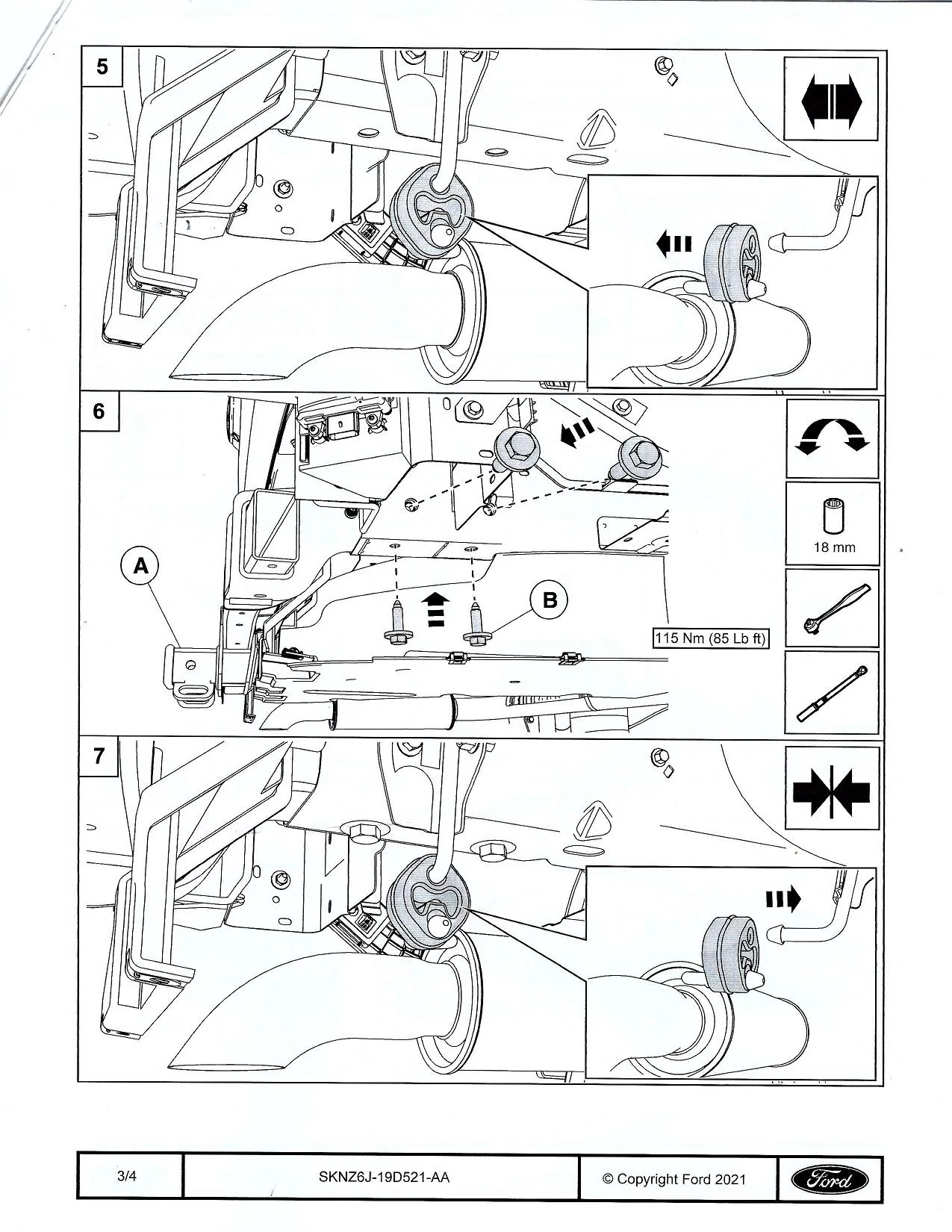

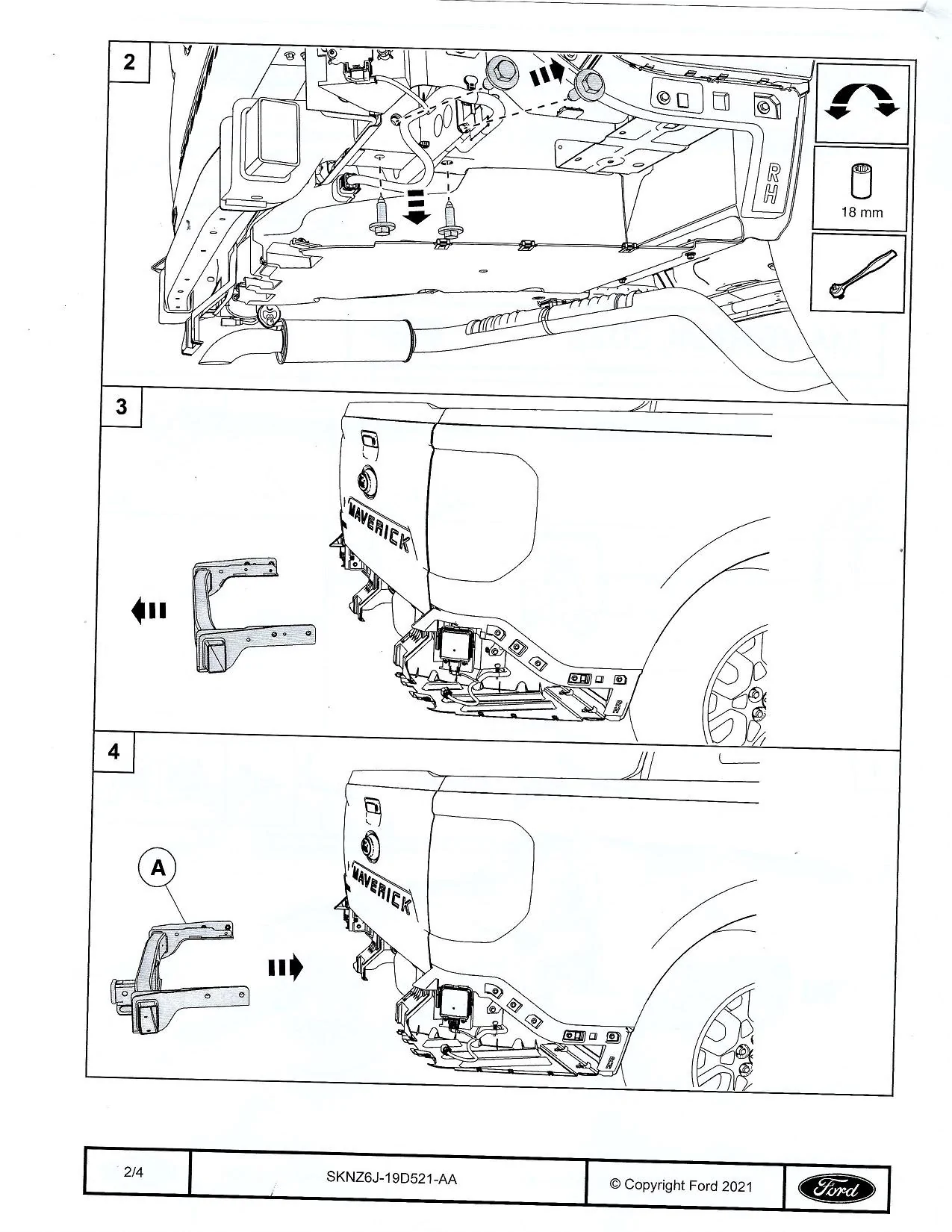

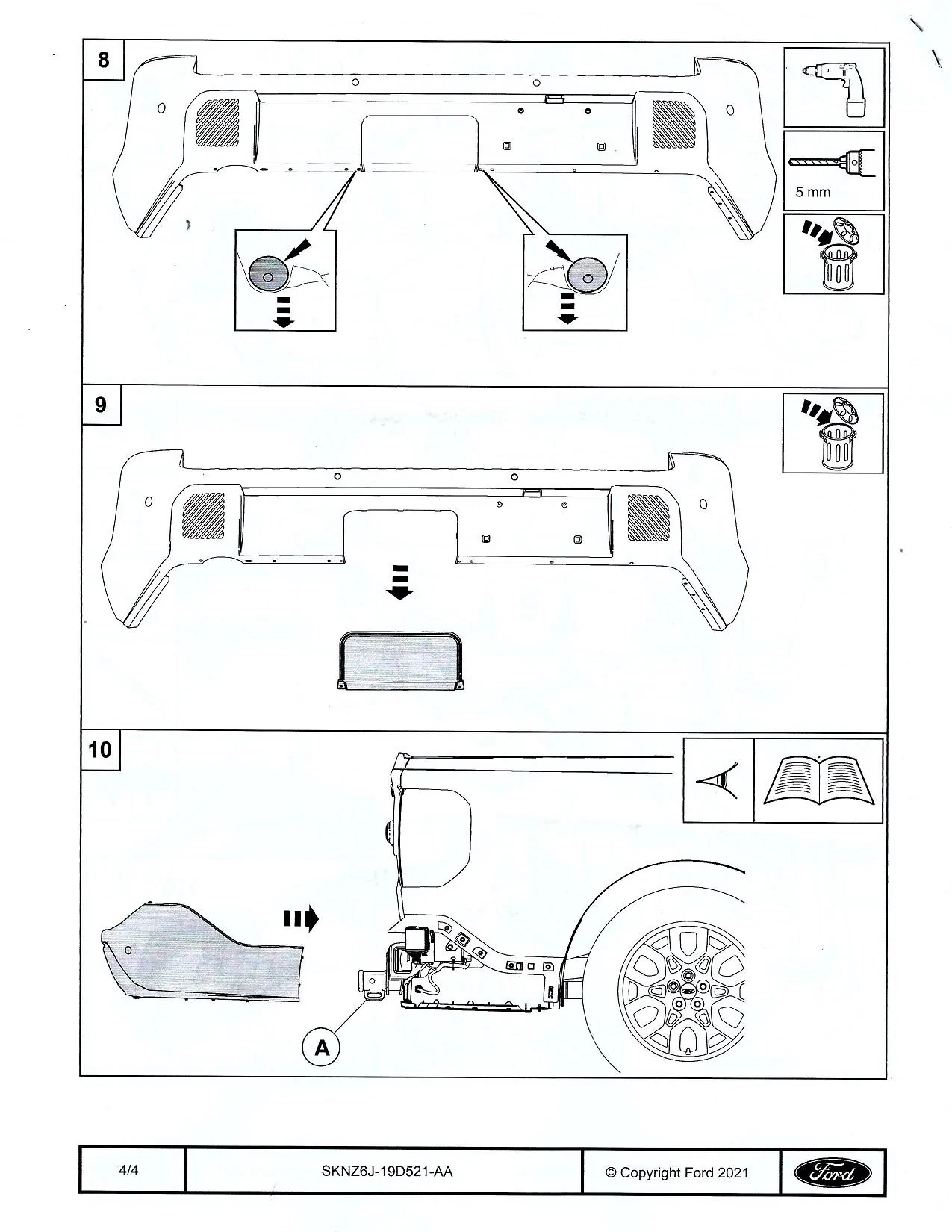

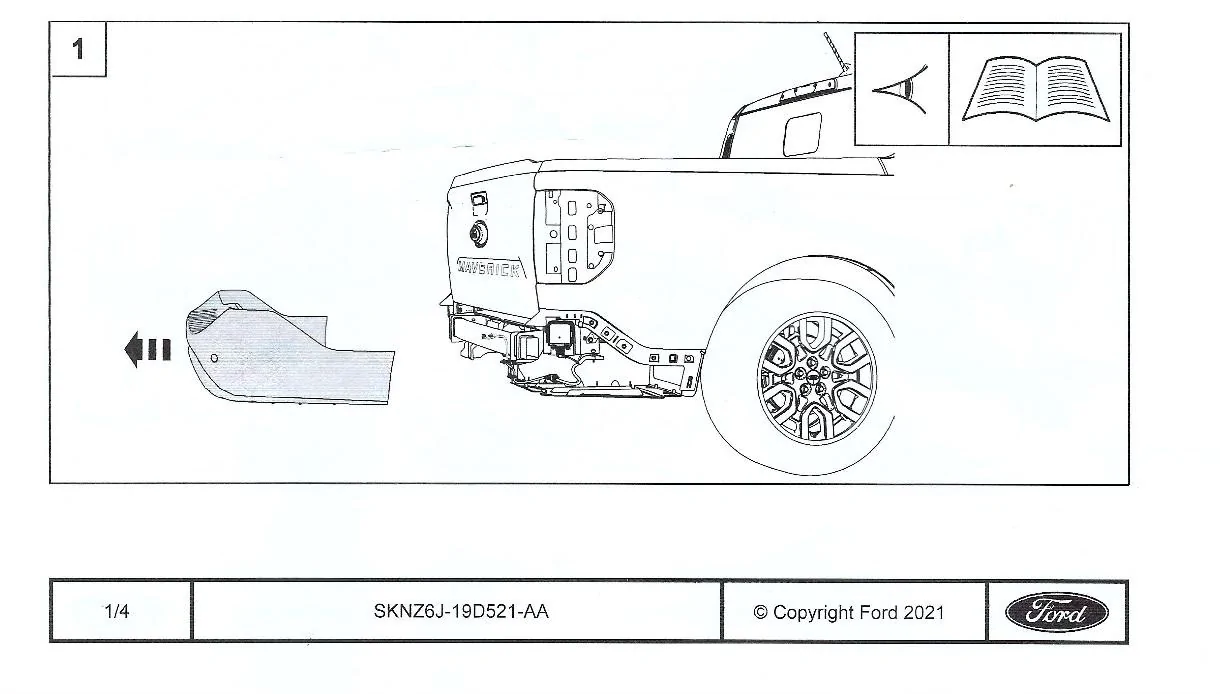

For those considering DIY installation, attached are the instructions included with the Maverick 2022 Receiver, Ford Part #NZ6Z17D826C:

Ford Maverick Pic request: how tow hitch receiver is bolted onto the bumper/frame? Ford Maverick Trailer Hitch Installation Instructions p1-50


Ford Maverick Pic request: how tow hitch receiver is bolted onto the bumper/frame? Ford Maverick Trailer Hitch Installation Instructions p2-50


Ford Maverick Pic request: how tow hitch receiver is bolted onto the bumper/frame? Ford Maverick Trailer Hitch Installation Instructions p3-50


Ford Maverick Pic request: how tow hitch receiver is bolted onto the bumper/frame? Ford Maverick Trailer Hitch Installation Instructions p4-50


Billy

Well-known member
First Name
Billy
Joined
Jan 15, 2021
Threads
12
Messages
97
Reaction score
164
Location
Wisconsin
Vehicle(s)
98 Jeep Wrangler TJ, 53 Dodge M37
I don't have a tow hitch receiver on my Hybrid yet, I was told by my salesman when I ordered that it would delay delivery. But I plan on getting one.


Sponsored

Tundra2Maverick(?)

2.5L Hybrid
Well-known member
First Name
Bruce
Joined
Dec 6, 2021
Threads
1
Messages
182
Reaction score
222
Location
Texas
Vehicle(s)
Maverick Hybrid Lariat Base Grp 500A
Engine
2.5L Hybrid
Probably something like 'refer to service manual for instructions on rear bumper removal'
I am afraid that you are correct. There goes more $$$ for accees to, or a CD of the Service Manual.:confused:


GaryG

2.0L EcoBoost
Active member
First Name
Gary
Joined
Nov 8, 2021
Threads
4
Messages
25
Reaction score
41
Location
Riverside, CA
Vehicle(s)
Ford Maverick, 2000 F250 7.3 TD
Engine
2.0L EcoBoost

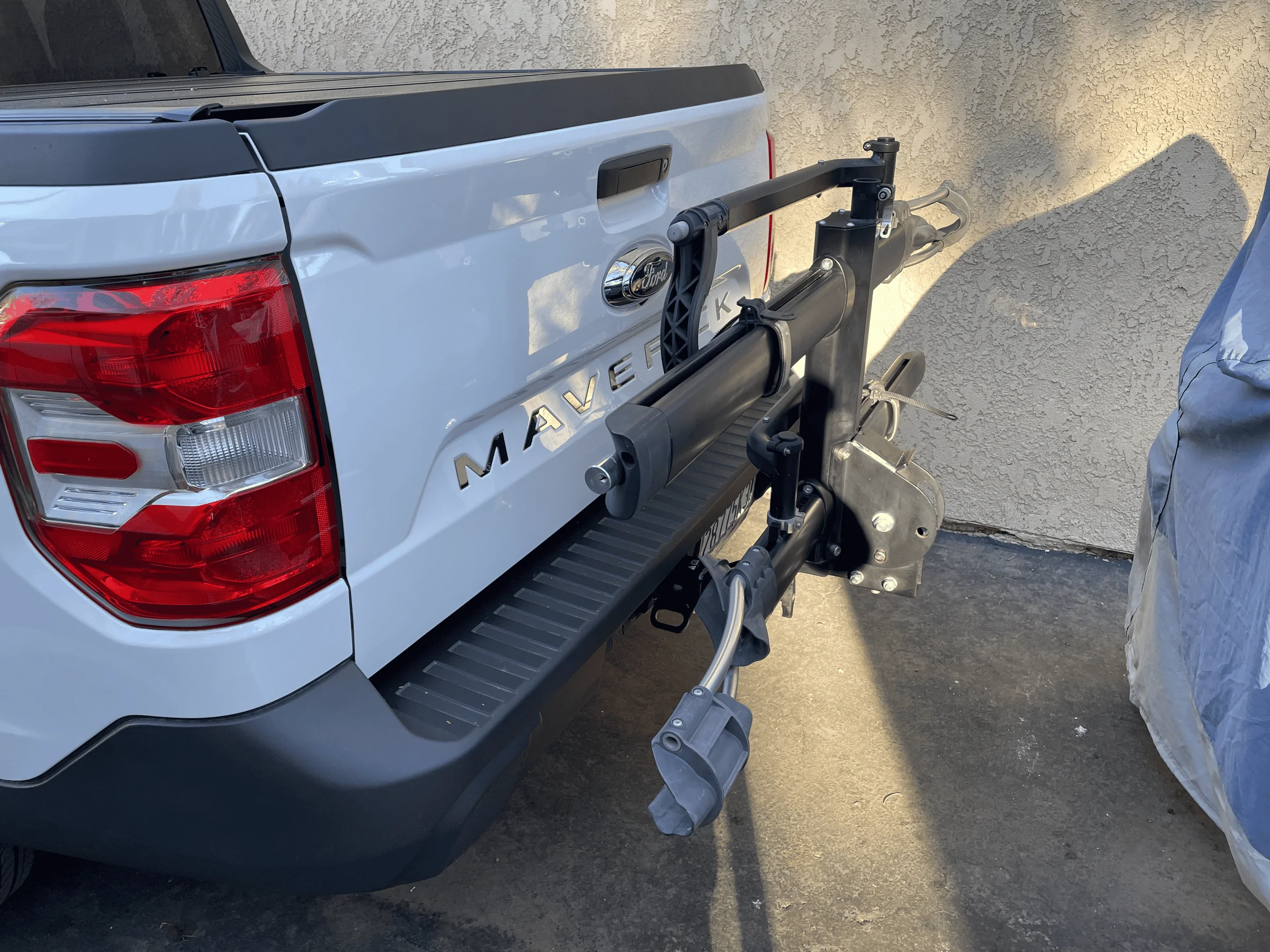

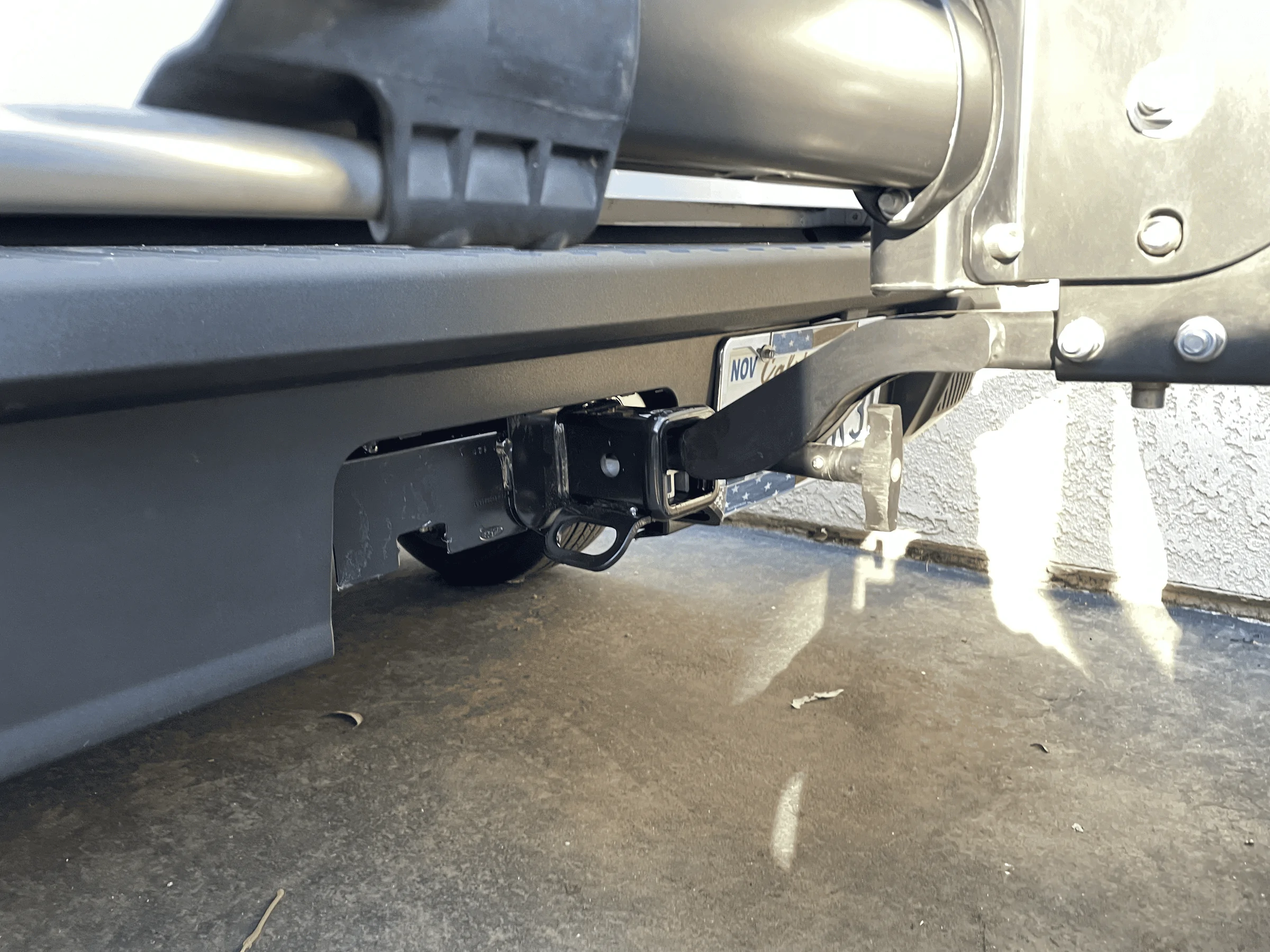

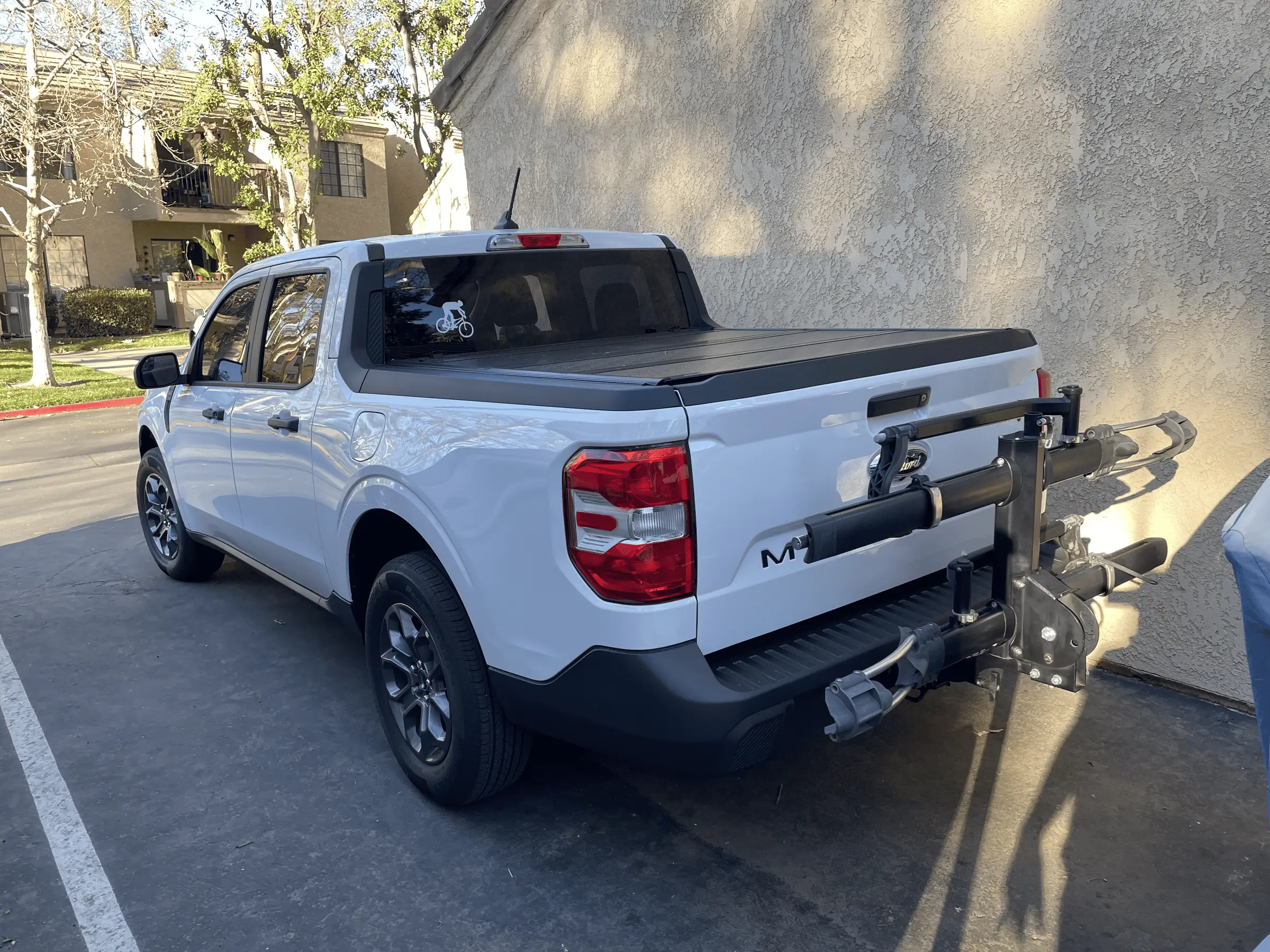

Finally, installed my Maverick Receiver I purchased through Ford.com. I had to cancel my order through dealer as they were unsuccessful! Most difficult part of installation was removing the plastic bumper without breaking the tab mounts. I was able to pry the bumper from behind starting from the sides. Now the hunt for the wiring harness? FYI...its not tucked away somewhere underneath and it definitely doesn't come with the purchase of a new Receiver.
