Traffic Sign Recognition (TSR) FORScan mod (confirmed working)

[Gullzway]

I did it. (I mean... I didn't figure it out... I'll give that credit to the guy below...but I did get it to work on my 6" screen.)

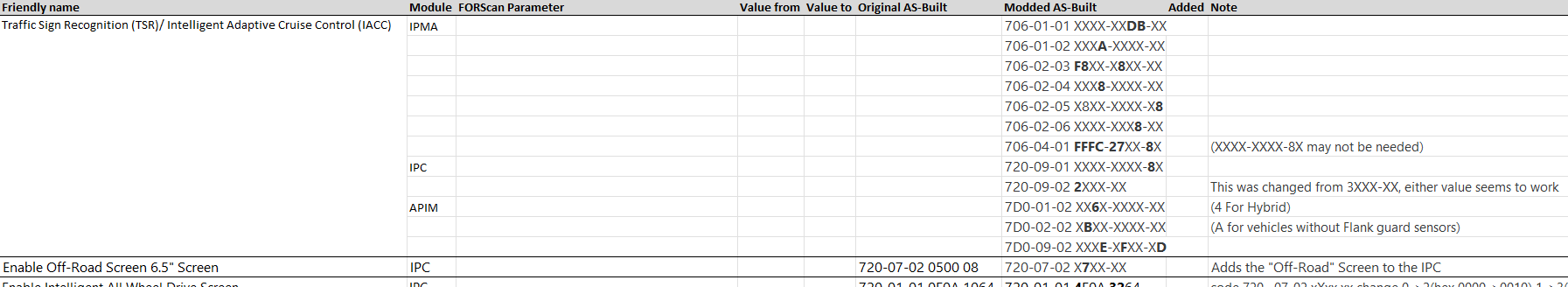

Start here:
https://www.fordescape.org/threads/how-to-enable-intellegent-adaptive-cruise.118052/

If you get stuck, let me know and I'll walk you through it.

Any idea which one of the changes makes the signs normal instead of round? I've had mine working for a few months now and the round signs don't bother me, but if easy enough, I'll go ahead and change it.

Sponsored



[Dallas Maverick]

Any idea which one of the changes makes the signs normal instead of round? I've had mine working for a few months now and the round signs don't bother me, but if easy enough, I'll go ahead and change it.

I’ll play with it tonight and get back to you.



[Dallas Maverick]

I don't remember needing to adjust the APIM for this truck, as I don't have Sync so it likely doesn't have the module anyway. The TSR should still work without needing to adjust the APIM as it did with the stock gauge cluster.

So, help me out here:

XL?
But you have a 6” screen, so not the stock XL screen?
No APIM (Sync)?



[Organicrobot]

So, help me out here:

XL?
But you have a 6” screen, so not the stock XL screen?
No APIM (Sync)?

Correct, mine is an XL but I've installed a 6 inch cluster from a bronco sport. As far as I can tell from various forums, if you don't have Sync, you don't have the APIM module.

I previously had the TSR working with the factory 4 inch Maverick cluster, but have tried every combination I can think of to even get the menu options to appear on the bronco sport cluster.



[Dallas Maverick]

Correct, mine is an XL but I've installed a 6 inch cluster from a bronco sport. As far as I can tell from various forums, if you don't have Sync, you don't have the APIM module.

I previously had the TSR working with the factory 4 inch Maverick cluster, but have tried every combination I can think of to even get the menu options to appear on the bronco sport cluster.

Ok next round of questions:
Do you have TSR on the 6” cluster? I was assuming that you did, but that the signs were round.



[Organicrobot]

Ok next round of questions:
Do you have TSR on the 6” cluster? I was assuming that you did, but that the signs were round.

I haven't gotten the TSR to work on this cluster at all. I know that it's possible as I've seen this cluster with it working on bronco sports.



[snowcatxx87]

I just did TSR - I have small screen, and I get a square speed limit sign. Works well!



[Montevilla]

I did this on my hybrid and it works, but I noticed something perhaps that was coincidental being a new owner. When I first started my truck after installing, the gas motor came on with a bit of a surge. Louder than usual. Also coming back up a hill, seemed to be louder when transitioning between electric and ICE. Then I got paranoid reading this thread, which admittedly has more hardware being added than a simple software hack. I had also changed the truck's interface language and this mod set t back to English which weirded me out a bit.

Anyone else notice this on a Hybrid though?



[dgreenjets]

I did this on my hybrid and it works, but I noticed something perhaps that was coincidental being a new owner. When I first started my truck after installing, the gas motor came on with a bit of a surge. Louder than usual. Also coming back up a hill, seemed to be louder when transitioning between electric and ICE. Then I got paranoid reading this thread, which admittedly has more hardware being added than a simple software hack.

Anyone else notice this on a Hybrid though?

I have a Lariat hybrid and have not noticed any issues. I don't have the ICE kick in at all when I start unless its been a few days since driving and the ac is blasting.



[Jmav2152]

Correct, mine is an XL but I've installed a 6 inch cluster from a bronco sport. As far as I can tell from various forums, if you don't have Sync, you don't have the APIM module.

I previously had the TSR working with the factory 4 inch Maverick cluster, but have tried every combination I can think of to even get the menu options to appear on the bronco sport cluster.

so does your digital speedo have the bigger blockier letters? the font is different in the BS and i was hoping i could get them on my mav but i think it might not be possible.



[Organicrobot]

so does your digital speedo have the bigger blockier letters? the font is different in the BS and i was hoping i could get them on my mav but i think it might not be possible.

It does have the blocky letters in comparison to the cluster of a higher trim level Maverick. The gauges have a similar layout, but have a bunch of other tiny differences. I'm not sure the speedometer font is something that could be changed or if it's programmed to match the font of the physical gauges.



[Montevilla]

I have a Lariat hybrid and have not noticed any issues. I don't have the ICE kick in at all when I start unless its been a few days since driving and the ac is blasting.

Thanks, it does appear it was a coincidence I guess. I never had the gas engine start first yet, so it startled me. And perhaps I was more aware of the transition sound between electric and gas because I was listening for it.



[Montevilla]

I don't have the option to turn this off as displayed above (Activate TSR checkbox). Does the easy mode miss something? Because that's what I used if that makes a difference.



[Maverick2022XL]

I don't have the option to turn this off as displayed above (Activate TSR checkbox). Does the easy mode miss something? Because that's what I used if that makes a difference.

Check the country and speed whether it is set to mph or kmph for IPMA module. There is no easy mode for that. You'll have to go back a few posts to find it but I did post what those addresses and settings are.



[Maverick2022XL]

I don't have the option to turn this off as displayed above (Activate TSR checkbox). Does the easy mode miss something? Because that's what I used if that makes a difference.

Speed limit types aka MPH or KMPH
706-01-02
xxxx-xxxx-*xxx
9 = MPH
5 = KMPH
1 = undefined
don't use 1 it will throw errors elsewhere. Also the country code overrides these settings

Country and region specific codes for a 2022 Ford Maverick
706-01-02
*xxxx-xxxx-xxxx = region
2 = North America, different values for other regions

706-01-02
xx*x-xxxx-xxx = country
7 = United States
4 = Canada
other values for other countries
