Means simply none of the drive modes will be available to select if you set the values in the addresses at 720-09-02 and 720-10-01 but not at 720-09-01. To avoid this set all 3 or don't do the modification.
Yep unless you want to be the one to see if it will work.
Good deal, I'll update the main post. On the 4 inch cluster the digital speedometer is one of options for the myview screen.Apologies up front - I am NOT a photographer...

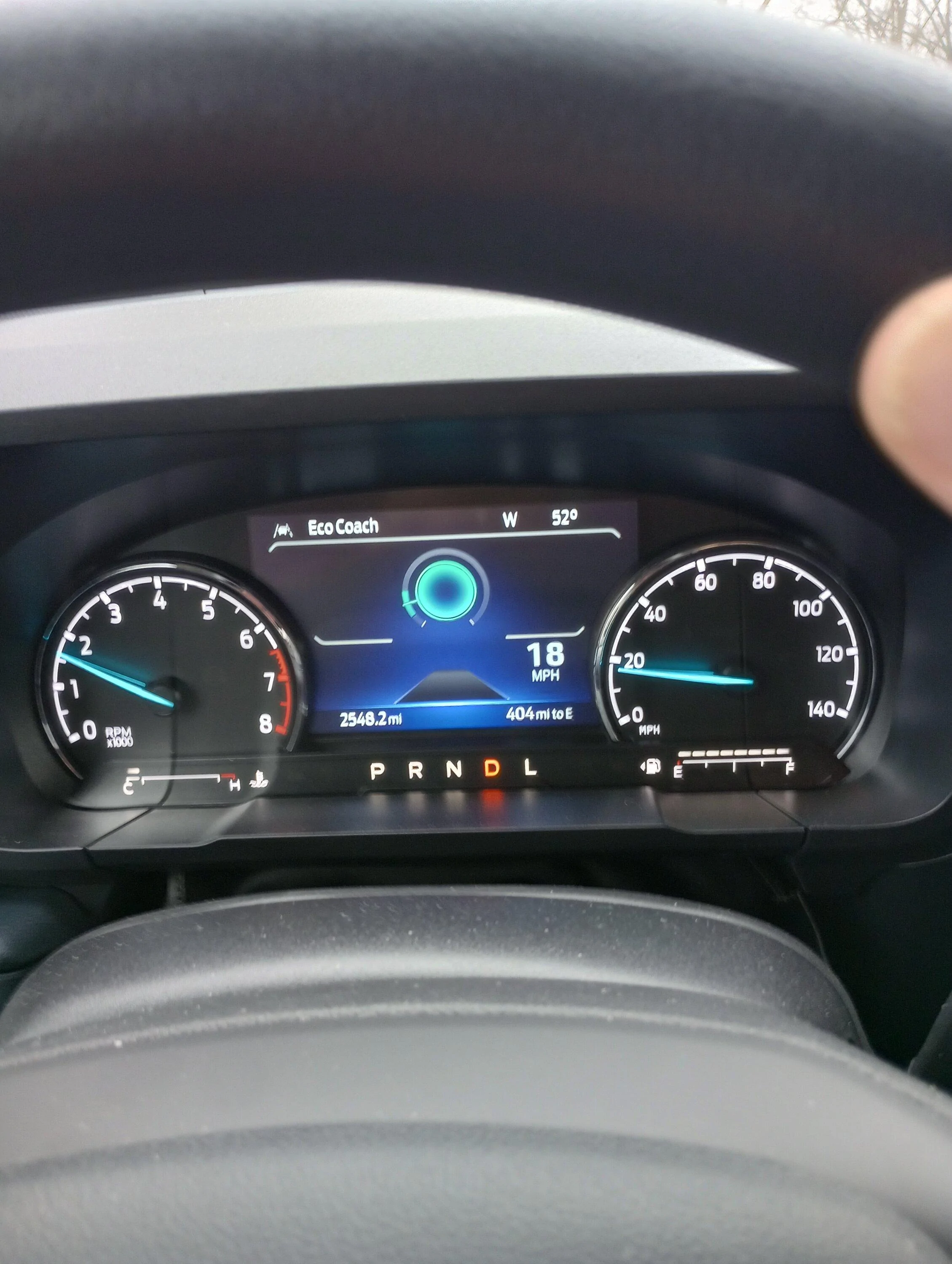

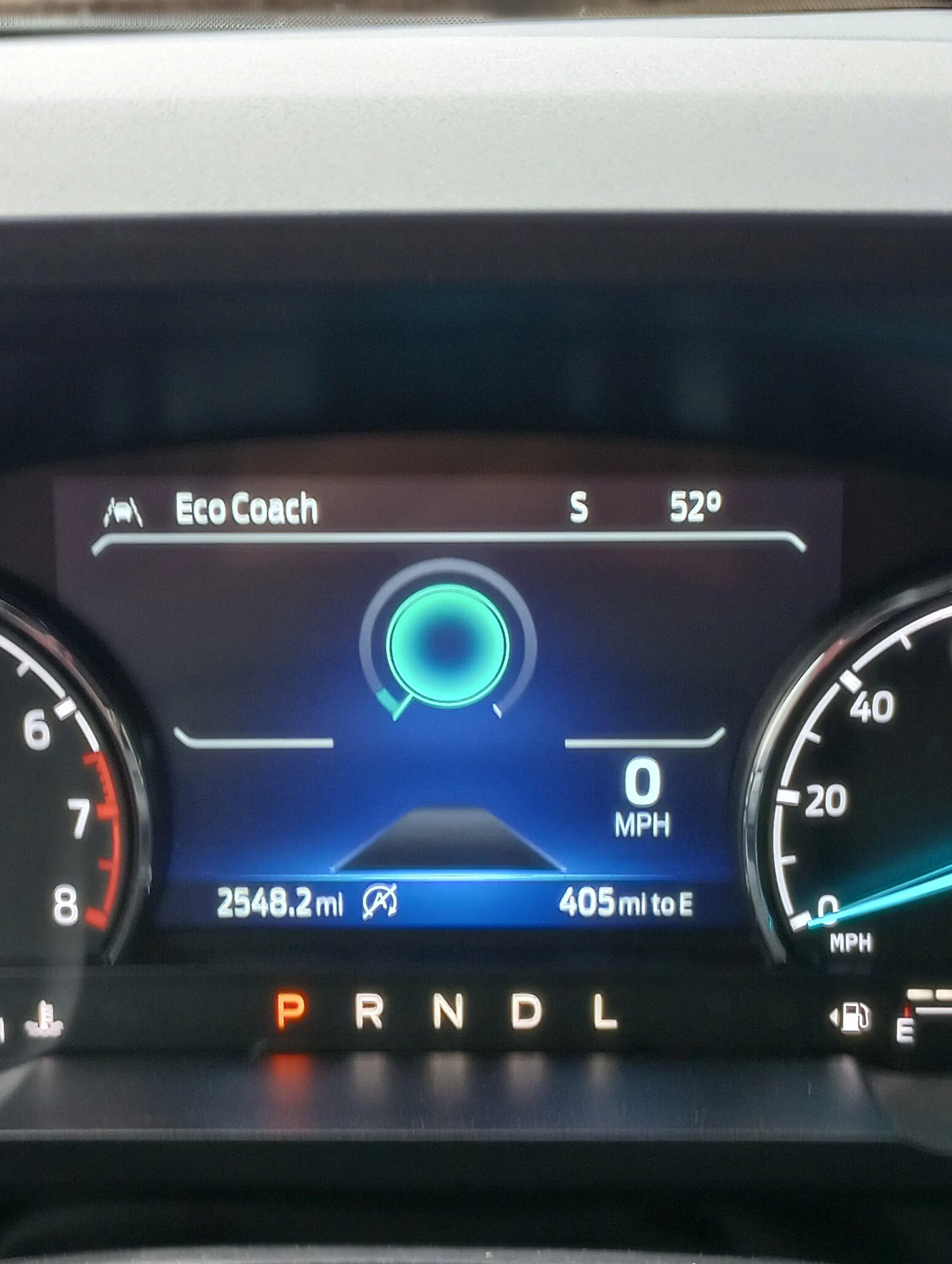

This mod works on a 6.5" screen, in all modes, for me. I have an XLT FX4 (no Lux or CP360). I get the display as one of my screens.

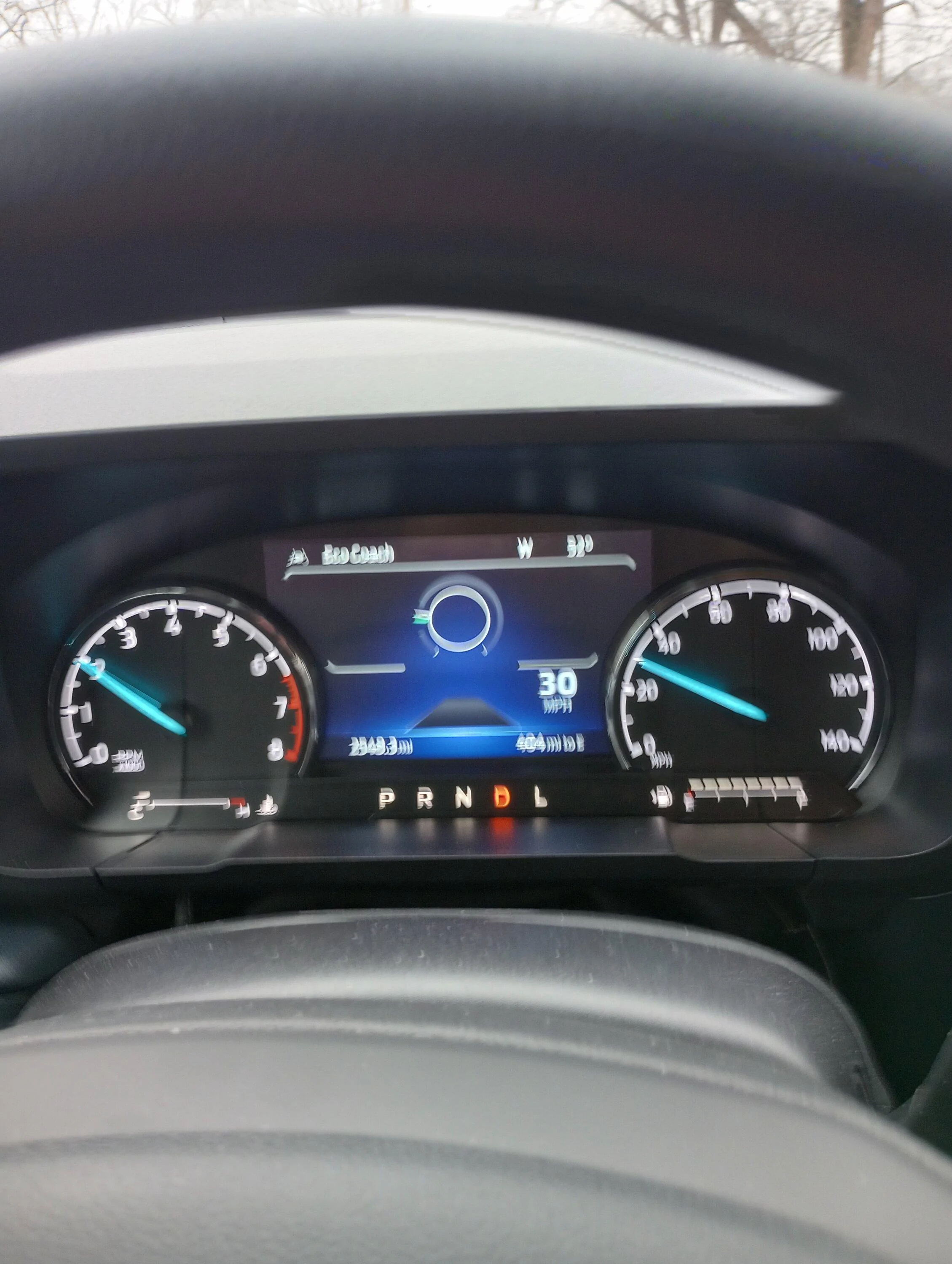

When I moderately accelerate or brake the "meter" on the green circle moves in proportion to my speed.
When I accelerate or brake hard the green goes away and I see two lines diverge indicating the degree of acceleration or braking (I assume).

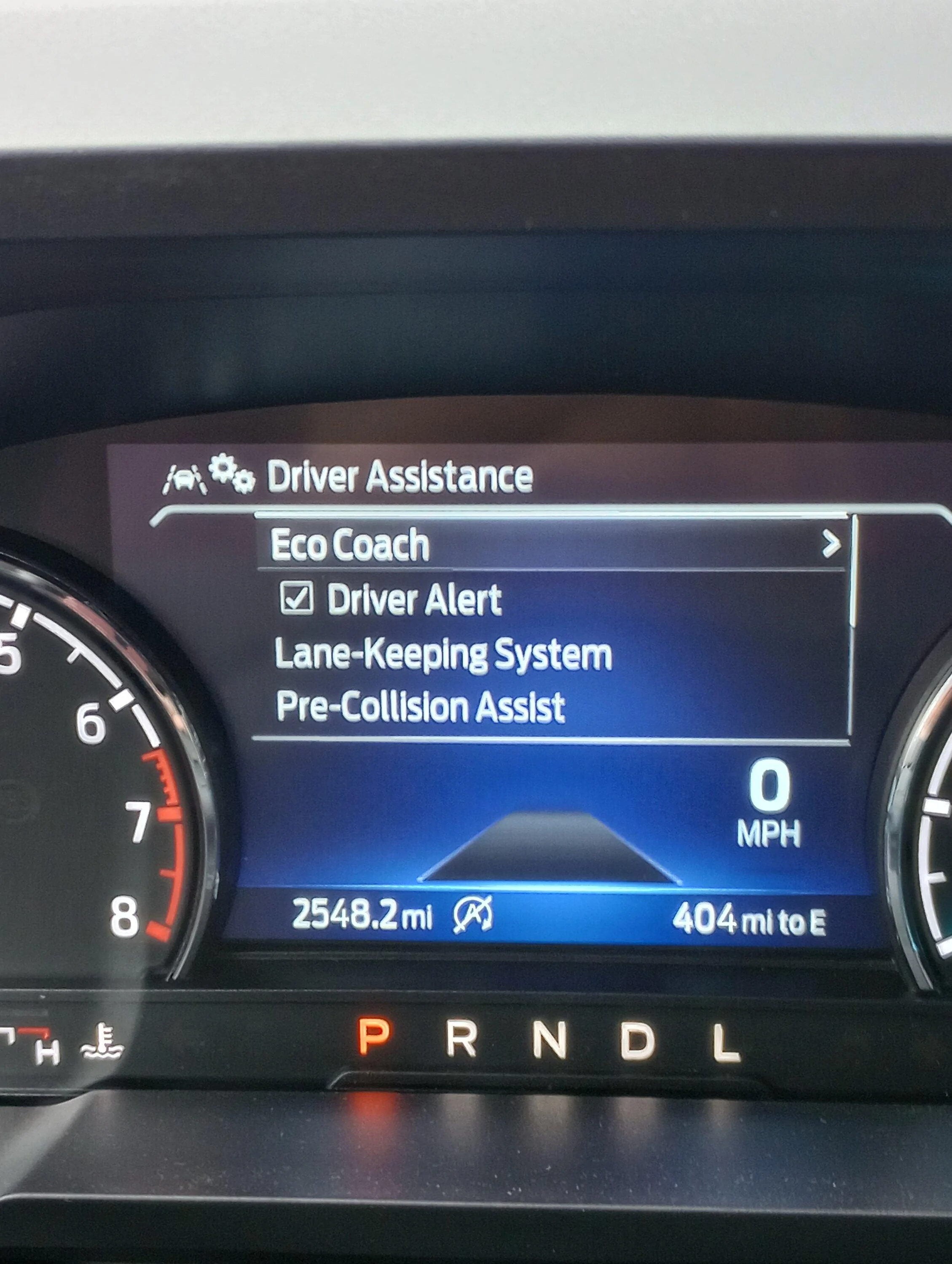

My menu options are similar. (Shout out to @Maverick2022XL for the Lane Keeping Assist mod!)

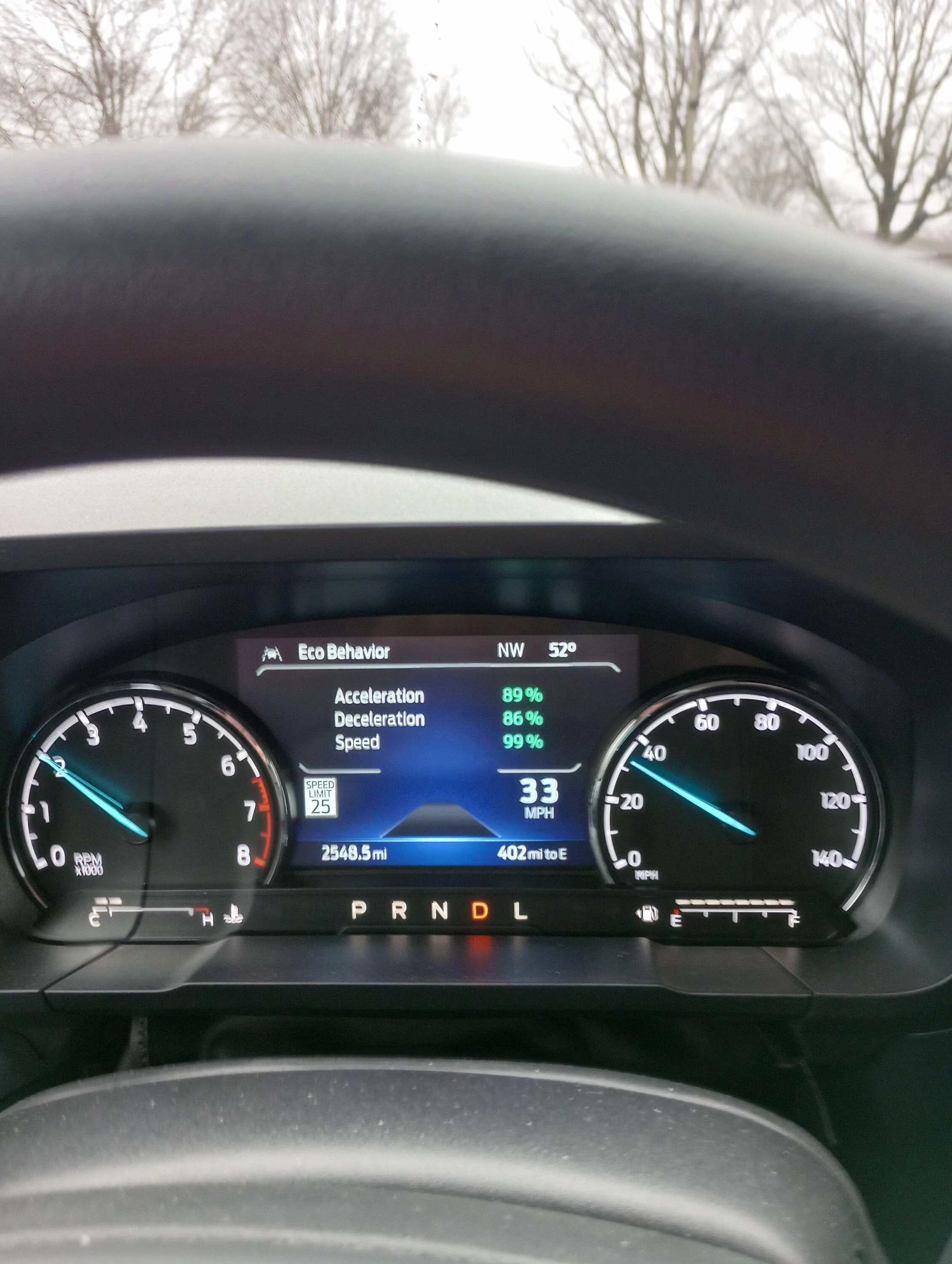

I did notice that the detailed metrics (Eco Behavior) consist of three lines with percentages for Acceleration, Deceleration, and Speed. I do not have a Compliance Score on my display. I also DO NOT have the Good Driving Behavior display.
I actually like the graphic display over the metrics.
@Maverick2022XL, how did you get a Digital Speedometer enabled? I must've missed that mod...
I'll look for that tomorrow. Thanks!

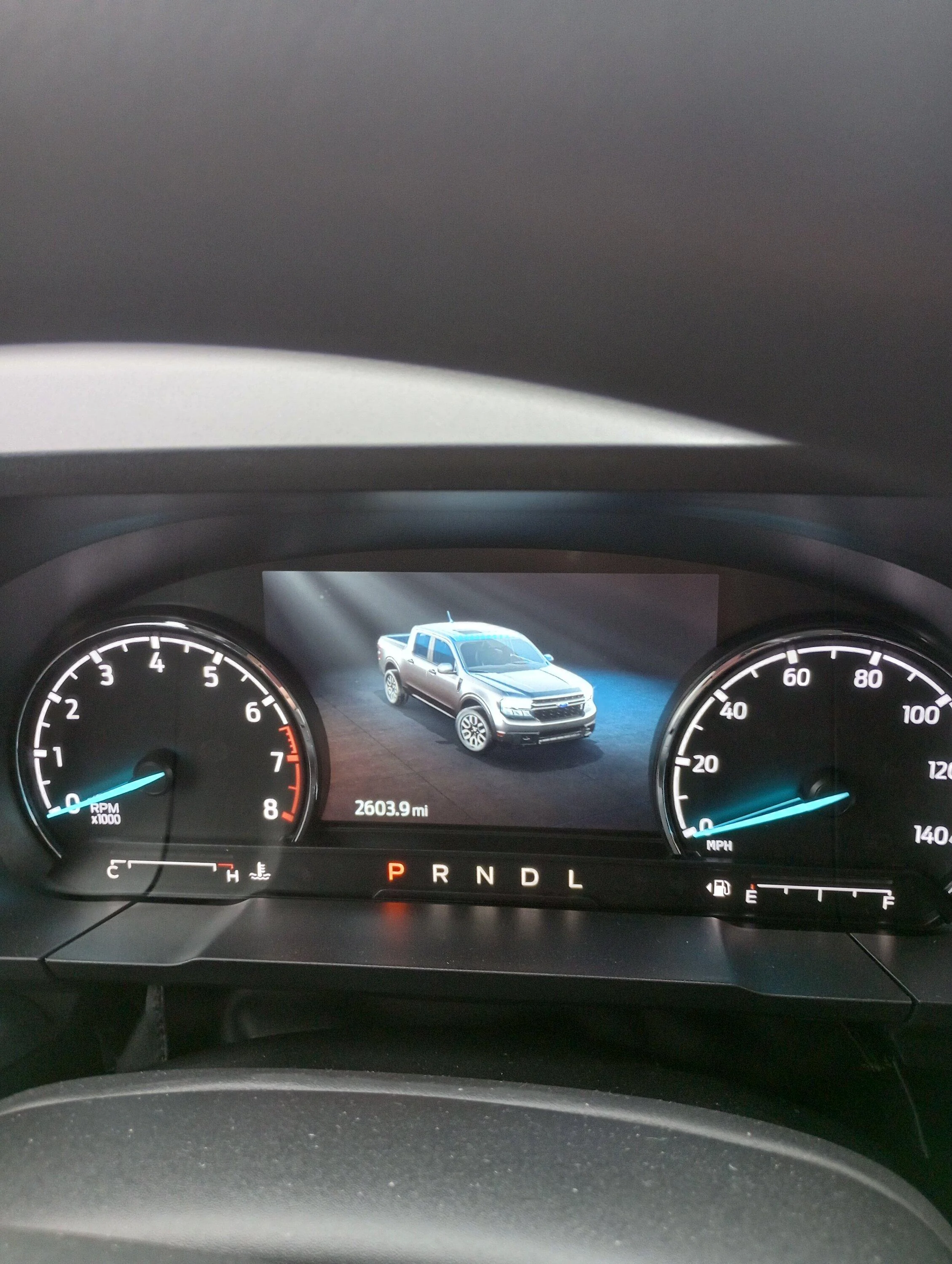

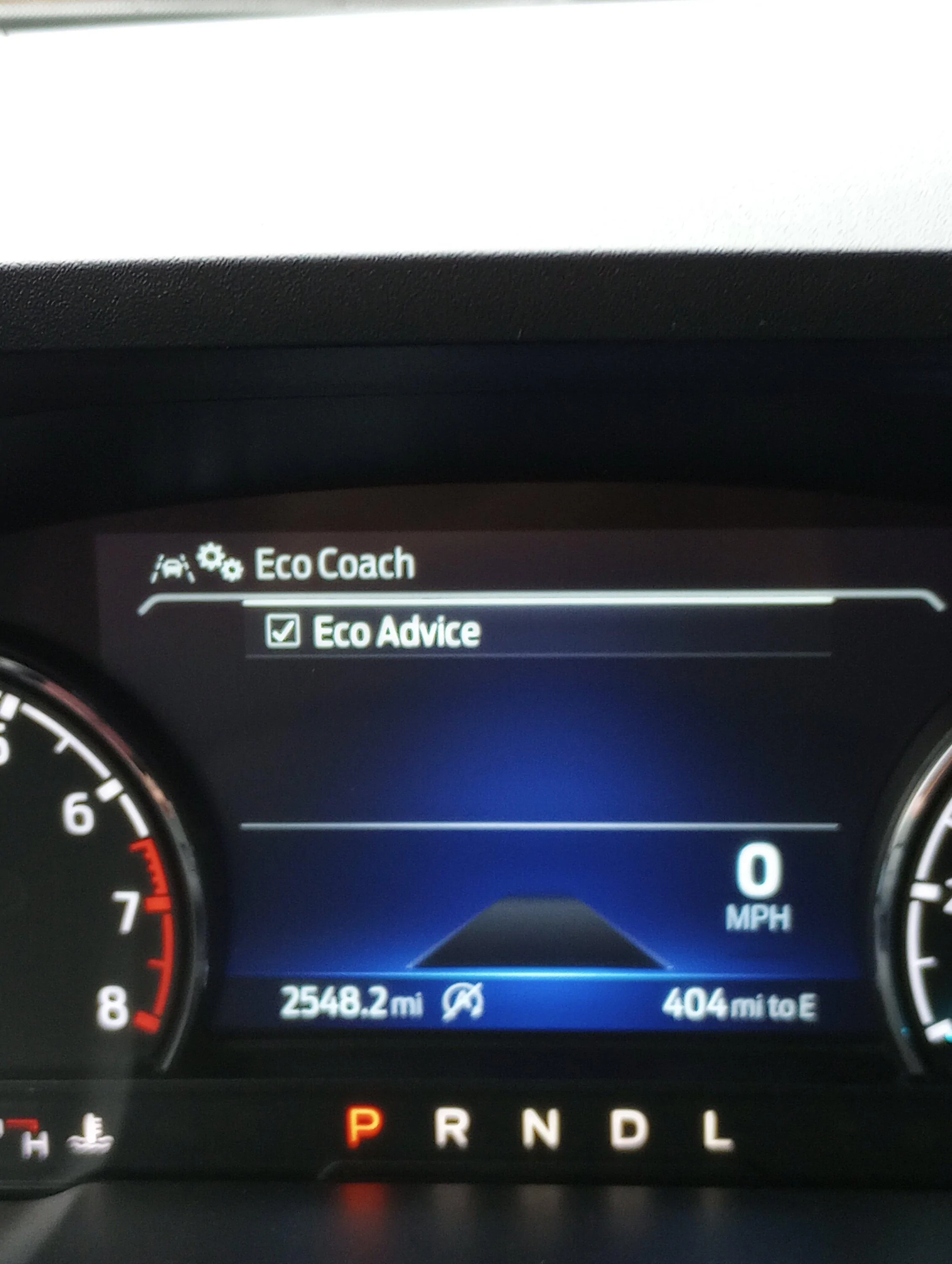

I tried to view the "good driver display" but all I get is the truck graphic that appears when the truck is turned off and ignition is left on. That must be a 6.5" screen thing. I clicked OK on this screen just to see if that button was active behind the graphic but no luck. So, I can enable the "advice" menu option but can't see the advice display
You also have to have had the eco coach screen active when you turn the key to the engine off but power on position. It is possible it is a 4 inch cluster screen option either way. The advice I don't know exactly how that works either. I'll shut it off later and see if any screens change or disappear.I tried to view the "good driver display" but all I get is the truck graphic that appears when the truck is turned off and ignition is left on. That must be a 6.5" screen thing. I clicked OK on this screen just to see if that button was active behind the graphic but no luck. So, I can enable the "advice" menu option but can't see the advice display
I imagine I'll just reset that option and go with the display and metrics. There is still great value with this feature. Thanks for sharing it!
Yep, had that screen on when turning the engine off but power on. Curious to hear what you find out.
The eco advice option is for the driver behavior screen you get when you turn the key off. Also the screen only comes on in the key off / engine off position. For a 6 inch screen the possibility is it uses a different forscan value for it to activate even though that value turns on the menu option. My suggestion if you want to try it is use different values for 720-10-01 and see if any work besides activating the assistance screen option. You only have values from 0 - F in hex to do a trial and error approach.
I'll give it a try this weekend and let you know how it goes. Thanks!
