[Tiger Dude]

I use both Fedora and Ubuntu. Both have the option in the desktop distro to mount the iso when you click on it in the file manager. Then just click on the pdf or word doc or whatever and it will select the correct reader and just display it. No tricks required.

If it ships as a CD-ROM you kinda have to have a CD-ROM reader to get to the file.

Sponsored



[glohworm]

Linux... for when you want to run 10 hours of code to install a basic program...

For anyone still needing the manual, PM and I'll send you the link to the google docs. There is another thread somewhere where I mentioned doing this as well.



[glohworm]

I must be in the middle of a brain cramp here! Hoping you can still send me the link.



[Barracuda340]

Any guess if these manuals will eventually be sold in paper form. I do not have desktop at home.



[Darnon]

Only thing I'd be interested in is the wiring diagram for the factory tow package. Would like to know where the accessory feed pin (#4) comes from (EC fuse #48) and how the Alternator/BMS handles it. Mine from the factory supplies 6-7 amps for charging my camper batteries when towing.

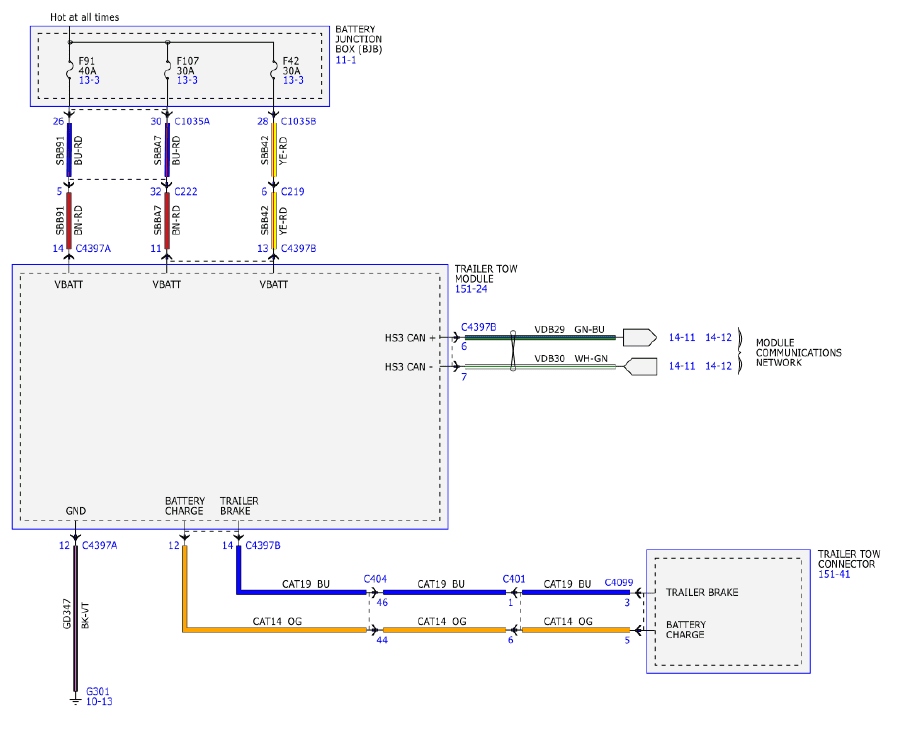

Passes through the Trailer Tow Module which is probably regulating it. The fuse is F107 here since for some reason the fuse numbers on the truck have no sensible correlation to those in the circuit diagrams.



[SLJ]

Passes through the Trailer Tow Module which is probably regulating it. The fuse is F107 here since for some reason the fuse numbers on the truck have no sensible correlation to those in the circuit diagrams.

Thanks!

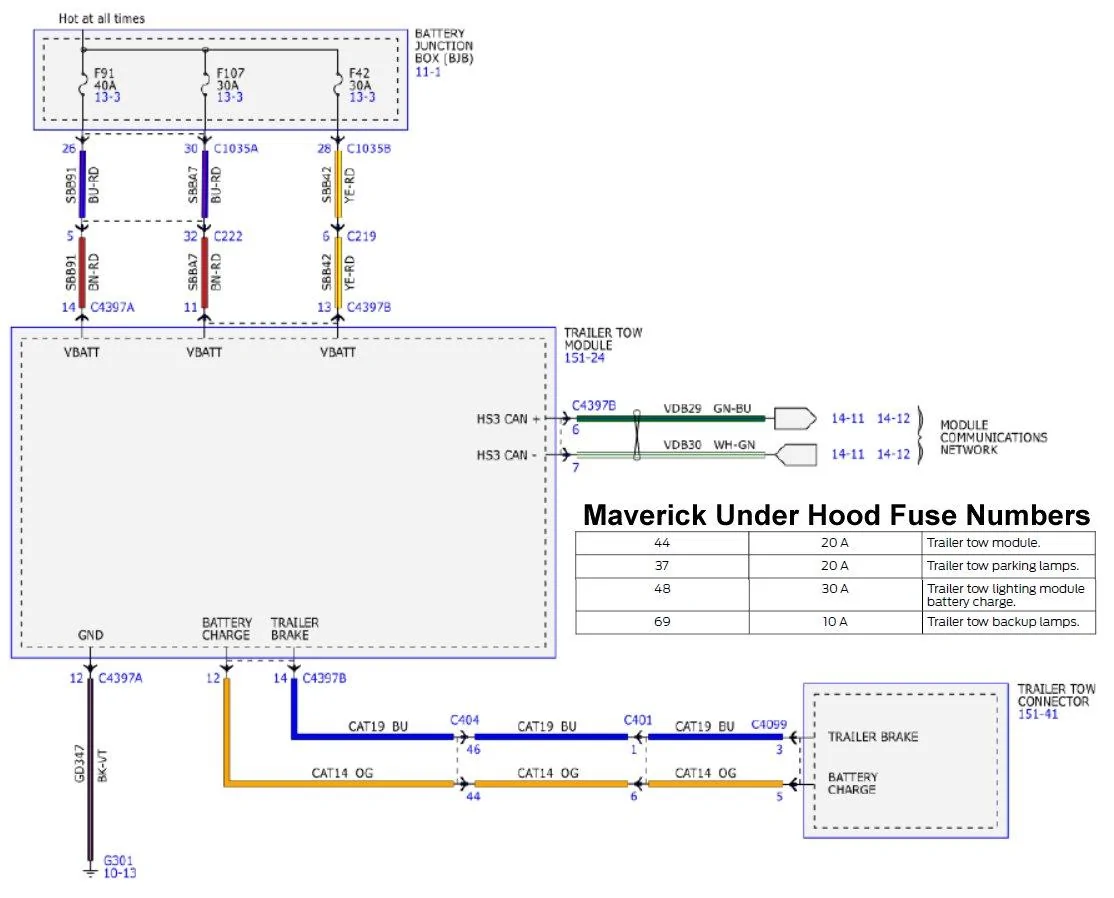

Surprised the diagram doesn't show a fuse on the trailer connector battery charge connection line. Most likely the other fuse numbers don't match because Ford does a lot of cut and paste from their old manuals and data without checking. Here's the diagram with fuse numbers from my 2023 Maverick owners manual added.



[Darnon]

Thanks!
Surprised the diagram doesn't show a fuse on the trailer connector battery charge connection line. Most likely the other fuse numbers don't match because Ford does a lot of cut and paste from their old manuals and data without checking. Here's the diagram with fuse numbers from my 2023 Maverick owners manual added.

A lot of the circuits aren't "fused" in that the module that controls them will just shut them down if it detects an overcurrent/out-of-range condition. Most of the exterior lighting is that way being run through the BCM (the hi-beams use a more direct relay circuit, possibly as a sort of backup). It's not so much as that the fuse numbers are incorrect it's just there's an extra step of having to compare fuse position/fuse number.



[SLJ]

A lot of the circuits aren't "fused" in that the module that controls them will just shut them down if it detects an overcurrent/out-of-range condition. Most of the exterior lighting is that way being run through the BCM (the hi-beams use a more direct relay circuit, possibly as a sort of backup). It's not so much as that the fuse numbers are incorrect it's just there's an extra step of having to compare fuse position/fuse number.

True but after fuse 59 everything is off by a number so is it the position or the actual manual fuse number... Guess pulling them to test is the only real way to know since the owners manual doesn't match.

I will have to check to see which one the actual fuse box matches.



[SLJ]

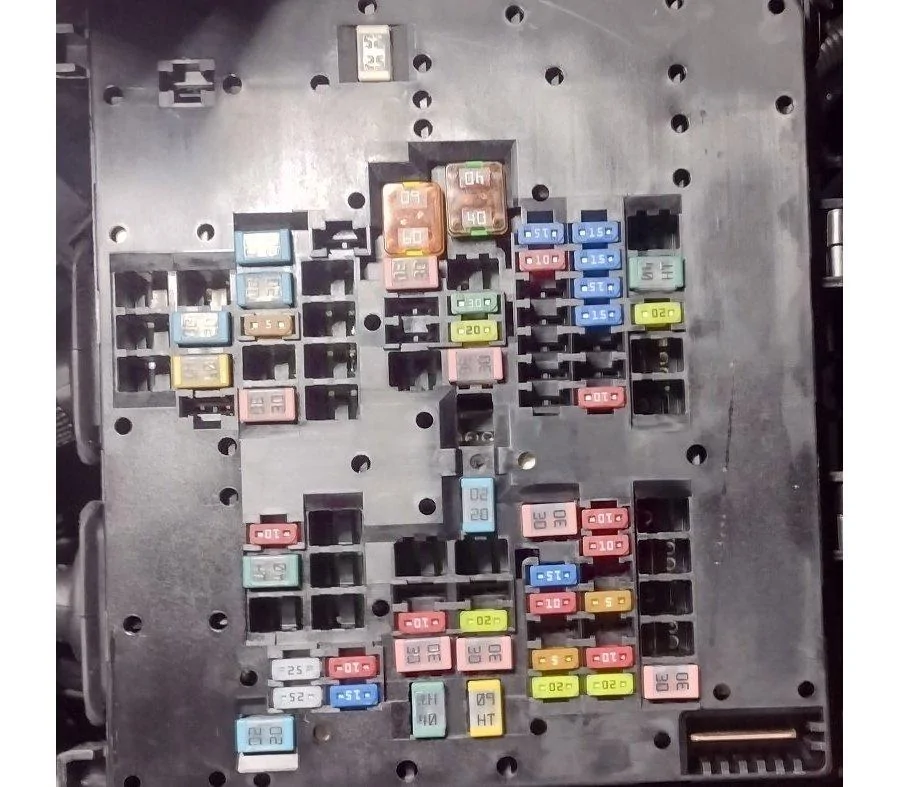

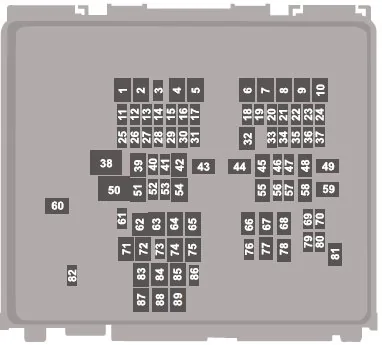

The box isn't marked. The fuse number values in the owners manual diagram match the fuse values so it appears the service manual fuse numbers are either incorrect or it calls out different numbers for those positions. Doesn't seem likely it would be that way but you never know.

This thing is a real PIA to get to and open. Don't like having to flex those multiconductor cables to flip the box over to get to the fuses.



[Darnon]

The fuse number values in the owners manual diagram match the fuse box so it appears the service manual fuse numbers are incorrect or is there another fuse cross reference I'm missing?

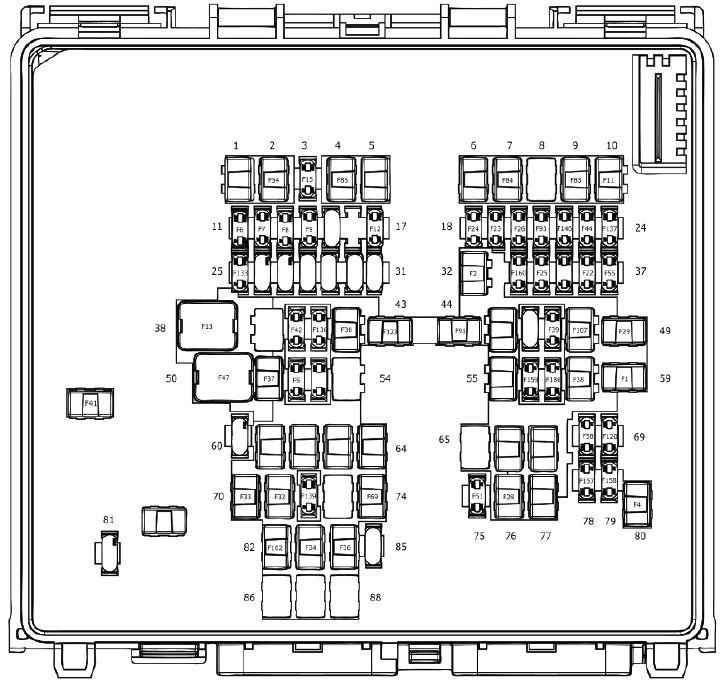

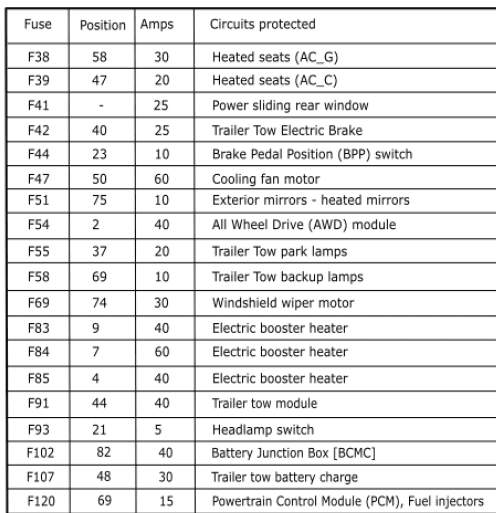

I'm mostly referring to the numbers in the boxes. So for instance the Trailer Tow Module is position 48 but considered Fuse 107 when it's referenced in wiring diagrams. But, yeah, because the service manual diagram skips the Power Window -Fuse 60 per Owner's Manual- the service manual's numbering (at least in the Ford version I have) diverges. For extra weirdness both F120 and F58 allegedly occupying position 69 (nice).



[subiefiles]

If someone just uses ImgBurn to create an ISO of the disc, that's all we'd need



[djSL]

Could someone with the FSM provide the factory torque spec for the driver side front axle nut on the EB 2.0?

I'm replacing the CV



[skinnyboy]

Could someone with the FSM provide the factory torque spec for the driver side front axle nut on the EB 2.0?

I'm replacing the CV

https://cardiagn.com/2022-ford-maverick-service-repair-manual-direct-zip/

Cheers.



[djSL]

Thank you!



[Hardening2753]

Thank you!

Was it a virus?
