Hi my fellow Oregonian. Have you considered a clear ceramic tint on your windshield? I highly recommend Highline Customs near Columbia on Science Park Drive.
Finally got some uninterrupted free time to start making things for the Blue Lady.

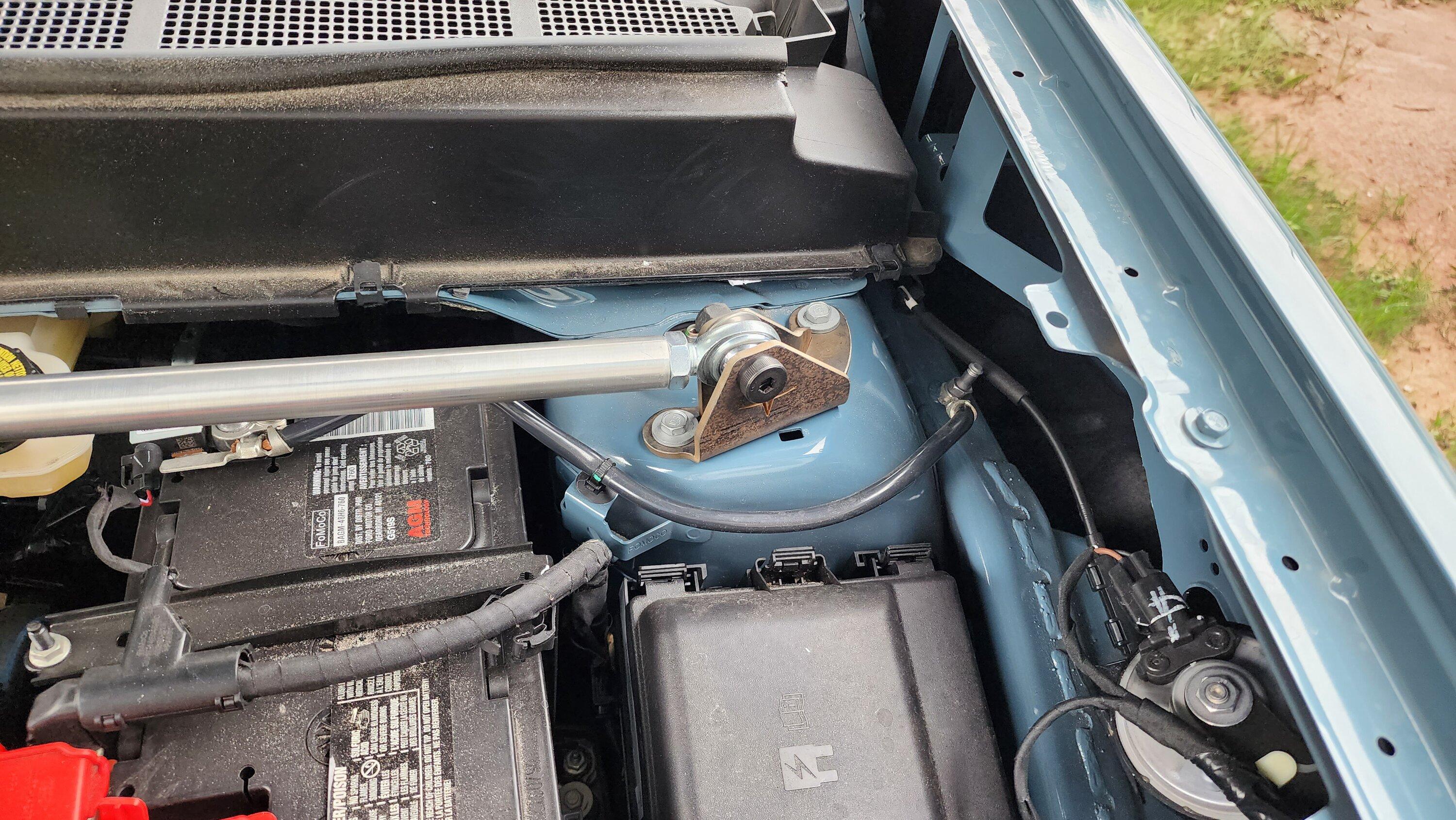

First up a Front Strut Tower Brace. Had a free day last Tuesday thanks to the Hurricane and did my initial CAD drawing for the brace. Got parts ordered and drawings ready. Today I made my first prototype based on my drawings; first one didn't quite clear my CAI. Probably would have been fine if it was stock, so made a few adjustments.

I'm happy with my results but will make a small change for the set I'm sending to powder coating. Bracket material is 3/16" A656 GR 80, preheated and post heated for welding. Bar is 1" Dia, 1/4" wall 6061-T6. Heims are 5/8" -18 with 5/8 shoulder bolts.

Definitely made a difference as I get a bit more steering/road feedback.


interested if you are selling/fabricating


Sponsored

OP
OP

Ottocycle

2.0L EcoBoost
Well-known member
Joined
Sep 21, 2022
Threads
8
Messages
184
Reaction score
332
Location
Baja Georgia
Vehicle(s)
23' RS6 Avant, 14' CTS-V Wagon, 87' BMW 535is
Engine
2.0L EcoBoost
Clubs

I like they way you mount this vs the redneck version which seems to me to be too light.
I think at this point the M8 bolts that hold the bracket to the shock tower are the weakest link and those are grade 10 bolts. The other key is being able to pre load everything.


SkeeterB

2.0L EcoBoost
Well-known member
First Name
Bill
Joined
Nov 26, 2021
Threads
7
Messages
857
Reaction score
1,175
Location
The Woodlands, TX
Vehicle(s)
Maverick Lariat Lux, 4K, FX4, 360, Velocity Blue
Engine
2.0L EcoBoost
What I don't like is the redneck spacer and the way the load is cantilevered. You have it right.

Sponsored

Breathe2112

2.5L Hybrid
Member
First Name
Gayle
Joined
Aug 11, 2023
Threads
0
Messages
22
Reaction score
22
Location
San Diego
Vehicle(s)
23 XLT Hybrid, BAP, Carbonized Gray
Engine
2.5L Hybrid
Clubs

I would absolutely be interested in purchasing one of these as well! Really clean work


Rileyotta

2.0L EcoBoost
Well-known member
First Name
Riley
Joined
May 17, 2022
Threads
2
Messages
190
Reaction score
79
Location
Edmonton
Vehicle(s)
Waiting for Maverick, driving 2013 Kia Sorento
Engine
2.0L EcoBoost
Clubs

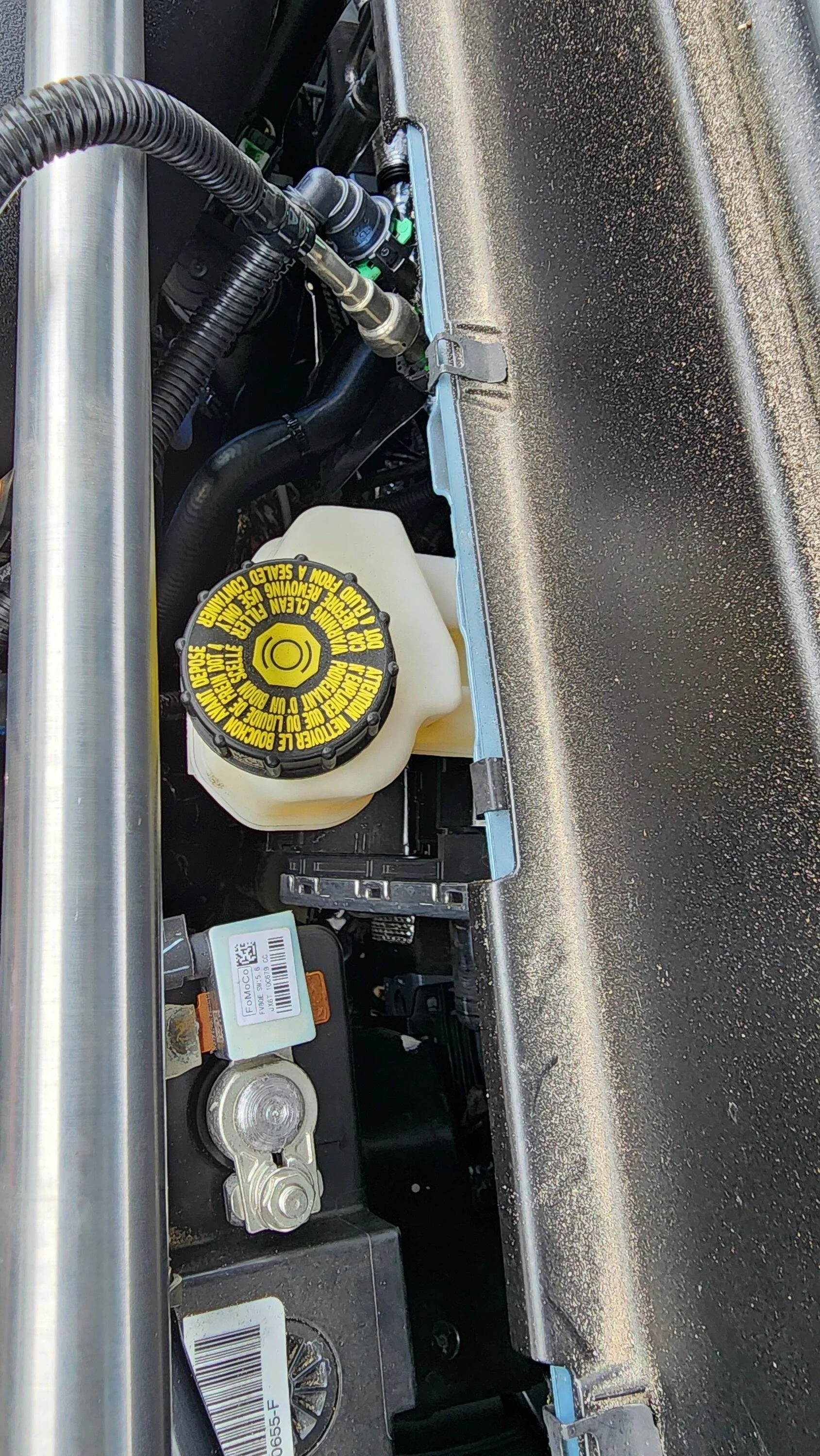

No issues with brake fluid fill. Let me get the final revision of my brackets made and I'll get a cost together on what these would run
What are the benefits of a strut tower brace?


Aherpa

2.5L Hybrid
Well-known member
Joined
Nov 17, 2021
Threads
34
Messages
703
Reaction score
838
Location
Iowa
Vehicle(s)
Edge, Maverick Lariat Hybrid
Engine
2.5L Hybrid
Finally got some uninterrupted free time to start making things for the Blue Lady.

First up a Front Strut Tower Brace. Had a free day last Tuesday thanks to the Hurricane and did my initial CAD drawing for the brace. Got parts ordered and drawings ready. Today I made my first prototype based on my drawings; first one didn't quite clear my CAI. Probably would have been fine if it was stock, so made a few adjustments.

I'm happy with my results but will make a small change for the set I'm sending to powder coating. Bracket material is 3/16" A656 GR 80, preheated and post heated for welding. Bar is 1" Dia, 1/4" wall 6061-T6. Heims are 5/8" -18 with 5/8 shoulder bolts.

Definitely made a difference as I get a bit more steering/road feedback.


Nice work. I particularly like the Maverick stamped into the bracket upright.
