Center Console Ambient Lighting install in my 2023 Lariat Maverick -- DIY how-to

[mikeymaverick]

Since the 2023 Mavericks don’t come with center console lighting, I added it in myself using OEM parts. Here is how I did it.

I bought Ford part number:
NZ6Z-14A318-A
Total cost was around $42.

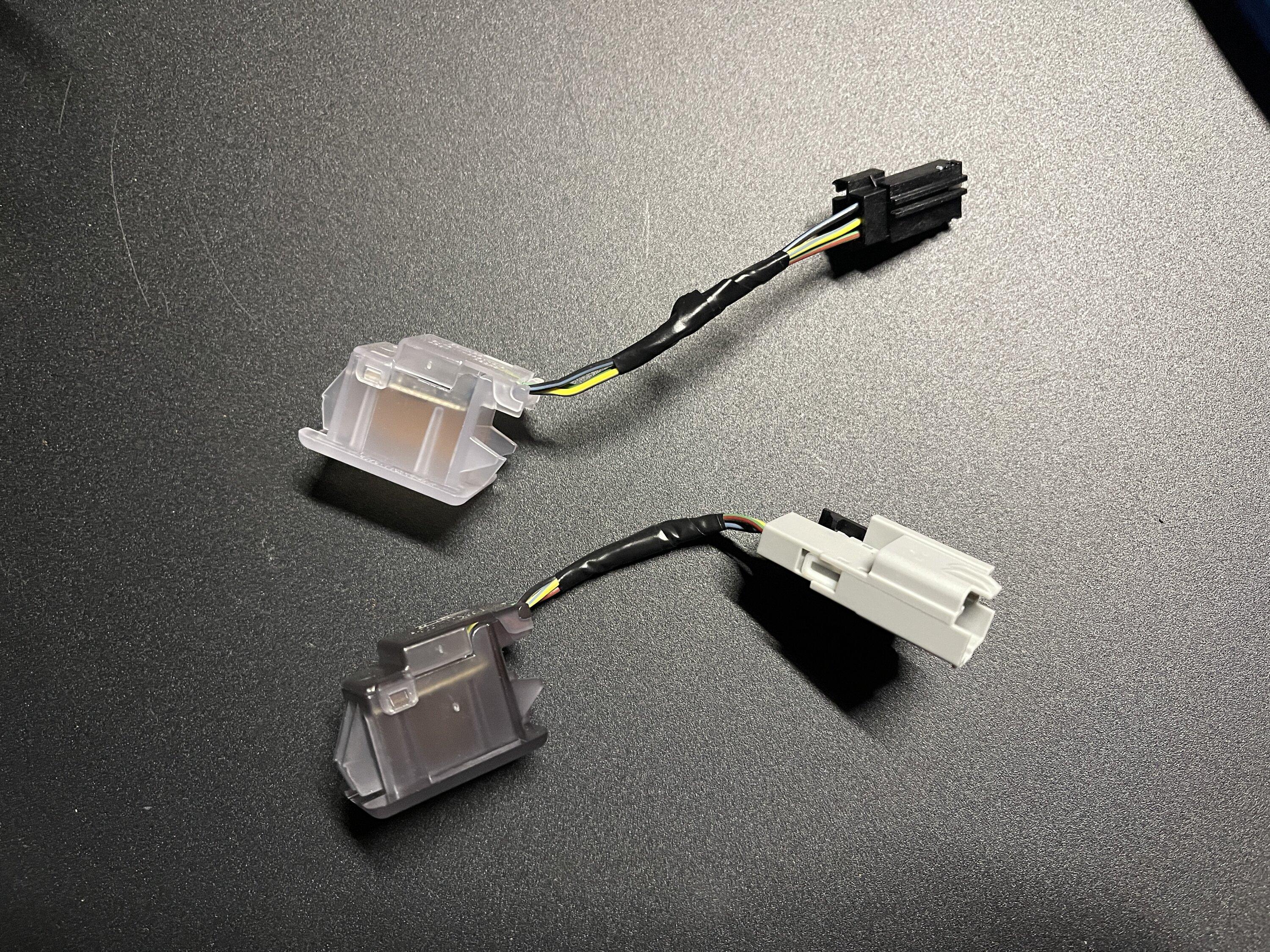

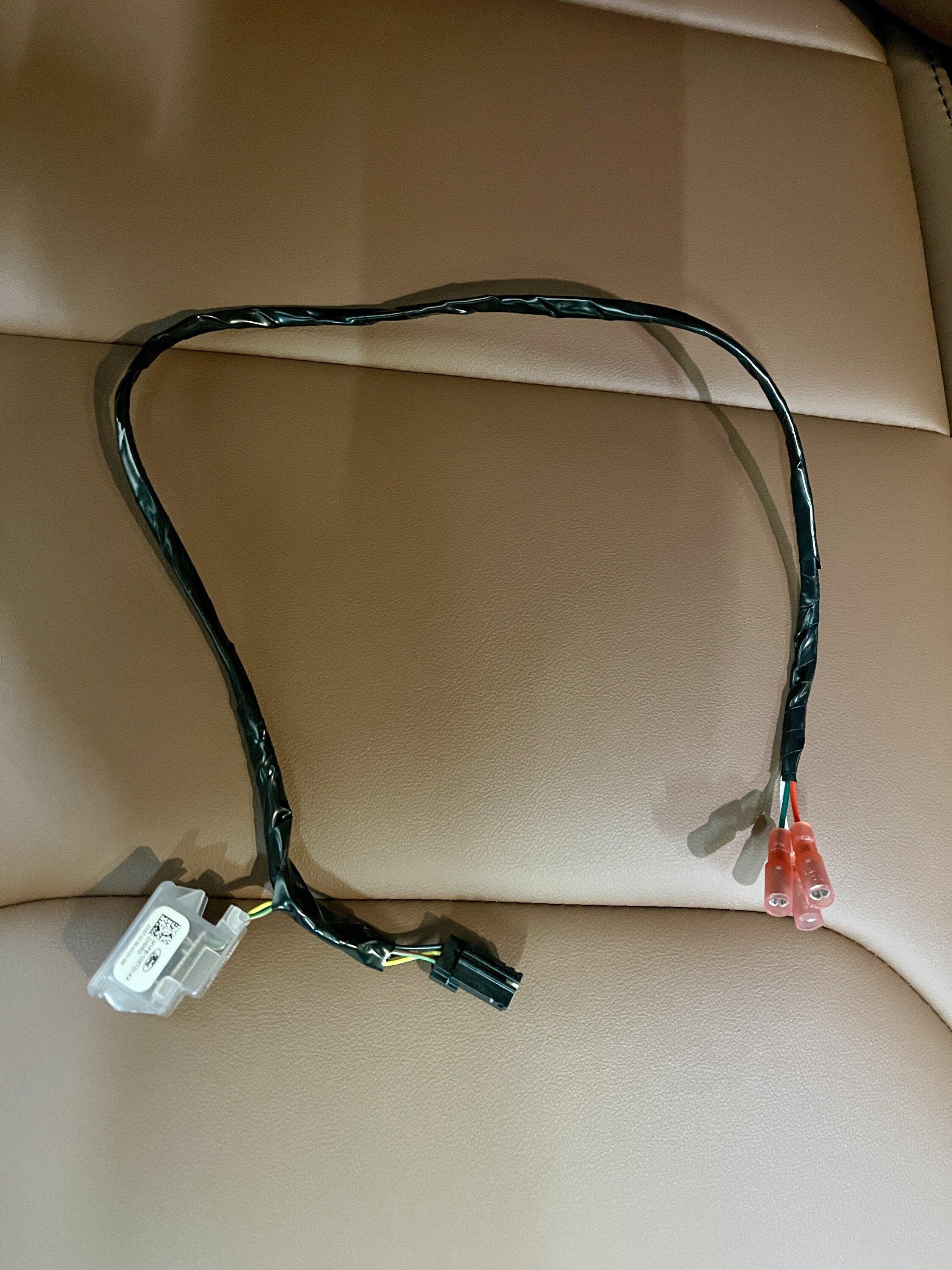

The top light is the one I removed from the passenger foot well which I later spliced into for power/signal. The bottom one is the center console light that’s tinted because of its closer proximity to the storage area.

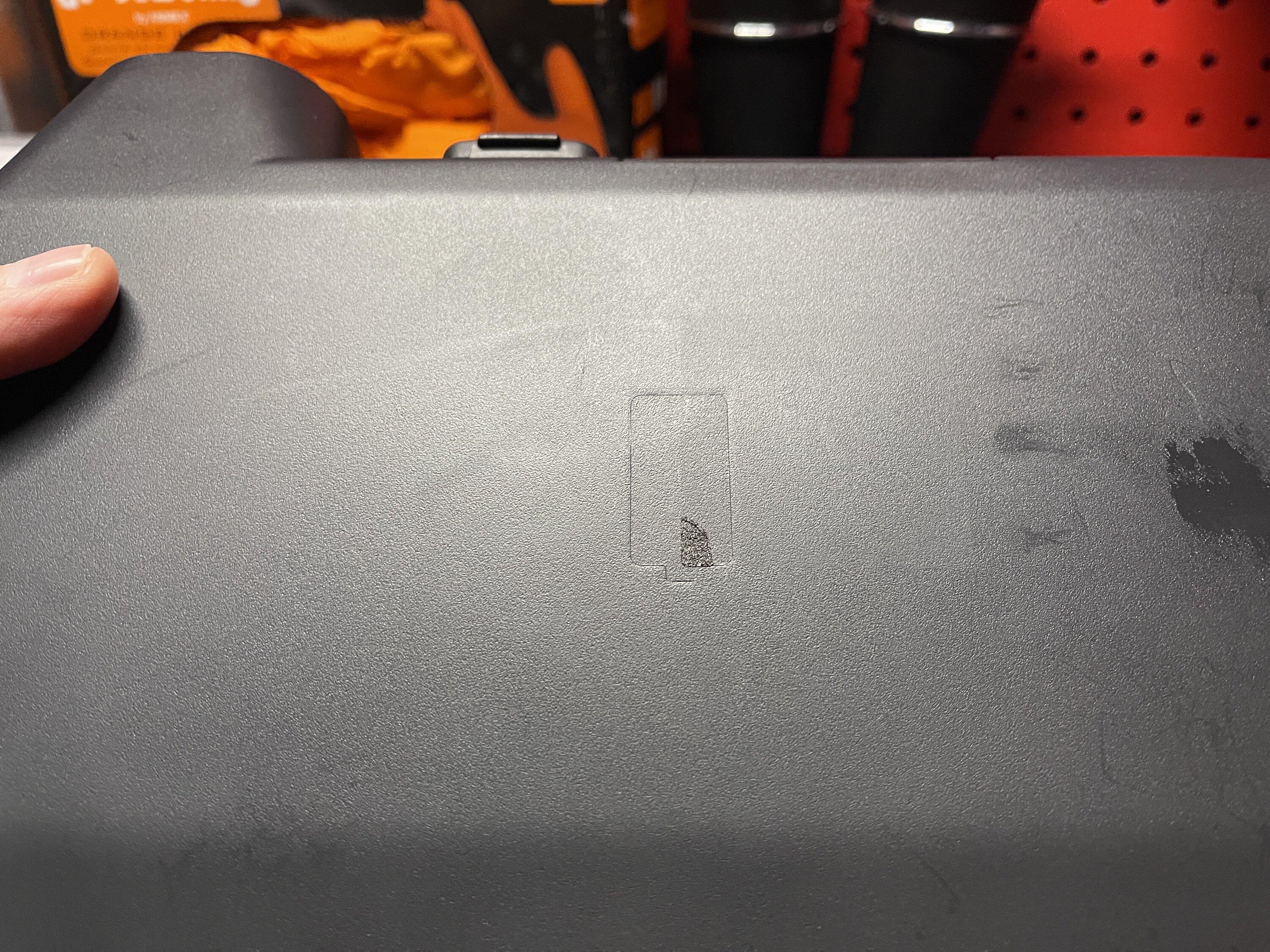

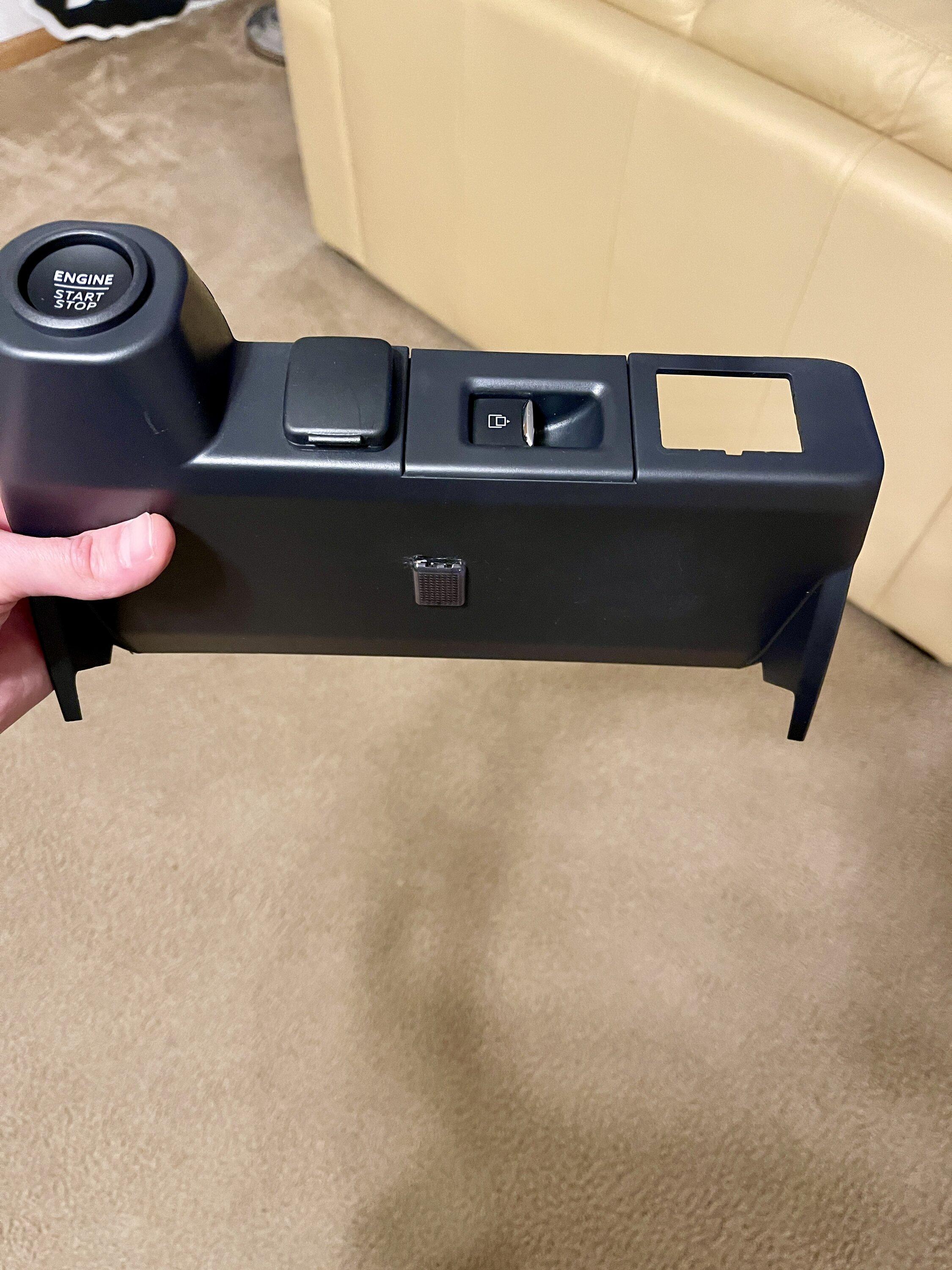

To remove this part, grab it from the sides and underneath, and pull towards the rear of the vehicle. When looking on the bottom side, you can see where the light would have been mounted. Pro tip, when cutting this out with a utility knife, cut a decent ways inside the outline. What you can see is noticeably larger than the actual light. I ended up having to superglue a small piece back in so the light would stay in place. Cut a smaller hole and slowly workout to the appropriate size.

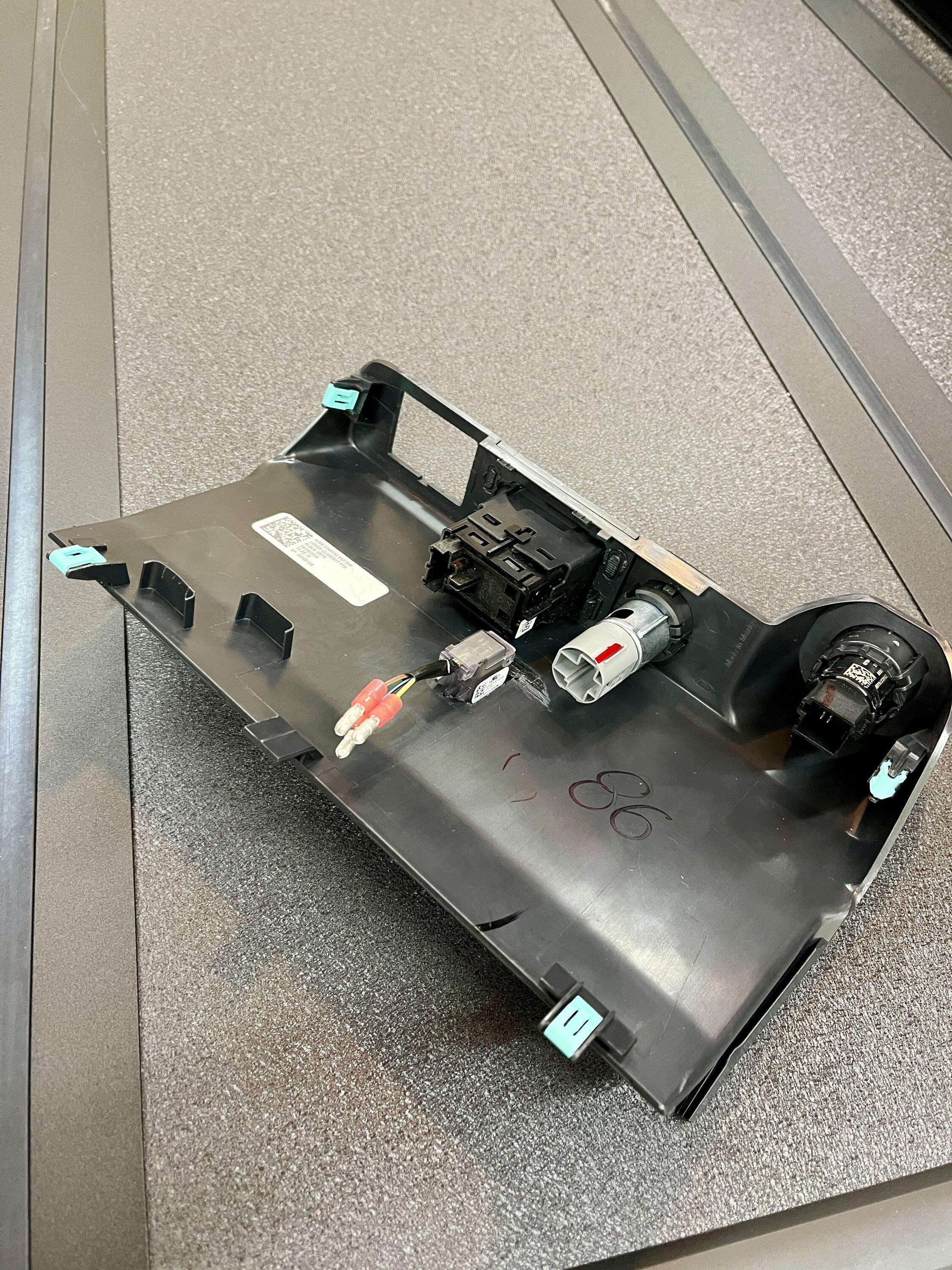

Here is the light mounted with the bullet connectors crimped on. You must use these (or some other type of connector) so this can be removed in the future.

I then cut the original wires for the passenger foot well and spliced in some wires to power the new light in my center console. I soldered and shrink wrapped everything for a secure and reliable connection. These are very thin wires and you must have a lot of patience.

Here is the light mounted. All that is left to do is plug everything back in.

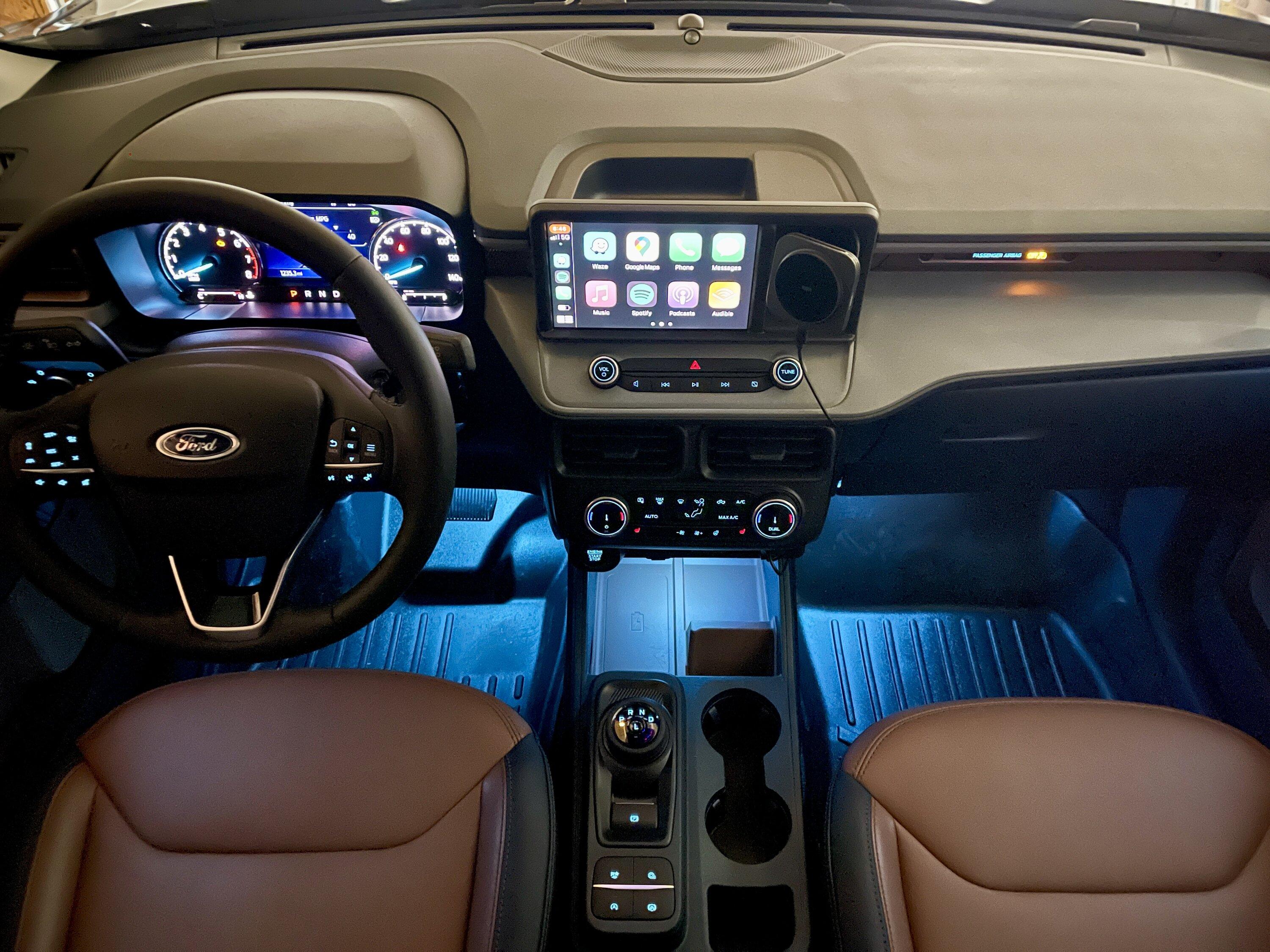

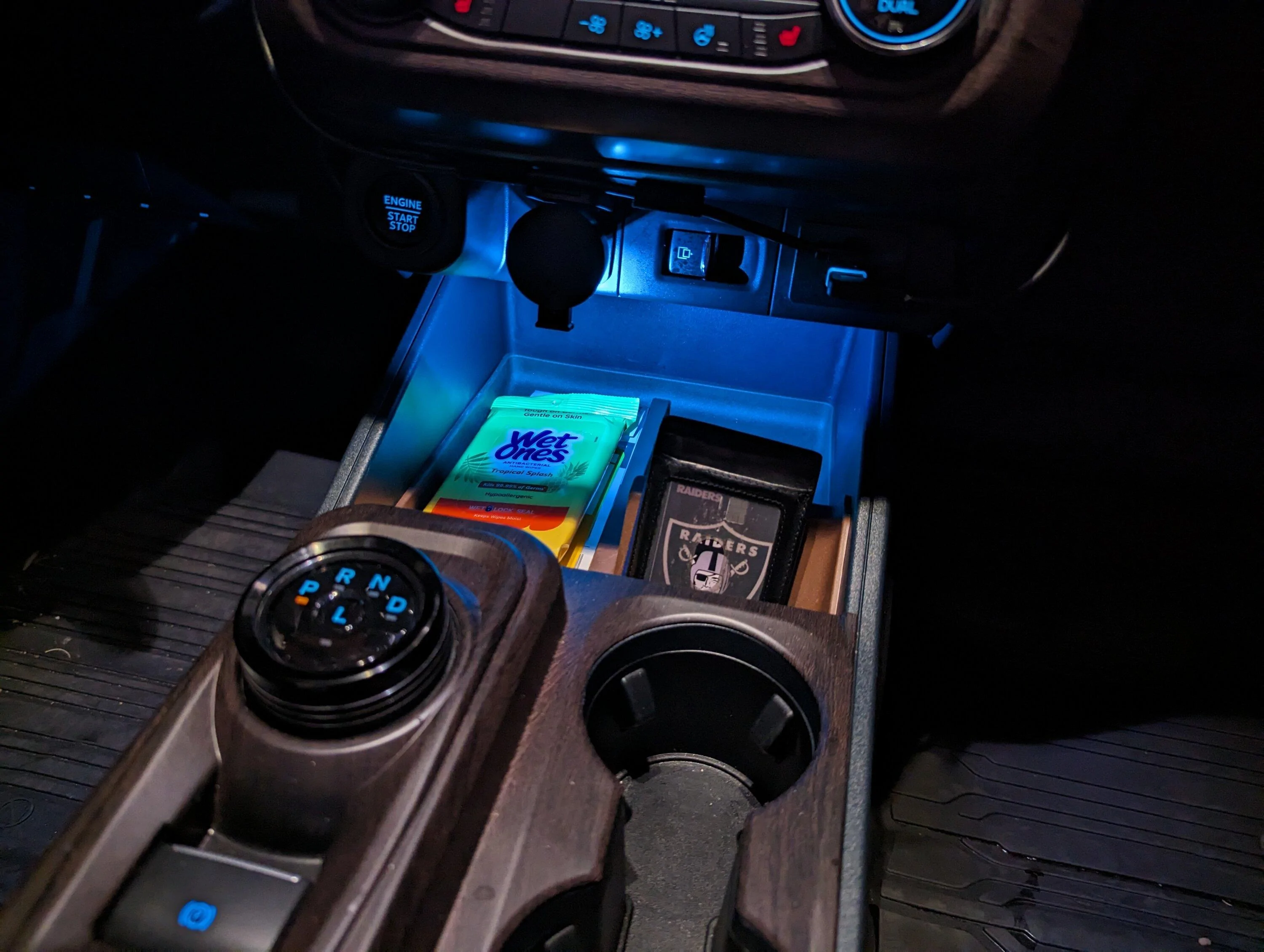

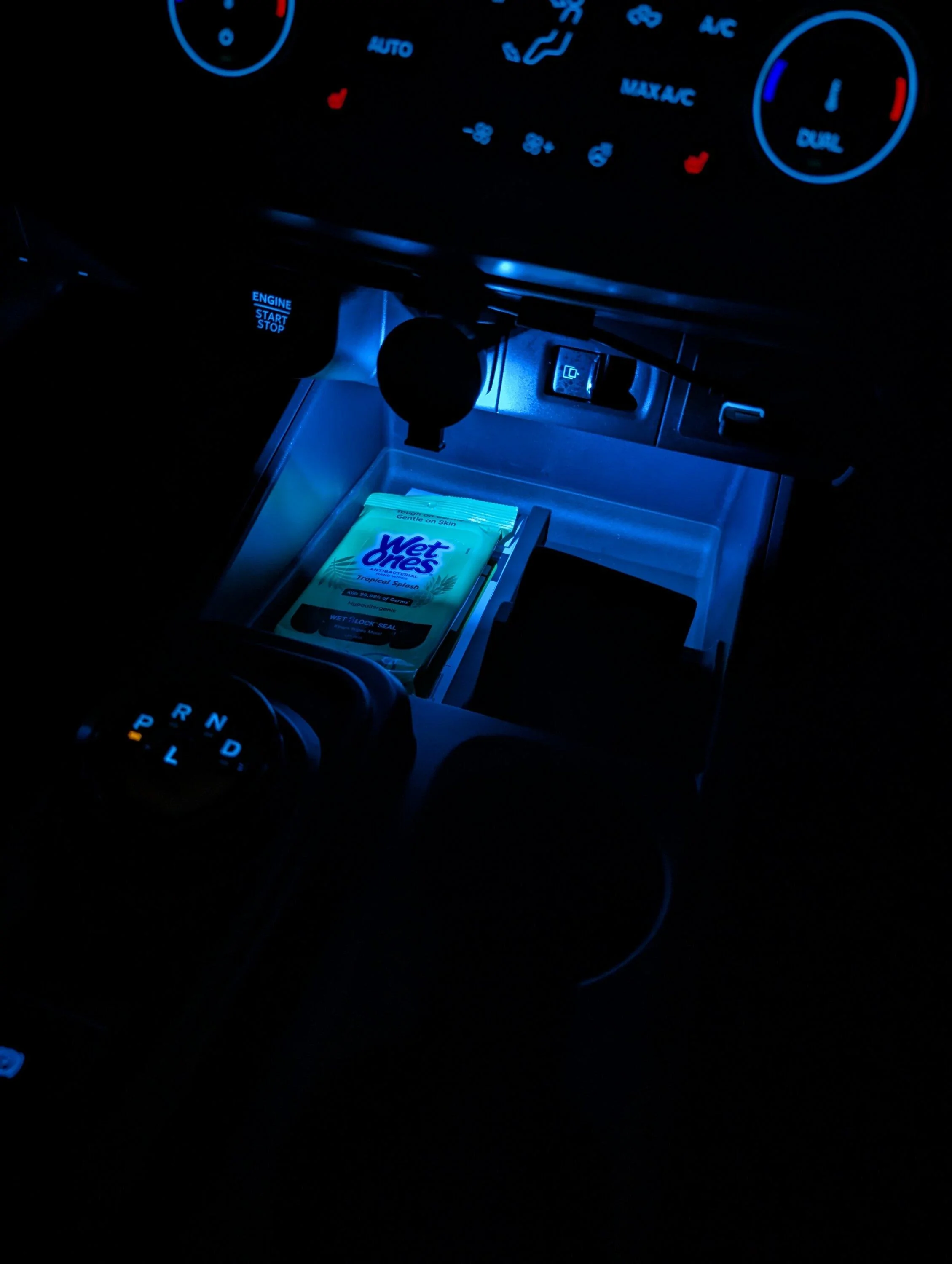

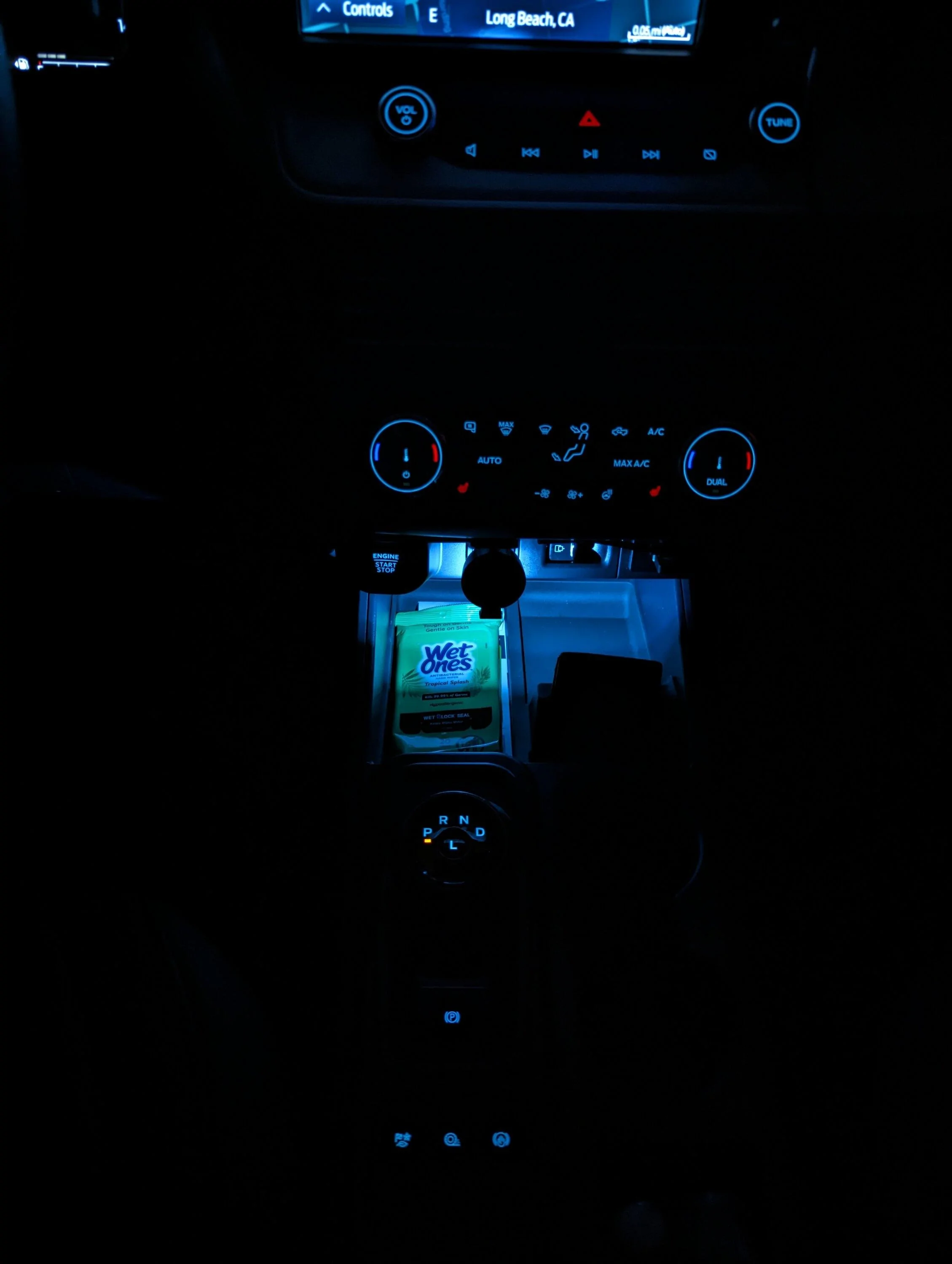

The final result was a perfect color match that worked as expected. It even got brighter and dimmer with the other lights as I adjusted them. Hope this helps.
