Swap to Lithium ion 12v battery.

fbov

Well-known member
First Name
Frank
Joined
Jun 28, 2021
Threads
0
Messages
452
Reaction score
490
Location
Bushnell's Basin
Vehicle(s)
2020 Escape Hybrid
When I see these threads, I always wonder what folks are thinking. Cars (in the US) are 12v negative ground electrical systems. How does the drivetrain change that?
Sponsored



huunvubu

2.5L Hybrid
Well-known member
First Name
Steve
Joined
Jul 21, 2021
Threads
52
Messages
2,559
Reaction score
4,330
Location
coppell tx
Vehicle(s)
2023 Ford Maverick Hybrid
Engine
2.5L Hybrid

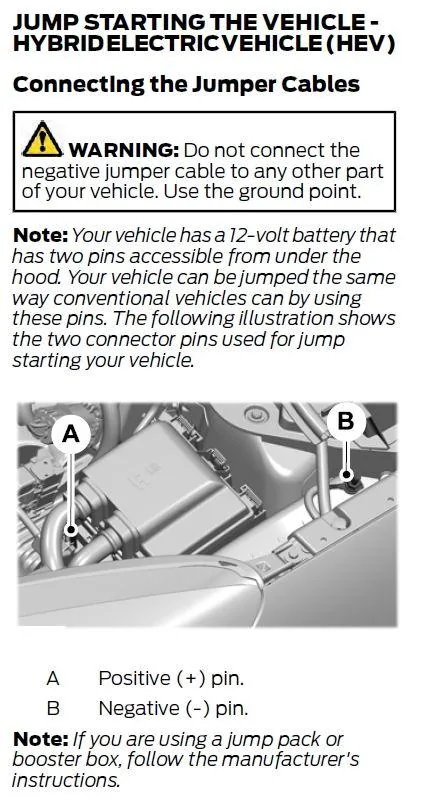

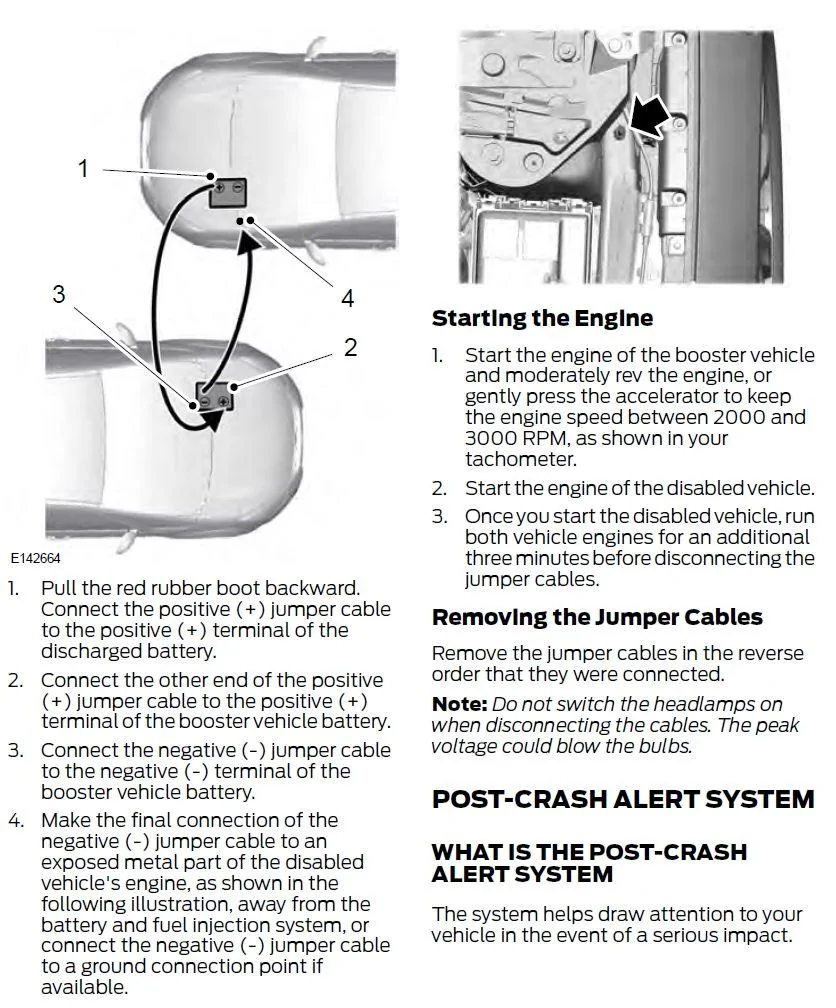

How to Jump Start a Maverick Hybrid:

Ford Maverick Swap to Lithium ion 12v battery. Jump #1.JPG


Ford Maverick Swap to Lithium ion 12v battery. Jump #2.JPG


inthecabin

2.5L Hybrid
Well-known member
First Name
Andy
Joined
Sep 27, 2021
Threads
19
Messages
612
Reaction score
765
Location
California
Vehicle(s)
2021 Ranger Lariat FX4
Engine
2.5L Hybrid
Clubs

Well for one you’re probably talking about a lithium iron not ion battery. Big difference, I put them in my motorcycles, not cheap..
The real issue is charging voltage, a battery tender will not keep them charged, they are technically 12.5 volt batteries but need at least 14.2 volts to charge/maintain a charge.. unlike a lead acid.
So it really depends on the charging circuit regulation of the vehicle.

just my .02 worth…


Fred

Well-known member
Joined
Jul 13, 2021
Threads
2
Messages
92
Reaction score
79
Location
IL
Vehicle(s)
Ford Escape
Mostly the slight possibility of a dead 12v battery from parasitic drain common in hybrids. I'm betting the truck comes with a small lawn mower battery lol. Need more capacity for accessories, airport long term parking, etc.

Also, might put lithium ion pack under the truck to free up the under seat storage.
It’s a pickup truck, if you are so concerned about the battery...carry a spare in the bed. 🤷🏻‍♂️


Bbot

Well-known member
First Name
Rob
Joined
Jun 8, 2021
Threads
2
Messages
186
Reaction score
180
Location
Florida
Vehicle(s)
Escape SEL
I am confused……Explain to me why people purchase a low cost truck and then add Expenive Wheels, Tires, Lift kits, etc and then with all these modifications expect to get Maximum mileage and Ford to cover these under the warranty ! A $20000 truck and you want to buy a $1400 battery?


Sponsored

StillWaiting

2.5L Hybrid
Well-known member
First Name
Brandyn
Joined
Sep 29, 2021
Threads
13
Messages
610
Reaction score
857
Location
St pete
Vehicle(s)
2009 Dodge Challenger SRT8
Engine
2.5L Hybrid
I am confused……Explain to me why people purchase a low cost truck and then add Expenive Wheels, Tires, Lift kits, etc and then with all these modifications expect to get Maximum mileage and Ford to cover these under the warranty ! A $20000 truck and you want to buy a $1400 battery?
Cheapest option. We are going to customize it anyways so why get the upgrades that won’t matter


Bmr4mav

2.5L Hybrid
Well-known member
First Name
Brandon
Joined
Oct 23, 2021
Threads
10
Messages
302
Reaction score
257
Location
Atlanta
Vehicle(s)
Lariat Lux Hybrid 23
Engine
2.5L Hybrid
Funny how no one has mentioned that the 12v battery in hybrids tend to last far longer due to less strain.​
You've ignored that the 12v battery doesn't start the engine.​
Then on top of that it's not charged by an old school engine rpm dependent alternator. It is charged by a dc to dc inverter capable of constant voltage adjustable current charging which also leads to a less stressful life for the 12v battery. That same inverter is what powers the accessories most of the time.​
In summary worrying about the 12v battery is a waste of brain cells.​

Last edited:

inthecabin

2.5L Hybrid
Well-known member
First Name
Andy
Joined
Sep 27, 2021
Threads
19
Messages
612
Reaction score
765
Location
California
Vehicle(s)
2021 Ranger Lariat FX4
Engine
2.5L Hybrid
Clubs

Funny how no one has mentioned that the 12v battery in hybrids tend to last far longer due to less strain.​
You've ignored that the 12v battery doesn't start the engine.​
Then on top of that it's not charged by an old school engine rpm dependent alternator. It is charged by a dc to dc inverter capable of constant voltage adjustable current charging which also leads to a less stressful life for the 12v battery. That same inverter is what powers the accessories most of the time.​
In summary worrying about the 12v battery is a waste of brain cells.​
😂 so I guess thinking kills brain cells, if so then I must be a complete idiot… oh wait you may have a point but I don’t recognize it… Where was I going with this? Never mind…


Bmr4mav

2.5L Hybrid
Well-known member
First Name
Brandon
Joined
Oct 23, 2021
Threads
10
Messages
302
Reaction score
257
Location
Atlanta
Vehicle(s)
Lariat Lux Hybrid 23
Engine
2.5L Hybrid
😂 so I guess thinking kills brain cells, if so then I must be a complete idiot… oh wait you may have a point but I don’t recognize it… Where was I going with this? Never mind…
😆 I didn't say kill. It's a waste of using them. Go to bed.


OXHB619

2.5L Hybrid
Well-known member
First Name
Clayton
Joined
Nov 6, 2021
Threads
5
Messages
725
Reaction score
856
Location
Texas
Vehicle(s)
XL EB 2.0
Engine
2.5L Hybrid
If you are worried about parasitic drain, just throw a jump pack under the seats. I just replaced my 4-5 year old Aukey one with one from Audew ( project farm recommendation). They are great to jump yourself, and nice when someone else needs a jump. My old one had less CCA then the new one I got, and I jumped multiple V8 trucks with it, always got a look of amazement. If you are unfamiliar, here is a the Project Farm video on them

( he also has a newer one with other brands, but the Audew has been pretty inexpensive lately).

Sponsored

Tuckinnuts

Member
First Name
Zach
Joined
Dec 19, 2021
Threads
0
Messages
10
Reaction score
6
Location
Usa
Vehicle(s)
Maverick
Will be installing big lithium in mine yinlongs 120+ah when get for car audio. Do not put lithium in bay will f it up.
also will need to either put a disto block or extend wires for the bms sensor. That sensor will cause bunch of issues


MakinDoForNow

2.5L Hybrid
Well-known member
First Name
James
Joined
Sep 24, 2021
Threads
1
Messages
4,829
Reaction score
3,121
Location
Texas
Vehicle(s)
2022 Maverick
Engine
2.5L Hybrid
😂 so I guess thinking kills brain cells, if so then I must be a complete idiot… oh wait you may have a point but I don’t recognize it… Where was I going with this? Never mind…
OR MAYBE you just spent all last winter in Alaska snowed "in the cabin"🤔🤗


Mikknj

2.5L Hybrid
Well-known member
First Name
Mikk
Joined
Sep 4, 2021
Threads
5
Messages
476
Reaction score
452
Location
New Jersey
Vehicle(s)
Maverick XLT Luxury CO360
Engine
2.5L Hybrid
Why would you want a LiON 12V? I can understand wanting an AGM battery or even a deep cycle marine battery but LiON batteries require near constant recalibration (which is why they are fine for the HVB) but you want something solid for the 12v system. You want something that can deep discharge and come back fast
You also have to have a proper temperature environment for recharging Li
Or a BMS monitoring all ( the cabin is not suitable to mange temperatures when the sun is beating down and it's 110 degrees )


sanpablo

2.5L Hybrid
Well-known member
First Name
Rich
Joined
Oct 11, 2021
Threads
3
Messages
281
Reaction score
295
Location
Long Island, NY
Vehicle(s)
1967 Shelby GT500, 1999 Ford Windstar
Engine
2.5L Hybrid
Not if the battery you get is the correct specs. If that were the case than anyone who bought a batt from an auto store would void the warranty. Ford will release what size batt for it and then you will pick between budget and high dollar. One thing I do not recommend cheaping out on is a battery....well that and oil
And don't cheap out on tires also :)


STARCOMMTREY1

2.5L Hybrid
Well-known member
First Name
Trey
Joined
Aug 6, 2021
Threads
77
Messages
2,421
Reaction score
6,539
Location
Boligee, AL
Vehicle(s)
F350, Ultra Classic, Versa Note and soon to be Mav
Engine
2.5L Hybrid
