To swap your left turn signal stalk

Part needed
Left turn signal stalk
LB5Z-13341-BA

Tools needed
10mm socket
7mm socket
T8 torx bit
drivers and wrenches for sockets and bits

Step 1
Use the the 10mm socket to disconnect the negative battery cable under the hood.

Step 2
Use the 7mm socket to remove 2 screws on the underside of the steering column housing.

Step 3
Remove rubber grommet that covers the outside of the ignition lock. Lower housing can be removed.

Step 4
You can leave the upper housing on just need to pull it up enough for full side access to the switch. Remove 2 torx screws using a T-8 torx bit. Pop out switch and replace.

Reassemble in reverse.

Switches



Sponsored



bdaniel230

2.0L EcoBoost
Well-known member
First Name
Daniel
Joined
Jan 21, 2022
Threads
1
Messages
364
Reaction score
205
Location
Middleton, Id
Vehicle(s)
2022 Ford Maverick XLT -Hot Chili Red - 4k Tow Fx4
Engine
2.0L EcoBoost
After a few tries at this, I am still unable to get the IPC code to write and stay. I can write after each name value pair change or I can write-all after changing them but none will stay. I have found I had been doing something wrong on the other registers and they will stay written, but the IPC is just not accepting changes. I get no errors when I make the changes and it shows 100% when I write them but they are the original values after I reopen them. And Yes, I am turning the key off waiting 5 seconds then turning the key back to on, not accessory but to the on position. So I am wondering if the change in the 2.3.48 beta will change this behavior.


skinnyboy

2.5L Hybrid
Well-known member
First Name
Andy
Joined
Jan 20, 2022
Threads
4
Messages
266
Reaction score
269
Location
Ontario, Canada
Vehicle(s)
Prius V
Engine
2.5L Hybrid
After a few tries at this, I am still unable to get the IPC code to write and stay. I can write after each name value pair change or I can write-all after changing them but none will stay. I have found I had been doing something wrong on the other registers and they will stay written, but the IPC is just not accepting changes. I get no errors when I make the changes and it shows 100% when I write them but they are the original values after I reopen them. And Yes, I am turning the key off waiting 5 seconds then turning the key back to on, not accessory but to the on position. So I am wondering if the change in the 2.3.48 beta will change this behavior.
The 2.3.48 beta was necessary for the hybrid, the Ecos were ok with the current build (at the time). Don't think it will address the issue you are having.

Cheers.

OP
OP

Maverick2022XL

2.0L EcoBoost
Well-known member
First Name
name
Joined
Jan 13, 2022
Threads
14
Messages
1,080
Reaction score
1,086
Location
hinterlands
Vehicle(s)
2022 Ford Maverick XL, AWD, 4K tow, 2.0L EcoBoost
Engine
2.0L EcoBoost
After a few tries at this, I am still unable to get the IPC code to write and stay. I can write after each name value pair change or I can write-all after changing them but none will stay. I have found I had been doing something wrong on the other registers and they will stay written, but the IPC is just not accepting changes. I get no errors when I make the changes and it shows 100% when I write them but they are the original values after I reopen them. And Yes, I am turning the key off waiting 5 seconds then turning the key back to on, not accessory but to the on position. So I am wondering if the change in the 2.3.48 beta will change this behavior.
If it won't write that could potentially be a forscan issue. You'll need to contact them and let them know which version and cable you are using for starters along with the nature of the problem. As long as you have a legit license they should get back to you.


bdaniel230

2.0L EcoBoost
Well-known member
First Name
Daniel
Joined
Jan 21, 2022
Threads
1
Messages
364
Reaction score
205
Location
Middleton, Id
Vehicle(s)
2022 Ford Maverick XLT -Hot Chili Red - 4k Tow Fx4
Engine
2.0L EcoBoost
If it won't write that could potentially be a forscan issue. You'll need to contact them and let them know which version and cable you are using for starters along with the nature of the problem. As long as you have a legit license they should get back to you.
Still have the email for the purchase so I guess I will contact them, but it will write some of the registers so I am wondering if somehow Ford has locked a portion of the programming. Could it be that my XLT options may be causing this? I have everything except the CoPilot 360 and Lariat packages I believe.
Also how do you get the As Built from Ford back in? Forscan will write a "profile" or ".profile" but it doesn't recognize the ".ab" when I try to select it.


Sponsored

FMLariatFX4

2.0L EcoBoost
Member
First Name
Alexis
Joined
May 15, 2022
Threads
0
Messages
5
Reaction score
1
Location
CHILE
Vehicle(s)
Ford Maverick Lariat FX4
Engine
2.0L EcoBoost
If it won't write that could potentially be a forscan issue. You'll need to contact them and let them know which version and cable you are using for starters along with the nature of the problem. As long as you have a legit license they should get back to you.

I have Left turn signal stalk LC5Z-13341-DA.
To swap your left turn signal stalk

Part needed
Left turn signal stalk
LB5Z-13341-BA

Tools needed
10mm socket
7mm socket
T8 torx bit
drivers and wrenches for sockets and bits

Step 1
Use the the 10mm socket to disconnect the negative battery cable under the hood.

Step 2
Use the 7mm socket to remove 2 screws on the underside of the steering column housing.

Step 3
Remove rubber grommet that covers the outside of the ignition lock. Lower housing can be removed.

Step 4
You can leave the upper housing on just need to pull it up enough for full side access to the switch. Remove 2 torx screws using a T-8 torx bit. Pop out switch and replace.

Reassemble in reverse.

Switches



Thank you for providing us with this valuable information.
I have Left turn signal stalk LC5Z-13341-DA. Do you think this variable works?

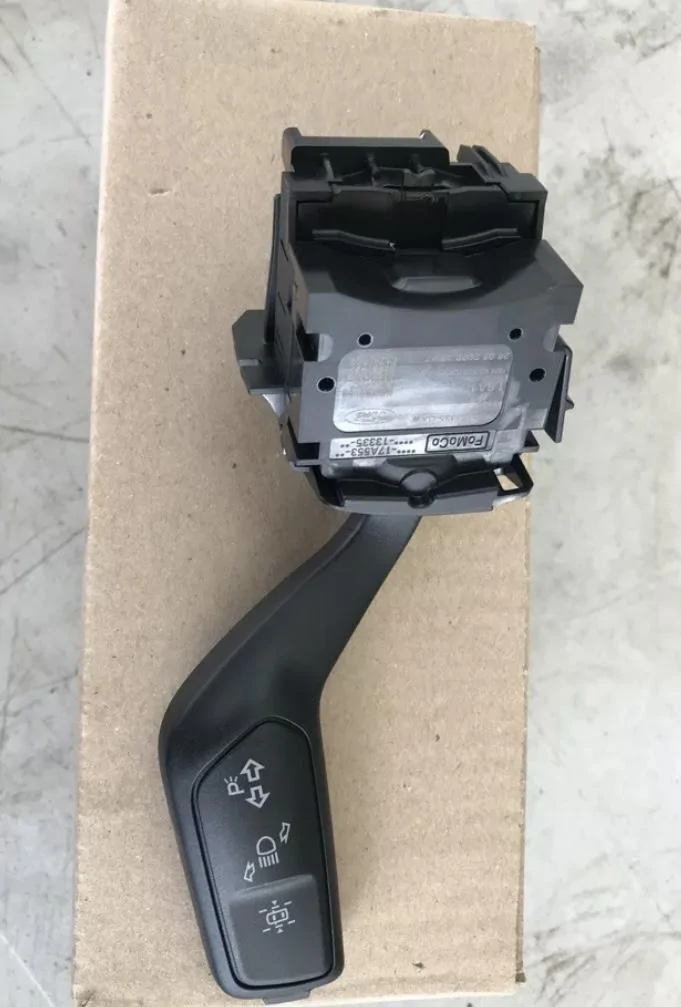

Ford Maverick Lane Keeping System retrofit install using FORScan (on all trims without Copilot 360) IMG_4029

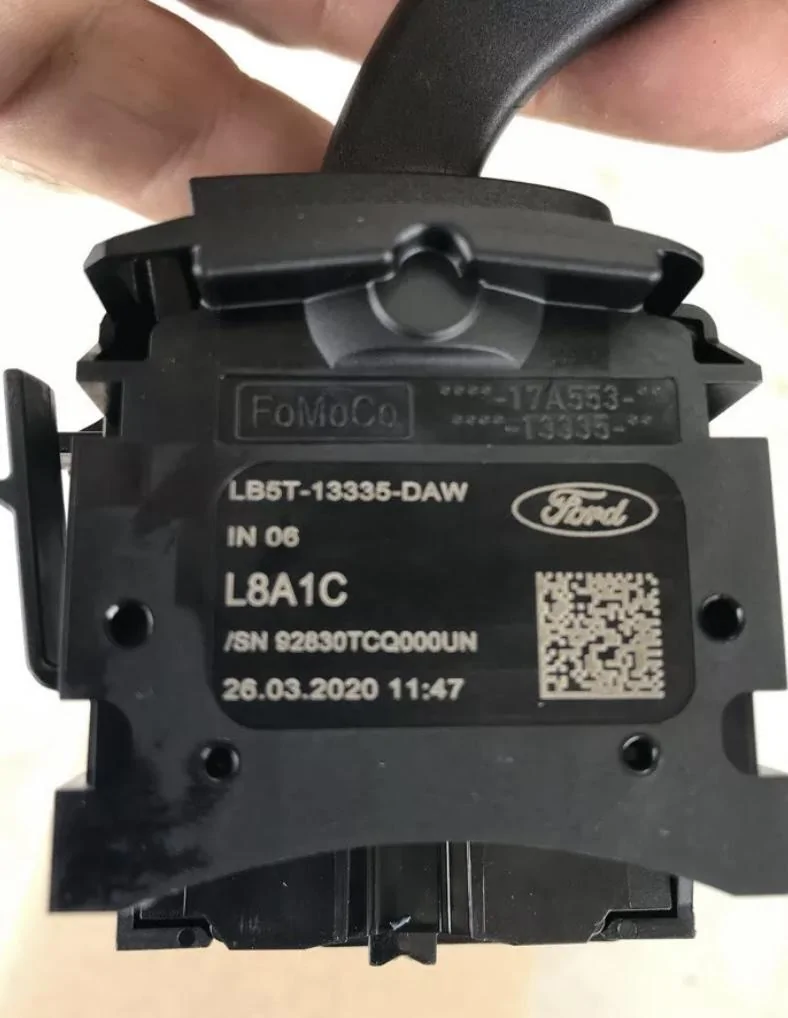

Ford Maverick Lane Keeping System retrofit install using FORScan (on all trims without Copilot 360) IMG_4030

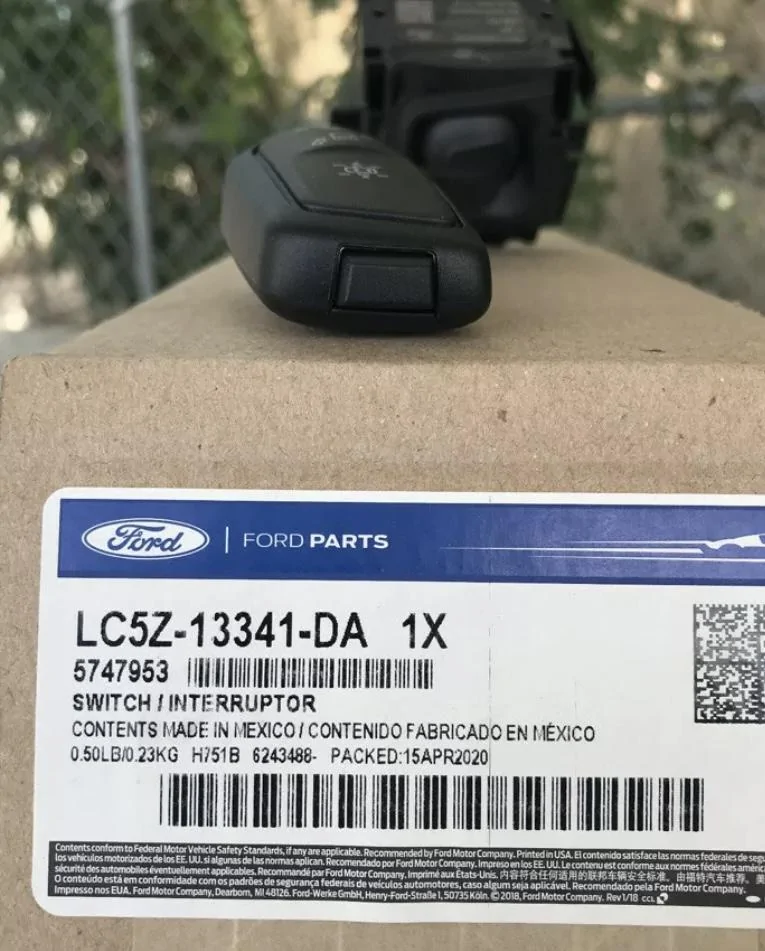

Ford Maverick Lane Keeping System retrofit install using FORScan (on all trims without Copilot 360) IMG_4028
