F-150 Fog Lamp Switch and Wire Harness Installed in Maverick - DIY

[Vtec87pr1]

If all those chips fall into place - I'll be patient zero!

I'll need to come up with something other than your F-150 fogs though as I"ll have the tow hooks with the Tremor but there is plenty of other plastic and spots to work with.

You dont have to use the fords f150 fogs i think they should all work fine even aftermarket. As long they are led and dont consume a lot of amps. The best part its that the bcm will actually be the relay and fuse. So you wont see a mess of wires on the engine bay .

Sponsored



[Tailender]

Don't know if I'd add them to mine but I do admire the work you've done!



[Havick]

That's a beauty of an install and a great write up! Thanks for sharing.



[Wilbur]

Antonio, this is an excellent write up. Thank you!



[Hardening2753]

If anyone have any question or would like me to make the wiring for you let me know i will gladly help.

For the wiring, are they connected in series? are pins 6 and 7 the power to L/R, if so where does the negative go? Just a little confused on the wiring



[Hardening2753]

Ford f150 Factory Fog Lamps and base. Year i think its from 16 to 2021

Thank you so much for posting I love this and I will definitely do it when I get the truck (if I ever get scheduled)



[Mabcim]

The best part its that the bcm will actually be the relay and fuse. So you wont see a mess of wires on the engine bay .

That certainly is awesome.



[Vtec87pr1]

For the wiring, are they connected in series? are pins 6 and 7 the power to L/R, if so where does the negative go? Just a little

For the wiring, are they connected in series? are pins 6 and 7 the power to L/R, if so where does the negative go? Just a little confused on the wiring

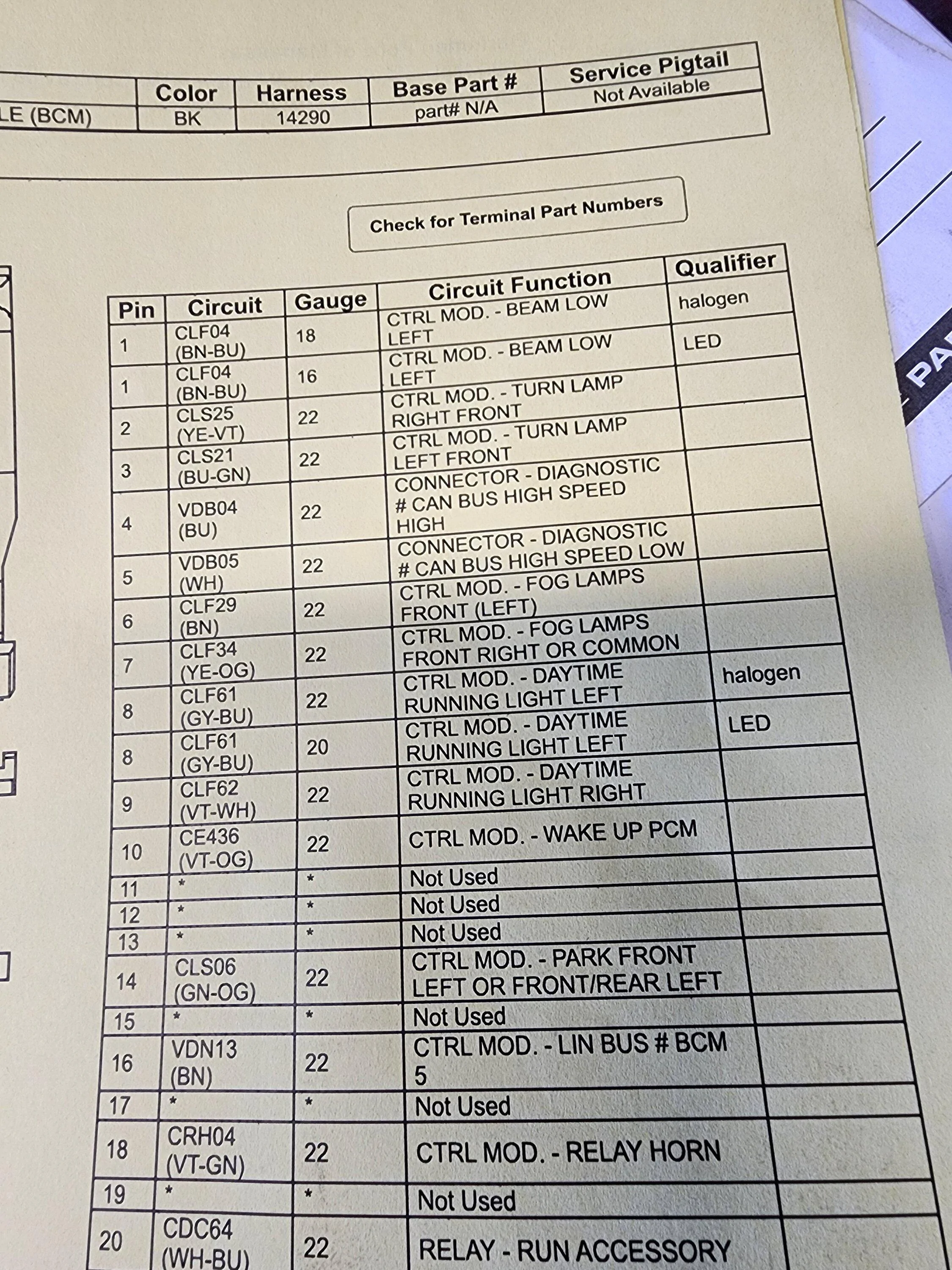

As you can se Pin 6 its Left power and Pin 7 its right fog lamp power.

I used the ground on the front bumper harness. For both fog lamps i will upload a wiring diagram when i get a chance to explain. If im not clear. On what i did.



[Hardening2753]

As you can se Pin 6 its Left power and Pin 7 its right fog lamp power.

I used the ground on the front bumper harness. For both fog lamps i will upload a wiring diagram when i get a chance to explain. If im not clear. On what i did.

Ahhh now it all clicks. Thanks for the reply and seriously, thanks for making the whole post



[MaveRican]

Chuleria! this can only be done on the fx bumper not the xlt right?



[Vtec87pr1]

Chuleria! this can only be done on the fx bumper not the xlt right?

You can do it on any bumper you just need to cut the holes for the fog lights. Wiring and factory switch should work on any models. Mine i added the fx4 bumper cause it already had the holes . But mine its an XL



[Buyerfind]

I wanted to Install Some Ford Fog Lamps on the Truck and seem that Ford Escape as the same Bcm conector as the Ford Maverick.

I Checked and Found that Ford Escape , Ford F150 and Ford explorer had similar headlamp switch. I Found one on Ebay that came from a Ford f150 with the factory fog lamp switch on the center dial. Install it and with forscan enable it. Heres some pics of the process. Need to enable on BCM and IPC .

UPDATE F 150 HEADLAMP SWITCH FORD PART NUMBER ML3Z11654BC .

I like that....What to do about the locking gas cap for Lariat?



[Jim53r88]

Now, why the heck didn’t ford offer the fog lights as an option? It seems most parts already exist in their parts bin. Great work!



[Joe Kelly]

Can you share a rough price for this mod?



[Vtec87pr1]

I like that....What to do about the locking gas cap for Lariat?

I will check if Ford Escape comes with that switch . I used mine cause i dont have an lariat lol.
