I wanted to Install Some Ford Fog Lamps on the Truck and seem that Ford Escape as the same Bcm conector as the Ford Maverick.

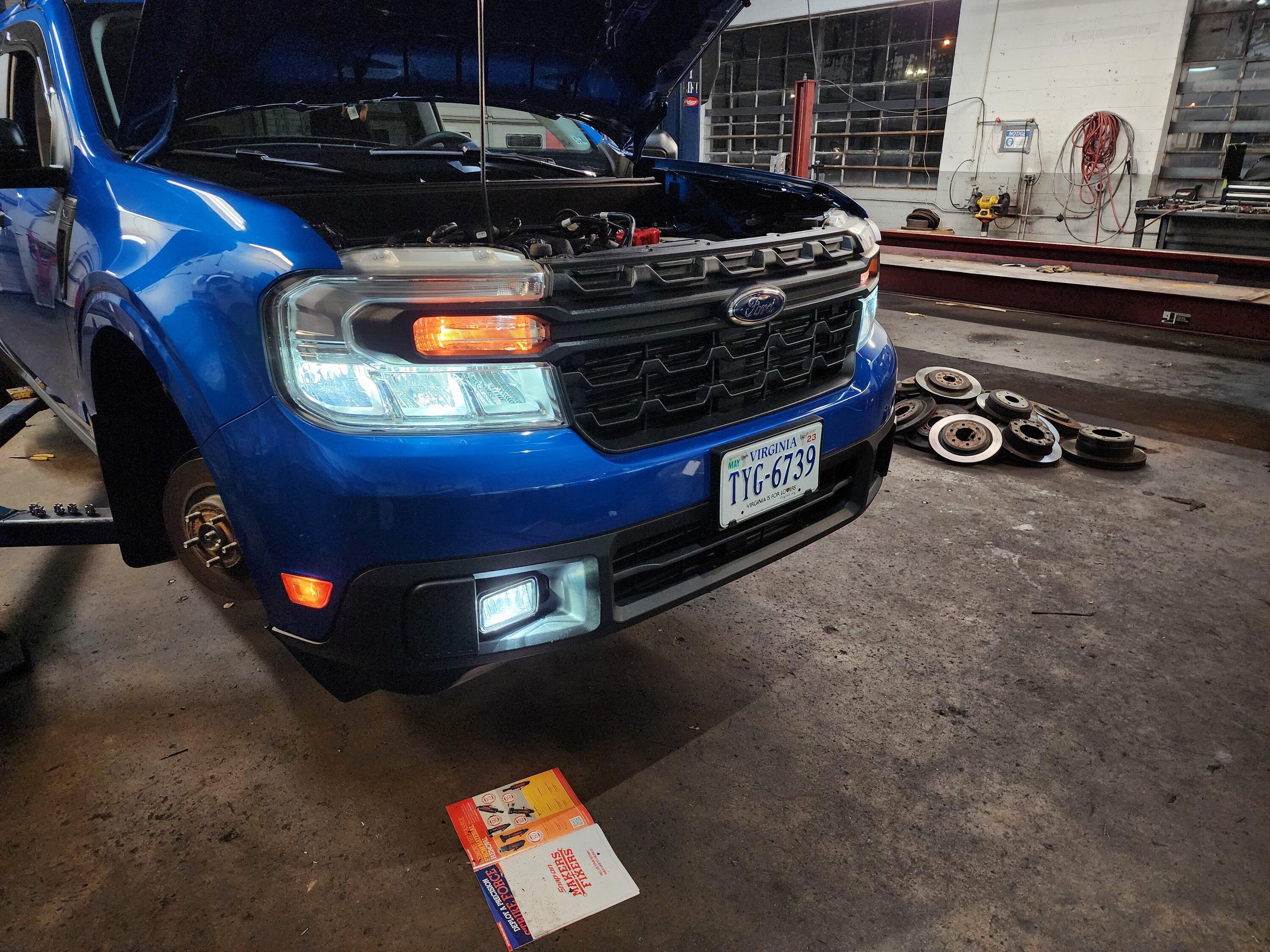

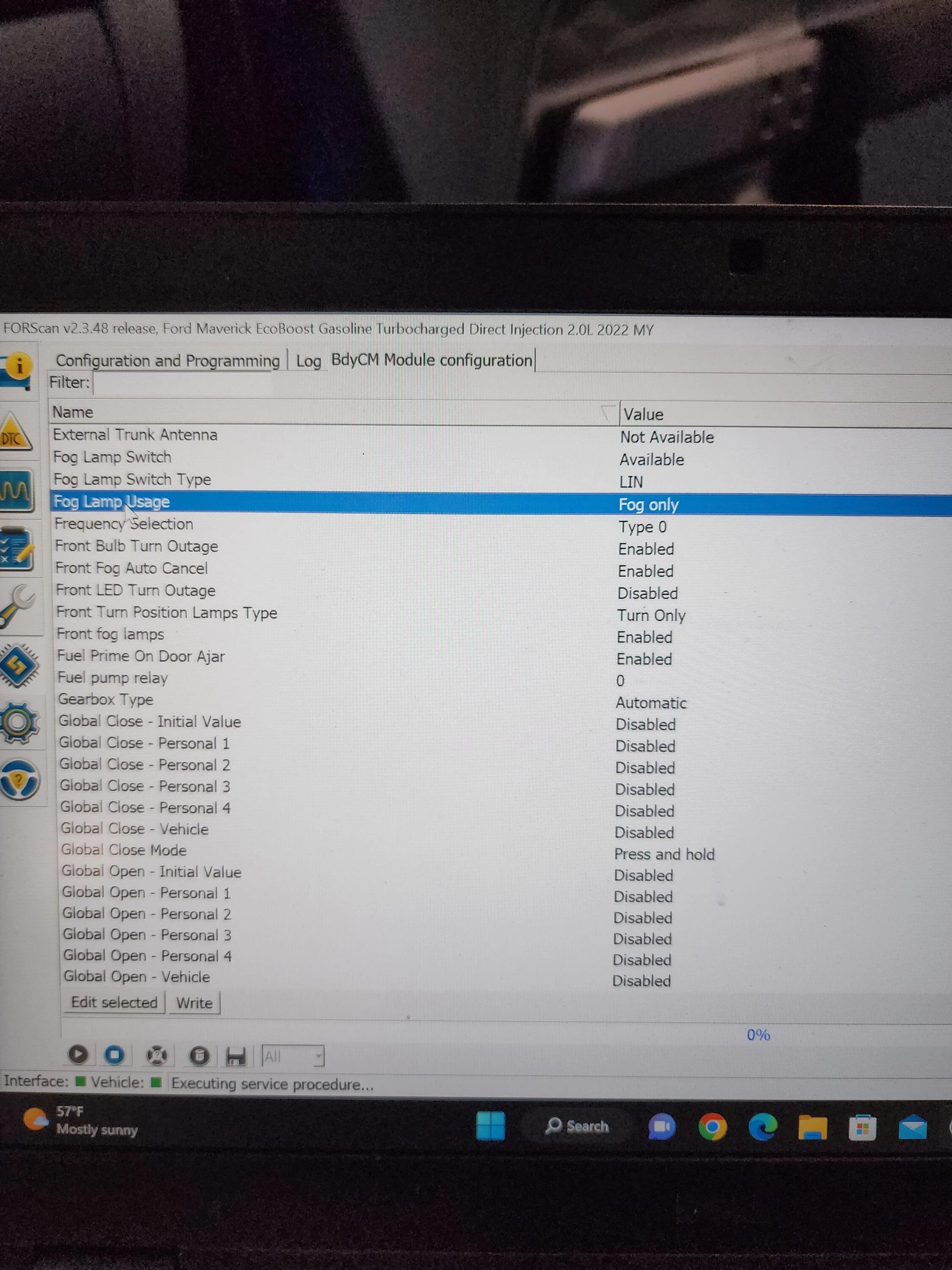

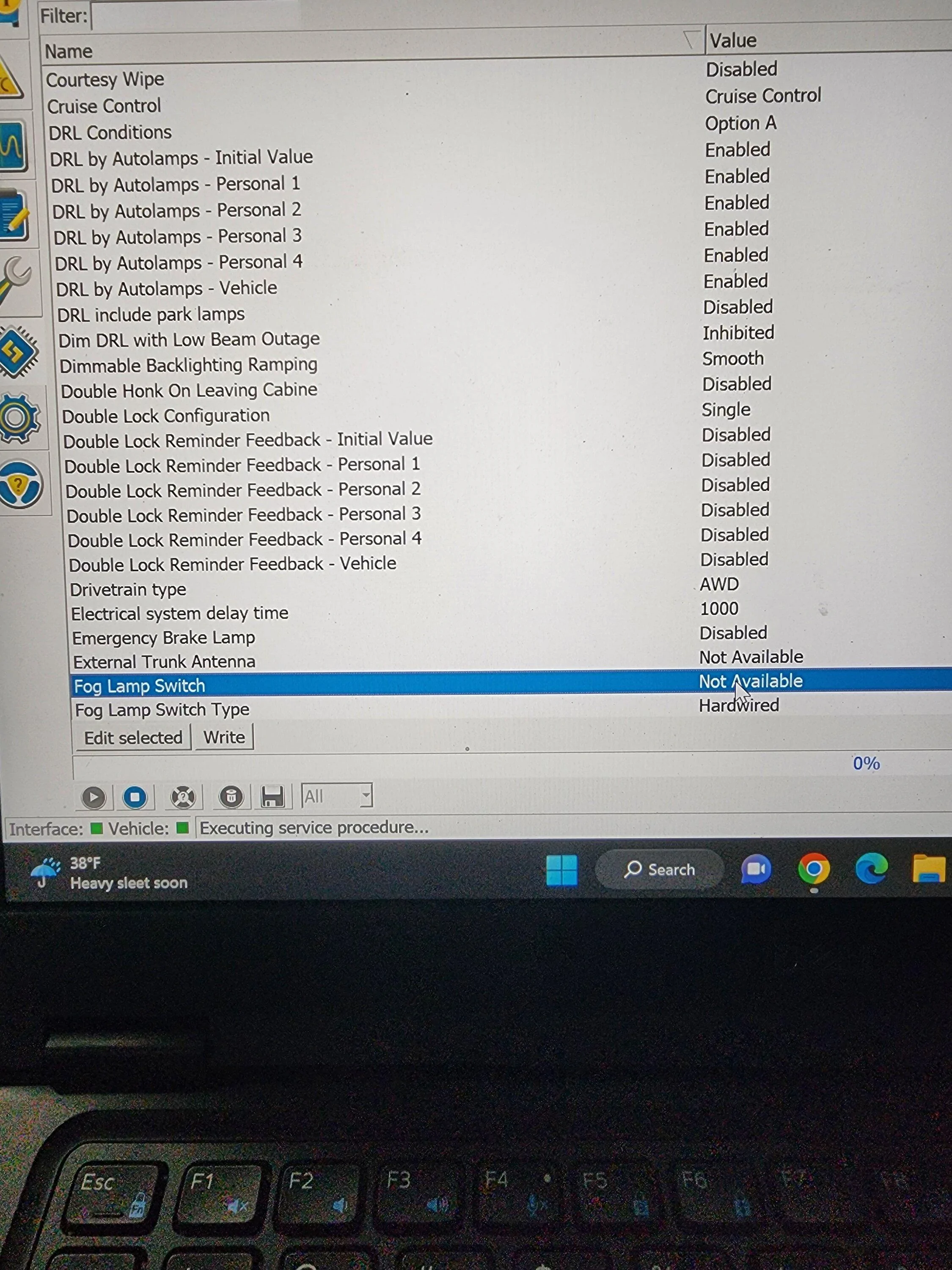

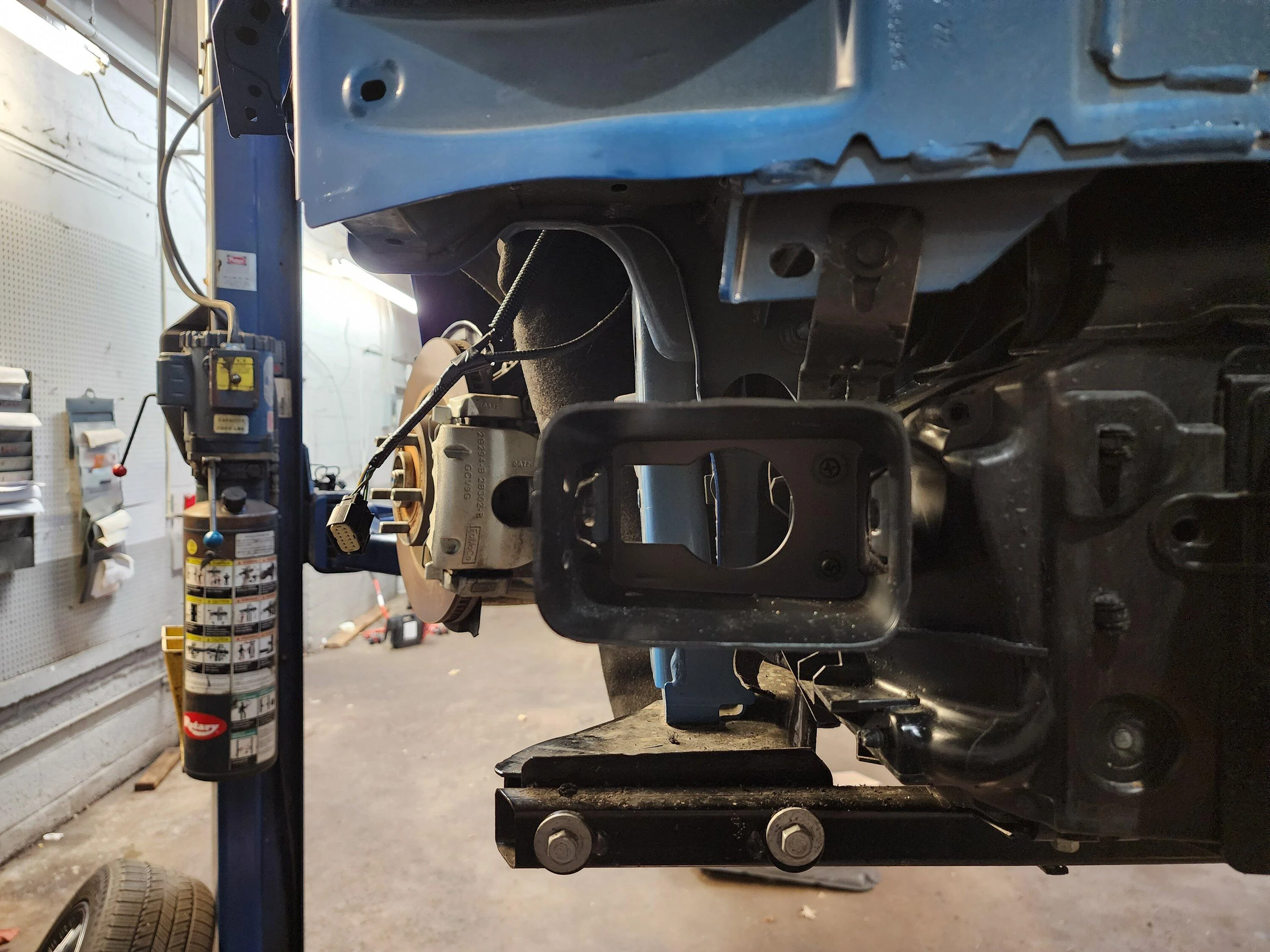

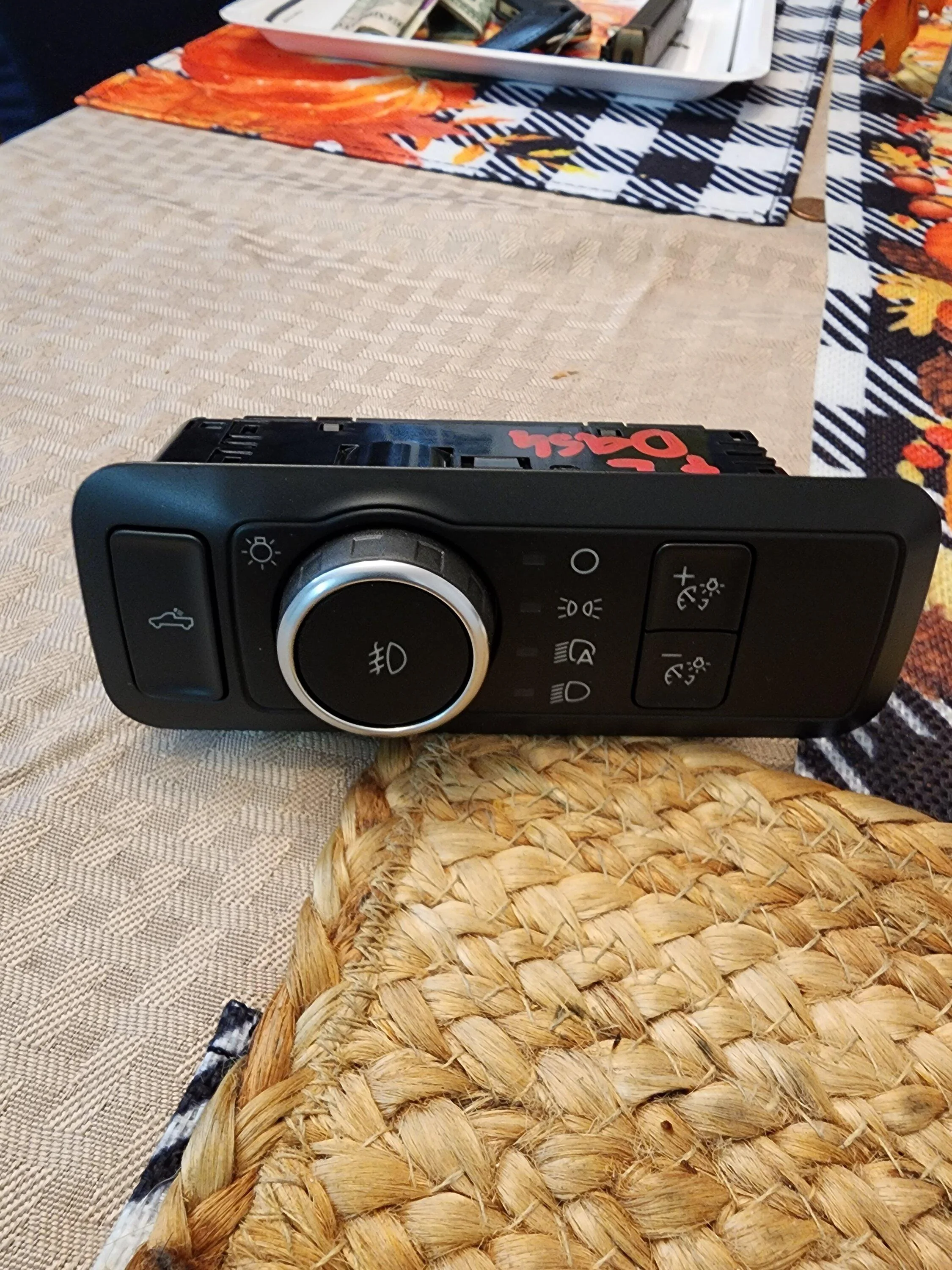

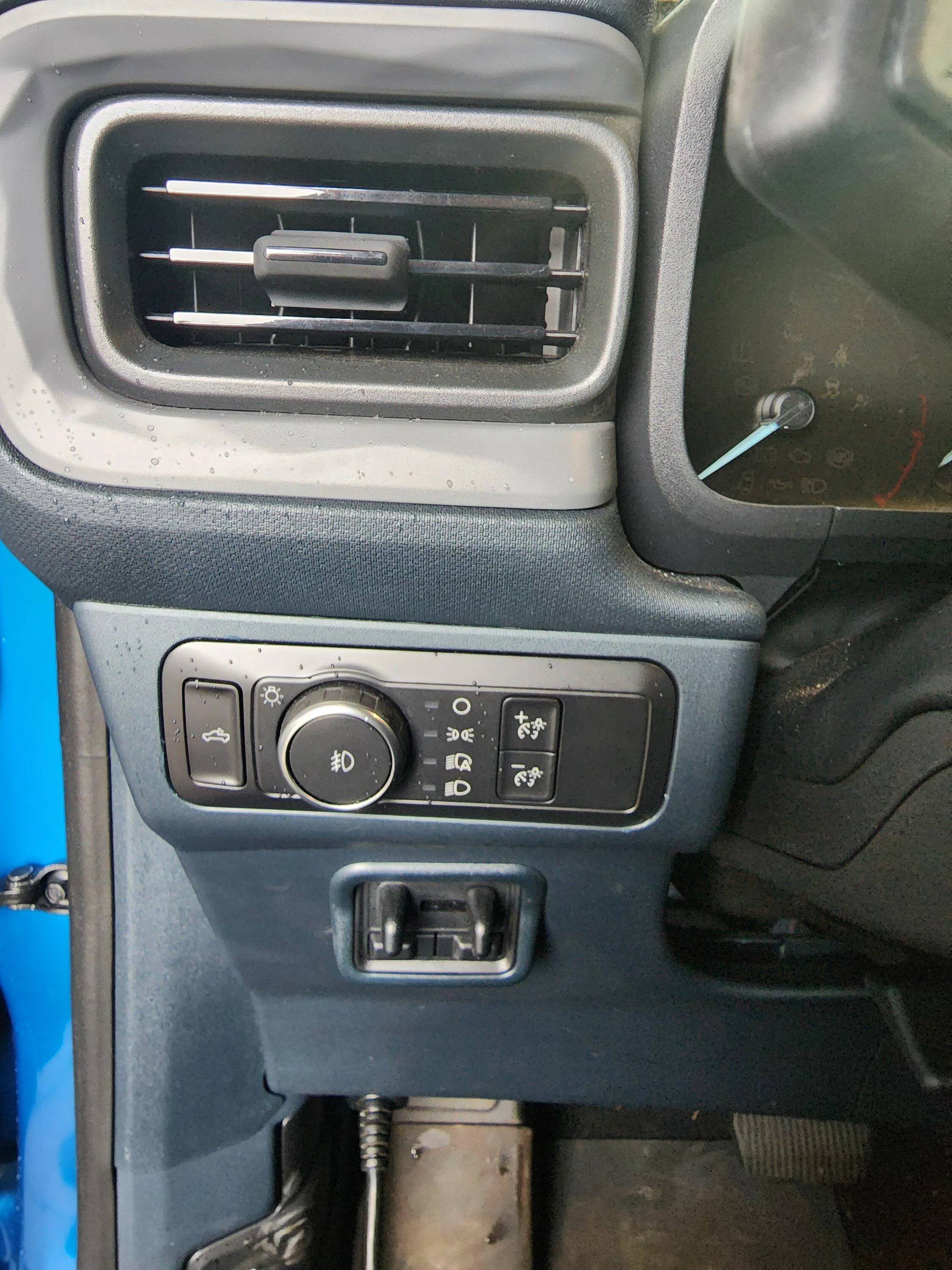

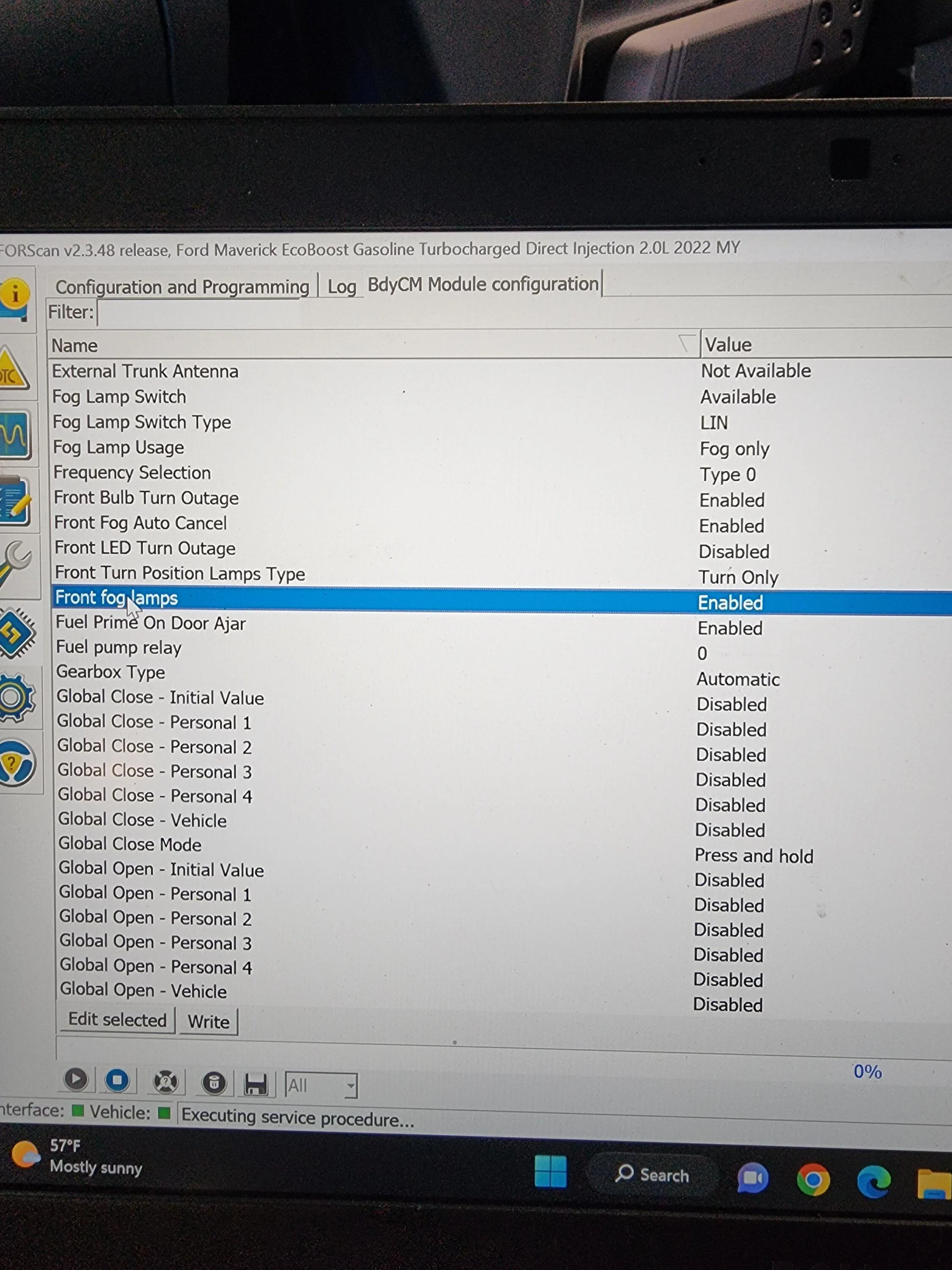

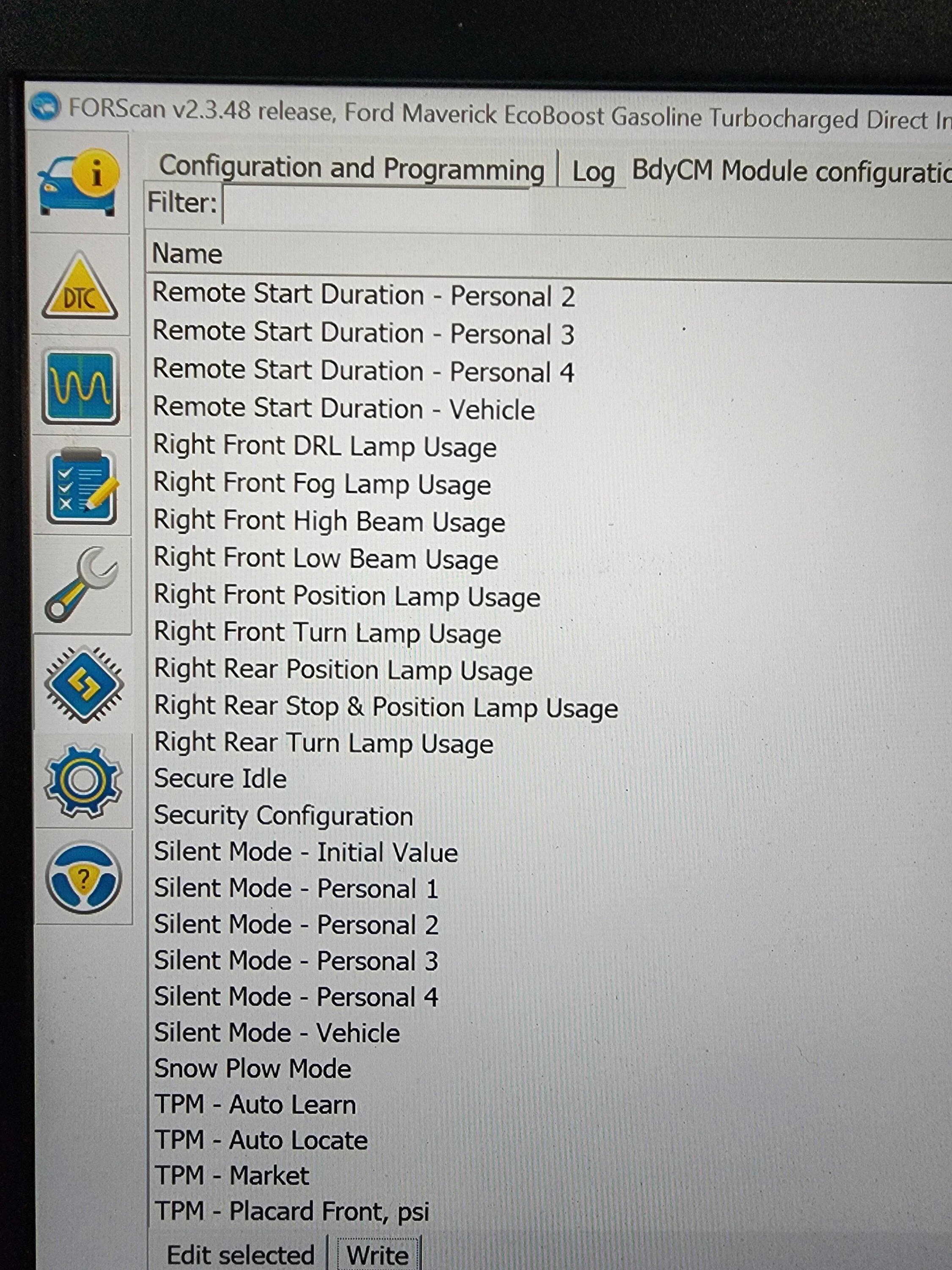

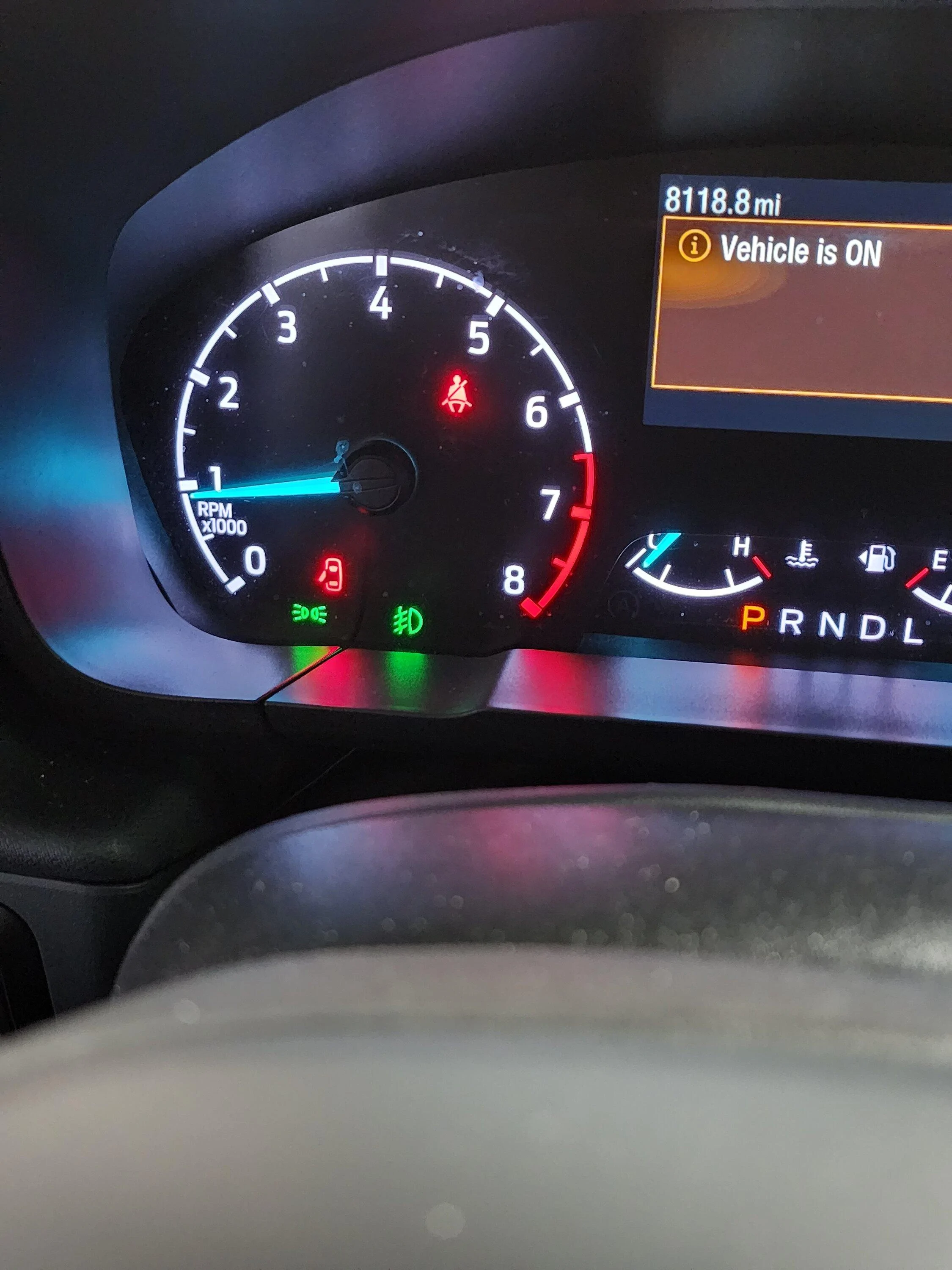

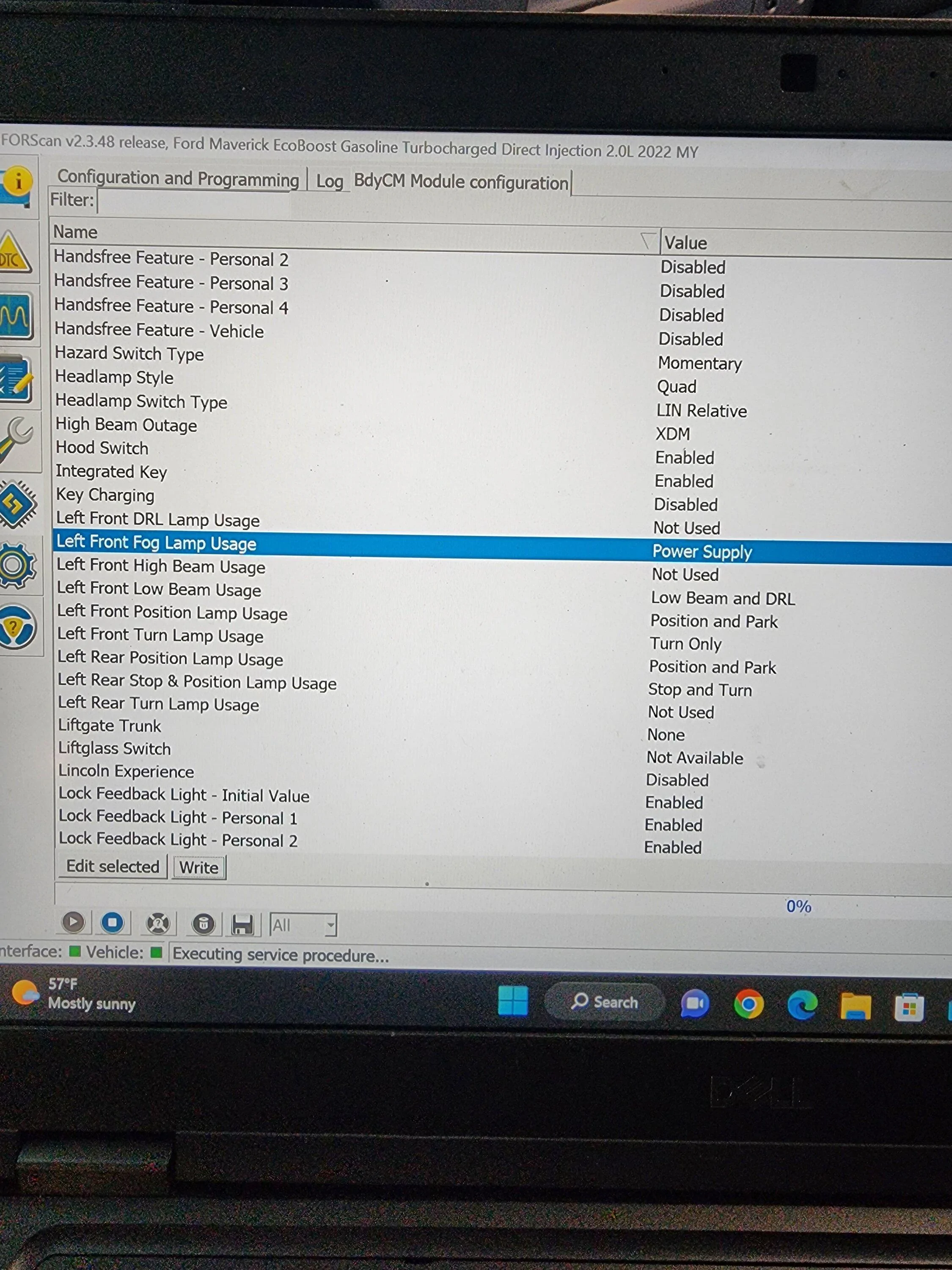

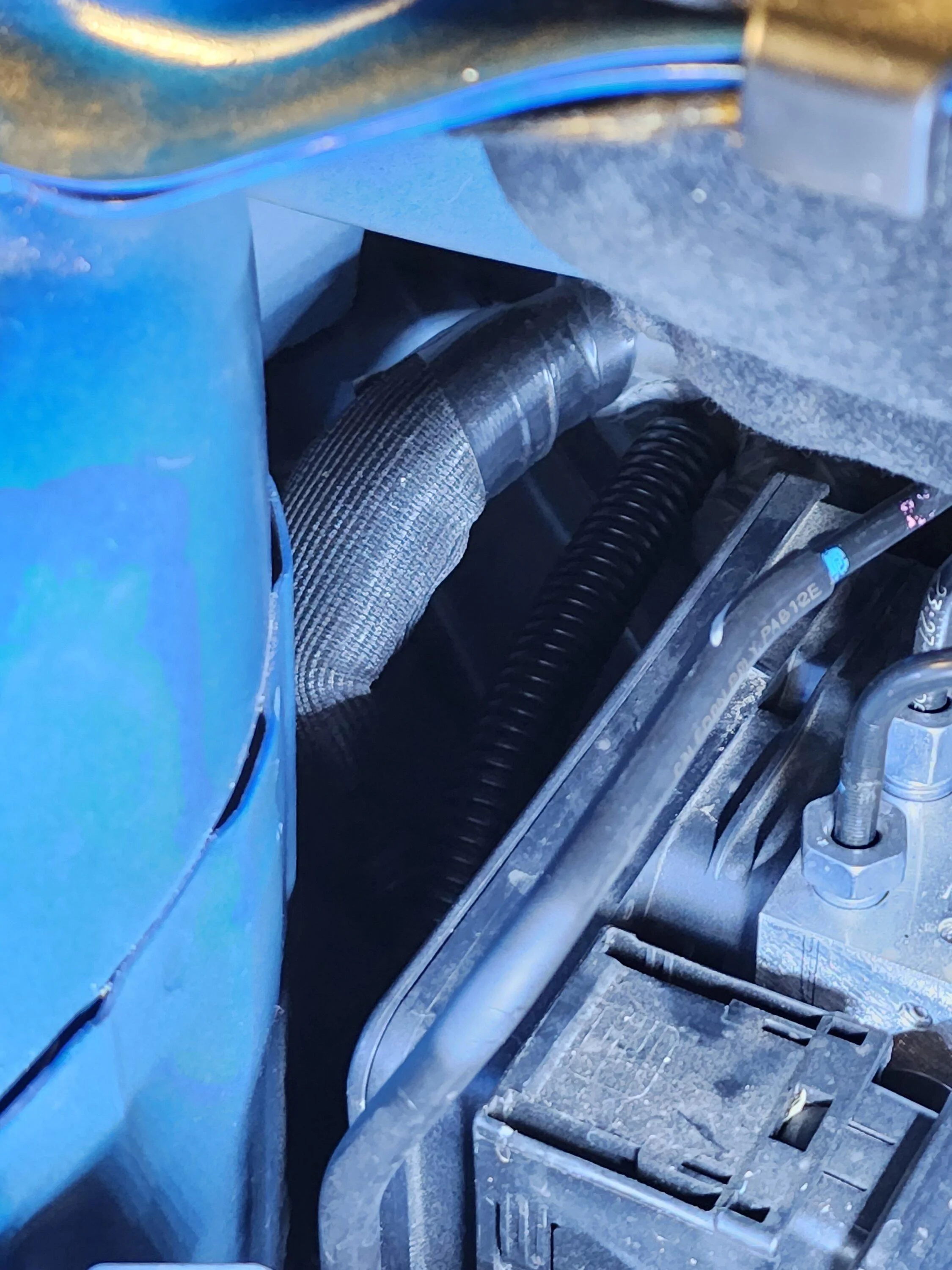

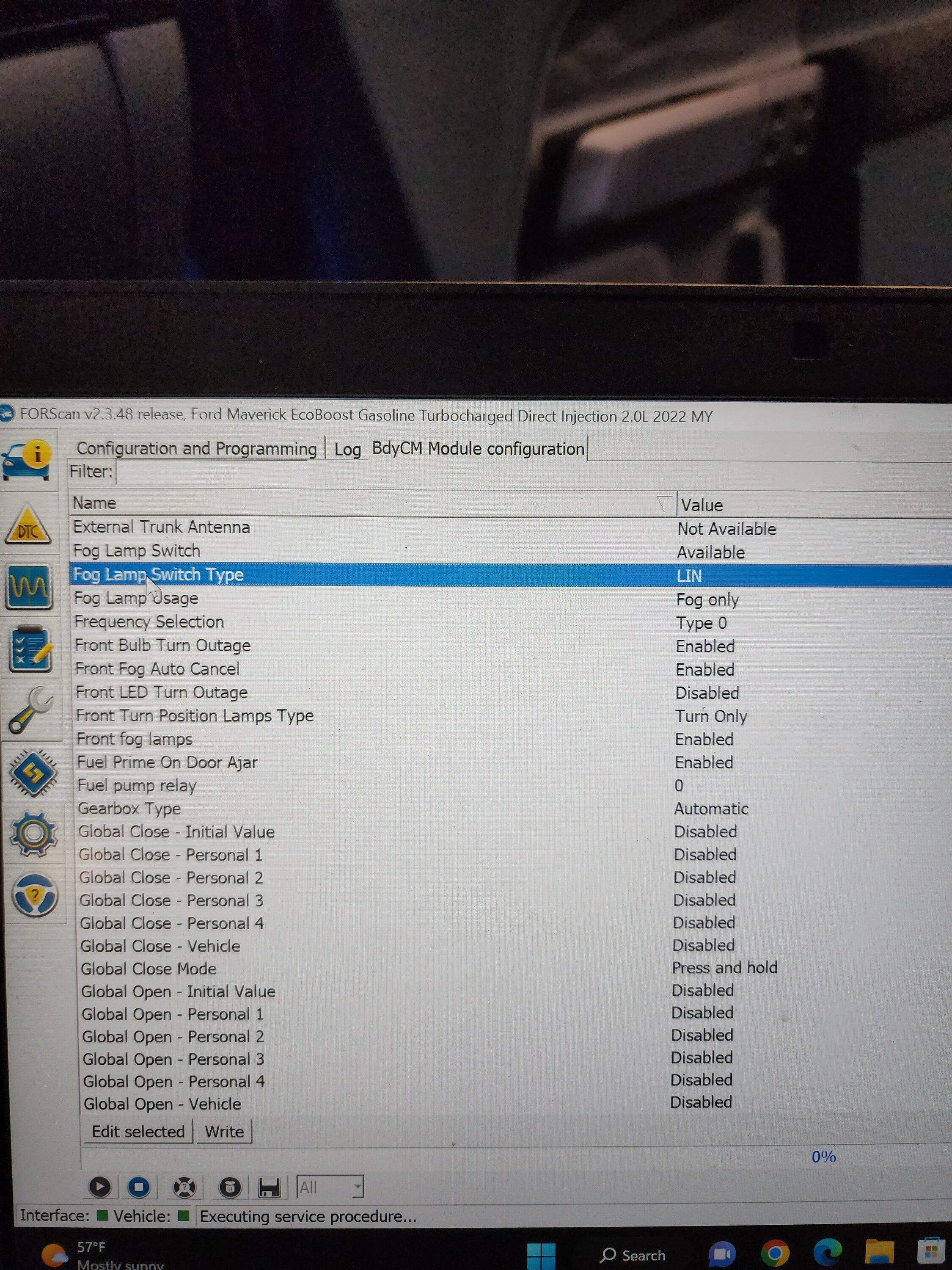

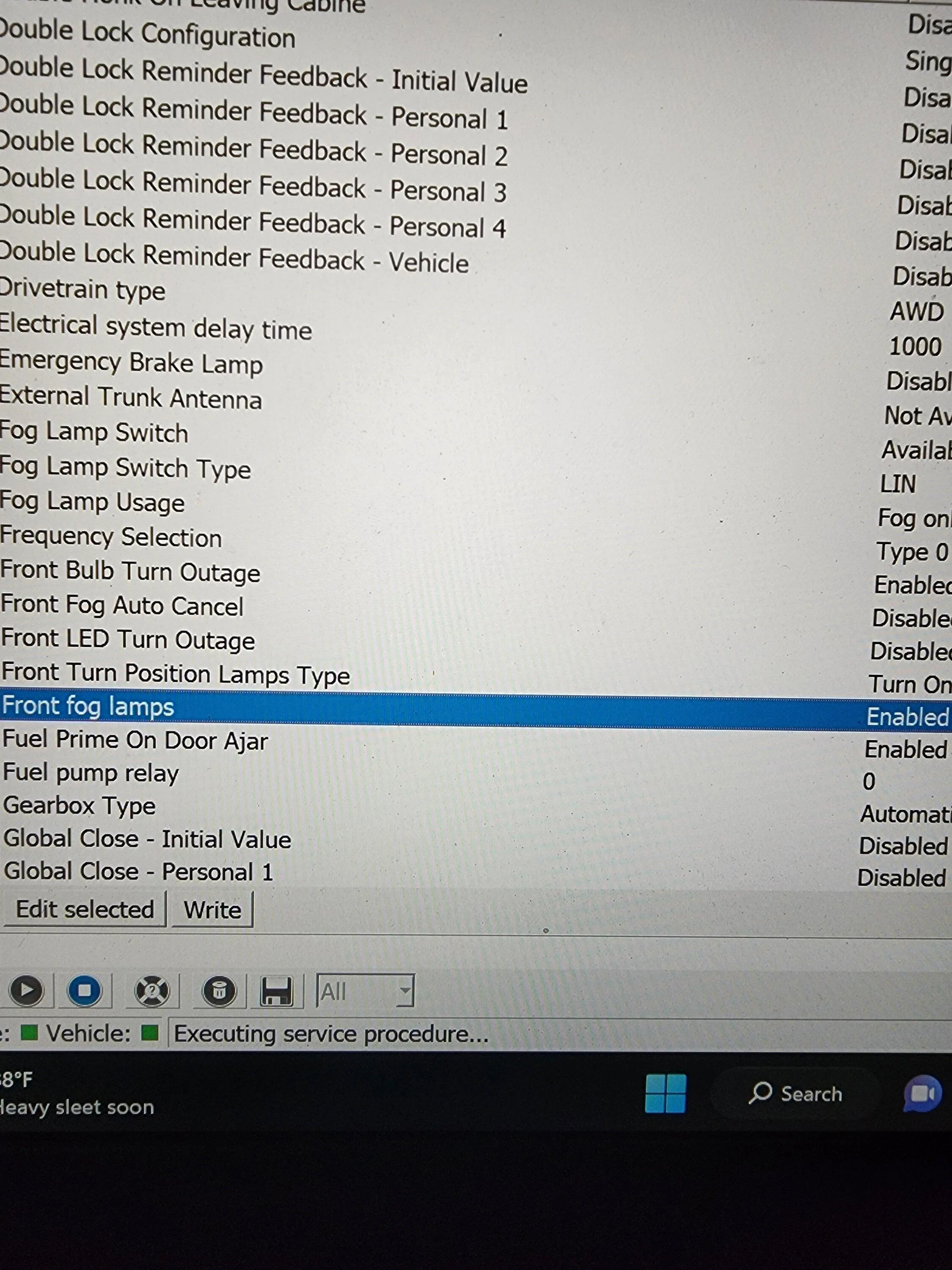

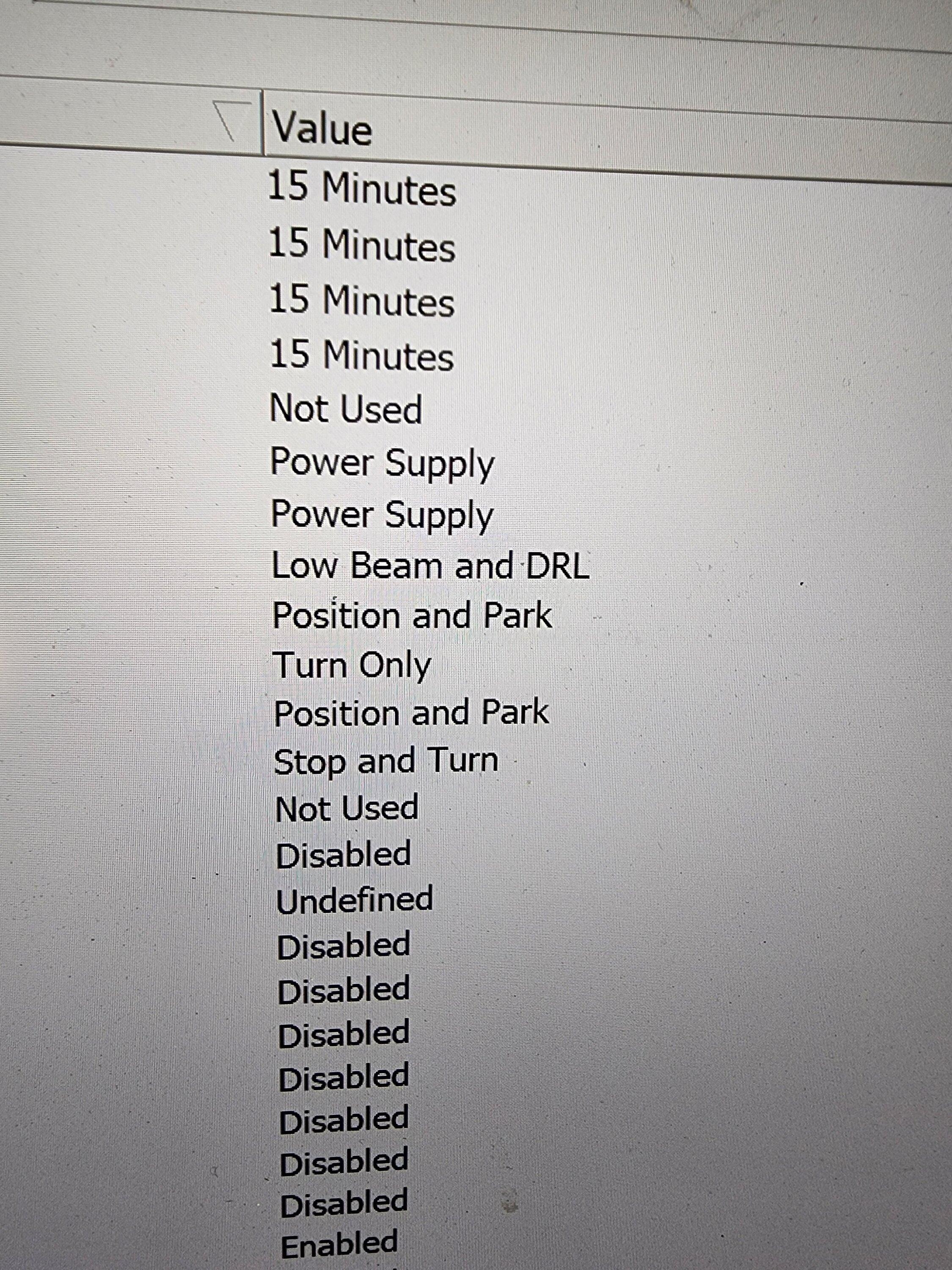

I Checked and Found that Ford Escape , Ford F150 and Ford explorer had similar headlamp switch. I Found one on Ebay that came from a Ford f150 with the factory fog lamp switch on the center dial. Install it and with forscan enable it. Heres some pics of the process. Need to enable on BCM and IPC .

UPDATE F 150 HEADLAMP SWITCH FORD PART NUMBER ML3Z11654BC .

Update hybrid fuel release door f150 part number ML3Z-11654-DB . Not tested but i belive should work.

UPDATE 2 / 3 / 2023

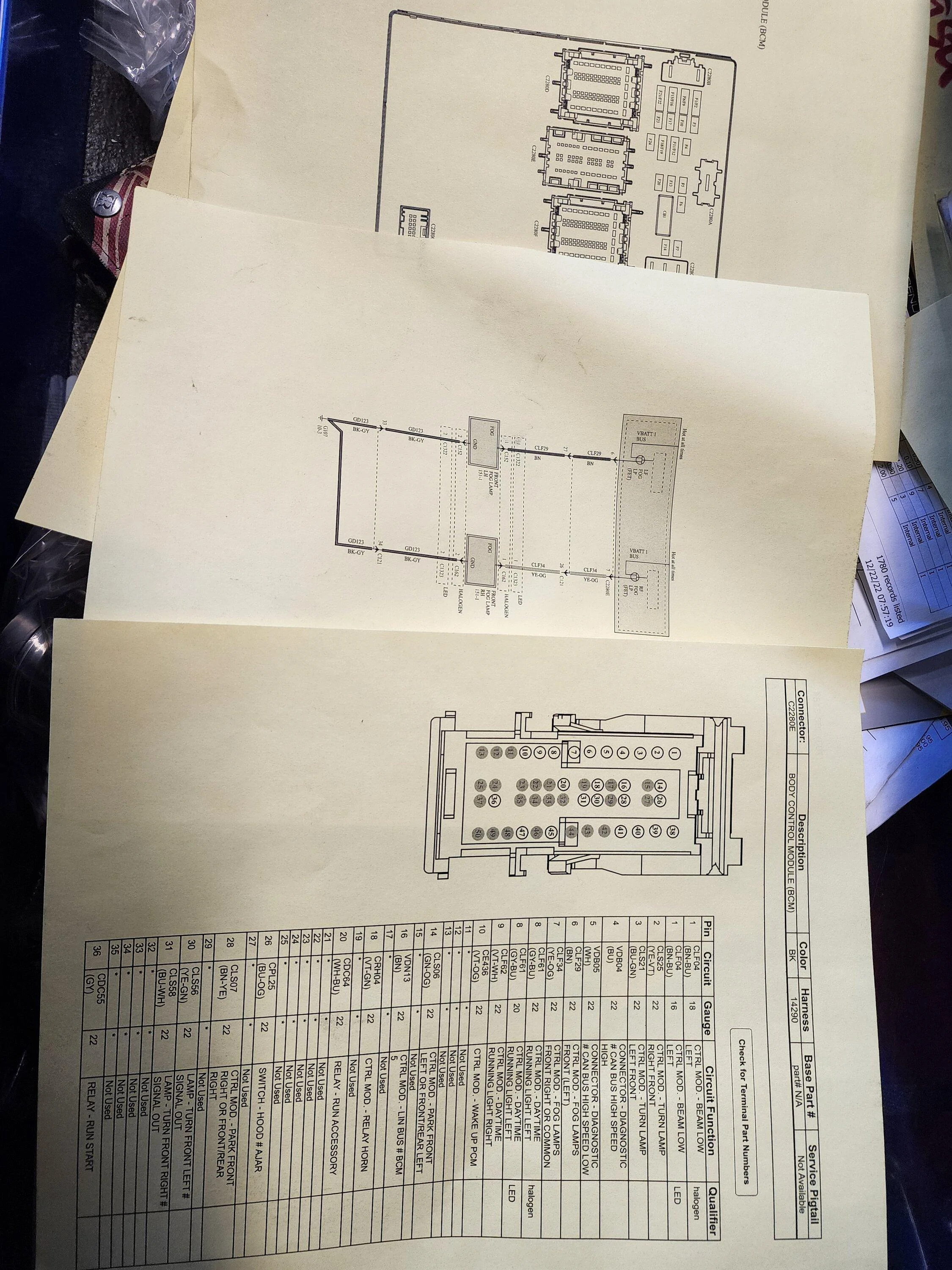

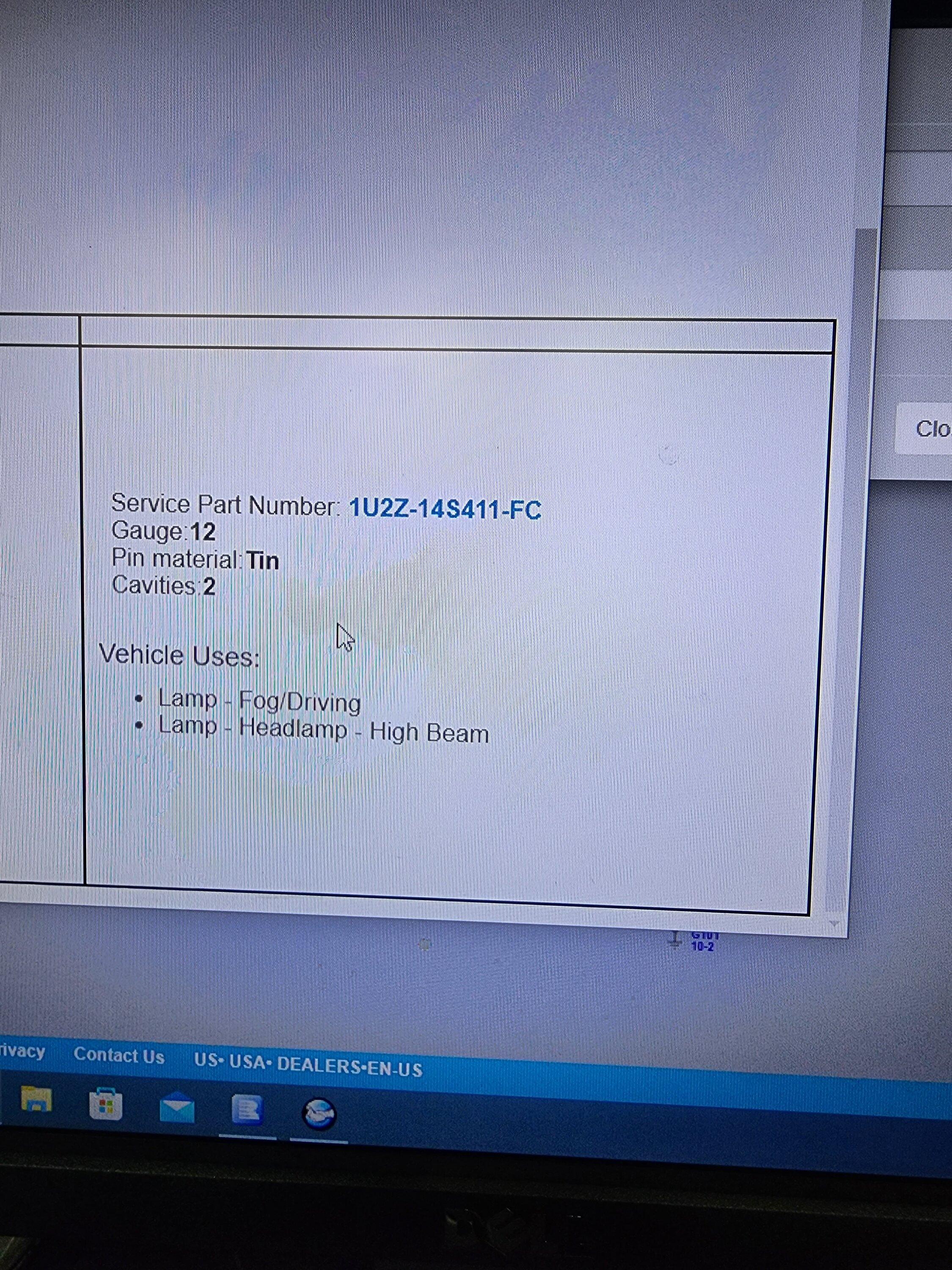

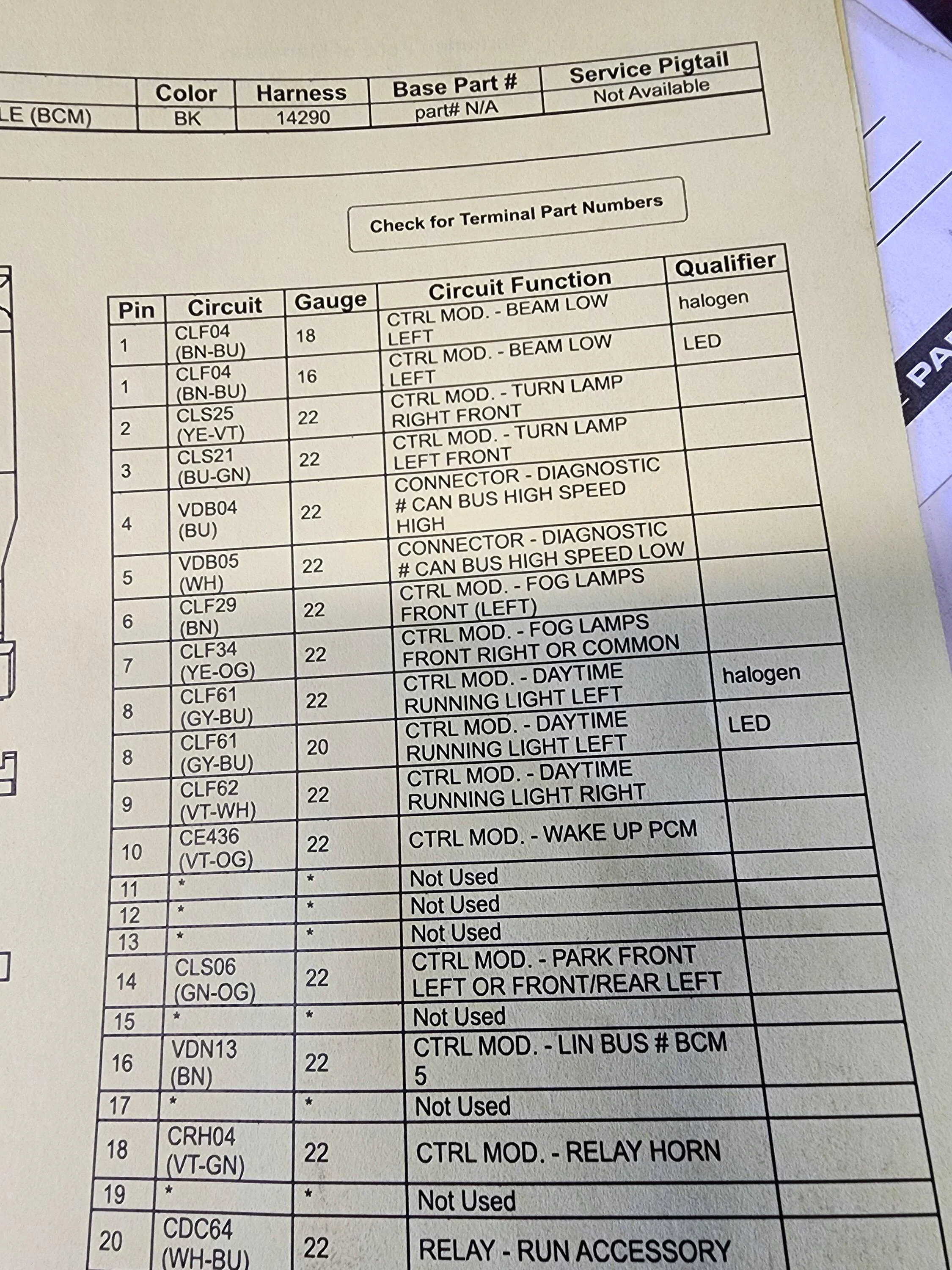

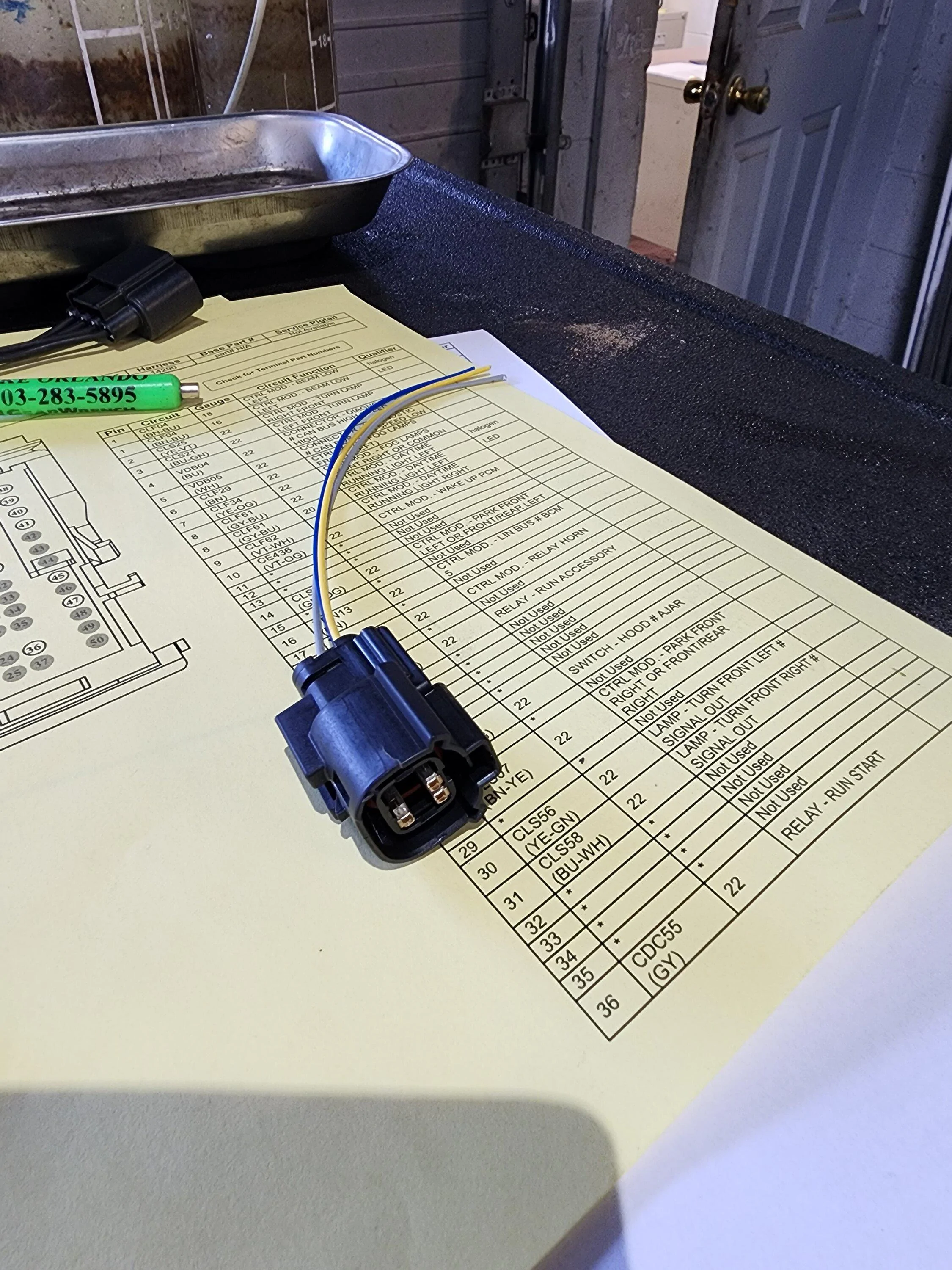

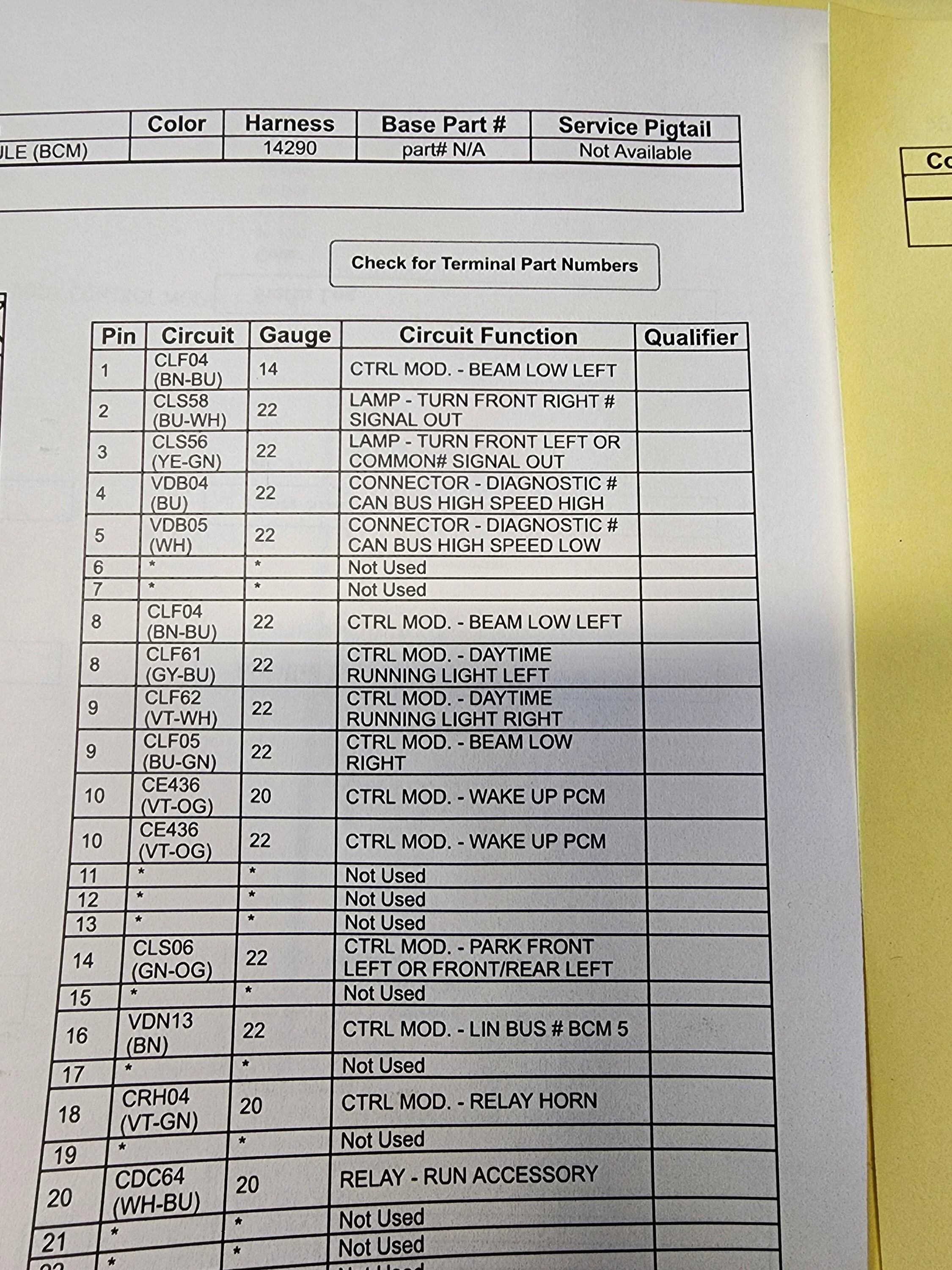

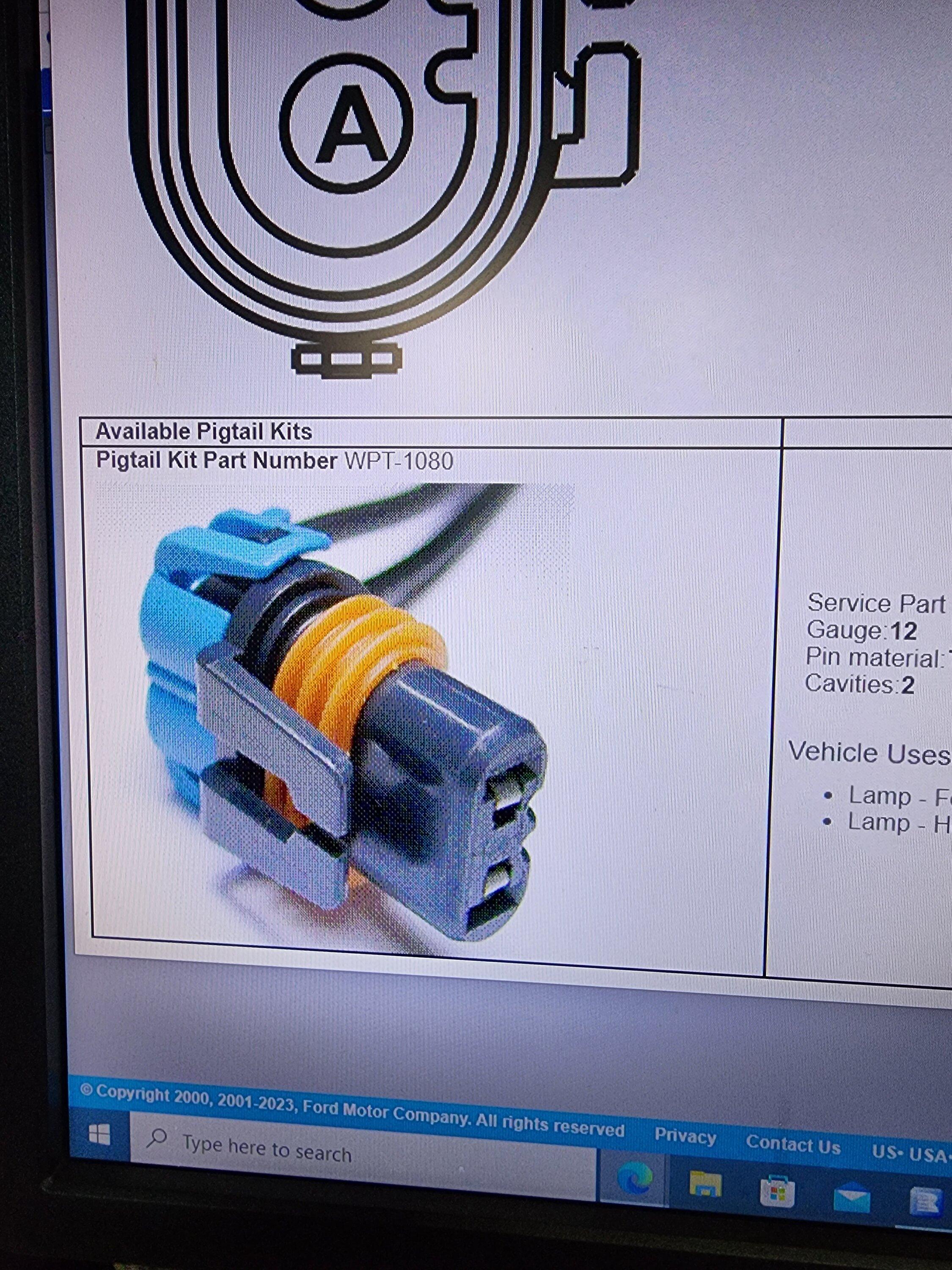

BCM TERMINALS PART NUMBERS WT-1003

link showing how to un pin connectors and install them.























Sponsored


Last edited:
OP
OP
Vtec87pr1

Vtec87pr1

2.0L EcoBoost
Well-known member
First Name
Antonio
Joined
Jul 21, 2022
Threads
9
Messages
275
Reaction score
289
Location
Virginia
Vehicle(s)
2022 XL Ford Maverick
Engine
2.0L EcoBoost

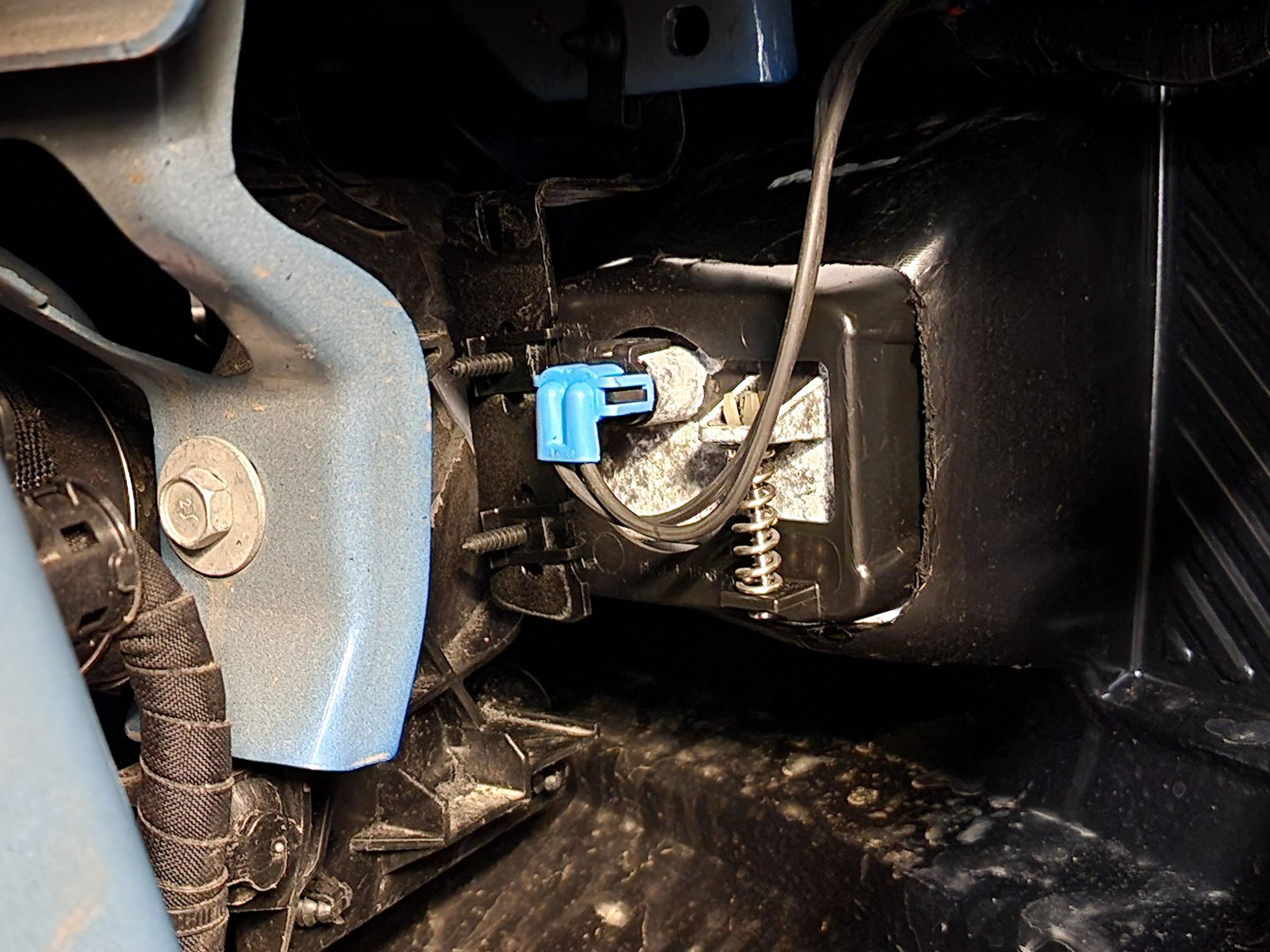

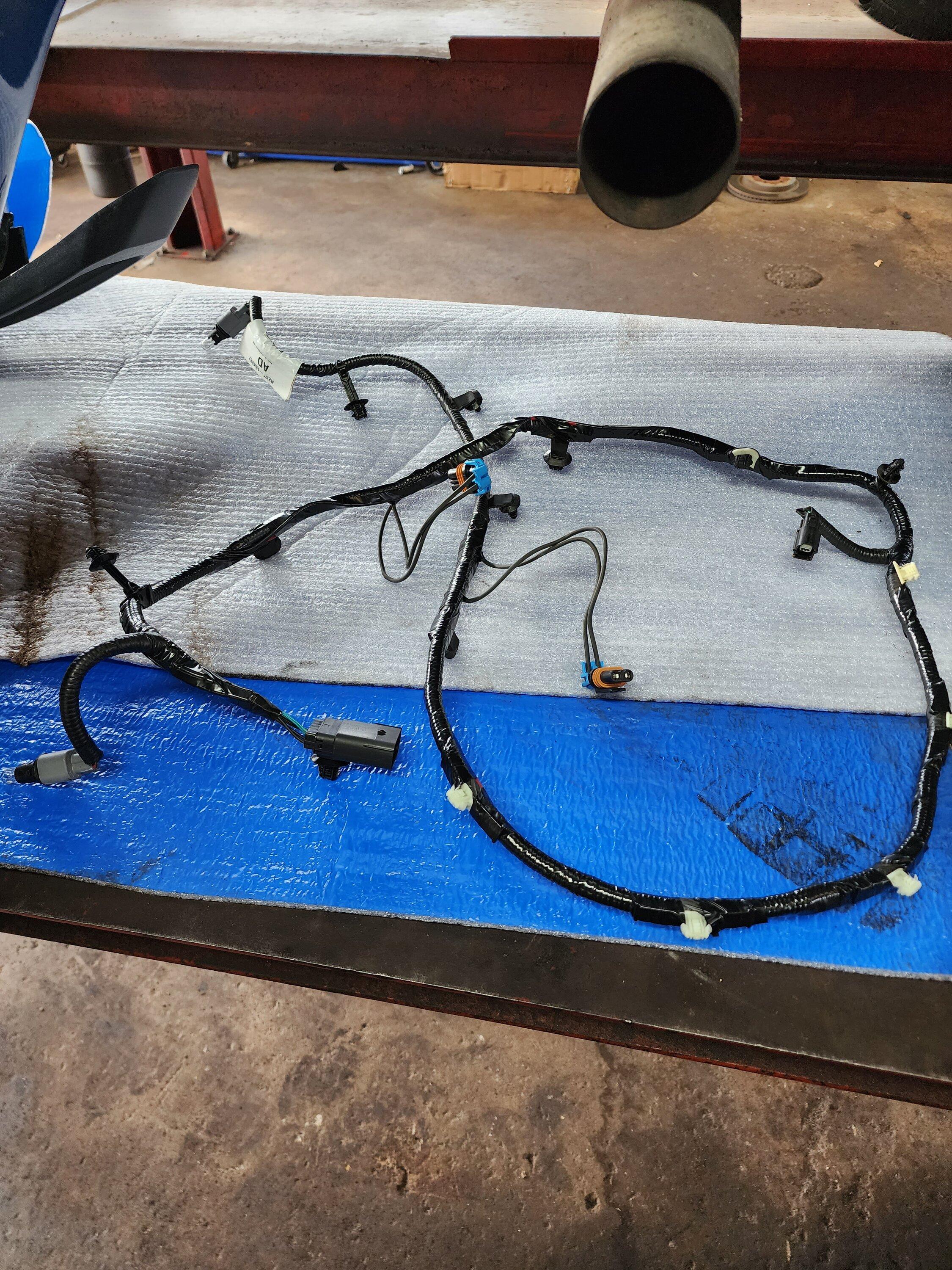

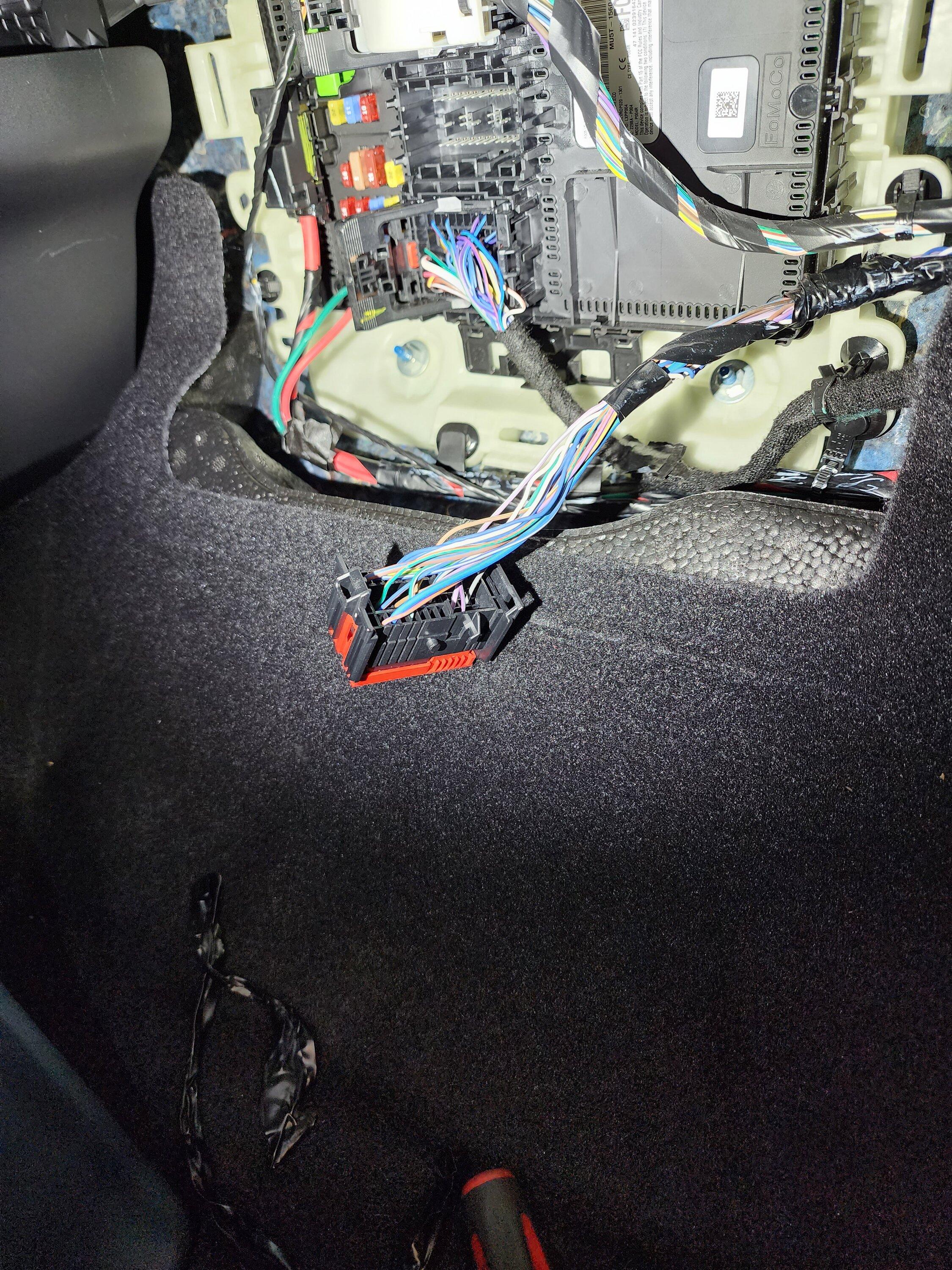

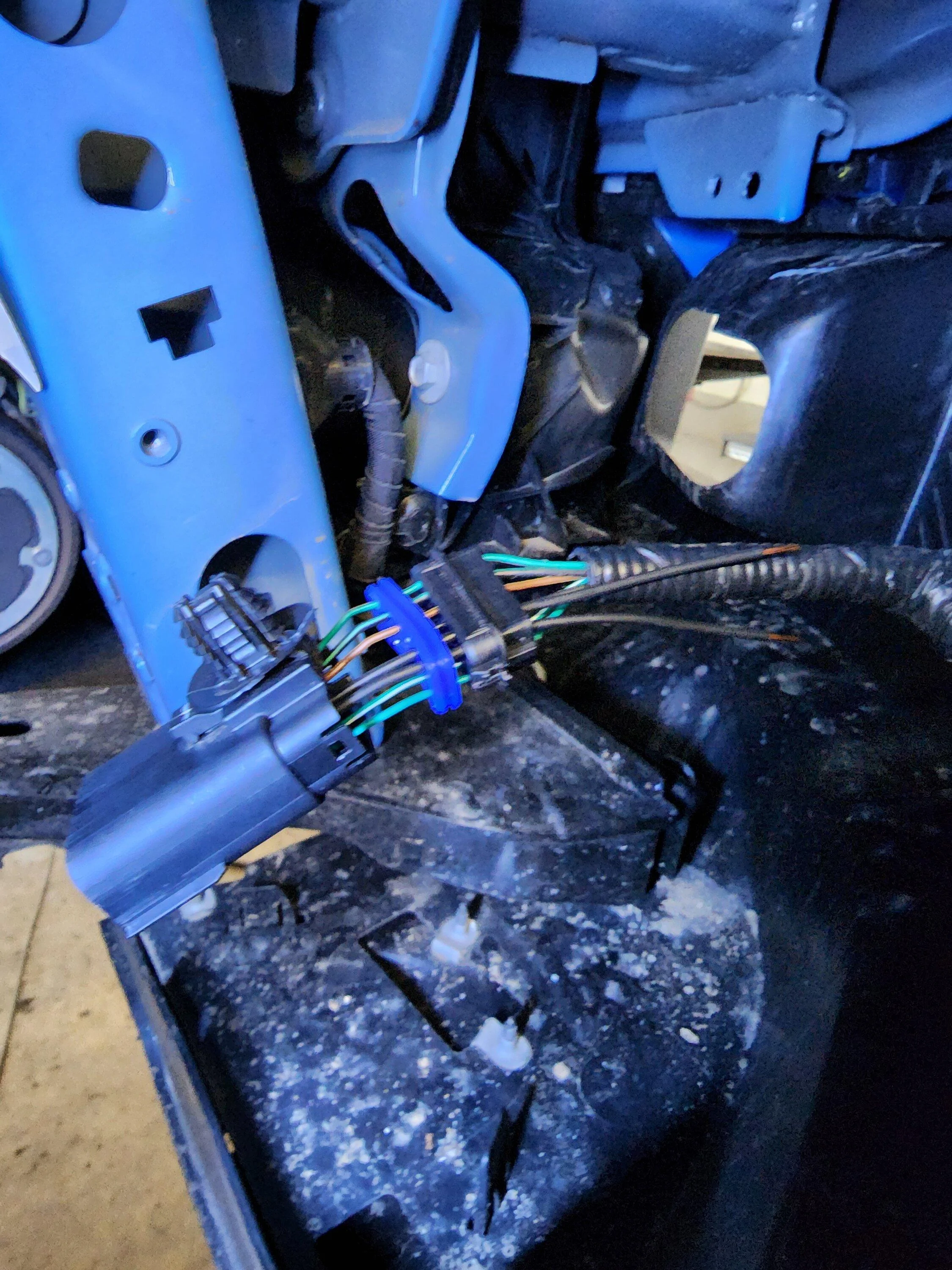

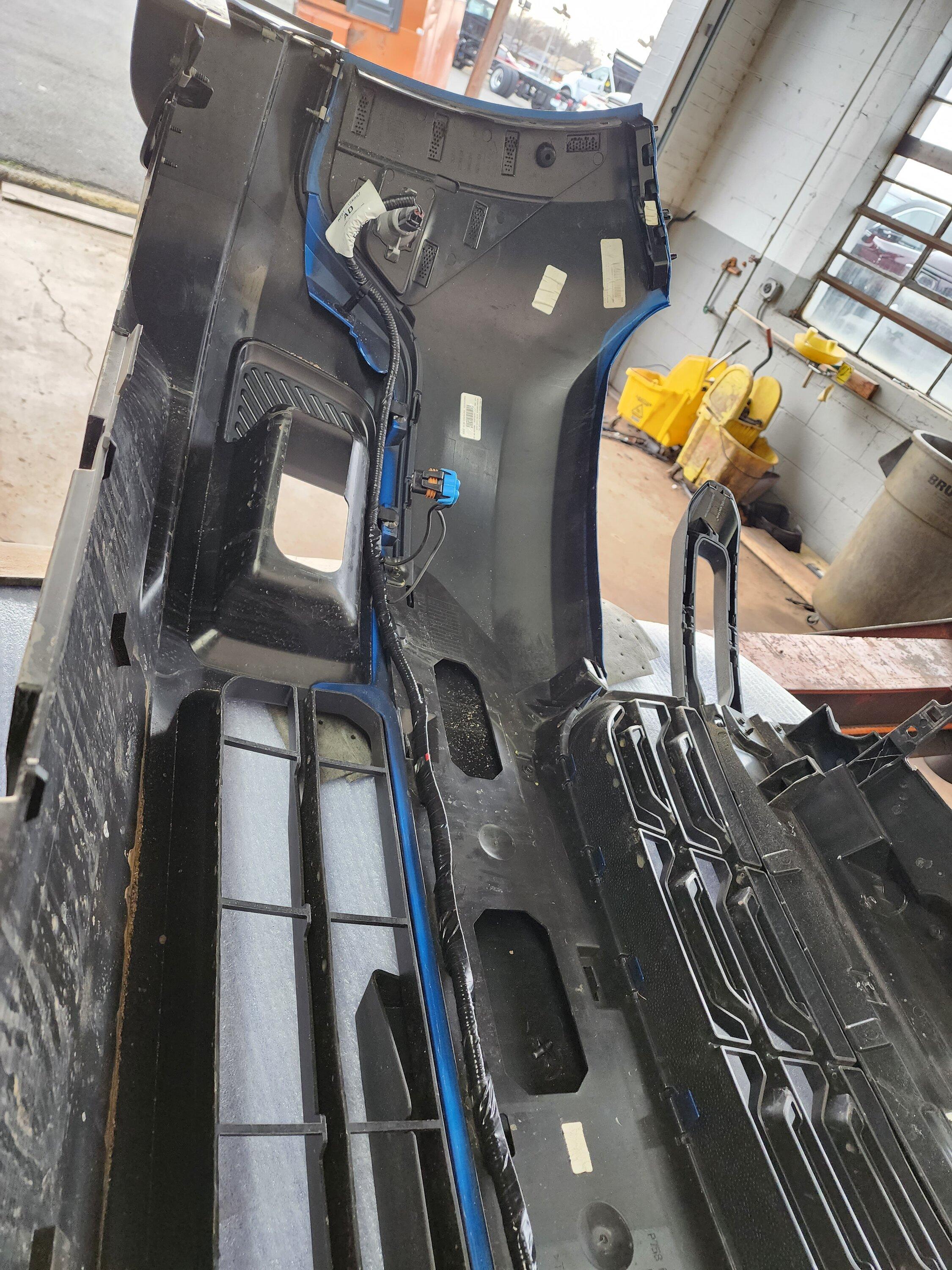

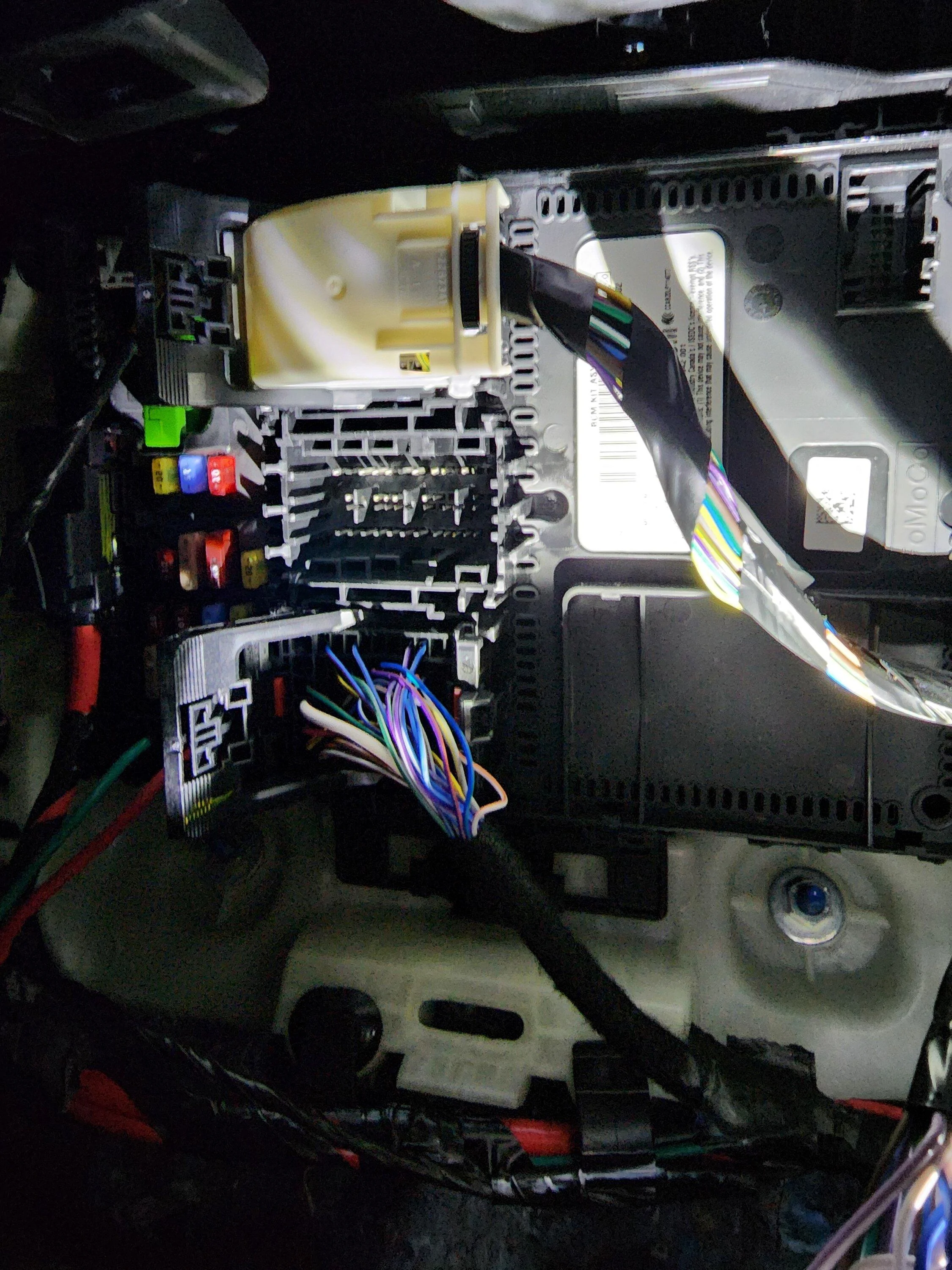

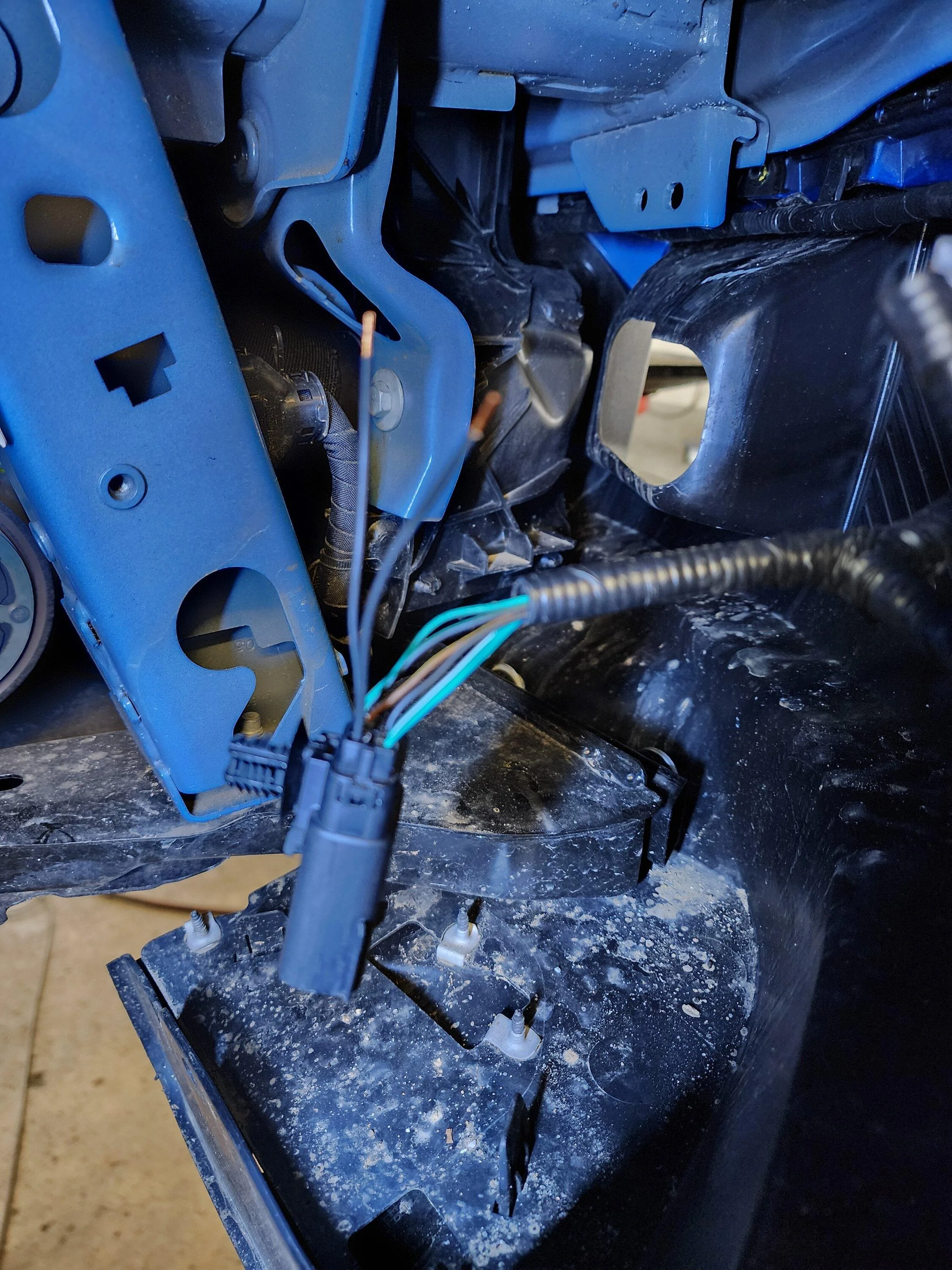

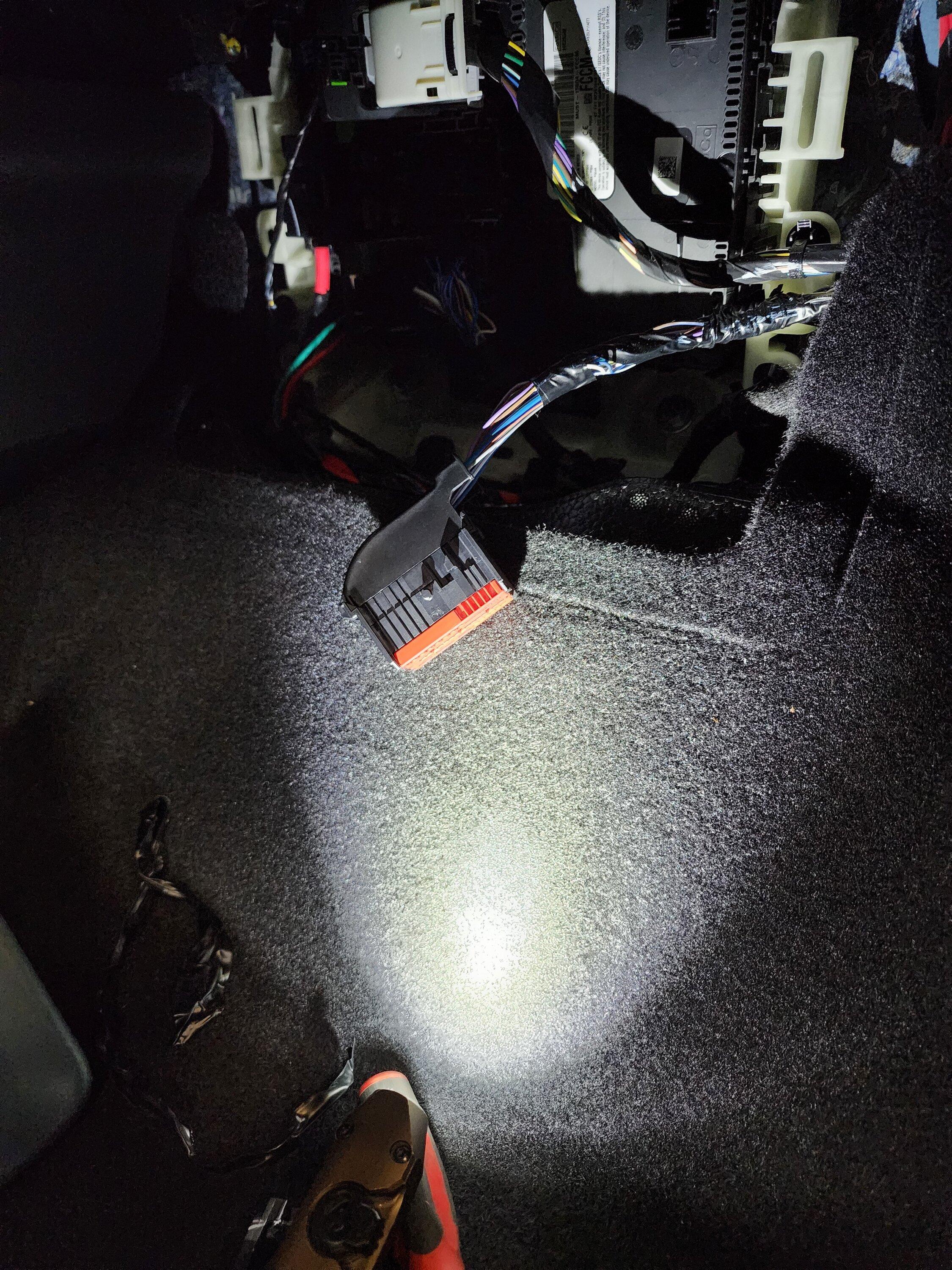

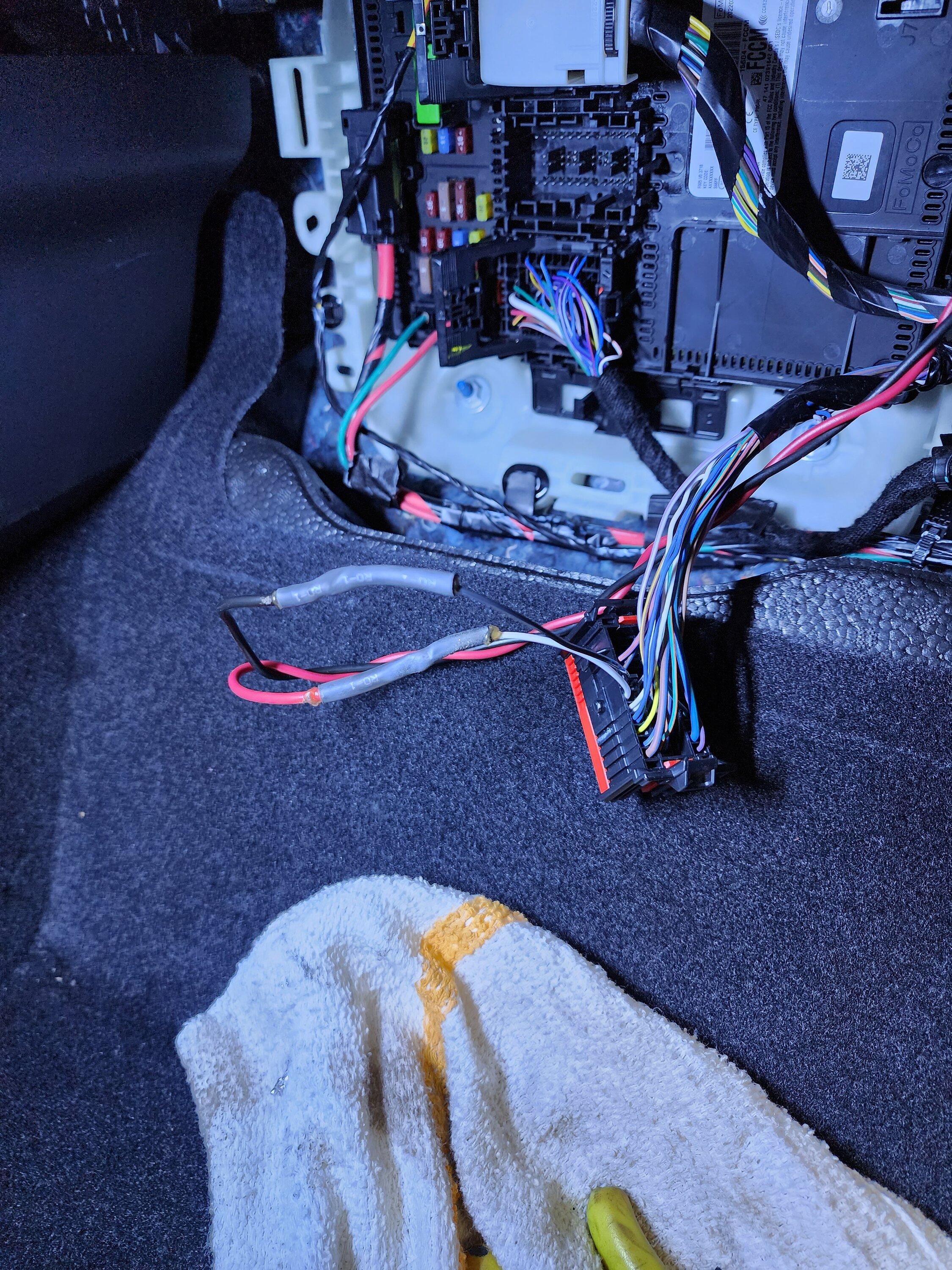

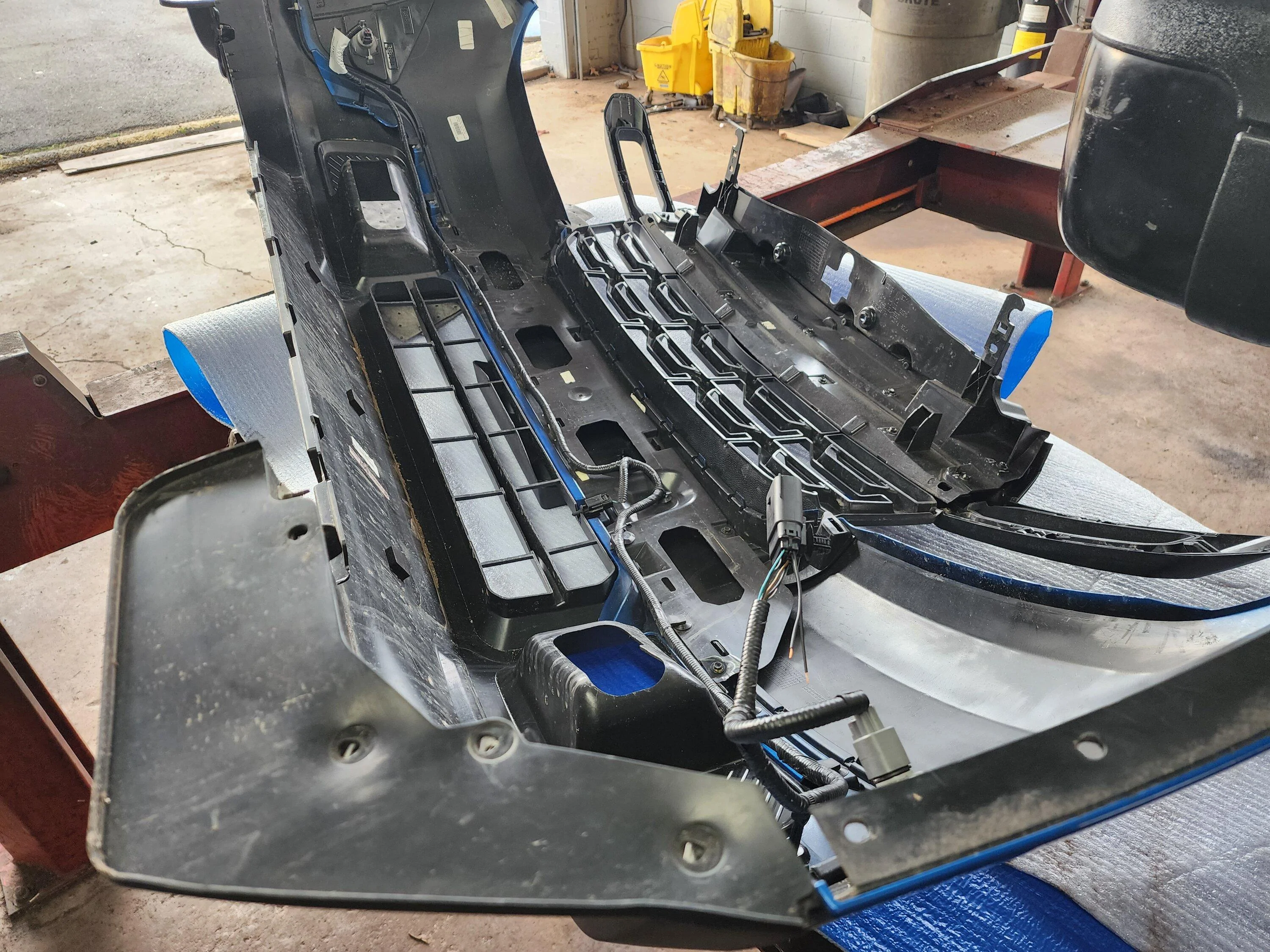

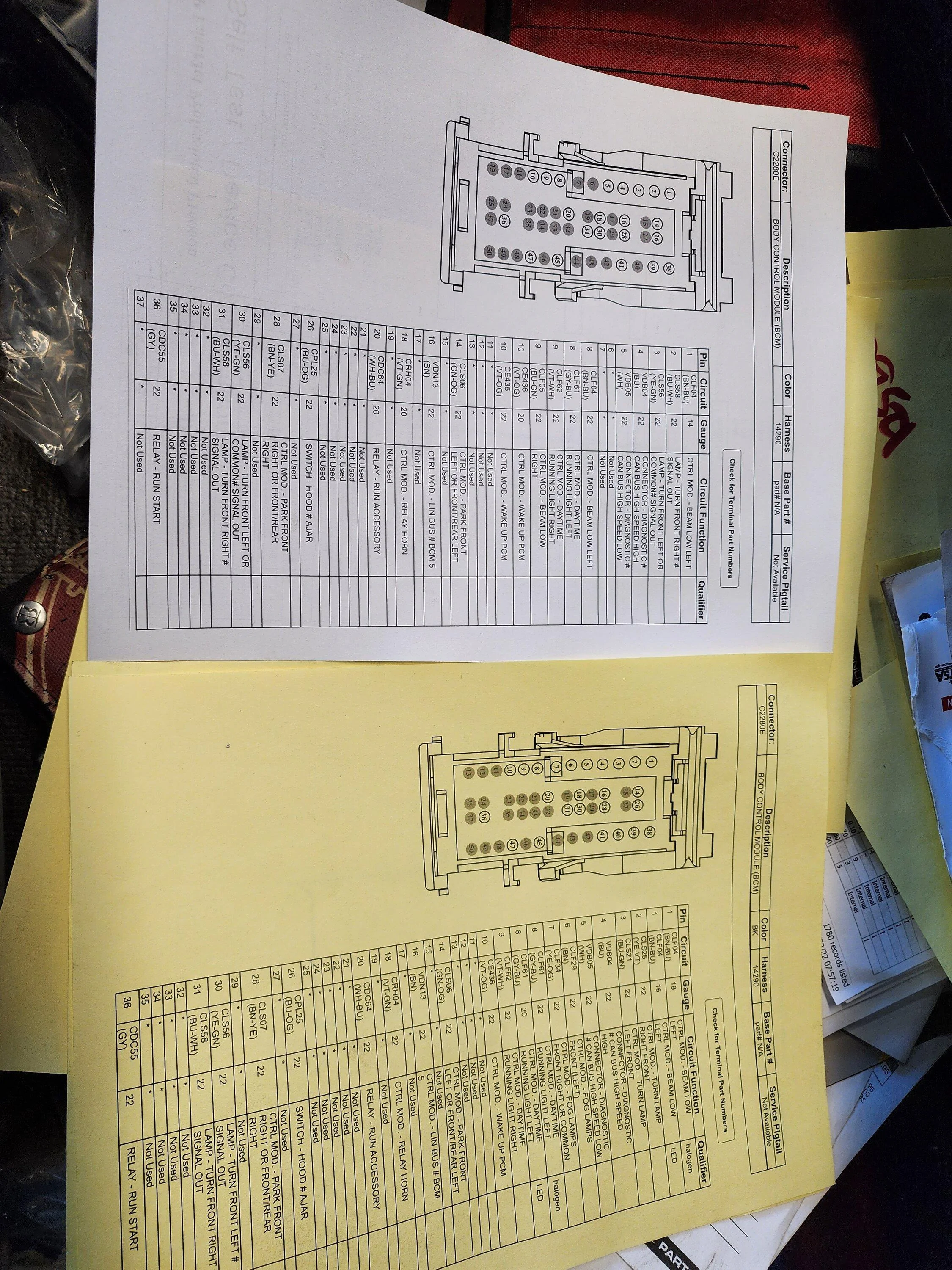

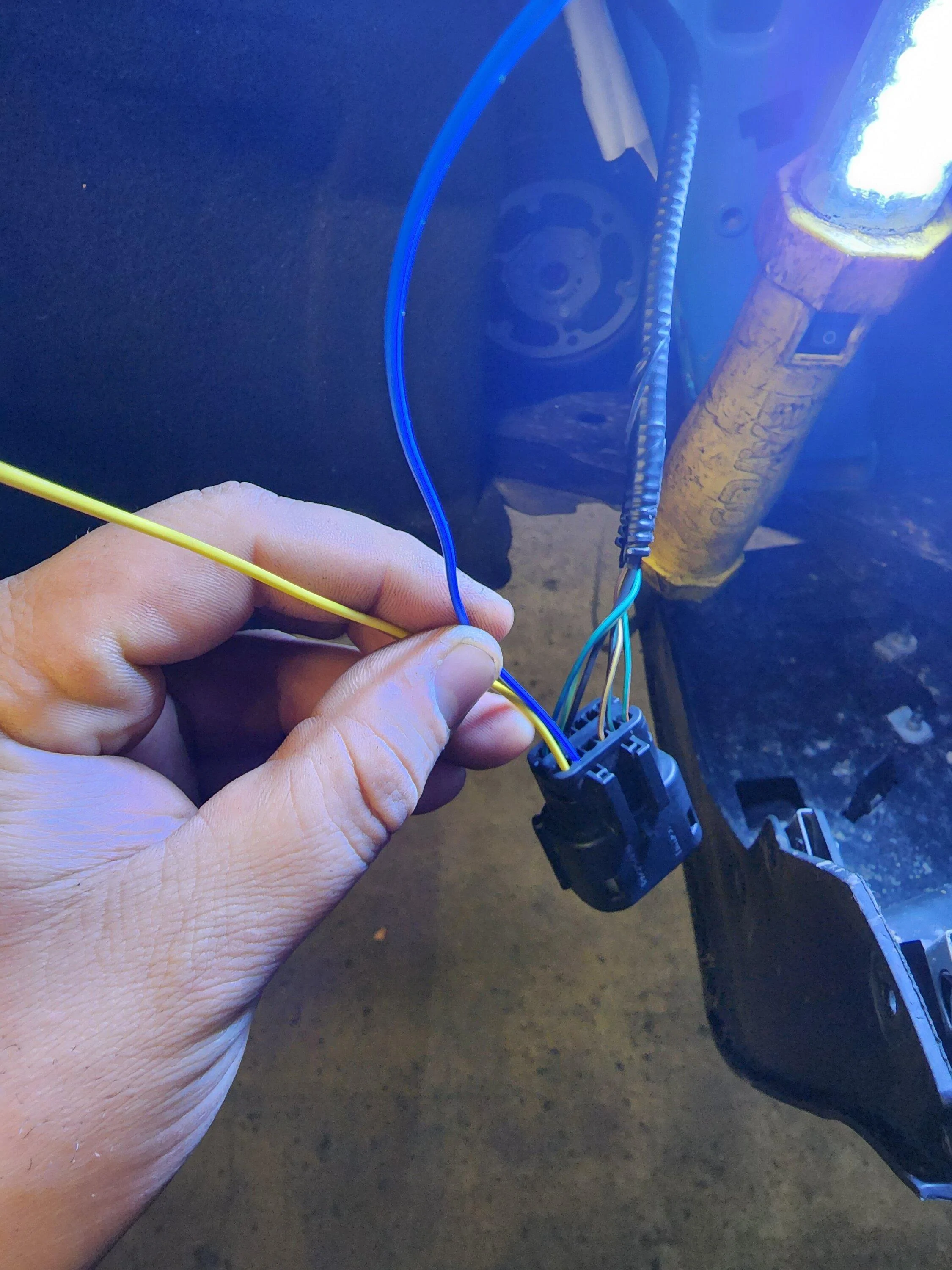

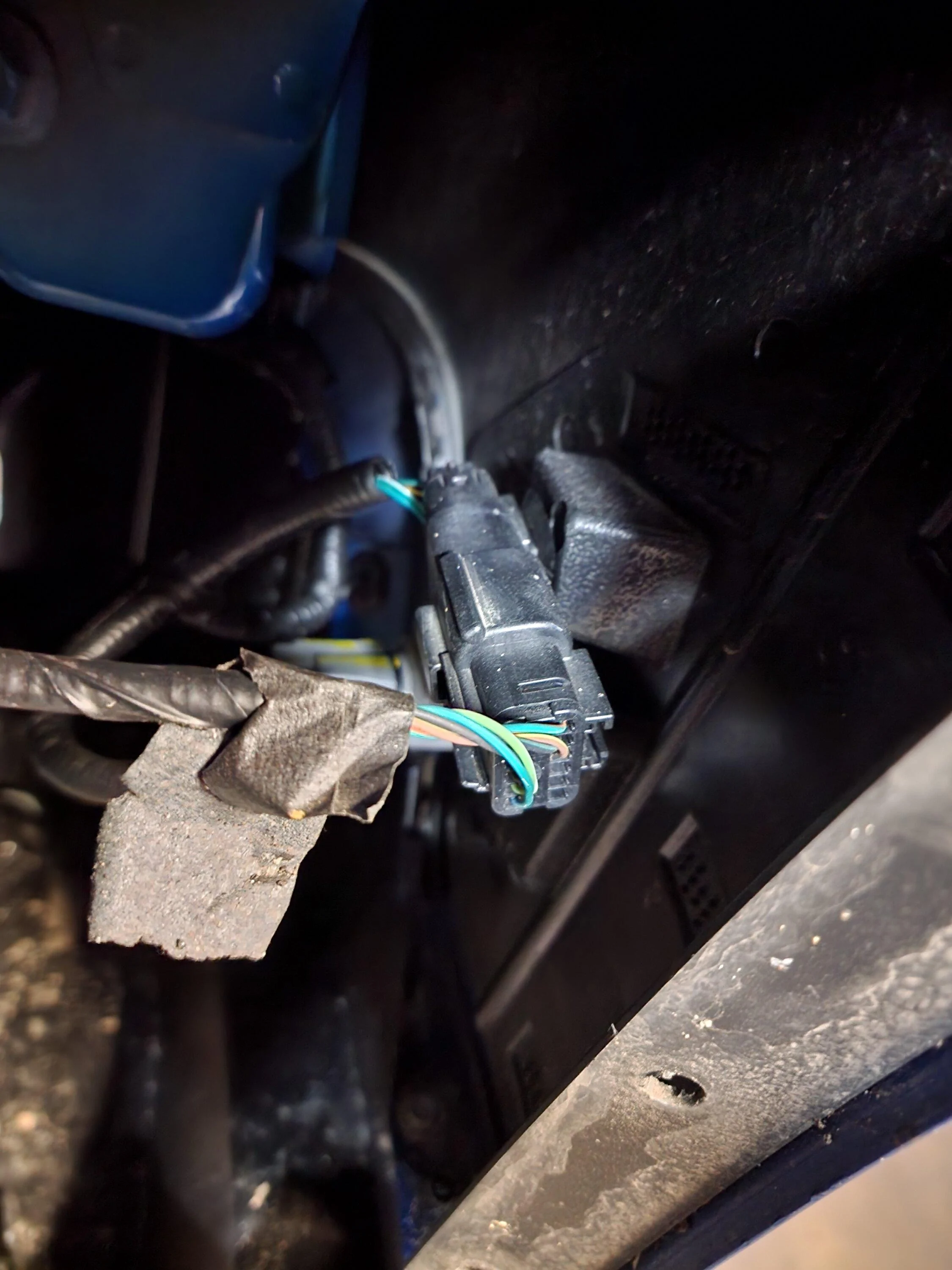

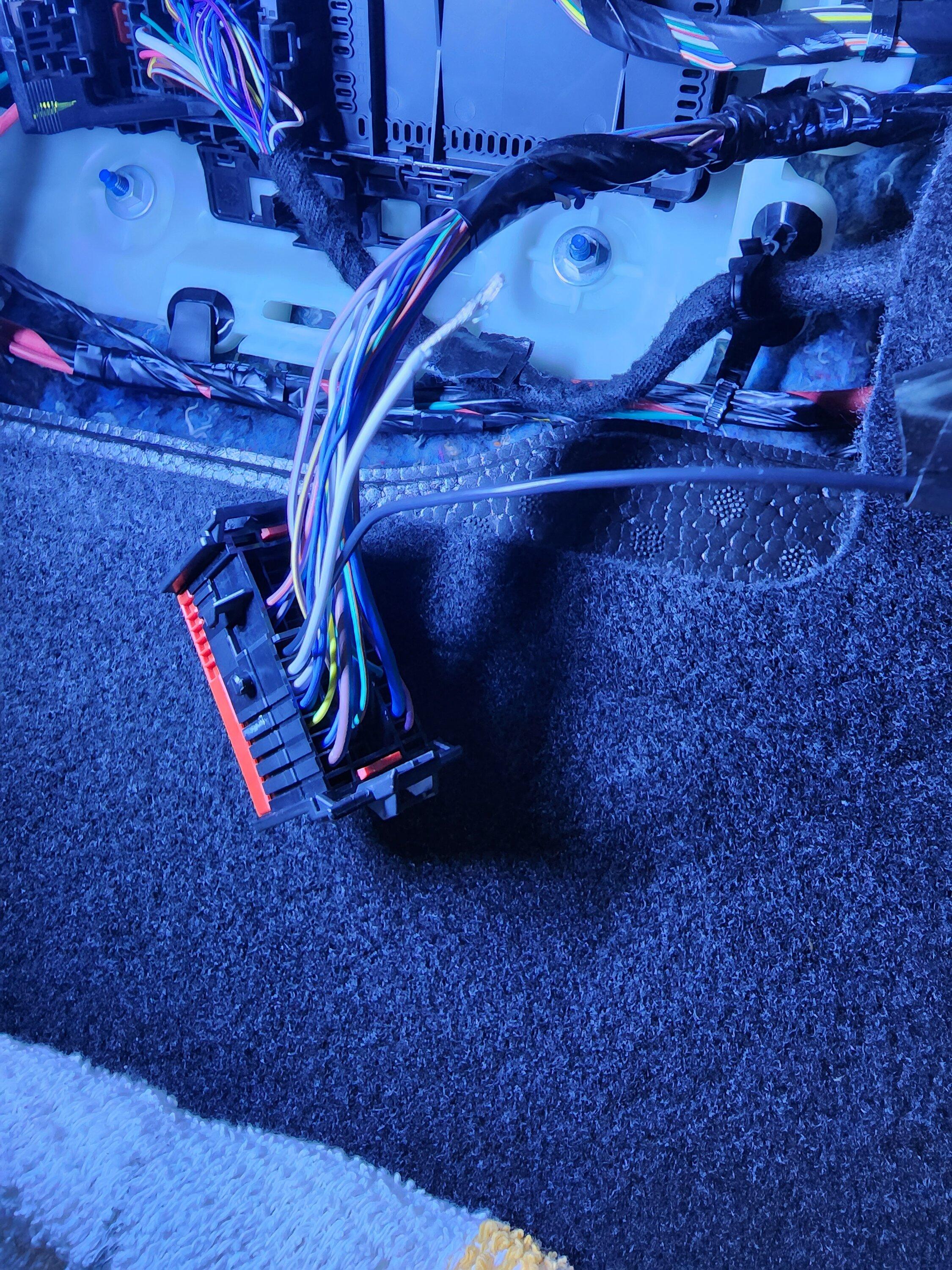

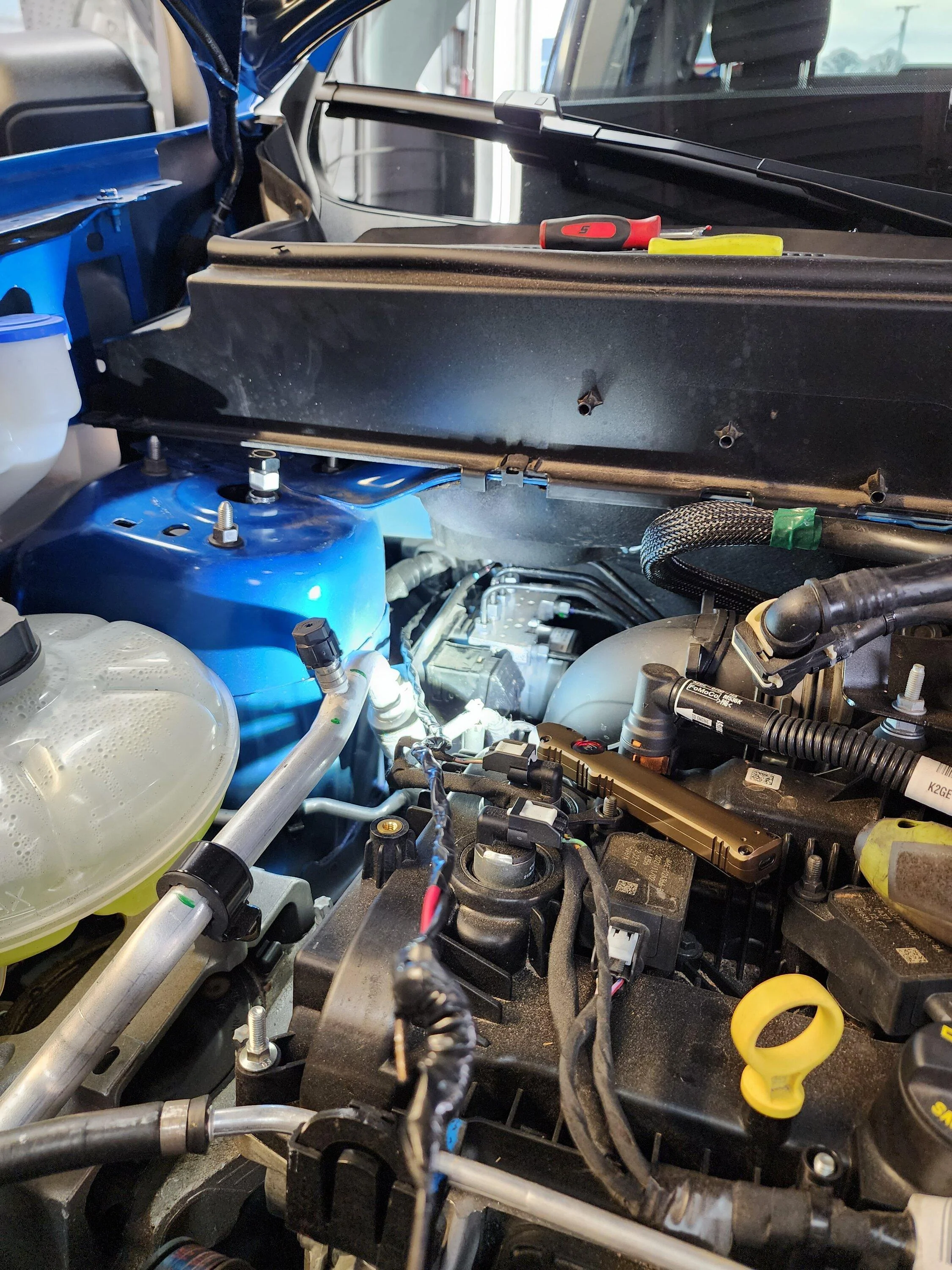

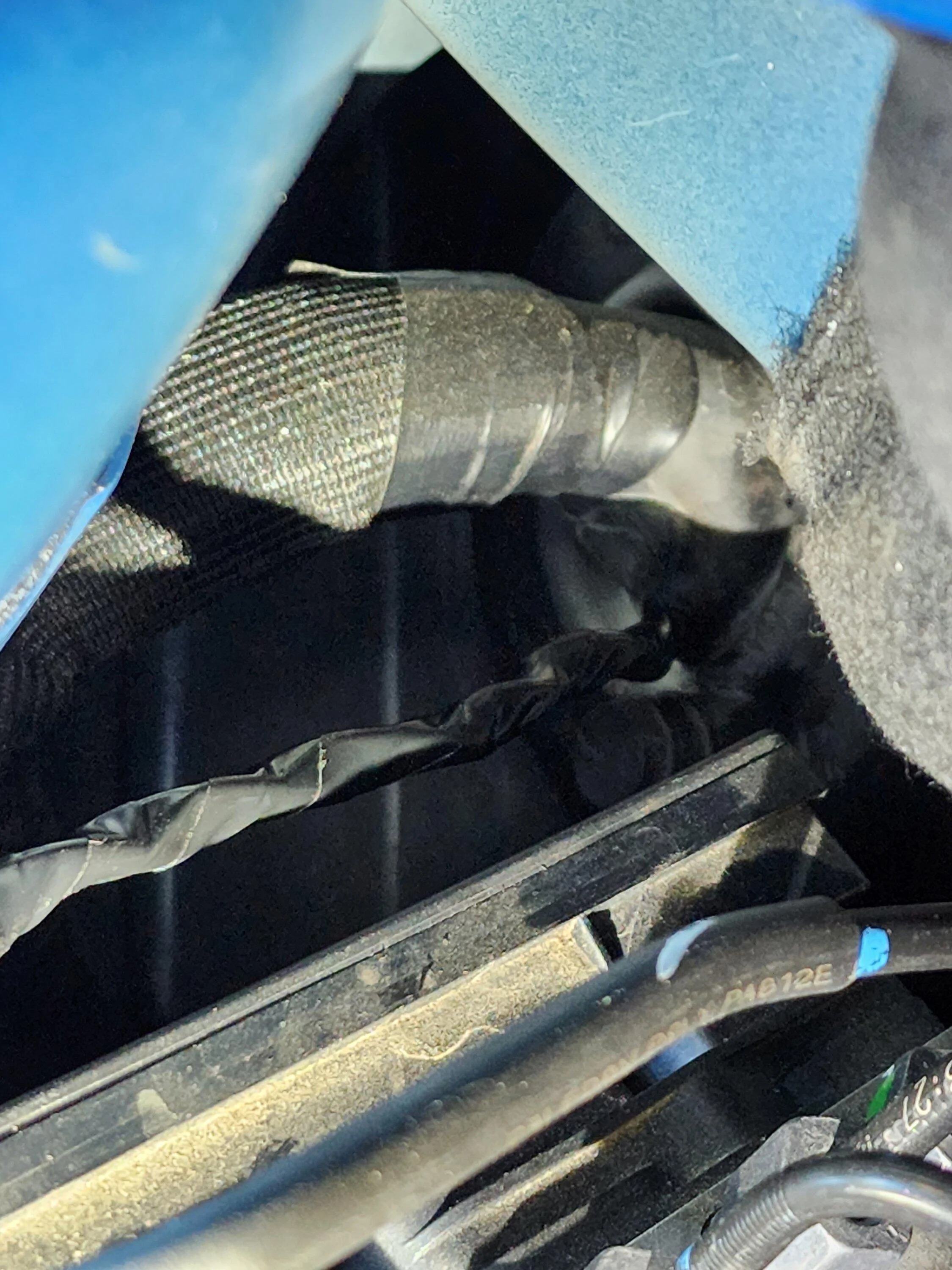

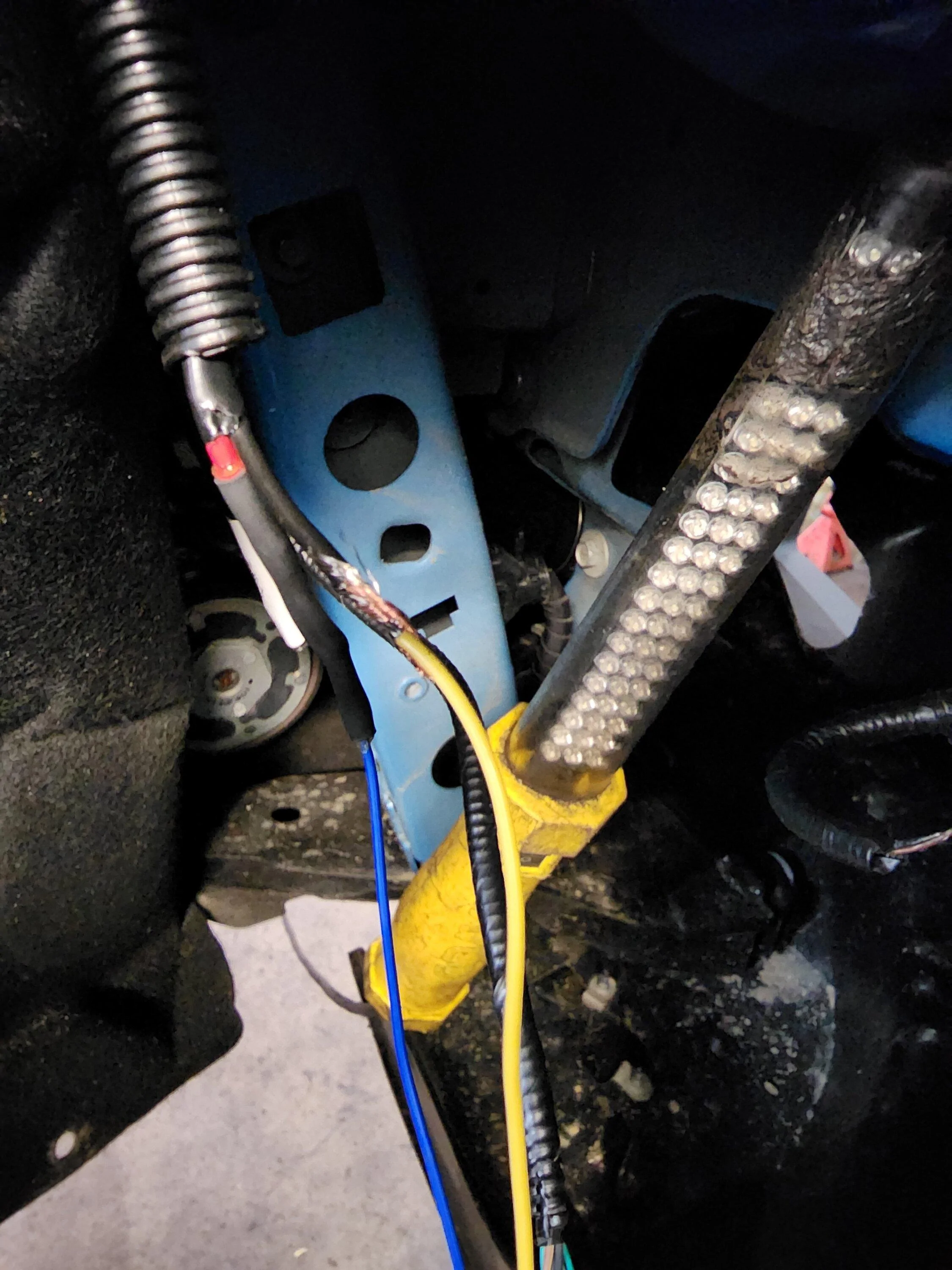

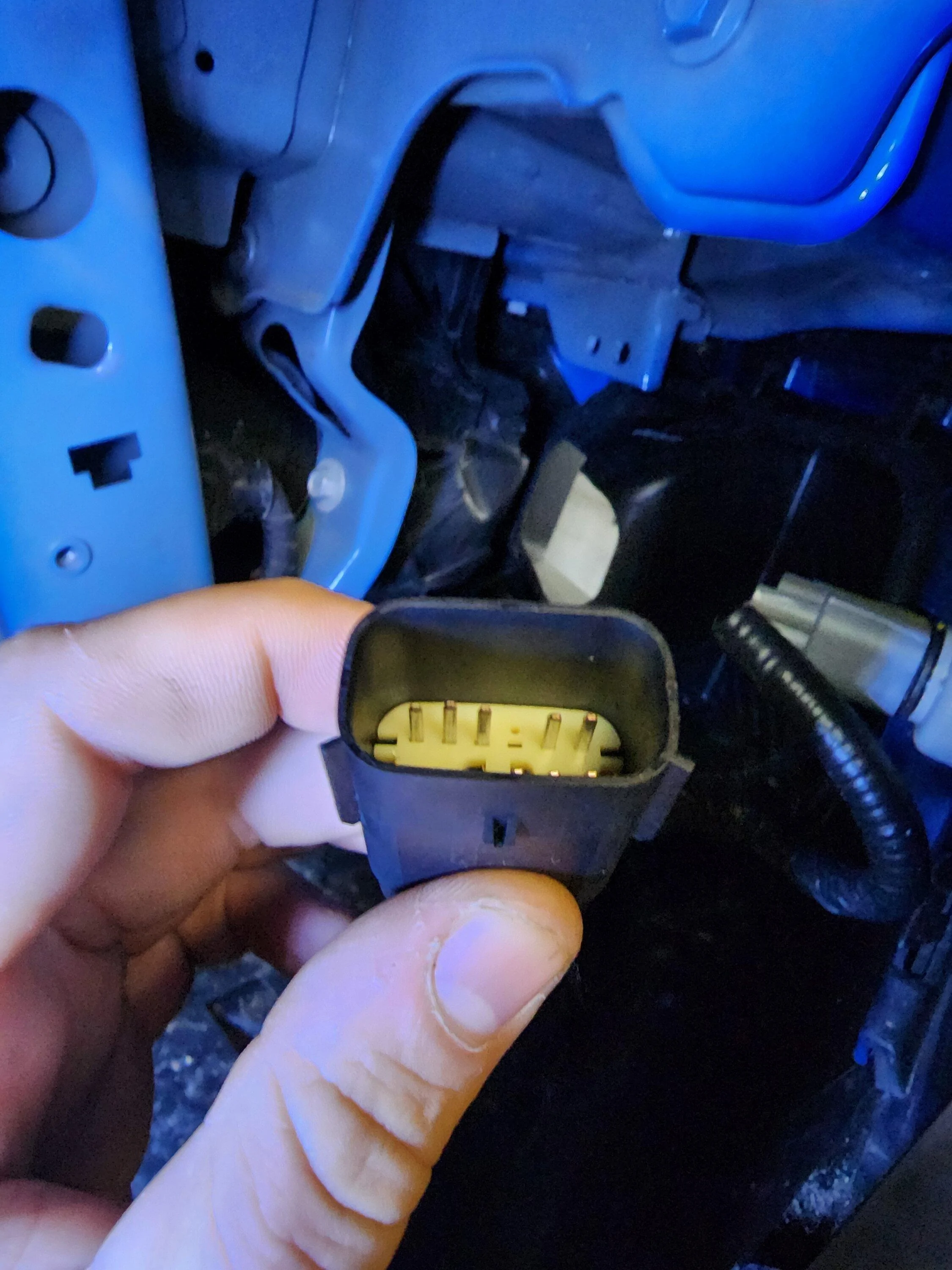

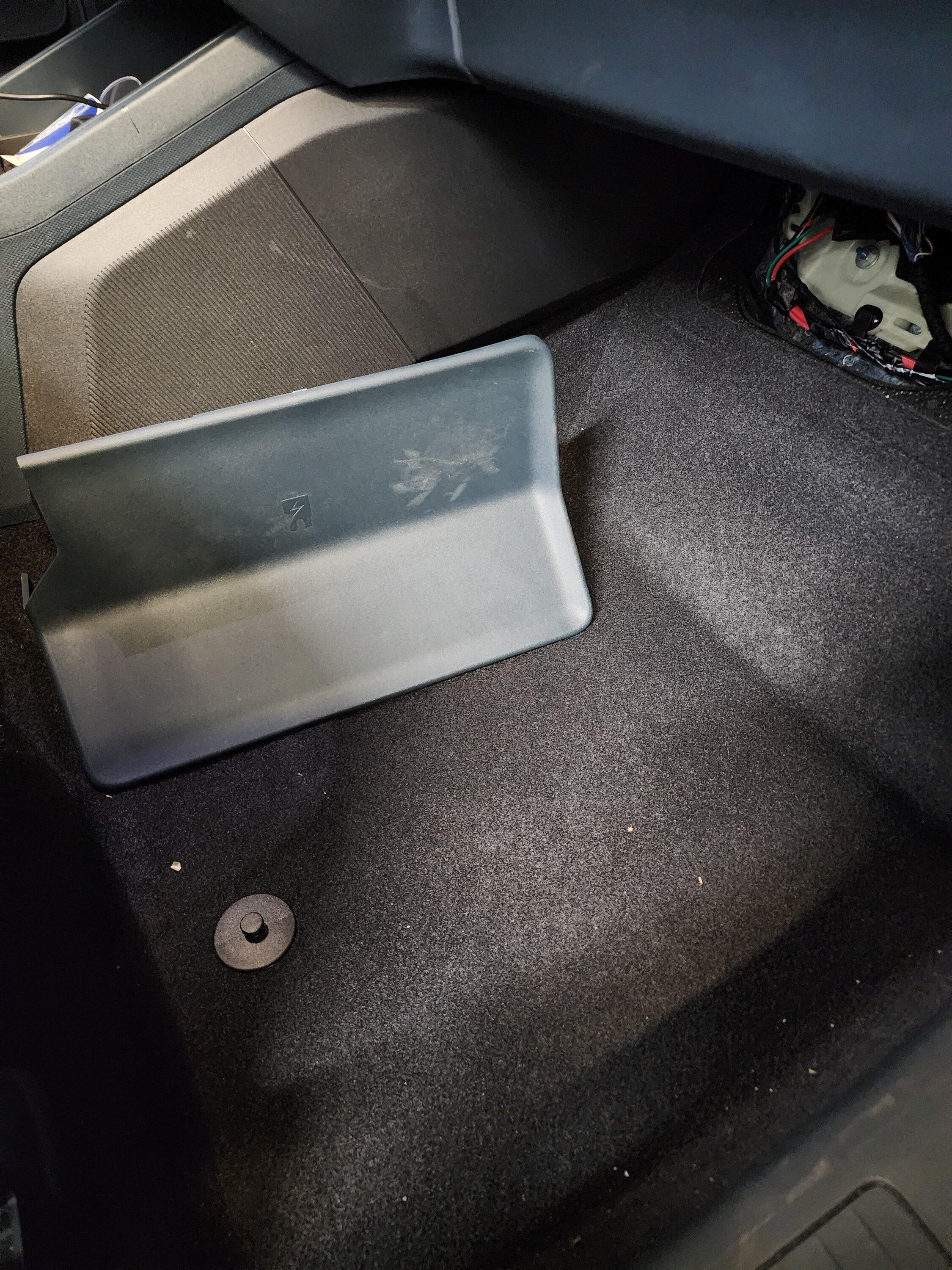

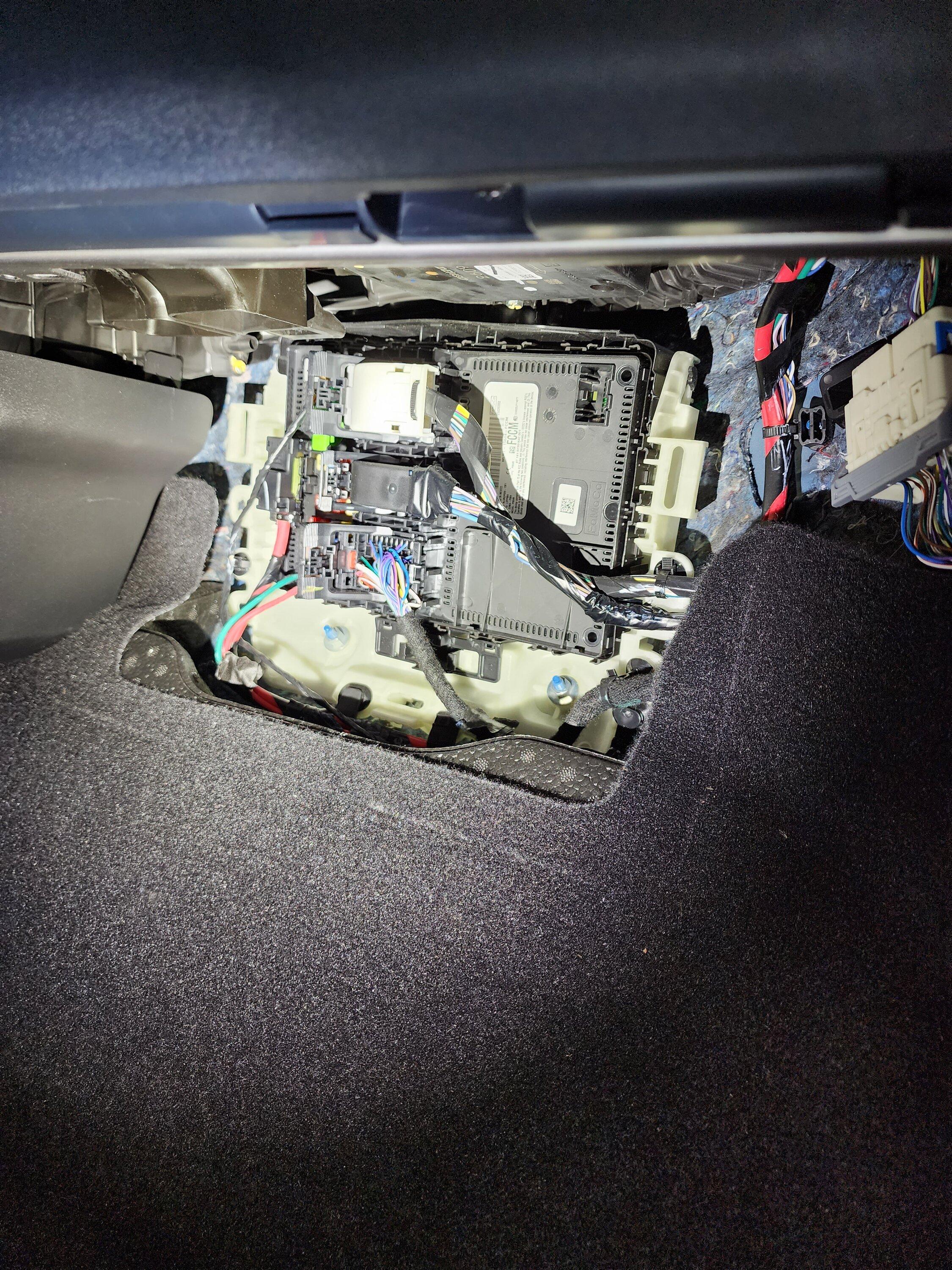

The Ford escape comes with 2 wires that are missing from the Ford maverick Body Control Module conector. They are power for Left And Right Foglamps. So i removed the conector and added the 2 missing pins for Power to the Fog lamps. After i discover with the Help of Forscan the Bcm will actually send power to the fog lamps just need to add 2 wires and send them tru the firewall to the front bumper harness and add 2 fog lamps conectors to the front bumper harness.
