F-150 Fog Lamp Switch and Wire Harness Installed in Maverick - DIY

[Vtec87pr1]

Can you share a rough price for this mod?

Tomorrow will do

Sponsored



[Joe Kelly]

Do you have a list of all the ford part numbers required.

thanks



[Vtec87pr1]

Do you have a list of all the ford part numbers required.

thanks

Parts list will be on the first post . Do you want the fog lamps parts number too?



[Vtec87pr1]

Tomorrow will do

I like that....What to do about the locking gas cap for Lariat?

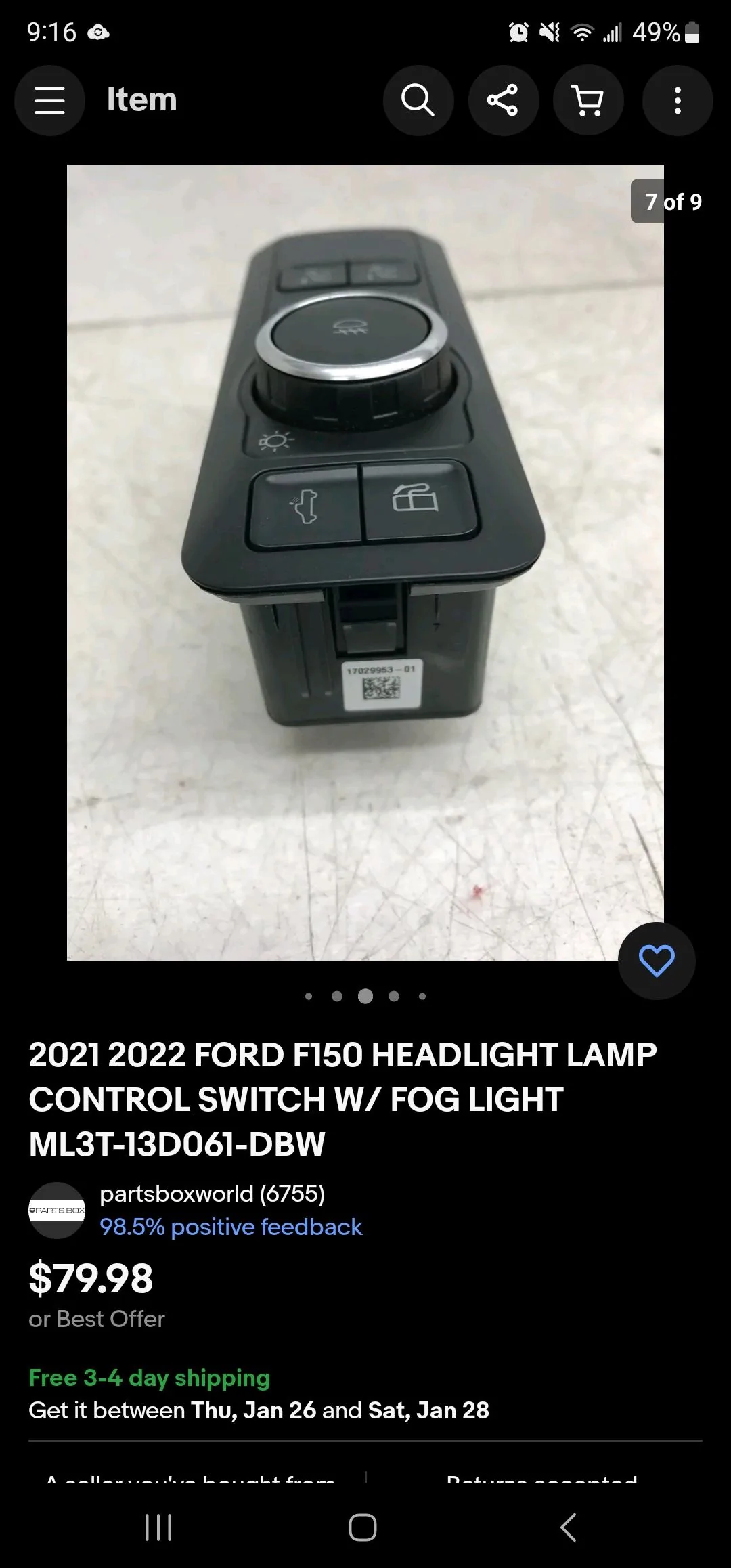

I found this switch dont know if it might work on yours but you could try. Since conector its the same anyways.



[Darnon]

Ah, interesting, so it appears the PowerBoost has the same pressurized fuel system as the Maverick Hybrid.



[23MAVLariatAWD]

I found this switch dont know if it might work on yours but you could try. Since conector its the same anyways.

Hey Antonio do you think that ML3T-13D061-DBW should work w this on a 23 hybrid?
https://auxbeam.com/products/3-inch...ng-harness-for-toyota-tundra-trd-4x4-off-road
In theory yes, correct?



[jsus]

I found this switch dont know if it might work on yours but you could try. Since conector its the same anyways.

Yup, that’s the direct match you’d want for a Maverick Hybrid.

Note that the electric fuel door release is a hybrid feature, not Lariat. The one you found is from an F-150 Powerboost, which is the name of the hybrid option there.



[Vtec87pr1]

Hey Antonio do you think that ML3T-13D061-DBW should work w this on a 23 hybrid?
https://auxbeam.com/products/3-inch...ng-harness-for-toyota-tundra-trd-4x4-off-road
In theory yes, correct?

I think it should work .



[Darnon]

The current part number for that switch w/ door release appears to be ML3Z-11654-DB. Varsity Ford has it new for not much more than that eBay listing. Plus shipping but it may get around charging sales tax and nets FordPass points using the card.

Edit: Varsity Ford ended up being cheapest for me for the switch + the terminal kit for adding to the BCM connector.



[Vtec87pr1]

The current part number for that switch w/ door release appears to be ML3Z-11654-DB. Varsity Ford has it new for not much more than that eBay listing. Plus shipping but it may get around charging sales tax and nets FordPass points using the card.

I added it to first page for ppl hopefully it works . I dont own an hybrid one so i cant comfirm.



[Darnon]

@Vtec87pr1 do you happen to have what wiring terminal size is needed for the BCM connector or the others as well? The 'check for terminal part numbers' should show it.



[jsus]

The current part number for that switch w/ door release appears to be ML3Z-11654-DB. Varsity Ford has it new for not much more than that eBay listing. Plus shipping but it may get around charging sales tax and nets FordPass points using the card.

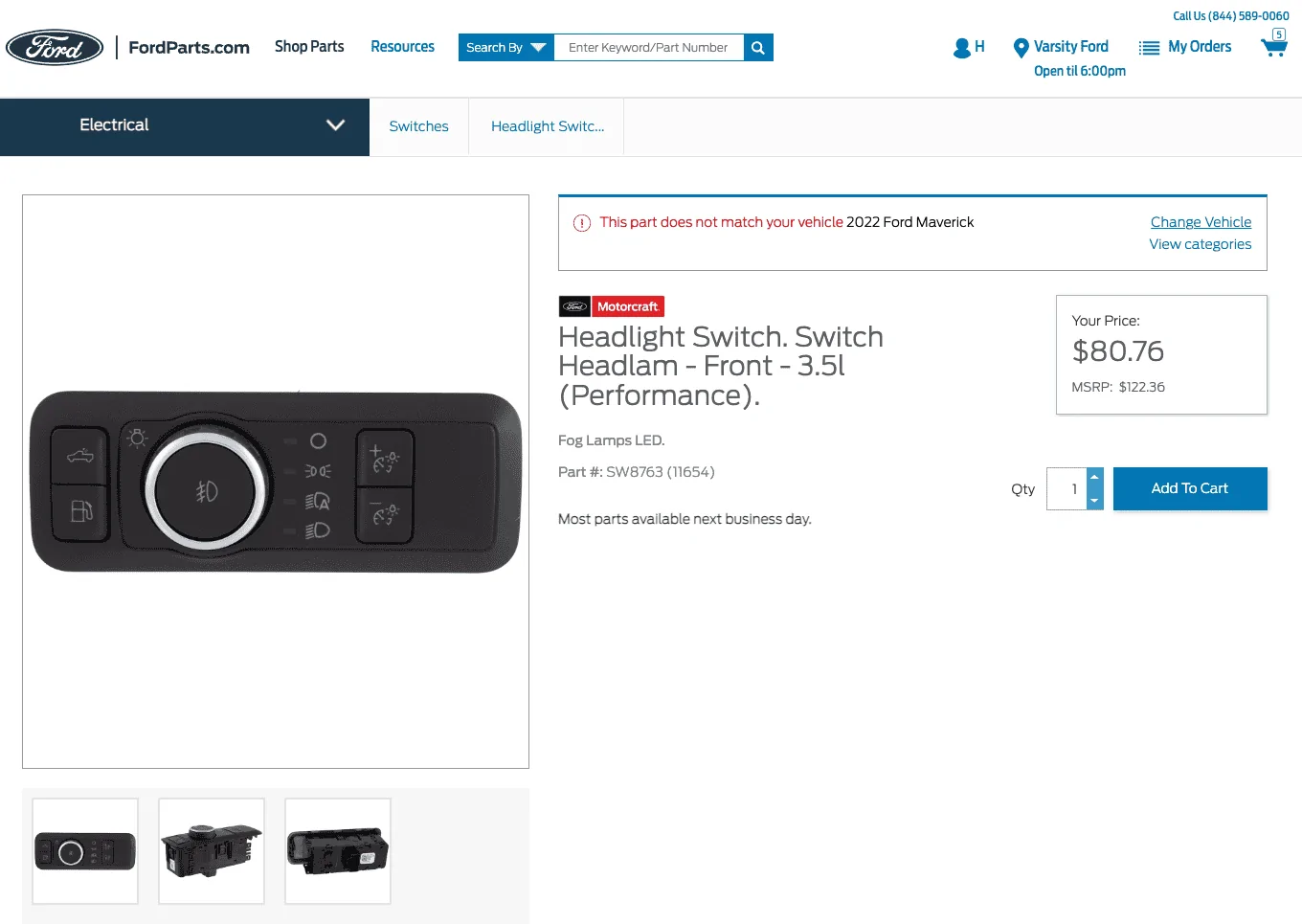

Also $80.76 at parts.ford.com when you select Varsity Ford, with free shipping but sales tax is collected and no earn/redeem of FordPass points.

https://parts.ford.com/shop/en/us/electrical/switches/headlamp-switch-14757731-1#/partMatched?pdp=y



[Vtec87pr1]

@Vtec87pr1 do you happen to have what wiring terminal size is needed for the BCM connector or the others as well? The 'check for terminal part numbers' should show it.

I will check in a second



[Vtec87pr1]

@Vtec87pr1 do you happen to have what wiring terminal size is needed for the BCM connector or the others as well? The 'check for terminal part numbers' should show it.

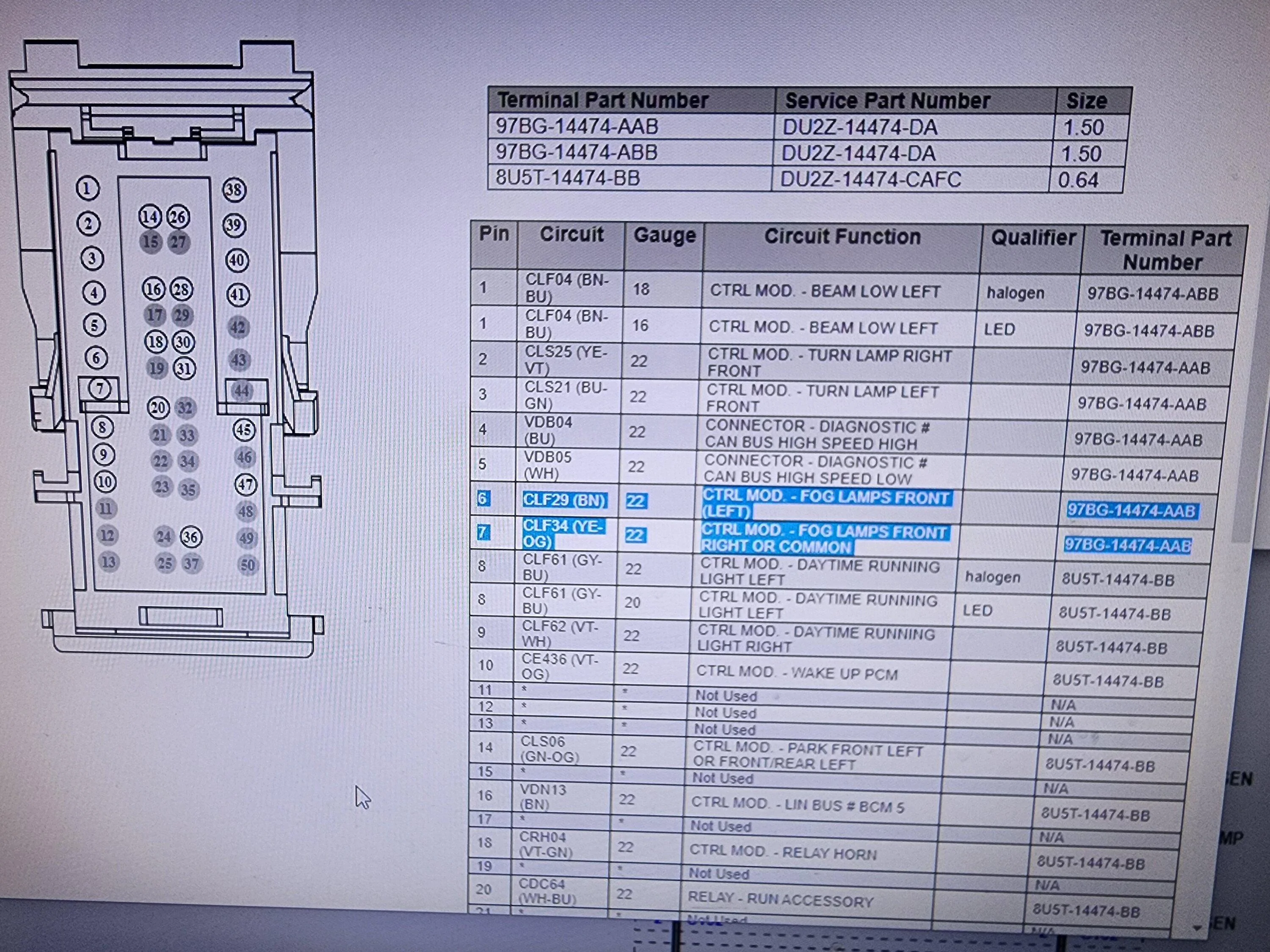

Conector its C2280E BCM

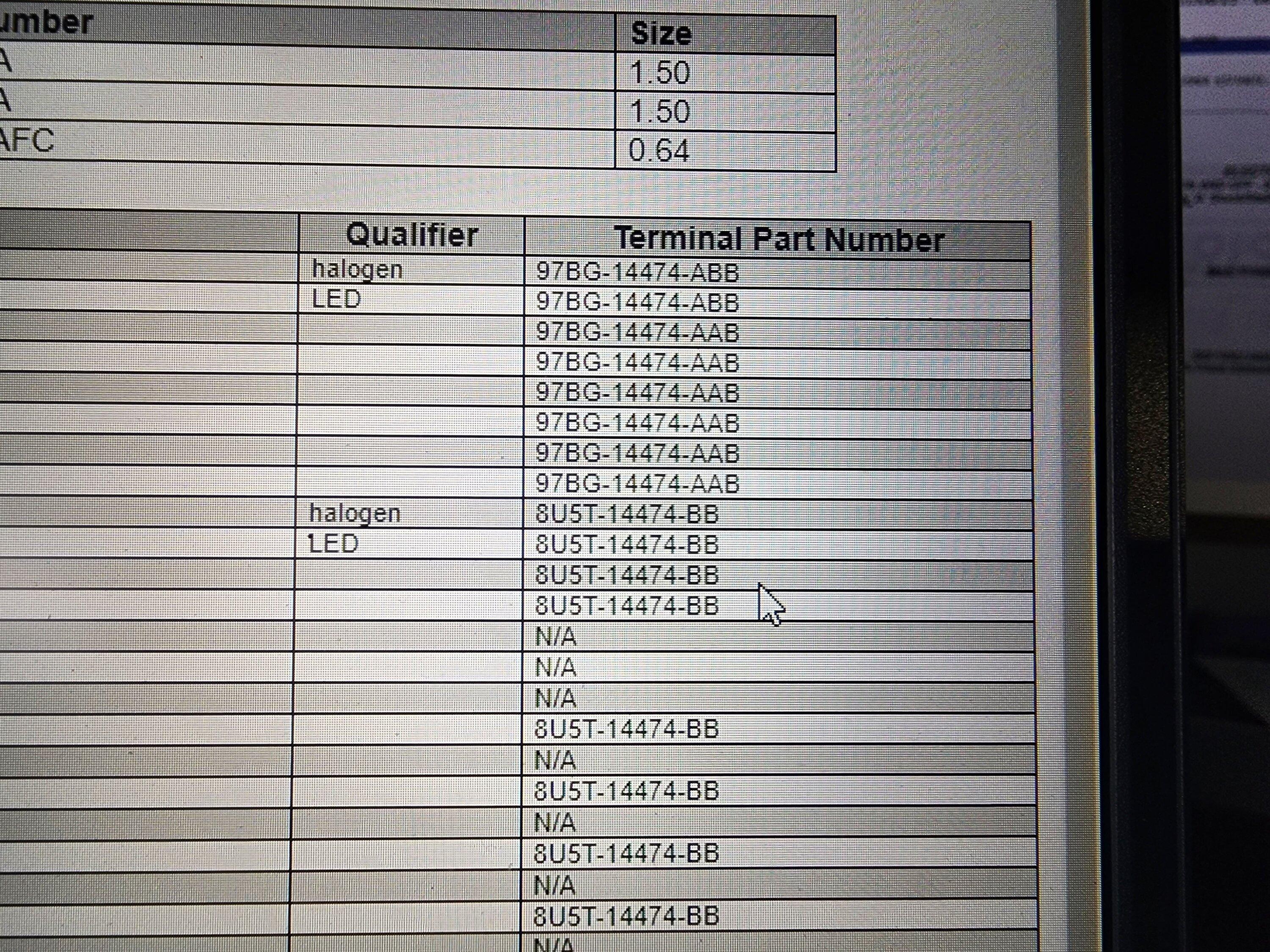

Theres the picture of pins part number



[Vtec87pr1]

The highlighted one
