Thank you. I'm familiar with this kind of modeling, so let me tell you what else I see. I don't know for certain what drivetrains these represent, but the general pattern is consistent. I would call this a drag race analysis: straight "floor it off the line." You run up the maximum torque or HP curve in 1st gear, then shift to successively higher gears. Undulations are shift points where RPM and output drop. Torque falls because it includes a decreasing numerical gear ratio at each shift.

This works for any system where the power plant and the road are mechanically connected, virtually anything with a geared transmission be they EV, hybrid or conventional powerplant. Of the four drivetrains, three are geared so the model is valid. It's also valid with any EV. Assuming the fourth is Escape Hybrid, such a model is not valid.

Hybrid engine RPM is not linked to road speed, so relating ICE output to a "speed" axis is meaningless. Traction motor is linked directly to the road, but the ICE is connected through the power split device, and that changes everything. The ICE can run at peak torque RPM at any road speed. EV torque is first current-limited, then RPM limited, but ICE speed and so ICE torque can remain constant as you speed up.

You can understand why it needs a sophisticated control system...
Maybe I don't get it at all, but after watching the Weber videos, my understanding is the ICE crankshaft is geared to the output drive shafts. I did not see any changeable gearing. Did I miss it? Does a 'power split device' cause variations in the gearing of the ICE crankshaft to the wheel rpms? Seems what I saw, the engine rpms will continue to rise directly as speed changes. What did I miss?
tom
Sponsored



Darnon

2.5L Hybrid
Well-known member
Joined
Jul 4, 2021
Threads
10
Messages
4,710
Reaction score
5,577
Location
WNY
Vehicle(s)
2022 Maverick
Engine
2.5L Hybrid
The ICE is connected via a planetary gearset and its effective gear ratio in relation to the ring gear of that set is modified by the direction and speed of the start/generator motor which is connected to the sun gear.


grumpyunk

2.0L EcoBoost
Well-known member
First Name
tom
Joined
Jul 9, 2021
Threads
3
Messages
411
Reaction score
422
Location
georgia
Vehicle(s)
07 Mariner 85 Ranger 97 T-bird 87 Sable
Engine
2.0L EcoBoost
The ICE is connected via a planetary gearset and its effective gear ratio in relation to the ring gear of that set is modified by the direction and speed of the start/generator motor which is connected to the sun gear.
Unless the starter/generator can stop the planetary set, then it cannot change the ratio. Can it?
tom


Rkbrumbelow

Well-known member
First Name
Robert
Joined
Jul 23, 2021
Threads
13
Messages
1,216
Reaction score
1,443
Location
Cedartown, GA
Vehicle(s)
HCH2, Hybrid XLT on order
Unless the starter/generator can stop the planetary set, then it cannot change the ratio. Can it?
tom
It’s the ecoboost, not the hybrid I believe they are discussing


Sponsored

fbov

Well-known member
First Name
Frank
Joined
Jun 28, 2021
Threads
0
Messages
452
Reaction score
489
Location
Bushnell's Basin
Vehicle(s)
2020 Escape Hybrid
Maybe I don't get it at all, but after watching the Weber videos, my understanding is the ICE crankshaft is geared to the output drive shafts. I did not see any changeable gearing. Did I miss it?

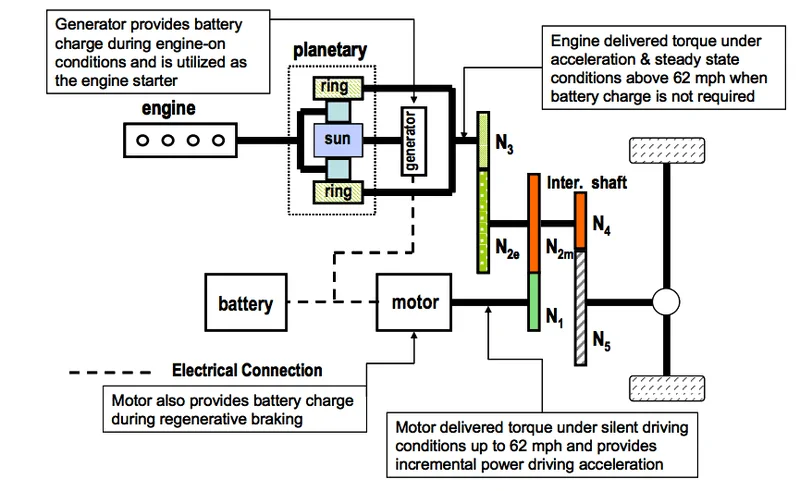

There are no changes in gear ratios, only changes in shaft speed ratios. Let's focus on the PSD, that little planetary gearset that's used in a unique way (patent #US3732751). This diagram has details specific to the original 2013 C-Max (62mph limits were removed), but the layout's the same as Gen 4.
