F-150 Fog Lamp Switch and Wire Harness Installed in Maverick - DIY

[peekaypee]

Awesome! Thanks for your speedy reply. By the way, will, that light switch that you talked about earlier work perfectly for my situation using DD's Fog kit ? I have the 2022 hybrid Lariat and I would love it just to look as clean as stock

Sponsored



[Mini One-Fiddy]

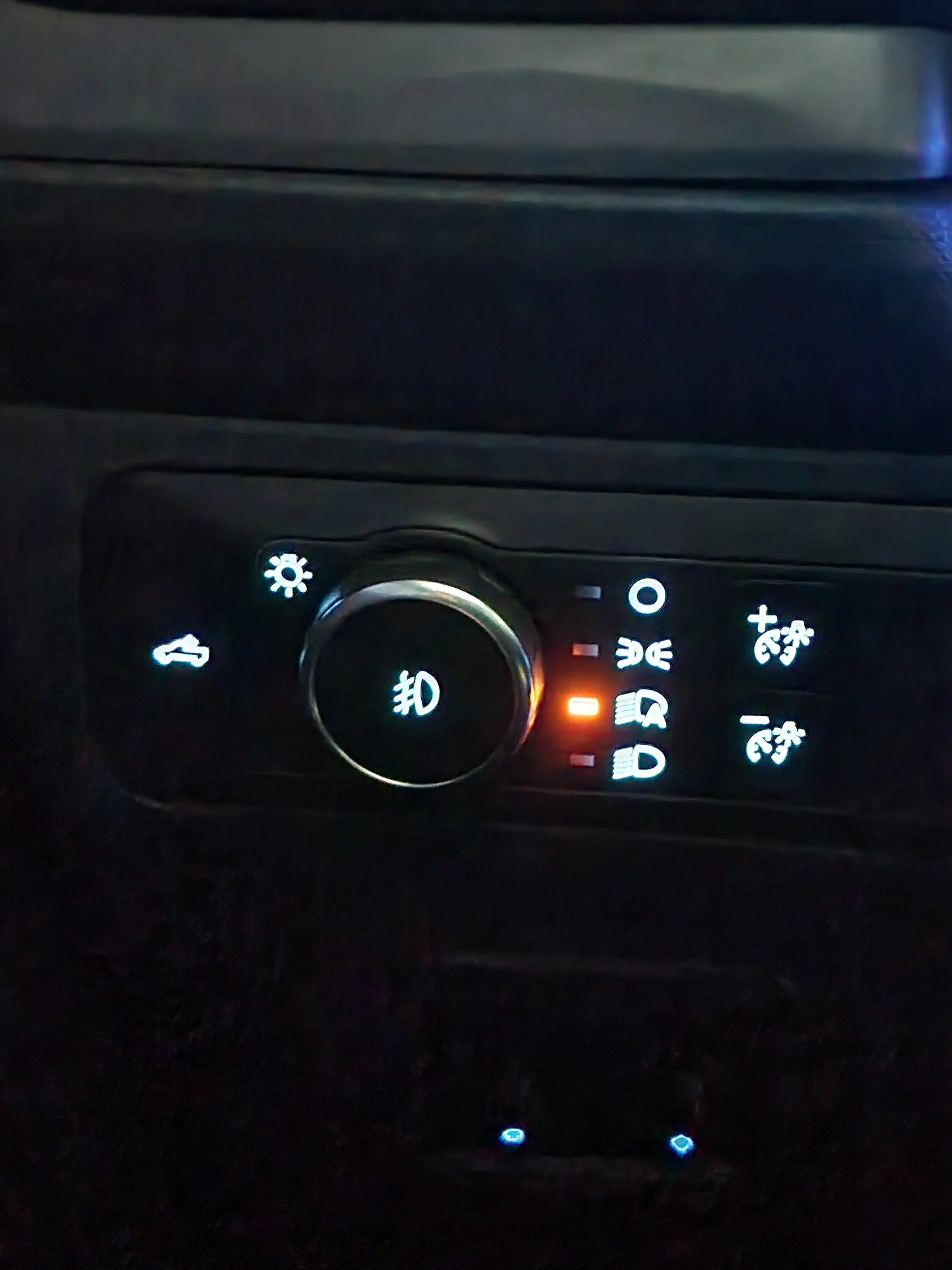

I've completed the install similar to @Vtec87pr1 per his instructions and wire harness and I've watched the install video from DD. Admittedly, I am a DD fanboy. But even with that, I still prefer the look and function of the F150 switch with power coming from the BCM for a pair of SS3 Sport fogs.



[Vtec87pr1]

Awesome! Thanks for your speedy reply. By the way, will, that light switch that you talked about earlier work perfectly for my situation using DD's Fog kit ? I have the 2022 hybrid Lariat and I would love it just to look as clean as stock

I think it should work perfectly fine. Just wating on the kit and i will post an how to do it your self or i will probably make the harness and make it more clean looking than plug conectors .



[Vtec87pr1]

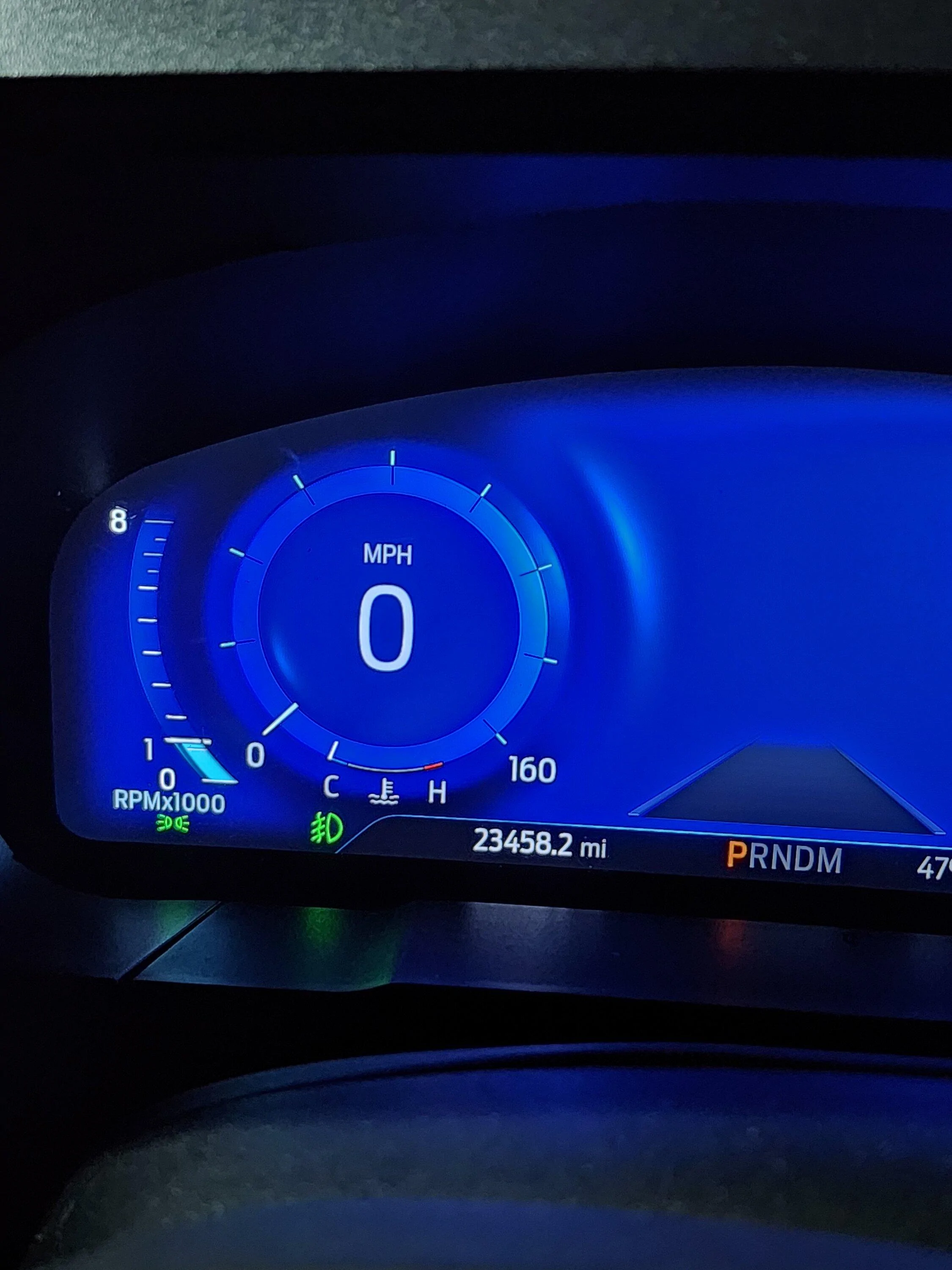

Nothing like having this on your instrument cluster and been actually functional .



[Automan21]

Vtech87pr1 you seem to keep on with the magic. You are incredible thank you for your hard work.



[Automan21]

I will have to make a part list first . I will probably send a detail instructions for placing the pins on the bcm conector. And probably making the harness separate from the bumper one if it makes it easy for ppl to install. Before anything i need to ask the admins if im allowed too sell stuff here. And once i tested the system fully i will probably start selling the harness. Because in reality all you need its to make a harness since your bcm should have the pins.

Im not sure on hybrid models though simce mine its an XL Ecoboost.

Hell yeah Im in.



[FischAutoTechGarten]

I think it should work perfectly fine. Just wating on the kit and i will post an how to do it your self or i will probably make the harness and make it more clean looking than plug conectors .

I've orded the Elite Kit for the Maverick from DD as well... Looks like they will ship in March. I too would like to do the F150 switch to make it as clean and oem as possible.



[Automan21]

I've completed the install similar to @Vtec87pr1 per his instructions and wire harness and I've watched the install video from DD. Admittedly, I am a DD fanboy. But even with that, I still prefer the look and function of the F150 switch with power coming from the BCM for a pair of SS3 Sport fogs.

thats what I'm going for too!!



[710-oil-614]

F150 Headlamp switch ordered.

About to place order for JJC Tremor fog light brackets and SSC1 pod lights.

*Bart Scott CAN'T WAIT*



[A.Bursell]

F150 Headlamp switch ordered.

About to place order for JJC Tremor fog light brackets and SSC1 pod lights.

*Bart Scott CAN'T WAIT*

Can you share were ordered, price paid, if you shopped around, etc?



[peekaypee]

I think it should work perfectly fine. Just wating on the kit and i will post an how to do it your self or i will probably make the harness and make it more clean looking than plug conectors .

Thank you VTech. I'm excited. Keep me posted if you can and I'll participate in purchasing whatever I need to. I haven't bought any lights from DD. I just came across their video from someone on this forum and thought it looked really clean and nice but wasn't sure about the turn-on round button that operates in the cabin. I really like the ford replacement switch I've recently learned here.

By the way, your blue Maverick looks sweet. I am sure you capture a lot of attention



[Vtec87pr1]

Thank you VTech. I'm excited. Keep me posted if you can and I'll participate in purchasing whatever I need to. I haven't bought any lights from DD. I just came across their video from someone on this forum and thought it looked really clean and nice but wasn't sure about the turn-on round button that operates in the cabin. I really like the ford replacement switch I've recently learned here.

By the way, your blue Maverick looks sweet. I am sure you capture a lot of attention

Thanks . I will let you know when i install them



[710-oil-614]

Can you share were ordered, price paid, if you shopped around, etc?

Used the part number supplied by Vtec and purchased it from Tasca parts (where I previously purchased my turn signal stalk for lane keep assist) - total with shipping and tax was $39

An MTC member has made fog light brackets and bezels, and ones specific to the Tremor and made for the SSC1 pods. They are $150 (but I believe MTC gets a 10% discount).

https://jjc-llc.com/products/2023-ford-maverick-tremor-fog-light-brackets-bezels

He also sells the SSC1 pods as well which I'll likely just grab from him.

Here are the DD SSC1s:

https://www.diodedynamics.com/stage-series-c1-white-sae-dot-fog-standard-led-pod-pair.html

Whether @Vtec87pr1 makes the harness or drags me through the finish wiring it myself there will be some well-spent costs on compensating him for his efforts.

All in all - I expect it to run around $650-700 all said and done.

My small contribution will be documenting it as well as I can so that future no talent ass clowns like myself will have a reference in addition to this thread as well.



[Dad]

Thank you for your reply. I saw that and I really like it but it doesn't use the existing switch inside my cabin and I'd like to use it and I understand. F-150 and the Ford escape hybrid has a switch that has the button for the fog lights as opposed to what DD offers is just a stand-alone button. Any thoughts?

I saw how the F-150 light switch was used to activate both fog and headlamps and agree that it's preferable to the DD harness although I haven't seen their switch harness set-up. I wonder if the two can be combined somehow enabling the F-150 light switch to work with DD's harness.



[peekaypee]

I saw how the F-150 light switch was used to activate both fog and headlamps and agree that it's preferable to the DD harness although I haven't seen their switch harness set-up. I wonder if the two can be combined somehow enabling the F-150 light switch to work with DD's harness.

I saw how the F-150 light switch was used to activate both fog and headlamps and agree that it's preferable to the DD harness although I haven't seen their switch harness set-up. I wonder if the two can be combined somehow enabling the F-150 light switch to work with DD's harness.

I was watching the video, , of the installation of these fog lights put on by DD. And in the comments section, a question is asked if you could put one of Ford's light cluster switch which has a button already for fog lights to turn it on and off and it seems like you can according to his reply. Check it out.
