F-150 Fog Lamp Switch and Wire Harness Installed in Maverick - DIY

[gunnmitten]

Hey looks good great job I have hybrid have to see if it will work because of fuel door switch

ML3Z-11654-DC

Sponsored



[Mini One-Fiddy]

After sitting in all of the parts for several months, I finally got to installing the harness. Everything works like a charm as if it were built that way. I had to do some minor ForScan changes as I had things set wrong (fog lights were drawing constant power from BCM). The next free day will be to completely install the lights now that I know the wiring is working.



[bgn]

Thank you for the great write up @Vtec87pr1 . Any thoughts on using the fog light button for ditch lights with this wiring harness? Any problems with running just the left or the right fog light wire directly to the relay on the Rigid harness? Power for the lights would be direct from the battery.

https://www.rigidindustries.com/d-series-sr-q-series-pair-harness-40195-1.html

Each light pulls about 3.5 amps, so I don't think the 22ga wire would like being without a relay.



[Vtec87pr1]

Thank you for the great write up @Vtec87pr1 . Any thoughts on using the fog light button for ditch lights with this wiring harness? Any problems with running just the left or the right fog light wire directly to the relay on the Rigid harness? Power for the lights would be direct from the battery.

https://www.rigidindustries.com/d-series-sr-q-series-pair-harness-40195-1.html

Each light pulls about 3.5 amps, so I don't think the 22ga wire would like being without a relay.

That harness probably would work just use one of the fog light power from bcm as signal to your relay.

Im not using 22 gauge wire on the harness i make btw . I use 16 or 18 gauge . The bcm acts as power source and relay and fuse protection. But on the new ones im adding fuse if they used heavy duty fog lamps.

I had mine with out the fuse just normal f150 fog ligjts like the writte up and i havent had any problems yet.



[TacoTanium]

Wow, nice work, looks like you have a lot of time, lol.



[Vtec87pr1]

Wow, nice work, looks like you have a lot of time, lol.

Nop i dont lol always working.



[ZTFrosty]

@Vtec87pr1 First off this is amazing. I think I appreciate the attention to detail and the effort it took to get that oem look more than having the actual fog lights themselves haha
Second go ahead and sign me up for a harness if you're still making them! Diode Dynamics SS3 Fogs with the JJC brackets and a Fx4 lower valence.



[Vtec87pr1]

@Vtec87pr1 First off this is amazing. I think I appreciate the attention to detail and the effort it took to get that oem look more than having the actual fog lights themselves haha
Second go ahead and sign me up for a harness if you're still making them! Diode Dynamics SS3 Fogs with the JJC brackets and a Fx4 lower valence.

ok send me a pm with your information and the fog lights connectors as i need to order parts for them. im making one right now for a customer ass soon i finish and gather your information i will let you know by pm thanks.



[bgn]

That harness probably would work just use one of the fog light power from bcm as signal to your relay.

Im not using 22 gauge wire on the harness i make btw . I use 16 or 18 gauge . The bcm acts as power source and relay and fuse protection. But on the new ones im adding fuse if they used heavy duty fog lamps.

I had mine with out the fuse just normal f150 fog ligjts like the writte up and i havent had any problems yet.

Appreciate it! Got the terminals on order from RockAuto for $9 shipped and the F-150 light module for about $30 shipped off another site. Will give it a try one of these days when they come in...



[Vtec87pr1]

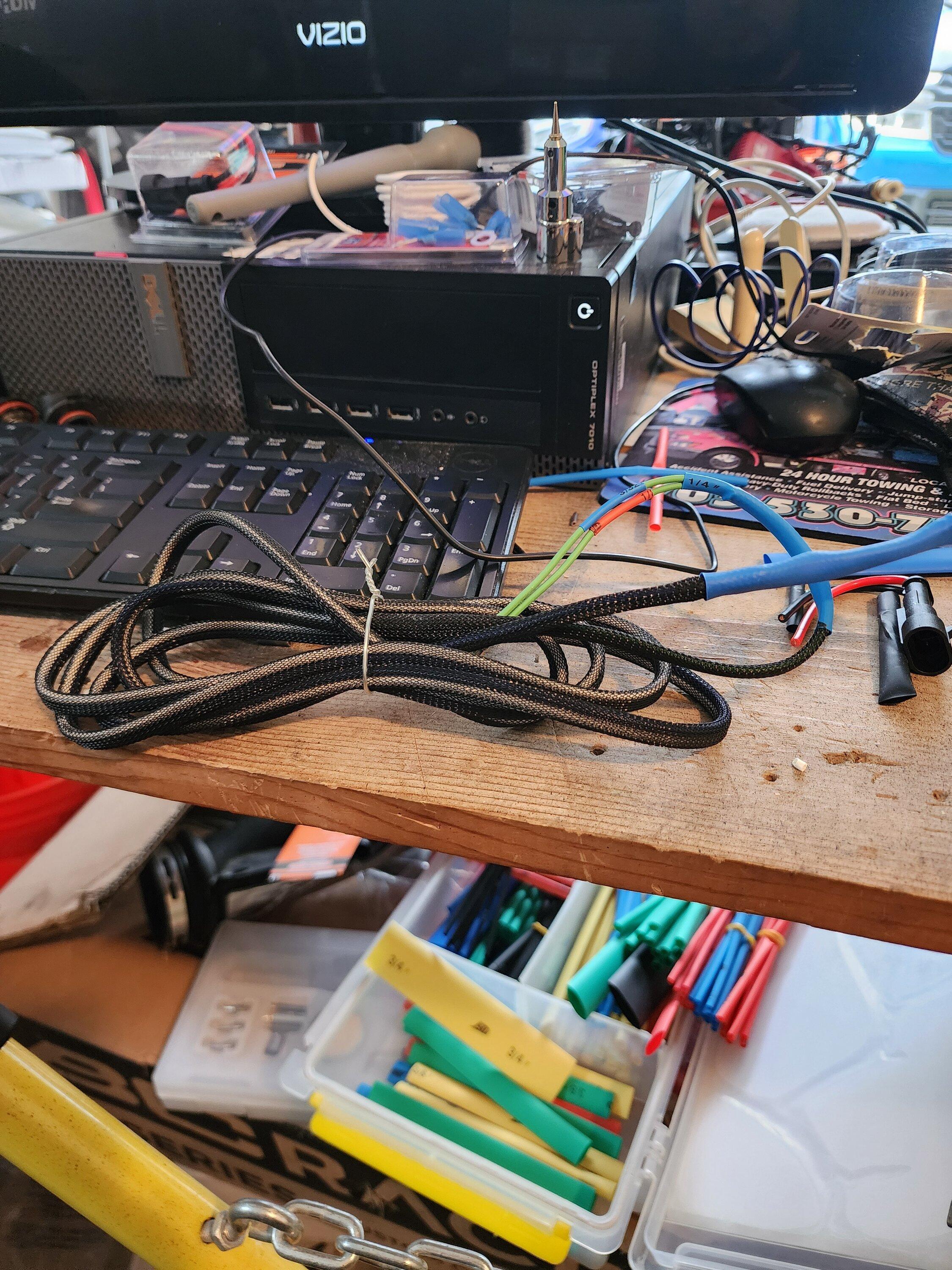

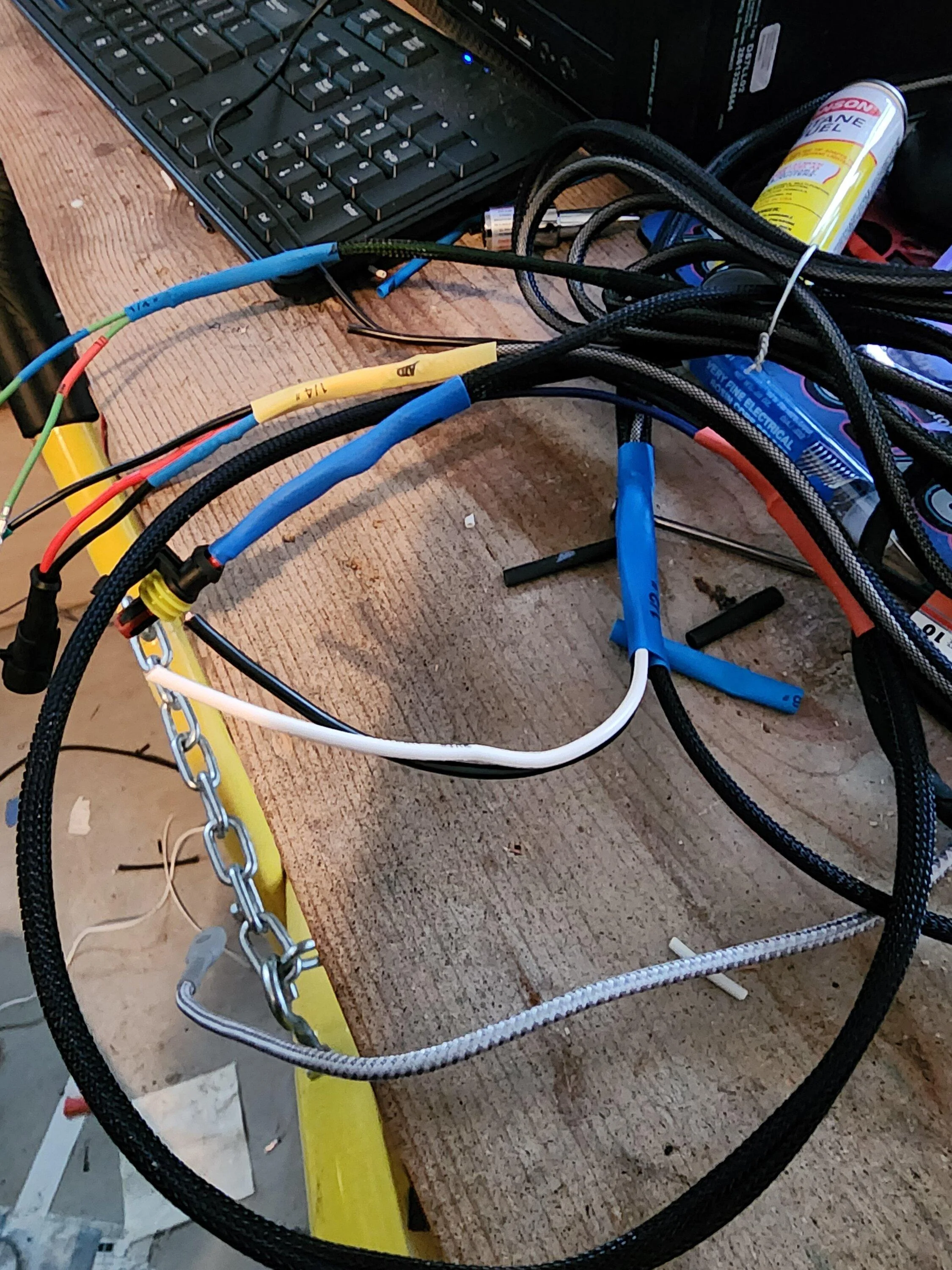

Heres another harness im making today.



[Vtec87pr1]

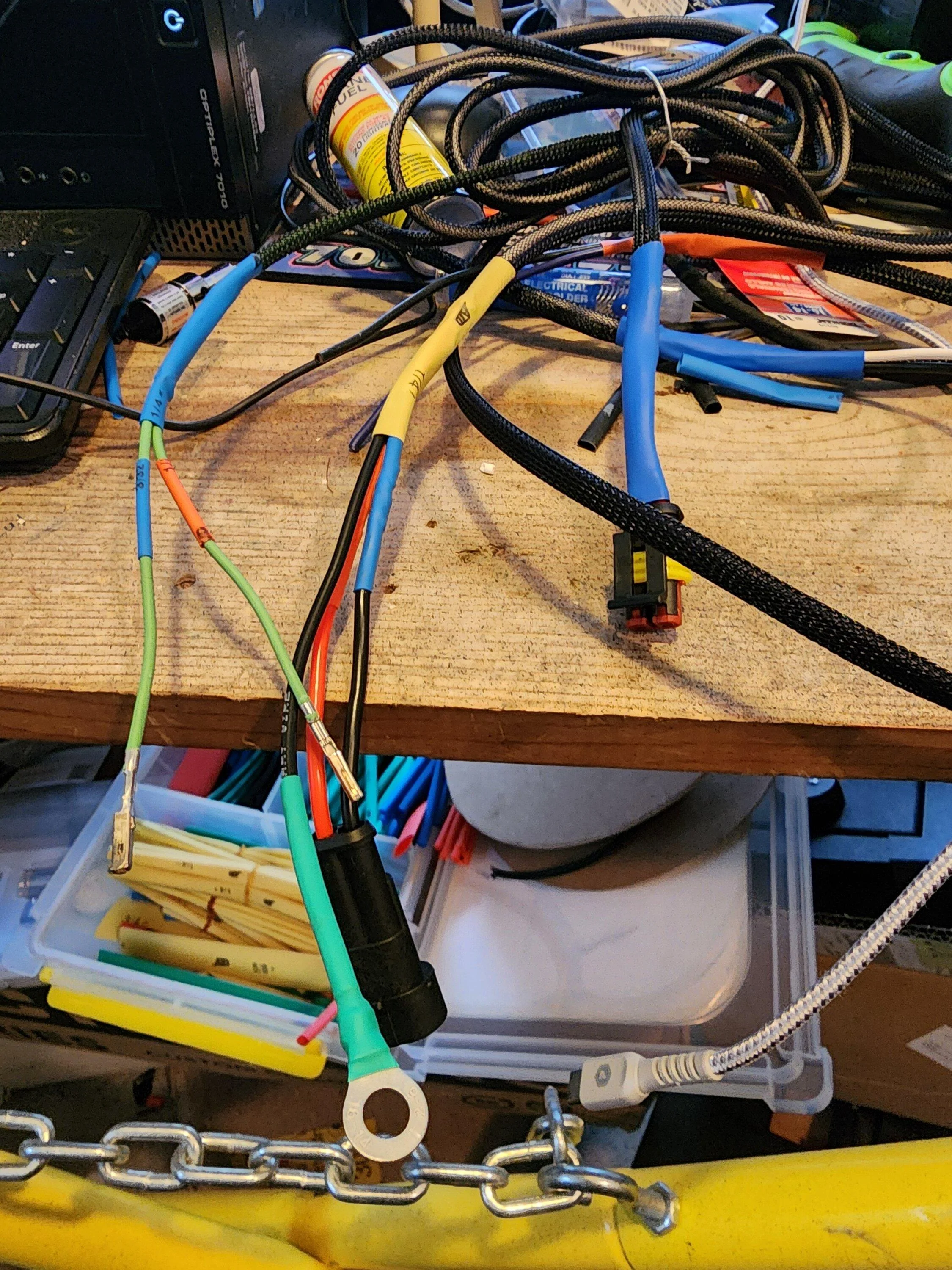

Customer wanted no conectors on his so i left them with exposed wires so he can install his own conectors.



[peekaypee]

Anyone that its interested on the wiring from bcm to the front bumper let me know here thanks im going to start making them. Will need to know what kind of quality you would like and what kind of fog lamps you will be using to use the conector for it.

Good morning and happy 2024 VTech. My name is Paul and I got down this rabbit hole and found your info from another member who passed it on. Great stuff. I'm not the most technical and a lot of this sort of goes over my head, but I'm very interested in putting in the DD fog lights and using a factory house module like I think the F-150 provides. I have a 2022 hybrid Lariat and I would like everything to look clean inside and work like a factory provided option. Are you still making the harnesses and is there some tips you could share with me that maybe might help make it easier? Thanks in advance for all you do



[Dad]

Good morning and happy 2024 VTech. My name is Paul and I got down this rabbit hole and found your info from another member who passed it on. Great stuff. I'm not the most technical and a lot of this sort of goes over my head, but I'm very interested in putting in the DD fog lights and using a factory house module like I think the F-150 provides. I have a 2022 hybrid Lariat and I would like everything to look clean inside and work like a factory provided option. Are you still making the harnesses and is there some tips you could share with me that maybe might help make it easier? Thanks in advance for all you do

DD just came out with a fog kit for the Maverick complete with mounts, housing replacements and wiring harness. Check it out . . .
(5) New Ford Maverick Lighting Kits by Diode Dynamics | 1/18/24 | MaverickTruckClub - 2022+ Ford Maverick Pickup Forum, News, Owners, Discussions



[peekaypee]

DD just came out with a fog kit for the Maverick complete with mounts, housing replacements and wiring harness. Check it out . . .
(5) New Ford Maverick Lighting Kits by Diode Dynamics | 1/18/24 | MaverickTruckClub - 2022+ Ford Maverick Pickup Forum, News, Owners, Discussions

Thank you for your reply. I saw that and I really like it but it doesn't use the existing switch inside my cabin and I'd like to use it and I understand. F-150 and the Ford escape hybrid has a switch that has the button for the fog lights as opposed to what DD offers is just a stand-alone button. Any thoughts?



[Vtec87pr1]

Thank you for your reply. I saw that and I really like it but it doesn't use the existing switch inside my cabin and I'd like to use it and I understand. F-150 and the Ford escape hybrid has a switch that has the button for the fog lights as opposed to what DD offers is just a stand-alone button. Any thoughts?

I bought their kit as soon i have them on my hands i will be making the harness again for them with the wiring they supplied.
