Any concerns with running a dash cam AND the Kia mirror from the light wiring? I assume those are both going to be low enough power to not start any fires, but just checking.


Mabcim

2.0L EcoBoost
Well-known member
First Name
Mark
Joined
Oct 4, 2021
Threads
3
Messages
1,229
Reaction score
1,094
Location
Rochester, NY
Vehicle(s)
25 Maverick Lariat 2.0 AWD; 23 Escape ST Line Select 2.0 AWD
Engine
2.0L EcoBoost
Clubs

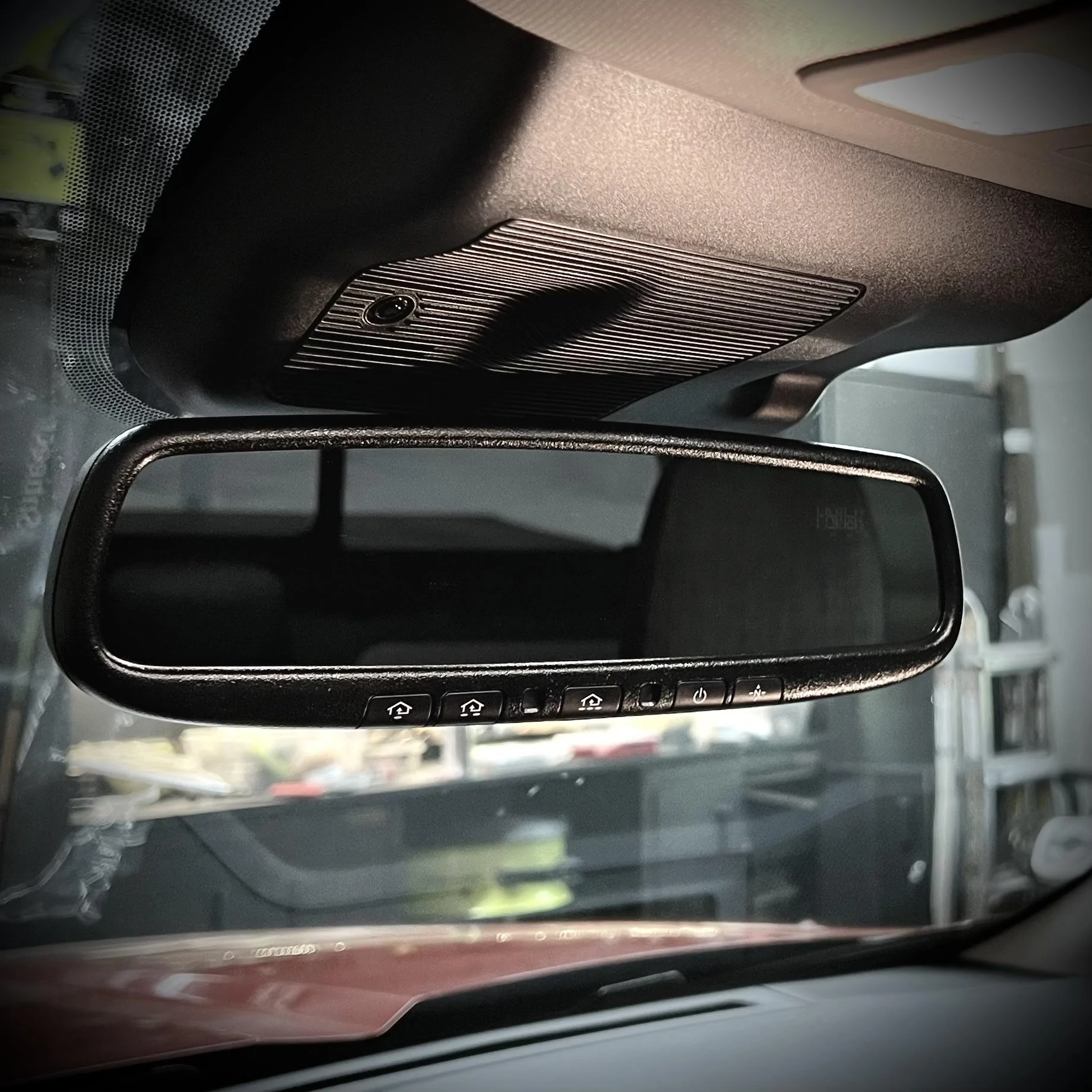

Any concerns with running a dash cam AND the Kia mirror from the light wiring? I assume those are both going to be low enough power to not start any fires, but just checking.
Some of us found the light was not measuring a full 12v. Seems to be a PWM signal, meaning it is switching On and Off very fast; so it can dim the light.
Others have either not gotten that same measurement and/or just used it anyway.
There was not a resolution as to why some of us see different things. Maybe it is a Lariat vs non-Lariat, but not sure.
Multiple people have used the light power, with the mirror, without a problem.
I suggest you measure the voltage on your Mav, to make a decision. If you don’t have a solid 12v, I would not use it.

So what did I use? The power at the camera. I made cable, to stick between the current plug & camera, because I didn’t want to splice the factory wire and because there isn’t much room for taps. Some have just used taps, on the camera wiring.

Other people pulled power from the fuse box and ran wires up the A pillar.

Multiple options. Some people prefer one over the other. You have to pick your preference.


BradnChristine

2.5L Hybrid
Well-known member
First Name
Brad
Joined
Nov 3, 2021
Threads
43
Messages
2,463
Reaction score
3,077
Location
Wyoming
Vehicle(s)
'23 Maverick Lariat Hybrid (towed); '25 Ranger Lariat; '15 C-Max; '20 Transit RV
Engine
2.5L Hybrid
Any concerns with running a dash cam AND the Kia mirror from the light wiring? I assume those are both going to be low enough power to not start any fires, but just checking.
I am running my dashcam and the mirror off of a patchcord added in behind the cover on the windshield (between the Ford forward camera and its wiring).
@skyhawk built it a few weeks ago as he built his own and a couple extra and offered them in the group and I snagged one. Works great and there is no intrusion to the Ford wiring. The truck has to be turned on to use the garage opener as this solution does not use any "constant on" voltage.


Sponsored

AutobahnSHO

2.5L Hybrid
Well-known member
First Name
Will
Joined
Oct 11, 2021
Threads
18
Messages
2,113
Reaction score
2,277
Location
S.Carolina
Vehicle(s)
Maverick, Miata
Engine
2.5L Hybrid
I am running my dashcam and the mirror off of a patchcord added in behind the cover on the windshield (between the Ford forward camera and its wiring).
@skyhawk built it a few weeks ago as he built his own and a couple extra and offered them in the group and I snagged one. Works great and there is no intrusion to the Ford wiring. The truck has to be turned on to use the garage opener as this solution does not use any "constant on" voltage.

Cool, I think that's a great idea!


BradnChristine

2.5L Hybrid
Well-known member
First Name
Brad
Joined
Nov 3, 2021
Threads
43
Messages
2,463
Reaction score
3,077
Location
Wyoming
Vehicle(s)
'23 Maverick Lariat Hybrid (towed); '25 Ranger Lariat; '15 C-Max; '20 Transit RV
Engine
2.5L Hybrid
Cool, I think that's a great idea!

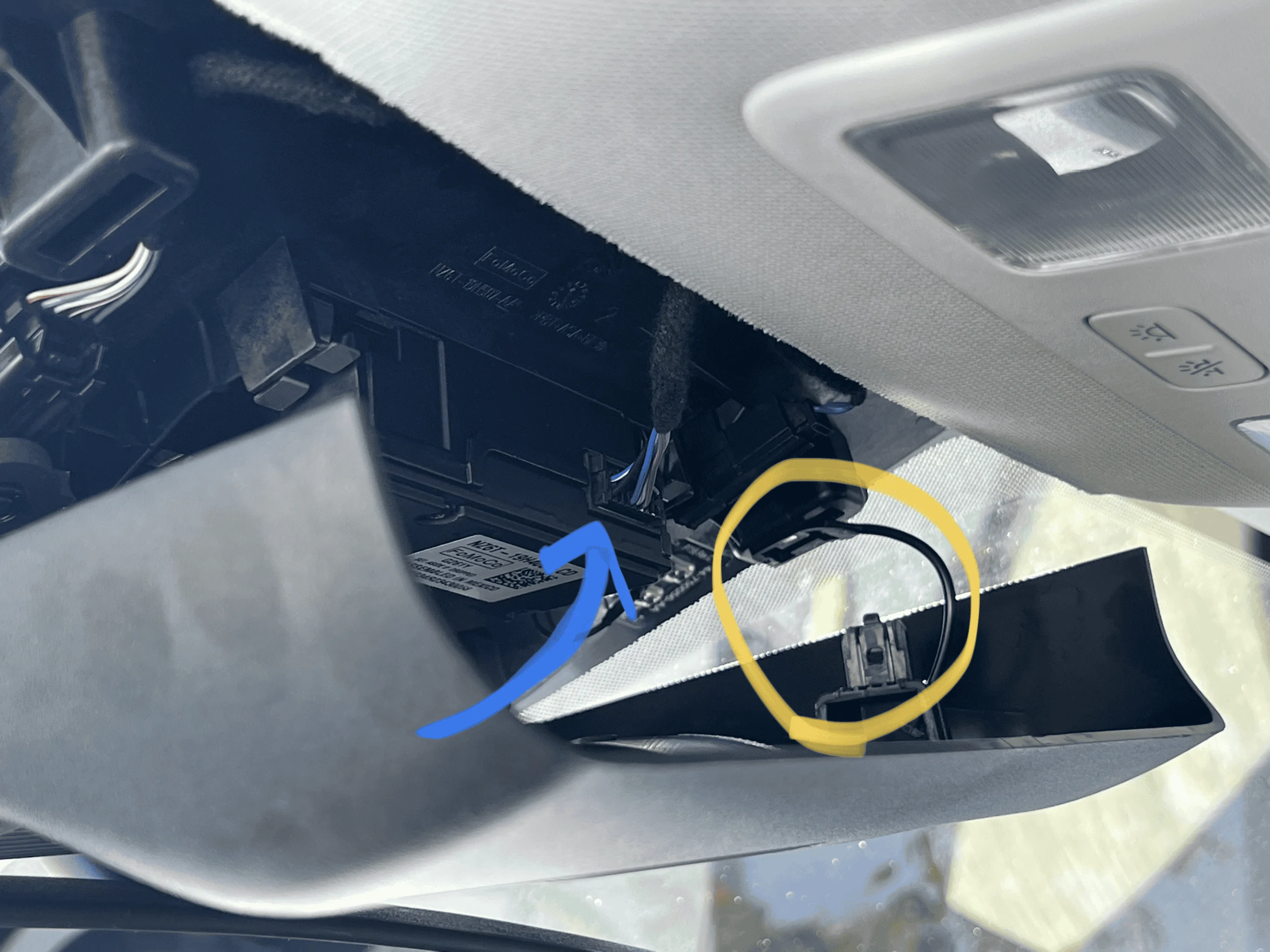

Here's a picture of the connector. You can see there is a lot of room up in there for a 3"-4" patchcord with taps in it. The blue arrow is the connector, ignore the yellow..
Ford Maverick Cheap auto-dimming, homelink mirror 1682306947695


Mabcim

2.0L EcoBoost
Well-known member
First Name
Mark
Joined
Oct 4, 2021
Threads
3
Messages
1,229
Reaction score
1,094
Location
Rochester, NY
Vehicle(s)
25 Maverick Lariat 2.0 AWD; 23 Escape ST Line Select 2.0 AWD
Engine
2.0L EcoBoost
Clubs


Skot5272

2.5L Hybrid
Well-known member
Joined
Apr 24, 2023
Threads
13
Messages
74
Reaction score
79
Location
Pennsylvania
Vehicle(s)
‘23 Maverick
Engine
2.5L Hybrid
My truck is a few months away. Placed an order for the mirror at the steal price of $21 shipped. Figured I’d snag it now just in case it goes out of stock or the sale expires by the time the truck arrives. Will be returning here for installation guides.

Joined
Mar 20, 2022
Threads
1
Messages
13
Reaction score
5
Location
Canada
Vehicle(s)
Maverick
Engine
2.0L EcoBoost
Does anyone know the pin size for the lights? The crimp on my purple wire was not done correctly and slipped out of the pin and it cannot be re-used. I've been to numerous places and no one seems to have it due to how small it is. Ford wants to sell me a portion of the harness and it doesnt seem worth it when I can just crimp a new pin on..

Sponsored

Mabcim

2.0L EcoBoost
Well-known member
First Name
Mark
Joined
Oct 4, 2021
Threads
3
Messages
1,229
Reaction score
1,094
Location
Rochester, NY
Vehicle(s)
25 Maverick Lariat 2.0 AWD; 23 Escape ST Line Select 2.0 AWD
Engine
2.0L EcoBoost
Clubs


Mabcim

2.0L EcoBoost
Well-known member
First Name
Mark
Joined
Oct 4, 2021
Threads
3
Messages
1,229
Reaction score
1,094
Location
Rochester, NY
Vehicle(s)
25 Maverick Lariat 2.0 AWD; 23 Escape ST Line Select 2.0 AWD
Engine
2.0L EcoBoost
Clubs

Thank you so much, you are a life saver!!

what are you using to crimp the pins on?
You’re welcome, glad to help.

As far as getting the pins on the wire, I just used needle nose pliers and a lot of patience. The official tool is way too much money.
Just make sure you get it to be narrower then the part that gets inserted into the connector, otherwise it won‘t slide it. Height needs to shorter than the part gets inserted as well, but that was not an issue for me. As an extra precaution, I put a drop of solder in it. Just make sure the pin is pointing up, so the solder doesn’t get into the pin, so the solder flows down towards the wire.


BlueSpec1

2.5L Hybrid
Well-known member
First Name
Gene
Joined
Jul 10, 2022
Threads
3
Messages
779
Reaction score
796
Location
Texas
Vehicle(s)
23 XLT 2.5L, 22 Escape Plug In, 23 Bolt EUV
Engine
2.5L Hybrid
I haven't crimped these smaller Mini50 Molex terminals so far, just Molex MX150, and TE Connectivity Micro Quadlock (MQS .63mm).

Yes the official Molex and TE Connectivity crimper tools are too high a price.
MX50 $1,253.36 - Mouser
MX150 $486.24 - Mouser
MQS $209.55 - Mouser

The IWISS SN-28B crimper worked well with the MX150 .060" & MQS .63mm terminals. It crimps the wire & insulation in one step.

For the Mini50 terminals I'll look at using the Molex Field Service Tool 63811-1000 or a IWISS SN-2459.

Smaller MQS and Larger MX150 crimped with the IWISS SN-28B

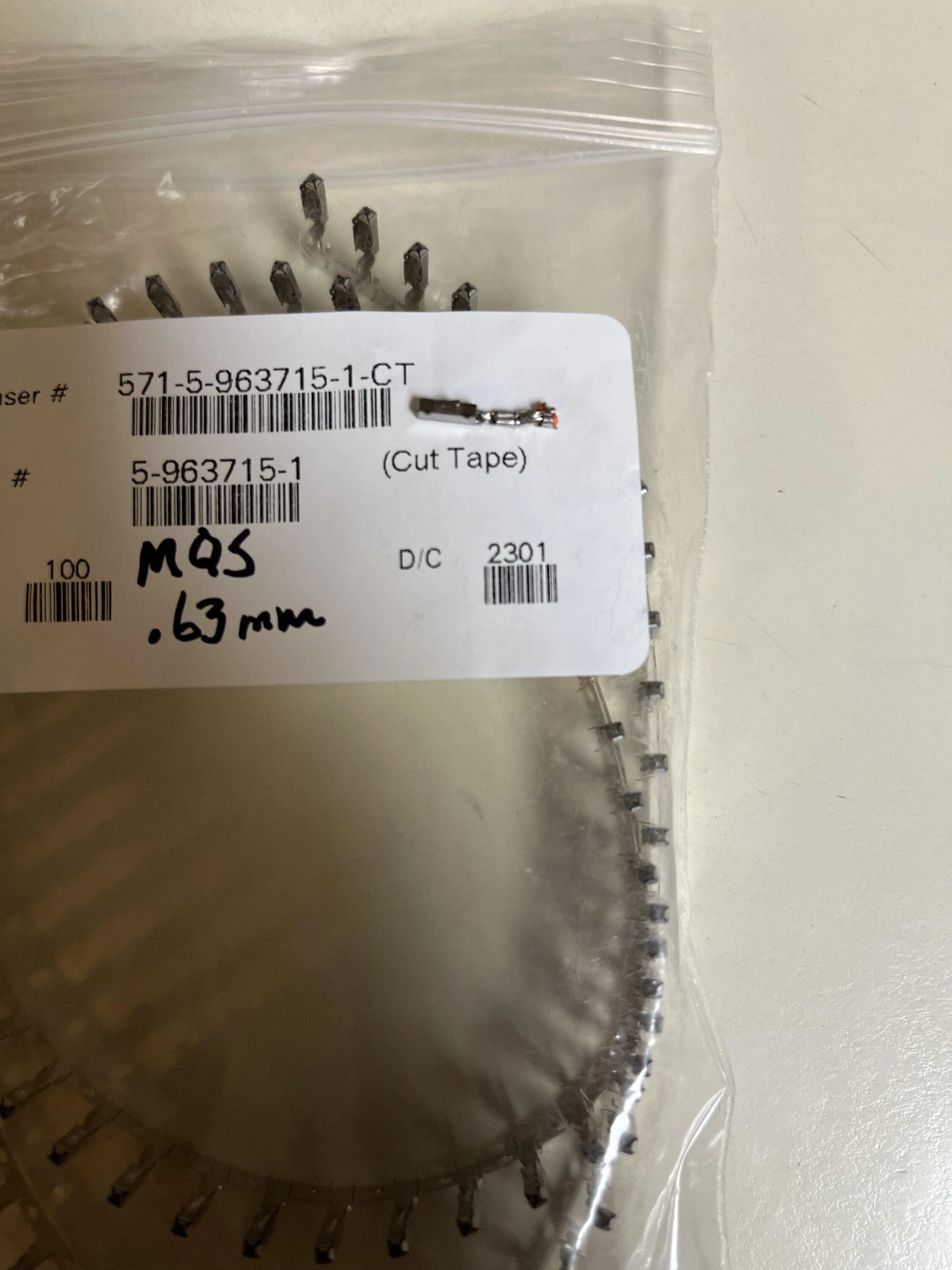

MQS .63mm female terminal
Ford Maverick Cheap auto-dimming, homelink mirror MQS .63mm REC Terminal - IMG_1181

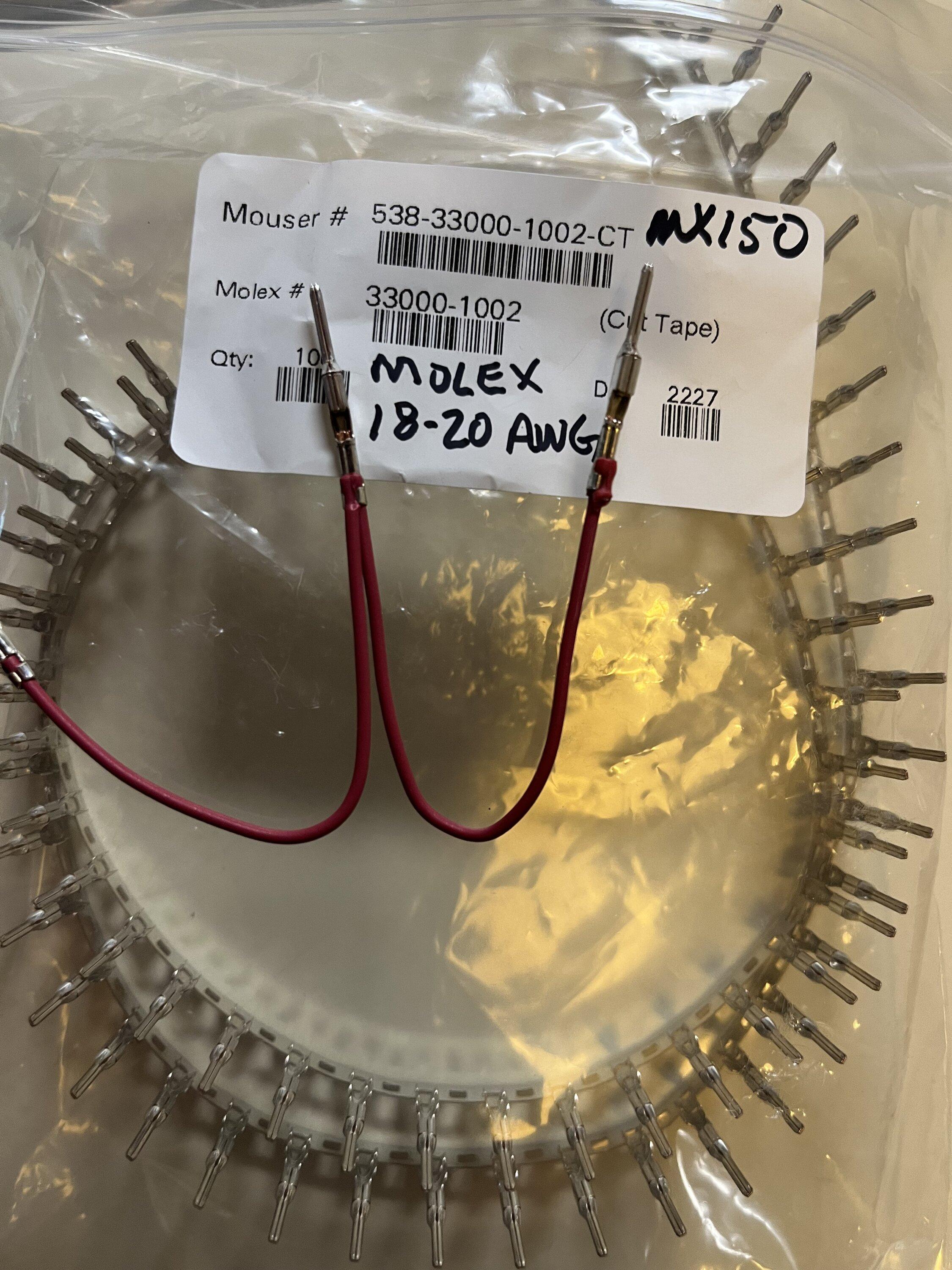

Molex MX150 male pin
Ford Maverick Cheap auto-dimming, homelink mirror Molex MX150 PIN Crimped on 22 Awg TXL Wire.JPG

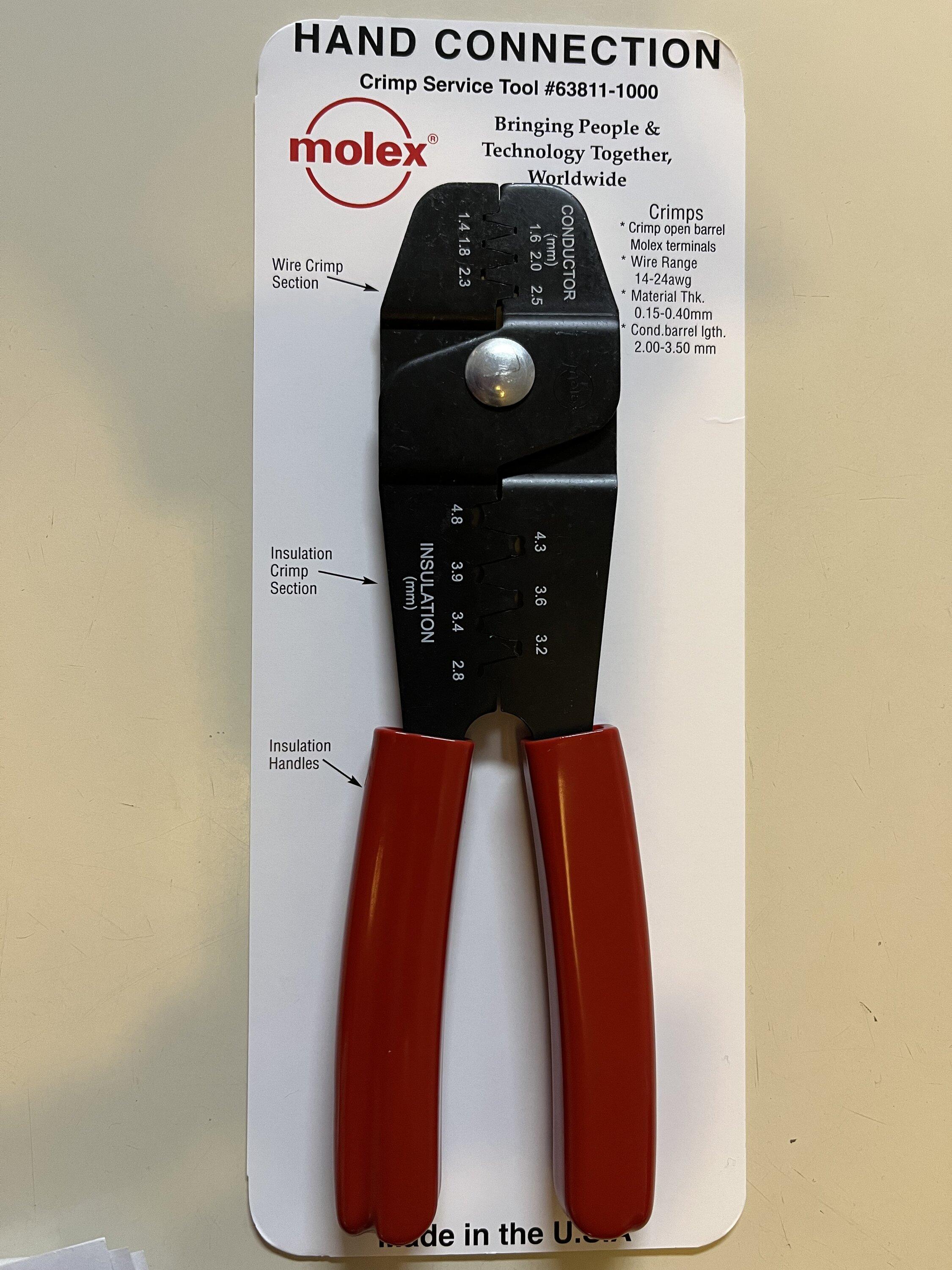

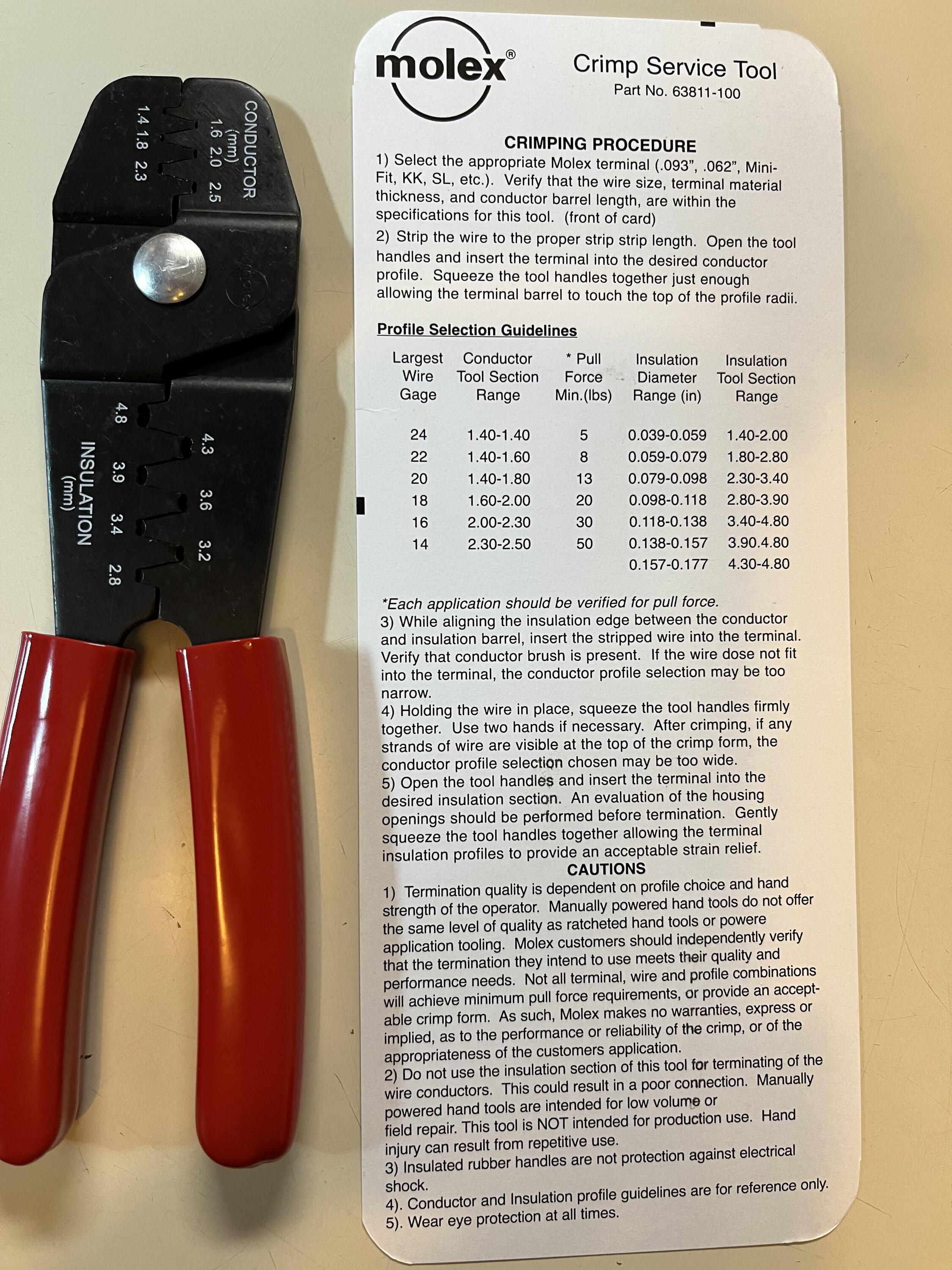

Molex Field Service Tool
Ford Maverick Cheap auto-dimming, homelink mirror Molex 63811-1000 - Front Side.JPG Ford Maverick Cheap auto-dimming, homelink mirror Molex 63811-1000 - Reverse Side.JPG

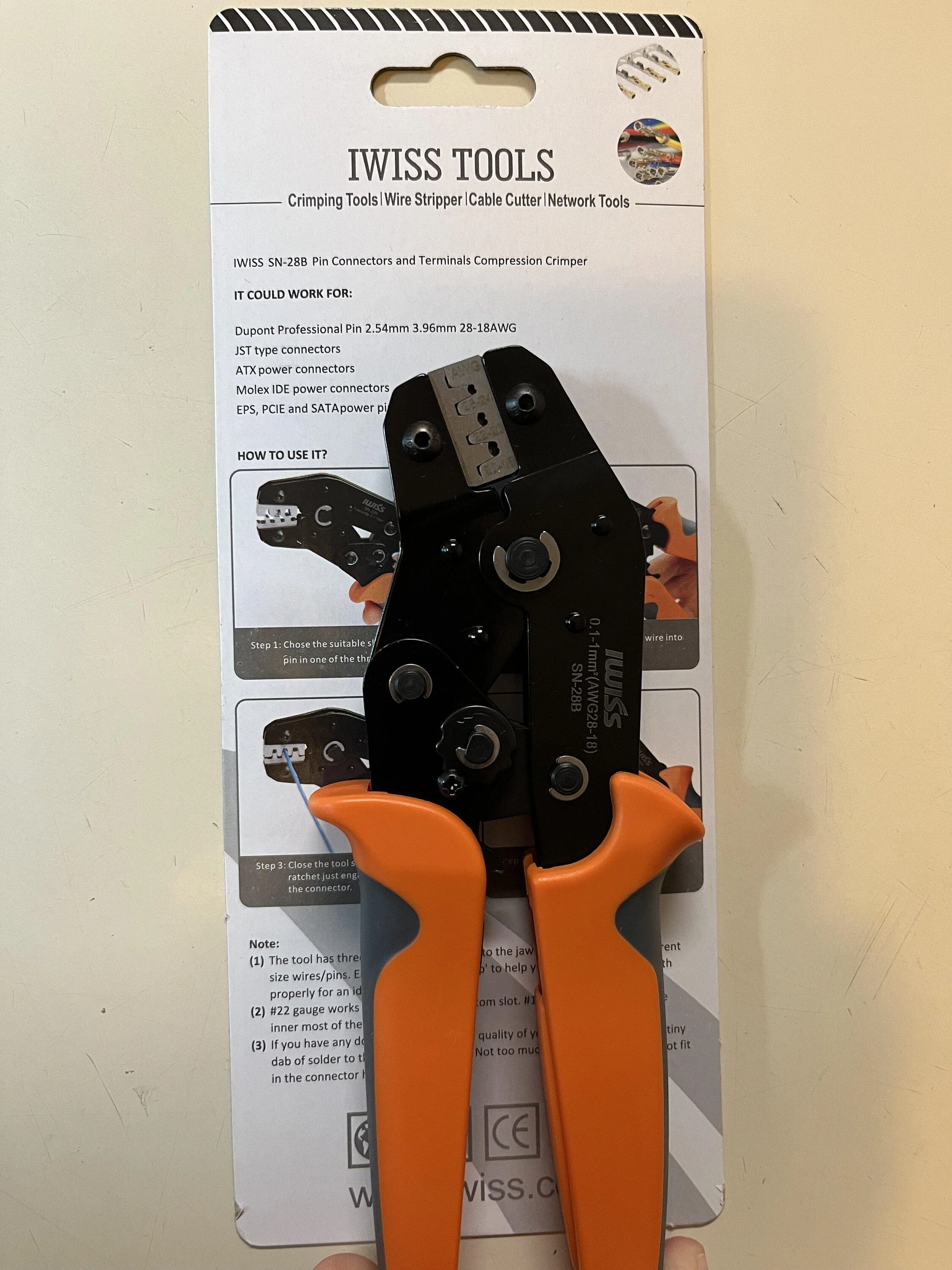

IWISS SN-28B
Ford Maverick Cheap auto-dimming, homelink mirror IWISS SN-28B Crimper


Molex Mini50 Unsealed Connector System
