BRONCO SPORT LUG NUTS ?

[NoVaJimmy]

Yes it is about how deep they engage……… and one member has already posted pics of Mav lugs bottoming out and chewing up the bronco sport rims. The bottom pic clearly shows damage

That makes absolutely zero sense. This photo would imply that the taper of either the lugnut OR the wheel changes.

Sponsored



[Johnkn]

Top to bottom:

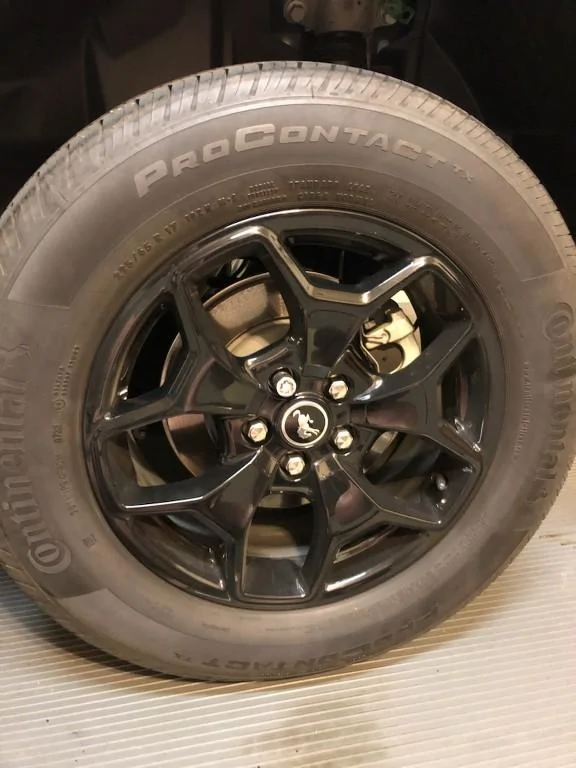

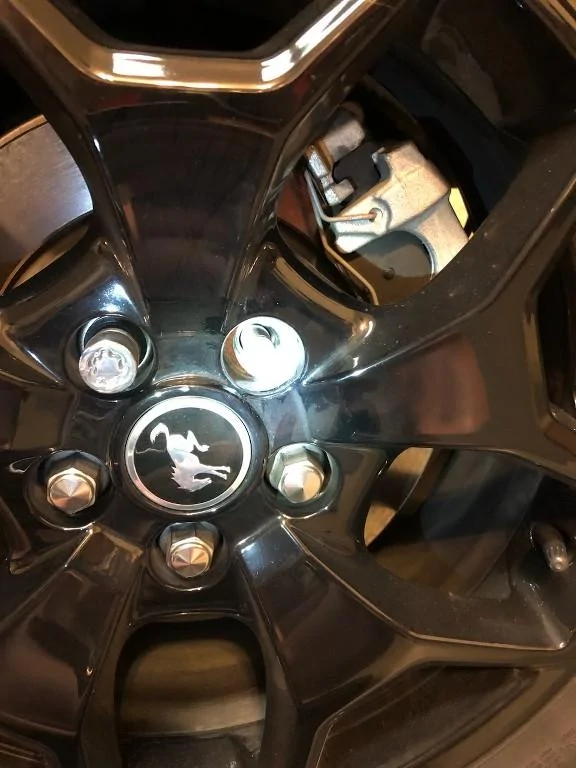

Bronco Sport First Edition wheels (same as FX4 with exception of center caps) with stock XLT lug nuts and Ford OEM lock

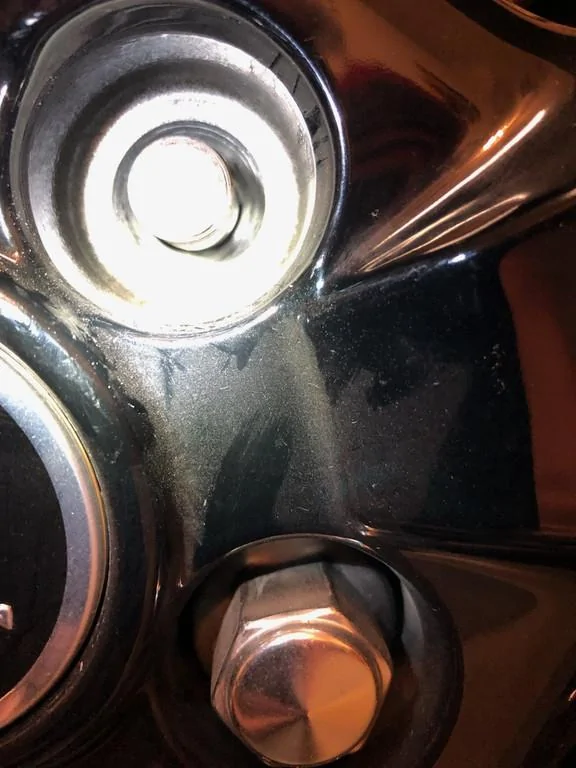

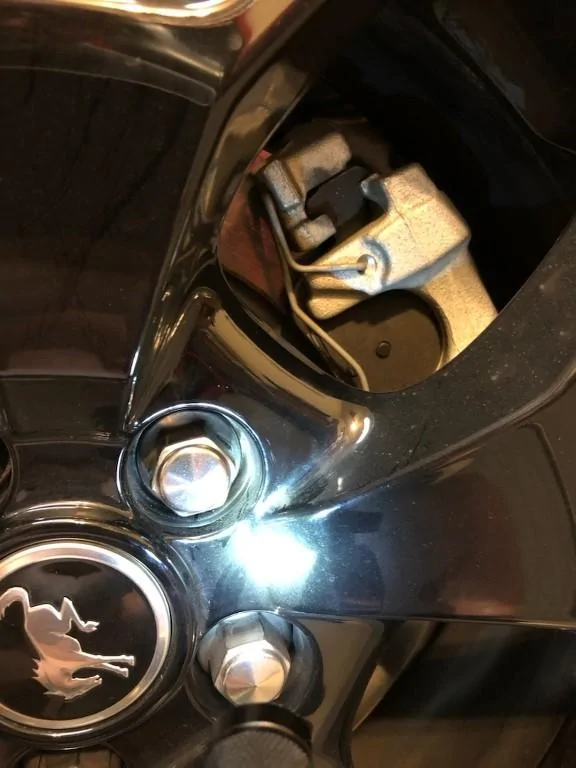

Space around Maverick lug nut's circumference between wheel void

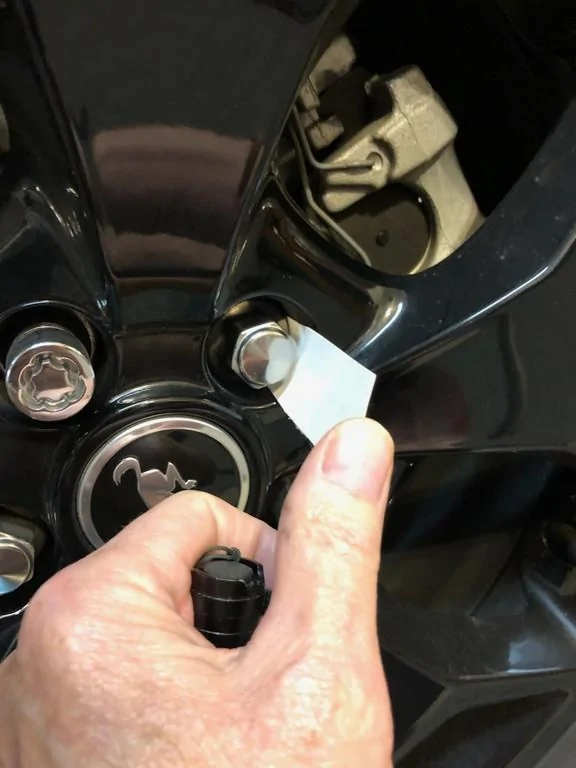

Cardboard 'shim' inserted between Maverick lug nut and wheel showing no interference

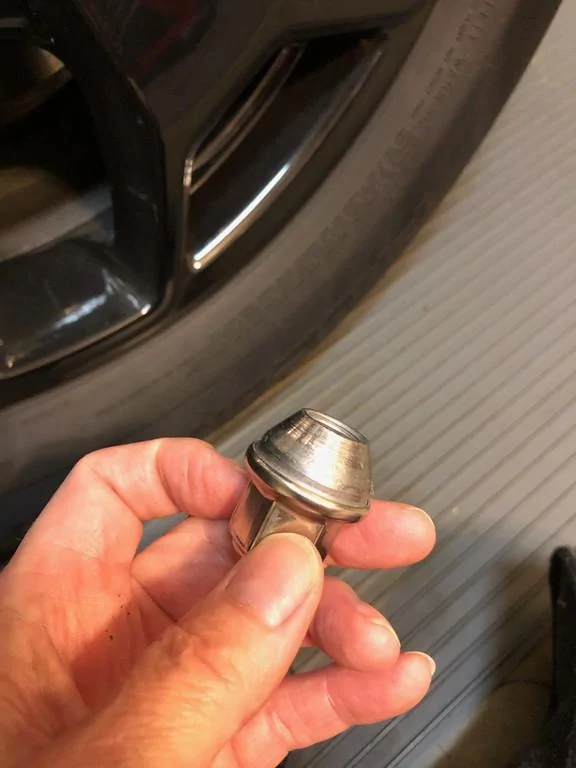

Next (2) pics showing stud, space around stud and wheel lug void

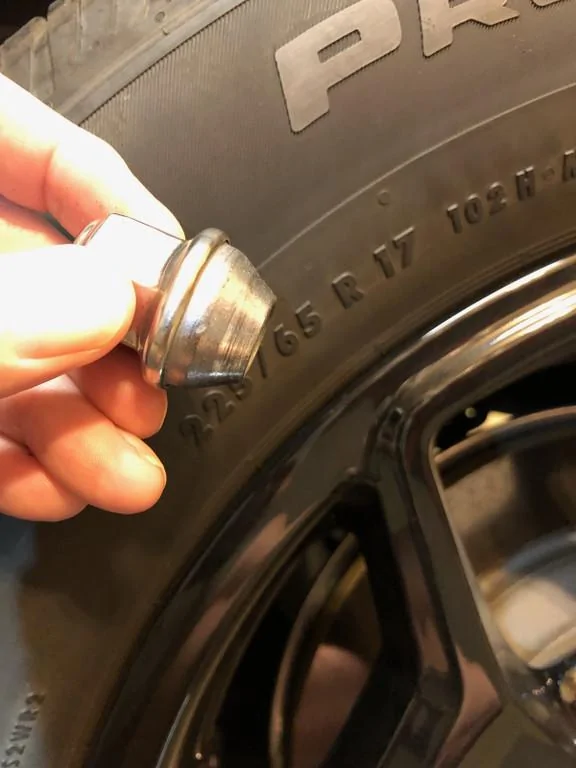

Next (2) perfect contact patch on largest area of lug nut cone which locates and retains wheel.

.



[Johnkn]

That makes absolutely zero sense. This photo would imply that the taper of either the lugnut OR the wheel changes.

Agreed, time for us to give up, I suspect those of us trying to help him are simply being trolled...

Take care (BTW although I live in Southern Md. I work in Chantilly and at Langley, daughter and family are in River Creek in Leesburg)..

...



[NoVaJimmy]

Agreed, time for us to give up, I suspect those of us trying to help him are simply being trolled...

Take care (BTW although I live in Southern Md. I work in Chantilly and at Langley, daughter and family are in River Creek in Leesburg)..

...

Nice, you have an amazing collection of vehicles.

As for the wheels and lugs for OP, I've owned a number of Fords. The best thing you can do is ditch the OE lug nuts anyway which should quell your concerns. I'm using universal Gorilla M14x1.5 locking lugs which are designed for a variety of makes, models and wheels and they fit perfectly. The OEM lugs will swell due to corrosion and their 2 piece design and should be ditched anyway.



[Chris70]

You can lead a horse to water……..

‘I give up, you guys are hopeless



[NoVaJimmy]

You can lead a horse to water……..

‘I give up, you guys are hopeless

Look, I made some crude graphics with paint. This shows how it's impossible to see that kind of damage with the M14 lugs unless there's something odd going on with the lugnut or the taper in the wheel.


M12 lug, narrow at the bottom compared to the M14. Seats all the way for visual purposes.

M14 lug, same exact seat in the wheel, it will only go down into the taper as much as the taper of the wheel allows it. Pretty much common sense. This is just for representation and to prove my point, the M14 lugs may seat deeper than this in reality.

This reflects the damage in the photo you shared. This is the only way that kind of damage could happen. It makes zero sense.



[Chris70]

Top to bottom:

Bronco Sport First Edition wheels (same as FX4 with exception of center caps) with stock XLT lug nuts and Ford OEM lock

Space around Maverick lug nut's circumference between wheel void

Cardboard 'shim' inserted between Maverick lug nut and wheel showing no interference

Next (2) pics showing stud, space around stud and wheel lug void

Next (2) perfect contact patch on largest area of lug nut cone which locates and retains wheel.

.

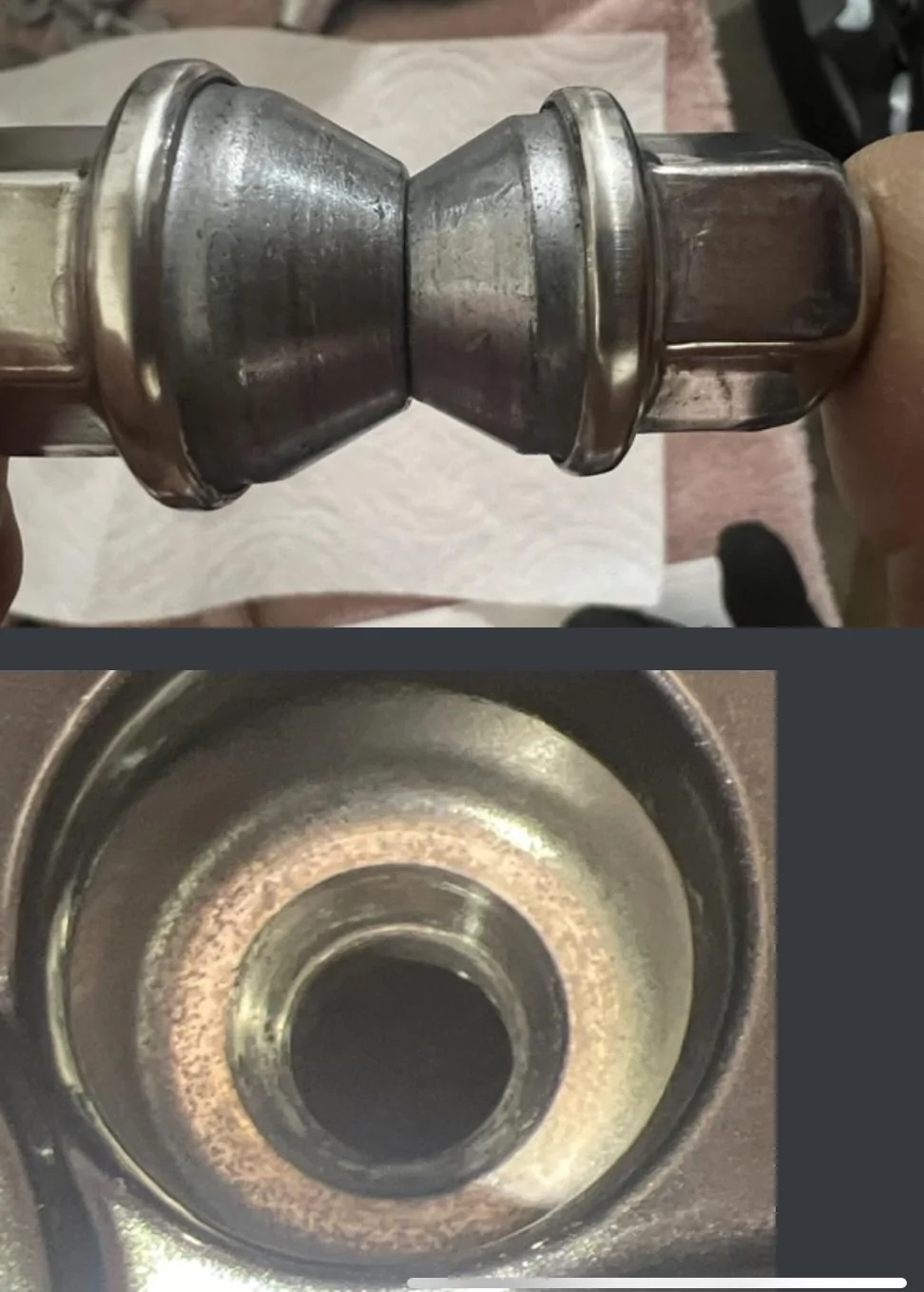

You do realize your last 4 pics clearly show damage ? The lugs are bottoming out on the wheels and chewing them up. The lugs look half polished where they have been chewing up the rim.



[Chris70]

Look, I made some crude graphics with paint. This shows how it's impossible to see that kind of damage with the M14 lugs unless there's something odd going on with the lugnut or the taper in the wheel.


M12 lug, narrow at the bottom compared to the M14. Seats all the way for visual purposes.

M14 lug, same exact seat in the wheel, it will only go down into the taper as much as the taper of the wheel allows it. Pretty much common sense. This is just for representation and to prove my point, the M14 lugs may seat deeper than this in reality.

This reflects the damage in the photo you shared. This is the only way that kind of damage could happen. It makes zero sense.

You’re not accounting for the depth being shorter on the bronco m12 lug. The 2 lugs have different lengths/depth, diameter and hole size. The only constant is the 60 degree angle



[Chris70]

A 60 degree taper is a 60 degree taper. Not sure why that's so difficult to understand.

So…… a 60 degree taper on lug with a 100mm diameter is going to fit in a hole the same as something with a 60 degree taper and 50 mm diameter???
‘The only constant here is the 60 degree taper. The lugs coned area have a 3mm outside diameter difference and depth/length difference.

That 3mm matters

I’ve physically fit a oem bronco sport lug into the rim and a oem Maverick lug within the last 48 hours.
The Mav lugs absolutely don’t fit correctly and if you did the same you would agree with me.



[OleFordGuy]

Have NO CLUE if these would be correct or work for the application, out of curiosity I just poked around on amazon and noticed these. Hope you find what you need and all works well.

https://www.amazon.com/Wheel-Access...----1-1--267-3&vehicleName=2022+Ford+Maverick



[Hot Runr Guy]

Looks like 17mm

Thanks, that makes sense. IIRC, the aftermarket steelie in the other thread had a hole diameter of 14.7mm

HRG



[NoVaJimmy]

So…… a 60 degree taper on lug with a 100mm diameter is going to fit in a hole the same as something with a 60 degree taper and 50 mm diameter???
‘The only constant here is the 60 degree taper. The lugs coned area have a 3mm outside diameter difference and depth/length difference.

That 3mm matters

I’ve physically fit a oem bronco sport lug into the rim and a oem Maverick lug within the last 48 hours.
The Mav lugs absolutely don’t fit correctly and if you did the same you would agree with me.

I made a crude drawing for you but somehow I'm not sure this will convince you either. You can see between the horizontal construction lines on the tapered area that there are sections of both lugs that are EXACTLY THE SAME dimensionally speaking EVEN WITH one being sized for an M12 lug and the other an M14 lug. So yes, a wider AND shorter lug nut with the same taper will have an area of it that is exactly the same as the longer and more narrow lug nut.

Also, your example is ridiculous, how about you use dimensions more relevant. Show me a damn 4" wide lug nut that's used on a passenger vehicle. If you're saying the Maverick lug nut is twice as wide as the bronco sport lug nut you need to get your eyes checked BUT if the 100mm lug nut was LONG enough, YES, it would probably have a tapered area that matched the 50mm lug nut, THAT'S HOW ANGLES WORK.
