I upgraded my 2022 Lariat B&O system

[Croixman]

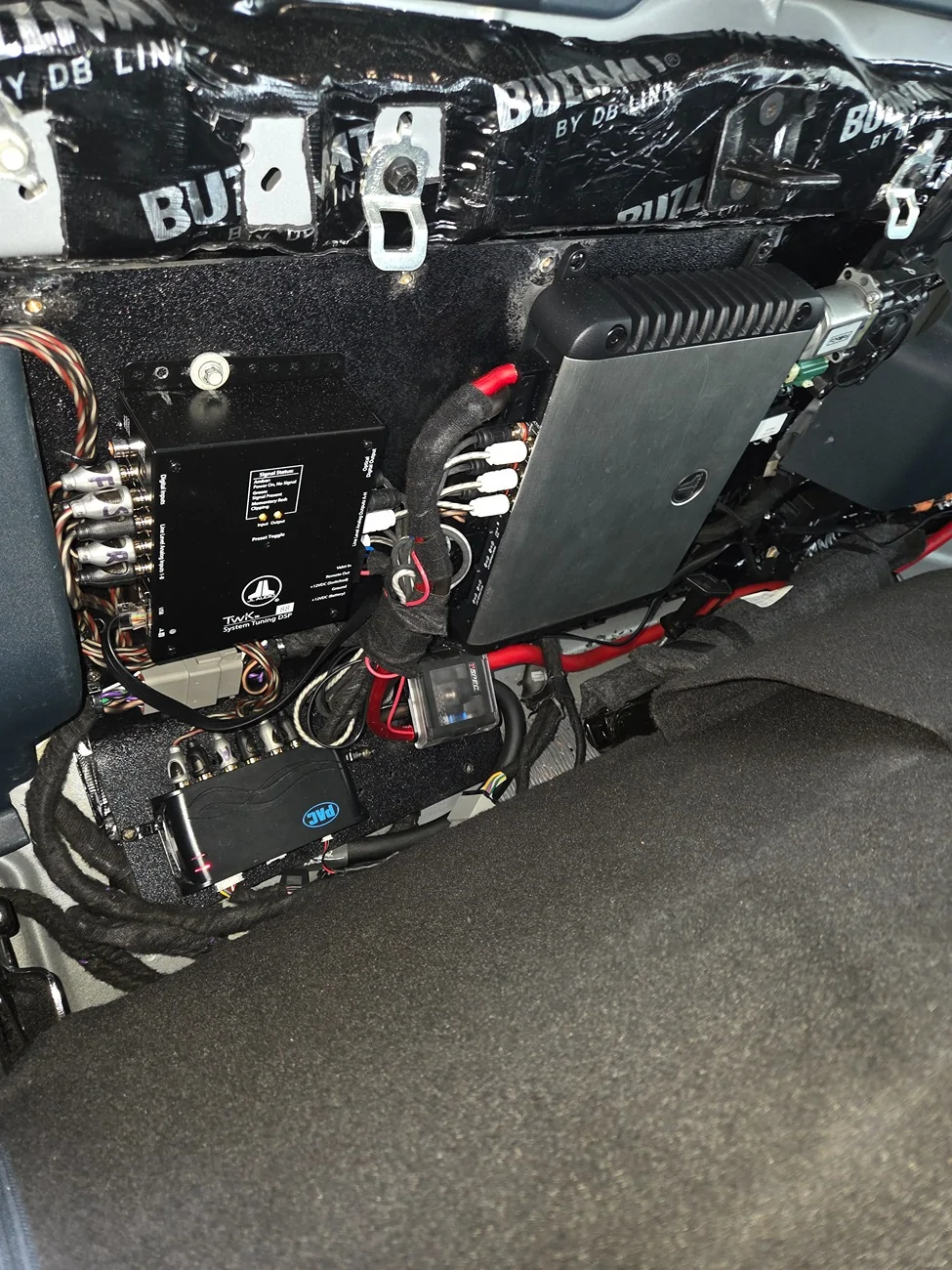

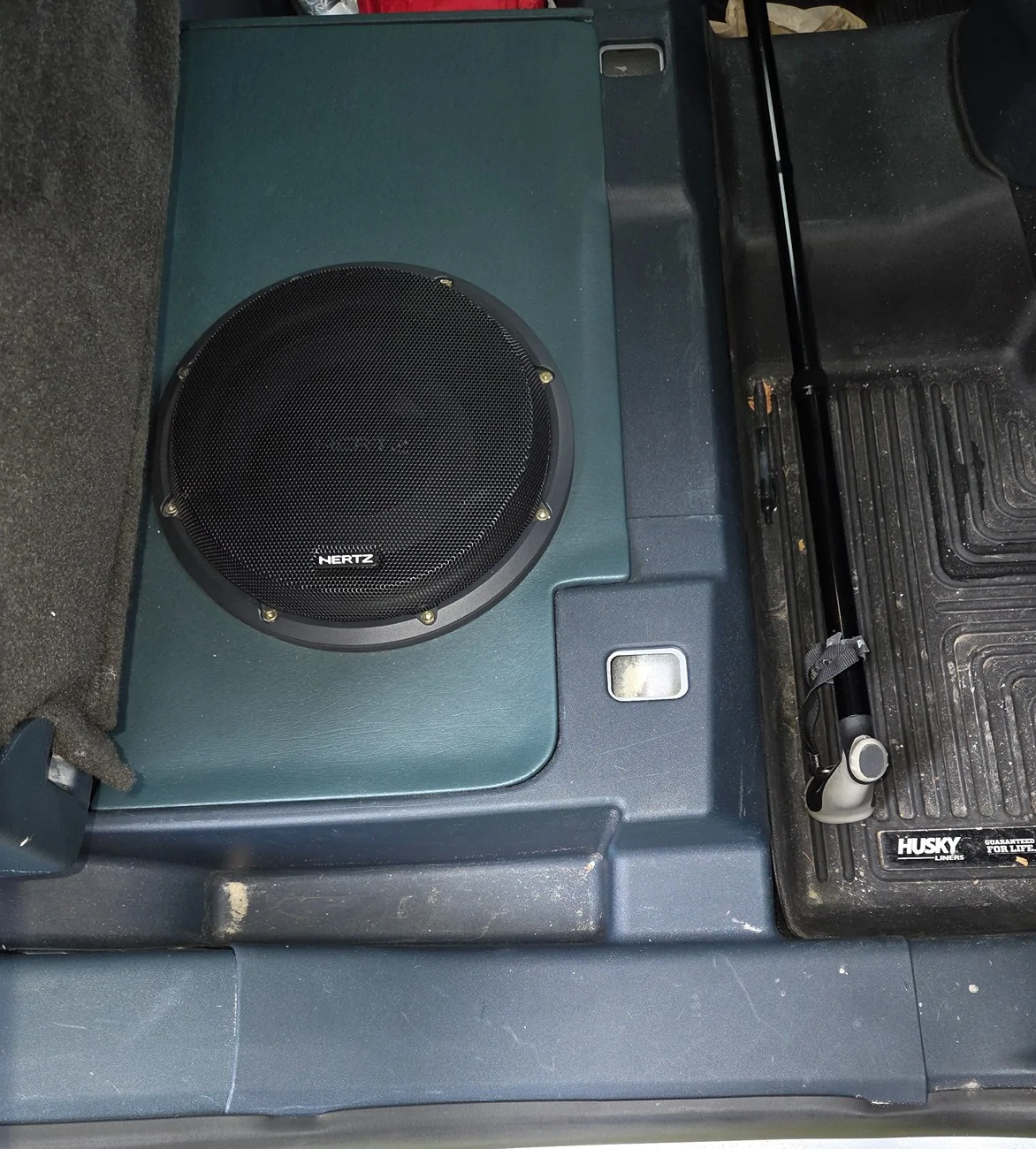

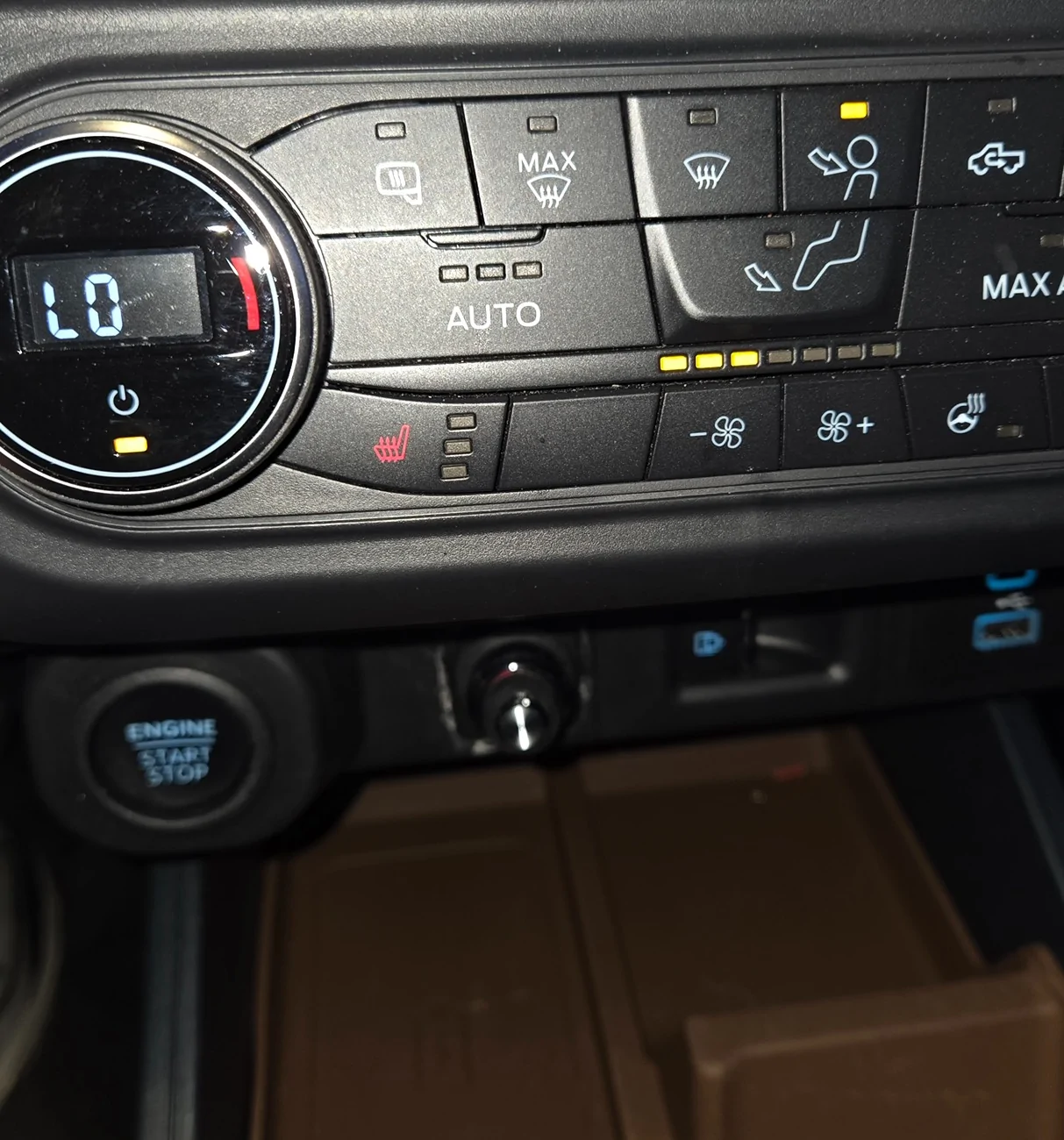

Just a few pics of my audio upgrade. I tried to be able to be content with the B&O system, but kept feeling dissatisfied with its performance. I had a JL Audio HD 900 amp with a twk DSP and a JL205 control knob installed. Added some JL Audio C6 components up front and some C2's in the rear pillars. And then had a custom box with a Hertz Mp 10" shallow mount sub installed under the passenger rear seat. All I can say is wow! What a difference. Definitely happy with the upgrade. Had the 205 control knob installed where the cigarette adapter is since I never used it anyways.

Sponsored



[Carlitos_92]

That's a great solution for the control knob placement. My self-powered sub has a level knob that I've never felt was needed - but if I was gonna install it, I would 100% steal your idea.



[Toddman45]

In my opinion that hertz is one of the best subs available for our trucks.



[Toddman45]

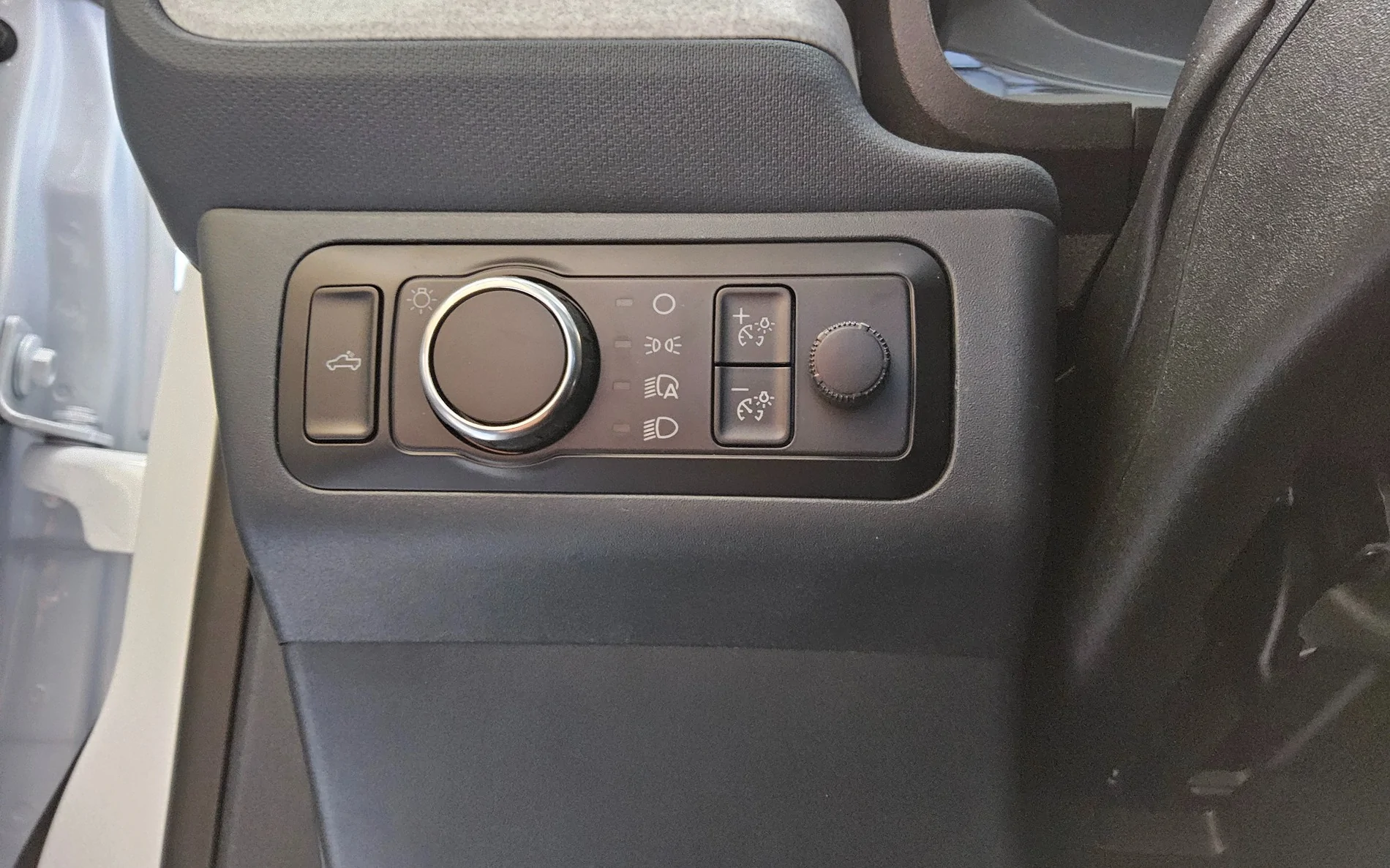

I put my bass knob by the headlight switch.



[Croixman]

I put my bass knob by the headlight switch.

Thats where my initial one from the pac pro was installed. Unfortunately the JL one did not seem able to fit there.



[Toddman45]

Yeah, I had to take the housing apart and cover it with heat shrink to get it to fit there.

I thought I had a better picture but I basically just installed the PCB board with the volume knob attached completely removed it from the metal housing with screw hole mounts.



[Croixman]

In my opinion that hertz is one of the best subs available for our trucks.

Couldn't agree more. That thing pumps out amazing tight and clean bass.



[Toddman45]

Yes it is. If I hated my money and didn't have the kicker rt 10 from a previous install I would got 1 of the Hertz



[xfire133]

Just a few pics of my audio upgrade. I tried to be able to be content with the B&O system, but kept feeling dissatisfied with its performance. I had a JL Audio HD 900 amp with a twk DSP and a JL205 control knob installed. Added some JL Audio C6 components up front and some C2's in the rear pillars. And then had a custom box with a Hertz Mp 10" shallow mount sub installed under the passenger rear seat. All I can say is wow! What a difference. Definitely happy with the upgrade. Had the 205 control knob installed where the cigarette adapter is since I never used it anyways.

how was the components wired in? straight the factory plugs or using passive crossover?
