F-150 Fog Lamp Switch and Wire Harness Installed in Maverick - DIY

[Vtec87pr1]

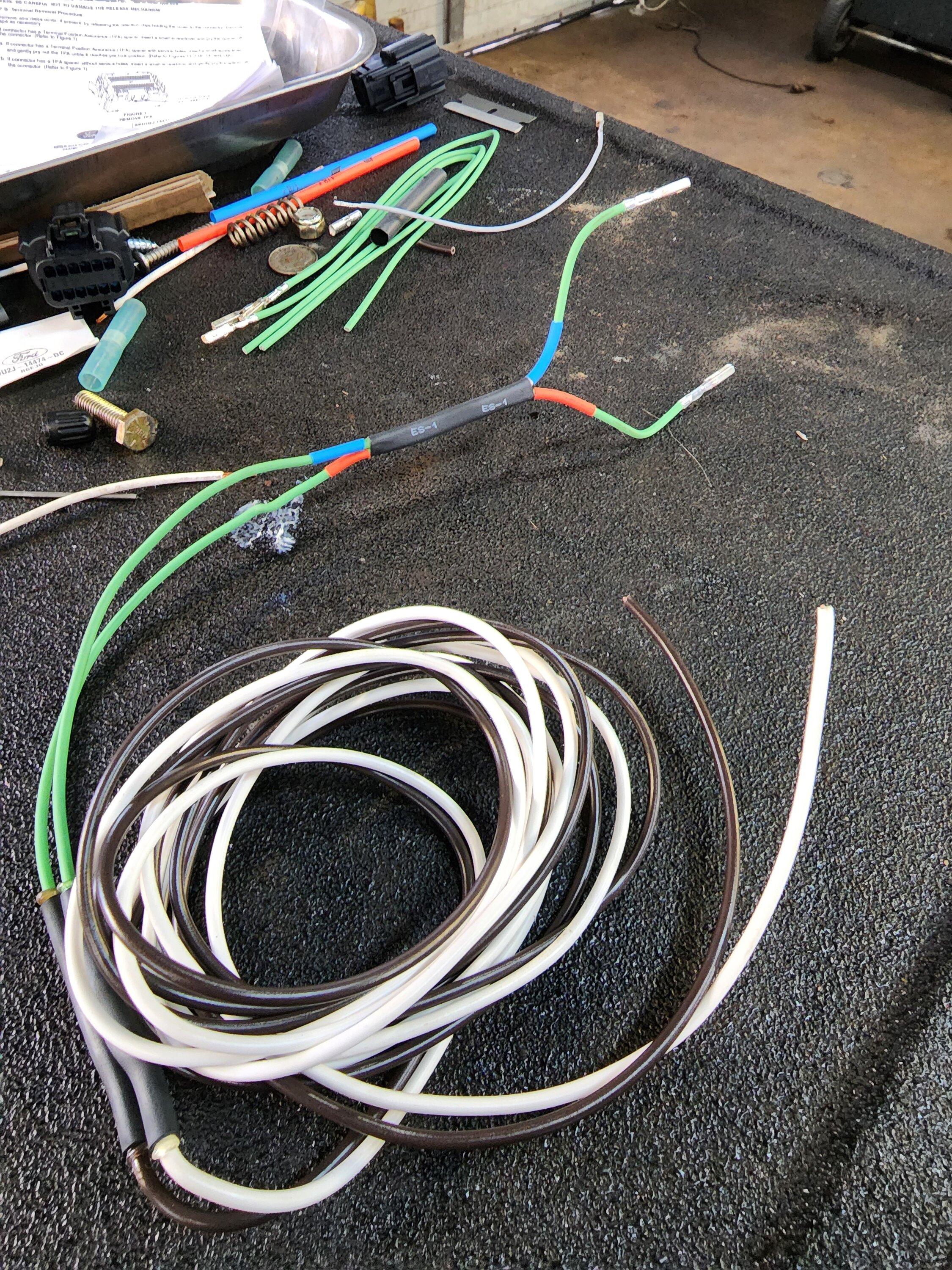

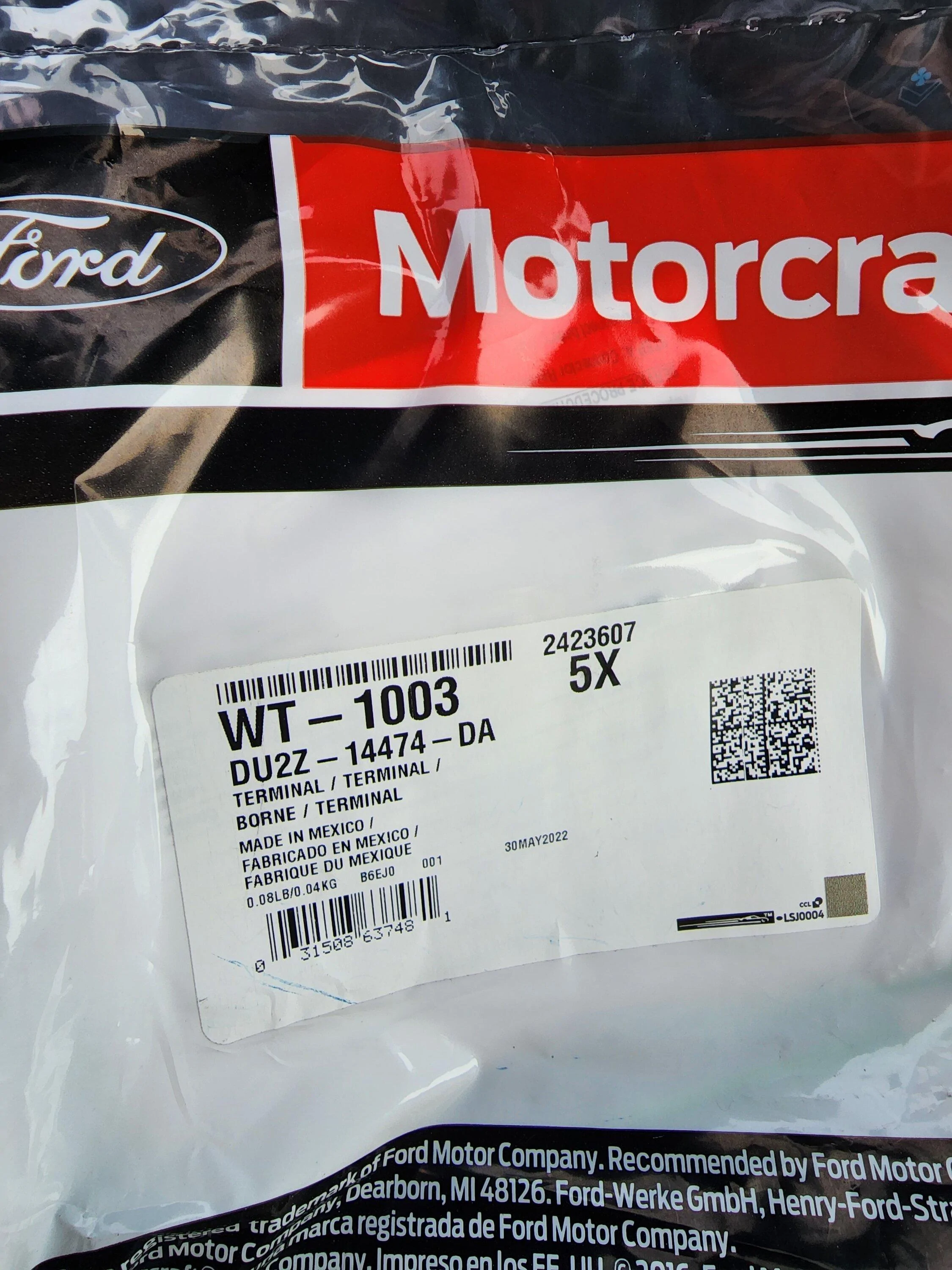

Check 97bg-14474-aab
Du2z-14474-Da

@Darnon

Sponsored



[Darnon]

Looks about right. Although I think similarly you can just get the terminal ends on a strip like that possibly cheaper from some vendors online. That is probably the cleaner way to go if you're wanting to make a harness that doesn't necessitate having 2+ splices in the thing.

Oh, also worth mentioning if you're getting the wiring kits from a Ford dealer or the like to double check how many you're getting. Typically they're supposed to be in a kit of 5, but mine was only a single. I wasn't too fussed since it was only a few bucks and, well, moot anyways being the wrong size.



[Vtec87pr1]

@Darnon



[njchris1968]

Anyone that its interested on the wiring from bcm to the front bumper let me know here thanks im going to start making them. Will need to know what kind of quality you would like and what kind of fog lamps you will be using to use the conector for it.

I be I interested to



[Vtec87pr1]

I be I interested to

Ok send me a dm with your Vin number and when i start getting the parts i will make them. Need to know what type of fog lamps your installing



[Vtec87pr1]

updated with link showing how to unpin conectors so when i send you the wiring you guys can easily do this.

if not i will make one im debating lol



[Vtec87pr1]

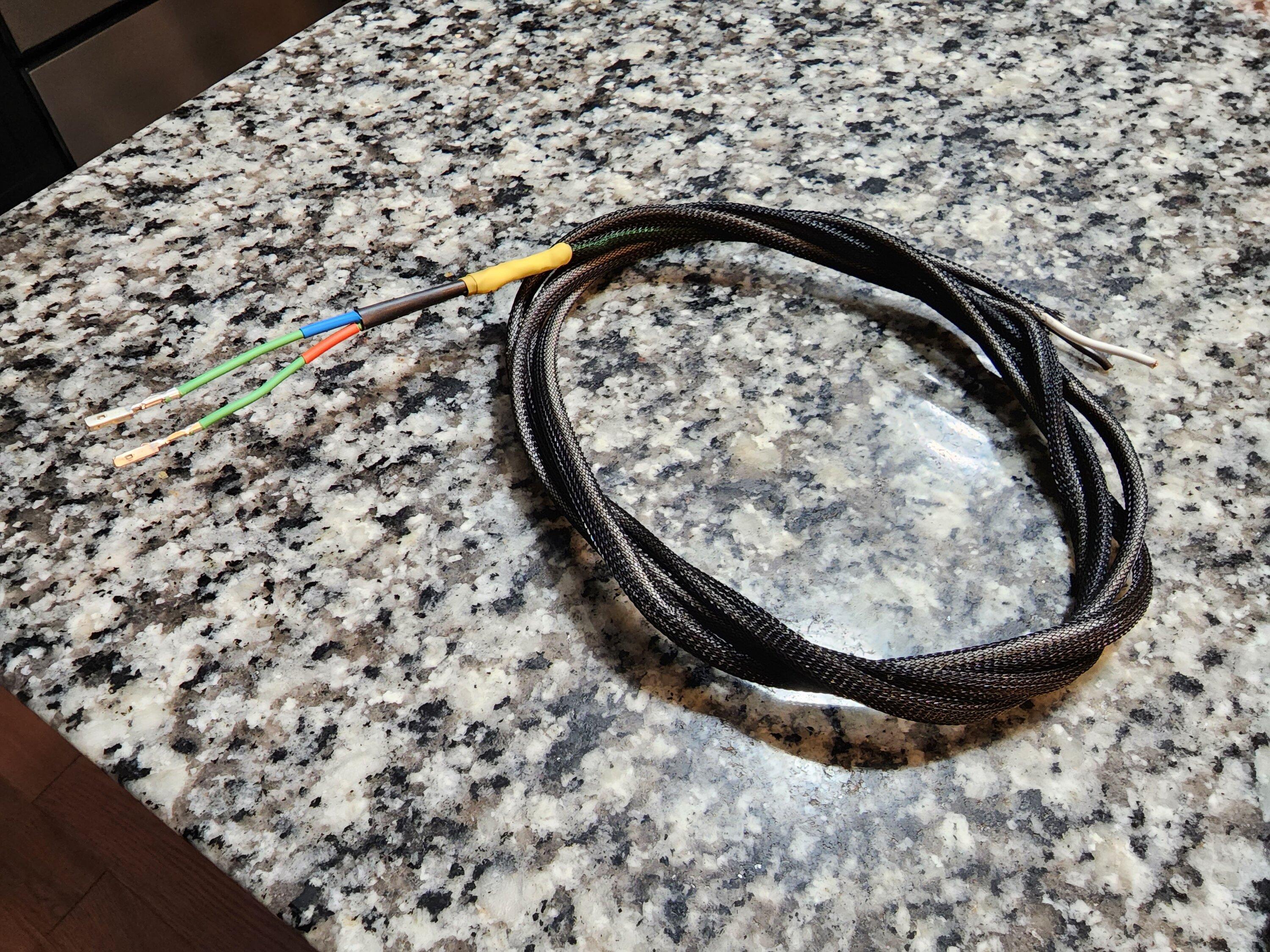

Started getting wire harness . Made waiting on wire loom and fog lamp conector. Will need to know wich bumper and fog lamps you guys are installing so i can make this harness with enough wire for you guys. Thanks



[mpc999]

Do you know what you will charge for the wiring harness? Thanks



[Vtec87pr1]

The pricing will depend on parts and what type of wire harness you want.

Options are

BCM to front bumper harness

or

Bcm + Fog lamp harness

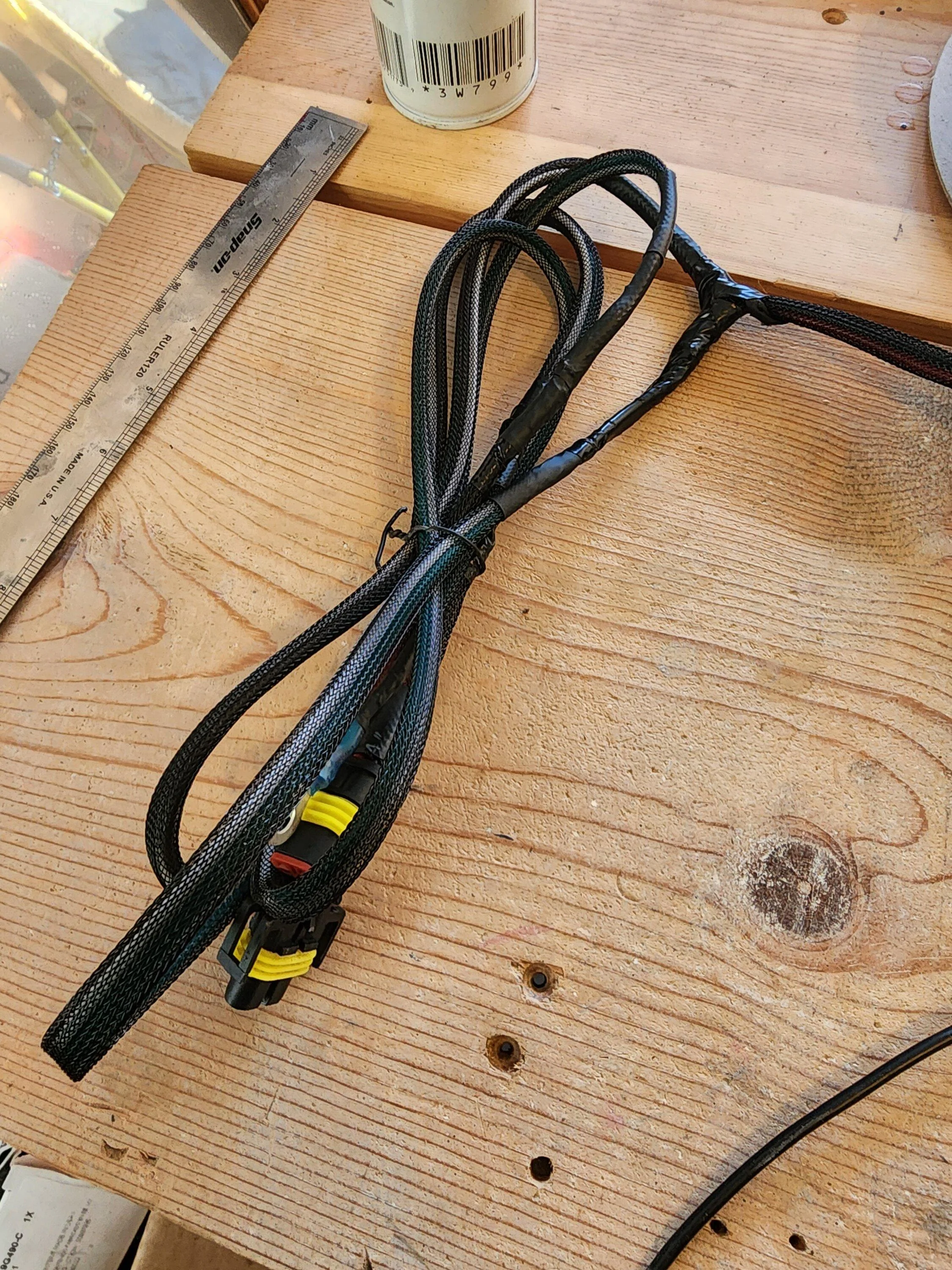

Heres a preview of one im working today.



[Vtec87pr1]

Prices will be

First option 90 dollars plus shipping

Second option 160 plus shipping



[volksnuts]

Oh man I’m stoked



[NGeezy]

Confused.. what is the difference in the options again? Also interested in getting this setup in a few months.

The pricing will depend on parts and what type of wire harness you want.

Options are

BCM to front bumper harness

or

Bcm + Fog lamp harness

Heres a preview of one im working today.



[Vtec87pr1]

Confused.. what is the difference in the options again? Also interested in getting this setup in a few months.

I will draw when i get home and diagram to explain the difference between both harness and why its more expensive. Mostly its because each fog lamp conector from ford its 32 dollars each. Comes with insulation and good solid conector. To be honest its a steal the work im doing.

The first harness allows you to do your own front bumper harness and conectors. Its just the 2 pins that goes from the Fuse box to the left front fender.

The second harness comes with 2 fog lamps conectors and it will cover the whole bumper. Plus the bcm to front fender harness.



[Vtec87pr1]

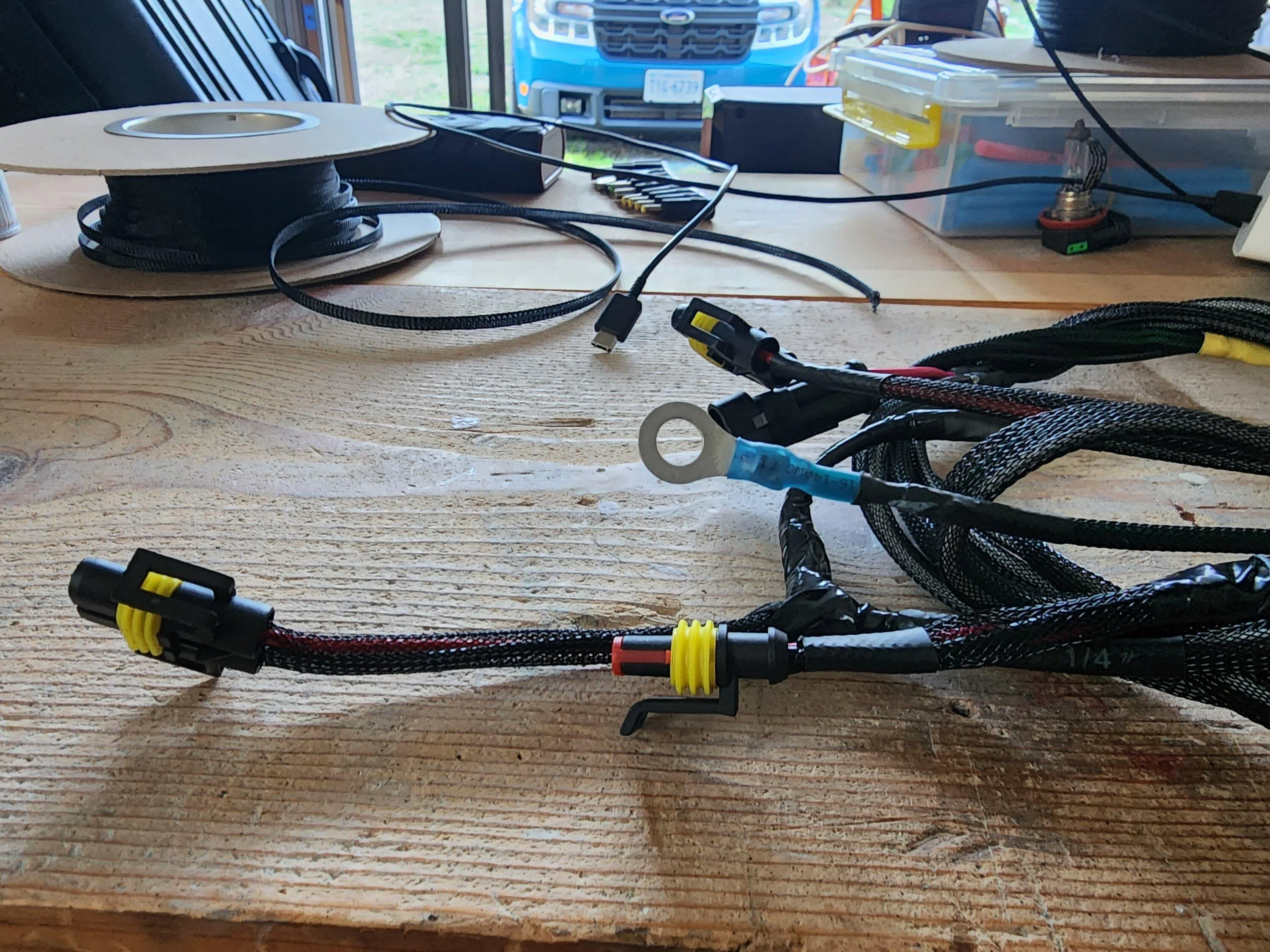

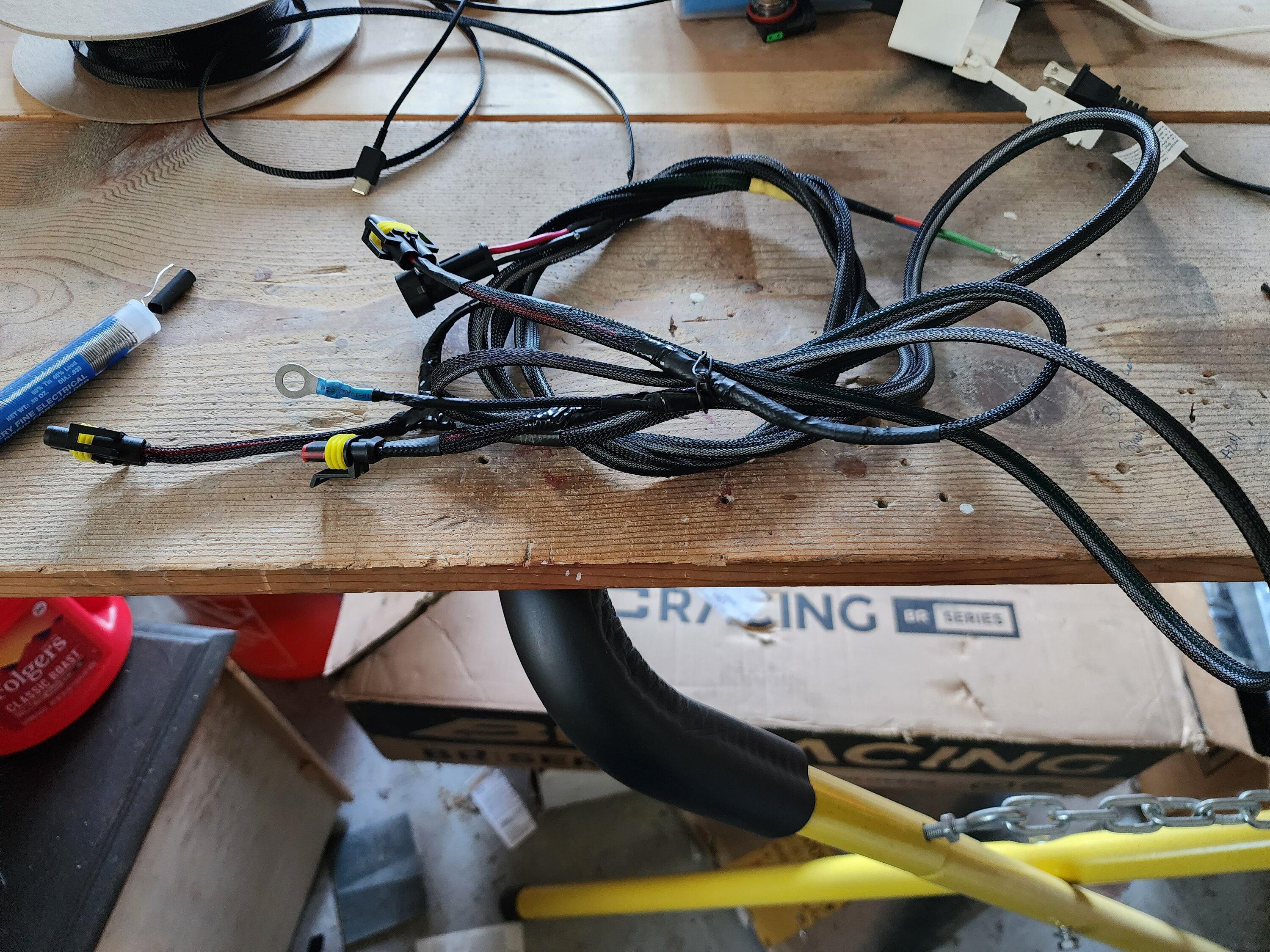

Both harness made here for first customer.



[Vtec87pr1]

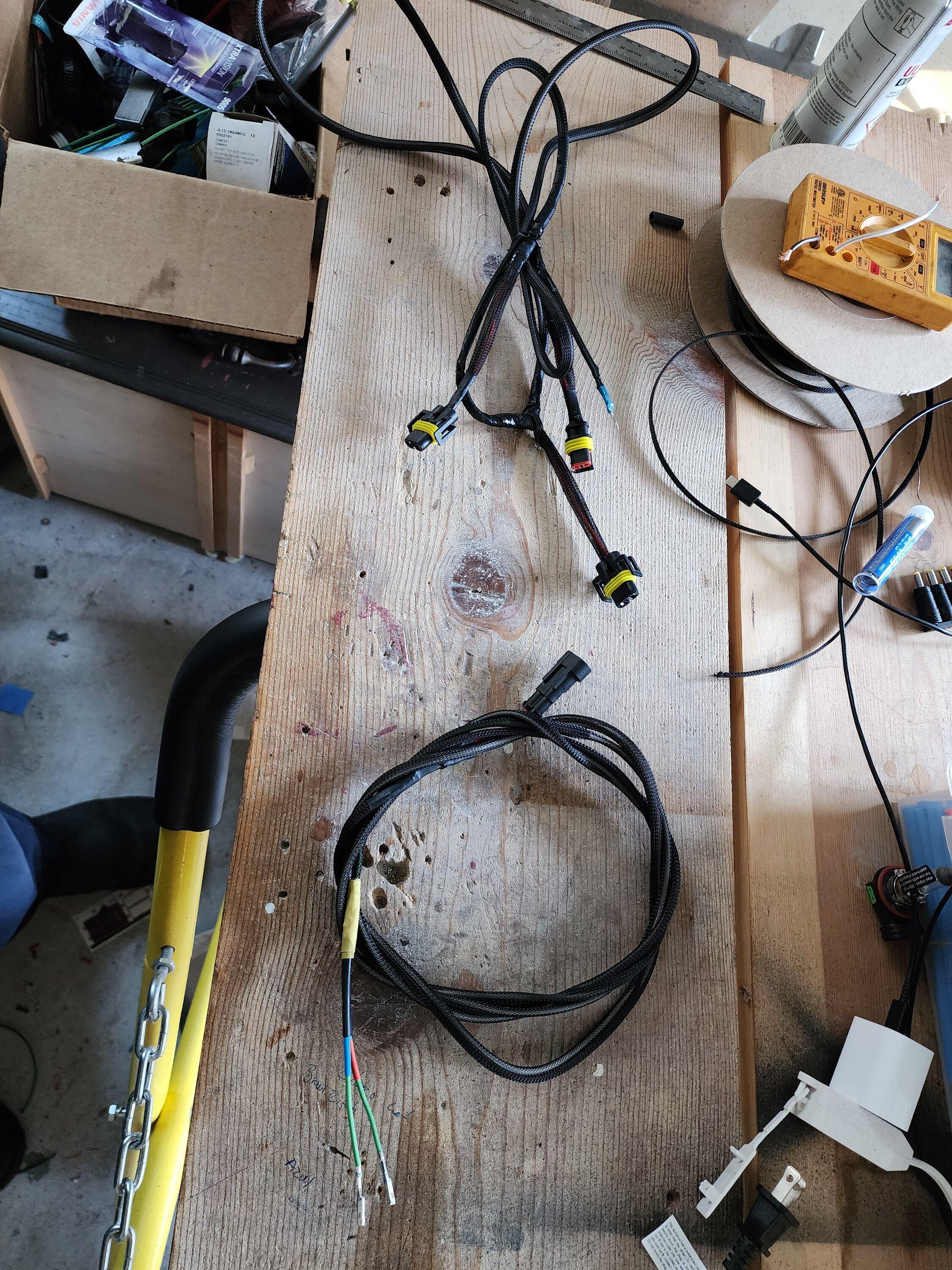

Picture side by side
