F-150 Fog Lamp Switch and Wire Harness Installed in Maverick - DIY

[Vtec87pr1]

got mine D.D kit a few days back and the oem switch! What else i need to make this happen?

Forscan . And if you want to do it the right way send me your harness from the kit and I make it for you or I send you 2 pins so you can install it your self to the bcm .

Sponsored



[MaveRican]

Forscan . And if you want to do it the right way send me your harness from the kit and I make it for you or I send you 2 pins so you can install it your self to the bcm .

Niice. En cuanto sale



[Vtec87pr1]

Niice. En cuanto sale

cual quieres?



[MaveRican]

Pues I guess the D.D harness mod.



[Vtec87pr1]

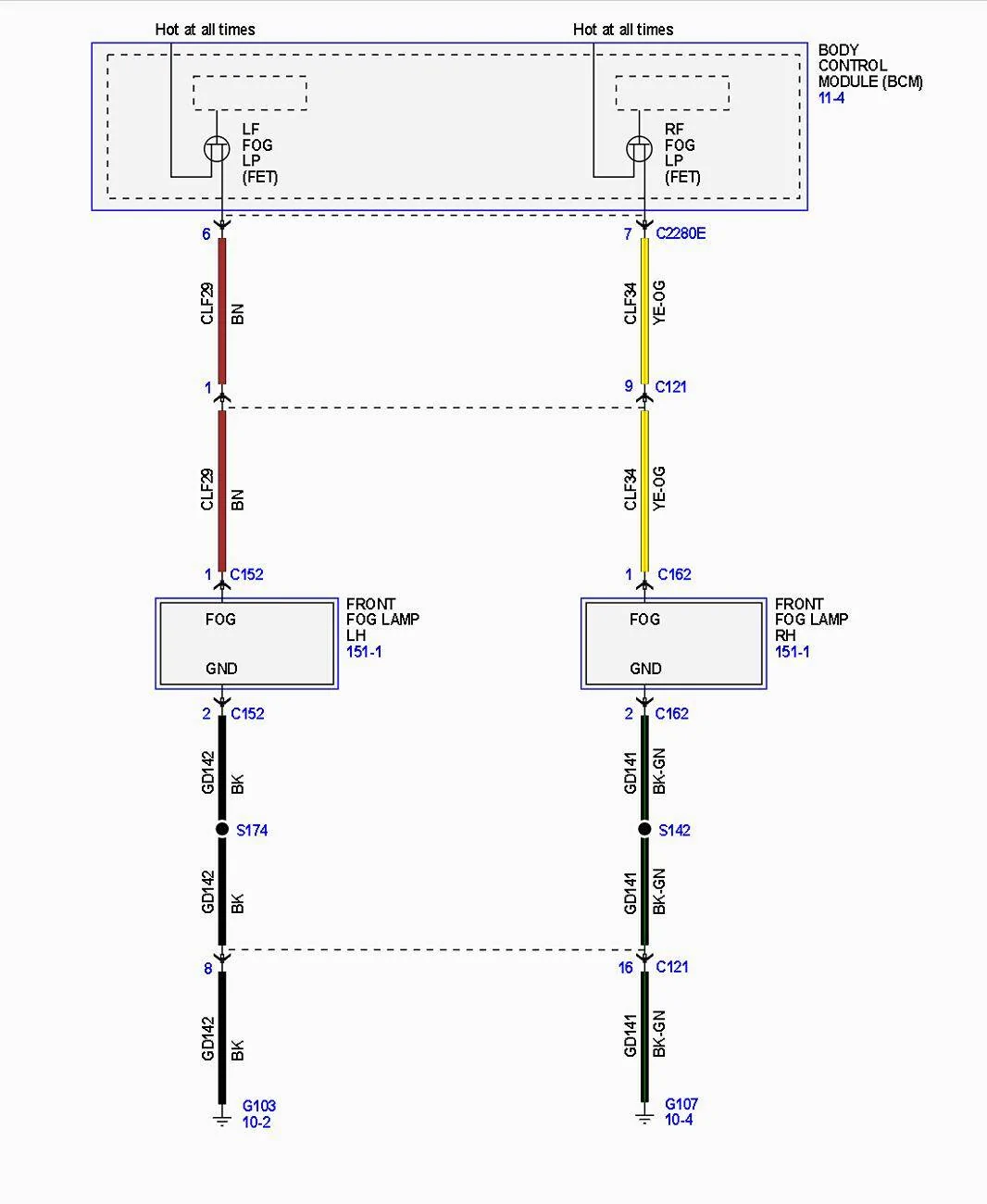

guys guess what. they copy me lol this its the wiring diagram of the 2025 ford maverick fog lights lol



[Vtec87pr1]

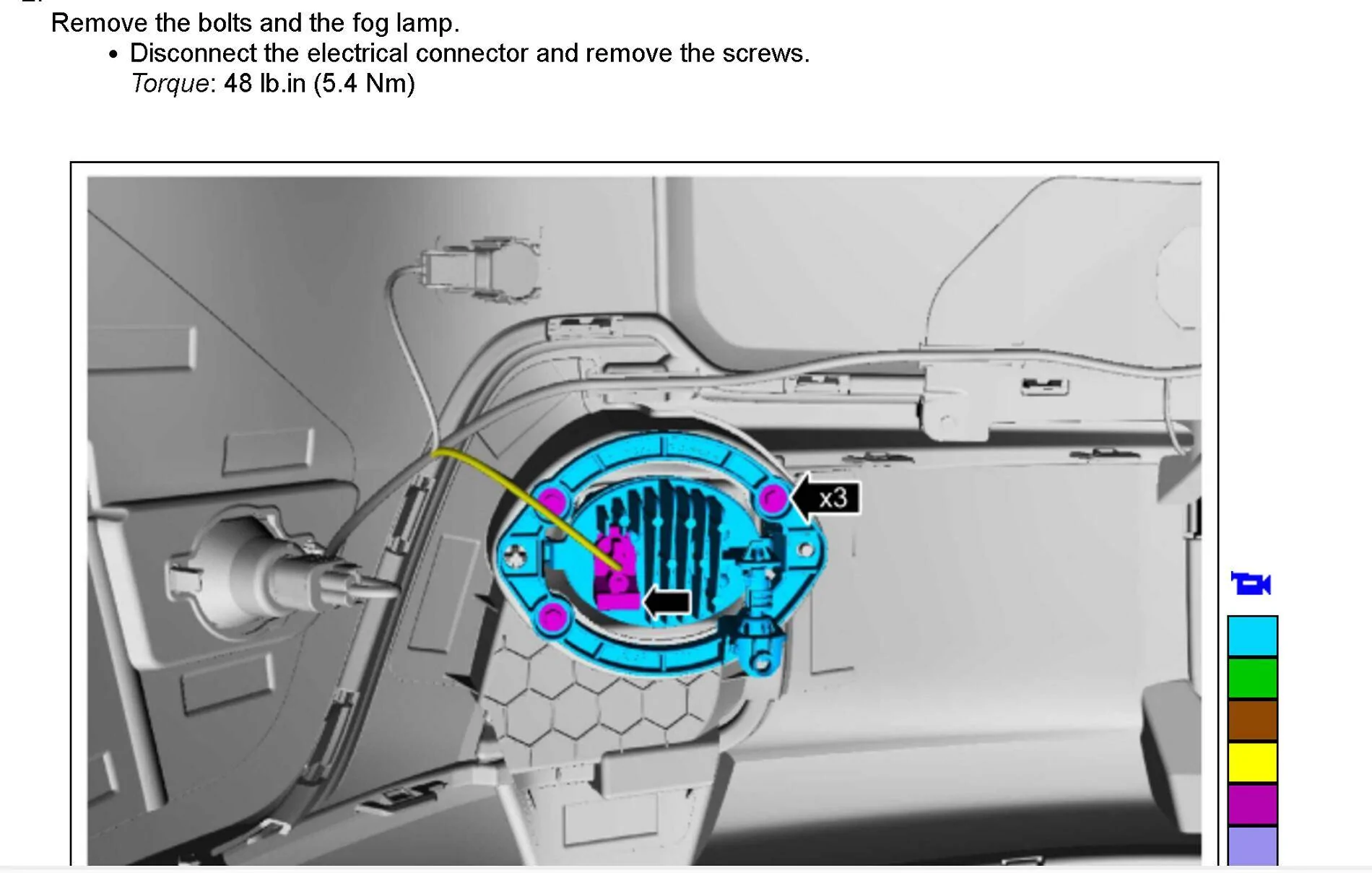

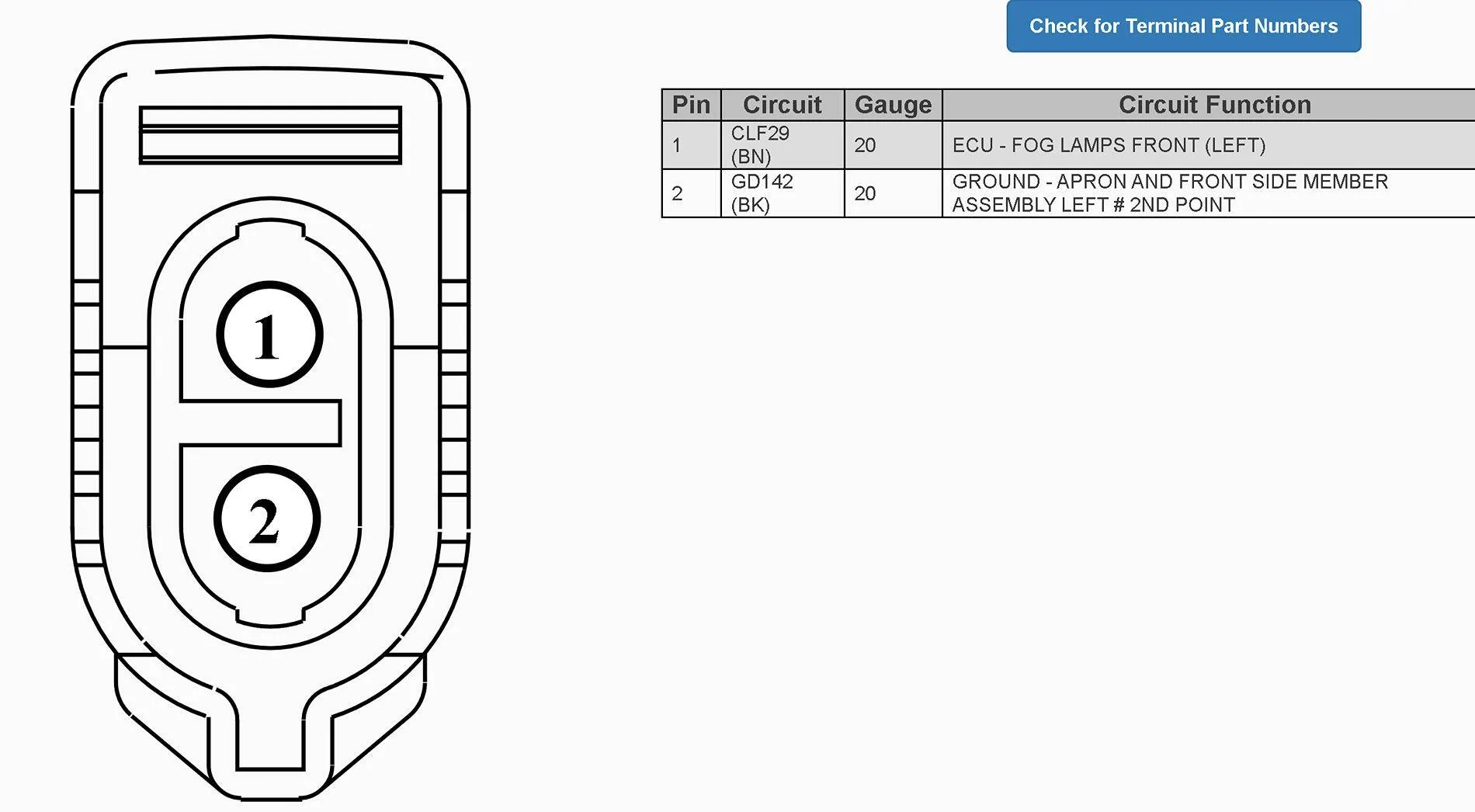

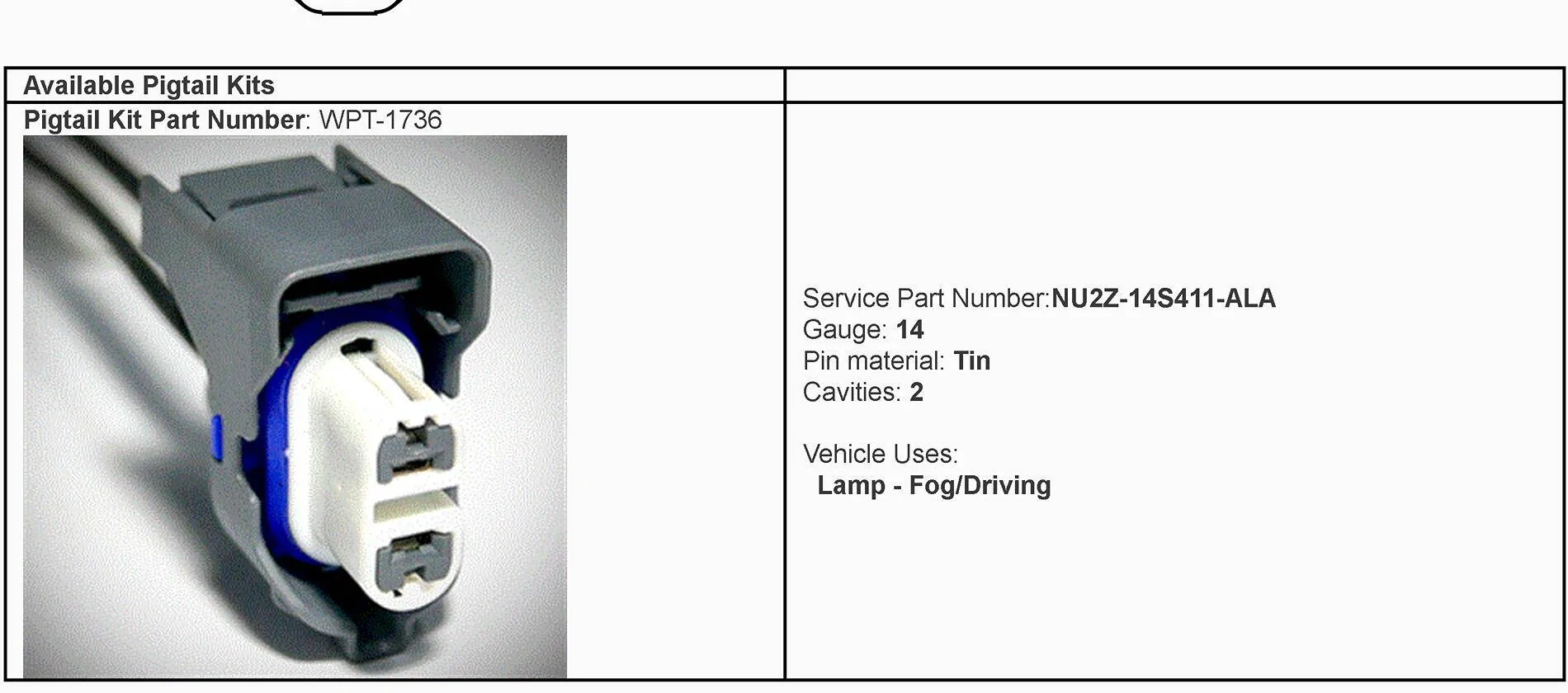

this its the fog lights conectors for the 2025

im not sure yet but im going to try to order the bumper lower valance and see if they work or not.



[Vtec87pr1]

Pues I guess the D.D harness mod.

dm



[KSU Flyer]

I got some great news for the ppl that want to do this by yourself with your own diode dynamics fogs lights . I will posting soon a diy with video on how to do it . Using the diode dynamics fogs lights harness. Heres a raw picture of the convertion.

The before and after . Way less wires and more cleaner build and easy to Install. Stay put im busy with 3 im doing at the momment but soon I will try to make it simple for you guys and girls.

Just found this thread and it's fantastic!

I recently purchased the DD kit, and was wondering with the mods you made to the DD harness...are the built in DD fog lamp running lights still on all the time or only when the fog lights are on?

Also, DD has stated each yellow fog lamp consumes 1.6A, for a maximum draw of 3.2 amps. Is there a BCM rating that states what each output can source?



[Vtec87pr1]

Just found this thread and it's fantastic!

I recently purchased the DD kit, and was wondering with the mods you made to the DD harness...are the built in DD fog lamp running lights still on all the time or only when the fog lights are on?

Also, DD has stated each yellow fog lamp consumes 1.6A, for a maximum draw of 3.2 amps. Is there a BCM rating that states what each output can source?

I will check tomorrow to see what I can find on this . As far as I know. Had my setup for 2 years no problems so far.



[801Maverick801]

Do you have access to to Ford Connector Part #s? Not sure why the Manuals show N/A for all the #s.



[TruckPrius]

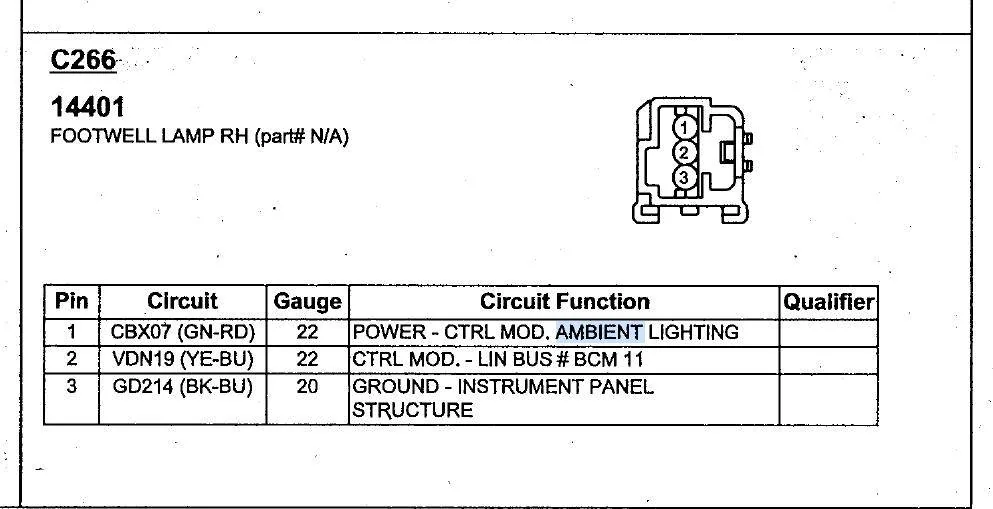

I guess I was more meaning more of how to disassemble it. Like to press in the the two tabs on the curved end of the cover and cutting the zip tie to release it. This just wasn't obvious to me at first. The red part only popped out around 1/4" for me but allowed me to insert the connector. I've got it in there now so I just need to run a wire across to the driver side now to connect it to DD kit. I'm going to try and put a toggle switch in so I can alternate it between the two inputs still if something goes wrong down the line.

Oh man, thank you. This added a few hours to this project as I was worried about breaking the connector. I gave up and came looking for some explanation. I didn't need to cut the zip tie though, just moving the handle lock around a bit let me slide the cover back enough to get access.

Also thank you @Vtec87pr1 for all the info, it made me more confident taking this project on!



[Vtec87pr1]

Do you have access to to Ford Connector Part #s? Not sure why the Manuals show N/A for all the #s.

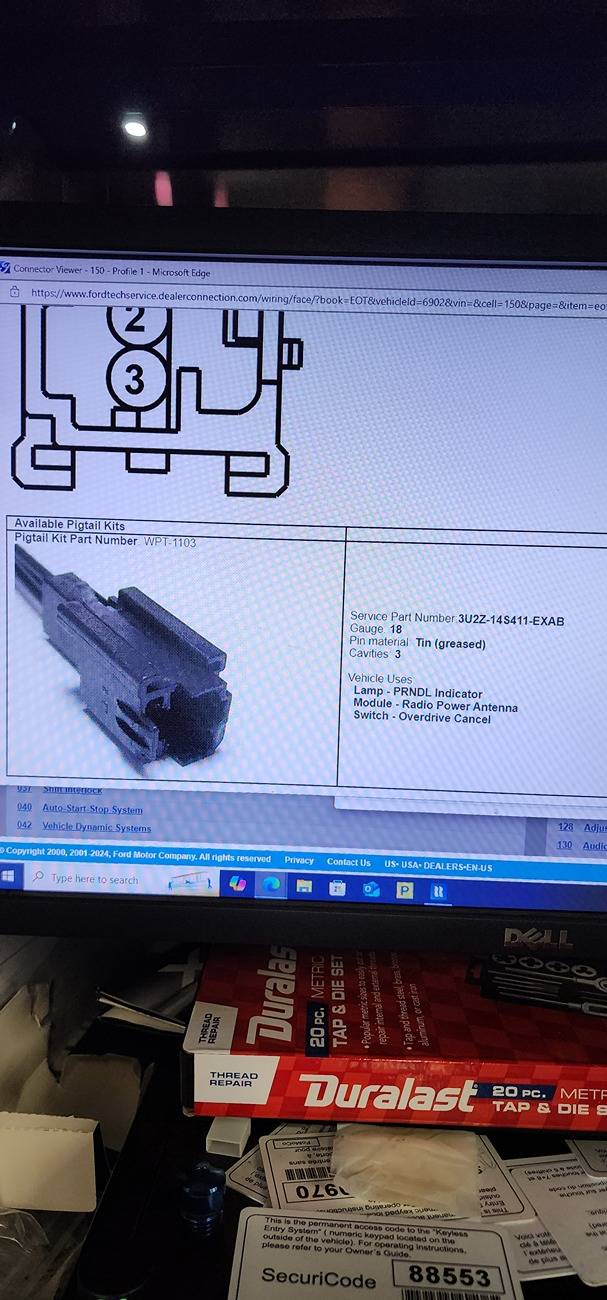

WPT 1103 ITS the part number.

Also try 3U2Z-14S411-EXAB



[Vtec87pr1]

Oh man, thank you. This added a few hours to this project as I was worried about breaking the connector. I gave up and came looking for some explanation. I didn't need to cut the zip tie though, just moving the handle lock around a bit let me slide the cover back enough to get access.

Also thank you @Vtec87pr1 for all the info, it made me more confident taking this project on!

No problem thank you for the credit means a lot makes me happy.



[Vtec87pr1]

I wonder if Ford would sell and add on kit for the 2025 Ford Mavericks . For the Fog lights that would be cool. If not you can count on me on making you the harness you will probably would have to buy the front bumper valance and the fog lights and the 2025 Ford maverick fog light switch .



[Abel7847]

I got some great news for the ppl that want to do this by yourself with your own diode dynamics fogs lights . I will posting soon a diy with video on how to do it . Using the diode dynamics fogs lights harness. Heres a raw picture of the convertion.

The before and after . Way less wires and more cleaner build and easy to Install. Stay put im busy with 3 im doing at the momment but soon I will try to make it simple for you guys and girls.

you sir you’re an angel, waiting on that video.
