it's a great suggestion by Antonio but bear in mind the Lobo lower valence is painted to match, so I would expect it to come primed instead of finished black plastic like all the other trim levels use.

I'd suspect it's two parts. It looks like there's the black textured plastic lower valence and then a PTM urethane piece that attaches to it.

Sponsored



[colinl]

I'd suspect it's two parts. It looks like there's the black textured plastic lower valence and then a PTM urethane piece that attaches to it.

that's a good pic for reference. it actually looks like that would be incompatible with the '22-'24 upper bumper cover. that notch to the right (in this pic) of the forward parking sensor is not there on a '22-'24. it's straight across.



[Nootch]

From what I can tell from the very limited info I can find, the lower valence on the Lariat BAP is different. Not just painted. However this is a months and months away project. still have to get the truck built.



[Vtec87pr1]

I will definitely check this out since I think im going to try to see the difference in person when I buy the bumper valance in person. I let you guys know . 22 to 25 front end swap maybe not sure.



[Vtec87pr1]



[Vtec87pr1]



[Abel7847]

Is this a plug and play kit for the foglight switch?



[Vtec87pr1]

Is this a plug and play kit for the foglight switch?

Yep simple wire that you install to the bcm . So you can have f150 switch. You still need to do some programing with forscan though



[Abel7847]

Is this a plug and play kit for the foglight switch?

How much is the wiring kit?



[twracing]

How much is the wiring kit?

Interested in this myself, I have already installed the DD lights. And I did buy an F150 switch.



[Vtec87pr1]

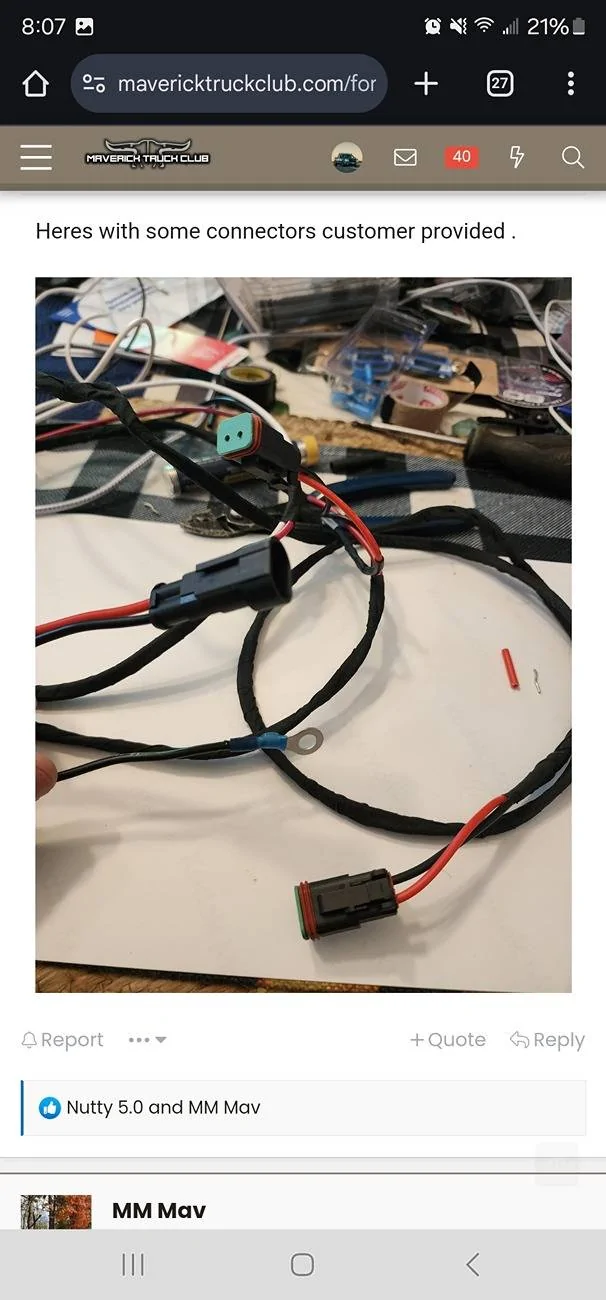

Heres the prices and im going to need this conectors if you used the diode dynamics fogs ir I can leave them with no conectors of the fogs and you install them to the harness. The easiest one to do its use the diode dynamics trigger wire.



[Abel7847]

Heres the prices and im going to need this conectors if you used the diode dynamics fogs ir I can leave them with no conectors of the fogs and you install them to the harness. The easiest one to do its use the diode dynamics trigger wire.

Can you post pictures of the harness and is there a video for the plug n play version?



[AlpineKid74]

I wanted to Install Some Ford Fog Lamps on the Truck and seem that Ford Escape as the same Bcm conector as the Ford Maverick.

I Checked and Found that Ford Escape , Ford F150 and Ford explorer had similar headlamp switch. I Found one on Ebay that came from a Ford f150 with the factory fog lamp switch on the center dial. Install it and with forscan enable it. Heres some pics of the process. Need to enable on BCM and IPC .

UPDATE F 150 HEADLAMP SWITCH FORD PART NUMBER ML3Z11654BC .

Update hybrid fuel release door f150 part number ML3Z-11654-DB . Not tested but i belive should work.

UPDATE 2 / 3 / 2023

BCM TERMINALS PART NUMBERS WT-1003

link showing how to un pin connectors and install them.

When I get my 2025 Maverick XLT next year, I will see if this setup will work.



[Vtec87pr1]

Can you post pictures of the harness and is there a video for the plug n play version?

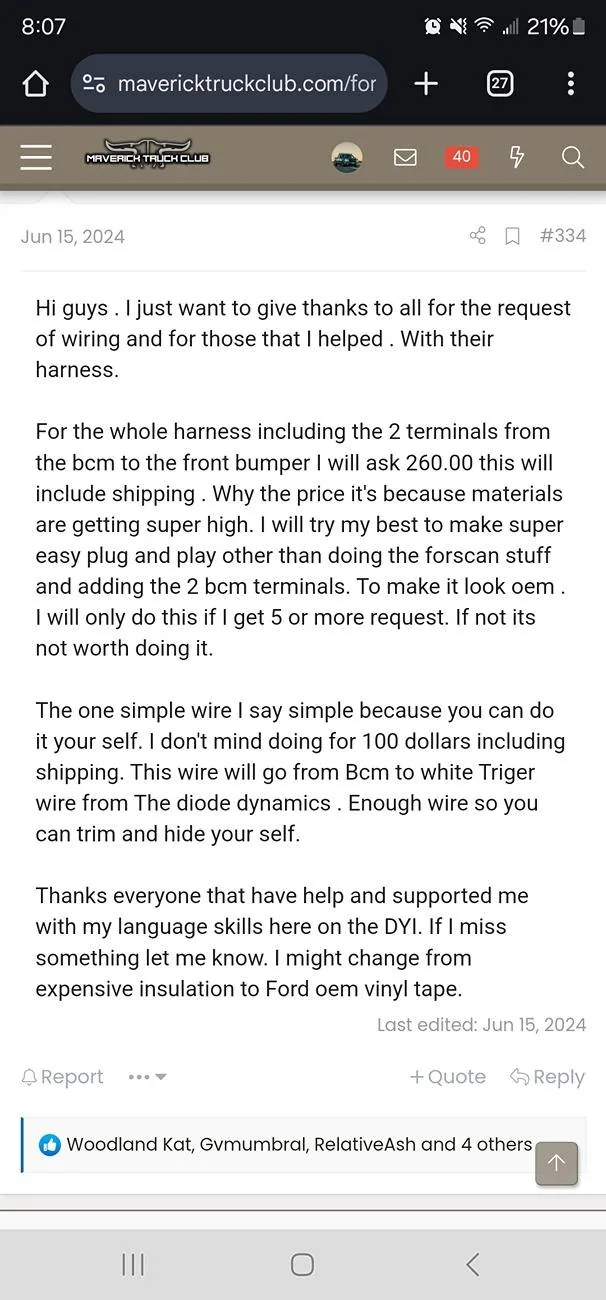

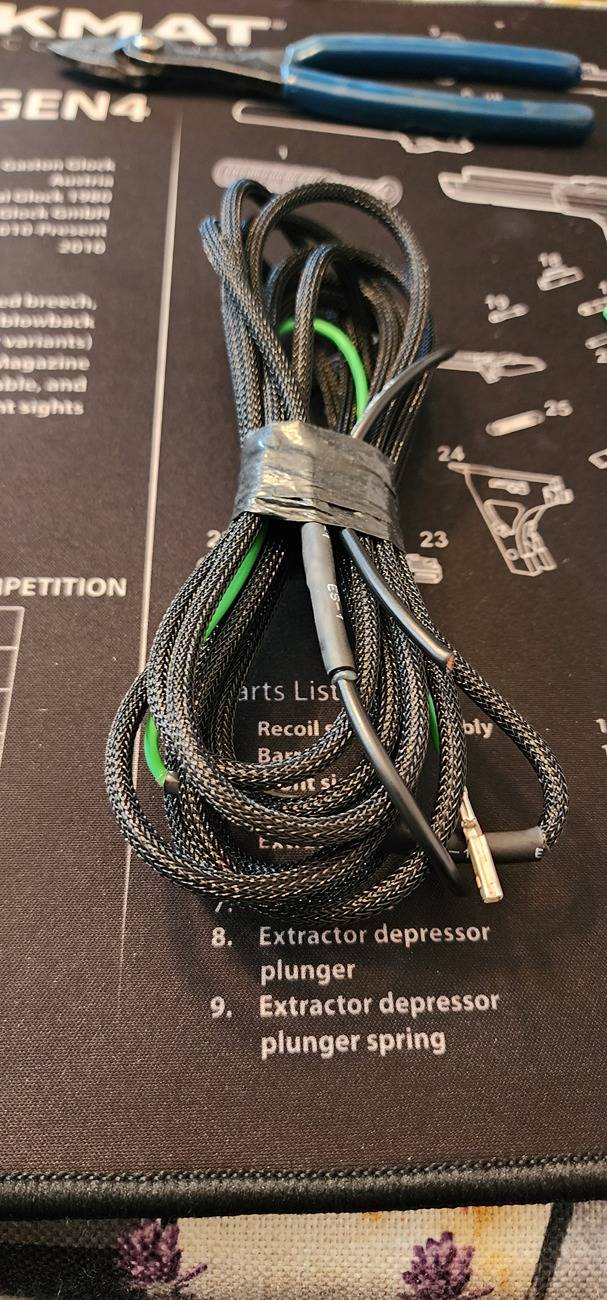

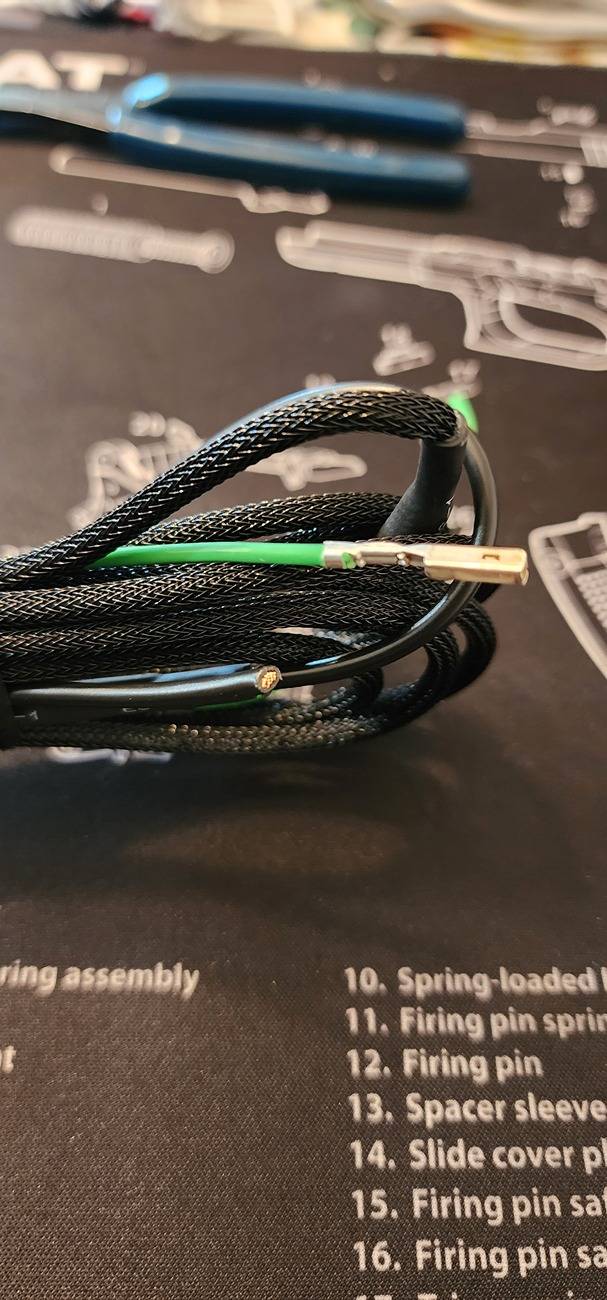

There's pictures here on this thread I just got to find it. Harness are made to order so I sometimes don't have the parts on stock. I will post here picture of the one wire harness I made today for another member. This wire comes with the terminal for thr bcm on pin 6 and enough wire to route in outside on the engine bay to the dd trigger wire.

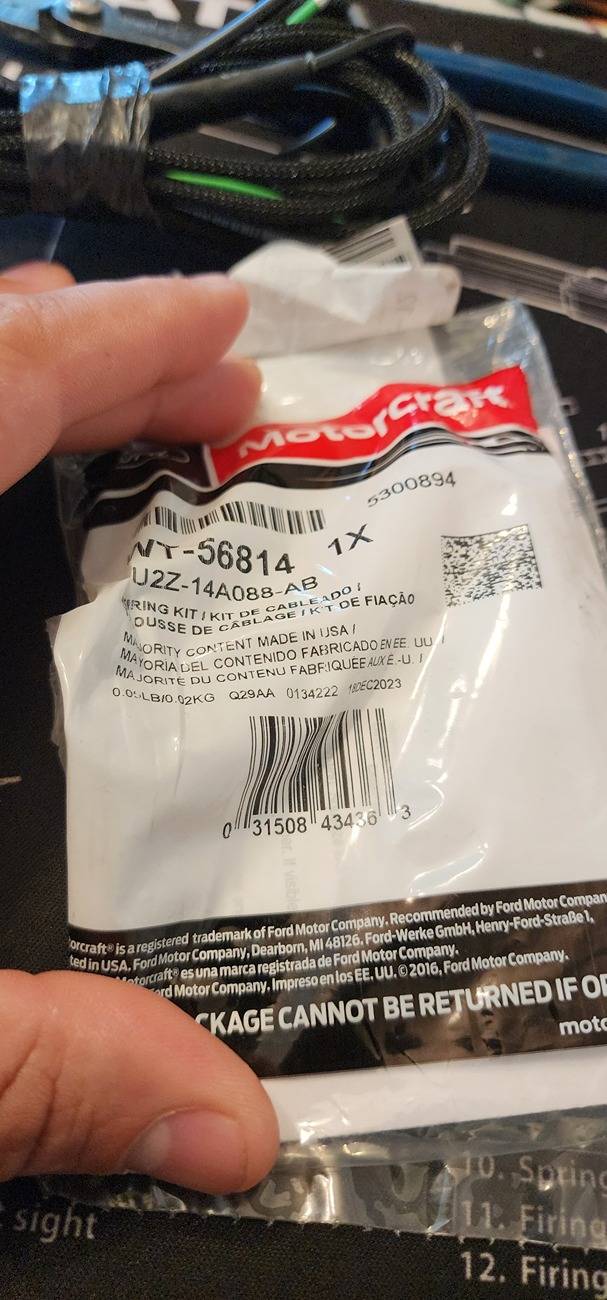

They come seal and shriktube and insulated. I used only ford parts .



[Vtec87pr1]

I have not made videos of install looking for volunteers. They will have to come when ever im not busy on the weekend .
