[pantera156]

Let us know how it goes!

Yes!.

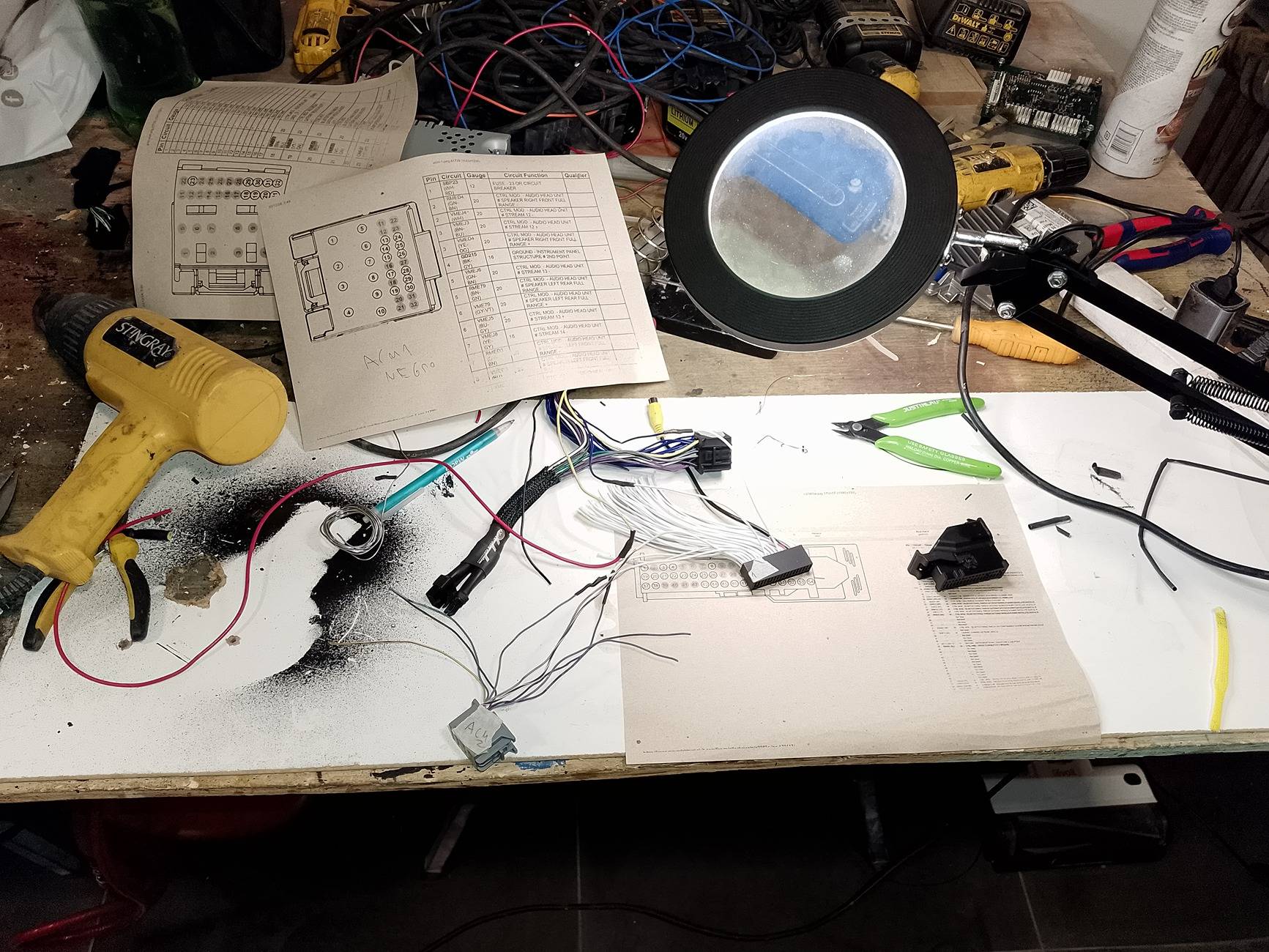

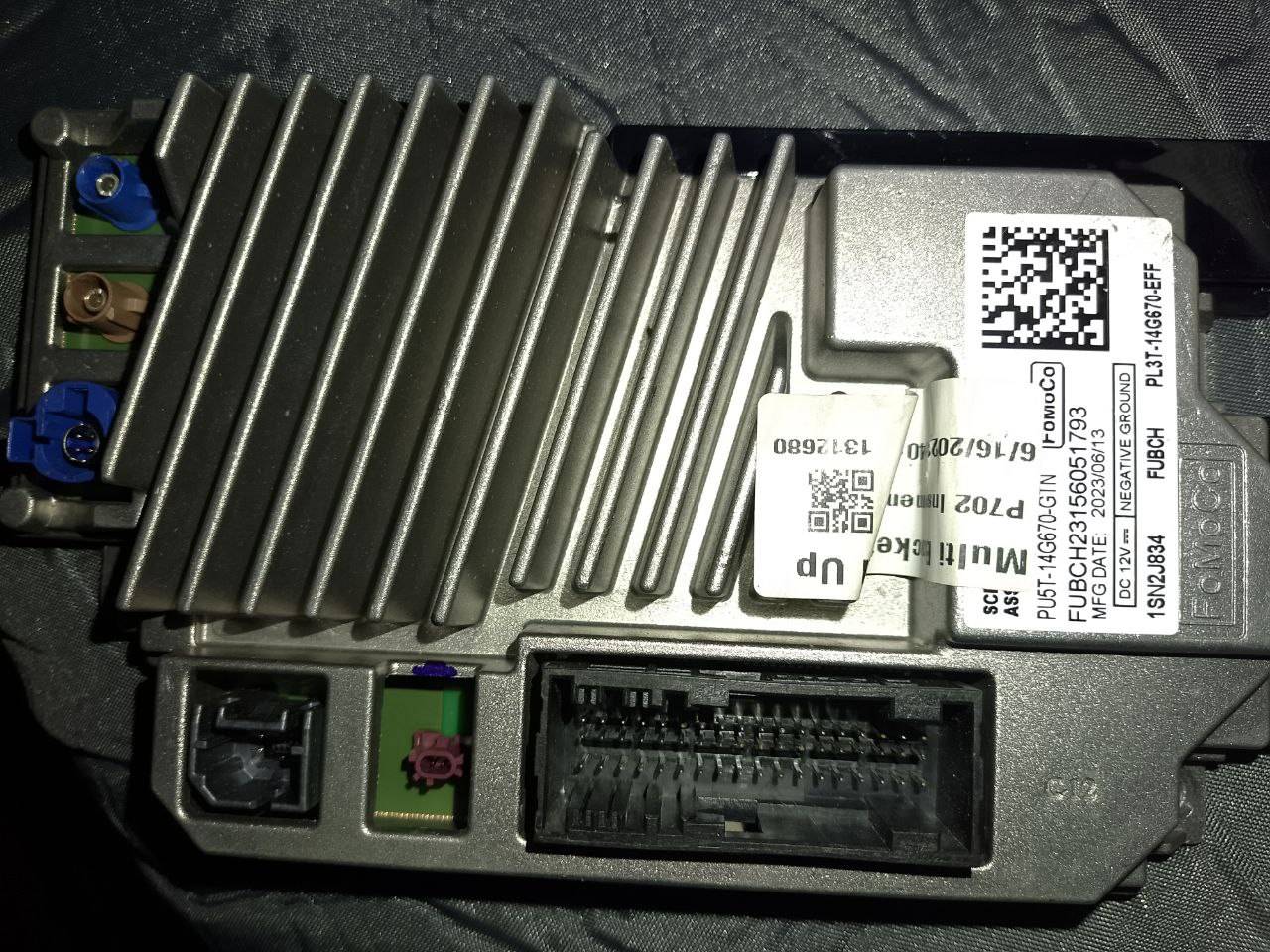

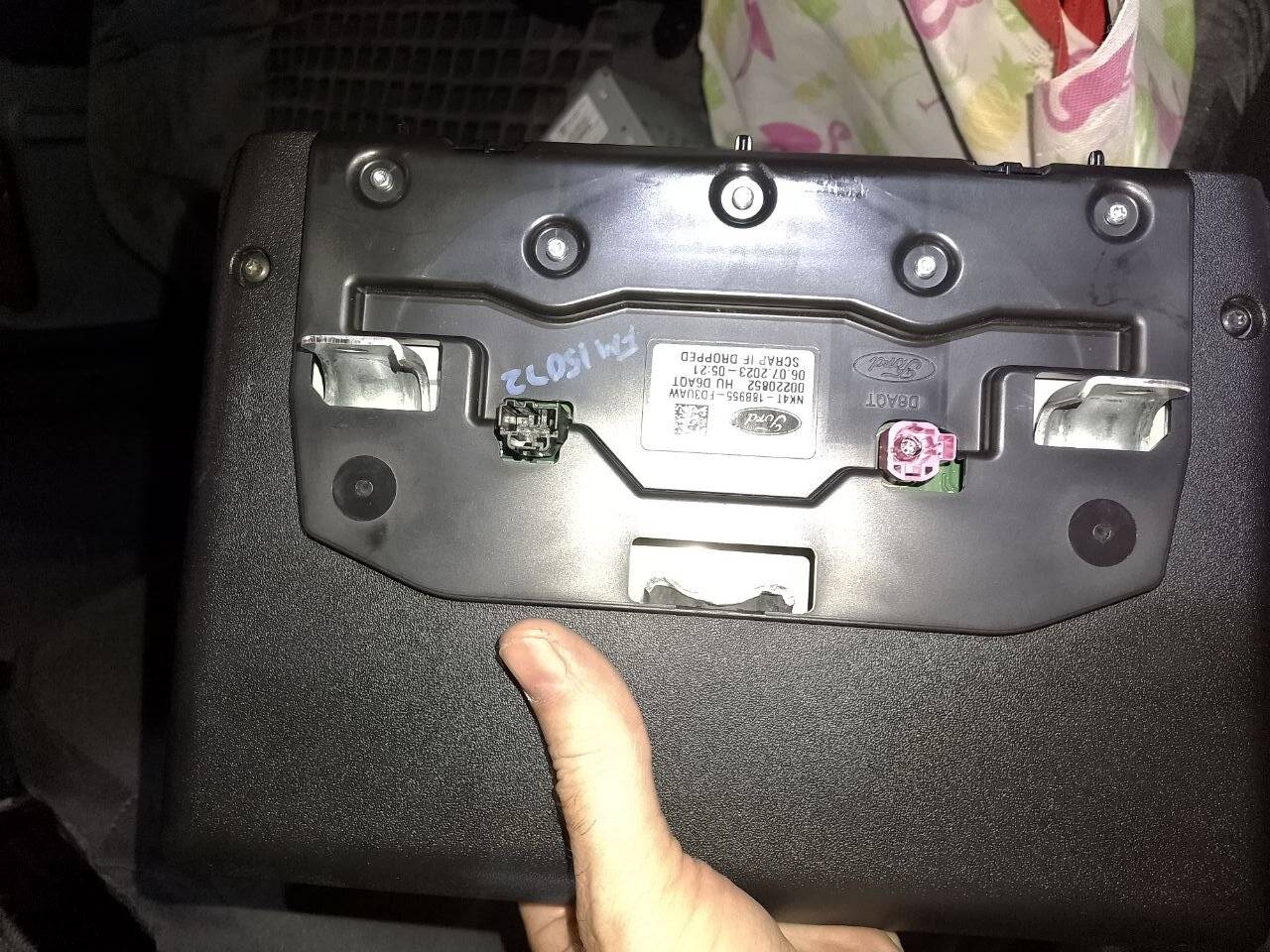

Right now I'm making the map for how I'm going to cut and join the cables

Sponsored



[pantera156]

I’m doing this now with Bills and capermikes help. I found Zack’s hard to figure out( just me lol)
So caper Mike sent me his.

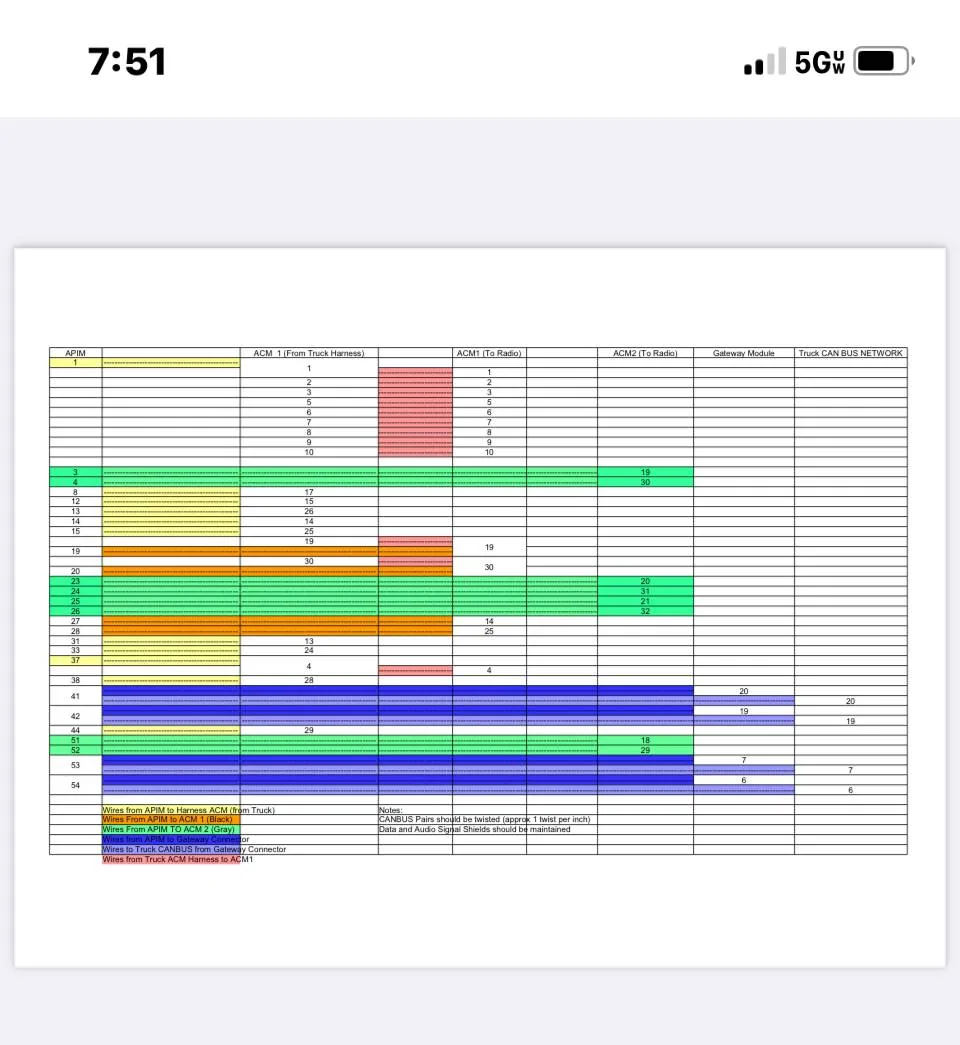

I'm understanding more with this diagram than with the first one...
In the first one it is not very clear what goes to the truck connector and what goes to the radio connector.
Tomorrow I will do the cable



[RONR11]

I'm understanding more with this diagram than with the first one...
In the first one it is not very clear what goes to the truck connector and what goes to the radio connector.
Tomorrow I will do the cable

If you remove the locking cover from the Apim connector. Easy to follow the wires



[RONR11]

If you remove the locking cover from the Apim connector. Easy to follow the wires

I’ve done a couple and found a 2023 Escape dash harness at pull a part
it had the power and 6 pin cable so it was easy to connect to jumper harness
as most were are already jumpered.



[pantera156]

If you remove the locking cover from the Apim connector. Easy to follow the wires

Thank you very much for your help.
I'll continue tomorrow!



[yeahiguessman]

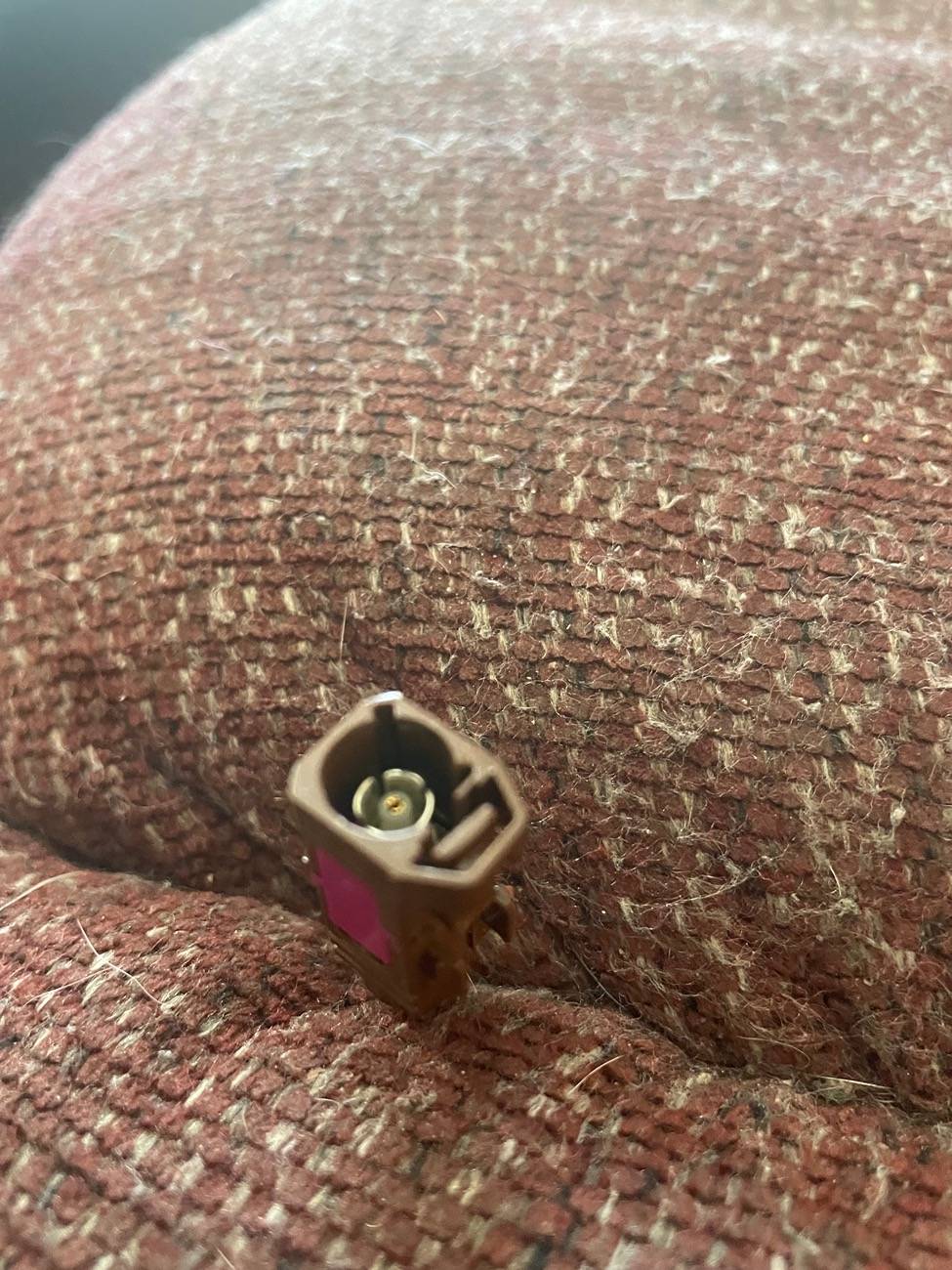

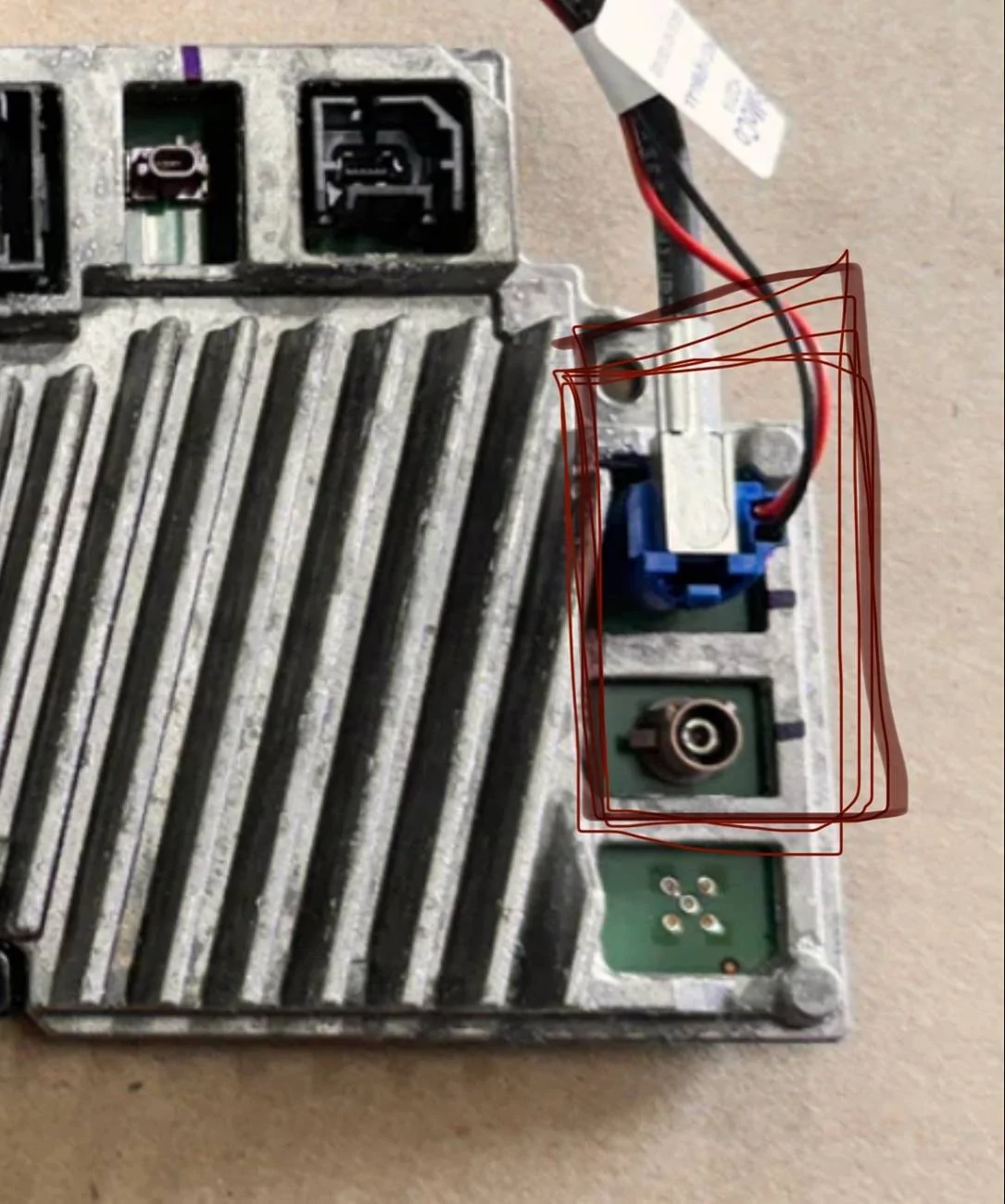

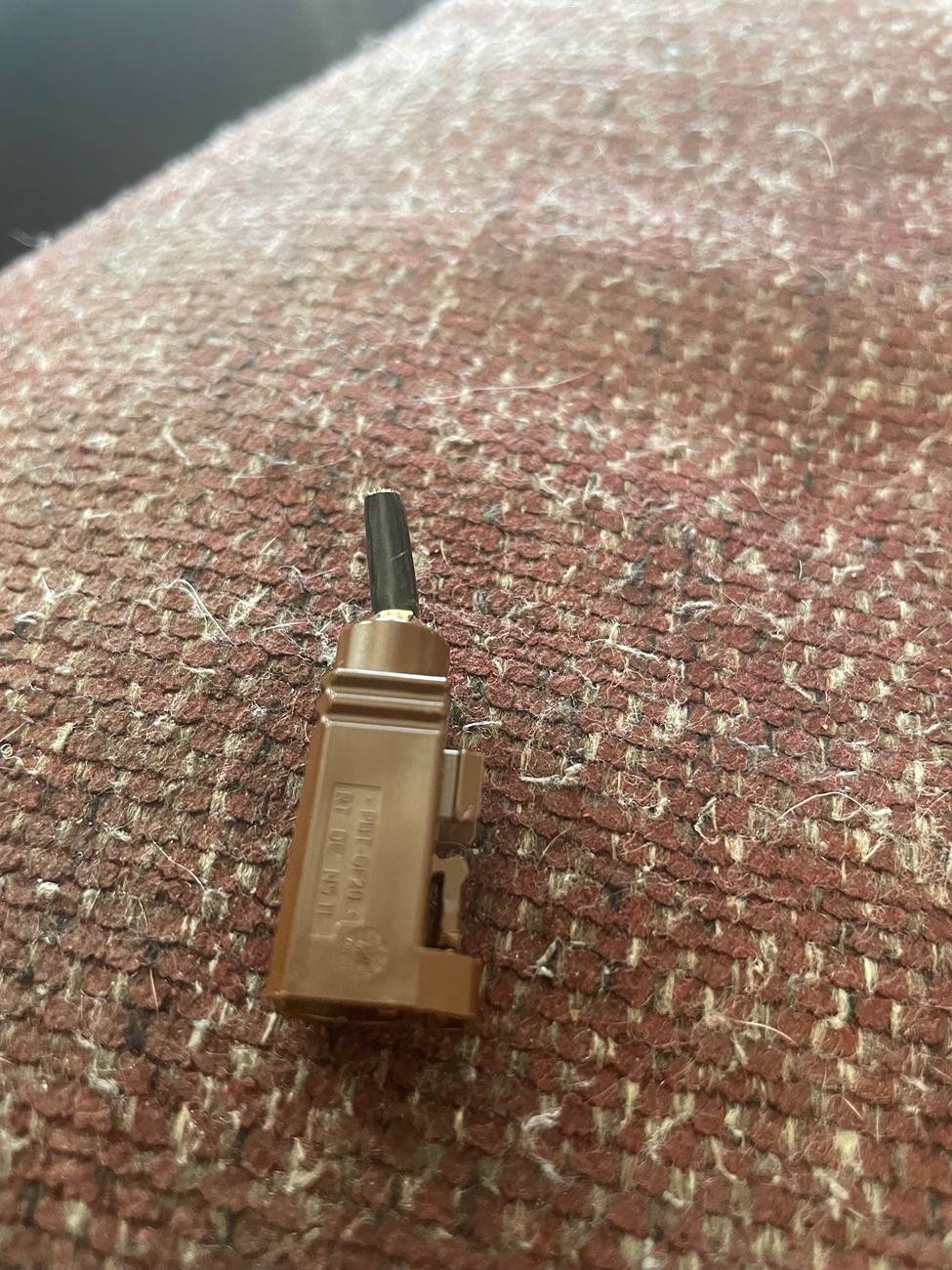

So, went ahead and started the process and ended up having to call it due to finding it impossible to get two of the smaller cables unhooked from the stock APIM. But of a bummer as everything was pretty much ready to go. Does anybody have any tips? I was able to get the largest cable undone but really struggled near the end with these two that I’ve circled. Couldn’t find the pin to release them blind for the life of me. It seemed like I couldn’t access the release for the blue without first finding the release for the brown circular one.

I’ll give it another go after Christmas.



[RONR11]

Had same issue I used needle nose to squeeze the release tab and used a screwdriver under the cable end and rocked back/forth. Used dielectric grease before reinstalling



[yeahiguessman]

Had same issue I used needle nose to squeeze the release tab and used a screwdriver under the cable end and rocked back/forth. Used dielectric grease before reinstalling

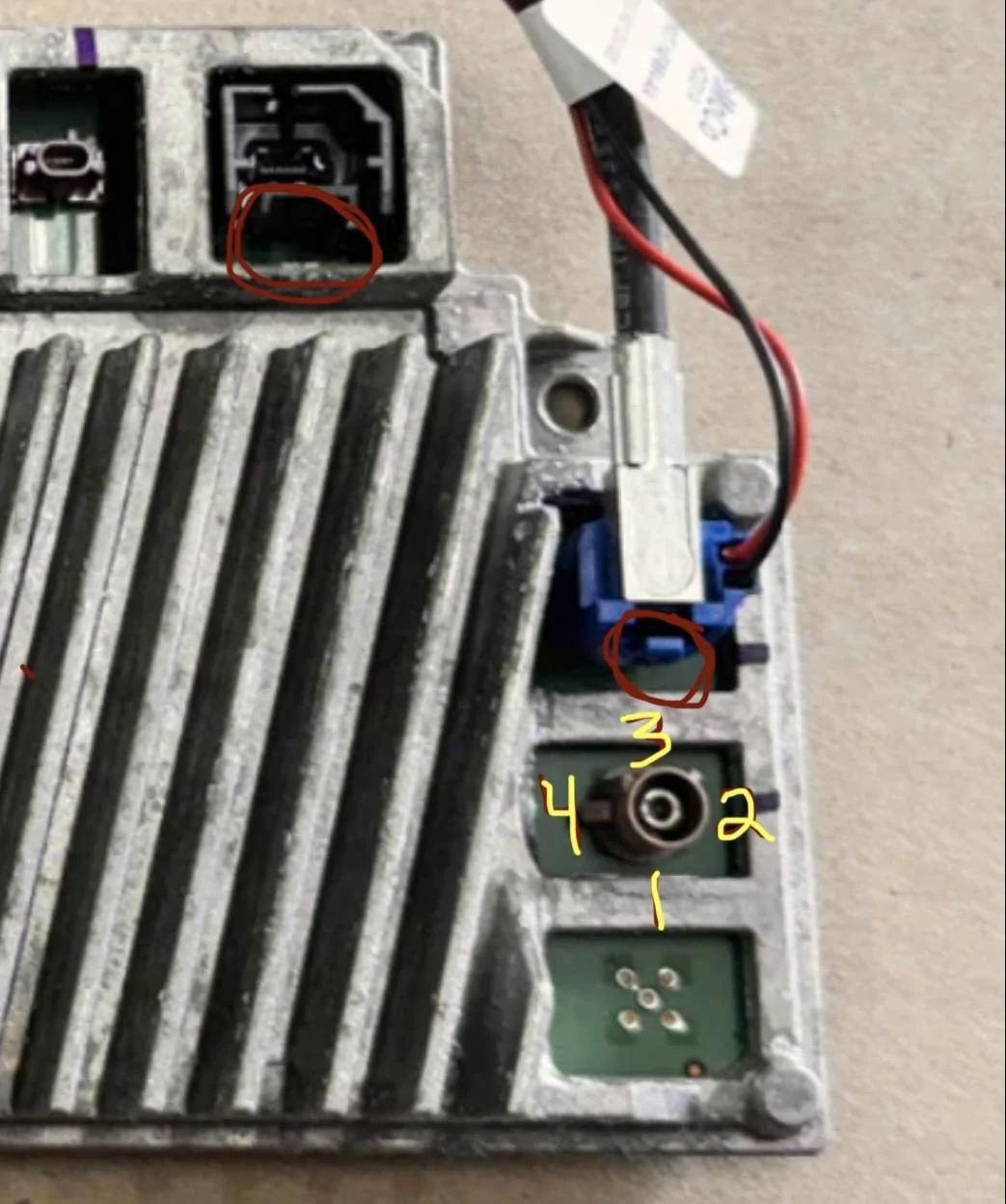

My biggest issue now is figuring out where the clip is on the brown circular one. It’s kind of blocking my path to the blue one. Do you happen to know which side (1234) of it I need to press in?



[RONR11]



[yeahiguessman]

Attempted the swap again today and cannot for the LIFE of me, get these smaller cables to unlatch. Can hardly get my hands in there and even when I did get one of the latches pressed in I could not wiggle it out without feeling like they might break.

I also tried to find where the harness plugs in to the car on my 24 lariat hybrid and it seemed to just keep going endlessly and I couldn’t reach the end where I’d need to plug the new one in before attaching to the APIM

Odd little set backs. Not sure exactly how to proceed for now



[RONR11]

Ya. You’re doing a 3-4 .
I started from scratch so mine is right in hand, hopefully Bill or others will chime that did a 3 to 4



[pantera156]

First test without programming anything...
The radio doesn't work. I hope it's because I haven't programmed anything yet!



[pantera156]

After programming, everything seems to work fine! Even the camera!

Now we have to put everything together and find the maps for the GPS.

Is it necessary to put an antenna on the GPS?



[801Maverick801]

After programming, everything seems to work fine! Even the camera!

Now we have to put everything together and find the maps for the GPS.

Is it necessary to put an antenna on the GPS?

Did you have to buy the USB plug extender? Blue plug



[RONR11]

Same issue,

First test without programming anything...
The radio doesn't work. I hope it's because I haven't programmed anything yet!

. From what Mike told me if any codes in Apim/ Acm it shuts off sound. Tried every forscan settings that everyone posted and still no good. I can see volume change in apim.
I show in the apim settings
. I got to believe ACM coding
Im trying again today, if you figure please pass on Tks
