Schematic/wiring diagrams 2026

[JSWeinrich]

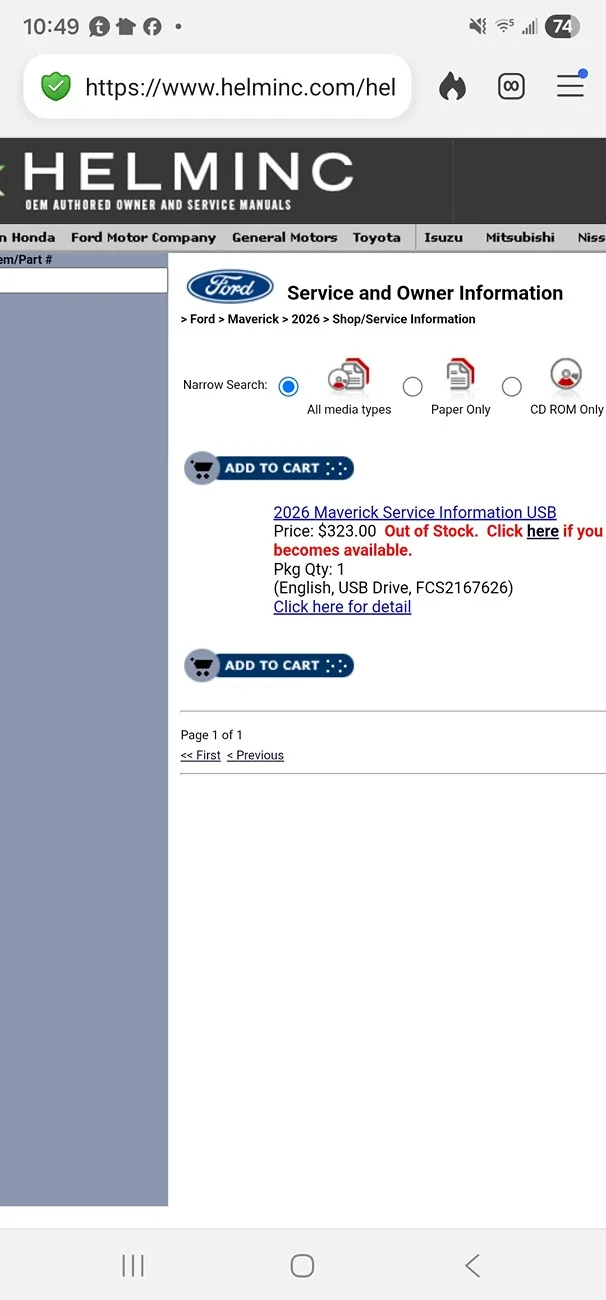

Looking for schematics/wiring diagrams for 2026 Maverick. Helms is out of stock. What do you all use?

Sponsored



[HeyBales]

Out of stock on a USB thumb drive?
Doubtful.

More likely it doesn't exist for them yet, which would mean unlikely for others to have yet.

If that's not the case, then this:

https://www.factory-manuals.com/shop/2026-ford-maverick-repair-manual/



[Hootbro]

You can purchase a Ford Service Info 72 hour subscription ($27) and with about 3-4 hours of time, print to PDF all the wiring diagrams, connector views and location drawings. Just have to put in the work folder organizing it.

https://www.fordserviceinfo.com/Purchase/ViewProduct

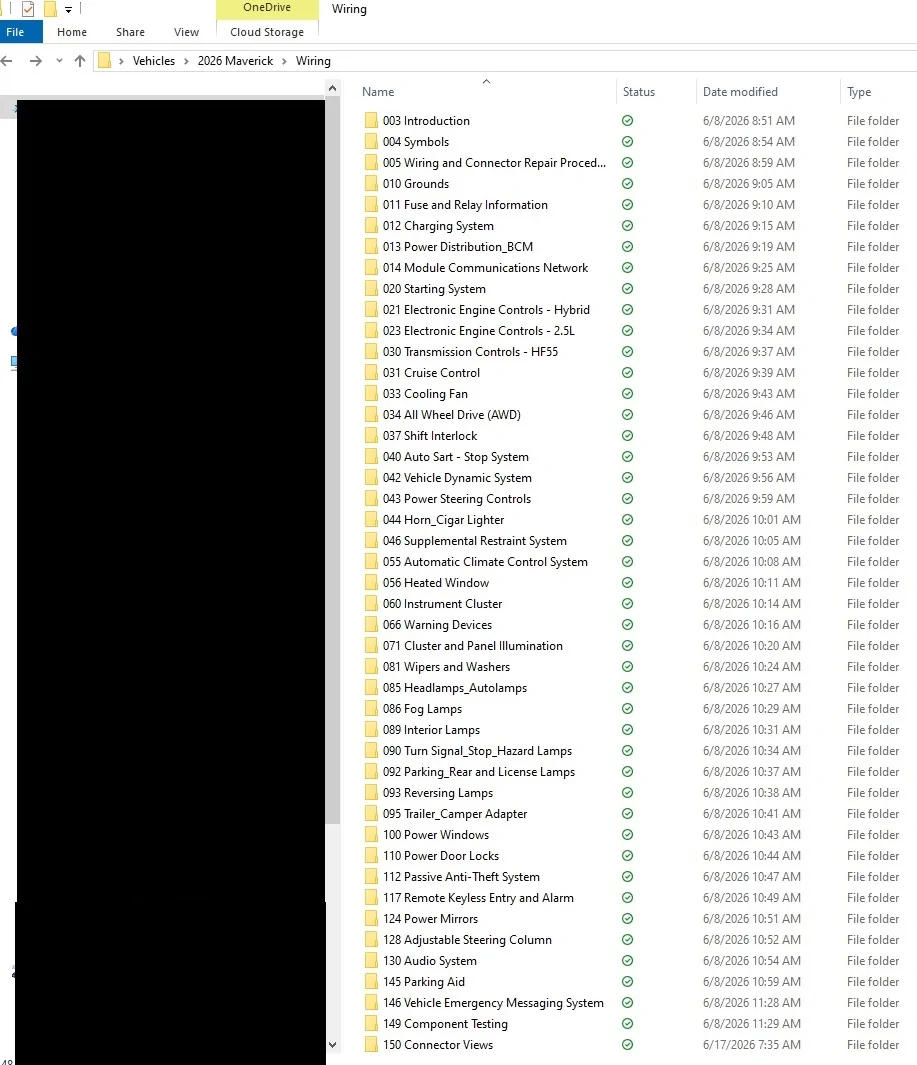

Helps to have also PDF PRO and not just the basic reader to combine files into books . Below is a sample of what I have put together for my 2026 Maverick as a single master PDF but is not ready for primetime yet. It is the first 100 pages of 1200.



[tpollauf]

Good info Hoot For the price you really can't go wrong having this info. Even if you were only to use it once or twice, it's well worth it. I'll be laid up for a week or two this November recovering from a surgery so this can be one of many tasks for me to complete during that time. Amazing that you could have 32 years worth of ALL Ford models to access during the 3-day period.



[BK007]

https://www.mavericktruckclub.com/forum/threads/interactive-fuse-box-diagrams-specs-bookmark-this-🛻.83327/



[HeyBales]

Good info Hoot For the price you really can't go wrong having this info. Even if you were only to use it once or twice, it's well worth it. I'll be laid up for a week or two this November recovering from a surgery so this can be one of many tasks for me to complete during that time. Amazing that you could have 32 years worth of ALL Ford models to access during the 3-day period.

Good point.

Find that family member that could use it, or you use it for them - and just request $20 to help cover the cost.
