DIY Bed Extender

[Jraoffroad]

This fits perfect and even uses the factory mounting holes. Much better shape than the OEM and less than half the price.

https://www.amazon.com/dp/B0969PXX6G?psc=1&ref=ppx_yo2ov_dt_b_product_details

Sponsored



[MoeMav]

Thanks, it worked very well on the F150 for what it is. So far I’ve used it for moving stuff to the garage sale for the wife. She wants me to use a tarp so I Won’t scratch the bedliner

We must protect this bedliner! That’s awesome!



[Clifdawg]

This looks way better and more functional than the folding bed extenders on the aftermarket! Excellent work!

I kinda thought about doing something similar with the “flexbed” slots and the D-rings and a few 2x4sand a can of spray-on bedliner one day. Of course, the idea is never the hard part - it’a finding the time to put it to action haha



[ClemsonU88]

What kind of ladder? Aluminum? Steel? Do you think you could rest a bunch of 8' 2x10s on it?

Roughly, how much does it weigh?

I like it!



[Exranger]

What kind of ladder? Aluminum? Steel? Do you think you could rest a bunch of 8' 2x10s on it?

Roughly, how much does it weigh?

I like it!

Yes it is from an aluminum ladder, very light and very strong. Made from an eight foot ladder, the kind I think is called an extension ladder, 2 sections adjust back and forth. Yes it will take a bunch of weight on it. I’ve had firewood stacked up to it all the way in my f150. It mounts the same way as it did before so I would think it is just as strong now. It’s about a foot narrower than before. If you wanted more strength you could use bigger corner bolts. It weighs about 5-10 lbs, est.



[Charles]

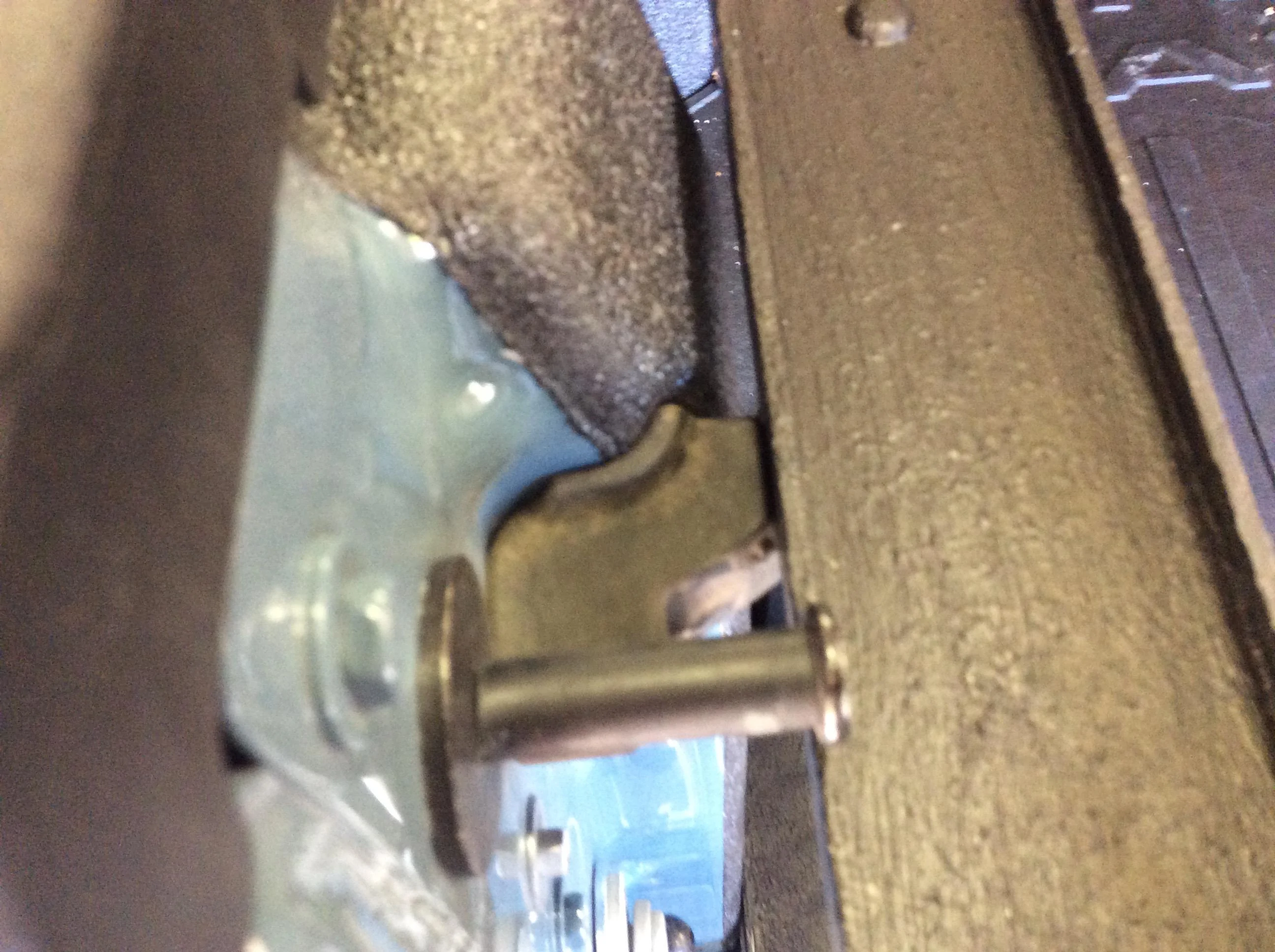

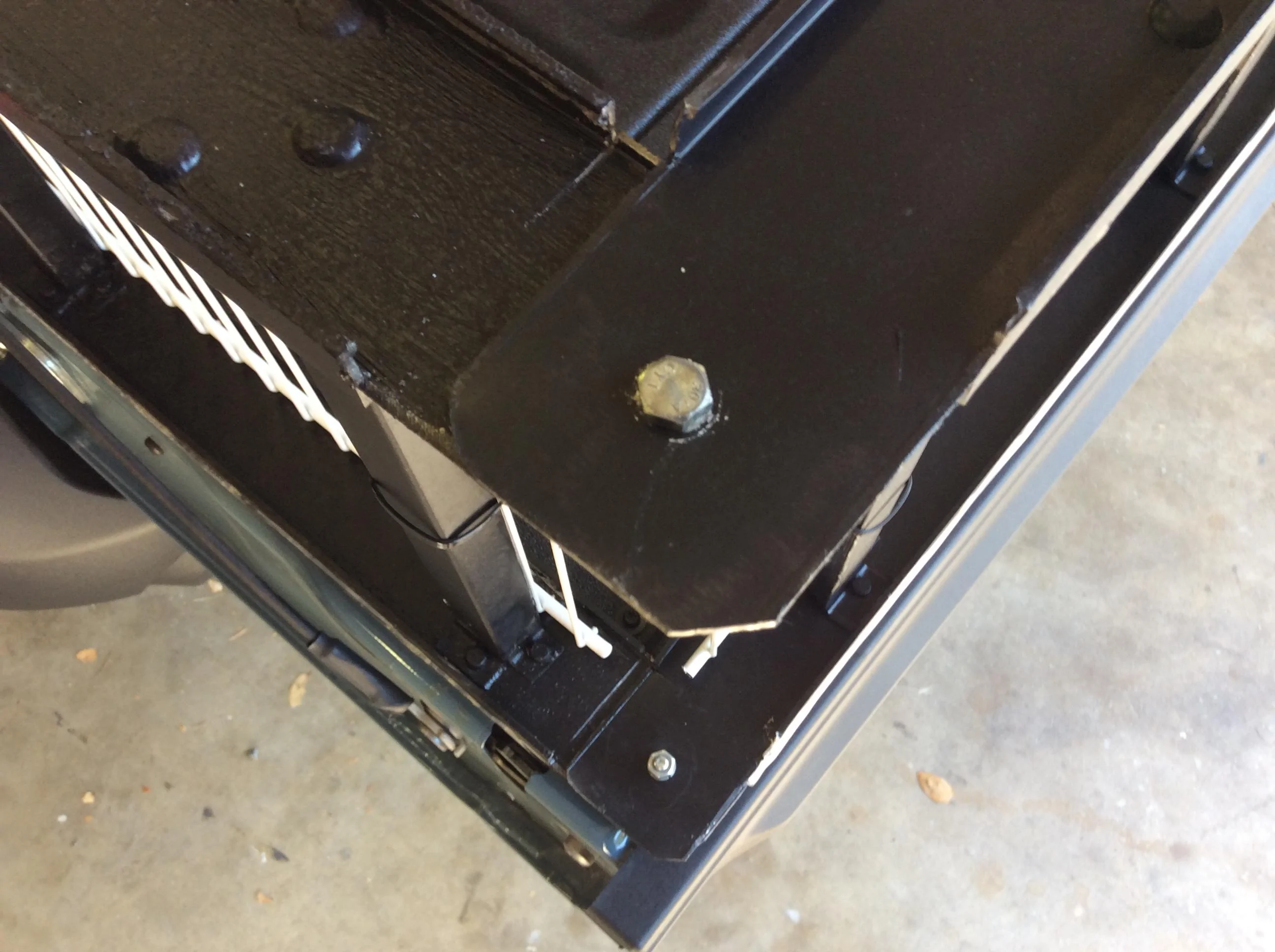

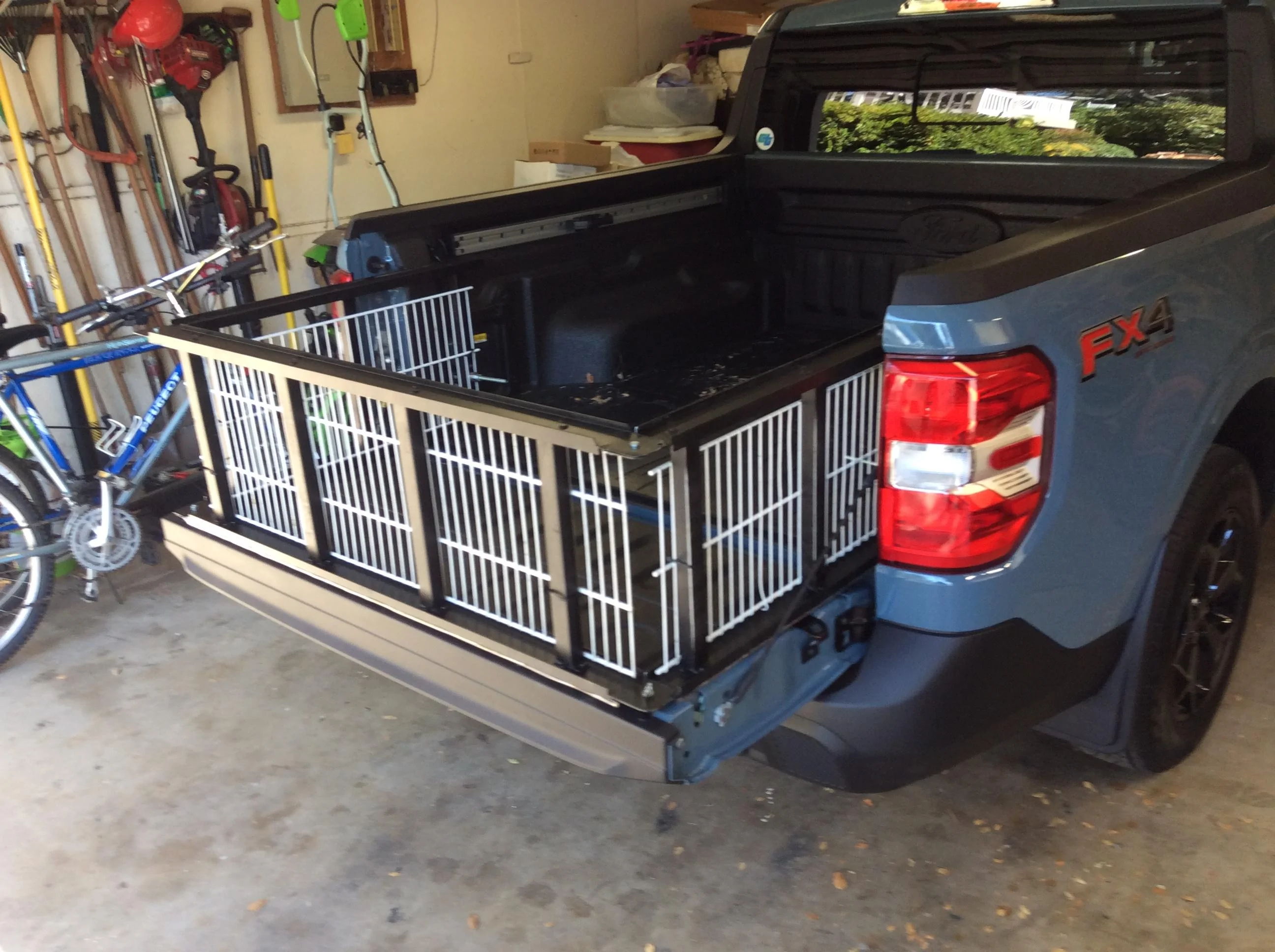

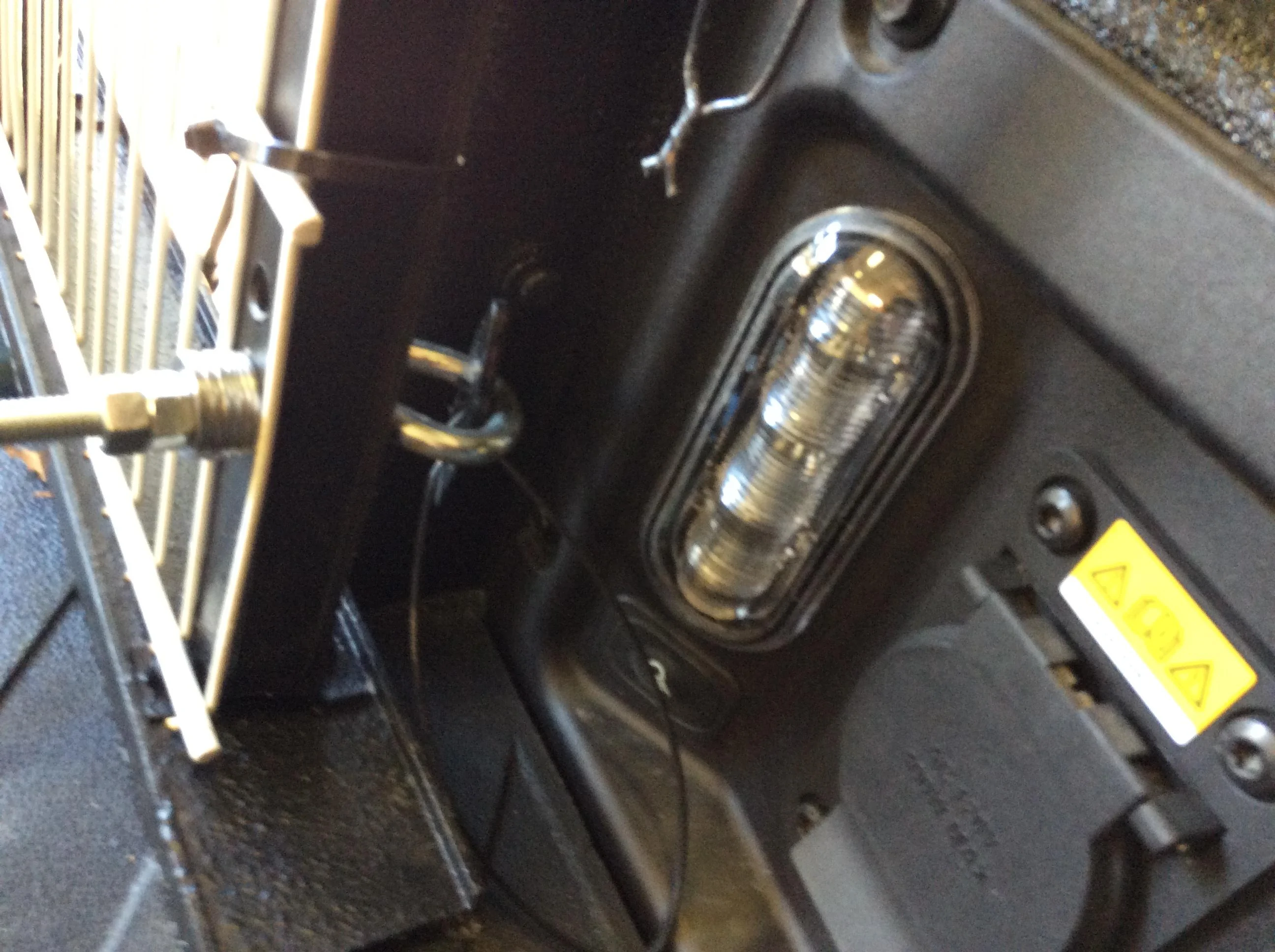

Adapted this bed extender from my F150. I used it for firewood mostly. It is made out of a ladder and shelf material. Originally made it as there was “bed anxiety “ on my f150 due to 2 CNG tanks in the bed. Mav also has Some restriction with the bed. This yields almost six feet of bed length. I cut about a foot off the width and 3 inches off the sides to get it to fit from previous vehicle. It connects to each side of the bed with hook-bolts. Takes about 5 minutes to install. The rails have a slit hose on the bottom to protect the paint

well done



[Reeder]

Adapted this bed extender from my F150. I used it for firewood mostly. It is made out of a ladder and shelf material. Originally made it as there was “bed anxiety “ on my f150 due to 2 CNG tanks in the bed. Mav also has Some restriction with the bed. This yields almost six feet of bed length. I cut about a foot off the width and 3 inches off the sides to get it to fit from previous vehicle. It connects to each side of the bed with hook-bolts. Takes about 5 minutes to install. The rails have a slit hose on the bottom to protect the paint

What type of ladder is that? It looks great.



[Exranger]

What type of ladder is that? It looks great.

Thanks for that. Aluminum extension ladder, Cut down and wire shelves cut down. It is about 49 inches wide and a little longer than the tailgate.
