Rear Seat Vault Safe installed

DawnH

2.0L EcoBoost
Well-known member
First Name
Dawn
Joined
Dec 28, 2021
Threads
9
Messages
46
Reaction score
55
Location
Illinois
Vehicle(s)
Ford Maverick
Engine
2.0L EcoBoost
So that maniac coming at you with a ball bat is going to wait for you to unbuckle, get out, go to back door, raise seat, unlock vault, remove bang bang.
My "vault" is the door pocket on the driver's side and my pants pocket.

I see where you are coming from as any self-protection tool is not easy to get to when locked up for safety. My self-protection tool is usually on my person or right beside me. I plan to lock up my self-protection tool in the secured safe when I am unable to carry it with me like a school function. Just leaving it in a locked vehicle is not safe when people are breaking in to steal your sunglasses, shopping bags, etc.


BlastSite

2.5L Hybrid
Member
First Name
Doc
Joined
Sep 30, 2023
Threads
0
Messages
19
Reaction score
8
Location
78626
Vehicle(s)
Maverick 23, Explorer ST 22, Edge 22 . . EcoSport!
Engine
2.5L Hybrid
So that maniac coming at you with a ball bat is going to wait for you to unbuckle, get out, go to back door, raise seat, unlock vault, remove bang bang.
My "vault" is the door pocket on the driver's side and my pants pocket.
The purpose for the vault is for much more than just Pew pews. It could be for cash your wallet when you go swimming or your key if you want to leave it in the vehicle. Additionally here in Texas there's a lot of businesses that forbid legally carry of a concealed weapon so you have to have it someplace. Police in any state will tell you that most guns are obtained illegally by breaking into vehicles and finding them.


DawnH

2.0L EcoBoost
Well-known member
First Name
Dawn
Joined
Dec 28, 2021
Threads
9
Messages
46
Reaction score
55
Location
Illinois
Vehicle(s)
Ford Maverick
Engine
2.0L EcoBoost

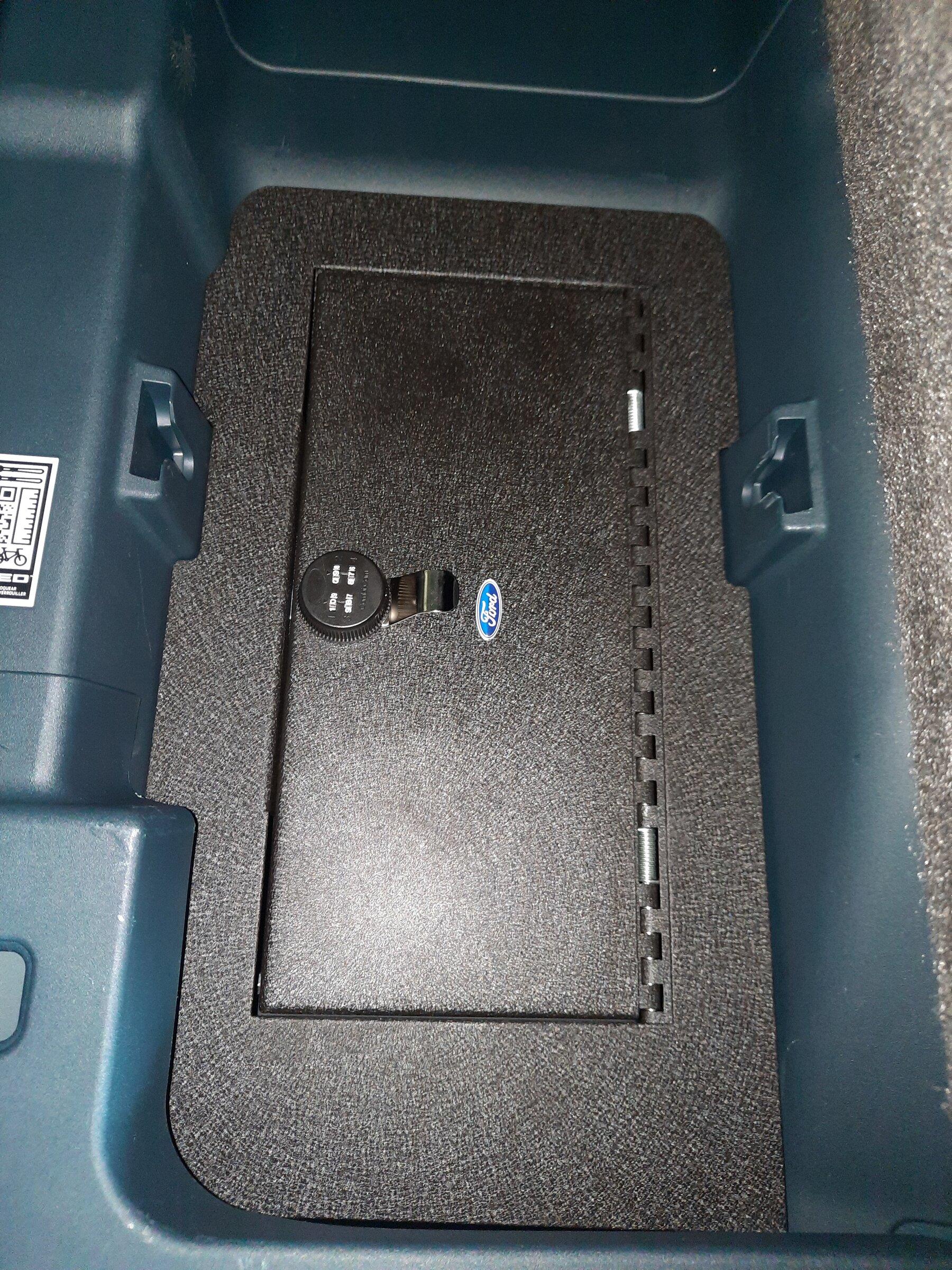

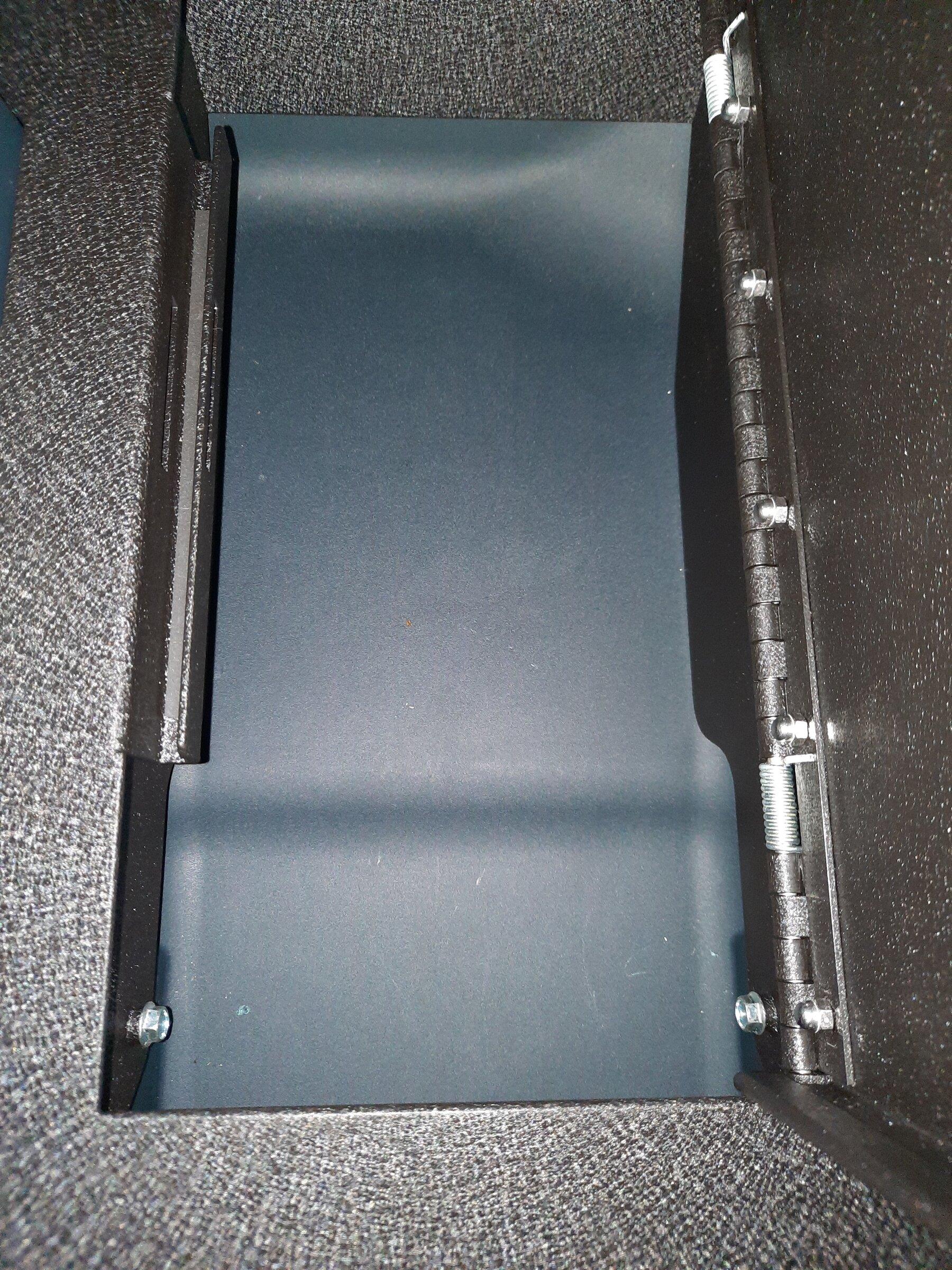

Aloha just installed my under the rear seat vault safe and couldn't have been any easier 4 bolts and done With my salesman's 23% discount was $350, As you can see by the pictures there is plenty of room In the safe as it uses the whole compartment under the rear seat



I just had my vault installed by my local Ford Dealership. There was a red label on the outside saying what the factory code was. When I got home and looked inside, there were no instructions inside the compartment about the manufacturer, warranty info, or how to change the pass code. I contacted Ford online store and they gave me a phone number of the manufacturer to contact. I sent a text to my dealership looking for the missing papers. Do you have information that can help me in the meantime?


Sponsored

DawnH

2.0L EcoBoost
Well-known member
First Name
Dawn
Joined
Dec 28, 2021
Threads
9
Messages
46
Reaction score
55
Location
Illinois
Vehicle(s)
Ford Maverick
Engine
2.0L EcoBoost
Looks deceptively shallow. Can you post a pic with some items in it (not personal), like the Owners Manual (or equivalent)? Is this for an EB or Hybrid model? or does it fit both?

Give some perspective because the straight-down photo doesn't show depth. Thanks in advance.
The vault is just walls and a top that surround the open area. So, the bottom is still the same plastic as the compartment area, the walls with the top is bolted in to the said.


DawnH

2.0L EcoBoost
Well-known member
First Name
Dawn
Joined
Dec 28, 2021
Threads
9
Messages
46
Reaction score
55
Location
Illinois
Vehicle(s)
Ford Maverick
Engine
2.0L EcoBoost
Can anyone that has this installed give me instructions of how to set up my own passcode. My local Ford Dealer installed it and I have no paperwork. I asked for it, but still do not have it. The Ford online customer service gave me the manufacturer phone number which I haven't attempted yet. Your advice will be appreciated.


AlsMaverick

2.0L EcoBoost
Well-known member
First Name
Allen
Joined
Dec 1, 2023
Threads
5
Messages
444
Reaction score
805
Location
Cincinnati
Vehicle(s)
2024 Maverick Lariat FX4 w/4k Tow Build Date 12/5
Engine
2.0L EcoBoost
Can anyone that has this installed give me instructions of how to set up my own passcode. My local Ford Dealer installed it and I have no paperwork. I asked for it, but still do not have it. The Ford online customer service gave me the manufacturer phone number which I haven't attempted yet. Your advice will be appreciated.
Mine came with a default PW of "0000". When the PW is entered, and the knob is in an unlocked or open position, then simply change the dials to the number you want to use.
Close it, lock it, that's your new PW.


DawnH

2.0L EcoBoost
Well-known member
First Name
Dawn
Joined
Dec 28, 2021
Threads
9
Messages
46
Reaction score
55
Location
Illinois
Vehicle(s)
Ford Maverick
Engine
2.0L EcoBoost
You are terrific. Thank you so much.


BlueSpec1

2.5L Hybrid
Well-known member
First Name
Gene
Joined
Jul 10, 2022
Threads
3
Messages
778
Reaction score
788
Location
Texas
Vehicle(s)
23 XLT 2.5L, 22 Escape Plug In, 23 Bolt EUV
Engine
2.5L Hybrid
Can anyone that has this installed give me instructions of how to set up my own passcode. My local Ford Dealer installed it and I have no paperwork. I asked for it, but still do not have it. The Ford online customer service gave me the manufacturer phone number which I haven't attempted yet. Your advice will be appreciated.
Keyless Combo Instructions: https://www.consolevault.com/Keyless-4-Digit-Lock_p_193.html
Keyless Combo Instructions: https://www.consolevault.com/Keyless-3-Combo-Lock_p_192.html

Note: Please make sure lid is in the open position before beginning the following steps.

Instructions for setting your personal keyless combination:

1. The combination is factory-set at 0 - 0 - 0 -0.
2. The combination must be on opening number prior to resetting.
3. On the underside outer edge of the lock there is a hole for the code reset button. Rotate the face of cam until the code reset button comes into view.
4. Push this pin in with a paper clip and keep it pushed in.
5. Set your personal combination by turning the dials to the desired combination.
6. Release the reset button and your new combination is set.
7. To lock, rotate lock to “Locked” position. Rotate one or more dials after lock is closed.
8. Then, to open the lock, turn dials to your personal combination.

Last edited:
Sponsored

todd92

2.0L EcoBoost
Well-known member
First Name
Todd
Joined
Aug 21, 2023
Threads
5
Messages
628
Reaction score
1,717
Location
07830
Vehicle(s)
F-150 (2), Edge ST, Edge Titanium
Engine
2.0L EcoBoost
They're called sidearms for a reason. They aren't much use when they ain't on you.


DawnH

2.0L EcoBoost
Well-known member
First Name
Dawn
Joined
Dec 28, 2021
Threads
9
Messages
46
Reaction score
55
Location
Illinois
Vehicle(s)
Ford Maverick
Engine
2.0L EcoBoost
They're called sidearms for a reason. They aren't much use when they ain't on you.
Funny thing. You can't take a sidearm into a lot of public places including my son's school and you really shouldn't leave it in a locked vehicle either to be broken into and stolen. How about locking it in a hidden safe, in a locked vehicle!
