Hybrid - Digital Escape Cluster

[ryan2366]

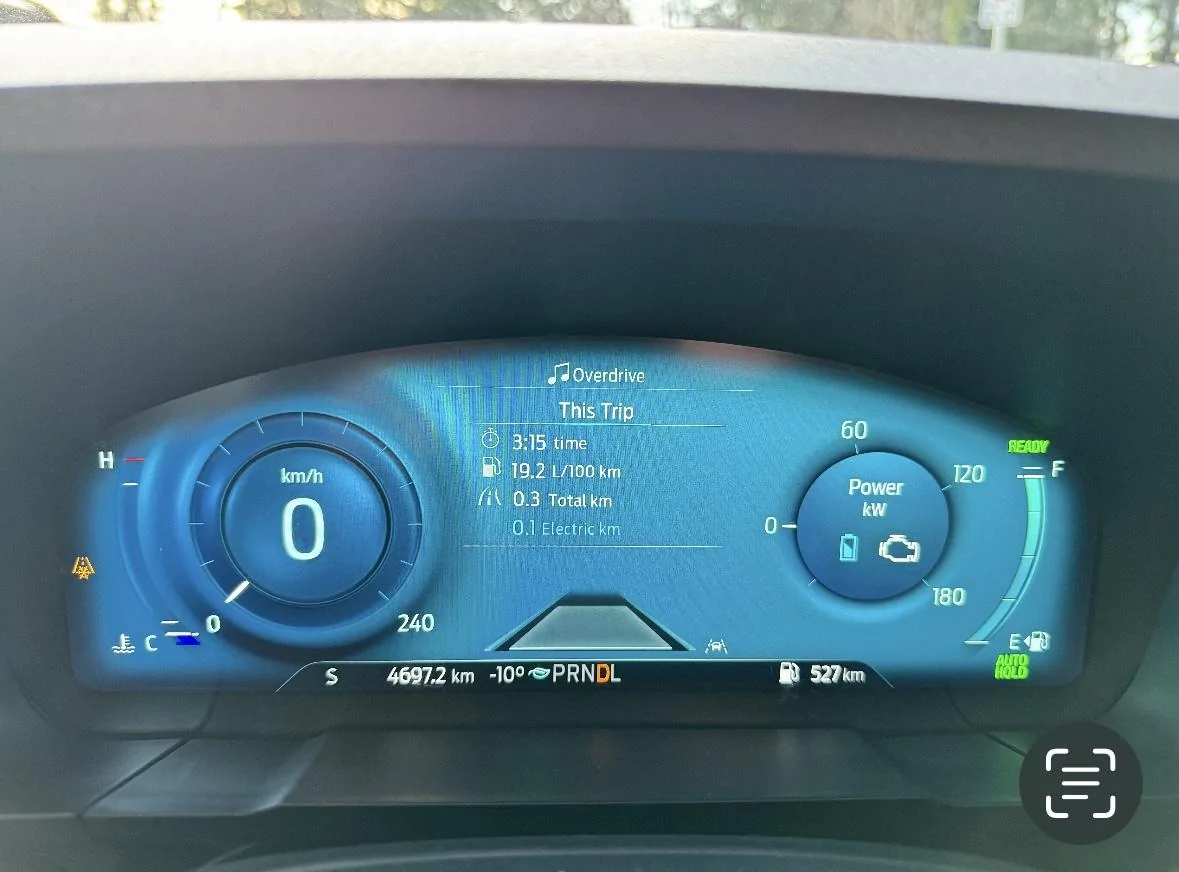

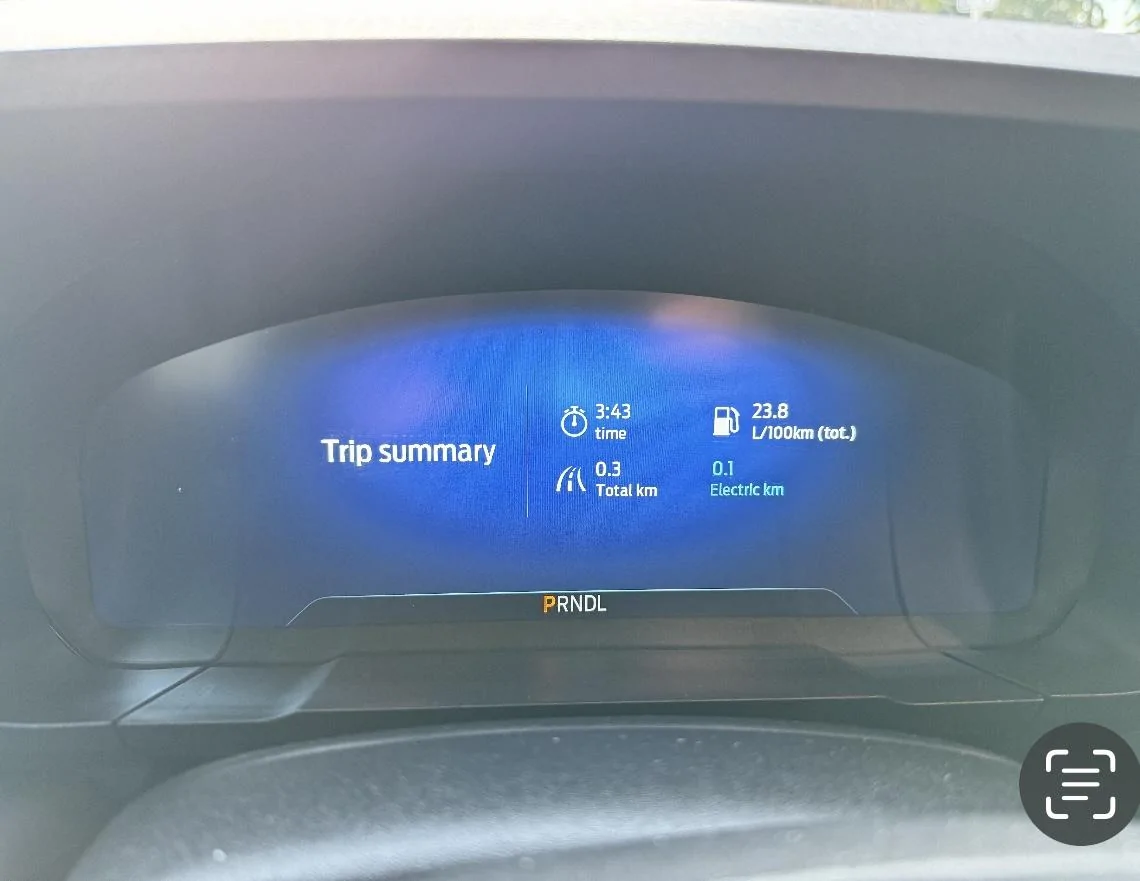

So I purchased a digital cluster after seeing Vtec87pr1 , Fast Mavericks and others on MTC had done it. I had to have it. So cool.

I had Dave at Clusters by Livin it up
program the odometer and add the as built for me. I hit the programmed mileage and installed today.

https://www.clustersbylivnitup.com/

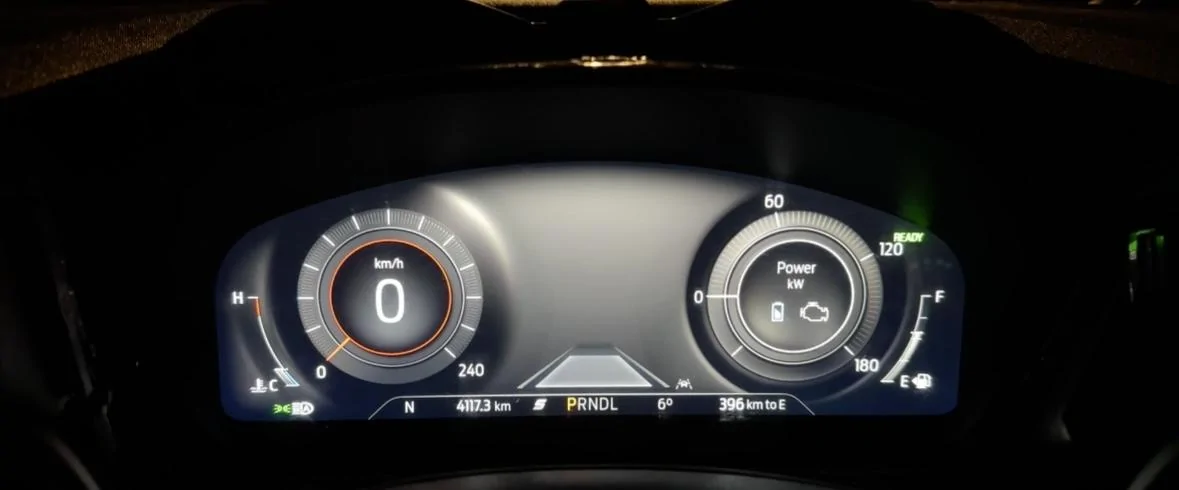

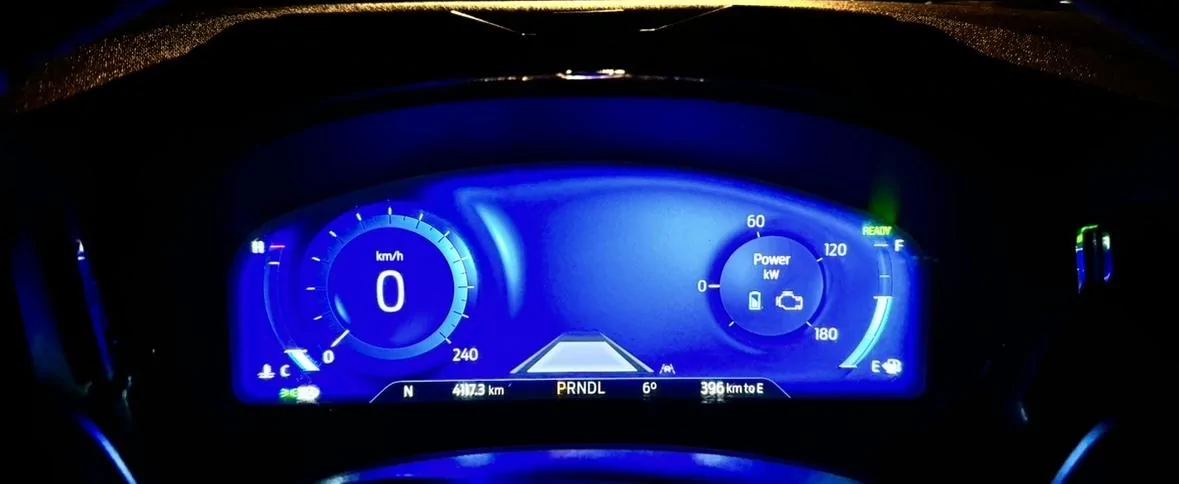

All went well with some minor hiccups. I had a small issue of the tachometer displaying where the Power/Kw should be. I’ve since fixed that but I’m looking for help in getting the drive modes to cycle.

I have added all the drive modes I wanted (except couldn’t find Slippery think it’s named something else on the Escape).

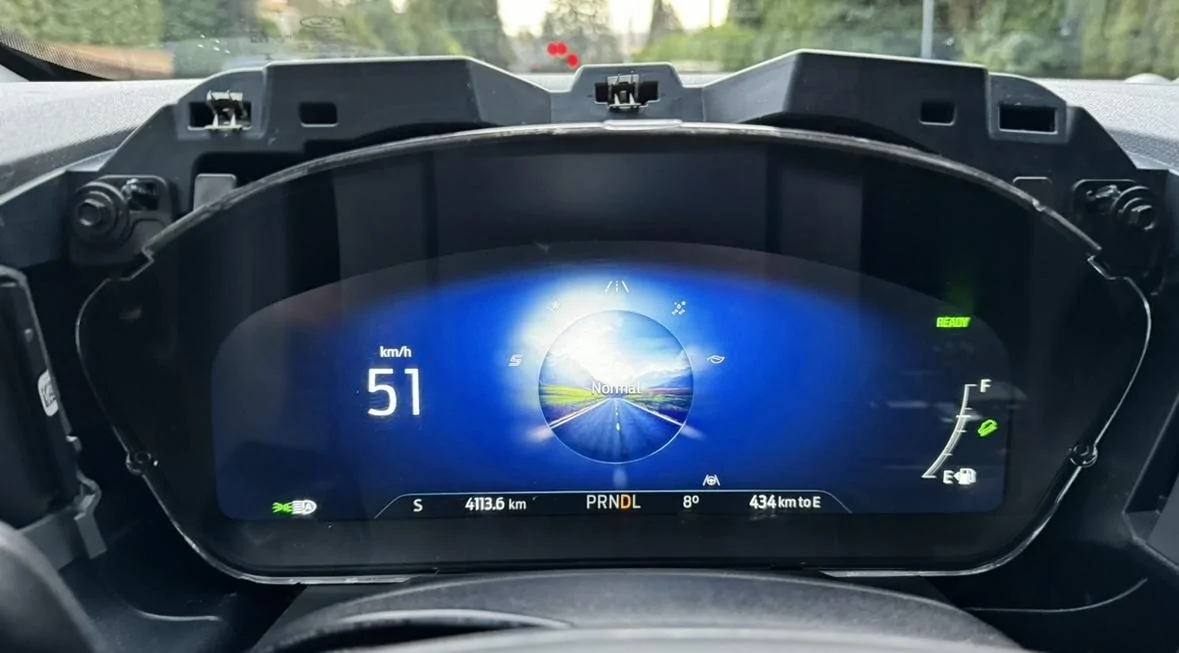

When I push the drive mode button the screen comes up and I can see them all. However when I push the button I can’t cycle through them.

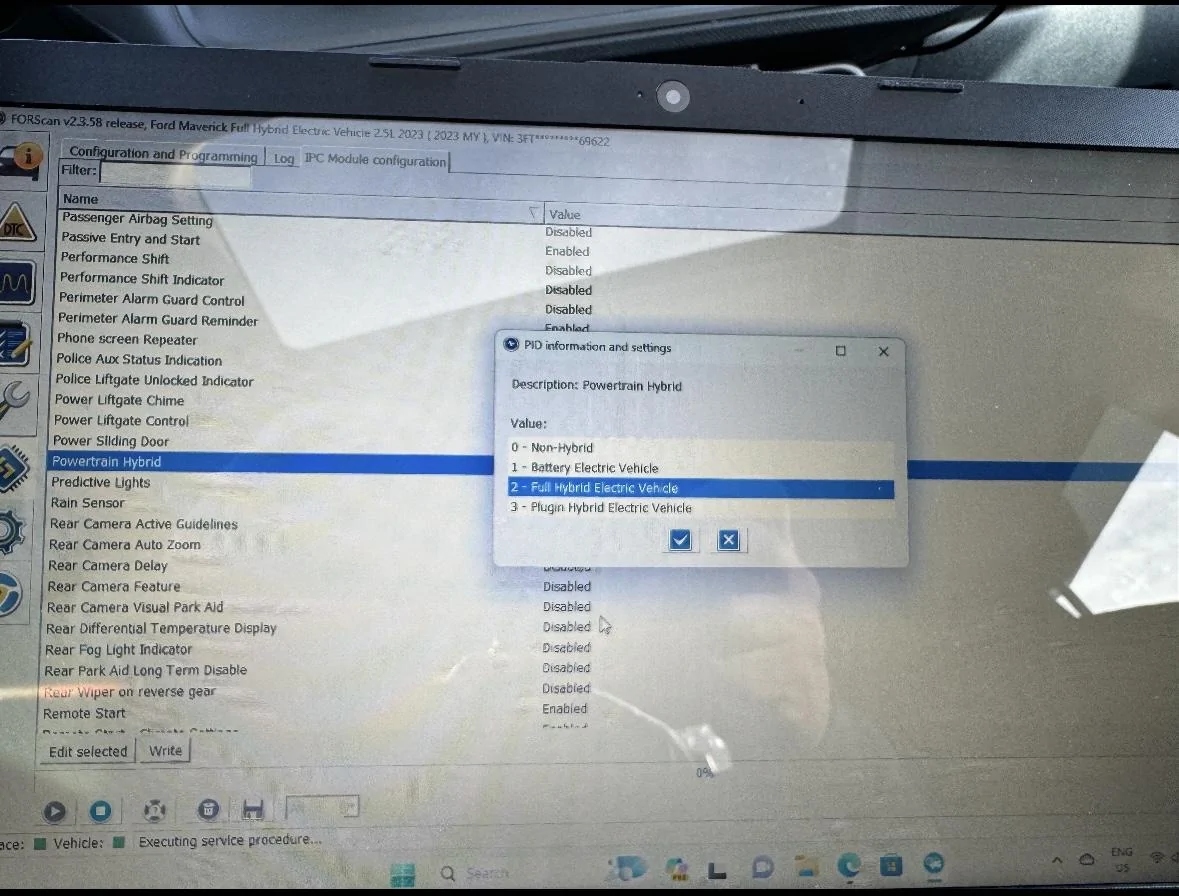

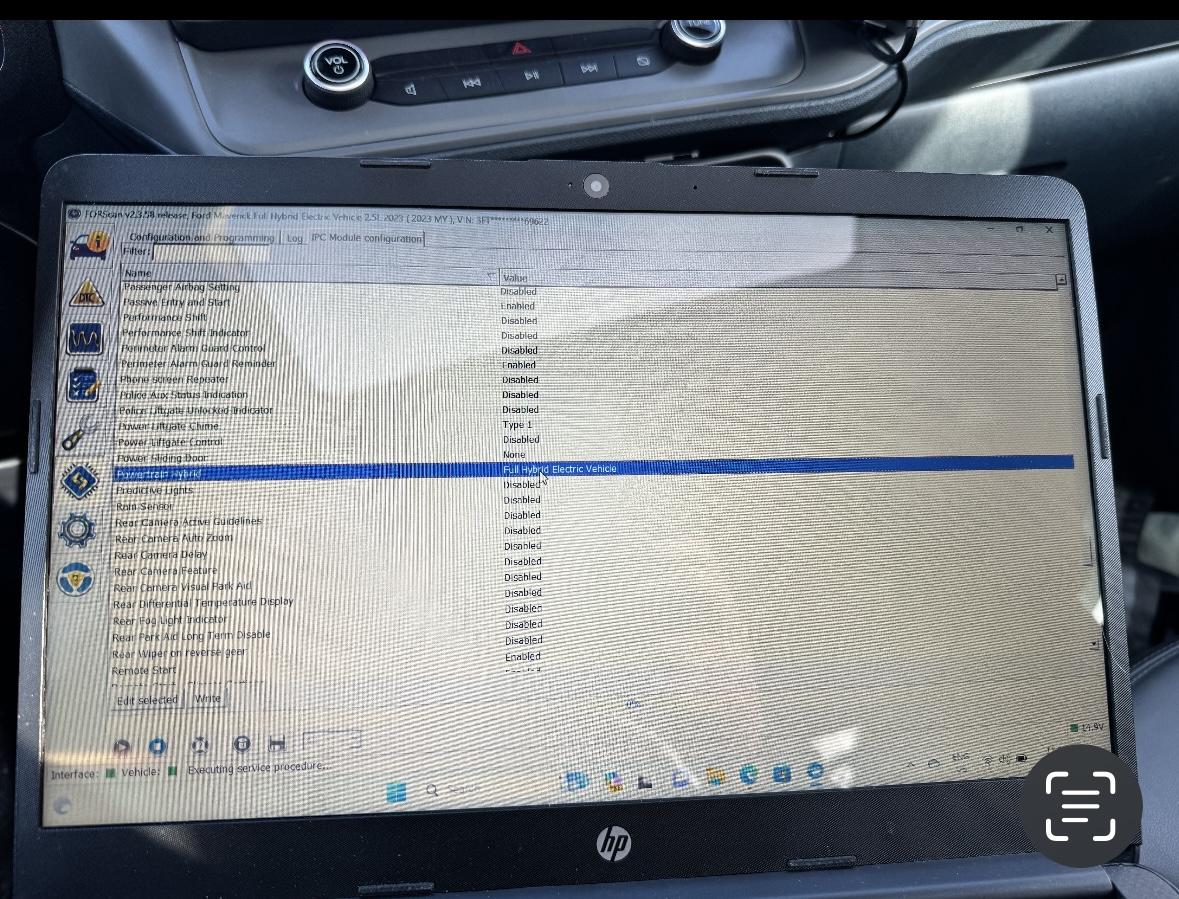

I had it working initially when I was inputting as built codes Dave had provided me for my Escape Cluster to fix the Power/Tach issue but changed them all back to the original after hours of plugging them in.

If anyone has some advice it would be greatly appreciated.

I have a 2023 Lariat Hybrid with Lux package

Cheers

Sponsored



[twracing]

Following



[ryan2366]

Looks like the cluster doesn’t like any other modes than Normal, Eco or Sport.
Tow and haul appeared to be the issue once removed I could transitions between drive modes.

Sand is not the same as slippery and could be added but came up with a drive mode error.

EDIT - Got slippery mode working
So no slippery mode

Normal Mode

Eco Mode

Sport Mode

Slippery Mode



[ryan2366]

no tow/haul mode as that interprets it’s as normal mode.

it does kick me out of deep snow/sand mode and gives Me drive mode not available on the cluster.

what’s works and how it’s correctly portrayed on the cluster:

normal
Eco
Sport
Slippery

what does not work:

Deep Snow/sand (once you drive a couple feet it gives the drive mode not available)

What doesn’t exist on the cluster:
Tow/haul
Mud

I will play around with it more on Sunday and write something up. I need to load my factory As Built and get rid of all changes I made to start a good baseline of all forscan mods that have worked.

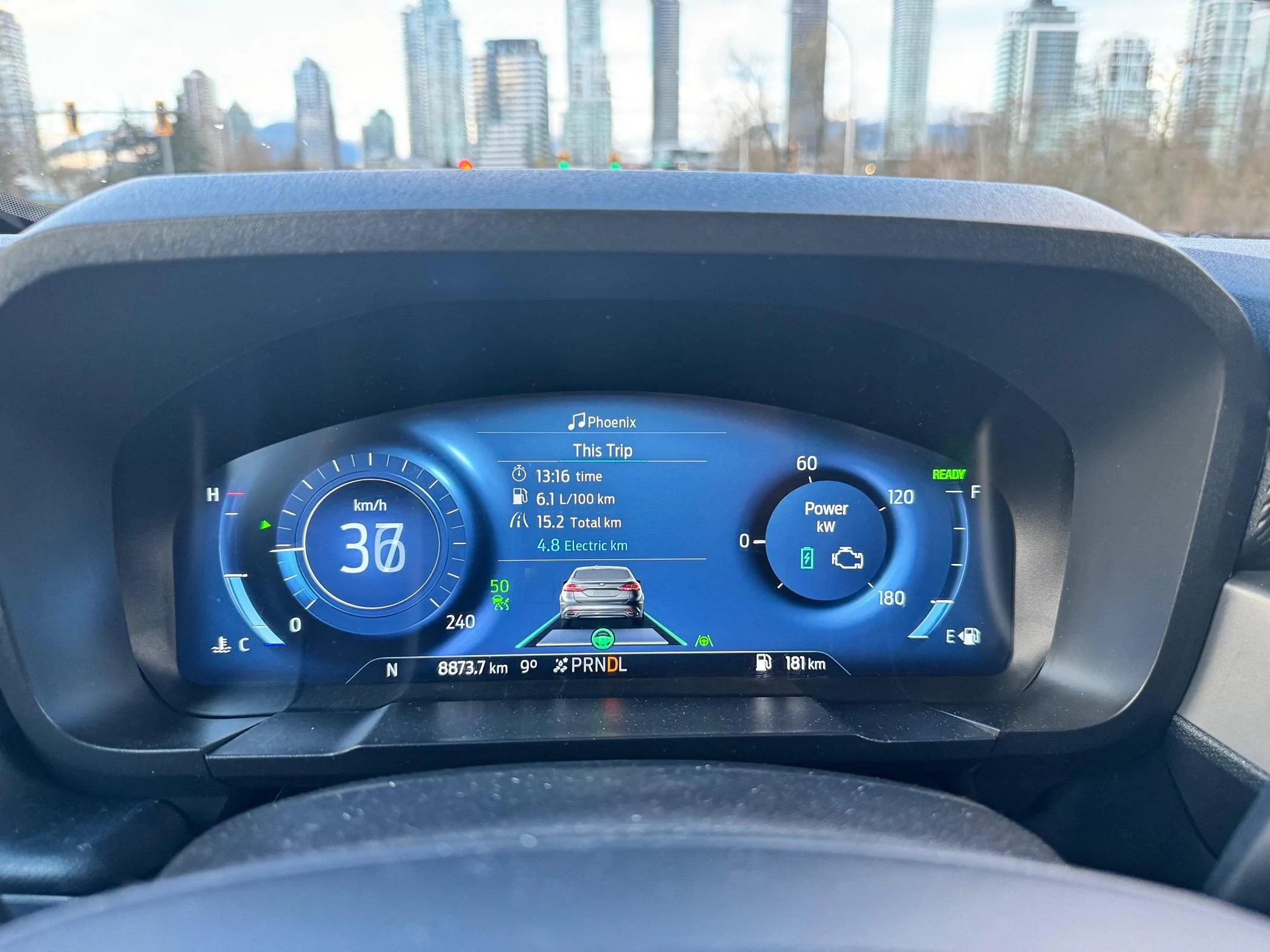

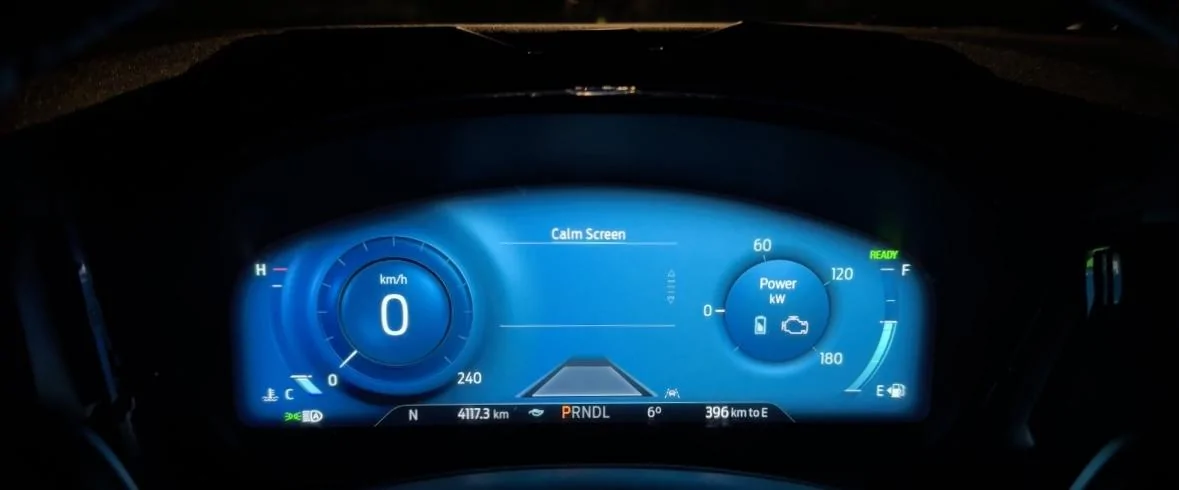

But we have working drive modes!

Next is to get my Traction control button to work and the Intelligent AWD drive screen. Hopefully by looking at livnitup’s F150 spreadsheet I can maybe see what drive modes I should enable in As Built mode.

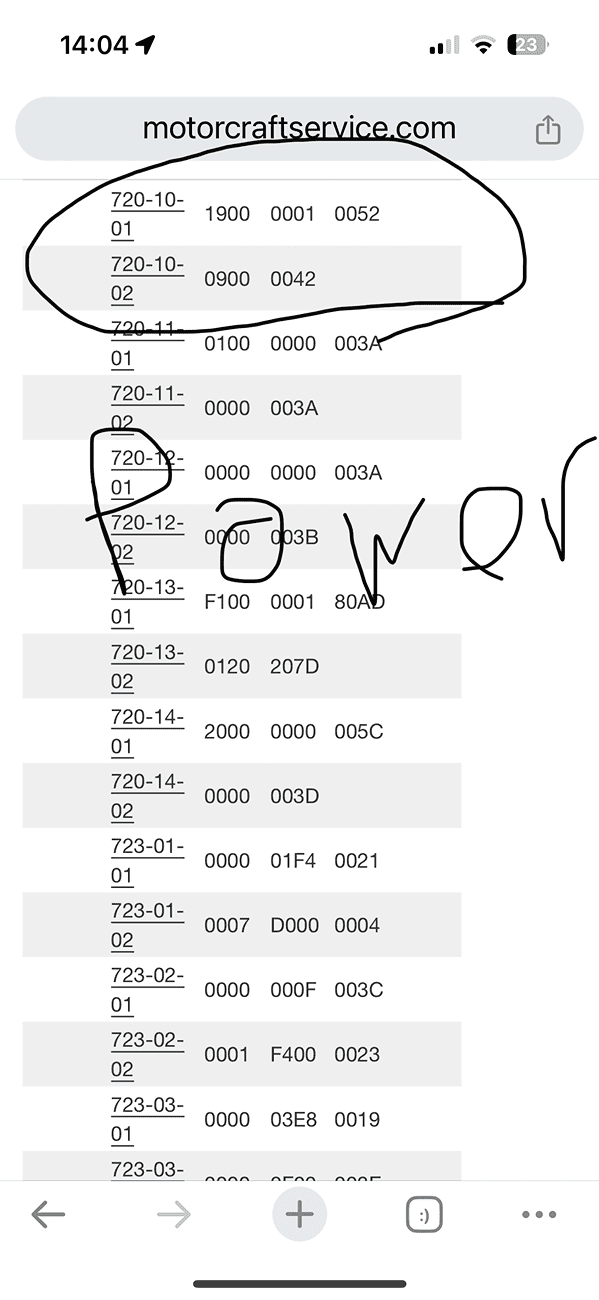

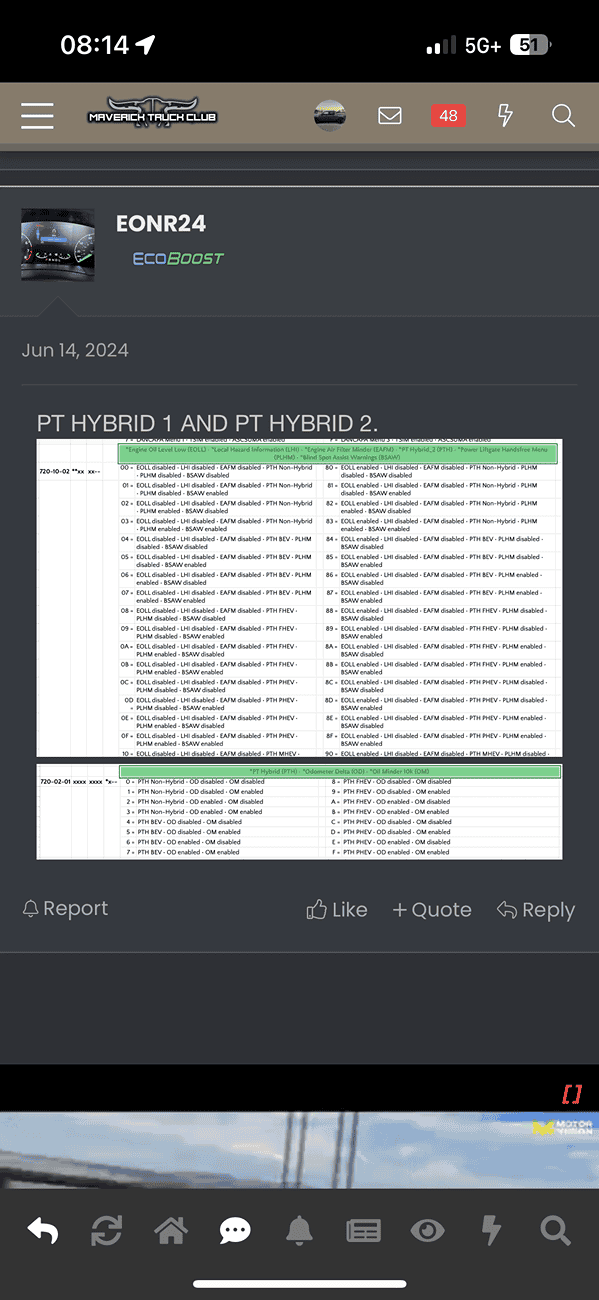

Found this. Explains some of my issues.



[biker]

What is the part number?



[ryan2366]

(LJ6T-10849-JLA) from a 2020 Ford Escape. Also slippery is working now.
Still getting DTC’s for ABS
