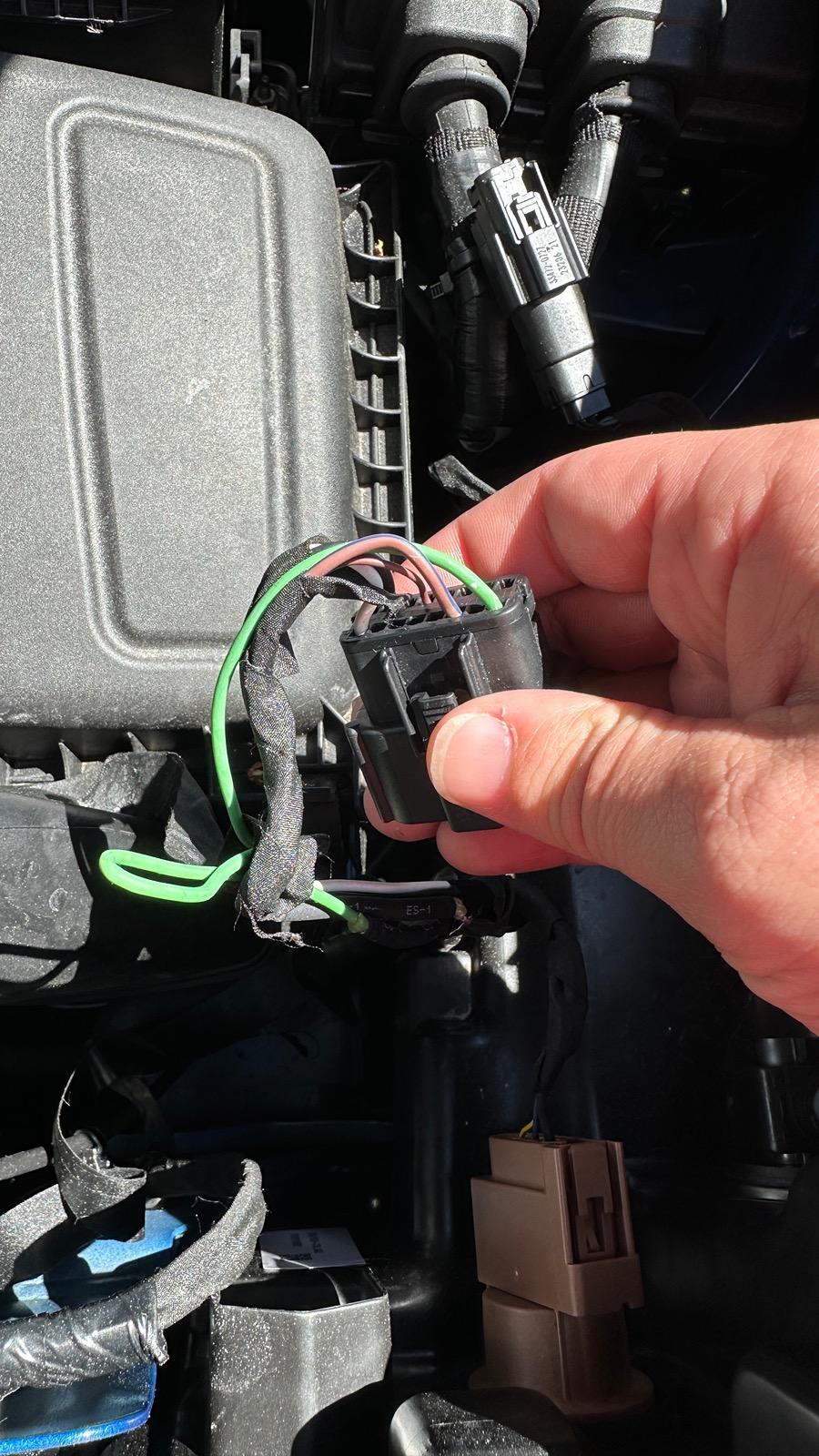

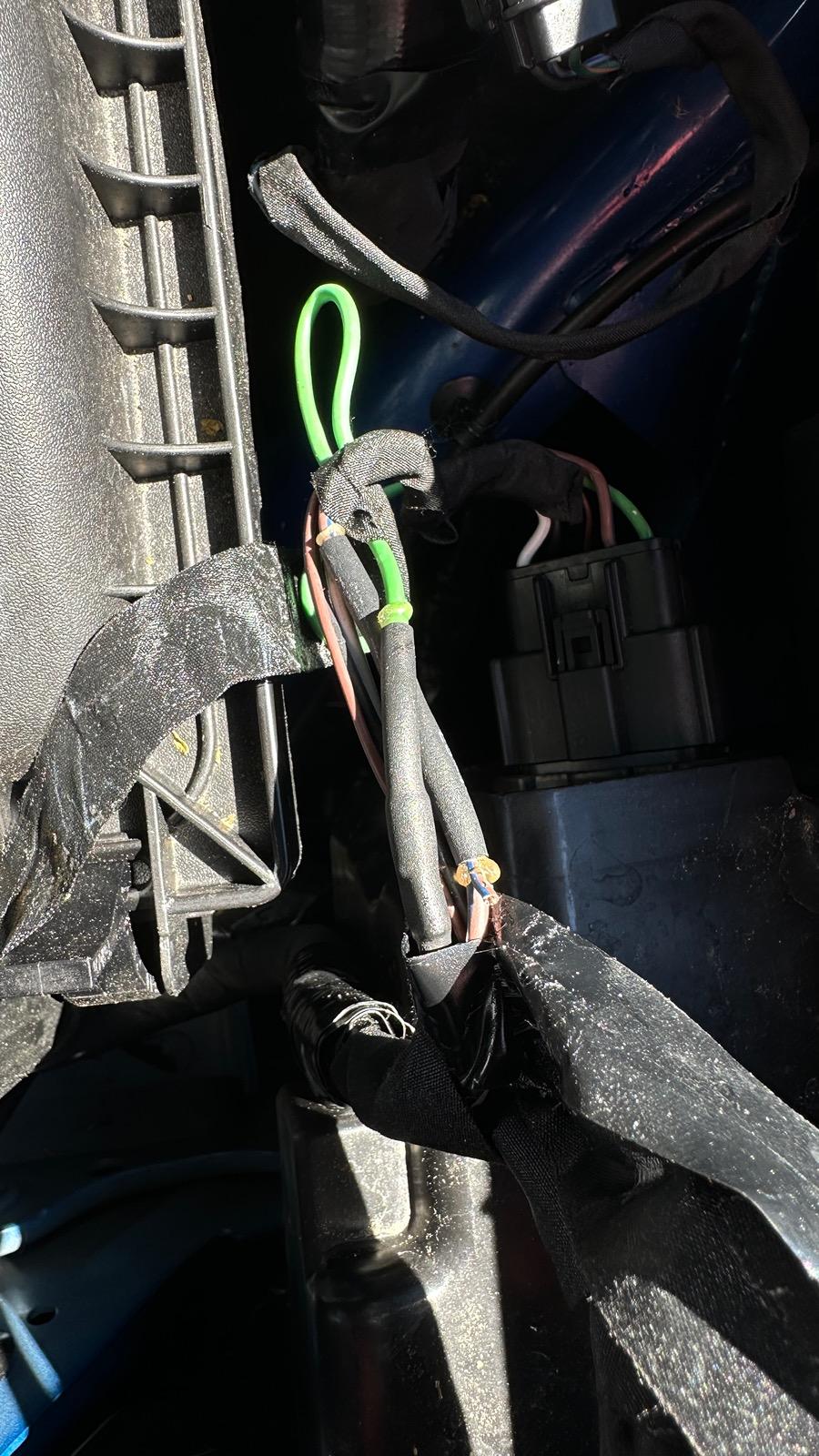

For those curious, yes, you can make Lariat headlights work on an XL/XLT. You may or may not have seen my many messages and posts trying to gather as much data as possible. The taillights are plug and play (at least on XLT) and the signature lighting works, and the upper DRL’s on the lariat requires you to move one wire for that circuit from a splice with the low beam to its own circuit. On lower models ford does put the wire for the lariat DRL’s in the harness but for some reason splices it to the low beam circuit.

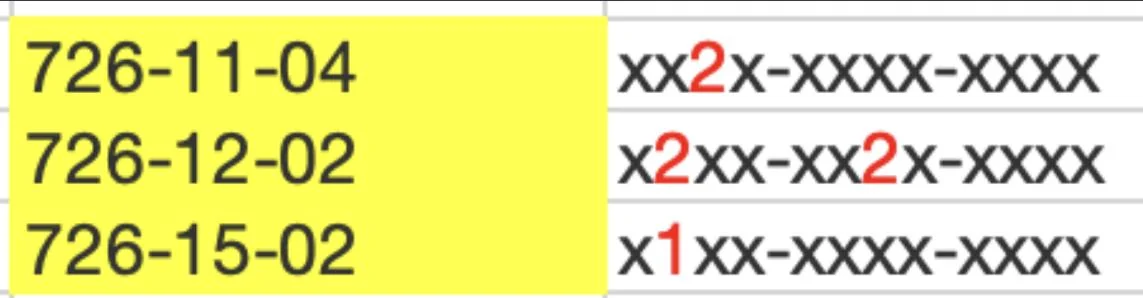

In order to make them work properly, there is also some work in forscan that has to be made in the BCM including disabling the low beams from turning on with DRL, and assigning what the DRL does. If I recall, mine is set to “DRL and position”. From another person who has made these work, sometimes it takes resetting the bcm in forscan to get them to work, more often than not, multiple times. For me it took about a week before they sprang to life.

My goal here was to have an XLT FX4 but add the BAP accents on the exterior, plus the lariat signature lighting.

With that being said, it is possible, but not the easiest nor cheap! Hope this helps someone who is trying to do this!

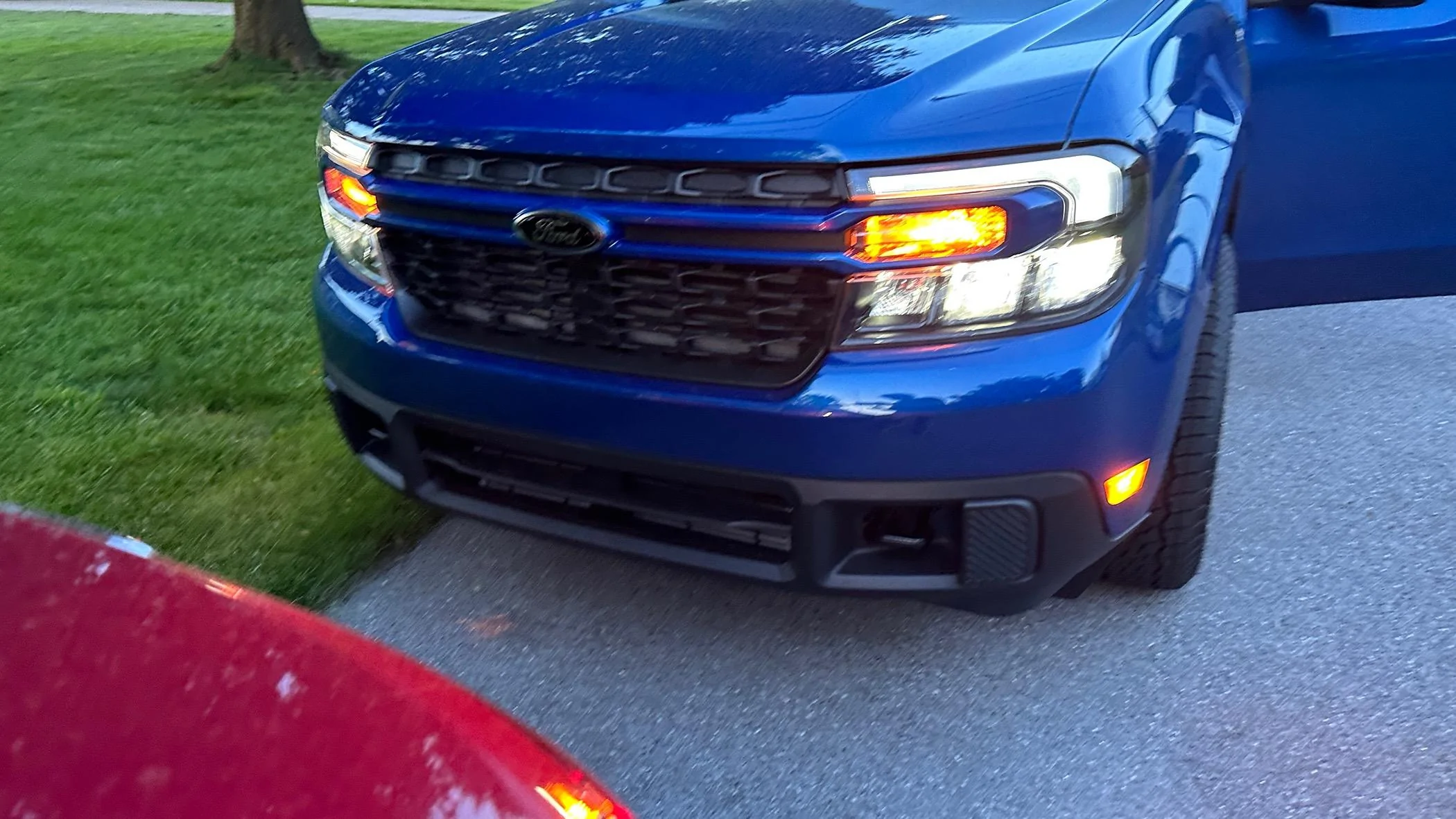

EDIT: I have run into one issue. With the DRL’s operating with the parking light, they seem to operate at full (daytime) intensity. Still researching on how to correct this! If anyone has any advice on how to fix that problem, I’m all ears.

Edit 2: I went to perform a LIN on BCM to try and see if that could be the cause of this issue. Back to square one! BCM stored codes for shorts to the left and right DRL’s, causing the FET to cut off power. I believe what made them work was I jumped the circuit I re-routed and was able to get around this, allowing the DRL’s to pull voltage. I will keep trying, updating this post along the way!

Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! 56BFF7DC-31FA-490B-97FE-B71170FA7120


Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! 56BFF7DC-31FA-490B-97FE-B71170FA7120


Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! CD74062C-A5C5-4C53-9AB7-52C0AB2F36BD

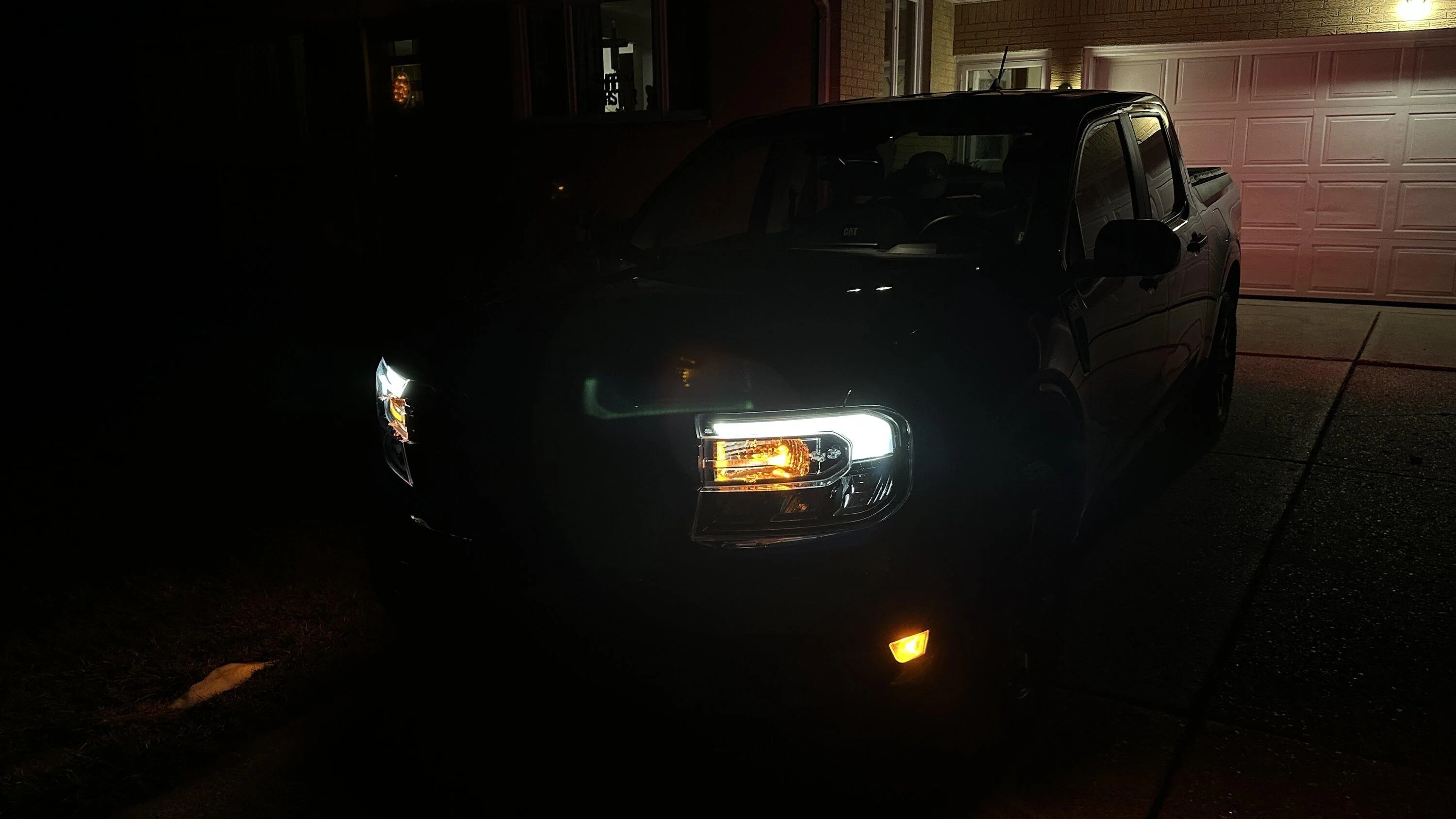

Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! CF9989DD-C83D-4CB9-9BA5-153787409B17


Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! BB77C2D3-1EA6-4334-A975-53FC15A7A55F

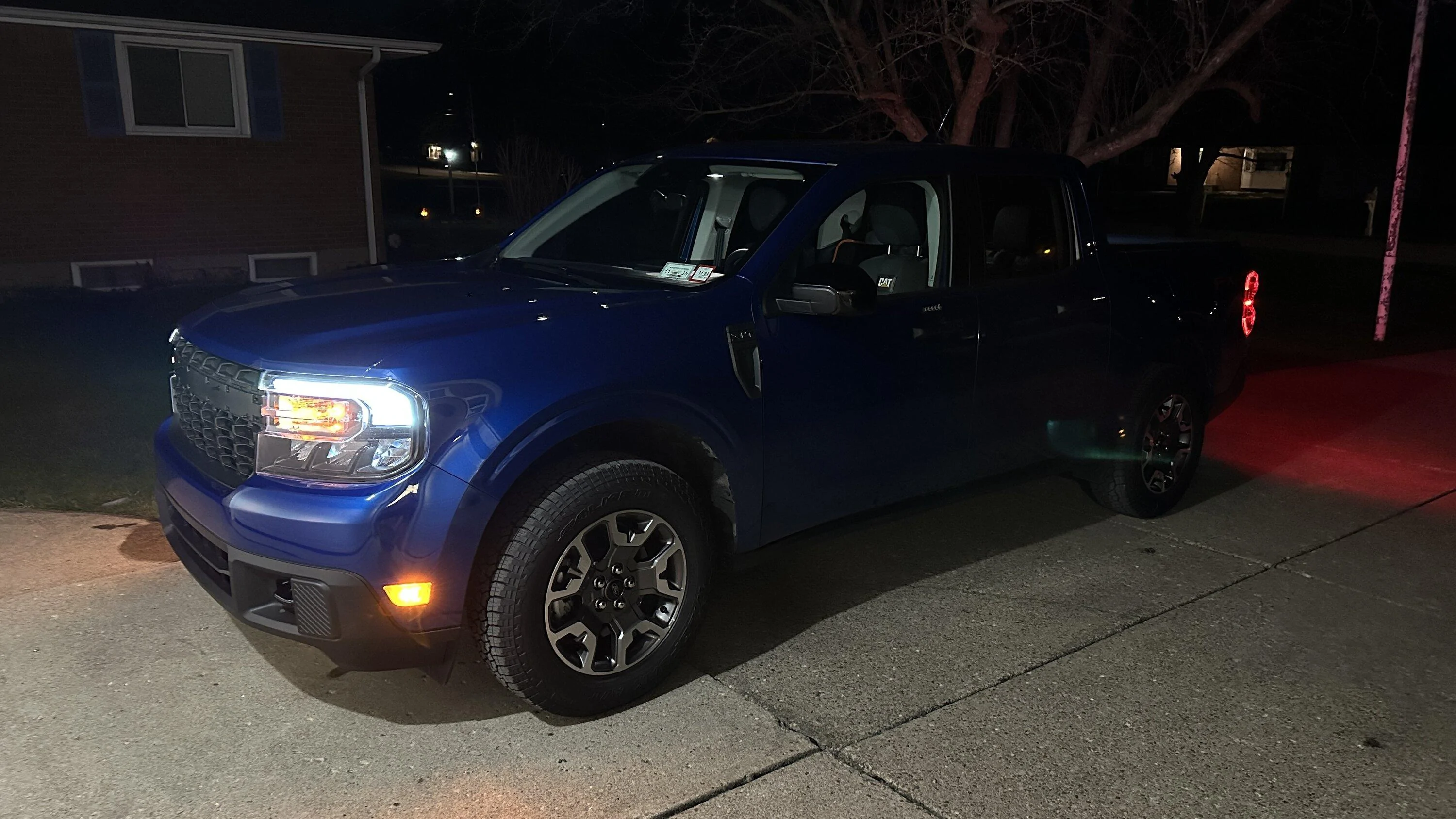

Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! 342568EB-140B-4633-9AAA-AC4730336CC7

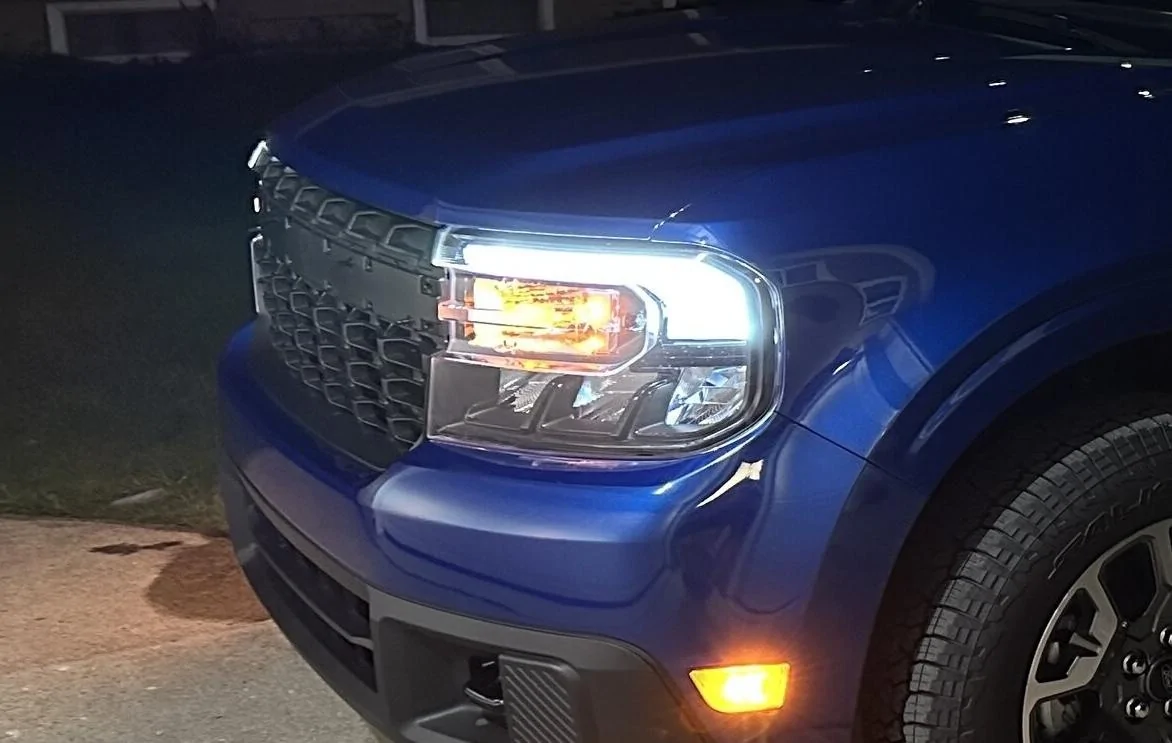

Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! 342568EB-140B-4633-9AAA-AC4730336CC7
Sponsored


Last edited:

1929

2.5L Hybrid
Well-known member
Joined
Sep 27, 2022
Threads
6
Messages
677
Reaction score
794
Location
Lake Michigan
Vehicle(s)
Ford Maverick XLT Hybrid
Engine
2.5L Hybrid
For those curious, yes, you can make Lariat headlights work on an XL/XLT. You may or may not have seen my many messages and posts trying to gather as much data as possible. The taillights are plug and play (at least on XLT) and the signature lighting works, and the upper DRL’s on the lariat requires you to move one wire for that circuit from a splice with the low beam to its own circuit. On lower models ford does put the wire for the lariat DRL’s in the harness but for some reason splices it to the low beam circuit.

In order to make them work properly, there is also some work in forscan that has to be made in the BCM including disabling the low beams from turning on with DRL, and assigning what the DRL does. If I recall, mine is set to “DRL and position”. From another person who has made these work, sometimes it takes resetting the bcm in forscan to get them to work, more often than not, multiple times. For me it took about a week before they sprang to life.

My goal here was to have an XLT FX4 but add the BAP accents on the exterior, plus the lariat signature lighting.

With that being said, it is possible, but not the easiest nor cheap! Hope this helps someone who is trying to do this!









What type of building is the Maverick parked in 1st two photos?

OP
OP
24atlasmaverick

24atlasmaverick

2.0L EcoBoost
Well-known member
First Name
Christopher
Joined
Jun 30, 2023
Threads
5
Messages
103
Reaction score
57
Location
Buffalo, NY
Vehicle(s)
2024 maverick XLT, Lux, FX4, AWD, 4K
Engine
2.0L EcoBoost
Clubs

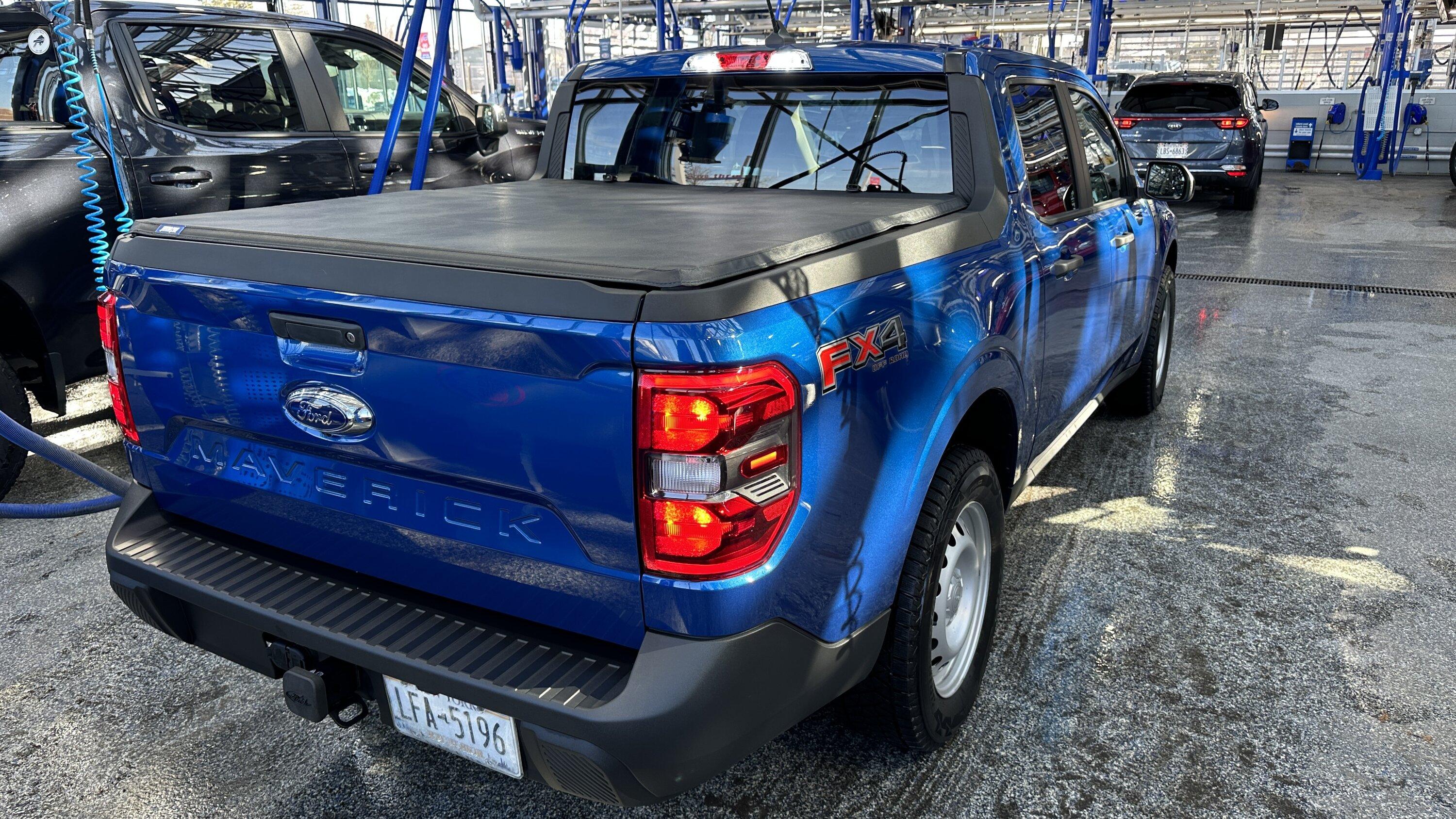

What type of building is the Maverick parked in 1st two photos?
That’s a Delta Sonic car wash. Many here in NY, and I think they’re in a few other states. This is their relatively new interior self service shop. With a monthly plan you can come inside the heated building and clean your interior or dry the exterior of your vehicle after a wash. I like being able to clean off my WeatherTech mats and such.


snowcatxx87

2.5L Hybrid
Well-known member
Joined
Oct 5, 2021
Threads
9
Messages
656
Reaction score
1,215
Location
Calgary
Vehicle(s)
1290SDR EVO / Tiger 900RP / 300cc Grom / Surron
Engine
2.5L Hybrid
Super expensive to get separate drls but love the look 🤘 I would have got a lariat if they offered it in hybrid, Canadian problems. Finally they did for 23+


EONR24

2.0L EcoBoost
Well-known member
First Name
Ian
Joined
Feb 26, 2024
Threads
18
Messages
498
Reaction score
542
Location
United States
Vehicle(s)
2024 Ford Maverick
Engine
2.0L EcoBoost
Clubs

For those curious, yes, you can make Lariat headlights work on an XL/XLT. You may or may not have seen my many messages and posts trying to gather as much data as possible. The taillights are plug and play (at least on XLT) and the signature lighting works, and the upper DRL’s on the lariat requires you to move one wire for that circuit from a splice with the low beam to its own circuit. On lower models ford does put the wire for the lariat DRL’s in the harness but for some reason splices it to the low beam circuit.

In order to make them work properly, there is also some work in forscan that has to be made in the BCM including disabling the low beams from turning on with DRL, and assigning what the DRL does. If I recall, mine is set to “DRL and position”. From another person who has made these work, sometimes it takes resetting the bcm in forscan to get them to work, more often than not, multiple times. For me it took about a week before they sprang to life.

My goal here was to have an XLT FX4 but add the BAP accents on the exterior, plus the lariat signature lighting.

With that being said, it is possible, but not the easiest nor cheap! Hope this helps someone who is trying to do this!









Those look great! I just put the non-BAP Lariat LED Tailights on my XL. I used the harness adapters from this WEBSITE .


Sponsored

AutobahnSHO

2.5L Hybrid
Well-known member
First Name
Will
Joined
Oct 11, 2021
Threads
13
Messages
1,381
Reaction score
1,263
Location
S.Carolina
Vehicle(s)
Miata, Hybrid Mav, Odyssey
Engine
2.5L Hybrid
So how much were the headlight assemblies?

OP
OP
24atlasmaverick

24atlasmaverick

2.0L EcoBoost
Well-known member
First Name
Christopher
Joined
Jun 30, 2023
Threads
5
Messages
103
Reaction score
57
Location
Buffalo, NY
Vehicle(s)
2024 maverick XLT, Lux, FX4, AWD, 4K
Engine
2.0L EcoBoost
Clubs

Those look great! I just put the non-BAP Lariat LED Tailights on my XL. I used the harness adapters from this WEBSITE .
Nice! Do you happen to have a pic of the harness? I’m curious what it does considering mine went in plug and play…


EONR24

2.0L EcoBoost
Well-known member
First Name
Ian
Joined
Feb 26, 2024
Threads
18
Messages
498
Reaction score
542
Location
United States
Vehicle(s)
2024 Ford Maverick
Engine
2.0L EcoBoost
Clubs


EONR24

2.0L EcoBoost
Well-known member
First Name
Ian
Joined
Feb 26, 2024
Threads
18
Messages
498
Reaction score
542
Location
United States
Vehicle(s)
2024 Ford Maverick
Engine
2.0L EcoBoost
Clubs

Sponsored
OP
OP
24atlasmaverick

24atlasmaverick

2.0L EcoBoost
Well-known member
First Name
Christopher
Joined
Jun 30, 2023
Threads
5
Messages
103
Reaction score
57
Location
Buffalo, NY
Vehicle(s)
2024 maverick XLT, Lux, FX4, AWD, 4K
Engine
2.0L EcoBoost
Clubs

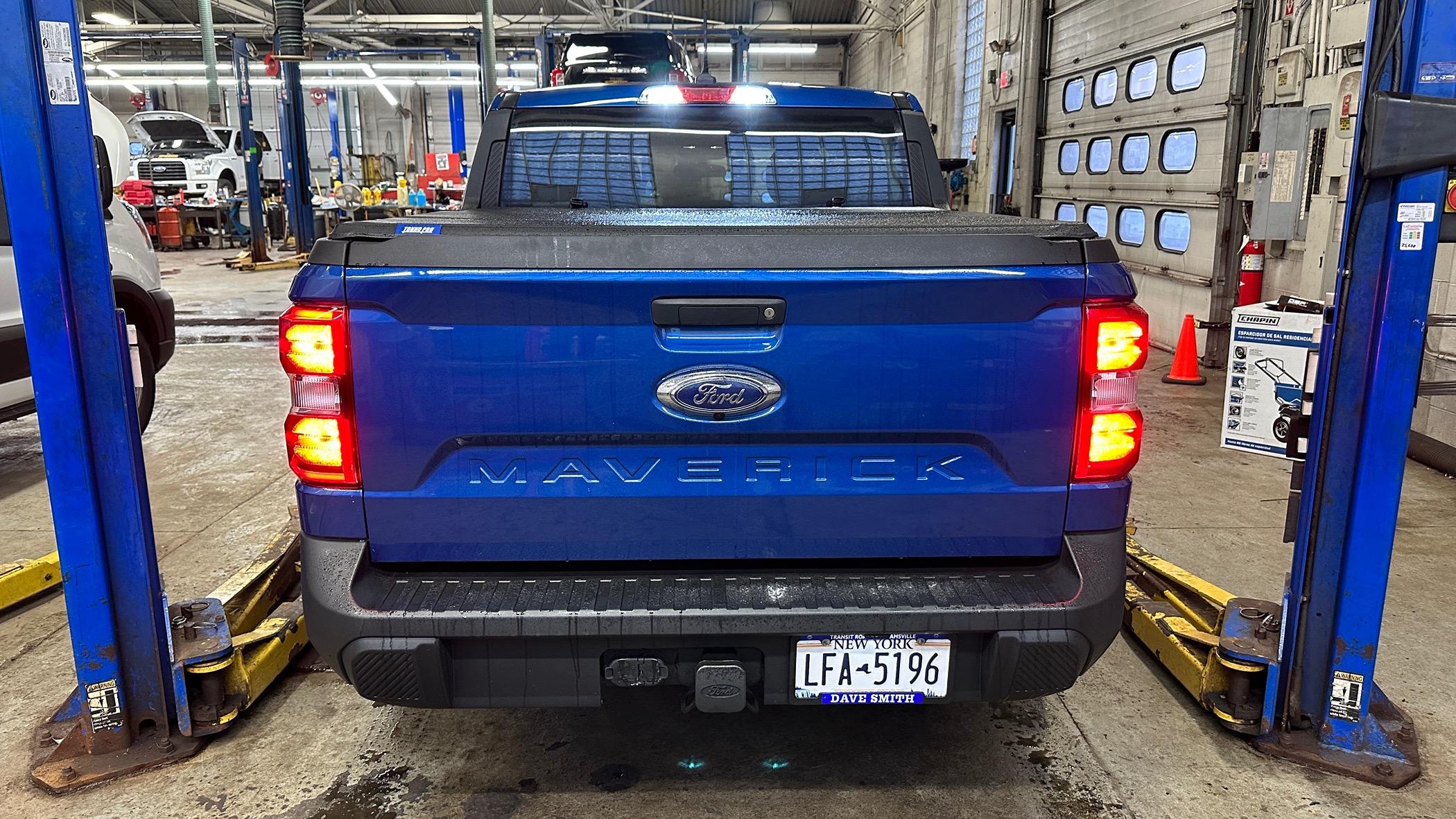

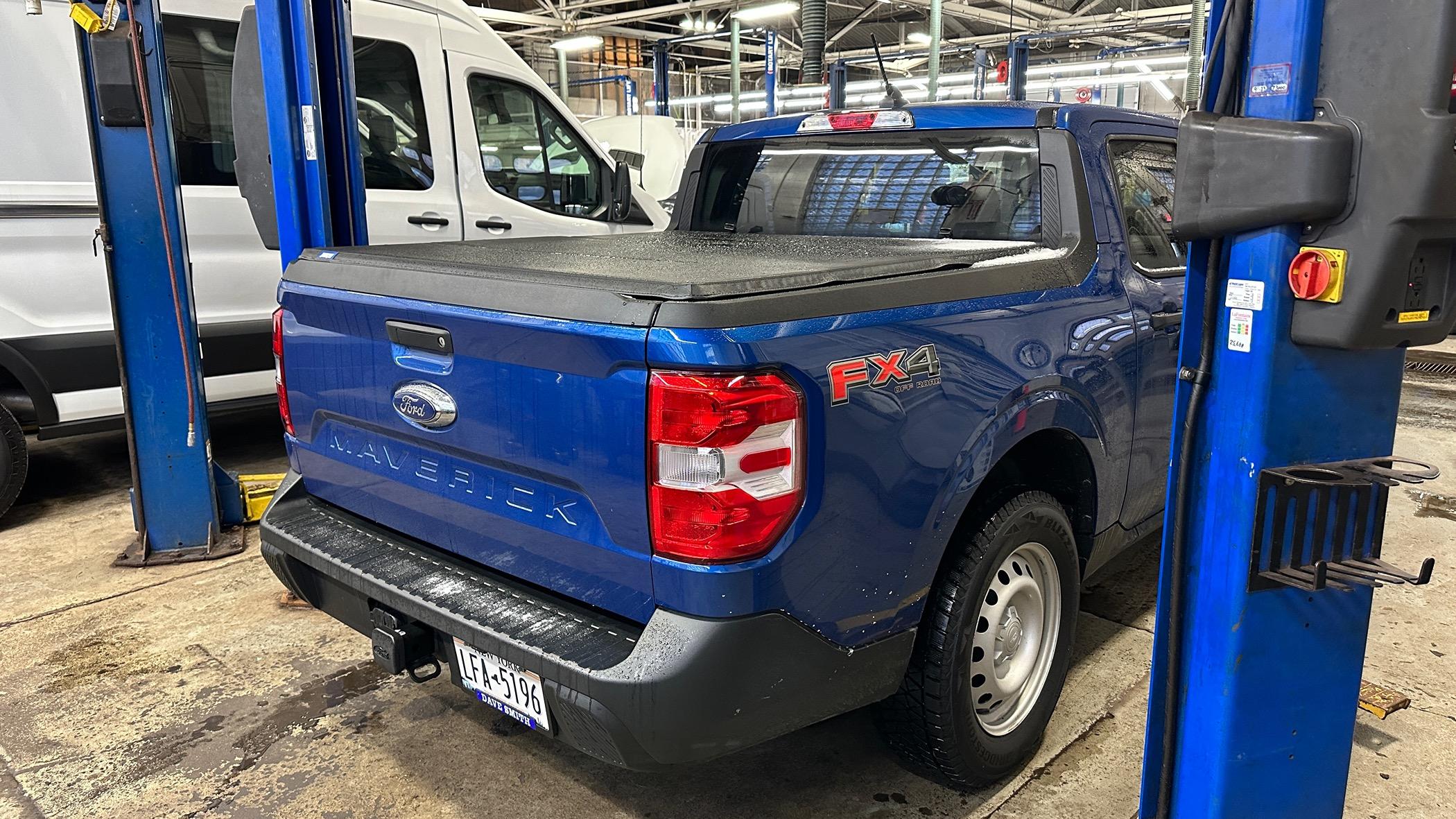

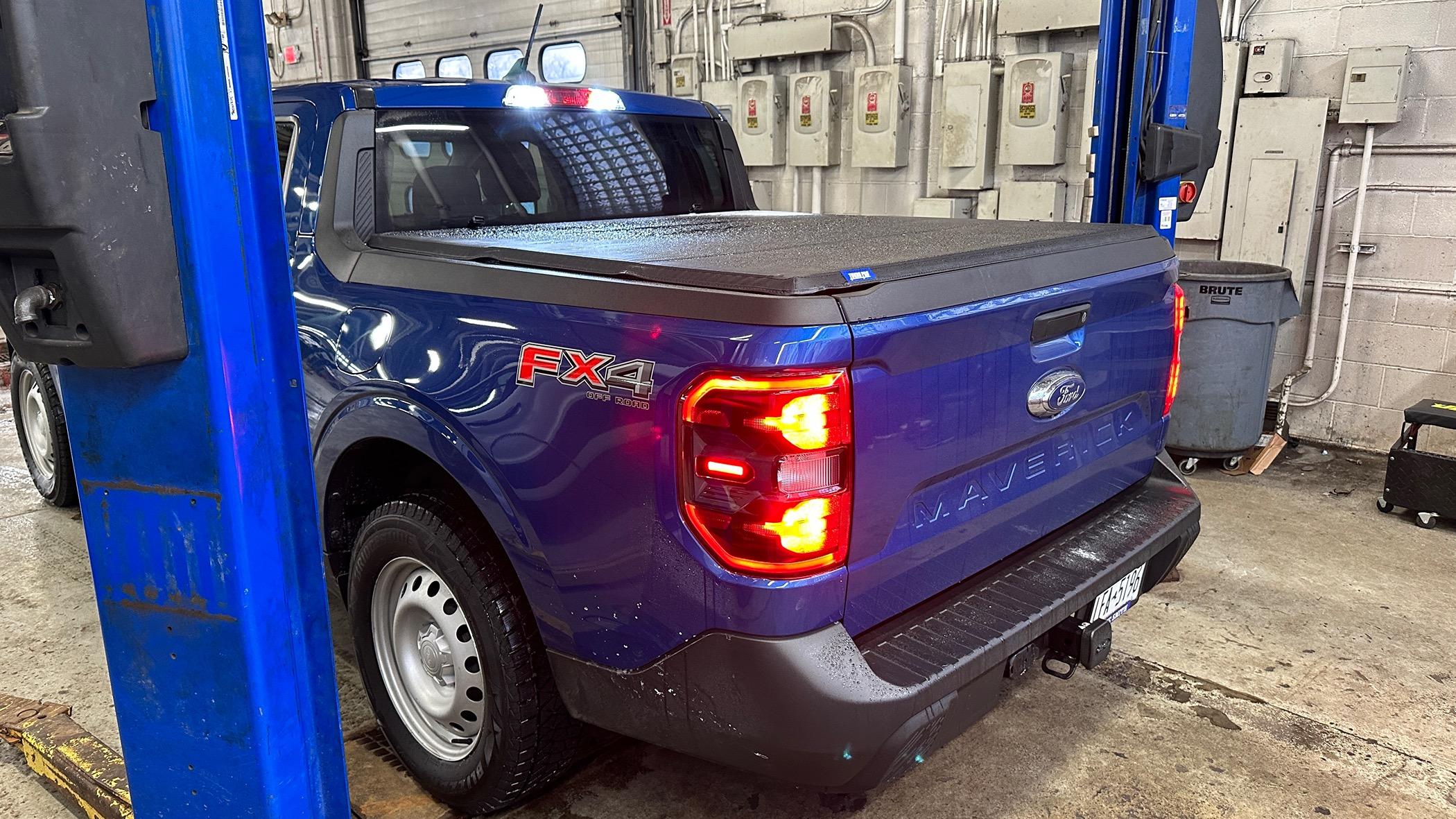

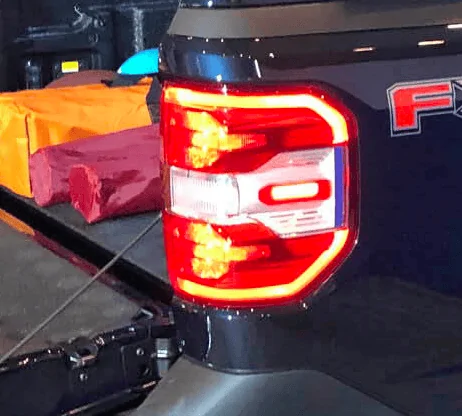

Does yours show this LED OUTLINE without the harness adapter?

Yes! Mine worked out of the box! Wire was there for them!

Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! A5D7EDD7-DDDB-4A71-9EDD-12762063123E


Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! 2EB749F1-3A5F-4D0D-8A58-792F25667A76


Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! B6F2B848-D40F-44AF-BBCD-CFCE95A3D482

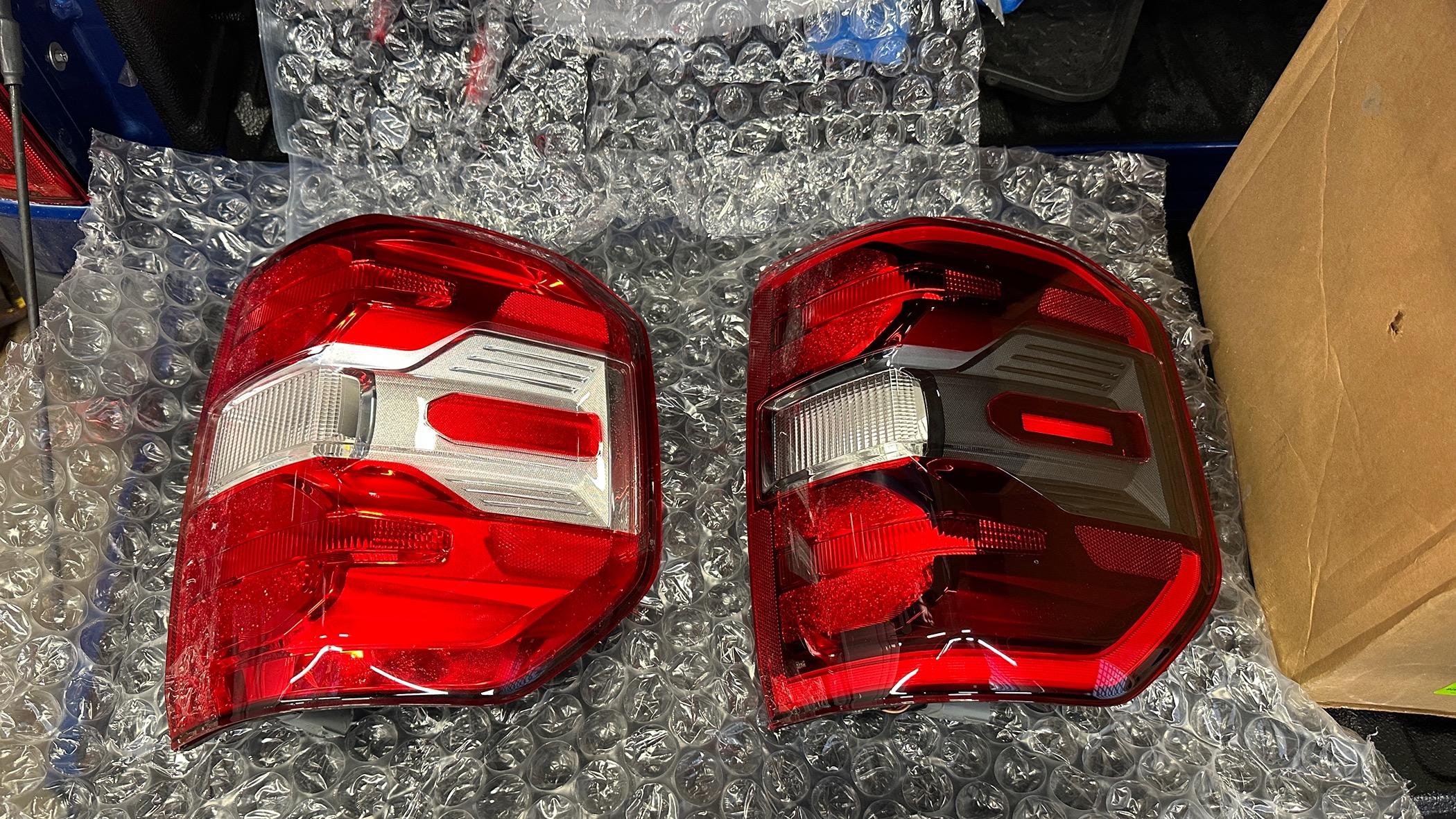

Ford Maverick You CAN install Lariat headlights & tail lights on XL / XLT Mavericks! 96C3FC6C-B994-432B-A99F-15DD6EE279C5

OP
OP
24atlasmaverick

24atlasmaverick

2.0L EcoBoost
Well-known member
First Name
Christopher
Joined
Jun 30, 2023
Threads
5
Messages
103
Reaction score
57
Location
Buffalo, NY
Vehicle(s)
2024 maverick XLT, Lux, FX4, AWD, 4K
Engine
2.0L EcoBoost
Clubs

Super expensive to get separate drls but love the look 🤘 I would have got a lariat if they offered it in hybrid, Canadian problems. Finally they did for 23+
I was originally going to get BAP XLT headlights and since I was spending the money on them, I researched lariat lights and went a step up!

OP
OP
24atlasmaverick

24atlasmaverick

2.0L EcoBoost
Well-known member
First Name
Christopher
Joined
Jun 30, 2023
Threads
5
Messages
103
Reaction score
57
Location
Buffalo, NY
Vehicle(s)
2024 maverick XLT, Lux, FX4, AWD, 4K
Engine
2.0L EcoBoost
Clubs


Bohefus

2.0L EcoBoost
Well-known member
First Name
Joe
Joined
Sep 11, 2023
Threads
4
Messages
157
Reaction score
107
Location
Mesa Az
Vehicle(s)
2024 Maverick Lariat BAP, 2016 Mazda 3
Engine
2.0L EcoBoost
Very Nice! You now have a completely unique FX4 with BAP Lariat lighting that you wont find on any Maverick.

OP
OP
24atlasmaverick

24atlasmaverick

2.0L EcoBoost
Well-known member
First Name
Christopher
Joined
Jun 30, 2023
Threads
5
Messages
103
Reaction score
57
Location
Buffalo, NY
Vehicle(s)
2024 maverick XLT, Lux, FX4, AWD, 4K
Engine
2.0L EcoBoost
Clubs

Very Nice! You now have a completely unique FX4 with BAP Lariat lighting that you wont find on any Maverick.
Thanks! Now I’m just waiting for my grill bar to get done at the paint shop! Getting that body-matched!
