XL bed cubby install -- step by step DIY writeup with pics

Mllombardi

XL
Well-known member
Joined
Oct 21, 2021
Threads
4
Messages
120
Reaction score
235
Location
New England
Vehicle(s)
2022 Maverick XL
Trim
XL
Parts counter at the dealer had my bed cubby that I ordered months ago! Decided to document the 10 minute install.

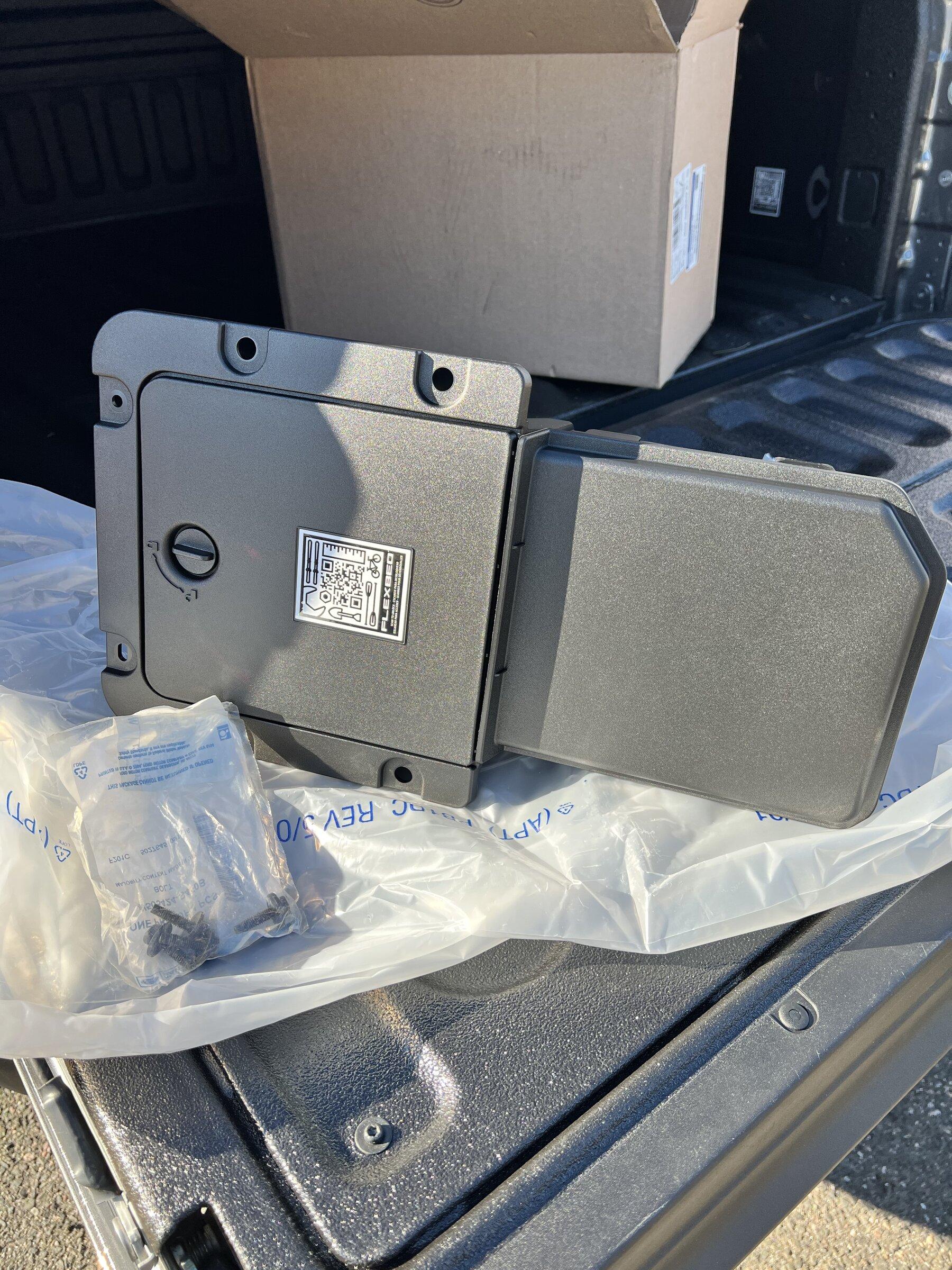

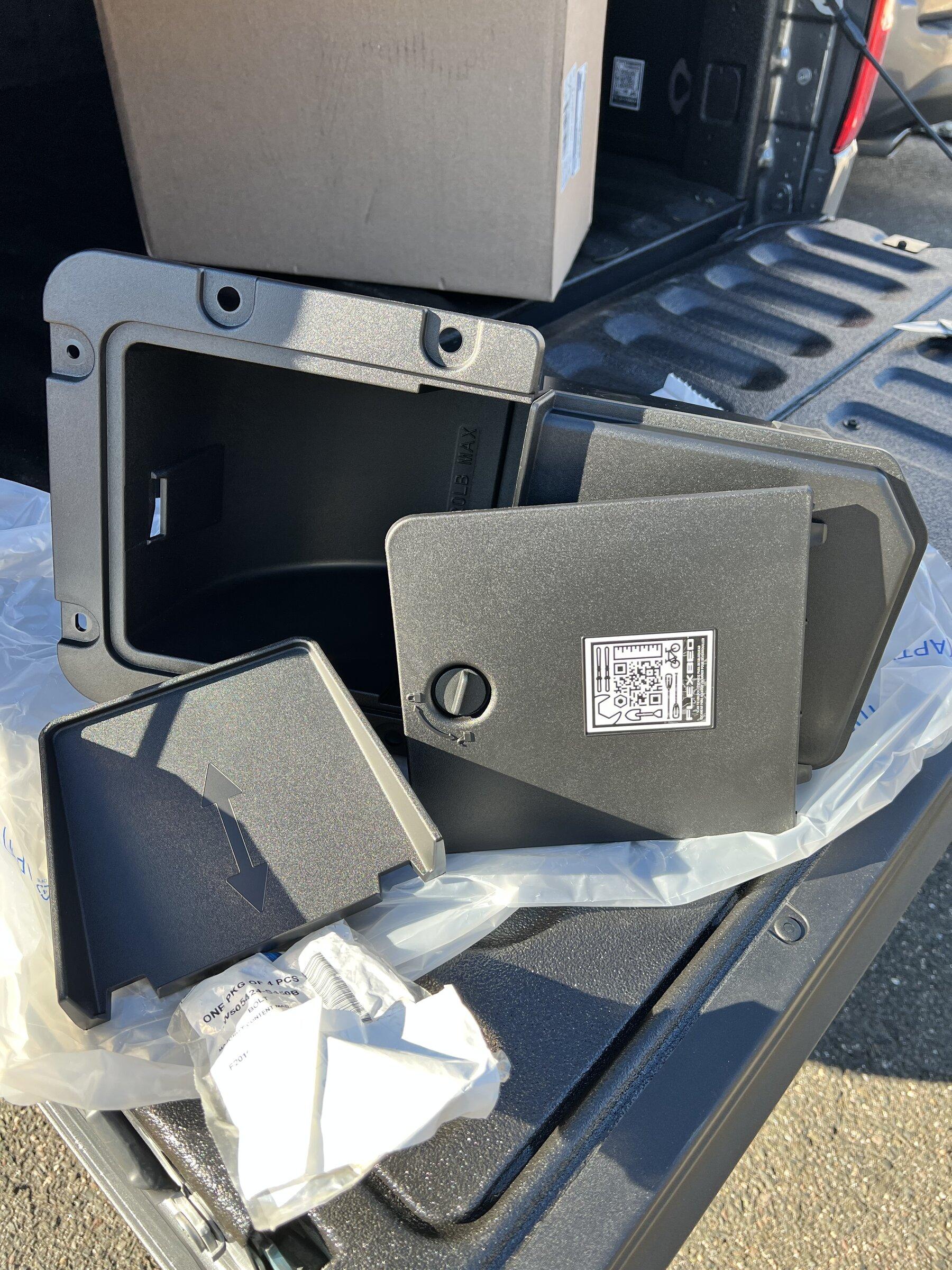

As unboxed

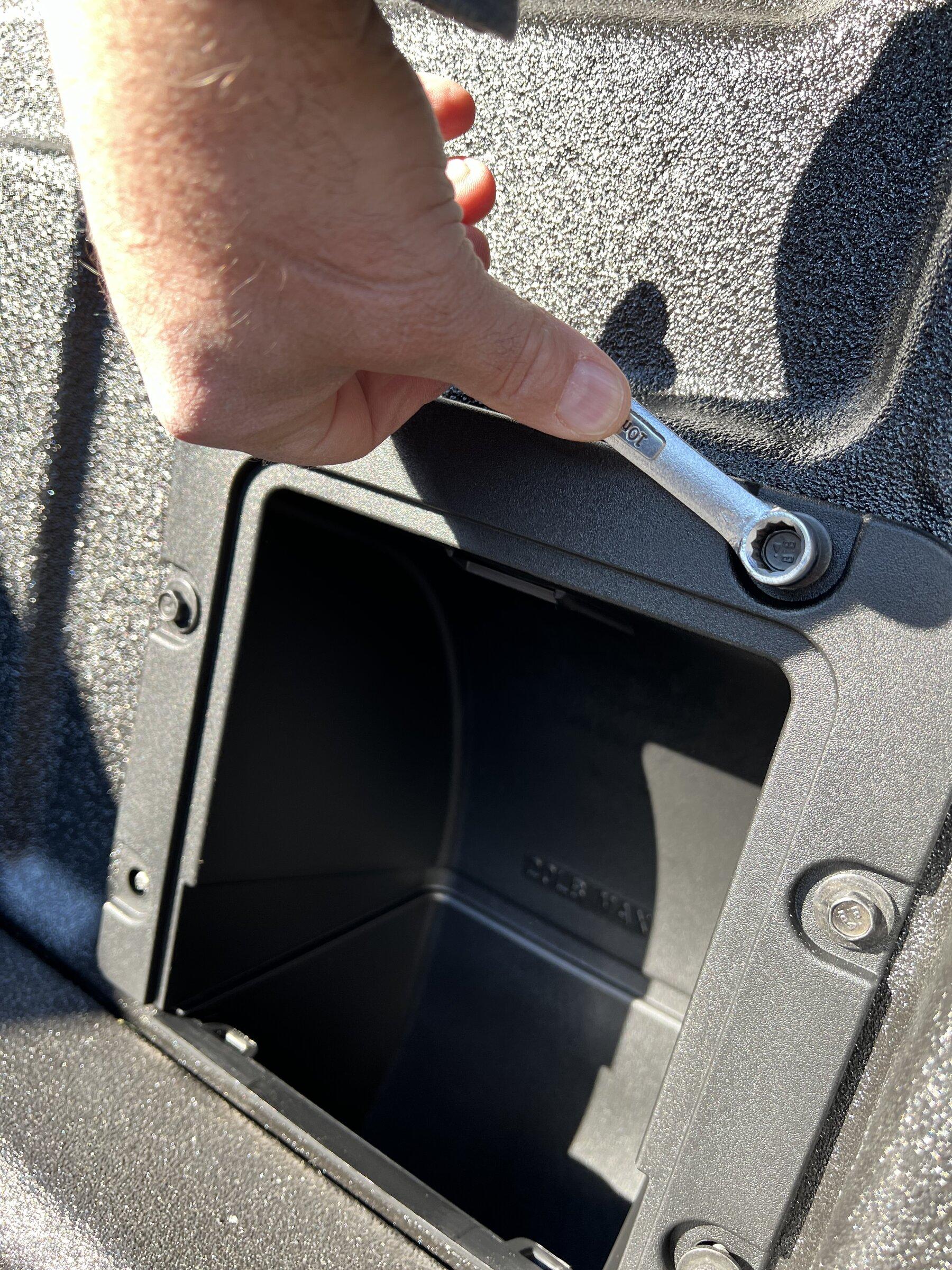

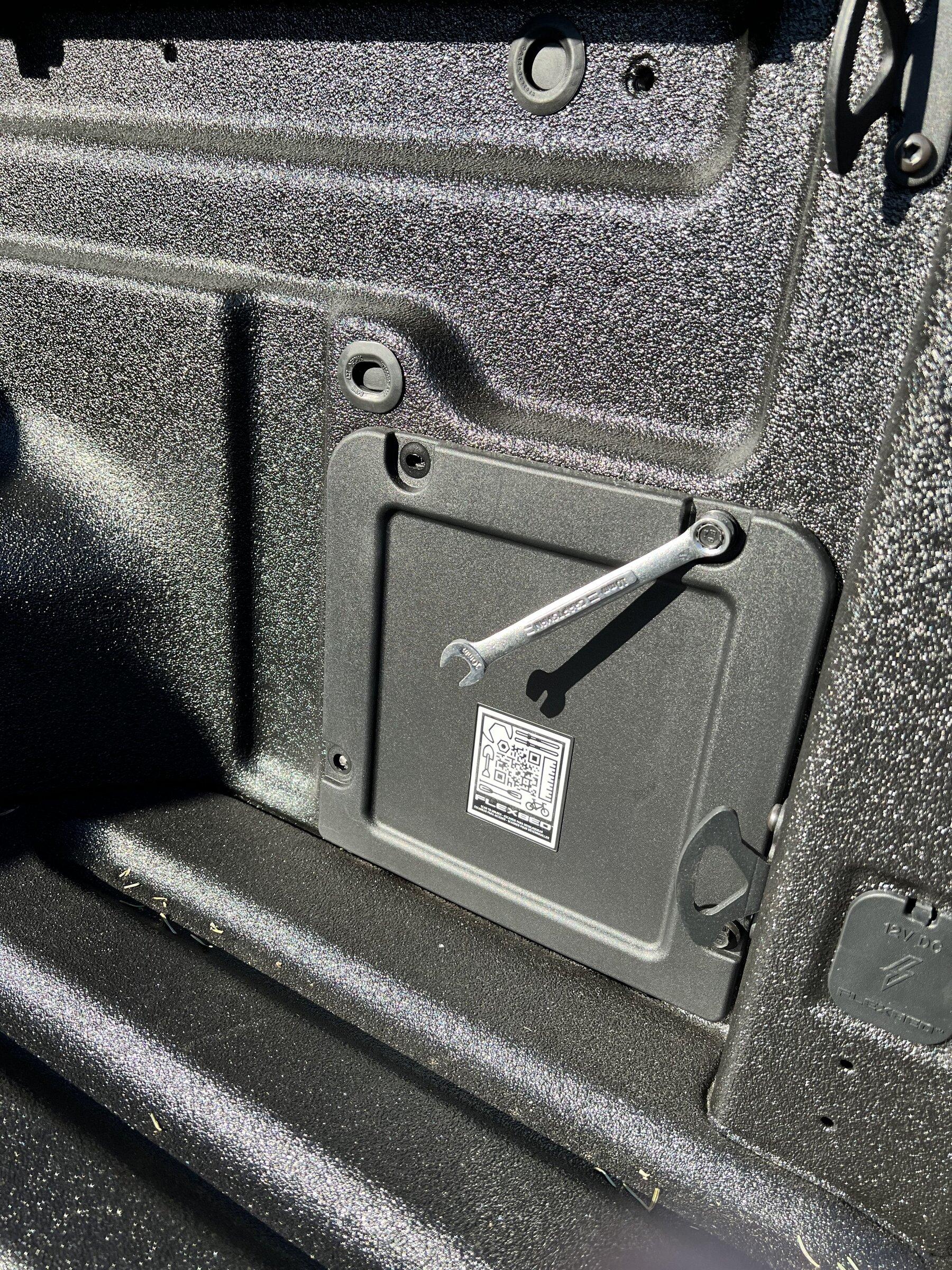

Remove cover bolts

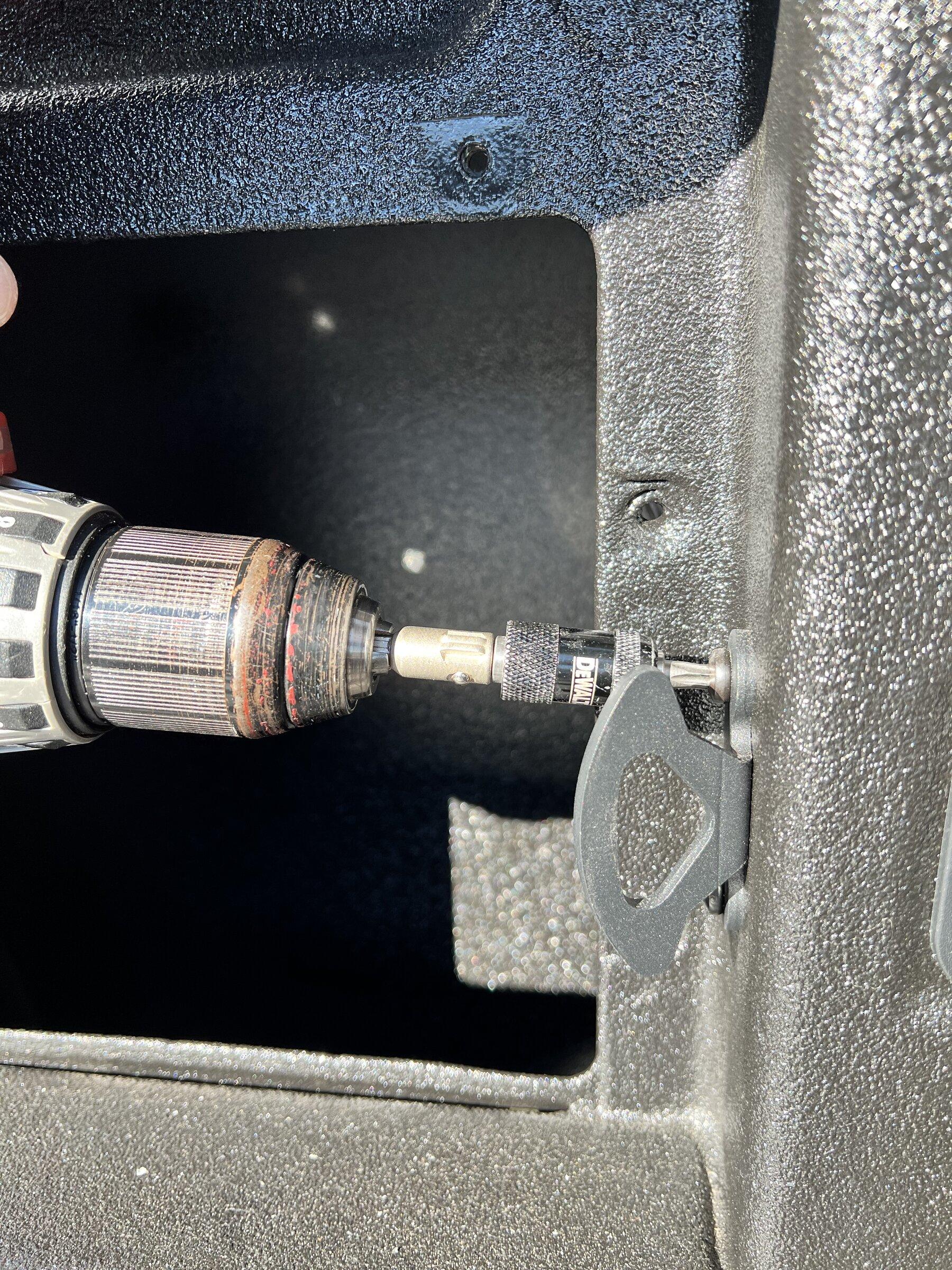

Remove lower tie down

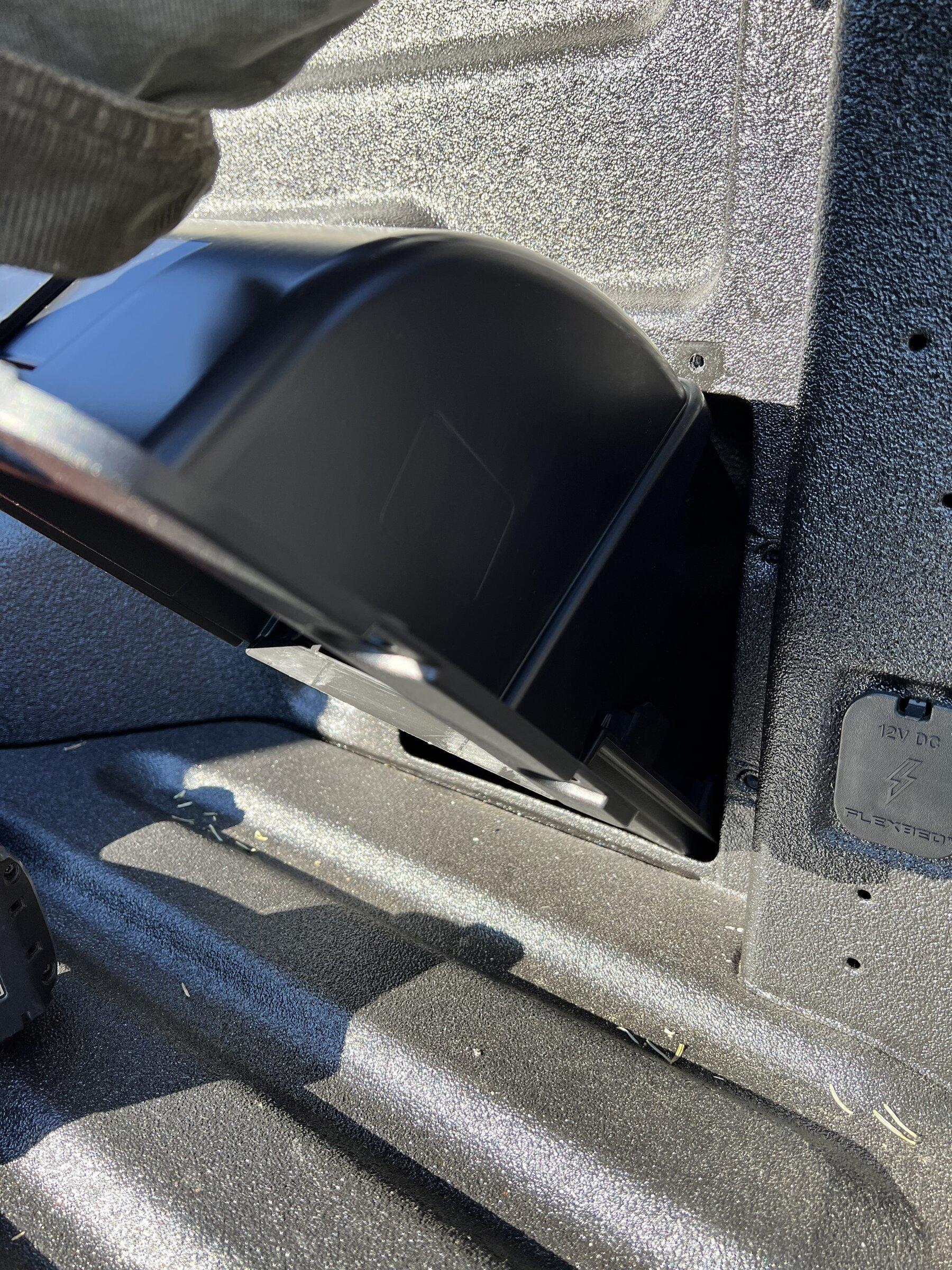

Slide in box

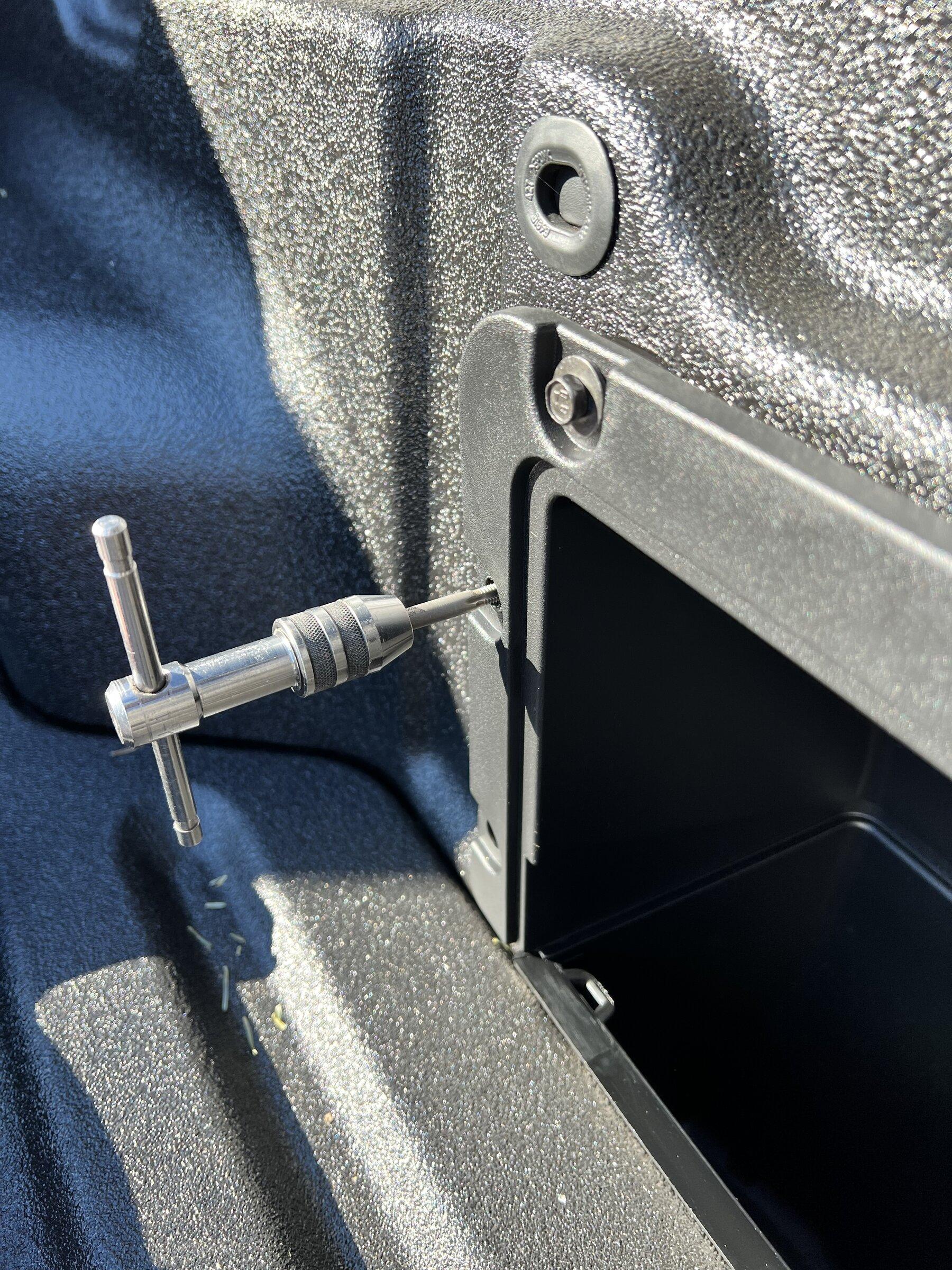

The 2 extra holes on mine had line x in them so I ran a tap

Insert and tighten bolts

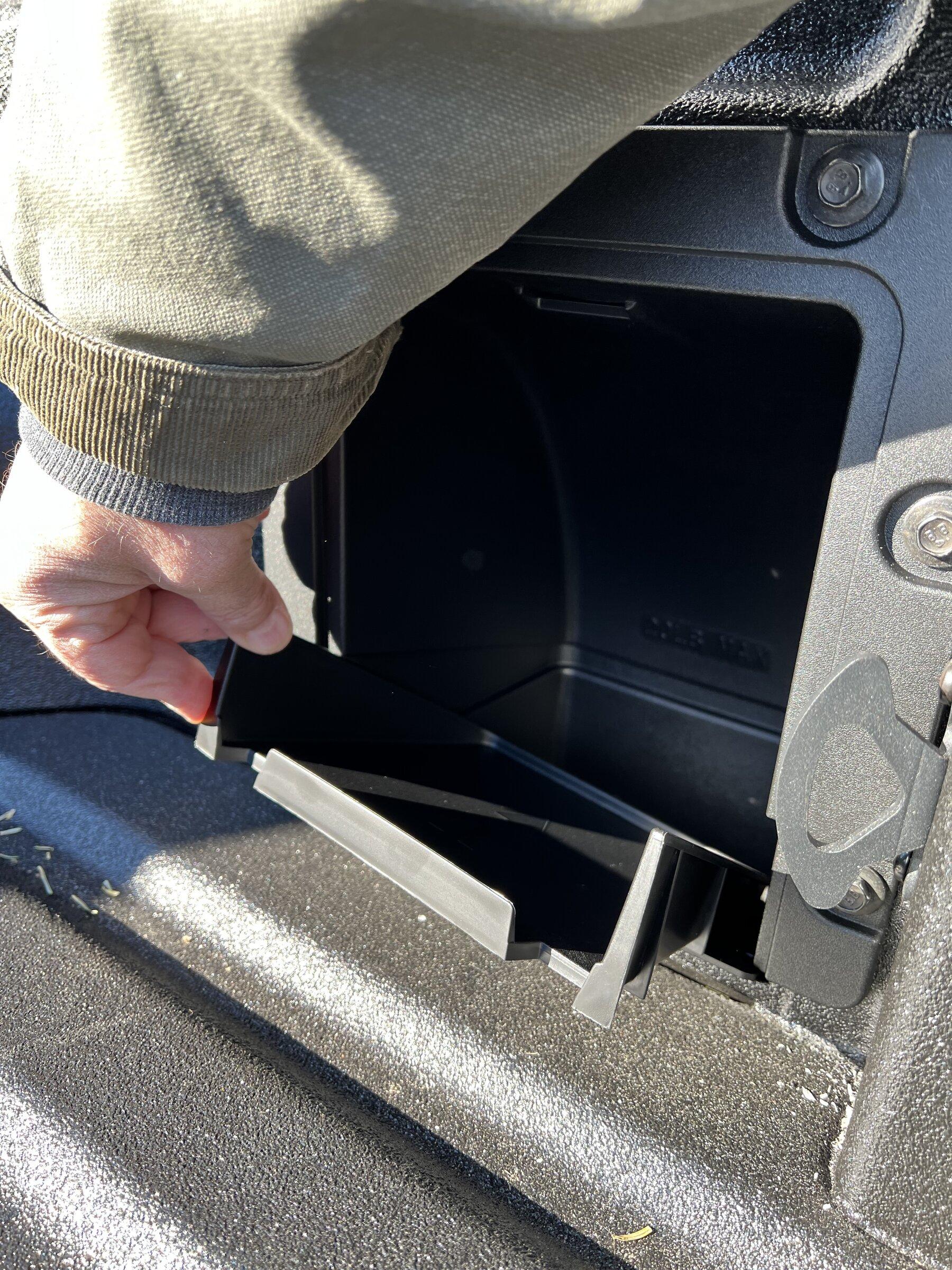

Insert divider

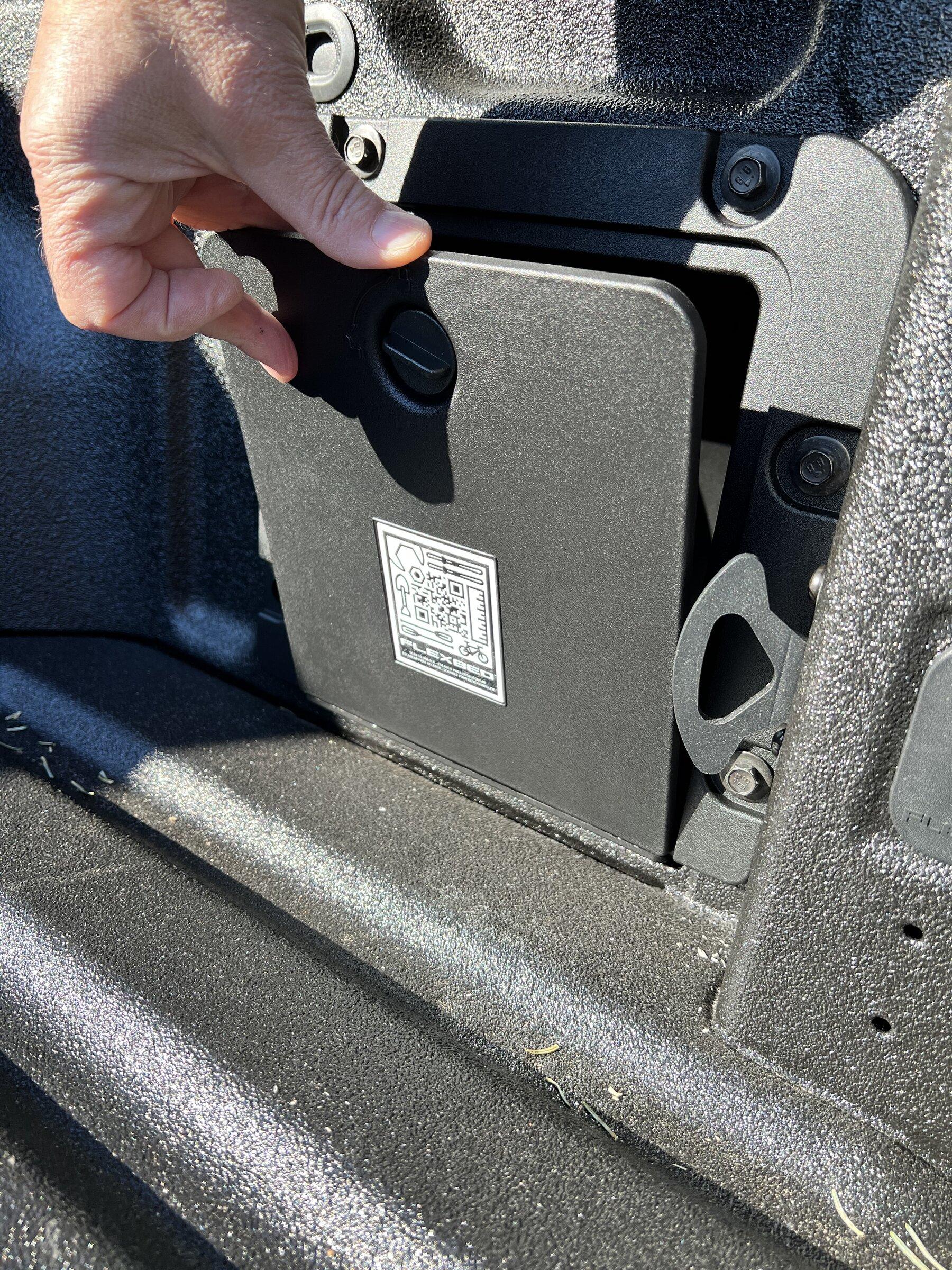

Cover

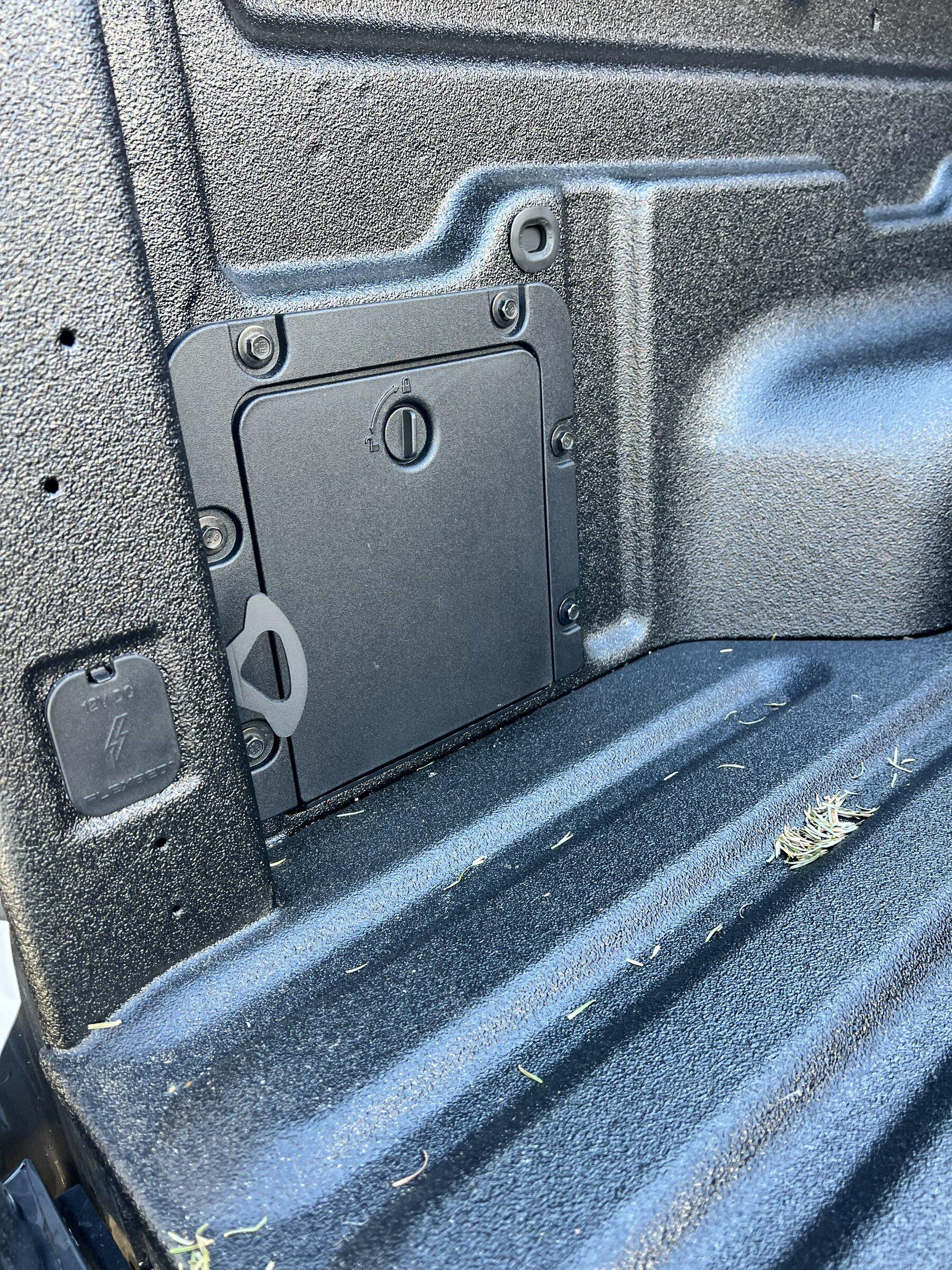

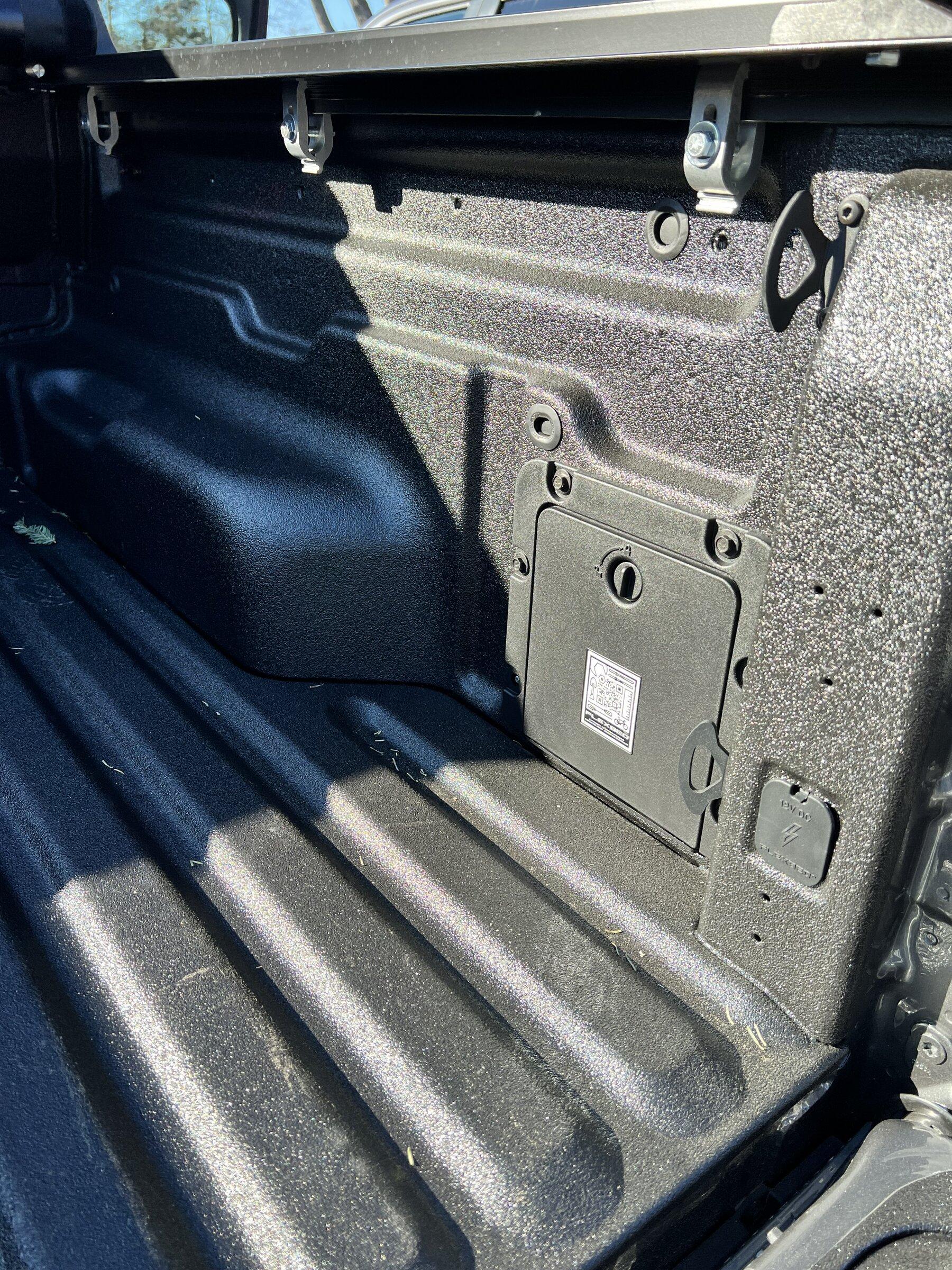

Done


Driver side was done a few months ago




Last edited:

BootXL76

XL
Well-known member
First Name
Josh
Joined
Nov 29, 2021
Threads
3
Messages
357
Reaction score
491
Location
New England
Vehicle(s)
2022 Maverick XL
Trim
XL
so did you only need a single part number (other than bolts and what not)? I really want this on my XL as well and just want to be clear on it. Thx in advance

OP
OP
Mllombardi

Mllombardi

XL
Well-known member
Joined
Oct 21, 2021
Threads
4
Messages
120
Reaction score
235
Location
New England
Vehicle(s)
2022 Maverick XL
Trim
XL
Single p/n for the cubby assembly and a single p/n for 4 bolts. You need 2 of the 4 bolts because you already have 4. The extra 2 bolts you can save for doing the other side.

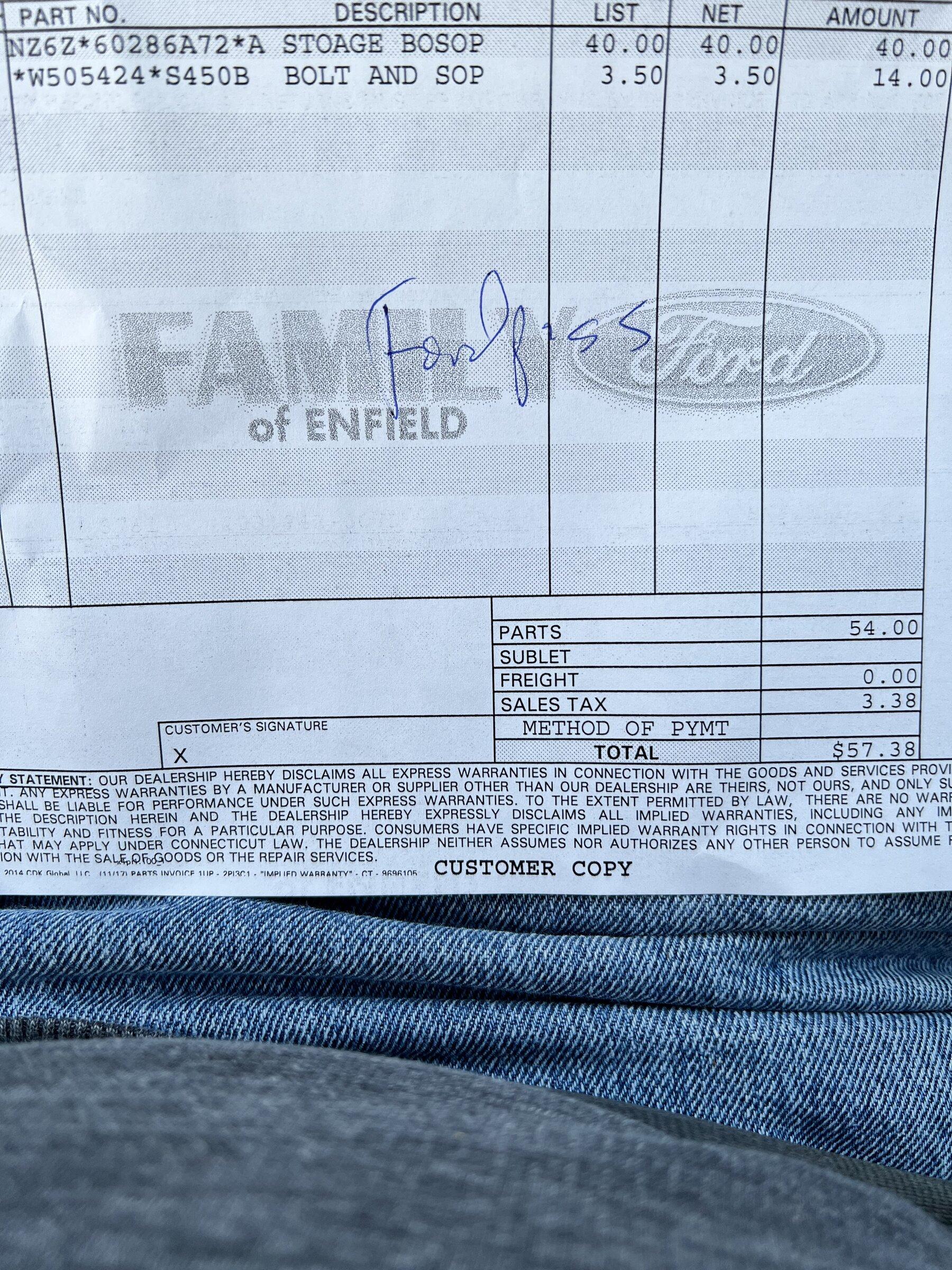

Invoice is about $50. I paid with my skeeball tickets (FordPass points)
