When the HYBRID was patented - Dec. 4, 2014

papa

2.5L Hybrid
Well-known member
First Name
Lawrence
Joined
Jan 28, 2022
Threads
16
Messages
46
Reaction score
73
Location
Michigan
Vehicle(s)
2022 Maverick XLT Hybrid
Engine
2.5L Hybrid
HYBRID ELECTRIC VEHICLE ENGINE STARTING WITH A PRELOADED DAMPER SPRING
FORD Global Technologies, Dearborn MI.

US Patent Pub. No.: US 2014/0352492 A1 (43) Pub. Date: Dec. 4, 2014

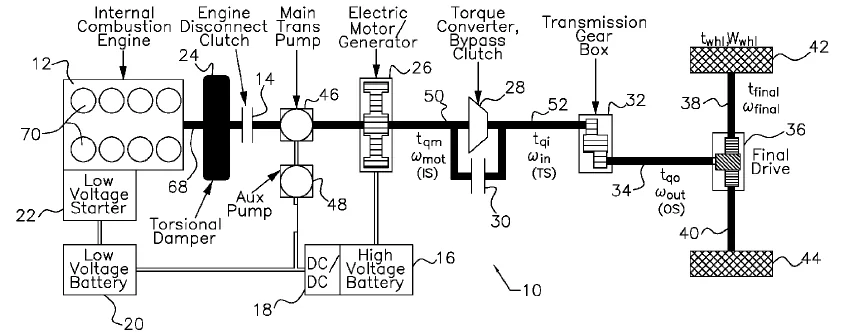

A modular hybrid transmission (MHT) is an arrangement of powertrain components that produces parallel hybrid electric drive (HEV). The powertrain includes a torsion damper, transmission pump, electric machine and torque converter arranged in series between an engine and a transmission.

Ford Maverick When the HYBRID was patented - Dec. 4, 2014 1663857307571
Sponsored


Last edited by a moderator:

Espeer

2.5L Hybrid
Well-known member
Joined
Sep 13, 2021
Threads
0
Messages
332
Reaction score
436
Location
Virginia
Vehicle(s)
2012 focus, 2003 expedition
Engine
2.5L Hybrid
I don't think this is quite the arrangement in the mav hybrid. See: low voltage starter.


huunvubu

2.5L Hybrid
Well-known member
First Name
Steve
Joined
Jul 21, 2021
Threads
52
Messages
2,559
Reaction score
4,330
Location
coppell tx
Vehicle(s)
2023 Ford Maverick Hybrid
Engine
2.5L Hybrid
Ford has been making and selling Hybrids since 2005.



Darnon

2.5L Hybrid
Well-known member
Joined
Jul 4, 2021
Threads
10
Messages
4,709
Reaction score
5,577
Location
WNY
Vehicle(s)
2022 Maverick
Engine
2.5L Hybrid
I don't think this is quite the arrangement in the mav hybrid. See: low voltage starter.
Yeah, I'd suspect this patent is more for covering engineering technologies in models like Explorer Hybrid and F-150 Powerboost.


Sponsored

Espeer

2.5L Hybrid
Well-known member
Joined
Sep 13, 2021
Threads
0
Messages
332
Reaction score
436
Location
Virginia
Vehicle(s)
2012 focus, 2003 expedition
Engine
2.5L Hybrid

TedTX

2.5L Hybrid
Well-known member
First Name
Ted
Joined
Aug 12, 2022
Threads
14
Messages
1,348
Reaction score
1,028
Location
San Antonio TX
Vehicle(s)
Maverick
Engine
2.5L Hybrid
Doesnā€™t sound like the Maverick setup. Both Ford and Toyota no longer stack the engine and transmission in series.
The sideways mountings of front wheel power train just ran out of space side to side.
Likely a place holder patent. There is a fore seen value in the ā€˜standardā€™ engine arrangement for more powerful engine/transmission needs.


BradGroux

2.5L Hybrid
Well-known member
Joined
Sep 12, 2022
Threads
0
Messages
198
Reaction score
326
Location
Houston
Website
msft.expert
Vehicle(s)
2023 F-150 XLT Powerboost
Engine
2.5L Hybrid
Doesnā€™t sound like the Maverick setup. Both Ford and Toyota no longer stack the engine and transmission in series.
The sideways mountings of front wheel power train just ran out of space side to side.
Likely a place holder patent. There is a fore seen value in the ā€˜standardā€™ engine arrangement for more powerful engine/transmission needs.
Further, the Maverickā€˜s HF45 is a direct descendent of the HF10 which got itā€™s start back in the 2005 model year, long before the patent the OP posted.

The video @huunvubu posted shows the progression from the HF10, to the HF20, and the HF35. There were no radical changes from generation to generation, just slight refinements. Overall, the architecture is nearly identical 18 years later - just more efficient and refined.

Last edited:

TedTX

2.5L Hybrid
Well-known member
First Name
Ted
Joined
Aug 12, 2022
Threads
14
Messages
1,348
Reaction score
1,028
Location
San Antonio TX
Vehicle(s)
Maverick
Engine
2.5L Hybrid
Due to both Ford and Toyota coming up with nearly the same 2 electric motor with planetary gear solutions, they decided to cooperate and not fight it out. Toyota started to copy the nested more compact Ford way a few years before that Ford patient. Likely an agreement with the exactly linear way Toyota started.
Sponsored







Top
