[REQUEST] Parking System Aid (Rear Sensors) - Parts

[MavRio]

I consider the absence of rear parking sensors as standard, an important penalty mainly for the Lariat trim.
So I’m planning to install the OEM system instead an aftermarket option which is not integrated w/ the truck electronics system.
Does anybody know which parts should I get to install the OEM Park Aid System?
Thanks in advance.
PS: Luxury Package is not available in Brazil.

Sponsored



[Mauve]

I was also wondering the same thing, as the Lariat version for LATAM is missing a bunch of options from the US version.

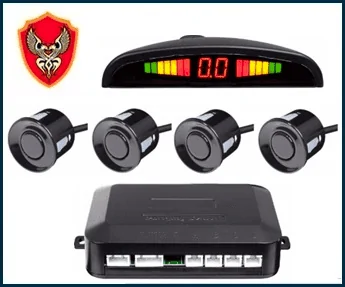

Not ideal, but hese sensors are generally available. Just google rear parking sensors...



[mpc999]

A Goggle search shows the part number as KU5Z15K859AAPTM. Here is a link to a seller https://www.oemfordpartscheap.com/p...rse-PARKING-AID/97217354/KU5Z15K859AAPTM.html



[MavRio]

A Goggle search shows the part number as KU5Z15K859AAPTM. Here is a link to a seller https://www.oemfordpartscheap.com/p...rse-PARKING-AID/97217354/KU5Z15K859AAPTM.html

Thanks. I also found the parking system aid module. But I still have doubt on harness once there are several different options depending on the truck configuration. I can’t found the brackets for the sensors as well.



[Deleted member 16346]

It can be connected to the screen this model?



[Deleted member 16346]

Can it be connected to the main screen together with the camera view?



[STUFF2C]

Looks like this thread died…

it looks like you need a control module and 4 sensors.
Has anyone ever been able to confirm if the wiring is there?



[Watchcmdr]

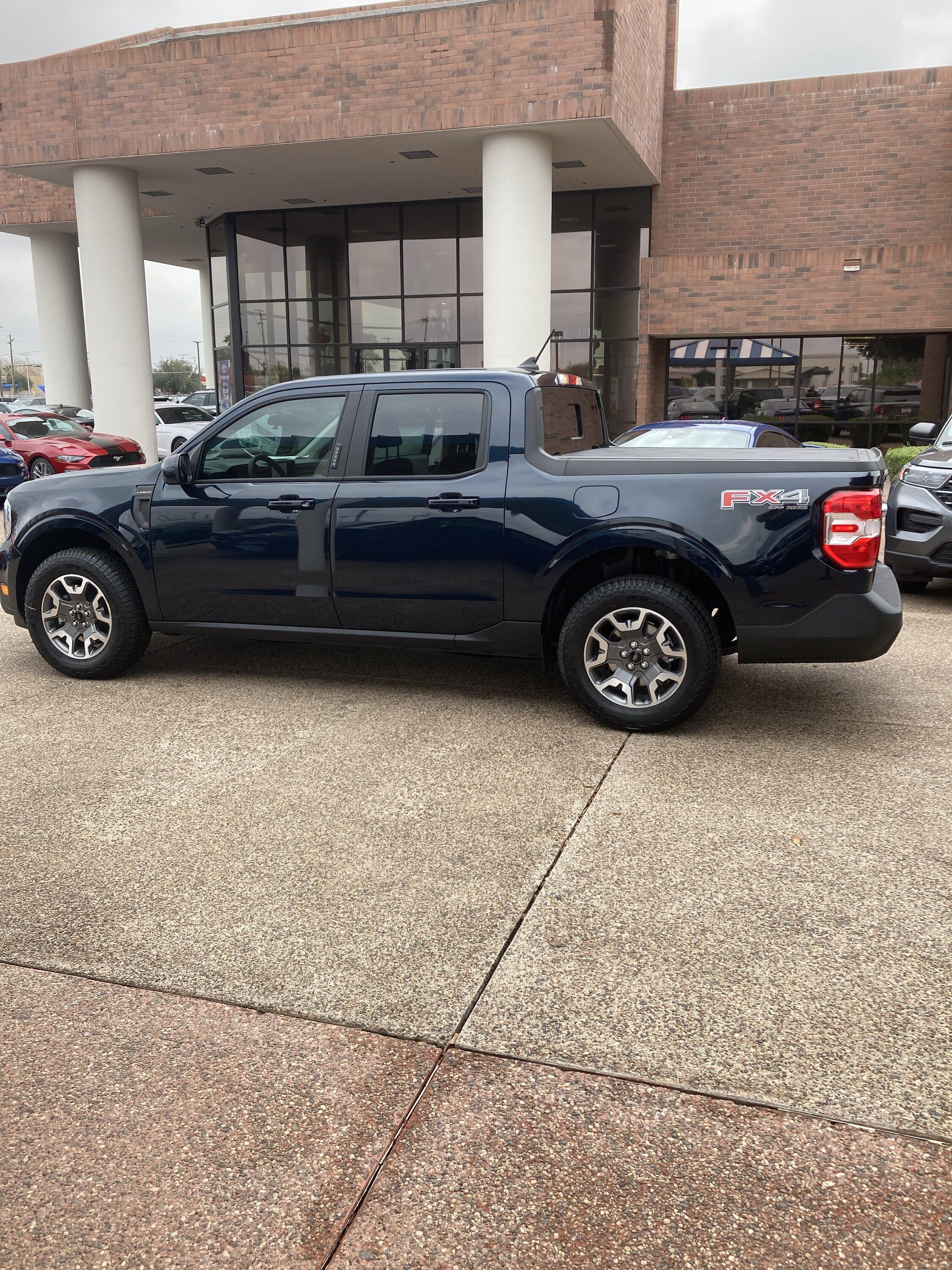

i Just got my Maverick Lariat, fully loaded alto blue. It’s a 23 rollover from 22. My 22 order had the park assist on the lux package. On the 23 it’s a separate package so was not installed. Wish I had known, I really like the back up sensors, they work well on my Bronco sport. They also deleted the spray in bed liner. Still, it’s a nice truck.
looking at the Ibeam no drill backup sensor kit. You can find it on Amazon.



[Iceman3108]

Thanks. I also found the parking system aid module. But I still have doubt on harness once there are several different options depending on the truck configuration. I can’t found the brackets for the sensors as well.

Dear Roberto, I´m thinking on going your way with the rear parking sensors. I had a Latam Lariat Version (Argentina) but I still cannot sort it out wich parts do I need to install the OEM system. Did you manage to figure it out?



[pipots]

Dear Roberto, I´m thinking on going your way with the rear parking sensors. I had a Latam Lariat Version (Argentina) but I still cannot sort it out wich parts do I need to install the OEM system. Did you manage to figure it out?

Hello Martin, (felipe from chile, trying to do the same). I did all the work, even bought some parts and its possible, but unfortunately, beside the basic sensor, module and wiring you have to change the main truck wiring.
If you still think is worth, these are the parts:
- NZ6Z-14A005-CRA full car wiring with the needed connectors for Latam Spec Lariat + rear parking.
- LU5Z-15K866-F Parking aid module (PAM).
- KU5Z-15K859-AAPTM x 2 rear center sensors.
- JU5Z-15K859-APTM x 2 rear side sensors.
- NZ6Z-15K868-B parking aid wiring harness

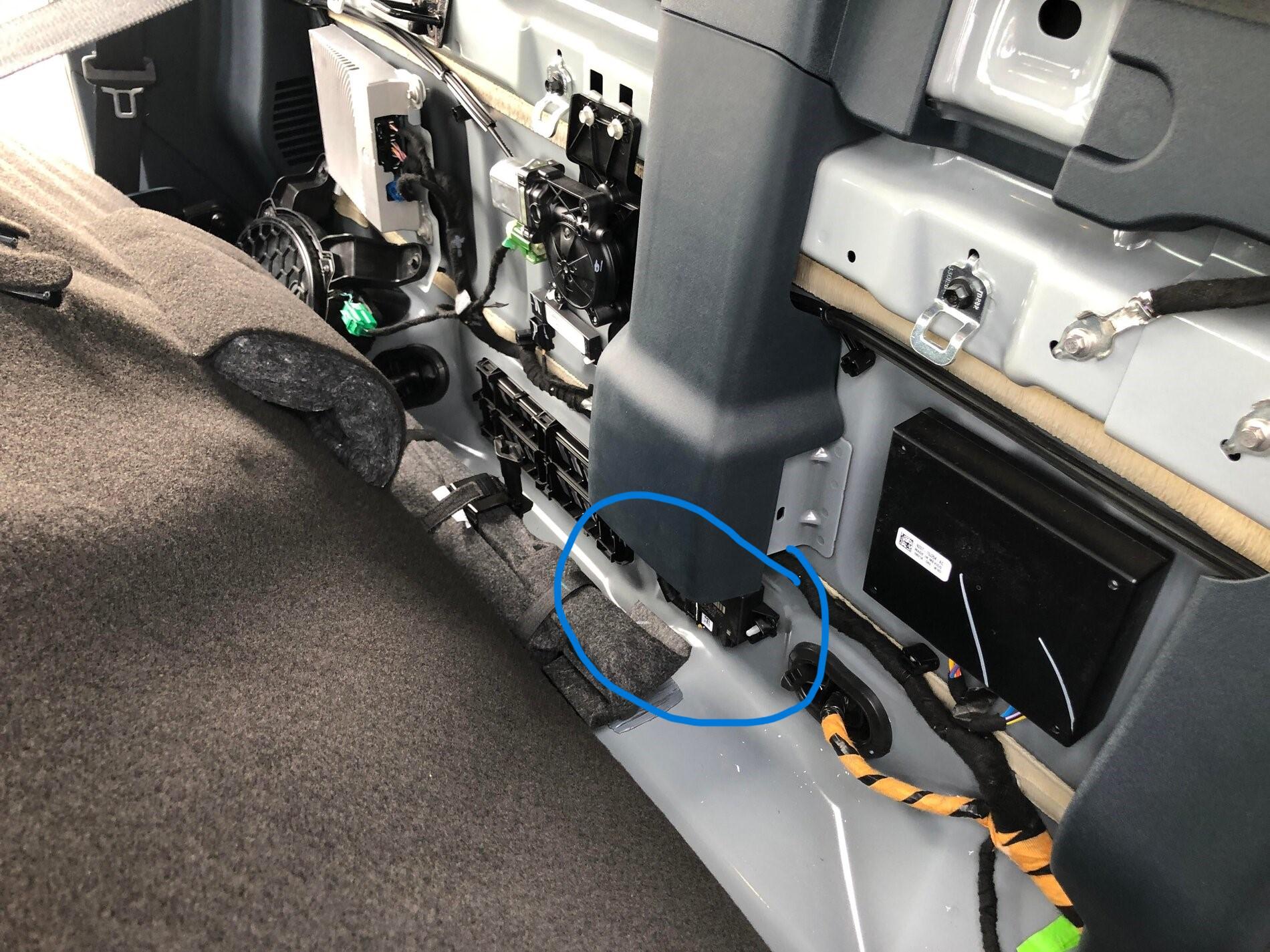

PAM module needs to be present, so you need a different car wiring. Here is a picture I found in the forum of a fully loaded Maverick. There you can see where the PAM is located behind the rear seat, just in case you got lucky.



[Iceman3108]

Hello Martin, (felipe from chile, trying to do the same). I did all the work, even bought some parts and its possible, but unfortunately, beside the basic sensor, module and wiring you have to change the main truck wiring.
If you still think is worth, these are the parts:
- NZ6Z-14A005-CRA full car wiring with the needed connectors for Latam Spec Lariat + rear parking.
- LU5Z-15K866-F Parking aid module (PAM).
- KU5Z-15K859-AAPTM x 2 rear center sensors.
- JU5Z-15K859-APTM x 2 rear side sensors.
- NZ6Z-15K868-B parking aid wiring harness

PAM module needs to be present, so you need a different car wiring. Here is a picture I found in the forum of a fully loaded Maverick. There you can see where the PAM is located behind the rear seat, just in case you got lucky.

Hello Martin, (felipe from chile, trying to do the same). I did all the work, even bought some parts and its possible, but unfortunately, beside the basic sensor, module and wiring you have to change the main truck wiring.
If you still think is worth, these are the parts:
- NZ6Z-14A005-CRA full car wiring with the needed connectors for Latam Spec Lariat + rear parking.
- LU5Z-15K866-F Parking aid module (PAM).
- KU5Z-15K859-AAPTM x 2 rear center sensors.
- JU5Z-15K859-APTM x 2 rear side sensors.
- NZ6Z-15K868-B parking aid wiring harness

PAM module needs to be present, so you need a different car wiring. Here is a picture I found in the forum of a fully loaded Maverick. There you can see where the PAM is located behind the rear seat, just in case you got lucky.

Dear Felipe, thank you for your reply and most of it, the detailed info provided. I had opt out for the Dolphin Parking sensor system. It is a British company that sells flush parking systems. That said, I bought them 3 months ago and still on the box. I had realized that parking aids are not much needed on the Mav.
Un fuerte abrazo desde el otro lado de la cordillera y nuevamente, muchísimas gracias por la información súper detallada!



[Adrianlastra]

Iceman buenas tardes. Pudiste solucionar el instalar sensor de estacionamiento oem ? Gracias!



[Iceman3108]

Hola Adrián, cómo estás? No, no sólo no lo solucioné sino que aún no instalé los sensores. Es más.....no sé si lo voy a hacer. En caso de hacerlo te aviso. Abrazo!
