Power Inverter location?

LC48

XLT
Well-known member
First Name
Bill
Joined
Oct 24, 2021
Threads
5
Messages
272
Reaction score
404
Location
Johnson County Texas
Vehicle(s)
Maverick XLT, AWD, Carbonized Gray. Highlander Lim
Trim
XLT
Where did Ford mount the inverter, I don't have the factory installed unit but would like to poke around where the company normally mounts them to see if by chance the harness is in place.....

Any help appreciated!



Big_T

XL
Well-known member
First Name
T
Joined
Jun 10, 2021
Threads
51
Messages
1,735
Reaction score
3,329
Location
North Carolina
Vehicle(s)
2022 Maverick XL Hybrid
Trim
XL
Vehicle Showcase
1
Edited to remove incorrect information.


Last edited:

Mas280

XL
Active member
First Name
Mike
Joined
Sep 7, 2021
Threads
2
Messages
40
Reaction score
94
Location
California
Vehicle(s)
2022 Maverick
Trim
XL
That's not the inverter is it? I have that on my truck and no 110v outlets.


OldSoulNewMaverick

XLT
Well-known member
First Name
Mike
Joined
Aug 19, 2021
Threads
4
Messages
240
Reaction score
379
Location
NW Chicago Burbs
Vehicle(s)
2014 Kia Soul
Trim
XLT
The in-cab inverter is on the back of the middle console (armrest). Next to where the USB plugs for the rear seats are.


Big_T

XL
Well-known member
First Name
T
Joined
Jun 10, 2021
Threads
51
Messages
1,735
Reaction score
3,329
Location
North Carolina
Vehicle(s)
2022 Maverick XL Hybrid
Trim
XL
Vehicle Showcase
1


Decayed

XLT
Well-known member
First Name
yes
Joined
Oct 18, 2021
Threads
23
Messages
1,804
Reaction score
2,874
Location
Directly above the center of the Earth
Vehicle(s)
a car
Trim
XLT
The in-cab inverter is on the back of the middle console (armrest). Next to where the USB plugs for the rear seats are.
Ah, not sure that is correct. The OUTLET is on the rear console. The actual inverter may well be elsewhere. After all, if you get the lux pack and have the one in the bed, there isn't a second inverter there. The question is where do the wires from the outlet go?


thunaman

XLT
Well-known member
First Name
Andy
Joined
Oct 11, 2021
Threads
5
Messages
82
Reaction score
166
Location
Peoria AZ
Vehicle(s)
2017 Subaru Outback
Trim
XLT
I don’t know about the wire harness for the inverter, but I do know that there are no wires in my truck for the outlet in the bed. I would assume that to keep costs down there is no extra copper in the vehicle.

OP
OP
LC48

LC48

XLT
Well-known member
First Name
Bill
Joined
Oct 24, 2021
Threads
5
Messages
272
Reaction score
404
Location
Johnson County Texas
Vehicle(s)
Maverick XLT, AWD, Carbonized Gray. Highlander Lim
Trim
XLT
Just curious to find out, generally Ford & Toyota, and probably others, only lay in one "master" harness as a cost savings/efficiency of assembly deal.

I bought a dealer ordered truck and they did not spec the inverter. I have occasion to power up a laptop and office in my vehicle, so looking for the cleanest install options.

When I get the chance I will check out the center console area - one day the tech docs will catch up with consumer demand....


EMD_Driver

XLT
Well-known member
First Name
Gary
Joined
Oct 28, 2021
Threads
29
Messages
336
Reaction score
650
Location
South Carolina
Vehicle(s)
2014 F-350 CCLB 6.7 / 2022 Maverick XLT 2.0 AWD
Trim
XLT
Has anyone verified the location of the actual inverter and not just the outlets?


Criss944

XLT
Well-known member
First Name
Criss
Joined
Sep 4, 2021
Threads
3
Messages
172
Reaction score
168
Location
Horry County, SC
Vehicle(s)
Silverodo
Trim
XLT
Just remove the cover in the bed on the driver's side. If their is inverter wiring it should be easy to find.


huunvubu

XLT
Well-known member
First Name
Steve
Joined
Jul 21, 2021
Threads
34
Messages
1,629
Reaction score
2,792
Location
coppell tx
Vehicle(s)
2022 Ford Maverick Hybrid
Trim
XLT
Ah, not sure that is correct. The OUTLET is on the rear console. The actual inverter may well be elsewhere. After all, if you get the lux pack and have the one in the bed, there isn't a second inverter there. The question is where do the wires from the outlet go?

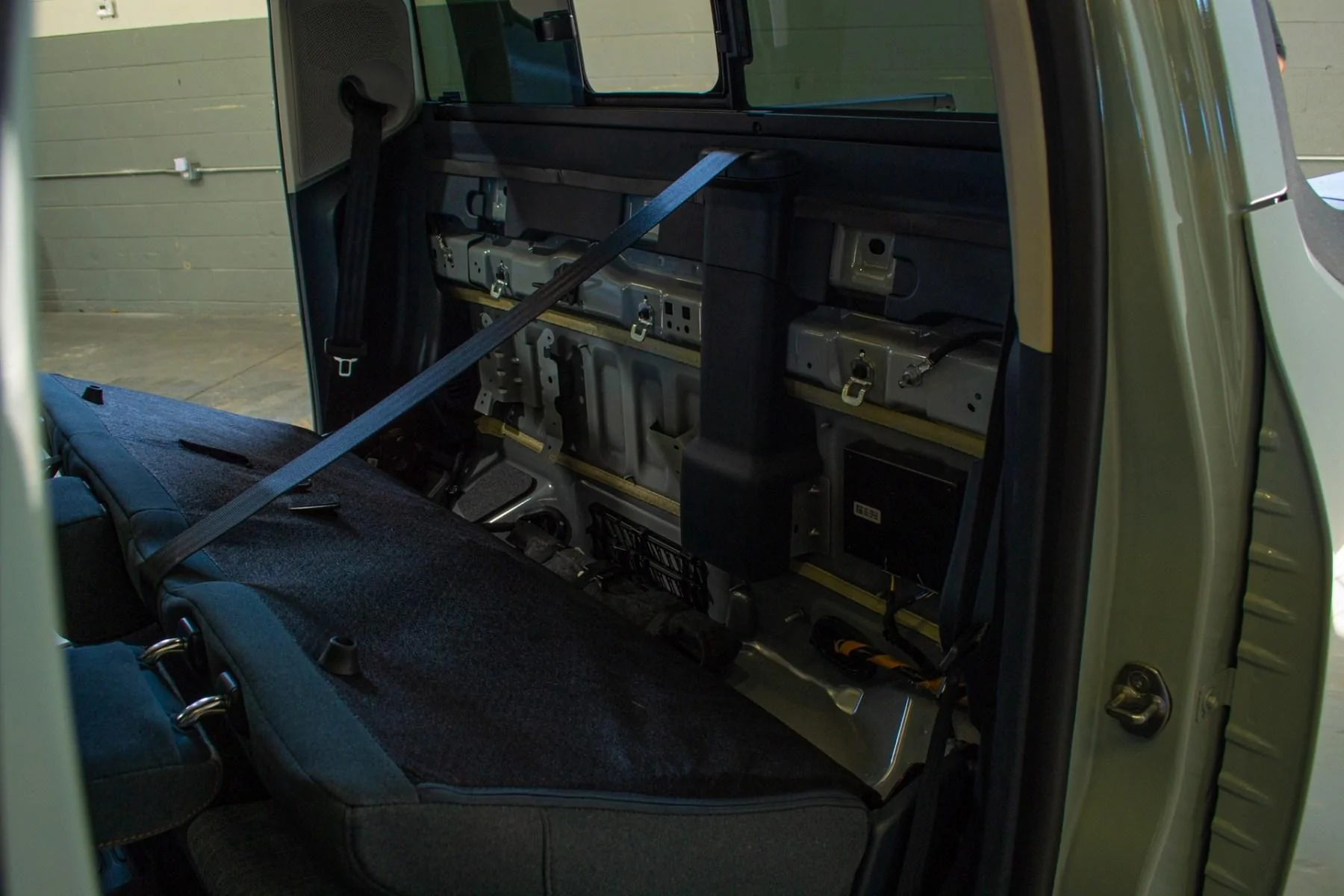

Picture #1 behind back seat of a Hybrid Maverick XLT with no 110V/400W Outlets

Picture #2 behind back seat of a EcoBoost Maverick Lariat with LUX package and has both 110V/400W Outlets

Picture #3 EcoBoost Maverick Lariat with LUX package showing Cab 110V/400W Outlet

Behind Back Seat XLT.JPG


Behind Back Seat Lariat LUX.JPG


110V-400W Cab Outlet.JPG


Decayed

XLT
Well-known member
First Name
yes
Joined
Oct 18, 2021
Threads
23
Messages
1,804
Reaction score
2,874
Location
Directly above the center of the Earth
Vehicle(s)
a car
Trim
XLT
Picture #1 behind back seat of a Hybrid Maverick XLT with no 110V/400W Outlets

Picture #2 behind back seat of a EcoBoost Maverick Lariat with LUX package and has both 110V/400W Outlets

Picture #3 EcoBoost Maverick Lariat with LUX package showing Cab 110V/400W Outlet

Behind Back Seat XLT.JPG


Behind Back Seat Lariat LUX.JPG


110V-400W Cab Outlet.JPG
Second pic, what is the silver box with the cooling fins? Is that the inverter or the B&O amplifier? It's kind of big for a 400 watt inverter.

Last edited:

TacoHolder

XLT
Well-known member
Joined
Nov 13, 2021
Threads
9
Messages
522
Reaction score
1,056
Location
Phoenix AZ
Vehicle(s)
Not Mav
Trim
XLT
I have occasion to power up a laptop and office in my vehicle, so looking for the cleanest install options.
I wonder if it would be safe to replace the console USB fuse with a 10A or 15A and use a USB to barrel plug adapter to power your laptop. You don't actually need an inverter just to use an AC adapter to convert back to DC. AFAIK the rear console USB has a 5A fuse behind it and the front ports wire directly to the infotainment system.
