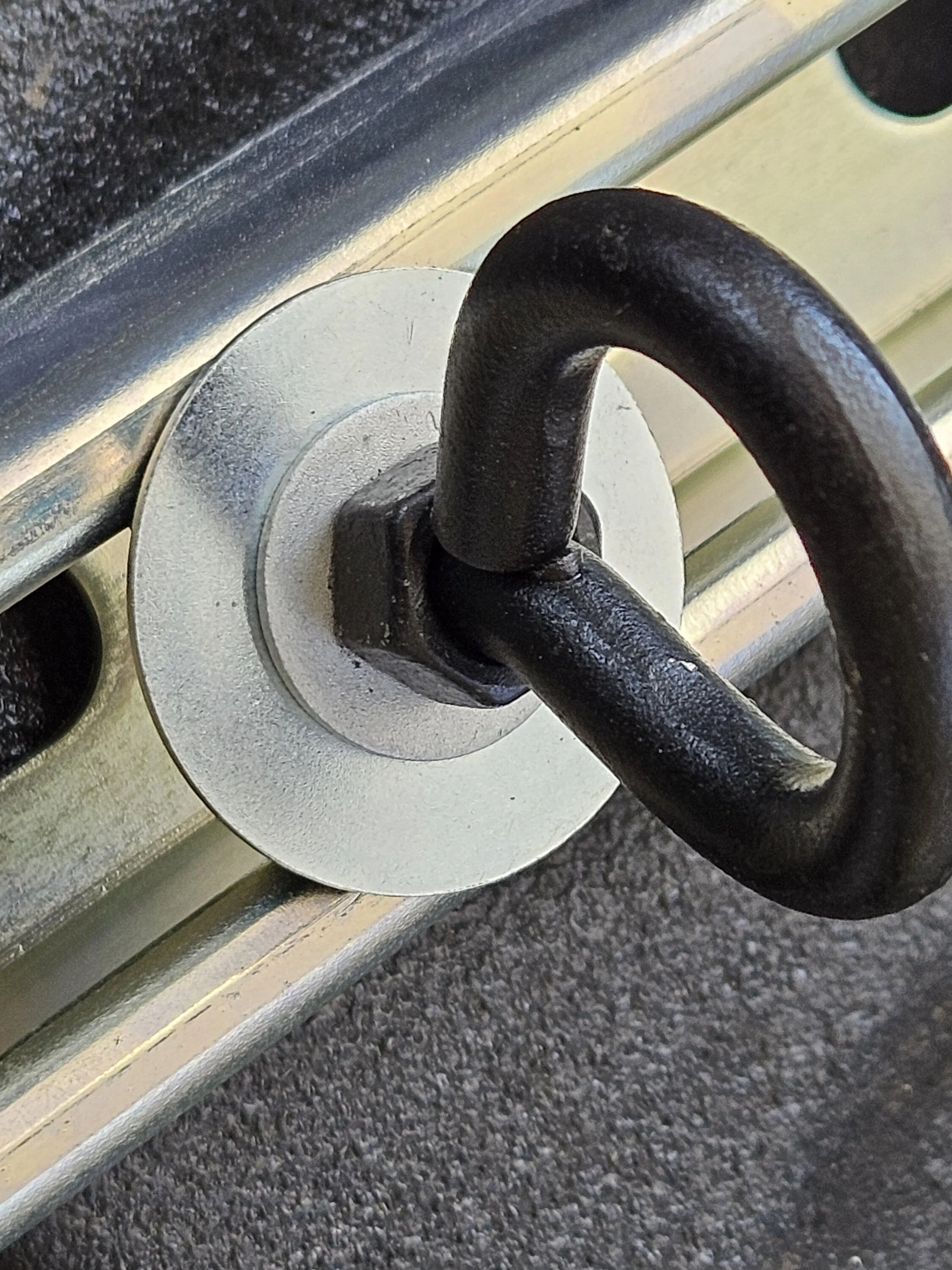

All parts purchased at Home Depot except the eye bolts and they were bought from Lowes. The eye bolts weren't the shoulder variety, but they had a nut that I torqued up against the eye and that provided a shoulder for the flange washer. The flange washer deformed when the eye bolt was tightened, so I added an additional washer to stiffen things up. Rail lengths are 30" per the Ford video.

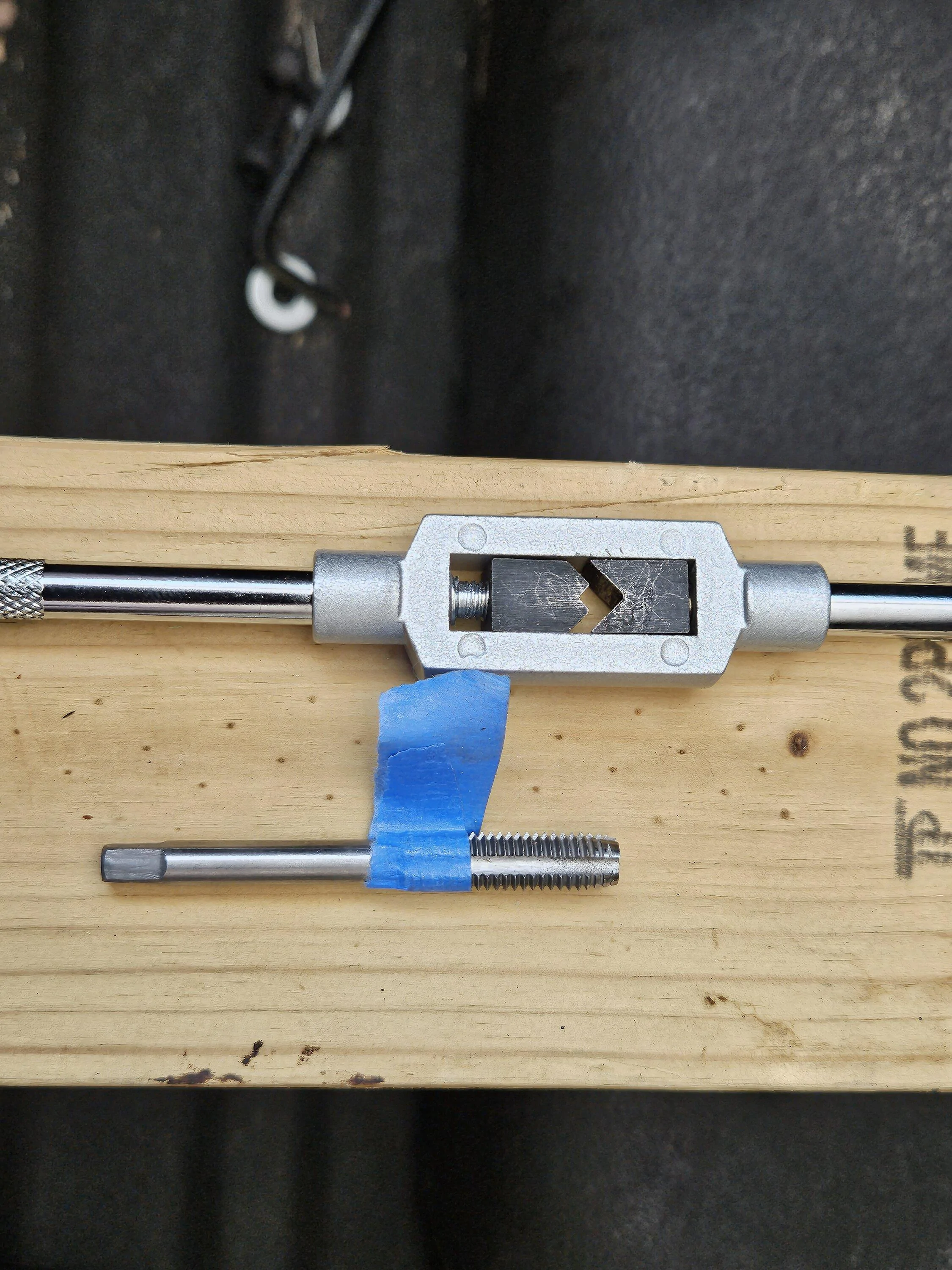

There were only two open M8 bolt holes per rail in the bed, so that's all I used to attach. Each eye bolt was rated at 160lbs each according to the package, but I don't anticipate that I'll be pulling the Queen Elizabeth II...only hauling furniture or a refrigerator from time to time. Had to cut the eye bolts to 11/16 length. Also had to ream the paint out of each of the bolt holes with an M8 tap.

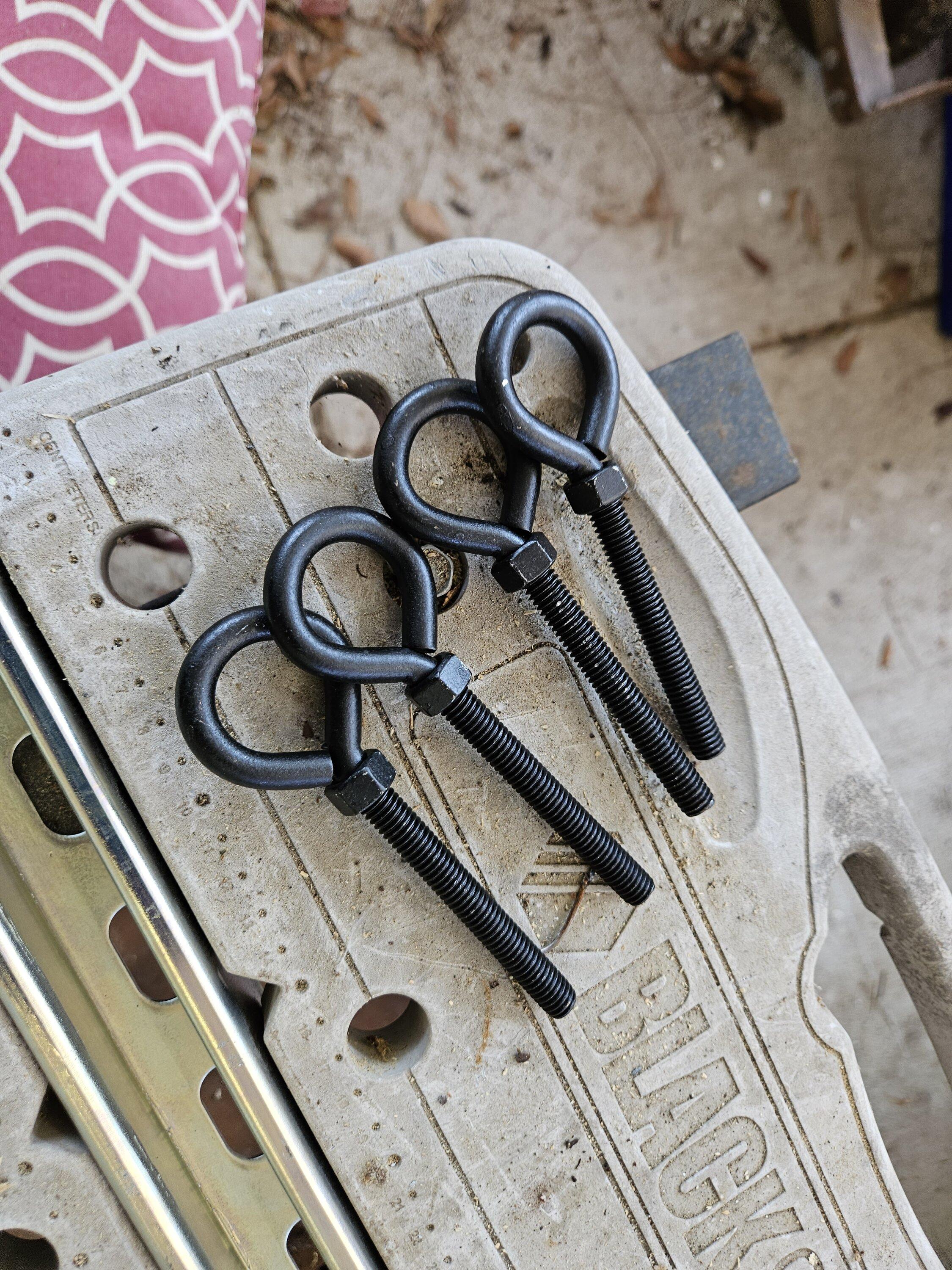

Ford Maverick My DIY Bed Rail... 20230909_105452

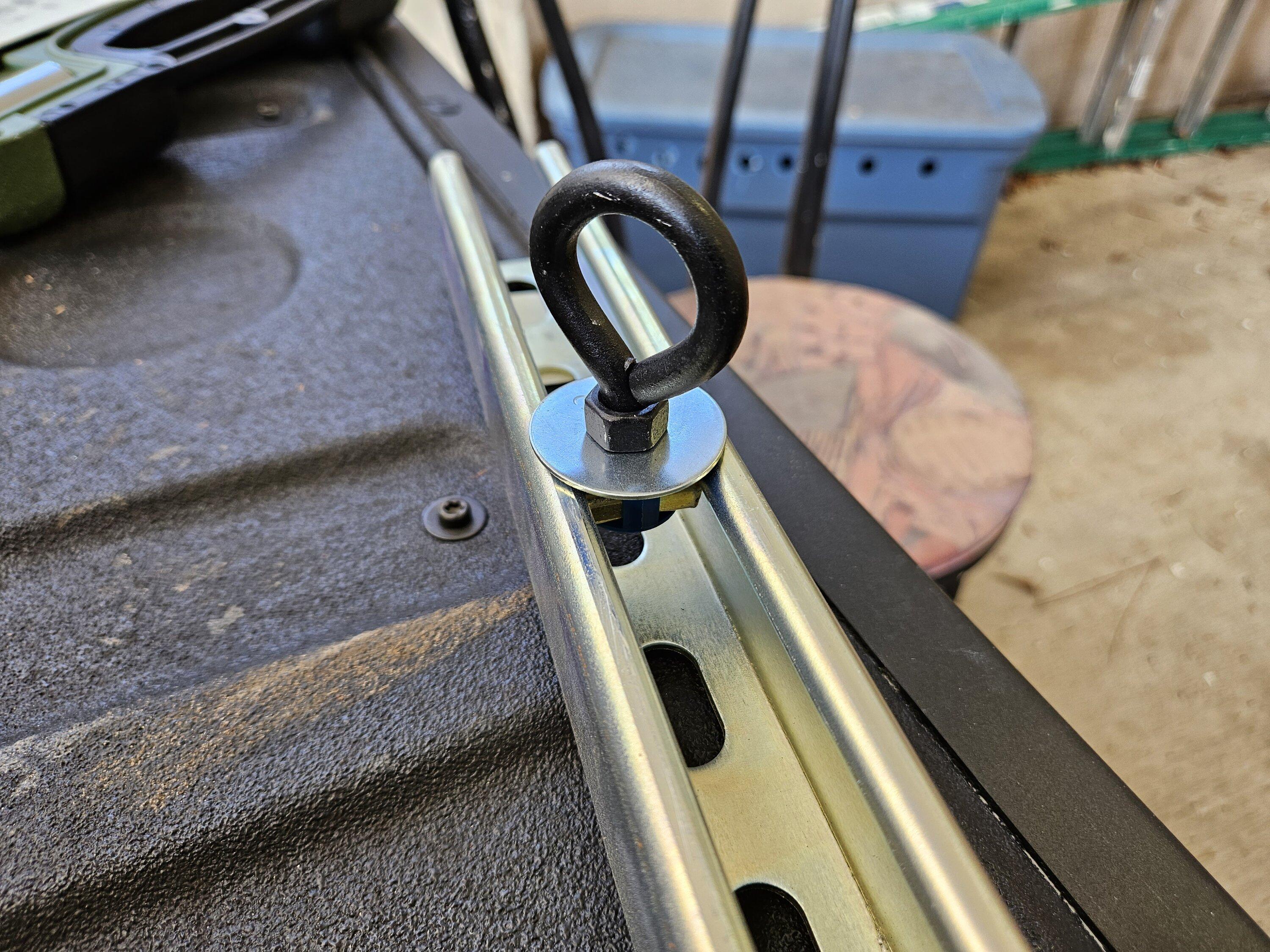

Ford Maverick My DIY Bed Rail... 20230909_105959

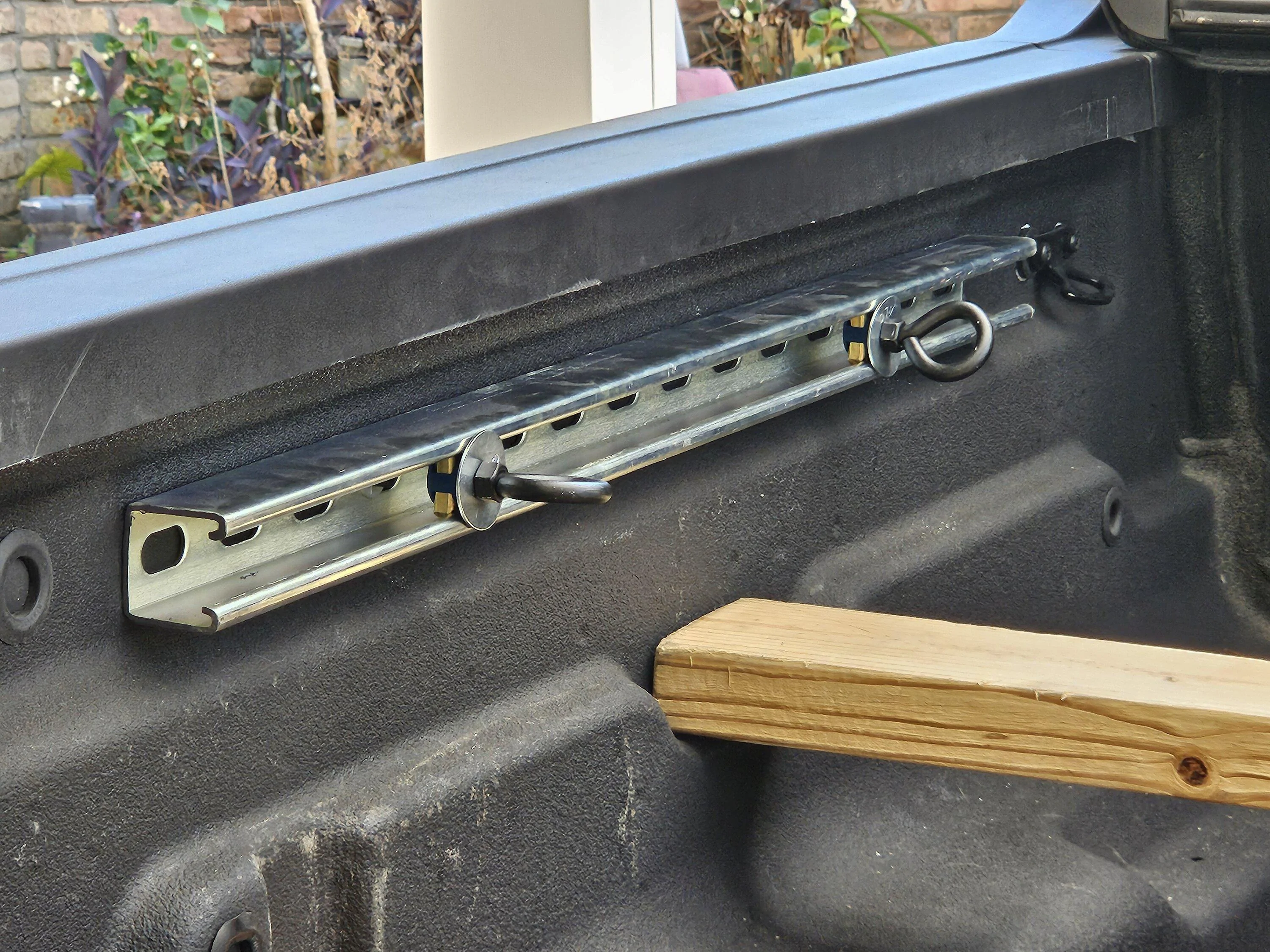

Ford Maverick My DIY Bed Rail... 20230909_112337
Ford Maverick My DIY Bed Rail... 20230909_112728
Ford Maverick My DIY Bed Rail... 20230909_114054

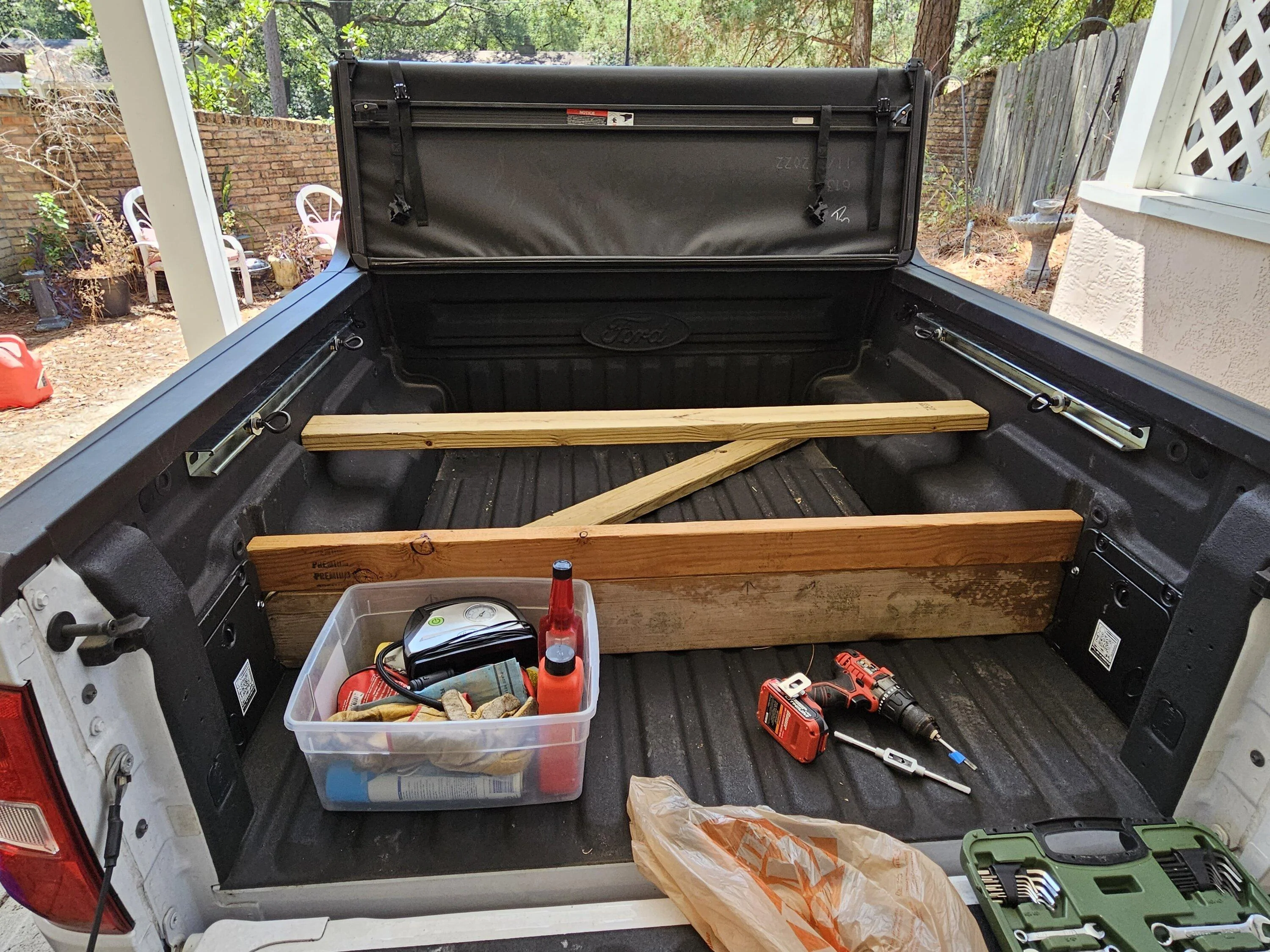

Ford Maverick My DIY Bed Rail... 20230909_120133
Sponsored



KeithVi

2.5L Hybrid
Well-known member
First Name
Keith
Joined
Jul 5, 2022
Threads
3
Messages
48
Reaction score
41
Location
70817
Vehicle(s)
Toyota Camry SE
Engine
2.5L Hybrid
If your XL had the six bed tie downs would you have needed/installed the strut eyelets?

OP
OP
fretman_2

fretman_2

2.0L EcoBoost
Member
First Name
Bill
Joined
Aug 9, 2023
Threads
6
Messages
14
Reaction score
21
Location
Mobile, AL
Vehicle(s)
2022 Maverick XL
Engine
2.0L EcoBoost
That's a good question. Mine only had 4 originally. If it did have six, I probably would have installed this anyway. I'll likely put in two more eyelets...never can have too many tie down points I'm thinking.
