Just finished looking at a Lariat 2.0 trainer. I did a lot of measuring inside and out for my own purposes and to answer a variety of posts asking for details. Note: this was not a precise job of measuring, but should suffice to answer some questions.

Bed diagonal measurement, tailgate up = 75" inches
Half open "plywood" mode diagonal was = 92" inches
Pplywood mode the bed depth (cab to top of tailgate)= 77" inches
Ground to bottom of hitch receiver = 15.75 inches
Top of hitch receiver to open tailgate was only 3-4 inches, could be a problem opening tailgate when hooked-up to a trailer.​
Step-in height to front seats = 18.5 " inches
Console dimensions = 7" x 6" and 9" inches deep
Little cubby in front of console = 6" x 3" inches
Under seat storage (non-hybrid) - 2 outside storage pods = 19" x 10" with and 9.5" inches deep.​
Storage behind rear seatback - some small items could be stored here, especially if not too tall. I did place my 3" diameter water bottle there and could lock the seat back with no problem. Note: this water bottle did fit in all of the beverage holders in the truck.​
Storage with rear seat up - with the front seats back there was only 16" between the front seats and the raised rear seat. I measured 40" from the top of the storage cubbies to the roof.​

That's all folks! I hope it helps.
Advertisement



casanewt

XLT
Well-known member
Joined
Jul 22, 2021
Messages
261
Reaction score
375
Location
Cincinnati
Vehicle(s)
XLT Hybrid Lux C360 Area 51
Trim
XLT
Bed diagonal measurement, tailgate up = 75" inches
Half open "plywood" mode diagonal was = 92" inches
Pplywood mode the bed depth (cab to top of tailgate)= 77" inches
So, just to double-check, the 77" is bed length with tailgate in the mid-position that matches with the tops of the wheel arches? That measurement would reinforce the 79" measurement we have heard with tailgate all the way down(which includes the plastic trim on top edge).


Hot Runr Guy

Well-known member
First Name
Terry
Joined
Apr 27, 2021
Messages
247
Reaction score
332
Location
West Chicago, IL
Vehicle(s)
2018Escape, 2019 Edge
Trim
Undecided
Just finished looking at a Lariat 2.0 trainer. I did a lot of measuring inside and out for my own purposes and to answer a variety of posts asking for details. Note: this was not a precise job of measuring, but should suffice to answer some questions.

Ground to bottom of hitch receiver = 15.75 inches
Top of hitch receiver to open tailgate was only 3-4 inches, could be a problem opening tailgate when hooked-up to a trailer.


That's all folks! I hope it helps.
Yeap, I can see the potential for some dented tailgates,,,,

Thanks for taking the time, HRG

OP
OP

Camodude

XLT
Well-known member
First Name
Ed
Joined
Jun 23, 2021
Messages
46
Reaction score
70
Location
Minnesota
Vehicle(s)
Honda Ridgeline
Trim
XLT
So, just to double-check, the 77" is bed length with tailgate in the mid-position that matches with the tops of the wheel arches? That measurement would reinforce the 79" measurement we have heard with tailgate all the way down(which includes the plastic trim on top edge).
Correct.


notfast

Well-known member
Joined
Jun 25, 2021
Messages
322
Reaction score
472
Location
Los Angeles CA
Vehicle(s)
Nissan Frontier SV 4x4
Trim
Undecided
Ground to bottom of hitch receiver = 15.75 inchesTop of hitch receiver to open tailgate was only 3-4 inches, could be a problem opening tailgate when hooked-up to a trailer.
Wow, the hitch is higher than the OEM hitch on my '16 Nissan Frontier 4x4, which is 14.5". I use a 2 3/4" rise ball mount, which holds U-haul trailers at just the perfect slight-nose-high attitude. All U-haul trailers have an 18" coupler height when level.

Yeap, I can see the potential for some dented tailgates,,,,
My thought as well. I'm going to have to put a warning label on the top edge of the tailgate to remind myself!


theek

XLT
Well-known member
First Name
Michael
Joined
Jan 11, 2021
Messages
553
Reaction score
776
Location
Ottawa Canada
Vehicle(s)
Honda CR-V, Subaru CrossTrek
Trim
XLT
You can probably fit a collapsible shovel behind the seat.


theek

XLT
Well-known member
First Name
Michael
Joined
Jan 11, 2021
Messages
553
Reaction score
776
Location
Ottawa Canada
Vehicle(s)
Honda CR-V, Subaru CrossTrek
Trim
XLT
Somebody is going to have to come up with a winter safety kit that fits in one of the rear seat storage bins.


doug2104

XLT
Well-known member
First Name
JD
Joined
Jul 14, 2021
Messages
100
Reaction score
151
Location
East Coast
Vehicle(s)
2010 F150
Trim
XLT
Wow, the hitch is higher than the OEM hitch on my '16 Nissan Frontier 4x4, which is 14.5". I use a 2 3/4" rise ball mount, which holds U-haul trailers at just the perfect slight-nose-high attitude. All U-haul trailers have an 18" coupler height when level.



My thought as well. I'm going to have to put a warning label on the top edge of the tailgate to remind myself!
That info about All U-haul trailers have an 18" coupler height when level was very valuable information. Thank You notfast.

OP
OP

Camodude

XLT
Well-known member
First Name
Ed
Joined
Jun 23, 2021
Messages
46
Reaction score
70
Location
Minnesota
Vehicle(s)
Honda Ridgeline
Trim
XLT
You can probably fit a collapsible shovel behind the seat.
Good idea! I'm planning to make a piece of plywood to create a flat surface over the under seat storage cubbies. I think this plywood will store nicely behind the seatback.


notfast

Well-known member
Joined
Jun 25, 2021
Messages
322
Reaction score
472
Location
Los Angeles CA
Vehicle(s)
Nissan Frontier SV 4x4
Trim
Undecided
That info about All U-haul trailers have an 18" coupler height when level was very valuable information. Thank You notfast.
I found that measurement on their web site somewhere and confirmed it when I rented trailers several times. But you can sort of see that when driving by any U-haul location. The small 4x6 trailers on the little 8" wheels have a trailer tongue with an upward "S" bend to get the coupler higher. The bigger/taller the trailer, the less the "S" bend is.

The big 6x12 trailers with surge brakes have level trailer tongues since the surge brake coupler drops down a couple inches from the tongue.


doug2104

XLT
Well-known member
First Name
JD
Joined
Jul 14, 2021
Messages
100
Reaction score
151
Location
East Coast
Vehicle(s)
2010 F150
Trim
XLT
I found that measurement on their web site somewhere and confirmed it when I rented trailers several times. But you can sort of see that when driving by any U-haul location. The small 4x6 trailers on the little 8" wheels have a trailer tongue with an upward "S" bend to get the coupler higher. The bigger/taller the trailer, the less the "S" bend is.

The big 6x12 trailers with surge brakes have level trailer tongues since the surge brake coupler drops down a couple inches from the tongue.
Thank You for the additional info on the U-hauls.


CoryDallas8123

XLT
Well-known member
First Name
Cory
Joined
Jul 2, 2021
Messages
625
Reaction score
1,176
Location
Dallas, TX
Vehicle(s)
Audi A4, Chevy Chevelle SS, 2022 Maverick XLT
Trim
XLT
Vehicle Showcase
1
Just finished looking at a Lariat 2.0 trainer. I did a lot of measuring inside and out for my own purposes and to answer a variety of posts asking for details. Note: this was not a precise job of measuring, but should suffice to answer some questions.

Bed diagonal measurement, tailgate up = 75" inches
Half open "plywood" mode diagonal was = 92" inches
Pplywood mode the bed depth (cab to top of tailgate)= 77" inches
Ground to bottom of hitch receiver = 15.75 inches
Top of hitch receiver to open tailgate was only 3-4 inches, could be a problem opening tailgate when hooked-up to a trailer.​
Step-in height to front seats = 18.5 " inches
Console dimensions = 7" x 6" and 9" inches deep
Little cubby in front of console = 6" x 3" inches
Under seat storage (non-hybrid) - 2 outside storage pods = 19" x 10" with and 9.5" inches deep.​
Storage behind rear seatback - some small items could be stored here, especially if not too tall. I did place my 3" diameter water bottle there and could lock the seat back with no problem. Note: this water bottle did fit in all of the beverage holders in the truck.​
Storage with rear seat up - with the front seats back there was only 16" between the front seats and the raised rear seat. I measured 40" from the top of the storage cubbies to the roof.​

That's all folks! I hope it helps.
Thank you for confirming the under seat dims. I’ve meant to get a measurement myself but forget my tape measure or am too excited and just plain forget. Glad to see my better than scissor jack will fit. Thanks!


Hot Runr Guy

Well-known member
First Name
Terry
Joined
Apr 27, 2021
Messages
247
Reaction score
332
Location
West Chicago, IL
Vehicle(s)
2018Escape, 2019 Edge
Trim
Undecided
I found that measurement on their web site somewhere and confirmed it when I rented trailers several times. But you can sort of see that when driving by any U-haul location. The small 4x6 trailers on the little 8" wheels have a trailer tongue with an upward "S" bend to get the coupler higher. The bigger/taller the trailer, the less the "S" bend is.

The big 6x12 trailers with surge brakes have level trailer tongues since the surge brake coupler drops down a couple inches from the tongue.
Interesting that they define the dimension to the "middle" of the hitch ball.

HRG

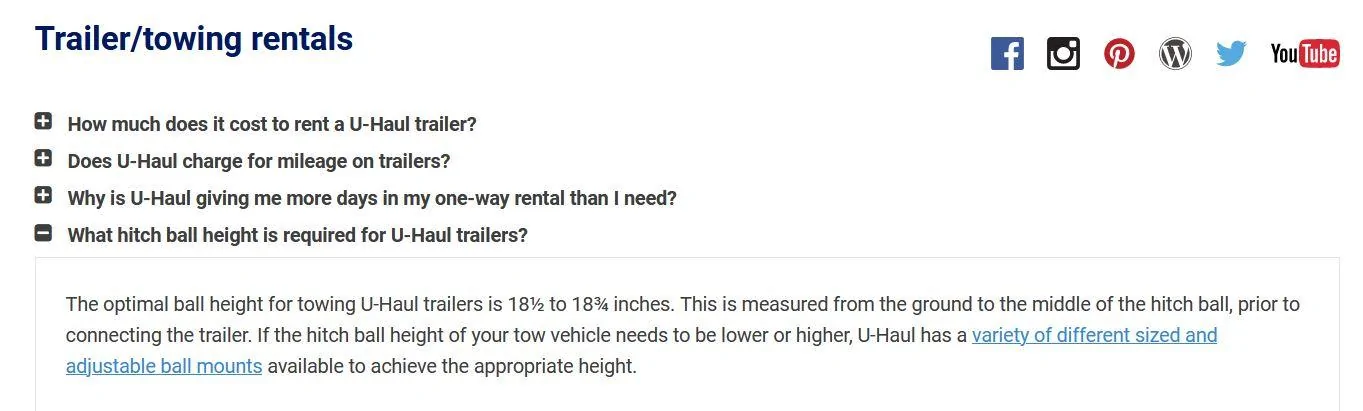

From their FAQ's https://www.uhaul.com/FrequentlyAskedQuestions/Trailer-Towing-Rentals/

U-haul hitch ball height.JPG


pnorwood54

XLT
Well-known member
First Name
paul
Joined
Jul 24, 2021
Messages
185
Reaction score
159
Location
37377
Vehicle(s)
kia niro
Trim
XLT
do we know how long the 2x4/2x6s need to be for the DYI bed dividers?


Hack

XLT
Well-known member
First Name
Hack
Joined
Jun 13, 2021
Messages
112
Reaction score
102
Location
Sandia Park, NM
Vehicle(s)
2005 & 2018 Honda CRV
Trim
XLT
Just finished looking at a Lariat 2.0 trainer. I did a lot of measuring inside and out for my own purposes and to answer a variety of posts asking for details. Note: this was not a precise job of measuring, but should suffice to answer some questions.

Bed diagonal measurement, tailgate up = 75" inches
Half open "plywood" mode diagonal was = 92" inches
Pplywood mode the bed depth (cab to top of tailgate)= 77" inches
Ground to bottom of hitch receiver = 15.75 inches
Top of hitch receiver to open tailgate was only 3-4 inches, could be a problem opening tailgate when hooked-up to a trailer.​
Step-in height to front seats = 18.5 " inches
Console dimensions = 7" x 6" and 9" inches deep
Little cubby in front of console = 6" x 3" inches
Under seat storage (non-hybrid) - 2 outside storage pods = 19" x 10" with and 9.5" inches deep.​
Storage behind rear seatback - some small items could be stored here, especially if not too tall. I did place my 3" diameter water bottle there and could lock the seat back with no problem. Note: this water bottle did fit in all of the beverage holders in the truck.​
Storage with rear seat up - with the front seats back there was only 16" between the front seats and the raised rear seat. I measured 40" from the top of the storage cubbies to the roof.​

That's all folks! I hope it helps.
It's a small thing, but I'm wanting to know the distance from the 2x6 slot to the closed tailgate. 'Seems to me the perfect place to store groceries and hardware after a Costco/Home Depot run. I'm going to get the hard tri-fold tonneau, so it would be safely hidden and out of harms way.
