Modules included with Trim Levels and Options found by FORScan

[Automate]

Putting together a table of what modules come with which trim levels and options. This will server a few purposes:

• First it will help us understand the build constraints better to know which modules (and therefore chips) come with which options.
• Second, for anyone wanting to try and upgrade their Mav to a higher option level themselves, it will show which modules they need to purchase.
• By comparing '22 modules to '23s we can see what Ford changed

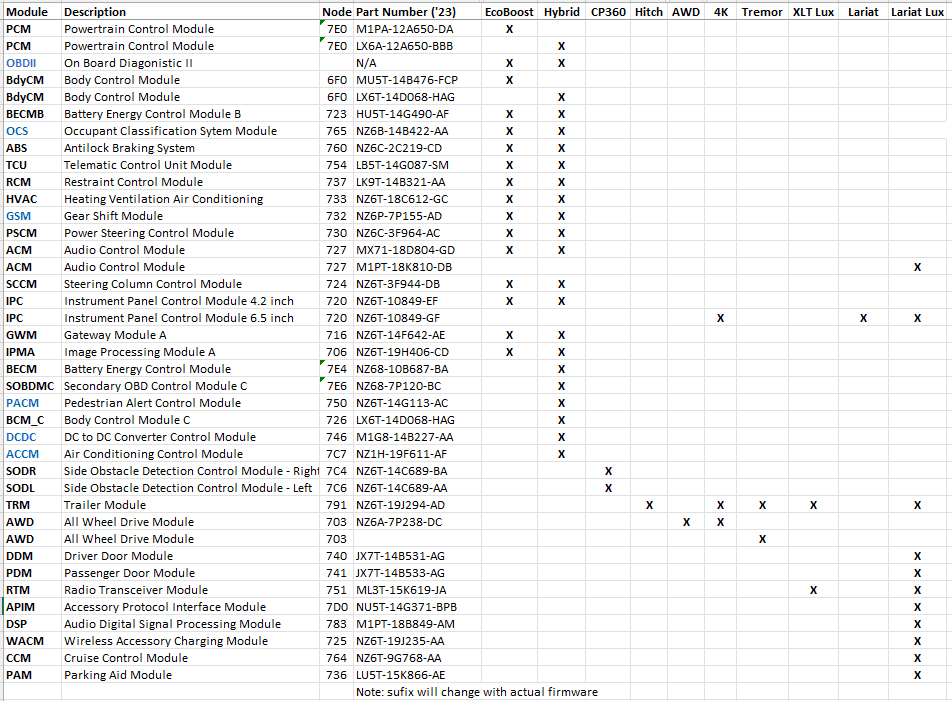

Below is what I have put together so far. It comes from FORScan connection logs from only 4 Mavs and Ford AsBuilt data from other Mavs. The Ford AsBuilt data only includes modules that get configured at the factory. The modules in blue color do not show up in AsBuilt data. They were only discovered by FORScan even though they don't get AsBuilt data.

It would be helpful to have FORScan logs for more vehicles. Ford vehicles include multiple communications busses. So make sure you post a FORScan log with an OBDII adapter that supports both HSCAN and MSCAN such as the very good ODBLink EX. You can also post from the cheaper adapters that have the manual CAN switch, but make sure you switch the switch when told to by FORScan.

Sponsored



[oreomuffin]

Let me know how else I can help.

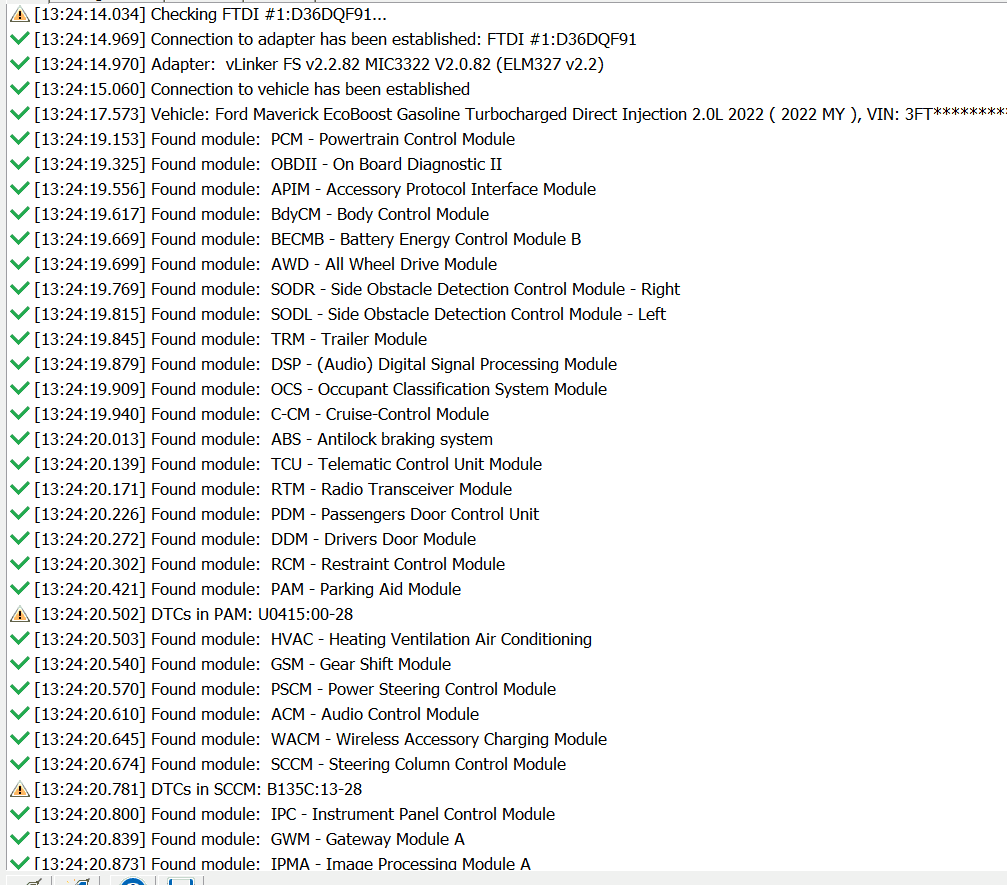

Lariat Lux, 4k, Eco, CP360



[Automate]

Let me know how else I can help.
Lariat Lux, 4k, Eco, CP360

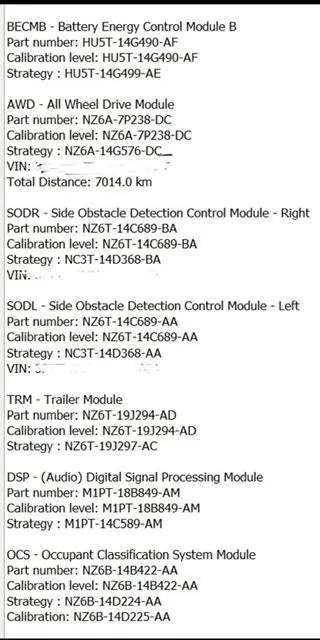

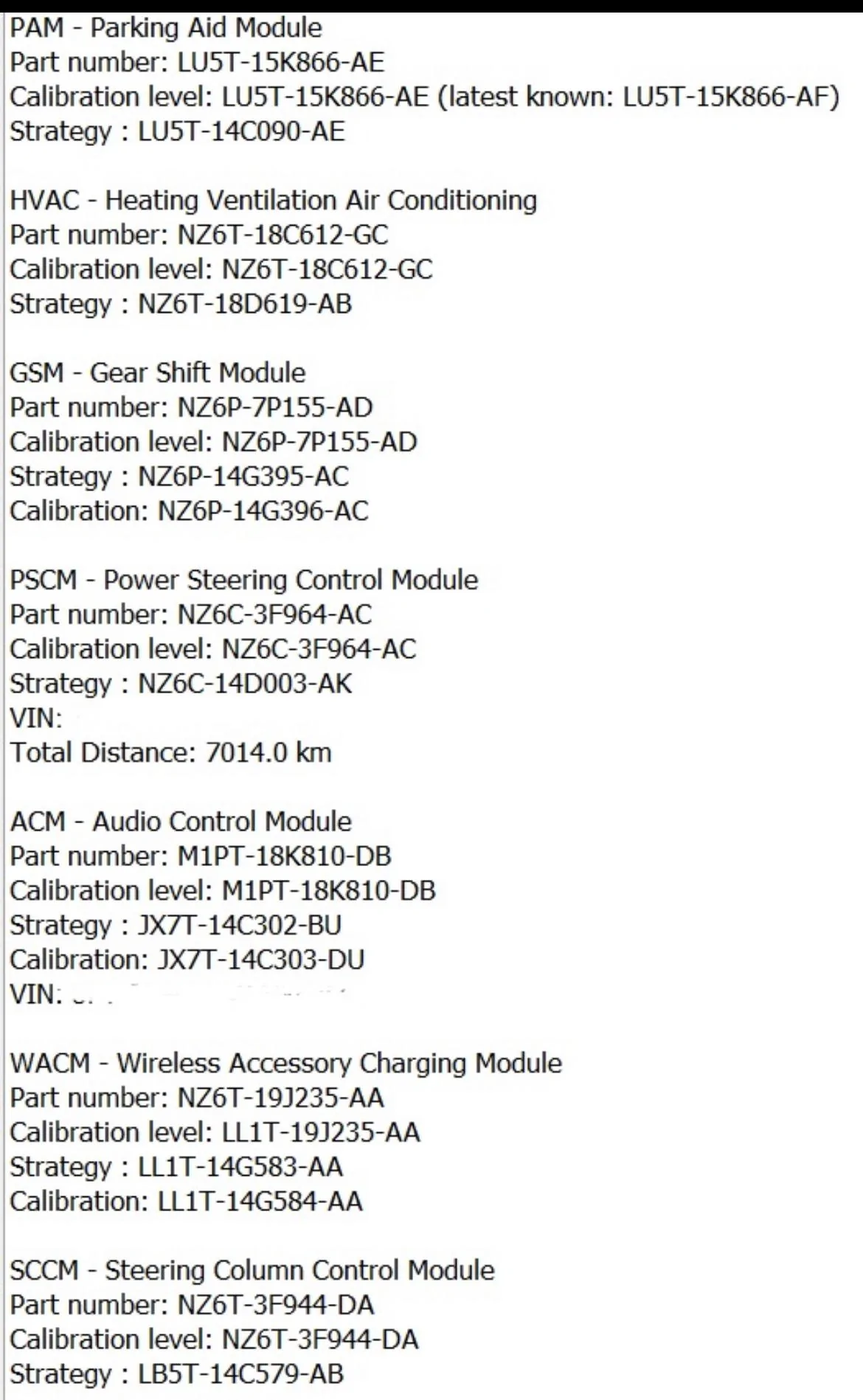

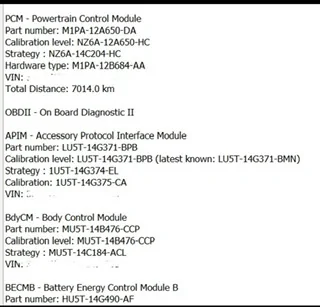

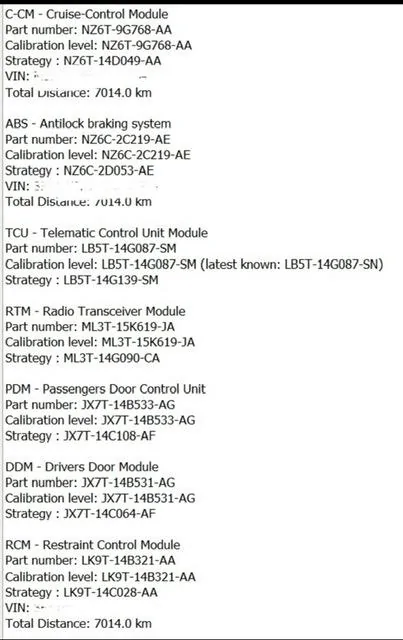

Thanks for posting! Looks like no modules are missing from the table. Your TRM Trailer Module module is interesting. I assumed the 4K package with its 7 pin connector that can drive electric trailer brakes would have a different module than the trailer modules that comes with the trailer hitch $100 option. It may be just the name FORScan is showing but they could be different modules.

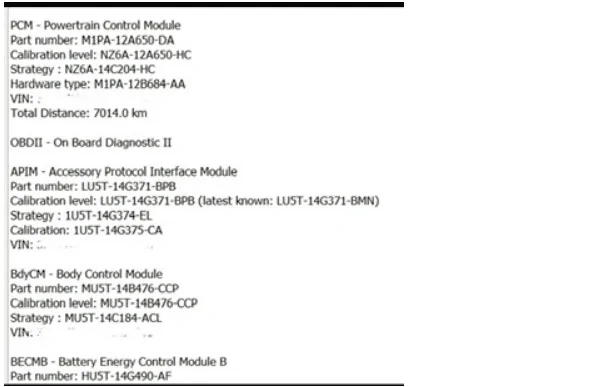

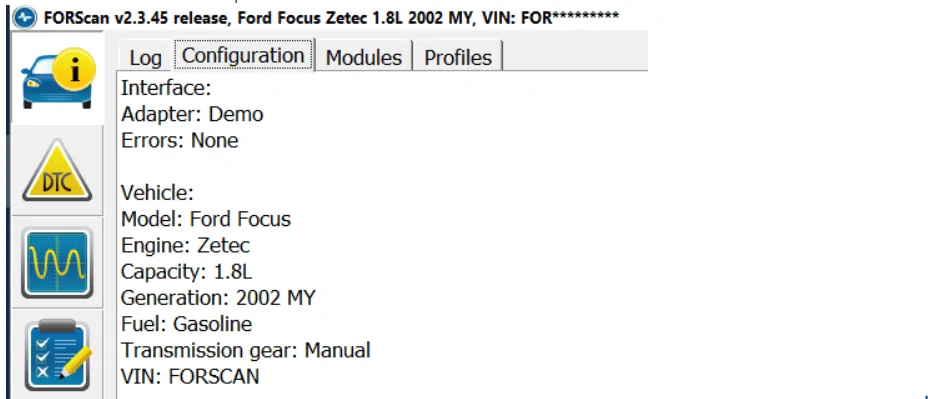

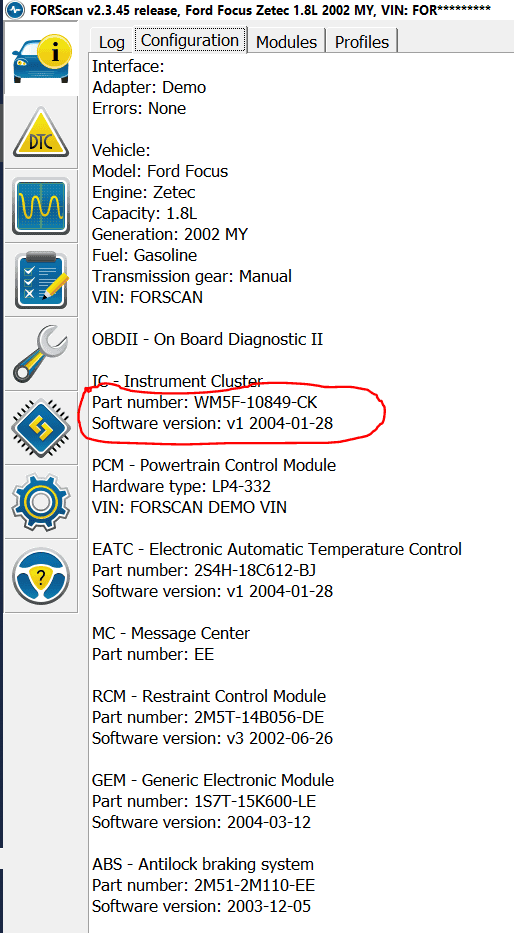

Can you post the actual part numbers from the modules? It requires going to the Configuration tab. You will have to scroll down and do multiple screenshots.



[Dun4791]

Doesn’t fx4 have awd and 6.5 screen?



[Automate]

Doesn’t fx4 have awd and 6.5 screen?

Thanks, I have update the table in the 1st post.



[oreomuffin]

Can you post the actual part numbers from the modules? It requires going to the Configuration tab. You will have to scroll down and do multiple screenshots.



[paneubert]

This is awesome. But it seems a bit odd that the EcoBoost has so many more modules than the hybrid, doesn't it? We kept being told how the Hybrid was so constrained due to the "chips", but this makes a hybrid look easy to build versus an EcoBoost. 15 modules versus 6? I mean, I trust the data. But it blows my mind.



[Automate]

This is awesome. But it seems a bit odd that the EcoBoost has so many more modules than the hybrid, doesn't it? We kept being told how the Hybrid was so constrained due to the "chips", but this makes a hybrid look easy to build versus an EcoBoost. 15 modules versus 6? I mean, I trust the data. But it blows my mind.

Technically the Hybrid is the base model and the EB is the extra cost option. But as far as modules go, the EB has the minimum number of modules. The Hybrid has all the modules of the EB plus the 6 extra modules shown in the table.



[paneubert]

Technically the Hybrid is the base model and the EB is the extra cost option. But as far as modules go, the EB has the minimum number of modules. The Hybrid has all the modules of the EB plus the 6 extra modules show in the table.

Ahh....then the table should be updated to show the same "x" in the Hybrid column as the EcoBoost column, right? It currently makes it looks like EcoBoost and Hybrid share zero modules. Unless I am just being dense.

Really, really awesome post/topic though. I really like it.



[Automate]

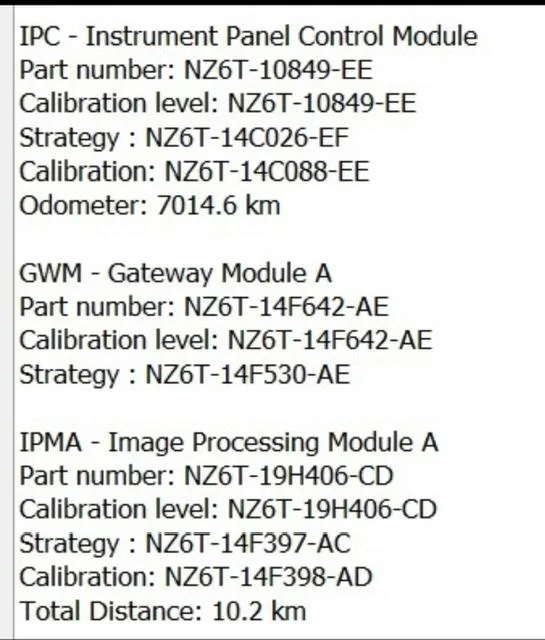

Thanks again for posting. I have updated the first post with the part numbers for your modules.

Now if someone can post the same for a Hybrid, a non-Lariat and a hitch receiver (not 4K) we can fill in the other part numbers.



[Stive]

I do not have my XL Hybrid yet, but I was reading in another post that the cruise control “module?” or it’s access, is in the XL truck. It just needs to be configured with Forscan and the appropriate switches added (simplified for this question). So how does the main OP table reflect that? Or should it?



[Jwhisl]

Not sure if this is helpful or not but the 18b849 cross references to Ford amplifiers and there's a lot of them that share that number. It's listed as a DSP but I bet that's the b&o. m1pt-18b849-am



[Automate]

I do not have my XL Hybrid yet, but I was reading in another post that the cruise control “module?” or it’s access, is in the XL truck. It just needs to be configured with Forscan and the appropriate switches added (simplified for this question). So how does the main OP table reflect that? Or should it?

This is because cruise control does not require any extra modules. The base XL has the capability without any modules, just the switches. You will notice there is not a column for the XLT since the XLT does not get you any extra modules over the XL.

Adaptive cruse control does require an extra module which is shown for the Lariat Lux (CCM).



[Stive]

This is because cruise control does not require any extra modules. The base XL has the capability without any modules, just the switches. You will notice there is not a column for the XLT since the XLT does not get you any extra modules over the XL.

Adaptive cruse control does require an extra module which is shown for the Lariat Lux (CCM).

Got it. Thanks



[TrippMe]

Has anyone back ported adapted CC into a non-lariat yet?

@Automate do you want any more scans for data? I have a XLT, 4k, fx4, lux.
