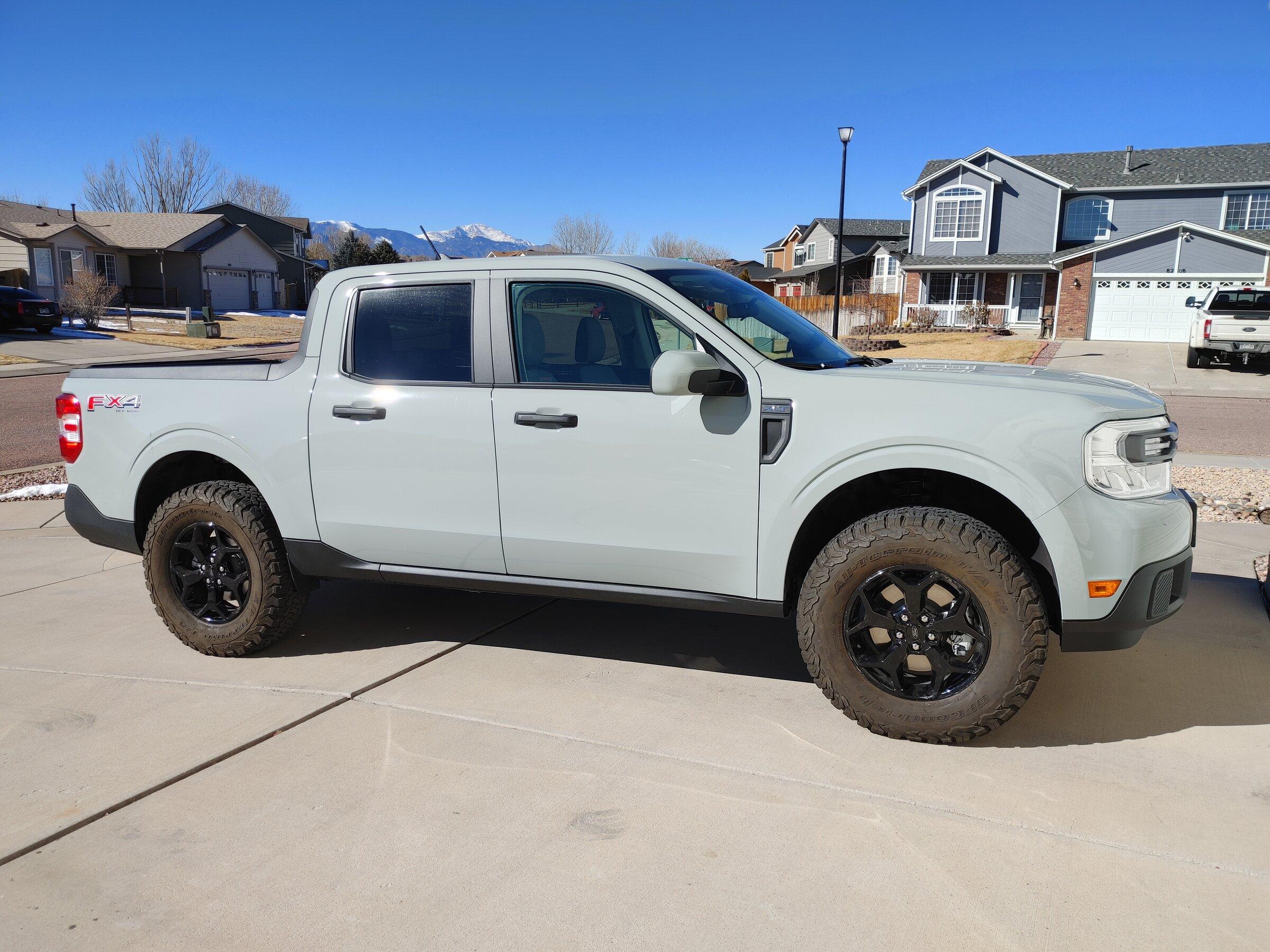

Picked up a 2" level lift from FordRangerLifts.com. Pretty easy install. See my install YouTube video:



I'm running BFG KO2s 255/75R17s on stock wheels. Trimmed the firewall pinch welds down to nearly flush. Good clearance behind front tires now after trimming some fender liner out of the way. There are a lot of electronics in front of the driver front wheel though. After trimming fender liner, the tire barely kisses what appears to be the ECU. Planning on recessing the ECU farther forward and making my own fender liner; out of aluminum, fiberglass, kydex, not sure yet... Update video in near future.



OP
OP

Keikio999

XLT
Well-known member
First Name
Kegan
Joined
Sep 10, 2021
Threads
14
Messages
46
Reaction score
238
Location
Colorado
Vehicle(s)
Fiesta ST
Trim
XLT

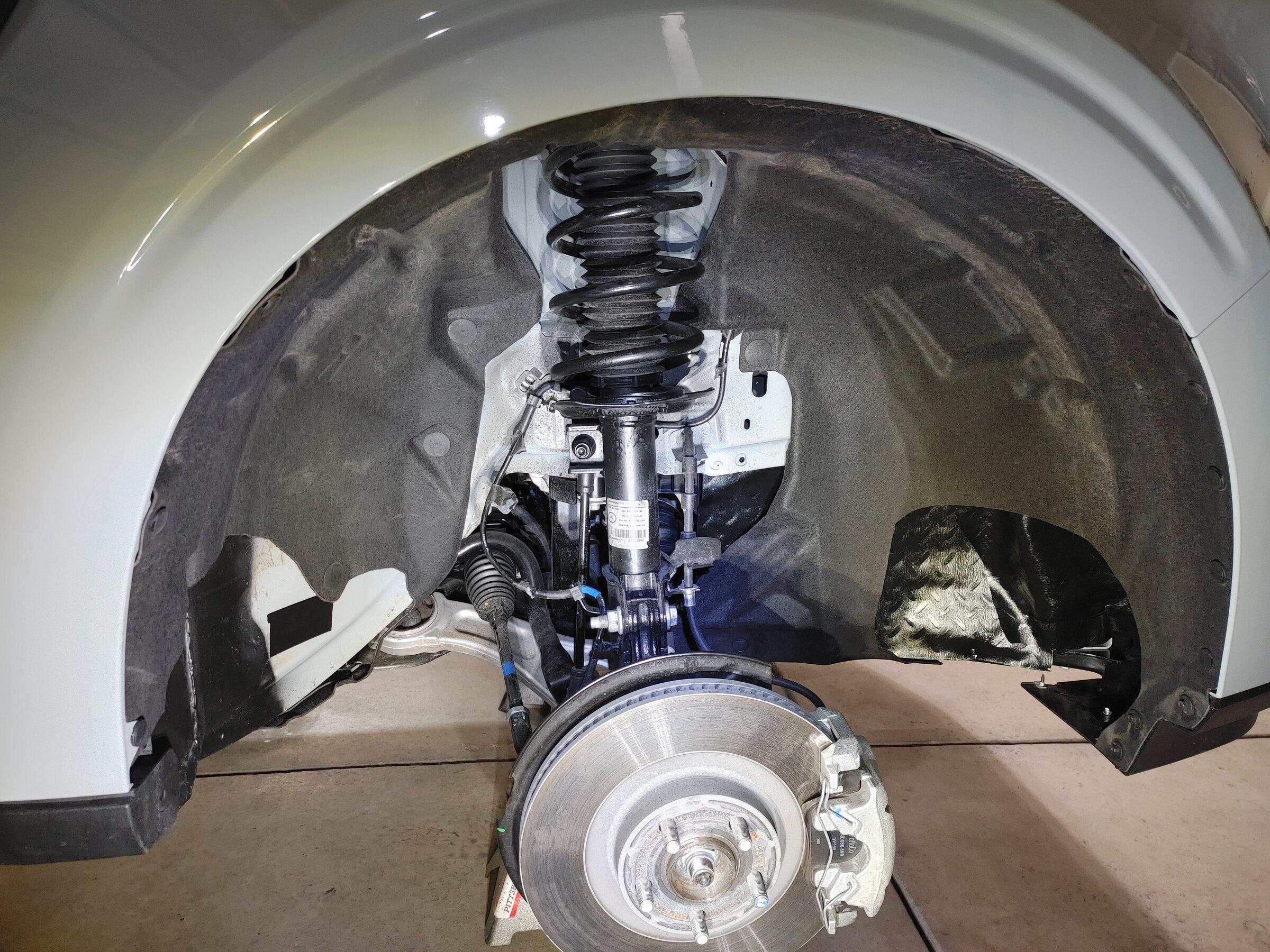

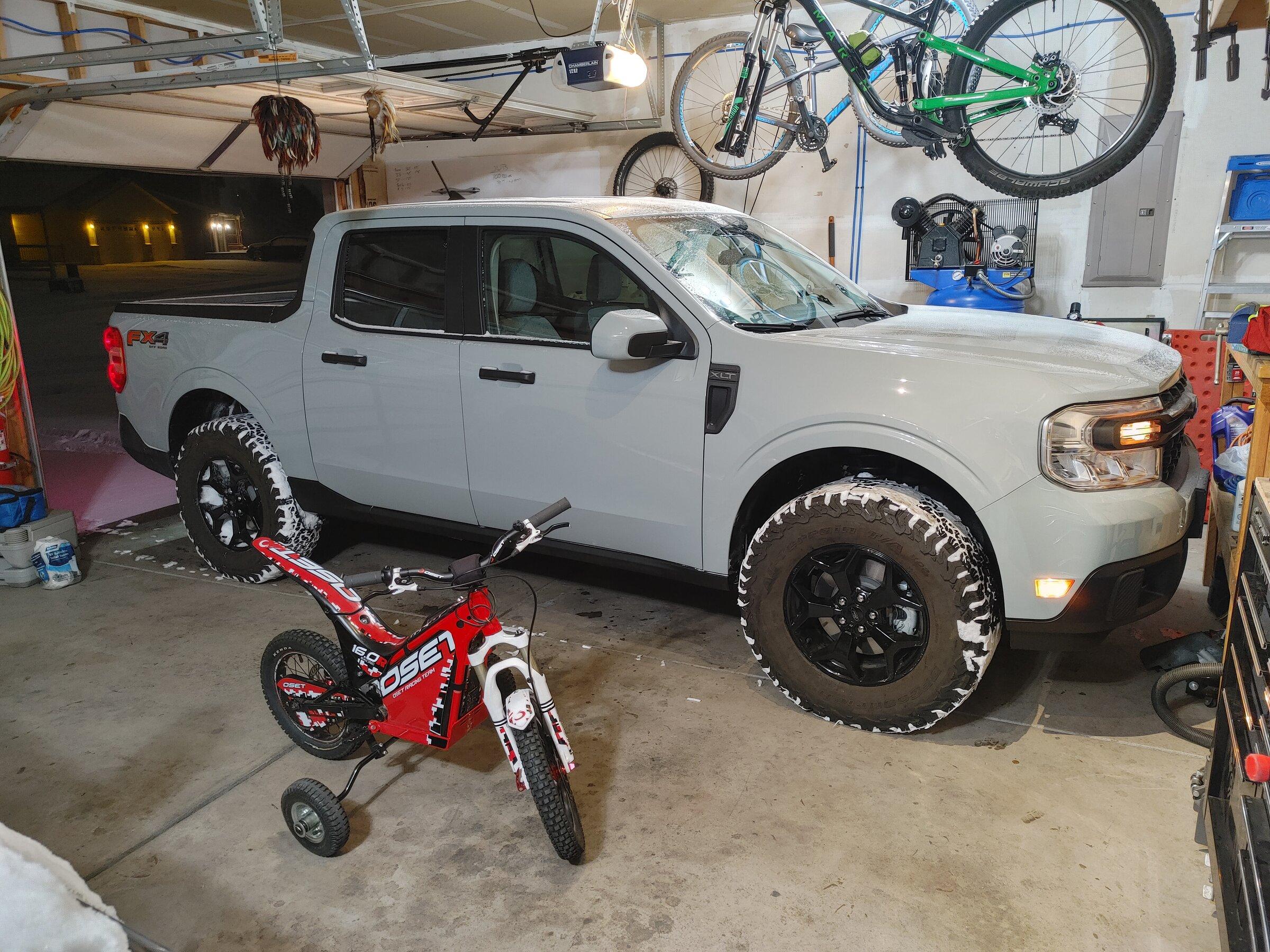

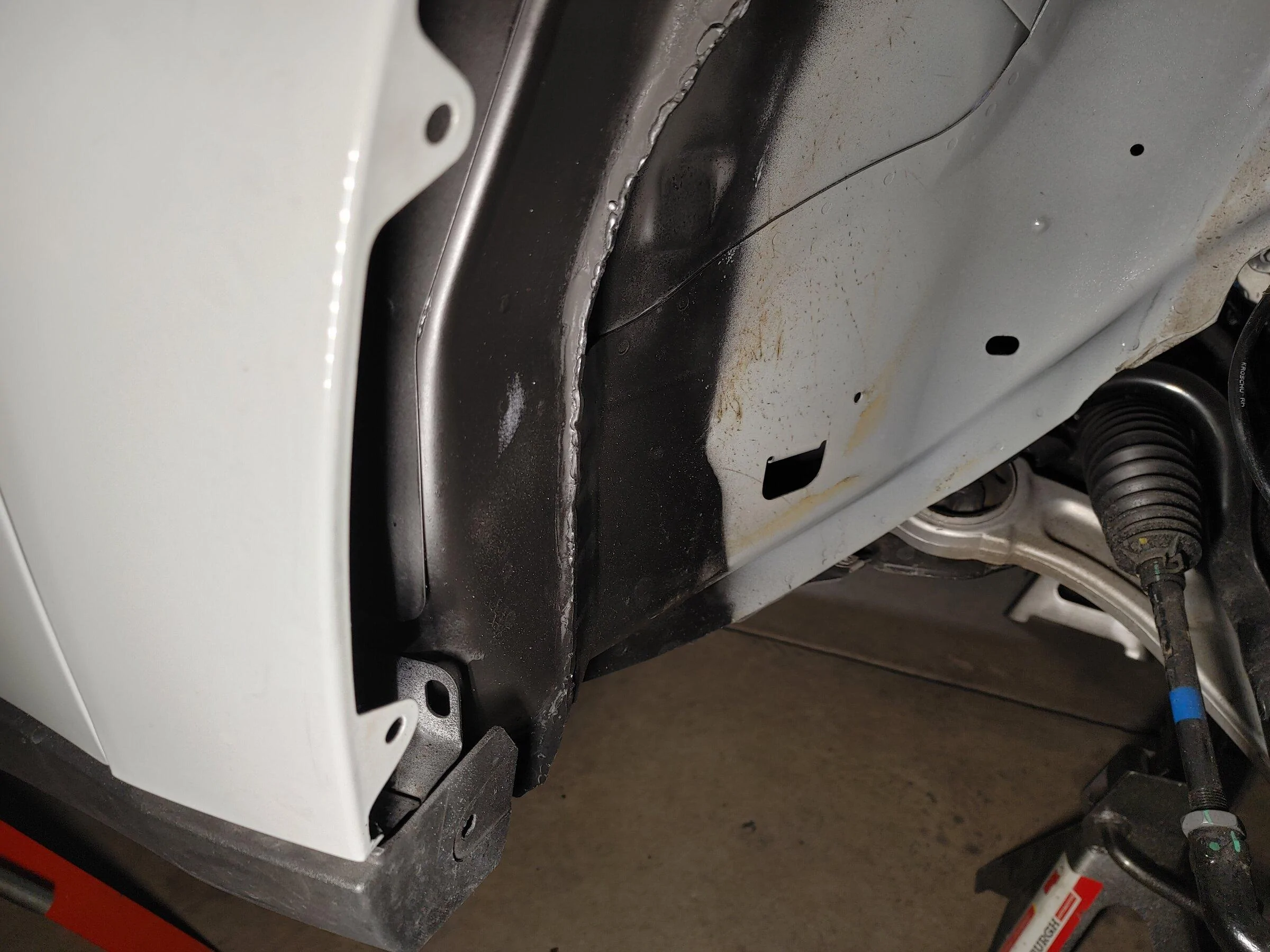

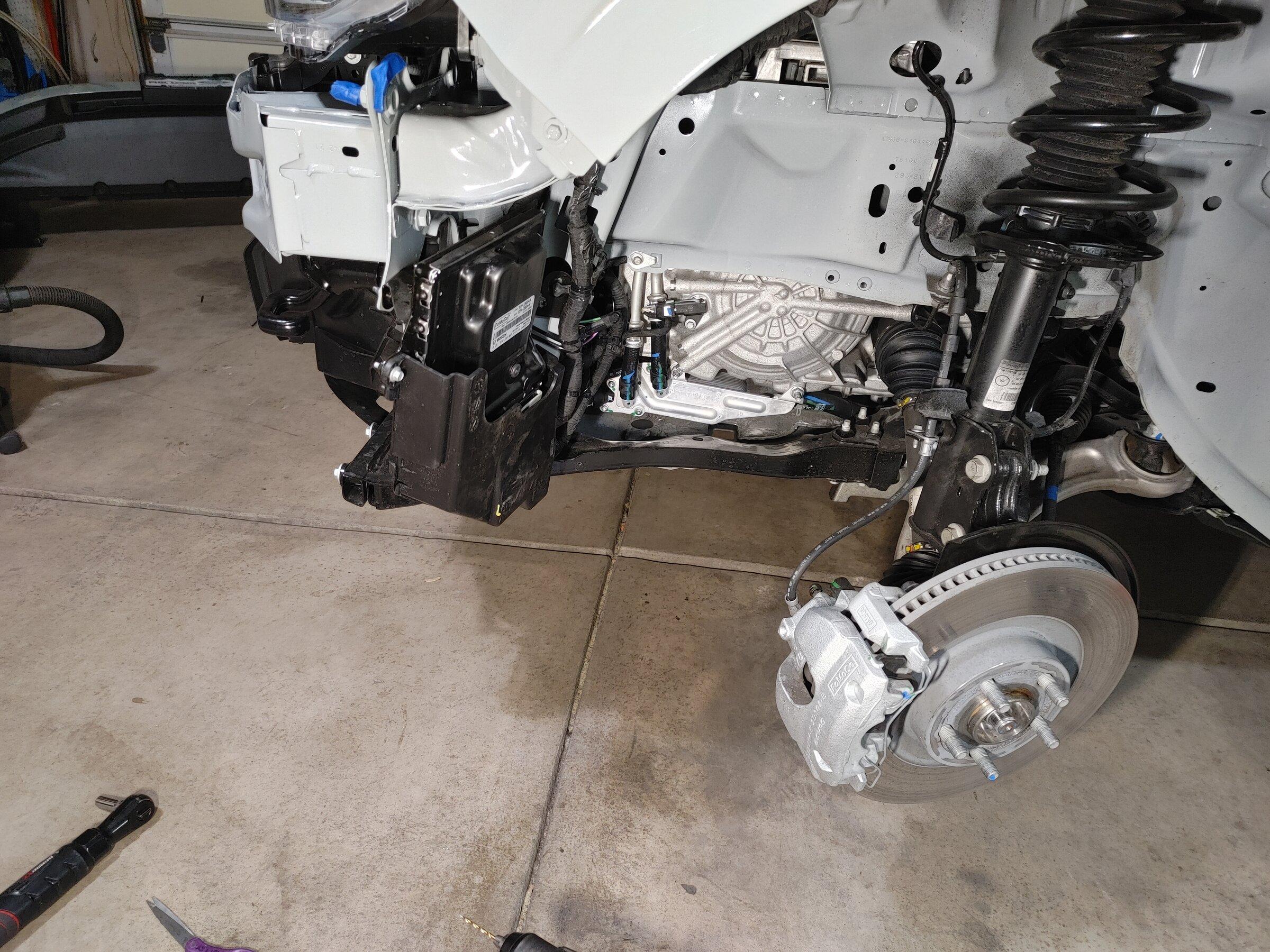

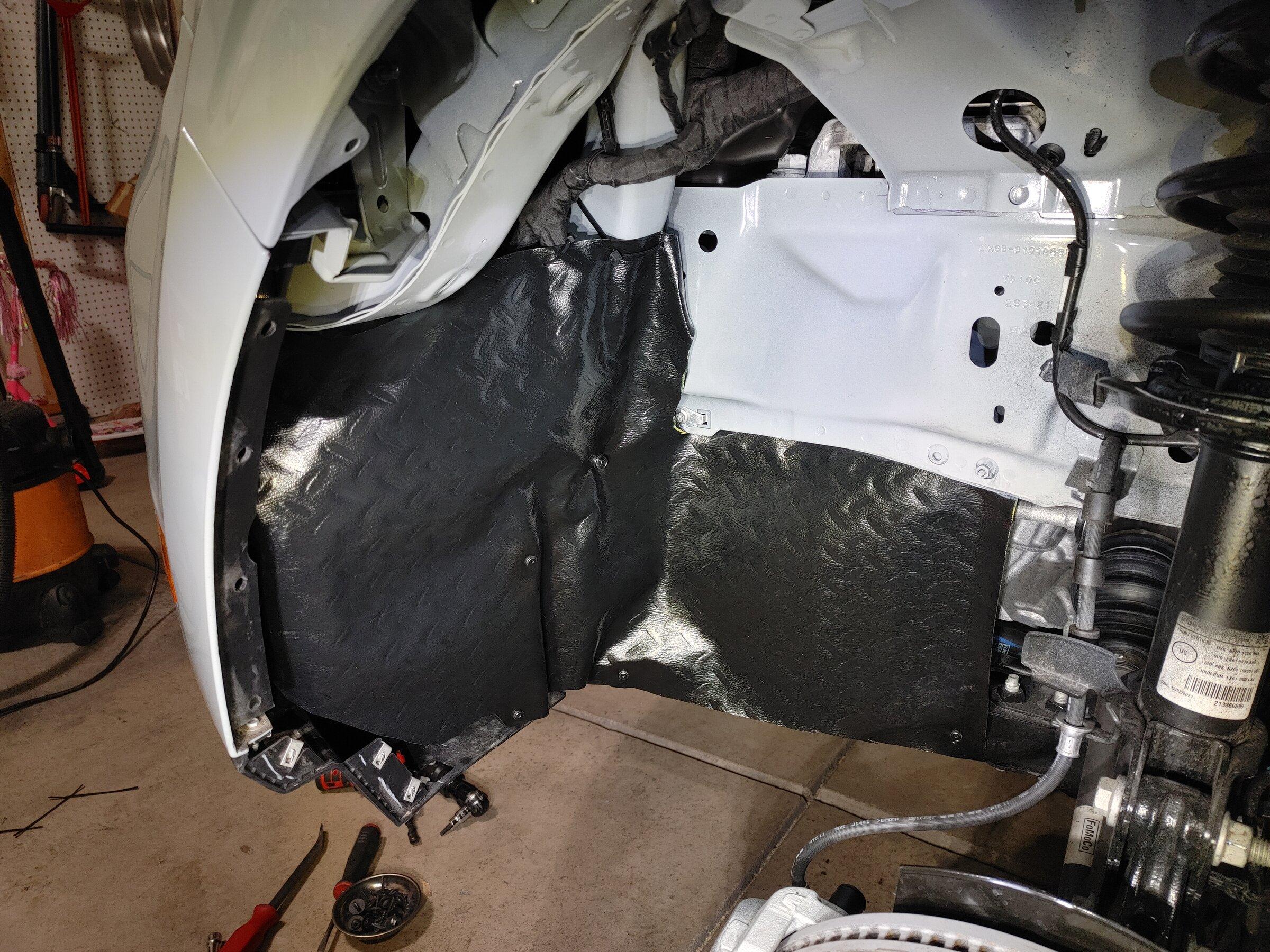

Biggest concern for rubbing was the driver front tire barely touching the back of the ECU. I took off the front bumper to see all the wiring better. I was able to push the ECU mount forward without cutting/welding anything. Ended up making my own fender liner out of rubber mat to block the elements in the areas I had to trim away on the fender liner. Cut the pinch weld quite a bit and welded the seam for peace of mind. No rubbing now. Took it for a rip in the fresh pow pow! Supposed to get 10" tonight in Colorado Springs!











Gconk

Lariat
Member
First Name
G
Joined
Jan 29, 2022
Threads
2
Messages
24
Reaction score
105
Location
Alaska
Vehicle(s)
Lots of Fords
Trim
Lariat
Did you do any sort of flash with a tuner to compensate speedo for the larger tires? I would be interested to see how fuel economy ACTUALLY changes with larger tires. I have concerns the little 8 speed won't like them much in the long run.



Delzona

XLT
Well-known member
First Name
Chris
Joined
Jul 3, 2021
Threads
11
Messages
4,099
Reaction score
8,551
Location
Tucson, AZ
Vehicle(s)
04 Ranger, '15 Sportster 72, '21 Road King Special
Trim
XLT
Biggest concern for rubbing was the driver front tire barely touching the back of the ECU. I took off the front bumper to see all the wiring better. I was able to push the ECU mount forward without cutting/welding anything. Ended up making my own fender liner out of rubber mat to block the elements in the areas I had to trim away on the fender liner. Cut the pinch weld quite a bit and welded the seam for peace of mind. No rubbing now. Took it for a rip in the fresh pow pow! Supposed to get 10" tonight in Colorado Springs!









I'm looking to good down about 2", but I really like the look of your Maverick and how you overcame the few obstacles! Well done!


Ths0154

XLT
Member
First Name
Troy
Joined
Dec 29, 2021
Threads
0
Messages
7
Reaction score
12
Location
TN
Vehicle(s)
Jeep Renegade
Trim
XLT
Did you do any sort of flash with a tuner to compensate speedo for the larger tires? I would be interested to see how fuel economy ACTUALLY changes with larger tires. I have concerns the little 8 speed won't like them much in the long run.
I was wondering the same thing if the larger tires have an effect on the speedo? Look nice after complete. Have the same color and option unit ordered and still trying to decide on lift and tires.


Gconk

Lariat
Member
First Name
G
Joined
Jan 29, 2022
Threads
2
Messages
24
Reaction score
105
Location
Alaska
Vehicle(s)
Lots of Fords
Trim
Lariat
I was wondering the same thing if the larger tires have an effect on the speedo? Look nice after complete. Have the same color and option unit ordered and still trying to decide on lift and tires.
So unless the computer is informed of the tire size change then it will most definitely effect the speedo, probably shows 3mph slower than your actual ground speed... that's just a guess, my older trucks seemed to be between 3 to 5mph difference going from 32" to 33" give or take.


Maverickman74

XLT
Well-known member
First Name
Shane
Joined
Dec 8, 2021
Threads
10
Messages
1,674
Reaction score
1,843
Location
Maui HI
Vehicle(s)
96 Bronco, 91 Comanche, 93 ZJ, 80 Eagle, Bicycle
Trim
XLT
Looks great! How bad did it rub before the trim or did you try? Not sure I want to weld on a new electro heavy vehicle. With pich welds I typically cut slits every few inches into them and fold them over flat. But I like what you did. I dont like that ECU location though damn! Im gonna have to figure out a way to protect that. I guess its better than the top of the dash accessible only from the bottom:ROFLMAO:.

Looking good though. My plan is 245 or 255 70s and the 2" lift once they come out with a spring lift or spring spacer combo. Im gonna get mud terrains though. Probably wont have a winch on mine so dont want to risk it.

Any thoughts on width issues if someone wanted 265/70s?

Last edited:

CLH917

XLT
Well-known member
First Name
Travis
Joined
Jun 21, 2021
Threads
18
Messages
763
Reaction score
1,782
Location
Madisonville, LA
Vehicle(s)
2022 Ford Maverick
Trim
XLT
So unless the computer is informed of the tire size change then it will most definitely effect the speedo, probably shows 3mph slower than your actual ground speed... that's just a guess, my older trucks seemed to be between 3 to 5mph difference going from 32" to 33" give or take.

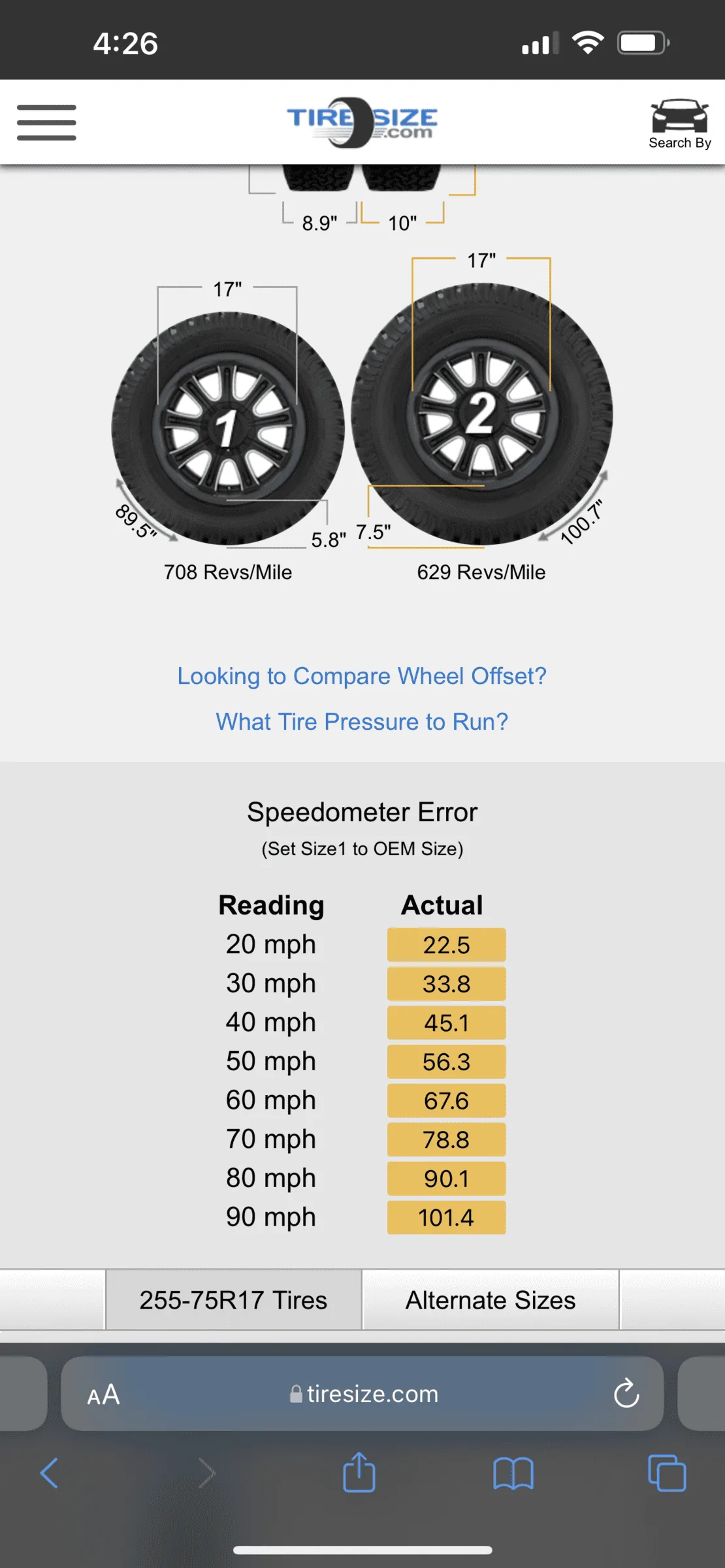

Here’s what the OP is looking at with his new tires compared to stock.



Gconk

Lariat
Member
First Name
G
Joined
Jan 29, 2022
Threads
2
Messages
24
Reaction score
105
Location
Alaska
Vehicle(s)
Lots of Fords
Trim
Lariat
Here’s what the OP is looking at with his new tires compared to stock.

Look at you go and do ACTUAL research.... lol. That is much more dramatic of a change than I would've expected. I'm sure some of these forscan bros can help clear that up,or probably already have it figured out.


Maverickman74

XLT
Well-known member
First Name
Shane
Joined
Dec 8, 2021
Threads
10
Messages
1,674
Reaction score
1,843
Location
Maui HI
Vehicle(s)
96 Bronco, 91 Comanche, 93 ZJ, 80 Eagle, Bicycle
Trim
XLT
Look at you go and do ACTUAL research.... lol. That is much more dramatic of a change than I would've expected. I'm sure some of these forscan bros can help clear that up,or probably already have it figured out.
Yeah there has already been a thread about how to change that a while back, cant remember where.

I usually do math like that for fun. If I am bored in my head but if i just need the info i will run a calculator. Pick a speed then a tire size, run the rpm needed for it, divide by gear ratio and axle ratio. 1/4 mile is 1320 times by 4. Divide by 60 for the hour. Its fun math to do when working in a boring factory or you have a long drive. Play around wih different tire sizes to get top speeds or to not bog down your mudder too easily. I like the math for metric tire sizes converted to diameter and circumference.

FYI I graduated high school with a 0.89 GPA. It work out to a D+. Now I chop coconuts for a living. Up to around 275,000. Anyone want to figure the daily rate on 10 years with a 4 day work week? I dont count actual numbers for the day just an average on how many i can fit in a can and how many cans i use in the busy or slow months.


jtpc2021

XLT
Well-known member
Joined
Aug 1, 2021
Threads
30
Messages
594
Reaction score
959
Location
Oklahoma
Vehicle(s)
Maverick
Trim
XLT
I like my maverick, but at a certain point you might want to go with a Ranger, Tacoma, Gladiator, etc when you desire a certain height and tire size. Having to trim pieces and having rubbing just seems like a step beyond the vehicle’s design/purpose. Just my view.


JPH 673

XLT
Well-known member
First Name
John
Joined
Jan 25, 2022
Threads
0
Messages
49
Reaction score
29
Location
Ellisville MO
Vehicle(s)
Mazda B3000 truck
Trim
XLT
Picked up a 2" level lift from FordRangerLifts.com. Pretty easy install. See my install YouTube video:



I'm running BFG KO2s 255/75R17s on stock wheels. Trimmed the firewall pinch welds down to nearly flush. Good clearance behind front tires now after trimming some fender liner out of the way. There are a lot of electronics in front of the driver front wheel though. After trimming fender liner, the tire barely kisses what appears to be the ECU. Planning on recessing the ECU farther forward and making my own fender liner; out of aluminum, fiberglass, kydex, not sure yet... Update video in near future.

Picked up a 2" level lift from FordRangerLifts.com. Pretty easy install. See my install YouTube video:



I'm running BFG KO2s 255/75R17s on stock wheels. Trimmed the firewall pinch welds down to nearly flush. Good clearance behind front tires now after trimming some fender liner out of the way. There are a lot of electronics in front of the driver front wheel though. After trimming fender liner, the tire barely kisses what appears to be the ECU. Planning on recessing the ECU farther forward and making my own fender liner; out of aluminum, fiberglass, kydex, not sure yet... Update video in near future.

How much was the lift kit?


Maverickman74

XLT
Well-known member
First Name
Shane
Joined
Dec 8, 2021
Threads
10
Messages
1,674
Reaction score
1,843
Location
Maui HI
Vehicle(s)
96 Bronco, 91 Comanche, 93 ZJ, 80 Eagle, Bicycle
Trim
XLT
I like my maverick, but at a certain point you might want to go with a Ranger, Tacoma, Gladiator, etc when you desire a certain height and tire size. Having to trim pieces and having rubbing just seems like a step beyond the vehicle’s design/purpose. Just my view.
My comanche is lifted 3 inches and I had to trim the front fender lip aswell as the pinch welds to fit 31x10.50s. It originally came with 225/75r15s. The axles are strong enough to live with 35s if they dont have lockers. That would require atleast 6-7 inches of lift requiring completely different control arms among other things. They are also unibody construction. The bed is separate but the cab is part of the chassis. The only difference is Mavericks are fwd instead of rwd layout. But it is still just a bunch of thin stamped sheetmetal.

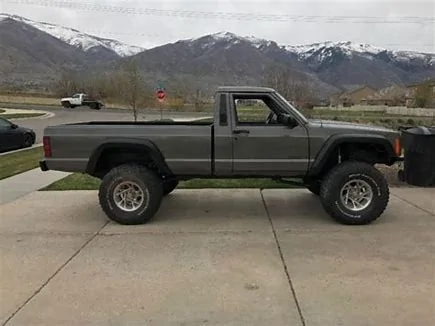

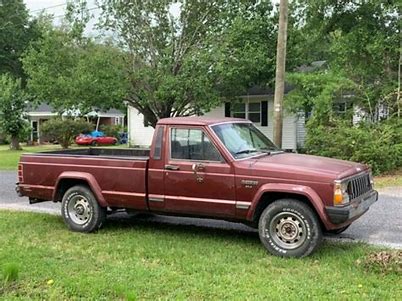

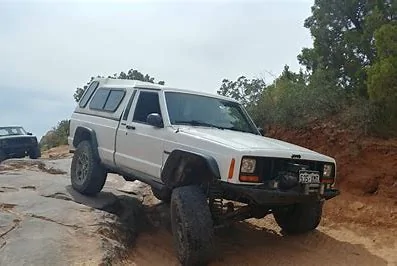

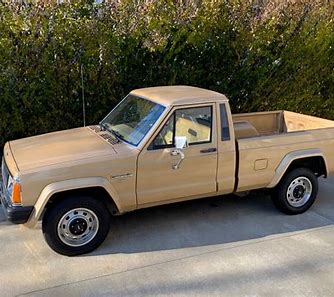

These arent mine they are pulled from the web. I dont think they look out of place with big tires and lifts. Really you can build anything the way you like it. Or you dont have to build it at all. The fact that people are doing thing like this is just plain good for the model. It means more aftermarket parts will be offered because more people will see this and want to do things like it.
