If you are running new wire into the doors and not using the factory wire. I have already done this and this may save you some time. Just a heads up it easier to pull the doors.

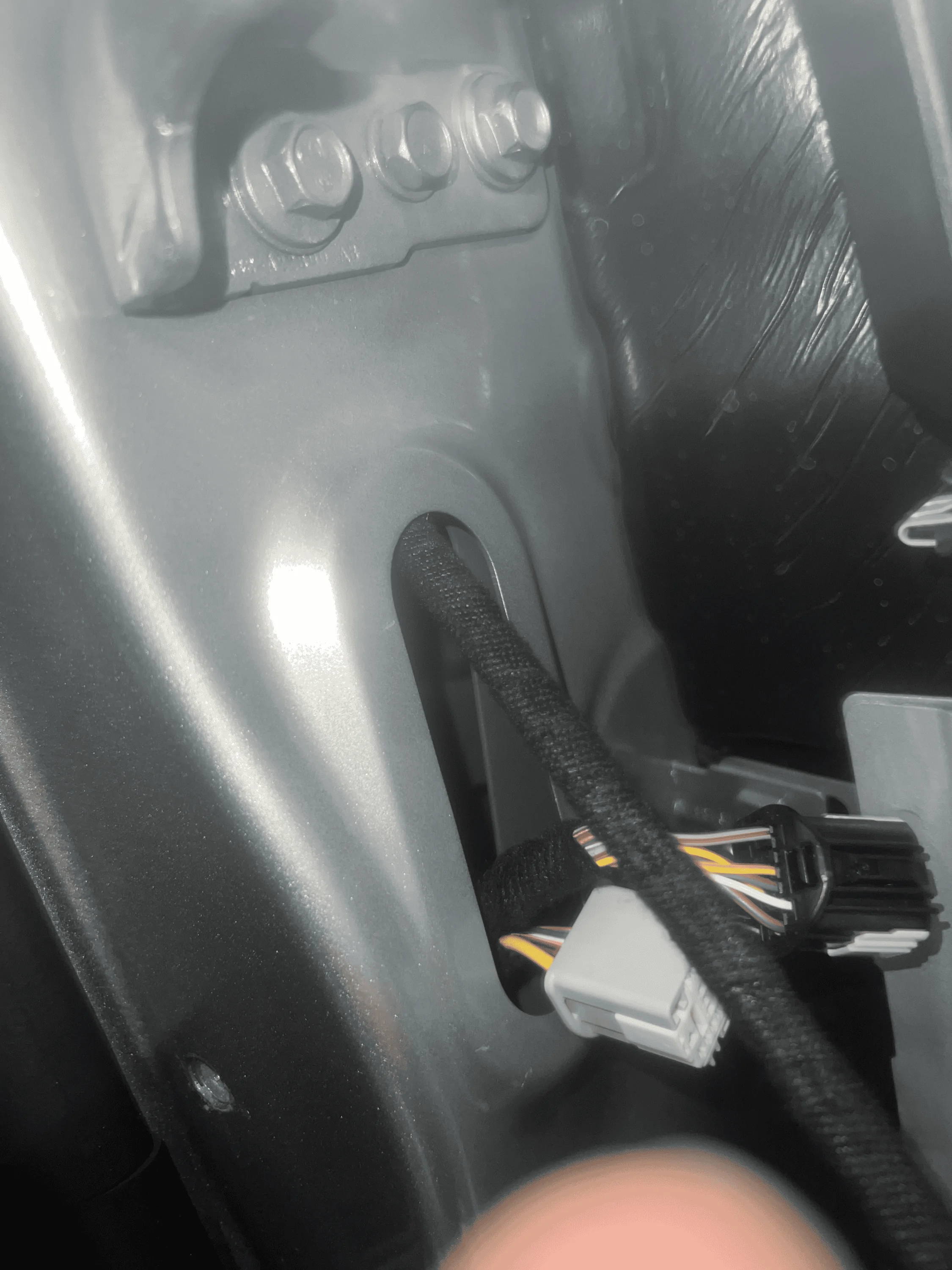

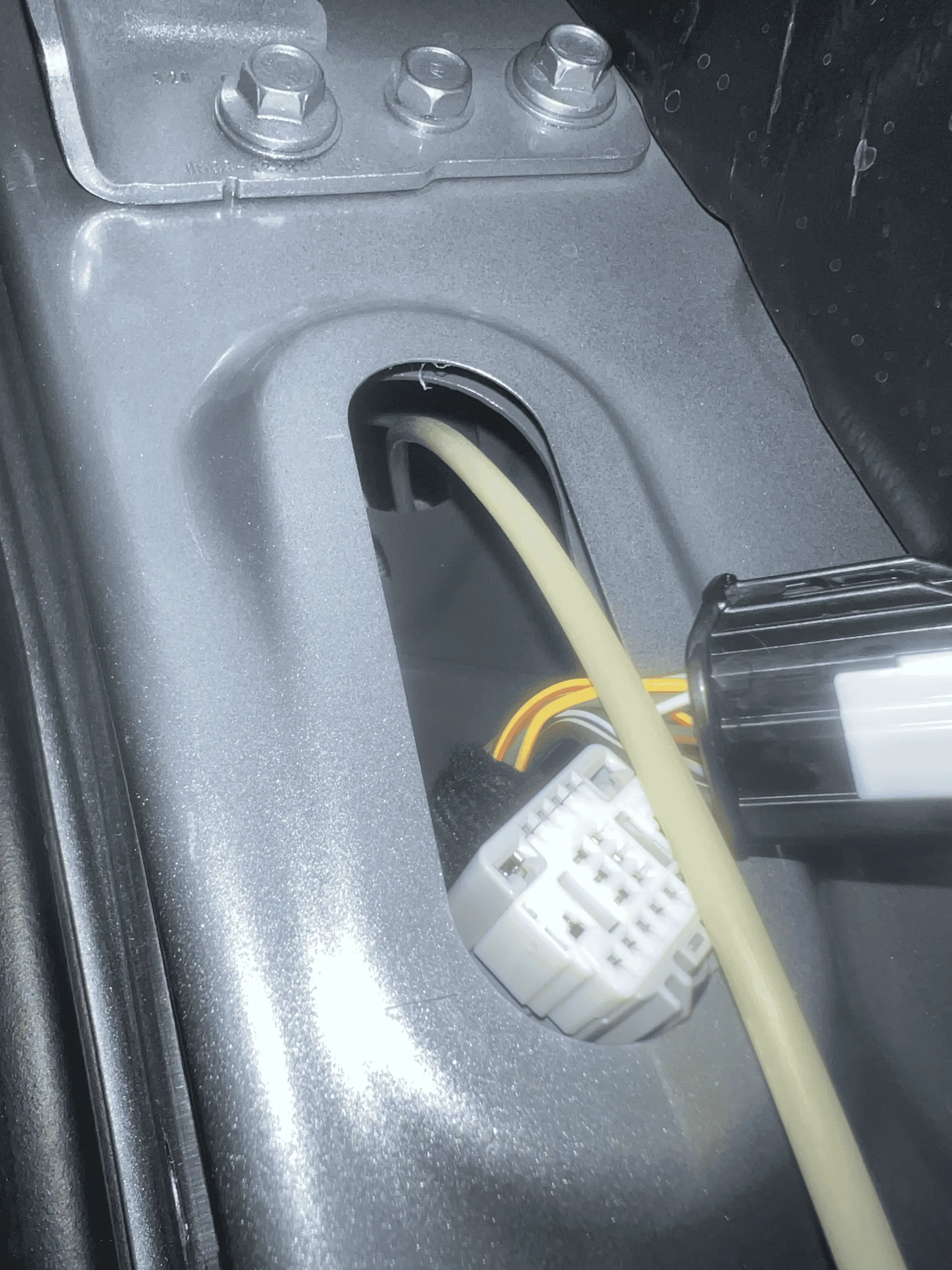

1. There is a center pass through on the door molex plug it is wide open to run your wires through.

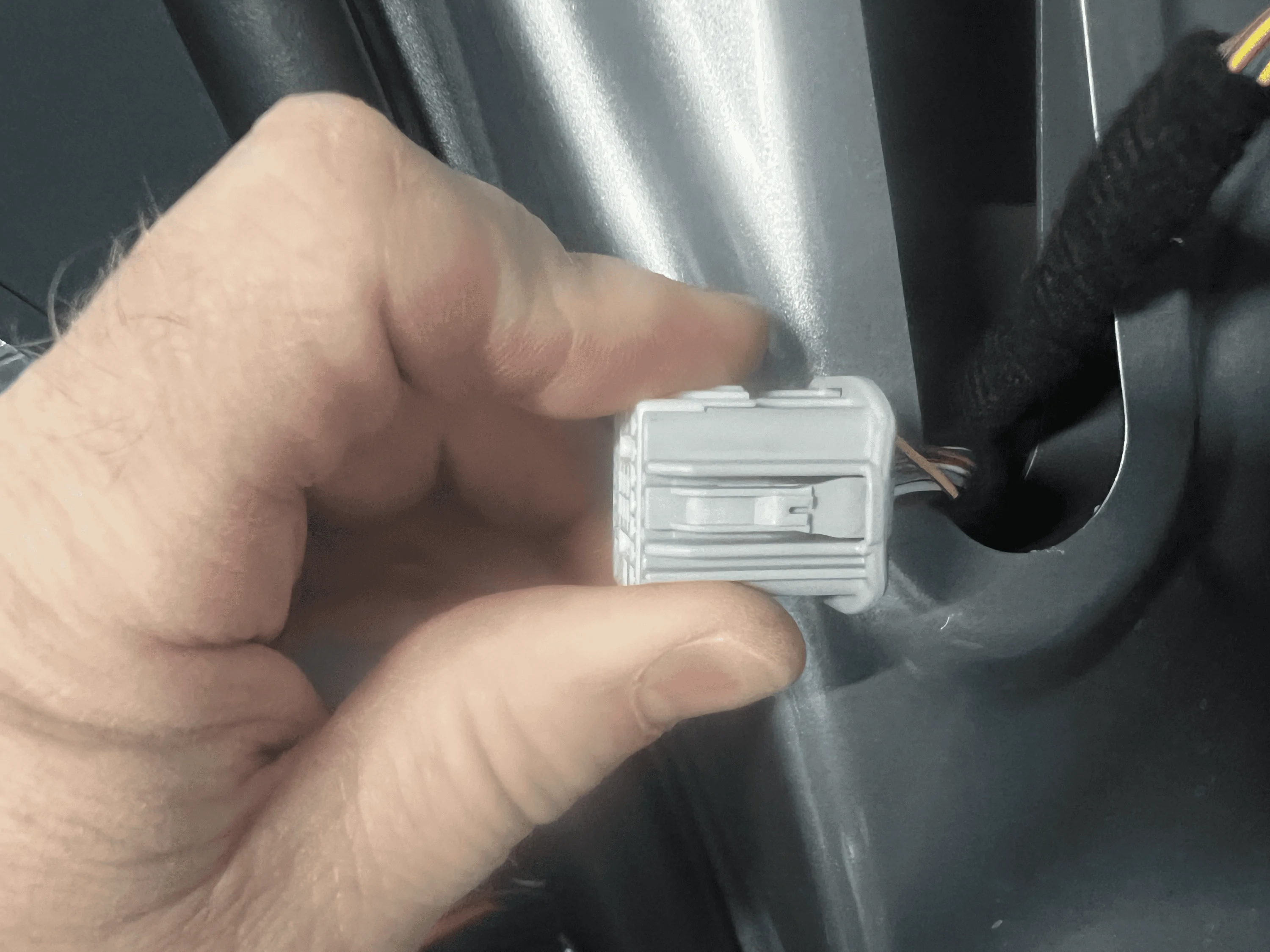

Center Pass Through:

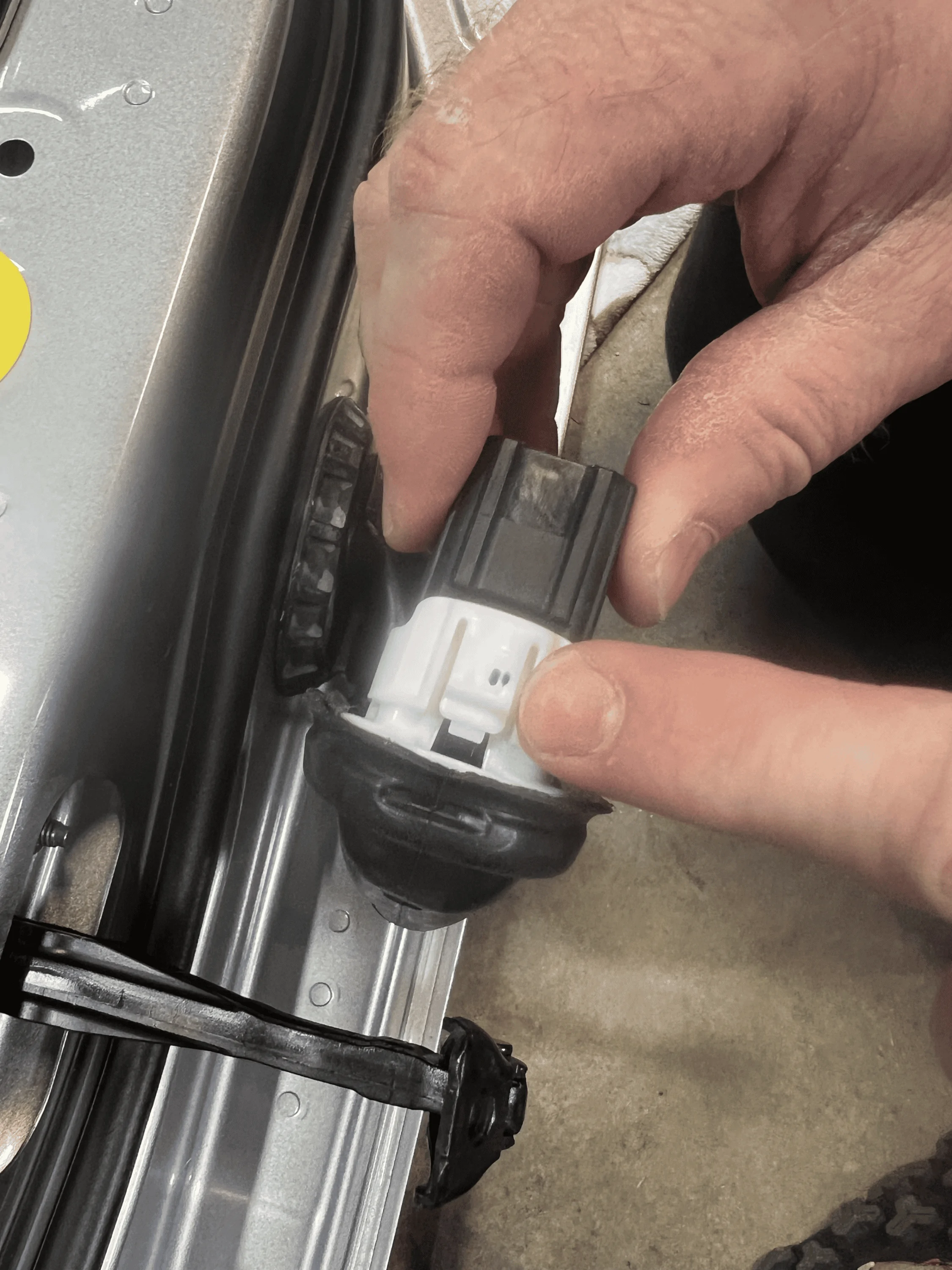

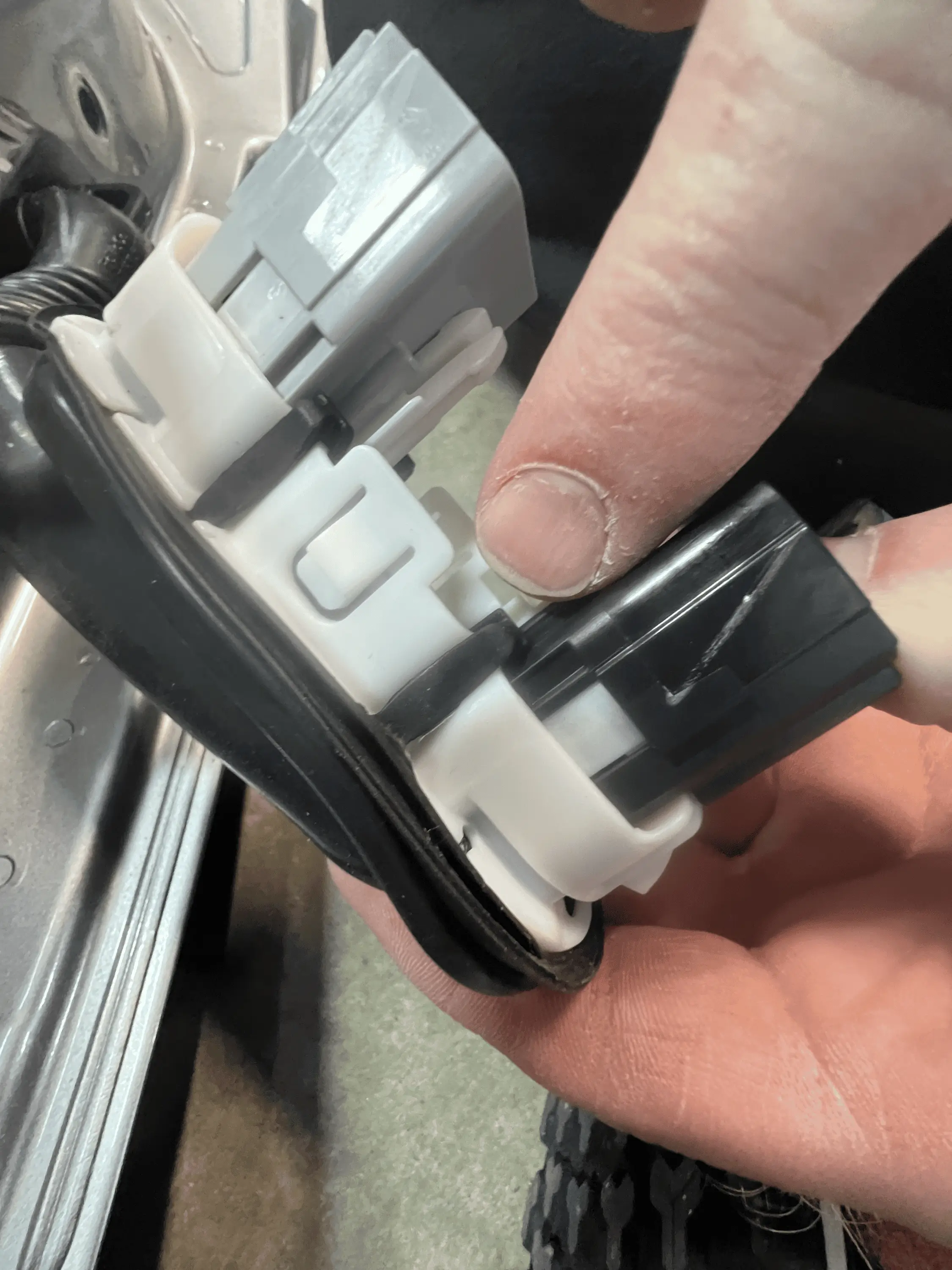

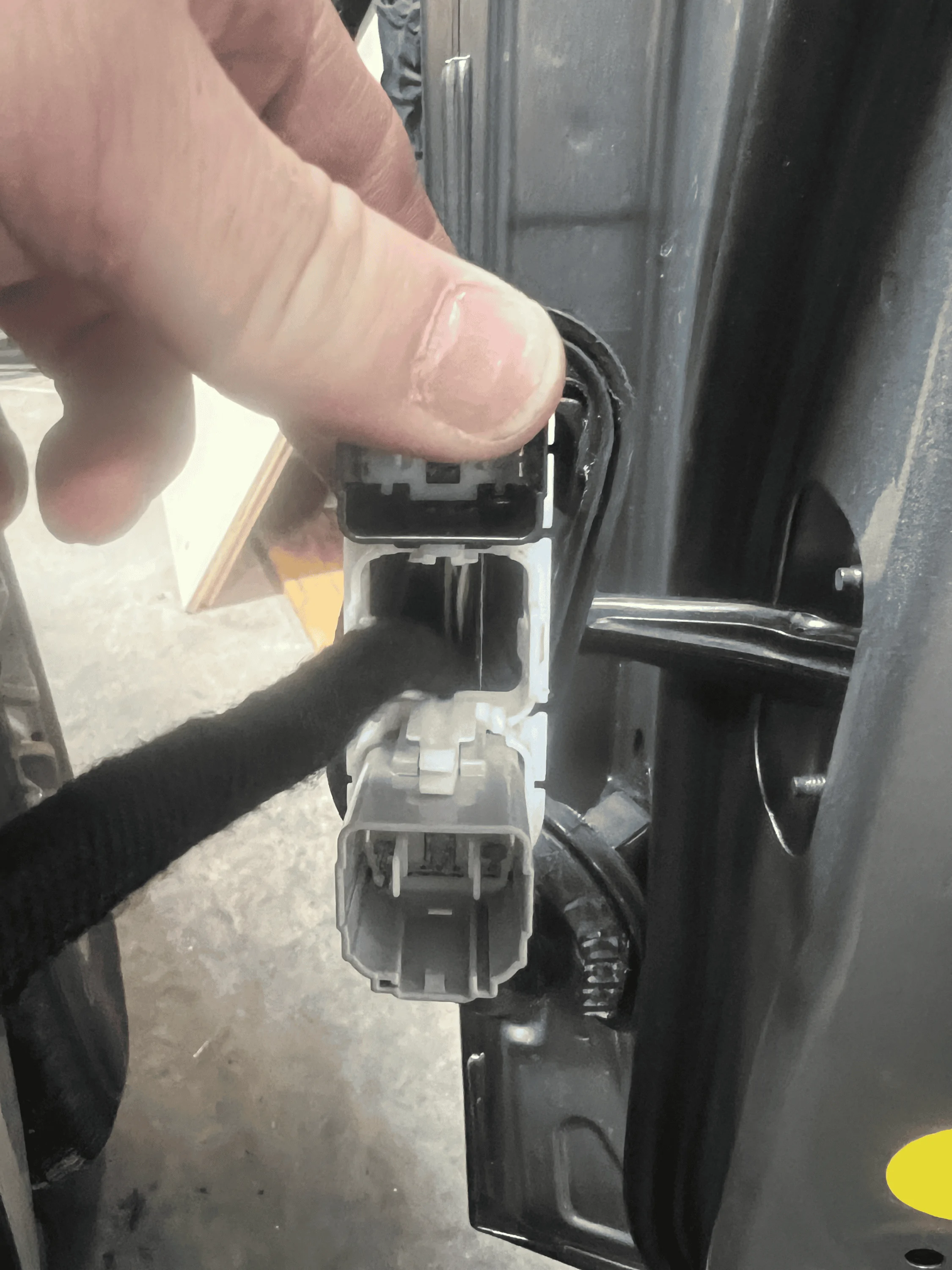

The white body plug clips locations:
a. one on the very top and bottom
b. one on the side facing you in the center and one on the back facing the fender area (very hard to get to fender side to release it.

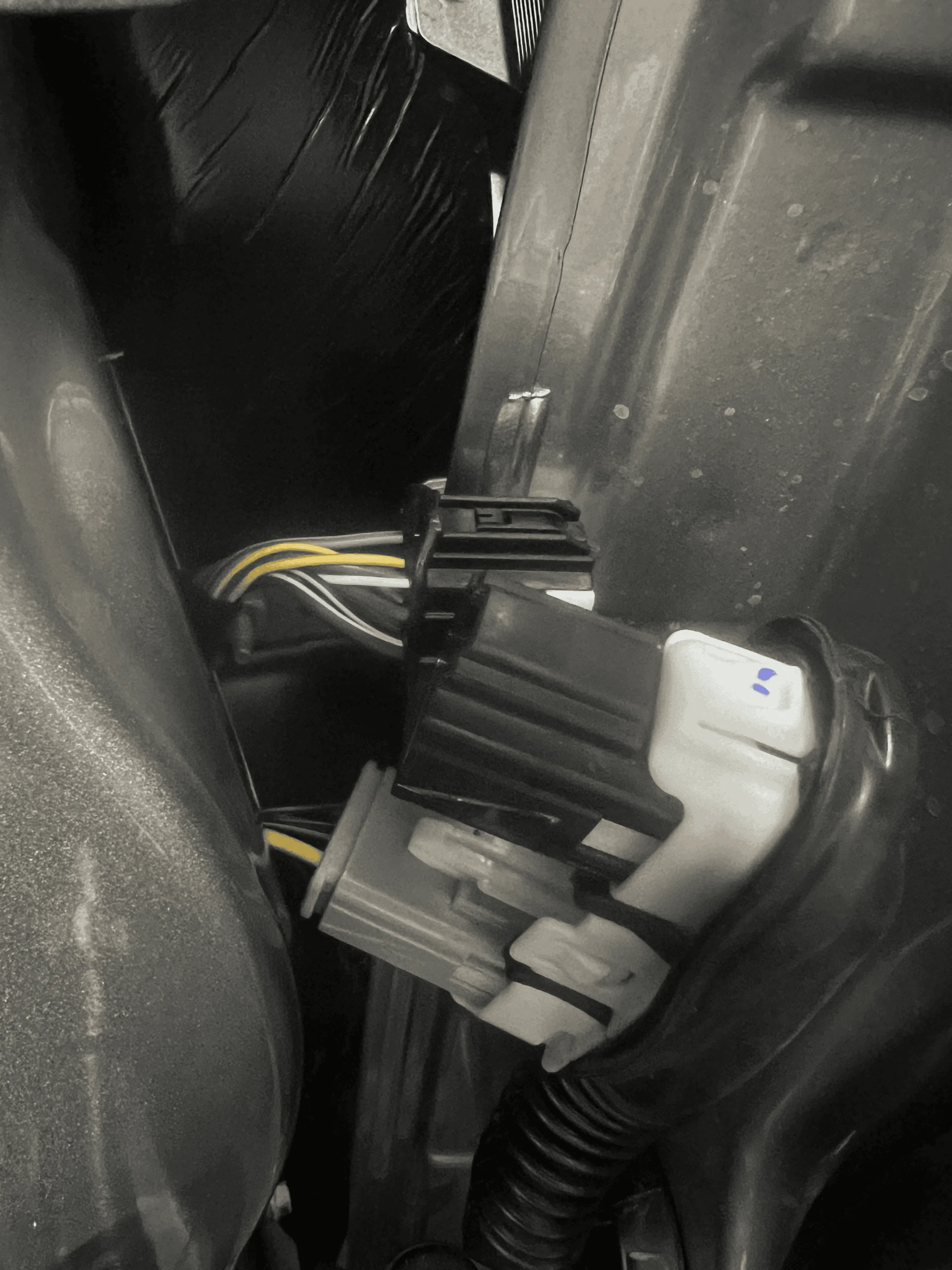

2. The black molex on top has the release clips on top, the bottom white one is on the under side, I was not able to release the bottom molex.

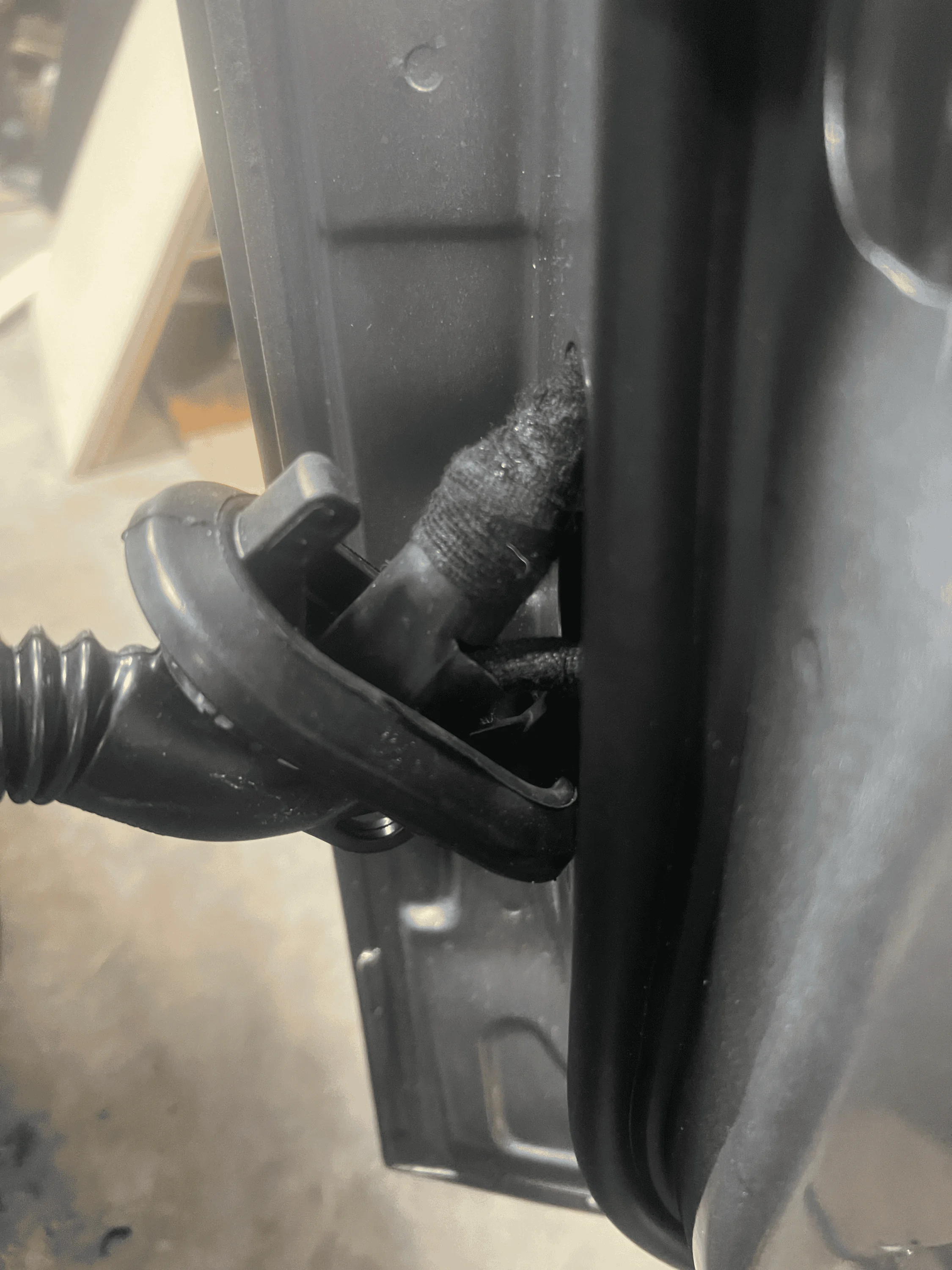

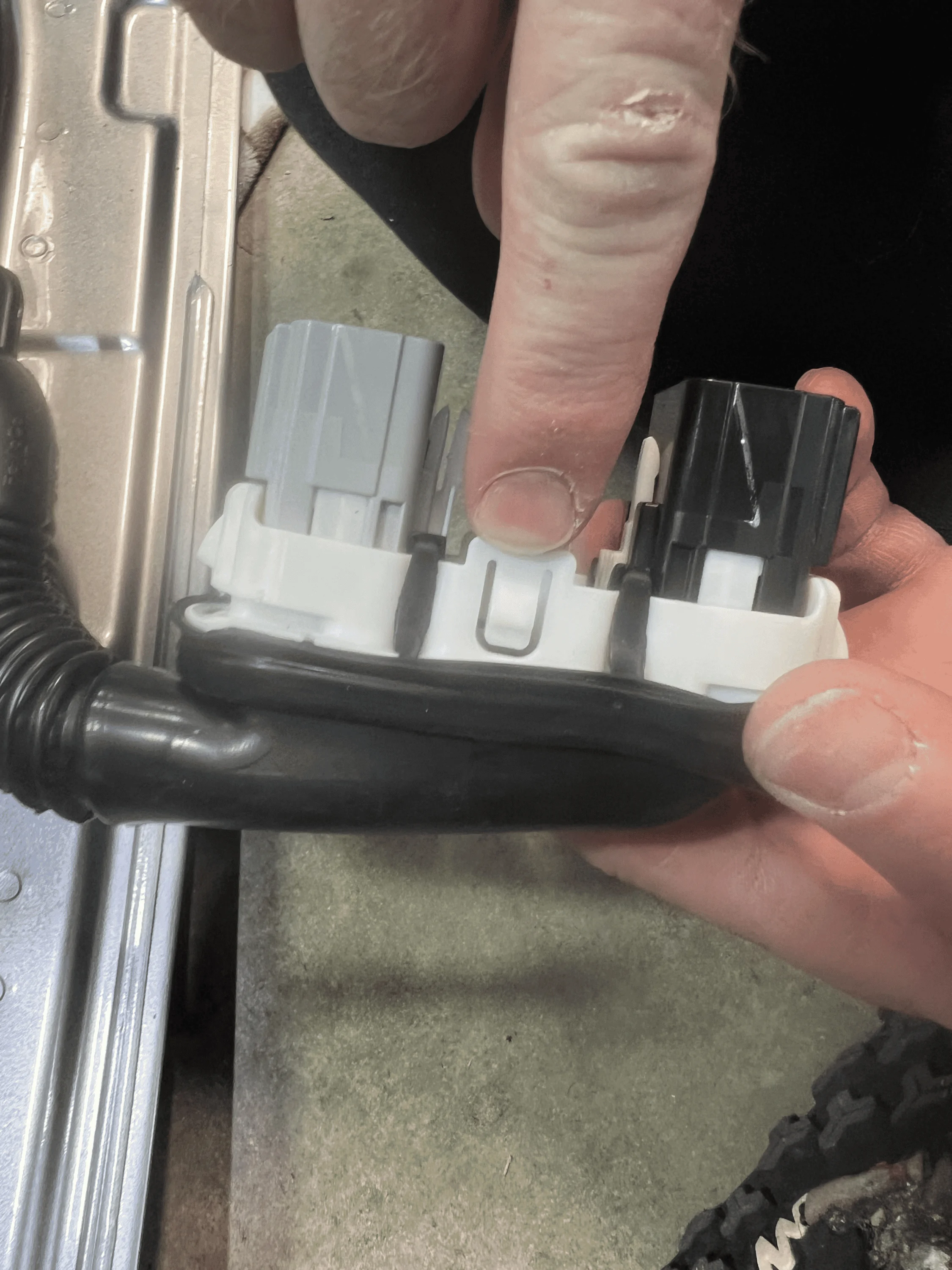

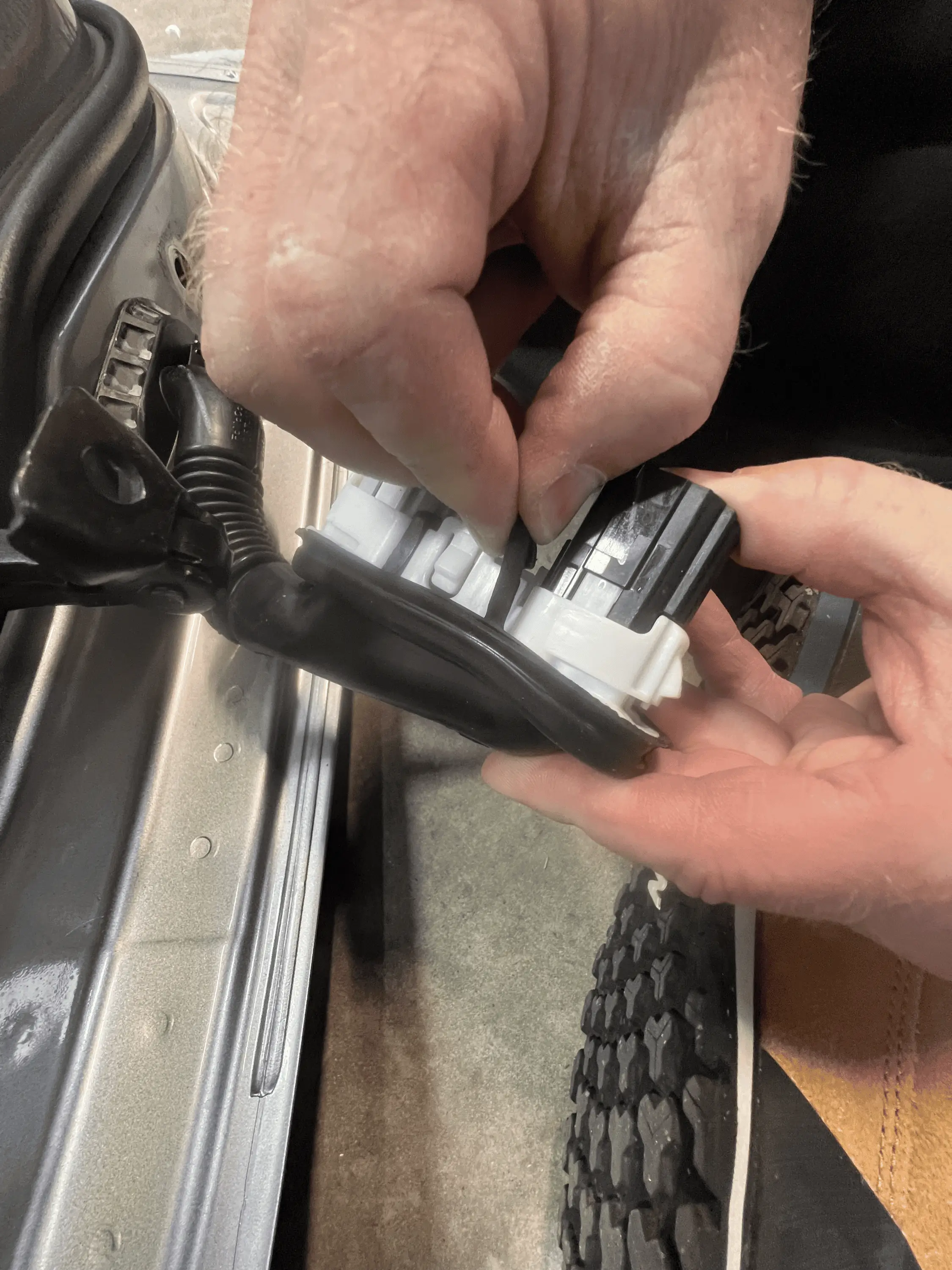

3. This is a big one, on the white body plug the black rubber boot is held on with rubber tabs that pull through the side and hook, do not cut them, just pull the tabs down to release the boot. There are two on the front side and two on the back side of the white body clip:

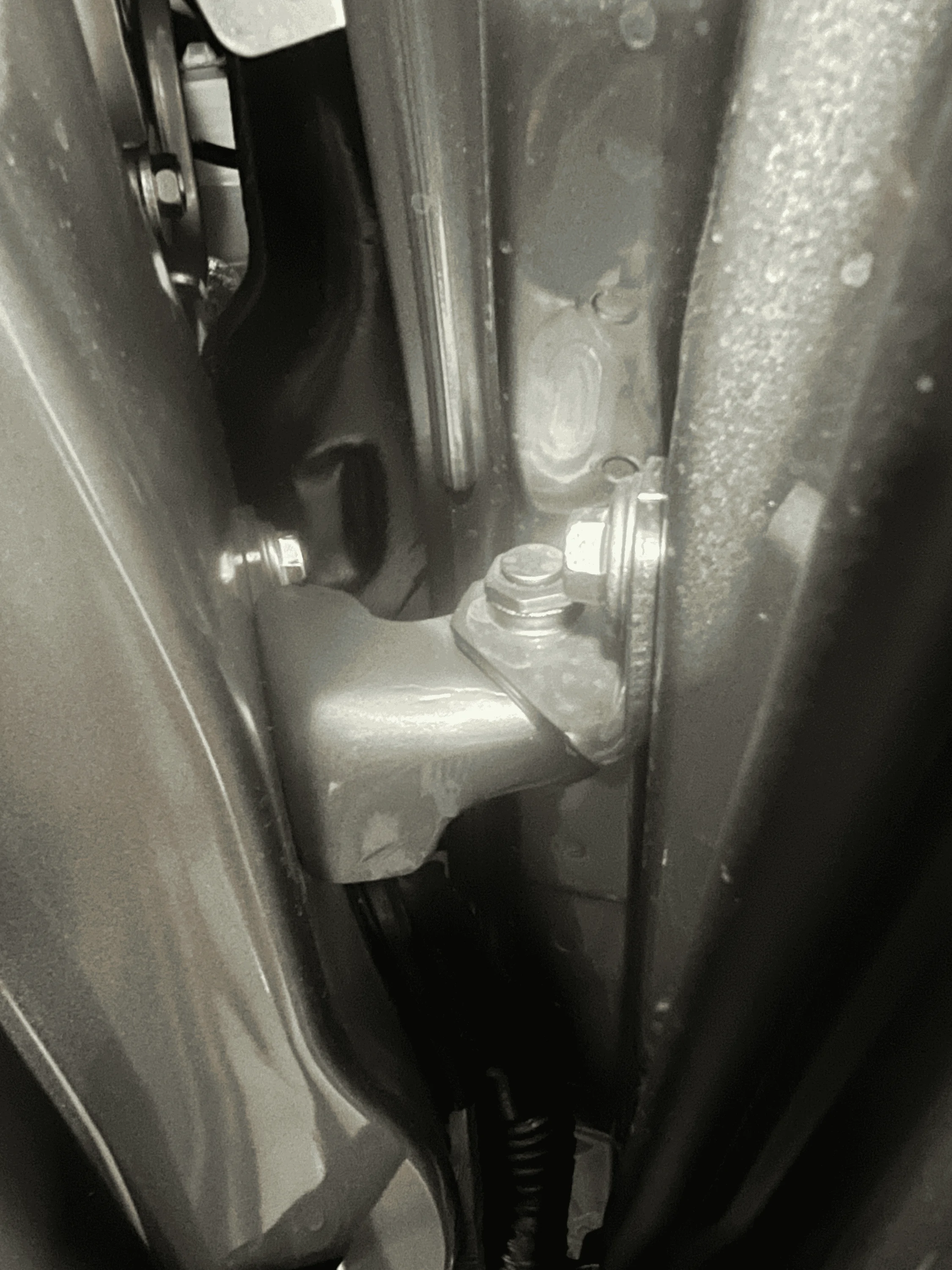

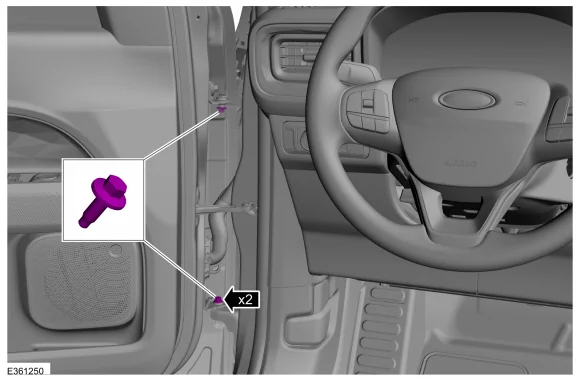

4. I spent hours messing with the molex and rubber boot, decided to do like some others cars we have had in the shop and pull the doors. After pulling doors, running wire and putting doors back on, it was took 15 min. Recommendation save yourself hours and just pull the doors. These are bolts you remove not the body hinge side, it is the bolt going into the door there is one at the top and one at the bottom. You will also need to remove the Black door stopper.

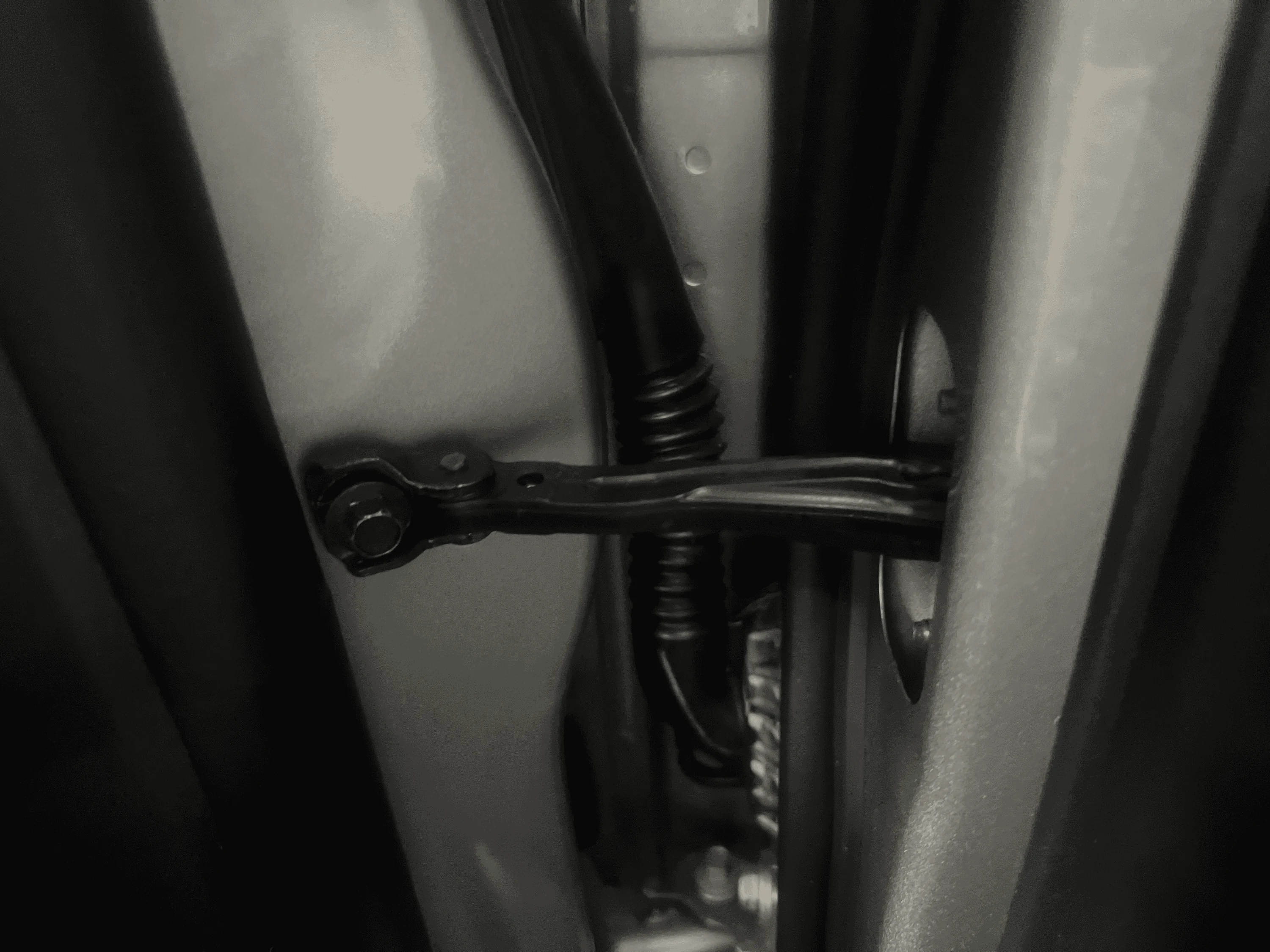

You will remove the door stop from the body side:

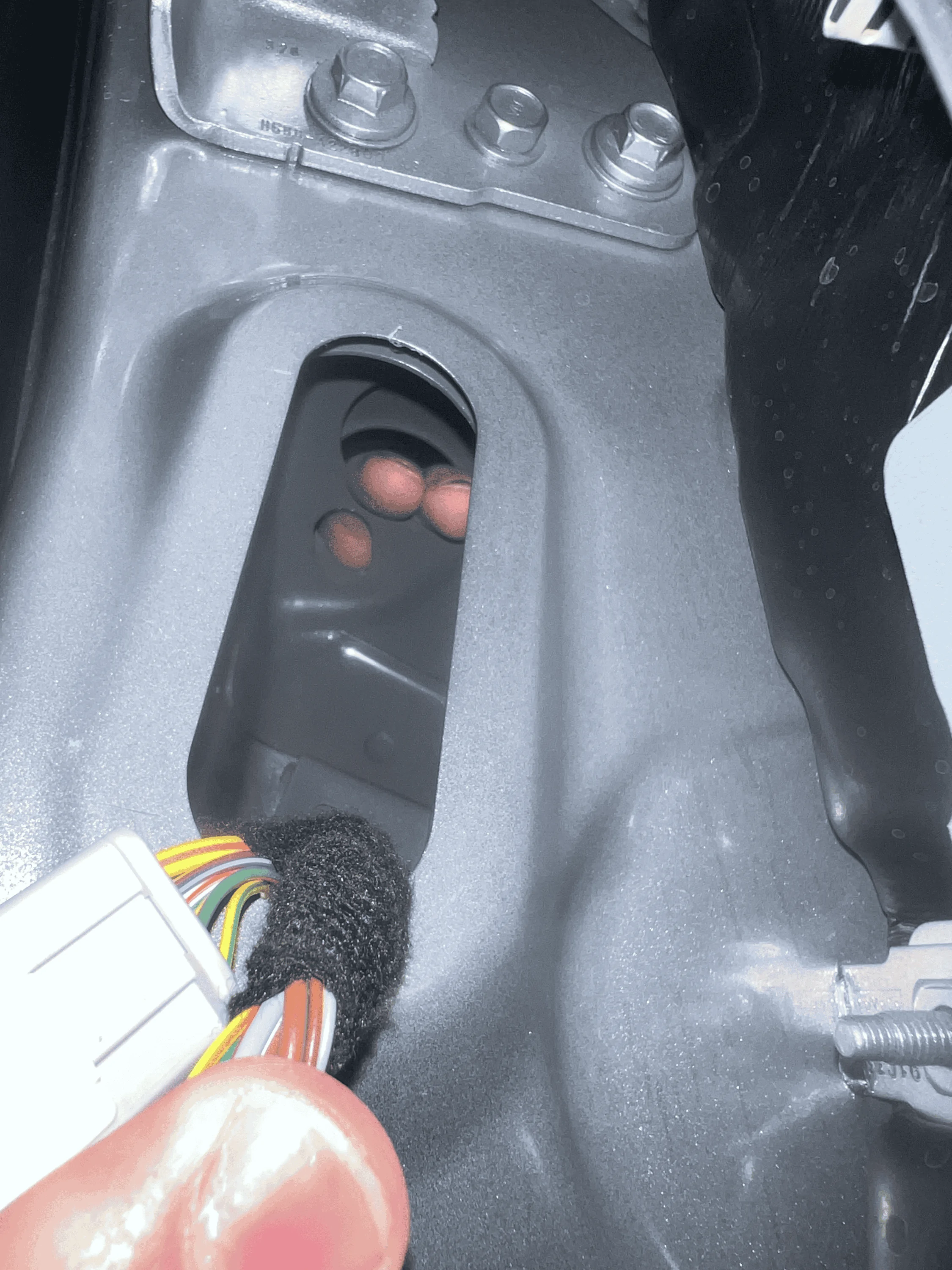

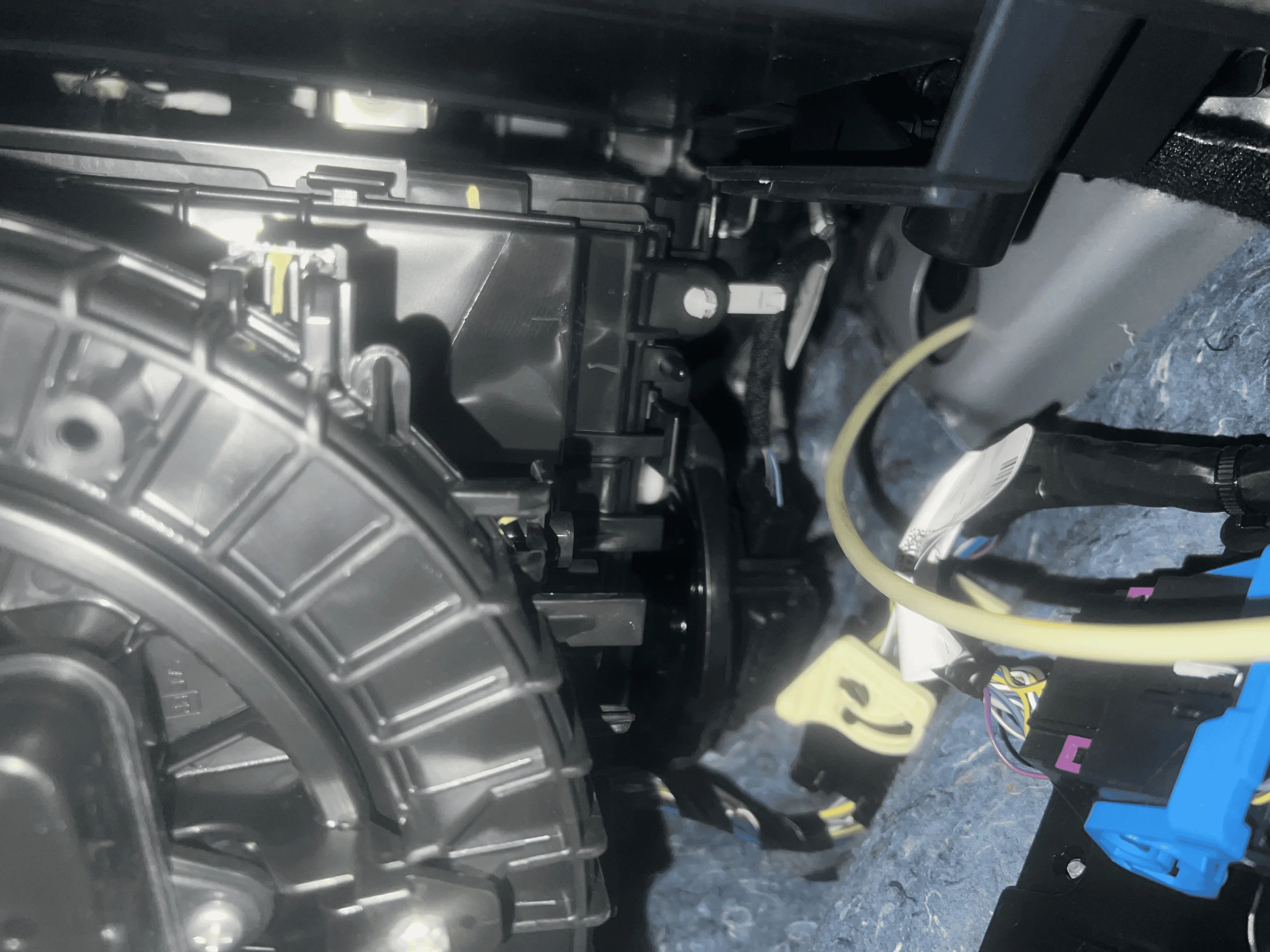

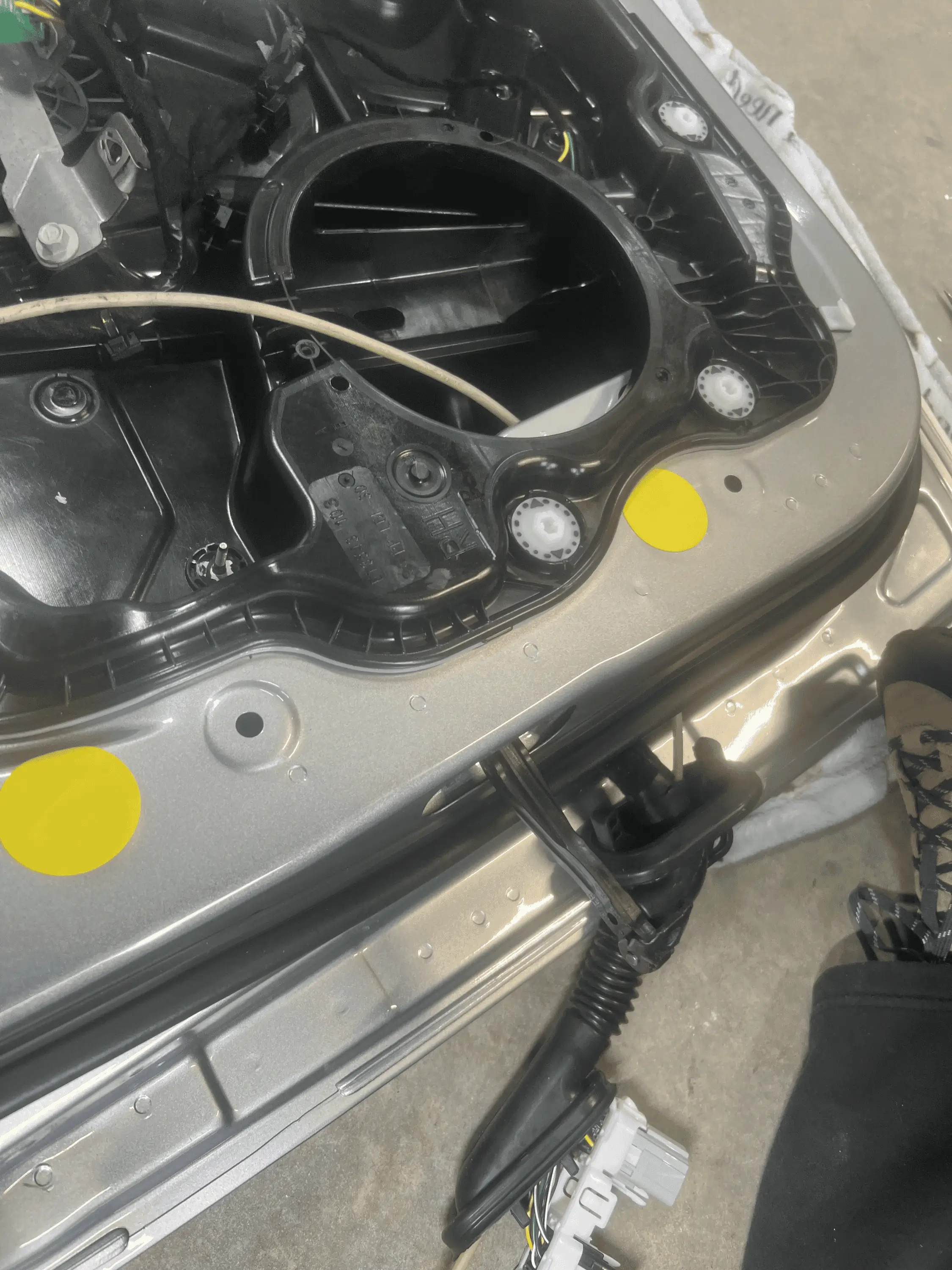

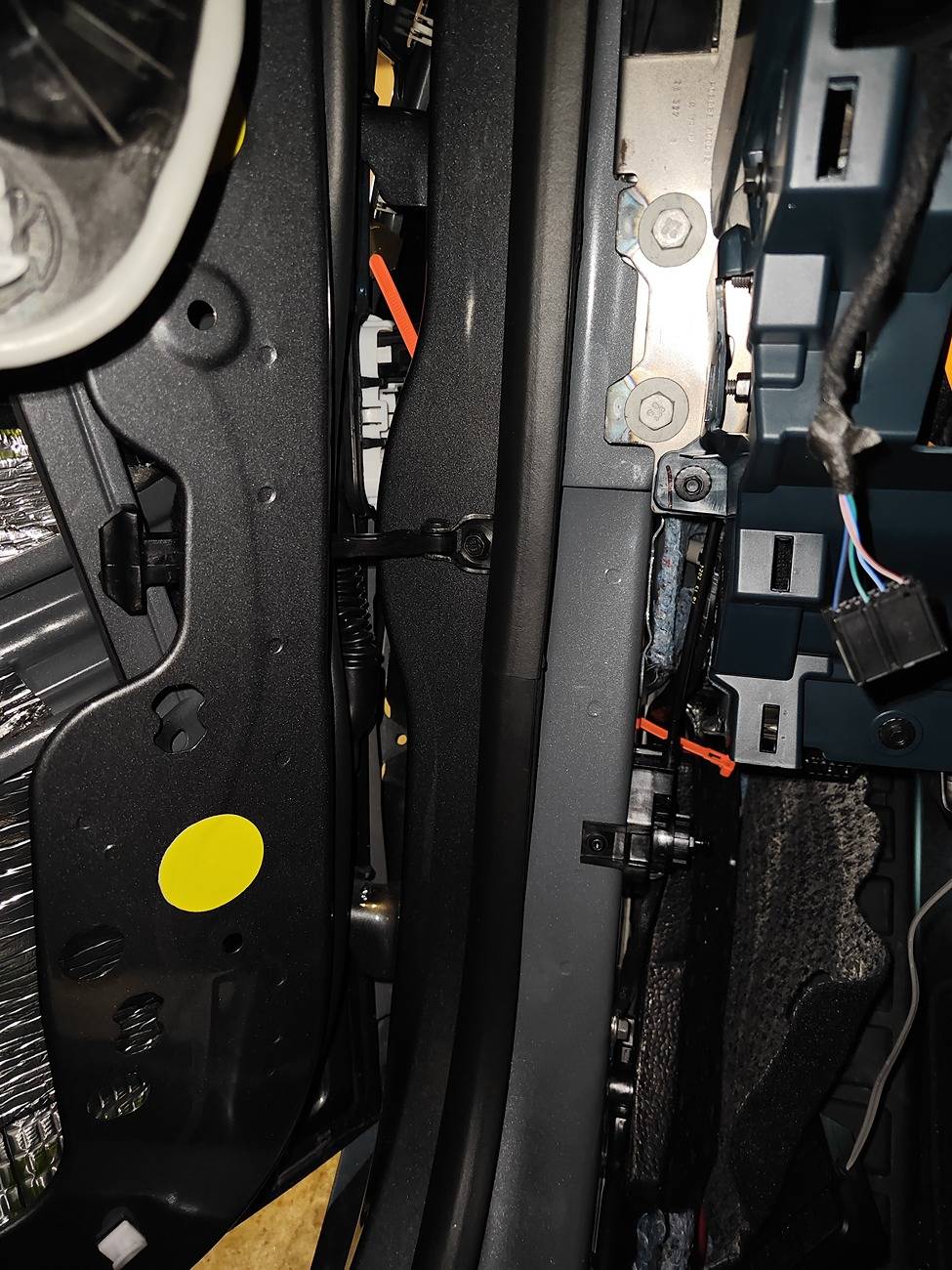

5. I will get some pics up of the access point from under dash with access through body into molex, how to remove molex. This picture is from passenger side but drive side is the same.

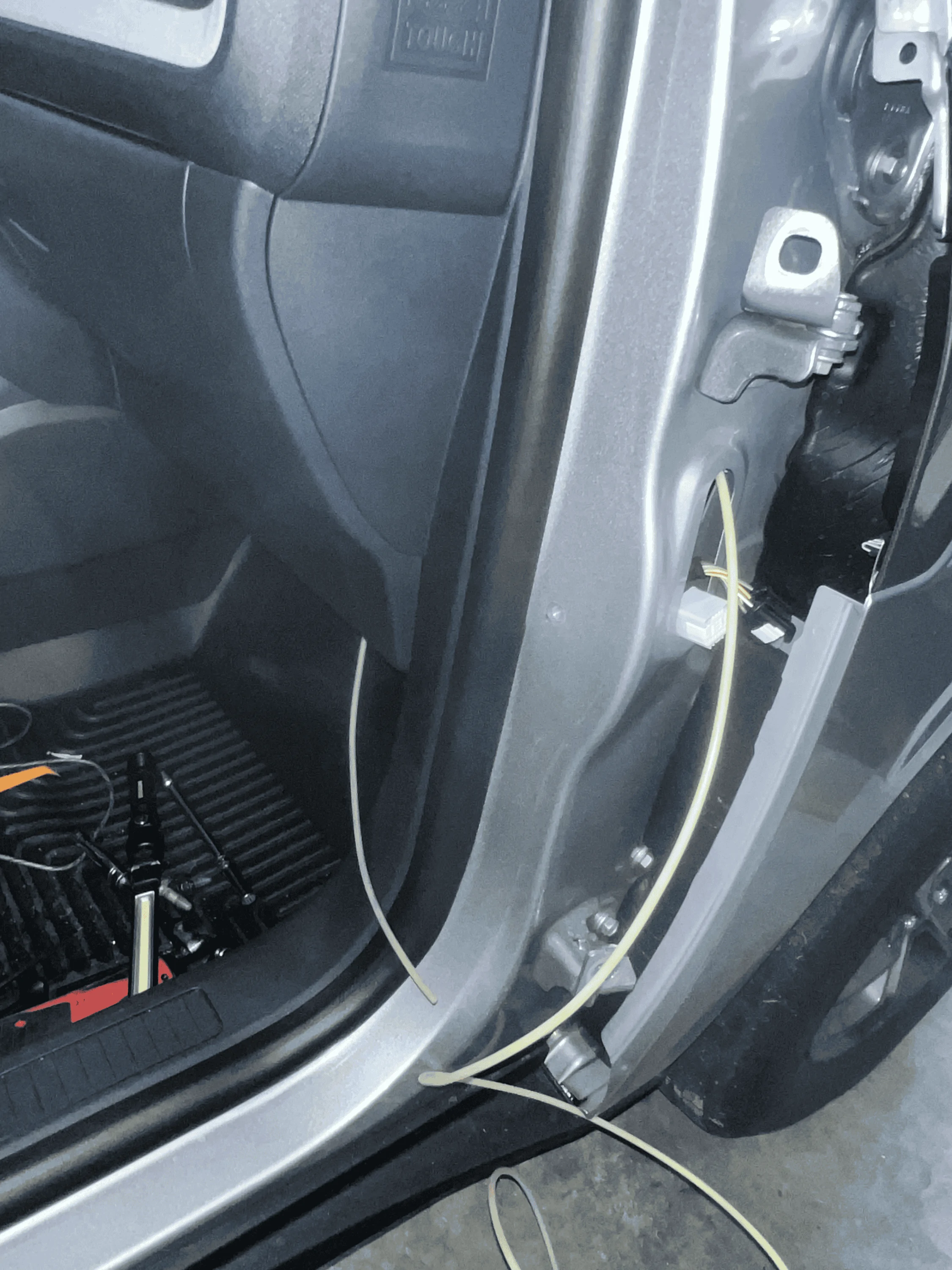

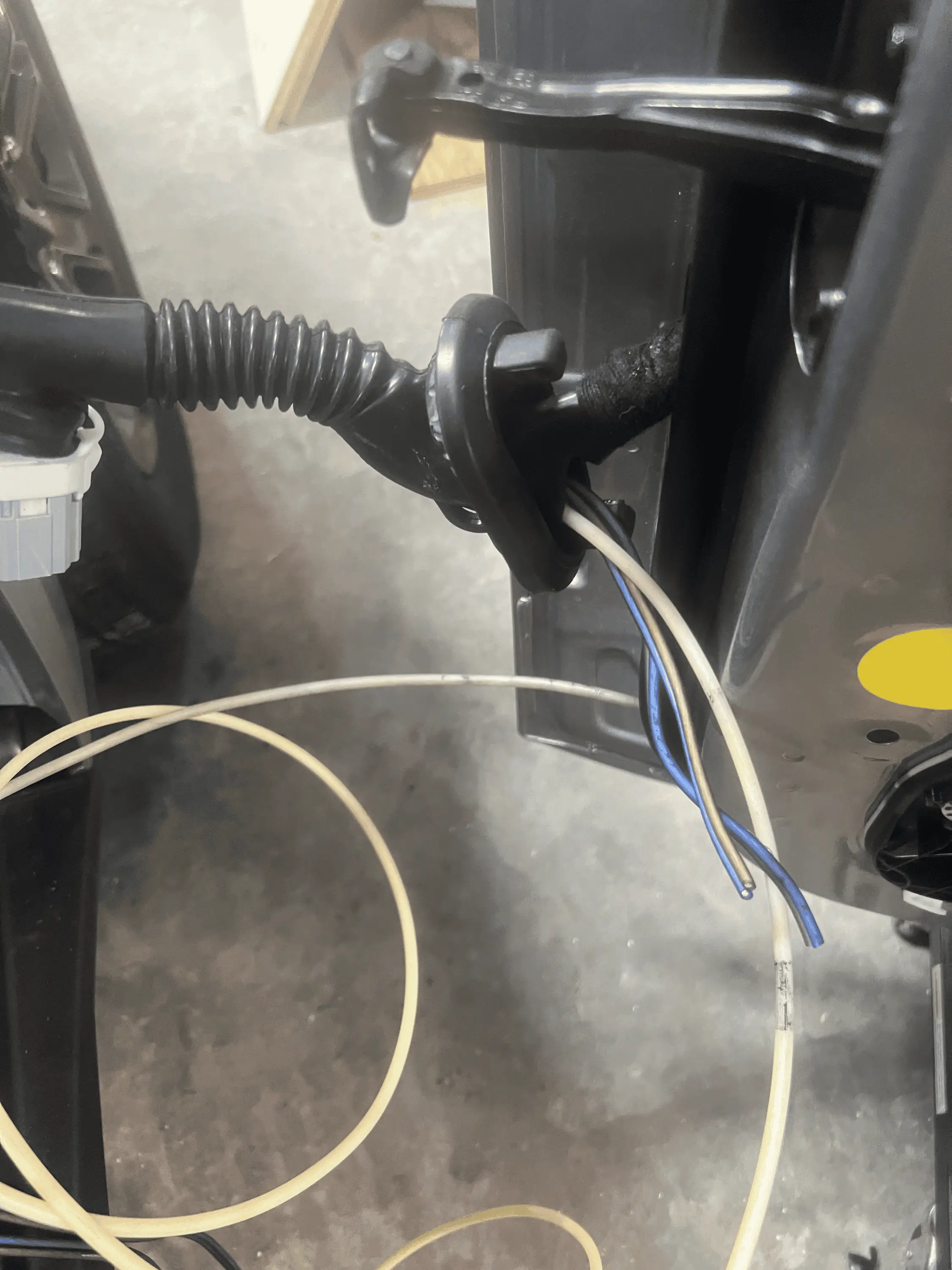

There is not a lot of room in the rubber boot, but I did fit two wire runs through it. Could Probably get 3 or 4 in it if needed but be careful not to damage any the factory wires.

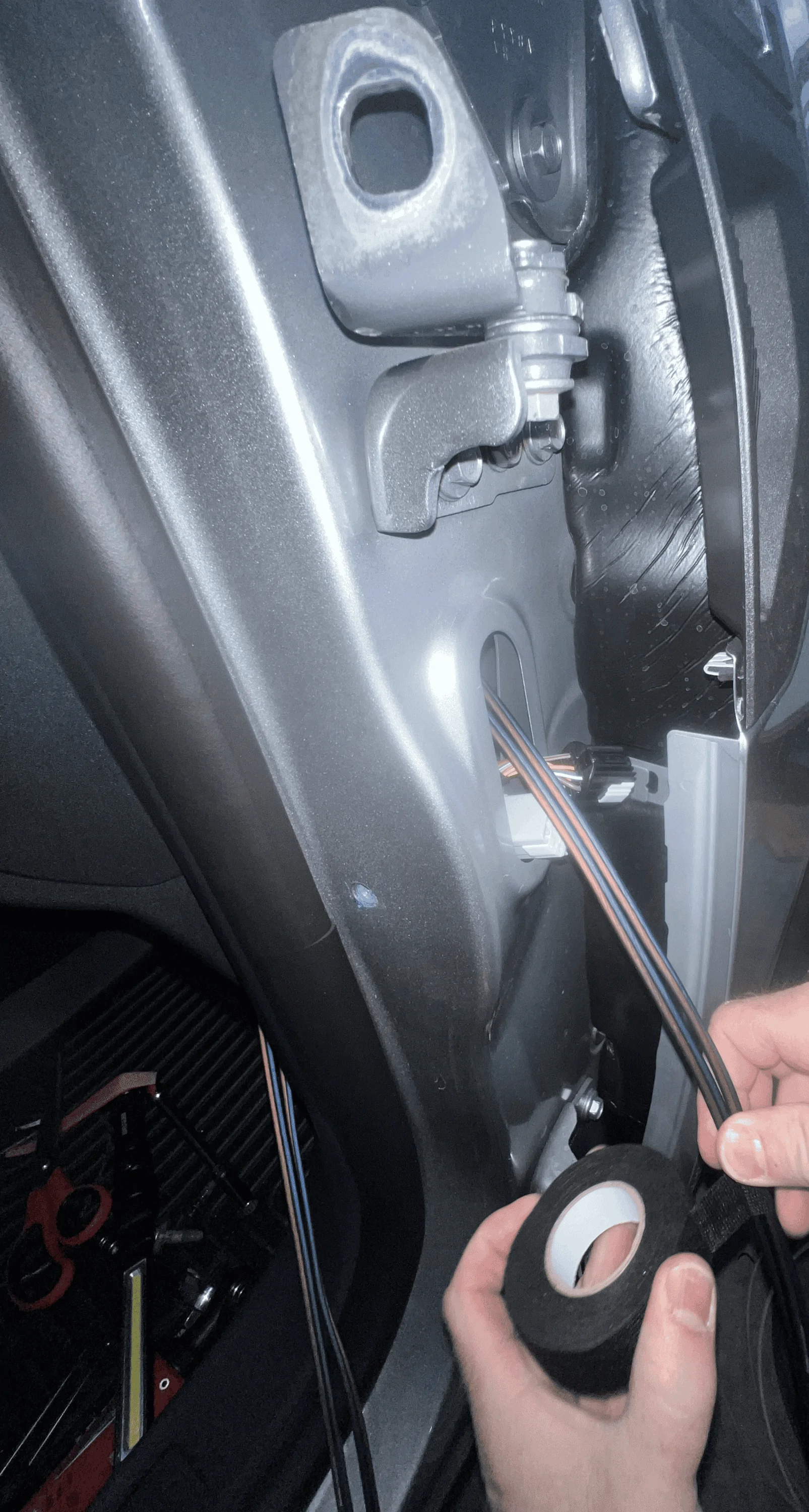

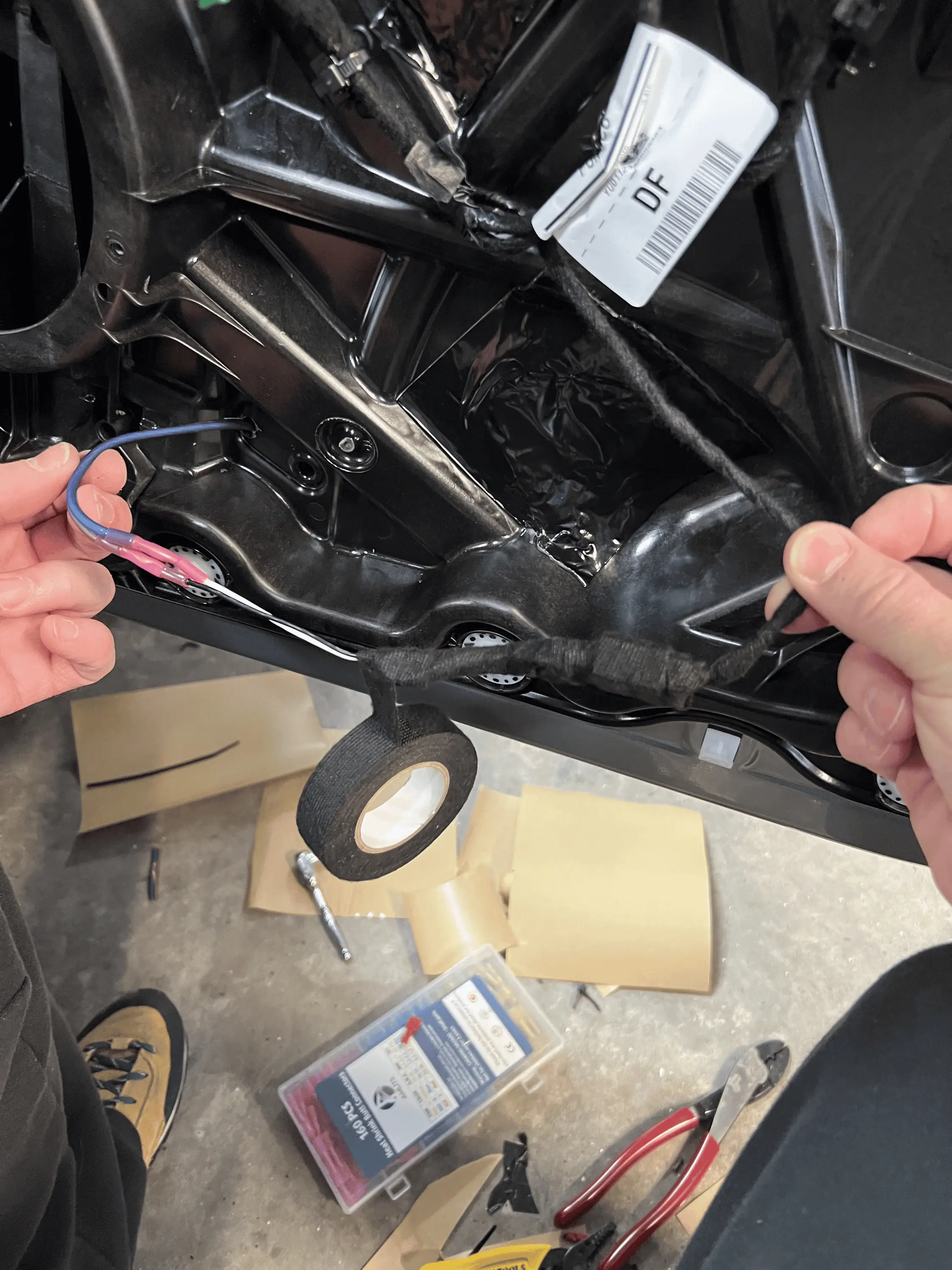

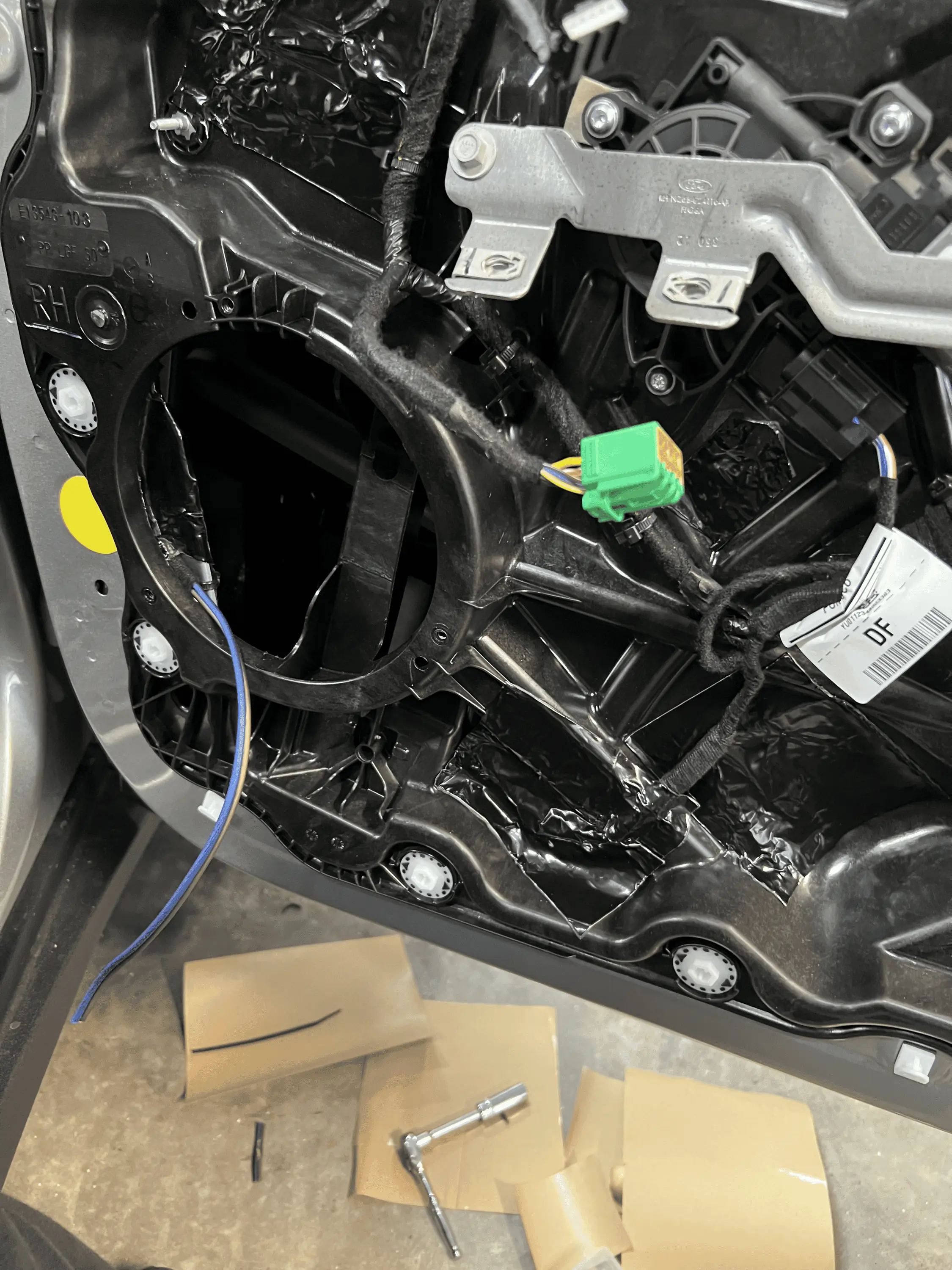

I ran two sets of speaker wire per door. One is is to pull the signal from the factory output to the amp. The other is from amp to new door speakers.
If you have questions let me know and I will do my best to answer them.
I own Creative Audio Solutions in Oklahoma and do collaborations with Killer Ridez from Oklahoma. We install residential and commercial audio and video. We do not have a store front, we are mainly mobile on site except in a few speacial cases. We also do high end cars (Bentley, Benz, Porsche ect.)and custom builds. This is not a plug for us we do not do simple car audio installs anymore, only custom stuff mainly in custom built show cars.
I will post full build pics of Maverick once I get it done, in about 3 weeks or so.
