I installed the backflip tonneau cover, truxedo elevate ts rails and a universal headache rack that are working out great!

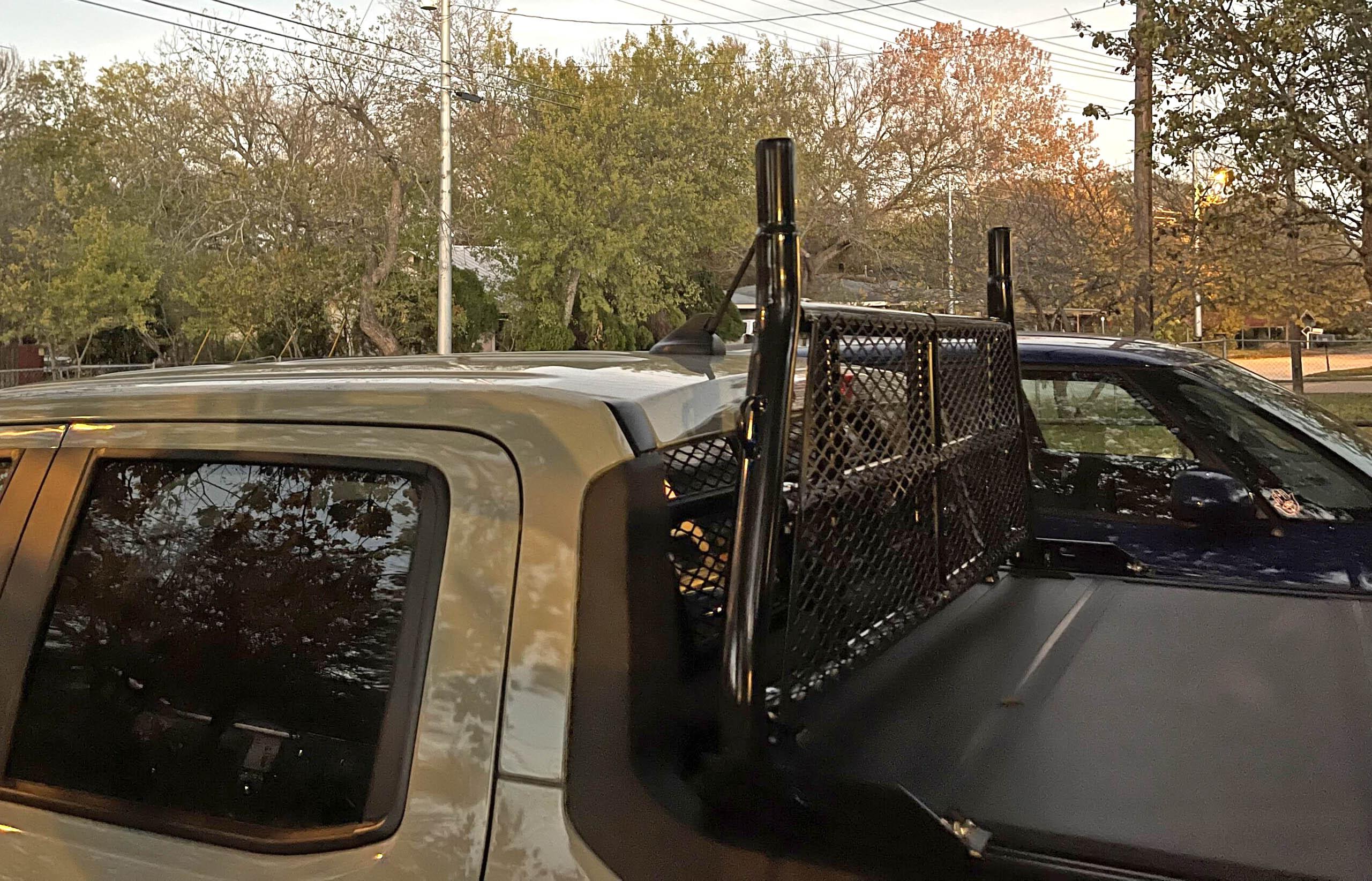

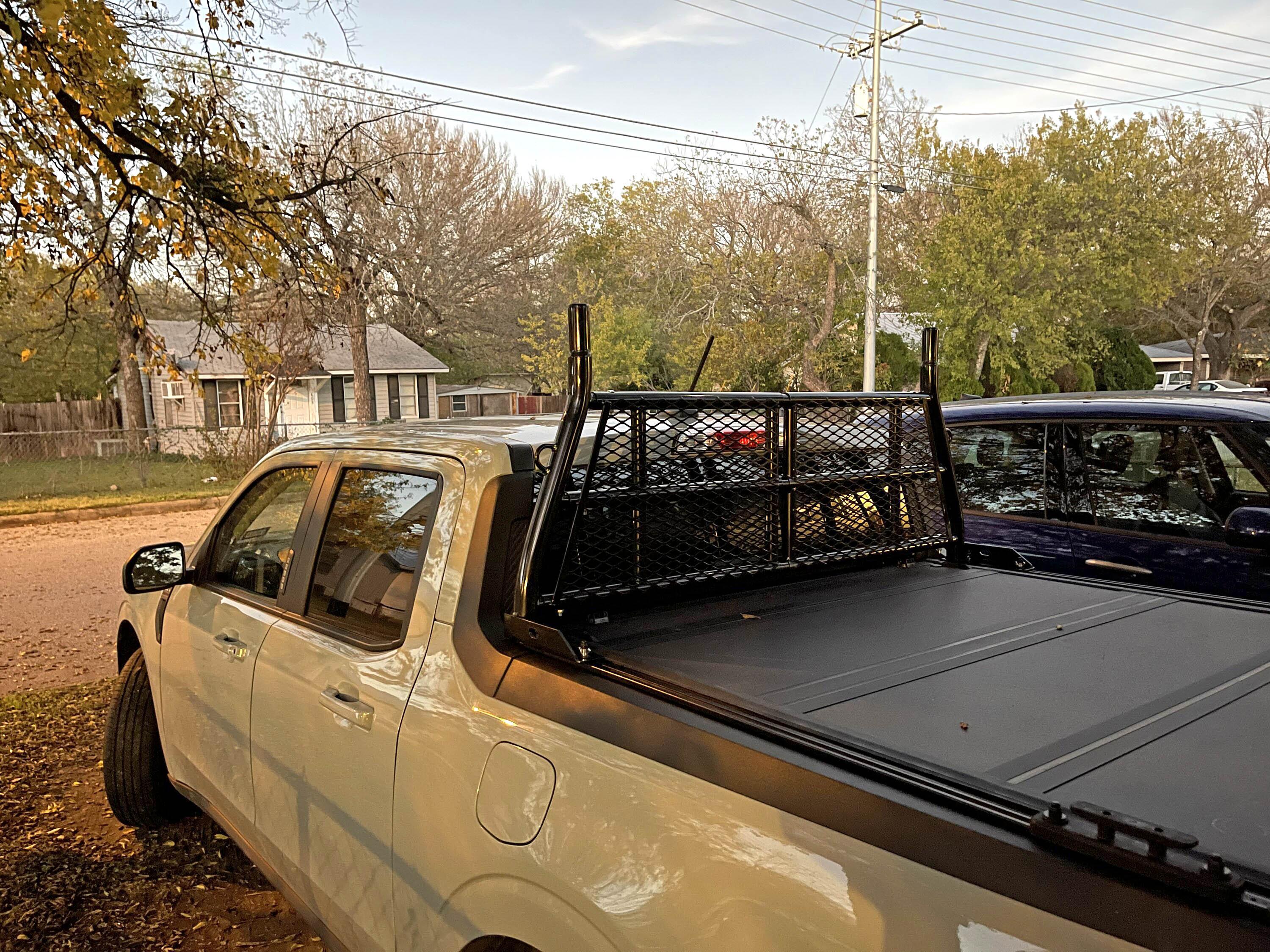

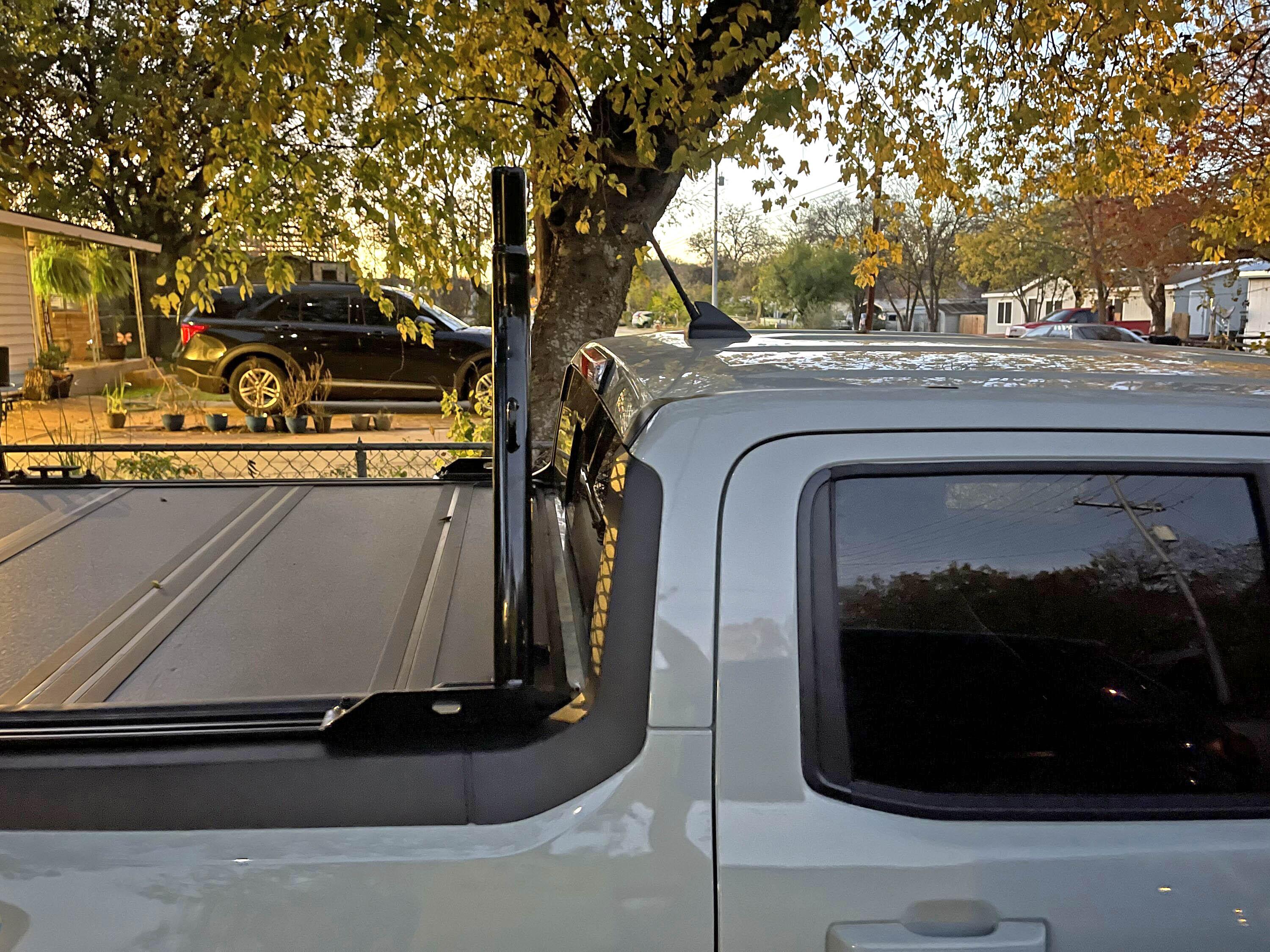

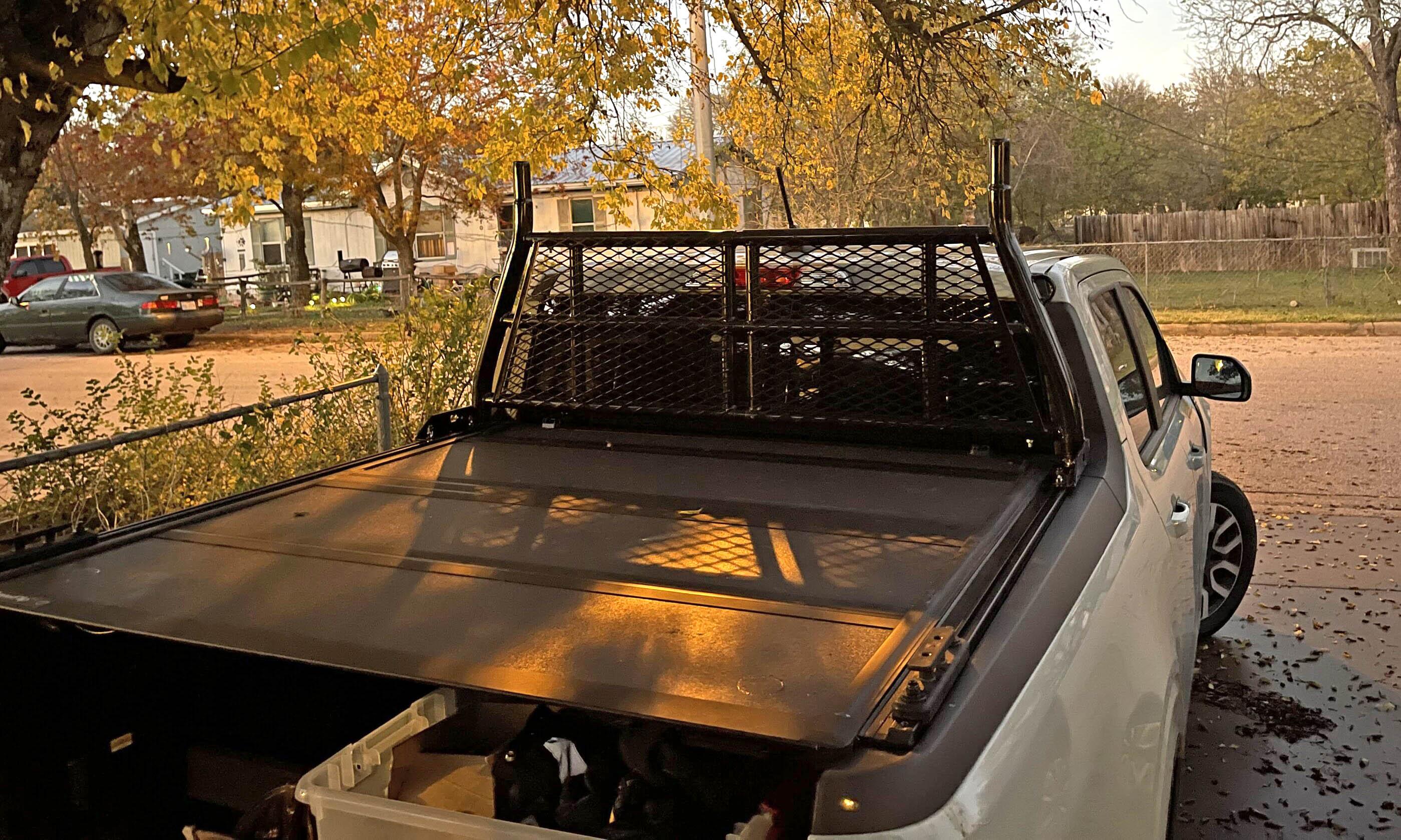

So after getting my backflip cover and the elevate ts rails, I was able to do some measurements and went with this universal headache rack

https://m.northerntool.com/shop/too...1752?cm_mmc=Housefile-_-RECEIVED-_-707-_-CONF

Ford Maverick Headache rack, Backflip tonneau cover and TruXedo Elevate TS Rails -- installed photos & notes f042ce6c-f4fa-43e9-9c4f-2b639de49893-jpe



Ford Maverick Headache rack, Backflip tonneau cover and TruXedo Elevate TS Rails -- installed photos & notes 299e3f68-98c0-4214-869d-80e575020eb6-jpe


Ford Maverick Headache rack, Backflip tonneau cover and TruXedo Elevate TS Rails -- installed photos & notes 0d88c437-d33f-4db9-a83d-ba68f63d7399-jpe


Ford Maverick Headache rack, Backflip tonneau cover and TruXedo Elevate TS Rails -- installed photos & notes 1e3f2781-345d-4be1-a2da-d923d78b08ef-jpe


Ford Maverick Headache rack, Backflip tonneau cover and TruXedo Elevate TS Rails -- installed photos & notes 75786605-e66a-446e-aa2d-a77c21f9c4d3-jpe


Ford Maverick Headache rack, Backflip tonneau cover and TruXedo Elevate TS Rails -- installed photos & notes 305843E1-BB71-4400-8C78-58EBEDF5D5E0


Ford Maverick Headache rack, Backflip tonneau cover and TruXedo Elevate TS Rails -- installed photos & notes 28D960BC-9921-4D62-B539-3663AEBDC312

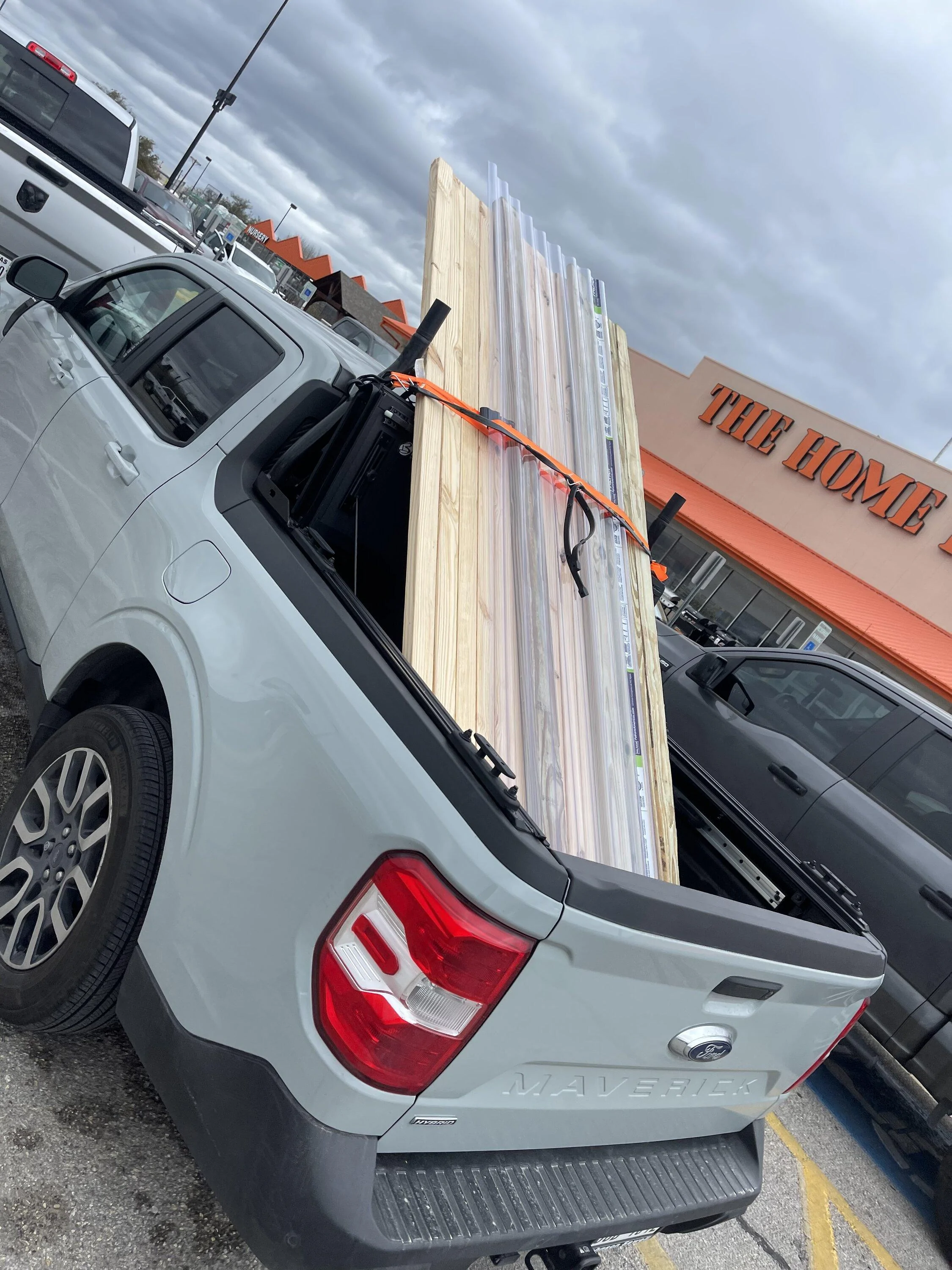

So I like that when I put lumber or anything in the back and it is up against the tailgate, when it is strapped down it does not interfere with the stock antenna. So there is no clearance issue there.
I used the universal rack, as posted above, but I did not use the top cross bar that came with it (which is designed for much bigger trucks.) instead I 3d printed some caps and used electrical tape to make sure they don’t blow off. (They are a pretty snug fit, so I don’t think they would, but I did it anyways just to make sure there is a good seal).

I couldn’t find any replacement t bolts from the elevate ts rails, so I used some 3/8” carriage bolts from Home Depot, used my grinder and flattened out the carriage portion a little bit so it would slide in perfectly into the t slot.

All in all I think it is working out really good. And I feel like it makes the truck a whole lot more useful!

I am super happy with my hybrid maverick! And wanted to share encase this might help someone else out looking to do something similar.
Sponsored



Dman

2.5L Hybrid
Well-known member
First Name
Darrell
Joined
Jul 6, 2021
Threads
8
Messages
63
Reaction score
116
Location
San Gabriel, Texas
Vehicle(s)
2017 Corolla,1990 Silverado,1949 GMC,1949 Harley
Engine
2.5L Hybrid
Dang! I really like this... Getting more work out of our "Trucklettes". 👍
The headache rack looks a little tall for my taste but I completely see how well it works to keep the load off the stock antenna.

Do you have any noticeable wind noise at highway speed from the headache rack when it's empty?

Ok, I just noticed that the cover can be folded up and left in place with the wood on the headache rack! Neat-O!! How's the seal around the cover near the headache rack? I know they're never a perfect seal even by themselves but I was wondering if the headache rack makes rain get in even easier.

Last edited:

Mav&Goose

2.0L EcoBoost
New member
Joined
Jan 5, 2023
Threads
0
Messages
3
Reaction score
0
Location
Connecticut
Vehicle(s)
2012 Ford Focus
Engine
2.0L EcoBoost
That's an awesome set up!! I am planning on getting the Rough Country hard tri-fold. Hopefully it works with the Elevate TS rails. Thanks for sharing!


GPSMan

2.5L Hybrid
Well-known member
First Name
John
Joined
Jul 28, 2022
Threads
28
Messages
2,203
Reaction score
2,242
Location
CA
Vehicle(s)
Many
Engine
2.5L Hybrid
The lumber like that is OK as long as you keep speeds under about 35 mph.

In no circumstance take lumber like that at highway speeds. The wind drag is tremendous and I don't care if you used 10,000 lb straps, it's an accident waiting to happen. But nice arrangement for short trips around town which I'm sure is your primary need, right?


Sponsored

mav_kev

2.0L EcoBoost
Well-known member
Joined
Aug 15, 2022
Threads
0
Messages
107
Reaction score
283
Location
PA
Vehicle(s)
Subie
Engine
2.0L EcoBoost
The lumber like that is OK as long as you keep speeds under about 35 mph.

In no circumstance take lumber like that at highway speeds. The wind drag is tremendous and I don't care if you used 10,000 lb straps, it's an accident waiting to happen. But nice arrangement for short trips around town which I'm sure is your primary need, right?
My thoughts too - sure the stuff technically fits, but that sure seems like a road hazard. Not sure this solution for lumber hauling is better than using the secondary tailgate angle and letting it hang out the back. To each their own, but happy not to be driving behind OP with that load. 😬


GPSMan

2.5L Hybrid
Well-known member
First Name
John
Joined
Jul 28, 2022
Threads
28
Messages
2,203
Reaction score
2,242
Location
CA
Vehicle(s)
Many
Engine
2.5L Hybrid
All about wind loading in this case.
I like it well enough for 35 mph and under.

OP
OP
Rico520

Rico520

2.5L Hybrid
Member
First Name
Mike
Joined
Jun 4, 2022
Threads
1
Messages
6
Reaction score
14
Location
Burnet texas
Vehicle(s)
2022 maverick
Engine
2.5L Hybrid
Dang! I really like this... Getting more work out of our "Trucklettes". 👍
The headache rack looks a little tall for my taste but I completely see how well it works to keep the load off the stock antenna.

Do you have any noticeable wind noise at highway speed from the headache rack when it's empty?

Ok, I just noticed that the cover can be folded up and left in place with the wood on the headache rack! Neat-O!! How's the seal around the cover near the headache rack? I know they're never a perfect seal even by themselves but I was wondering if the headache rack makes rain get in even easier.
I have not noticed any wind noise difference with the rack on vs with it off.

The seal is pretty good around the rack. The only place I have water get in is at the tailgate. But I did have weather seal that came with the elevate rails and the trifold cover, so I pieced it together and cut small pieces for any gaps and made sure I sealed it tight when I installed it.
I do keep a plastic tub in the back that I can put stuff in that I want to make sure stays dry, but overall I get very little water in there, and it’s only from the tailgate side.

OP
OP
Rico520

Rico520

2.5L Hybrid
Member
First Name
Mike
Joined
Jun 4, 2022
Threads
1
Messages
6
Reaction score
14
Location
Burnet texas
Vehicle(s)
2022 maverick
Engine
2.5L Hybrid
The lumber like that is OK as long as you keep speeds under about 35 mph.

In no circumstance take lumber like that at highway speeds. The wind drag is tremendous and I don't care if you used 10,000 lb straps, it's an accident waiting to happen. But nice arrangement for short trips around town which I'm sure is your primary need, right?
I did the trip on the highway without any issues, it was about a 20 mile drive, I kept it at 55mph even thought the speed limit was 70, and was having wind gusts up to 35 mph during that drive. I’m not an engineer so I couldn’t say how dangerous that was, but I didn’t have any issues/damage and everything is still solid.


maverickeric

2.0L EcoBoost
Active member
First Name
E
Joined
Jul 14, 2022
Threads
6
Messages
35
Reaction score
17
Location
NJ
Vehicle(s)
F150 + Maverick XL
Engine
2.0L EcoBoost
Curious why run your items this way vs with the gate partially down, all the way down, or prop it up against the closed tailgate? I wouldn't want to haul my load this way. What are the dimensions, 10'?

OP
OP
Rico520

Rico520

2.5L Hybrid
Member
First Name
Mike
Joined
Jun 4, 2022
Threads
1
Messages
6
Reaction score
14
Location
Burnet texas
Vehicle(s)
2022 maverick
Engine
2.5L Hybrid
Curious why run your items this way vs with the gate partially down, all the way down, or prop it up against the closed tailgate? I wouldn't want to haul my load this way. What are the dimensions, 10'?
I honestly had some other loose stuff in the truck bed I didn’t want just falling out. And I didn’t have a red flag to put on it, and they didn’t have any of the cheap plastic ones out in the load area that day.
