Lane keeping assist can be retrofit using the turn signal stalk with the button and FORScan.
Different from lane centering which is part of the Adaptive Cruise and a more involved install.
Sponsored
Sponsored
Enable TSR (traffic sign recognition) on XL/XLT with FORScan -- DIY how-to
Different from lane centering which is part of the Adaptive Cruise and a more involved install.
- First Name
- Wayne
- Joined
- Sep 22, 2022
- Threads
- 19
- Messages
- 214
- Reaction score
- 131
- Location
- Mishawaka, Indiana
- Vehicle(s)
- Focus
- Engine
- 2.5L Hybrid

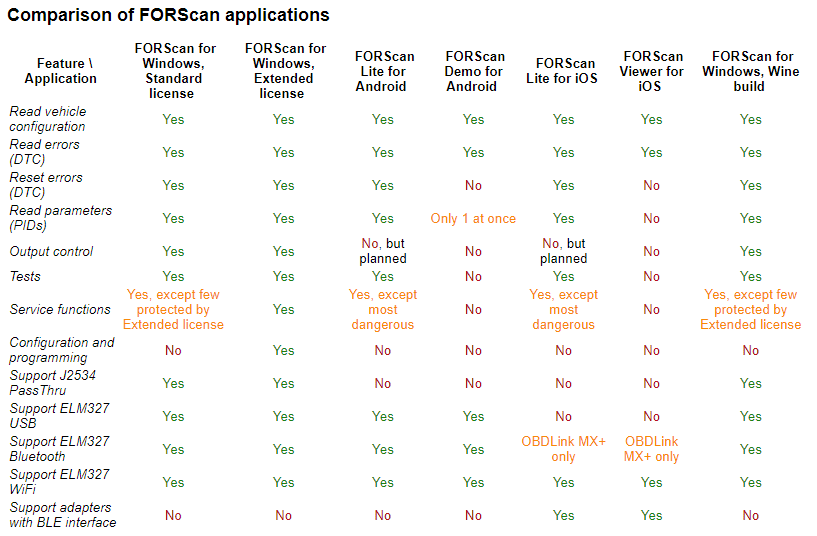

Looking at my iPhone app I see 2 Forscan apps one is free the other is $6.99 both are from the same programmer but one says viewer the other does not.Reading up on Forscan options I found that ALL models of the Maverick have this capability.
The "eye" (camera that detects oncoming cars for auto-dim) has other functions, including TSR. All Mavericks have this camera.
Using Forscan software and cable I enabled it easily. Here's how:
(I am surmising you know how to use Forscan. If you don't just Google or YouTube it. It's easy.)
1. Once connected choose the chip icon, then IPC Module Configuration (AS BUILT format). Find entry 720-03-02. Change the third character of the first octet to a letter C. [xxCx-xxxx]
2. Click "Write All" at the bottom of the screen and follow the screen prompts to turn ignition off/on.
3. Return to the "chip" button settings locate IPMA Module Configuration (AS BUILT format). Find 706-01-01 and change the third and fourth characters in the second octet as shown: [xxxx-xxD2-xxxxx]
4. Click "Write All" at the bottom of the screen and follow the screen prompts to turn ignition off/on.
5. On your dash display go to the "gears" icon indicating settings. Choose Driver Assistance, choose Traffic Sign Recognition and check Activate TSR.

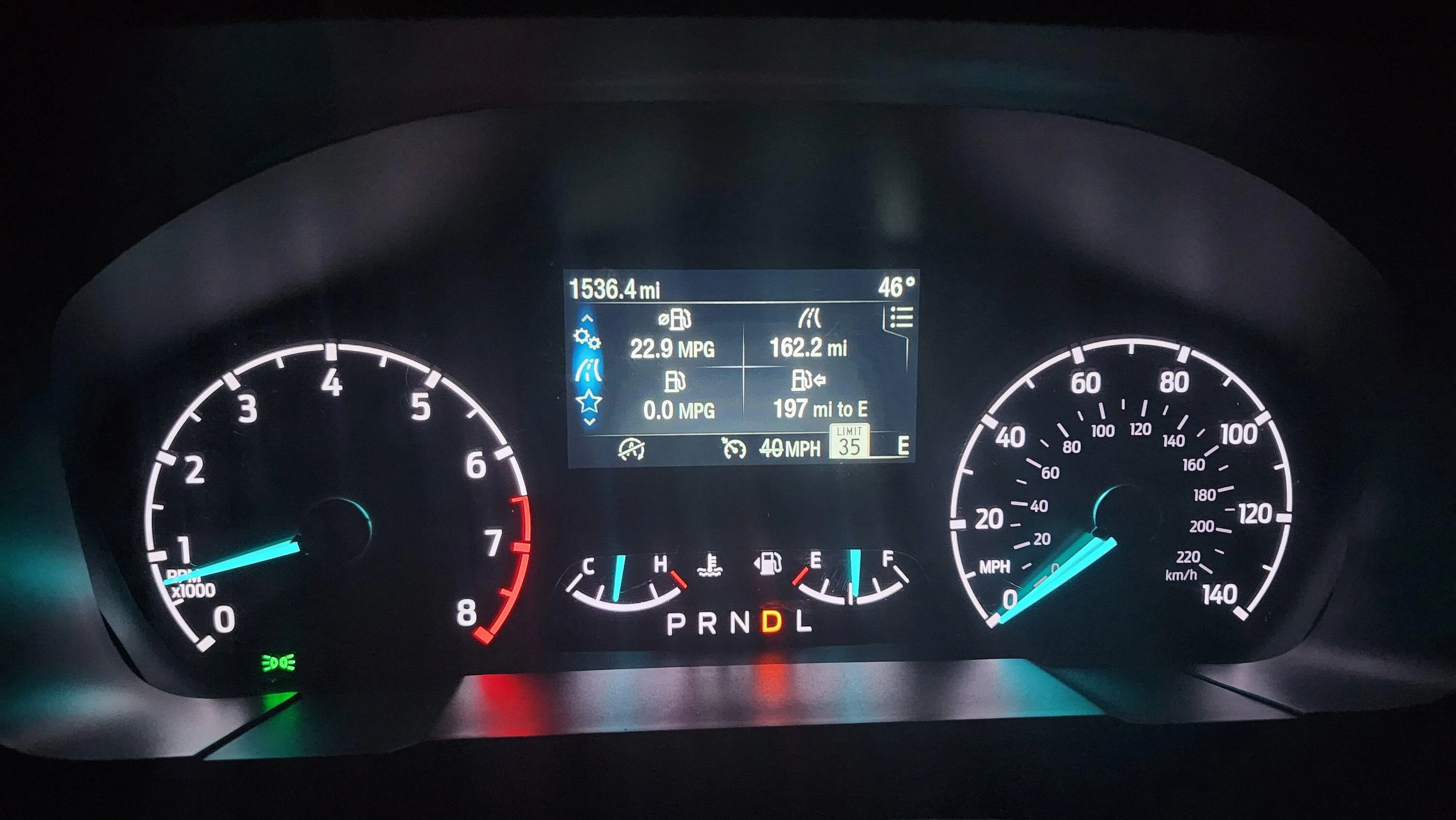

THAT'S LITERALLY IT. You should now have working TSR indicating speed limit signs, no passing zones, etc.
I'm no expert on Forscan so I may not be able to help others troubleshoot much, but I'll try. I gained my knowledge by reading all of the (currently 18) pages of @Maverick2022XL 's thread here: https://www.mavericktruckclub.com/f...ition-tsr-forscan-mod-confirmed-working.9399/
Lots of discussion about Lariats and 6" screens so I weeded through it to find what works on the XL and XLT with the small screen. Following instructions there you can also activate other features regarding TSR.
Good luck and enjoy.
- First Name
- Wayne
- Joined
- Sep 22, 2022
- Threads
- 19
- Messages
- 214
- Reaction score
- 131
- Location
- Mishawaka, Indiana
- Vehicle(s)
- Focus
- Engine
- 2.5L Hybrid
Reading up on Forscan options I found that ALL models of the Maverick have this capability.
The "eye" (camera that detects oncoming cars for auto-dim) has other functions, including TSR. All Mavericks have this camera.
Using Forscan software and cable I enabled it easily. Here's how:
(I am surmising you know how to use Forscan. If you don't just Google or YouTube it. It's easy.)
1. Once connected choose the chip icon, then IPC Module Configuration (AS BUILT format). Find entry 720-03-02. Change the third character of the first octet to a letter C. [xxCx-xxxx]
2. Click "Write All" at the bottom of the screen and follow the screen prompts to turn ignition off/on.
3. Return to the "chip" button settings locate IPMA Module Configuration (AS BUILT format). Find 706-01-01 and change the third and fourth characters in the second octet as shown: [xxxx-xxD2-xxxxx]
4. Click "Write All" at the bottom of the screen and follow the screen prompts to turn ignition off/on.
5. On your dash display go to the "gears" icon indicating settings. Choose Driver Assistance, choose Traffic Sign Recognition and check Activate TSR.
THAT'S LITERALLY IT. You should now have working TSR indicating speed limit signs, no passing zones, etc.
I'm no expert on Forscan so I may not be able to help others troubleshoot much, but I'll try. I gained my knowledge by reading all of the (currently 18) pages of @Maverick2022XL 's thread here: https://www.mavericktruckclub.com/f...ition-tsr-forscan-mod-confirmed-working.9399/
Lots of discussion about Lariats and 6" screens so I weeded through it to find what works on the XL and XLT with the small screen. Following instructions there you can also activate other features regarding TSR.
Good luck and enjoy.
You need a Windows PC for programming.
- First Name
- Wayne
- Joined
- Sep 22, 2022
- Threads
- 19
- Messages
- 214
- Reaction score
- 131
- Location
- Mishawaka, Indiana
- Vehicle(s)
- Focus
- Engine
- 2.5L Hybrid
Sponsored
- Joined
- Dec 3, 2021
- Threads
- 43
- Messages
- 417
- Reaction score
- 554
- Location
- Cincinnati, OH
- Vehicle(s)
- '20 Ford Escape Titanium Hybrid 16 Ford Escape SE
- Engine
- 2.0L EcoBoost
I may have missed this tidbit of info and it's been a couple years since Ive messed with FORScan. My OBD adapter has the medium speed and high speed can bus switch. Which setting should I be using to perform the TSR enable? Seems like I remember it would prompt you to switch the setting if need be but just wanted to verify. Thanks for all the info! Much appreciated.
Last edited:
- First Name
- Mark
- Joined
- Oct 4, 2021
- Threads
- 3
- Messages
- 983
- Reaction score
- 822
- Location
- Rochester, NY
- Vehicle(s)
- 22 Maverick Lariat 2.0 AWD; 20 Escape SEL 2.0 AWD
- Engine
- 2.0L EcoBoost
Forscan will tell you. When it connects it walks you through putting the switch in both positions. Then when you click on a module it will tell you to flip it, if needed.
- First Name
- Ike
- Joined
- Mar 9, 2022
- Threads
- 0
- Messages
- 24
- Reaction score
- 29
- Location
- Hawley, PA
- Vehicle(s)
- 2022 Ford Maverick EB 2.0L Lariat
- Engine
- 2.0L EcoBoost
Does anyone know why Ford does not enable the feature from the factory for those models that have the supporting hardware?Reading up on Forscan options I found that ALL models of the Maverick have this capability.
The "eye" (camera that detects oncoming cars for auto-dim) has other functions, including TSR. All Mavericks have this camera.
Using Forscan software and cable I enabled it easily. Here's how:
(I am surmising you know how to use Forscan. If you don't just Google or YouTube it. It's easy.)
1. Once connected choose the chip icon, then IPC Module Configuration (AS BUILT format). Find entry 720-03-02. Change the third character of the first octet to a letter C. [xxCx-xxxx]
2. Click "Write All" at the bottom of the screen and follow the screen prompts to turn ignition off/on.
3. Return to the "chip" button settings locate IPMA Module Configuration (AS BUILT format). Find 706-01-01 and change the third and fourth characters in the second octet as shown: [xxxx-xxD2-xxxxx]
4. Click "Write All" at the bottom of the screen and follow the screen prompts to turn ignition off/on.
5. On your dash display go to the "gears" icon indicating settings. Choose Driver Assistance, choose Traffic Sign Recognition and check Activate TSR.
THAT'S LITERALLY IT. You should now have working TSR indicating speed limit signs, no passing zones, etc.
I'm no expert on Forscan so I may not be able to help others troubleshoot much, but I'll try. I gained my knowledge by reading all of the (currently 18) pages of @Maverick2022XL 's thread here: https://www.mavericktruckclub.com/f...ition-tsr-forscan-mod-confirmed-working.9399/
Lots of discussion about Lariats and 6" screens so I weeded through it to find what works on the XL and XLT with the small screen. Following instructions there you can also activate other features regarding TSR.
Good luck and enjoy.
OP
OP
- First Name
- Eric
- Joined
- Jul 30, 2021
- Threads
- 29
- Messages
- 826
- Reaction score
- 1,728
- Location
- St. George, Utah
- Vehicle(s)
- Hot rods, Jeeps, boats
- Engine
- 2.5L Hybrid
Sponsored
- First Name
- Antonio
- Joined
- Jul 21, 2022
- Threads
- 25
- Messages
- 1,179
- Reaction score
- 1,844
- Location
- Virginia
- Website
- youtube.com
- Vehicle(s)
- 2022 XL Ford Maverick
- Engine
- 2.0L EcoBoost
Lol i tried it with the explorer cluster it doesnt even shows up lol
broke it probably.
broke it probably.Sponsored
