Credit to this kind stranger on Reddit, easiest speaker upgrade to the Mav using existing wiring harness and plug and play!

Credit to BlakesCars2 for the useful video guide

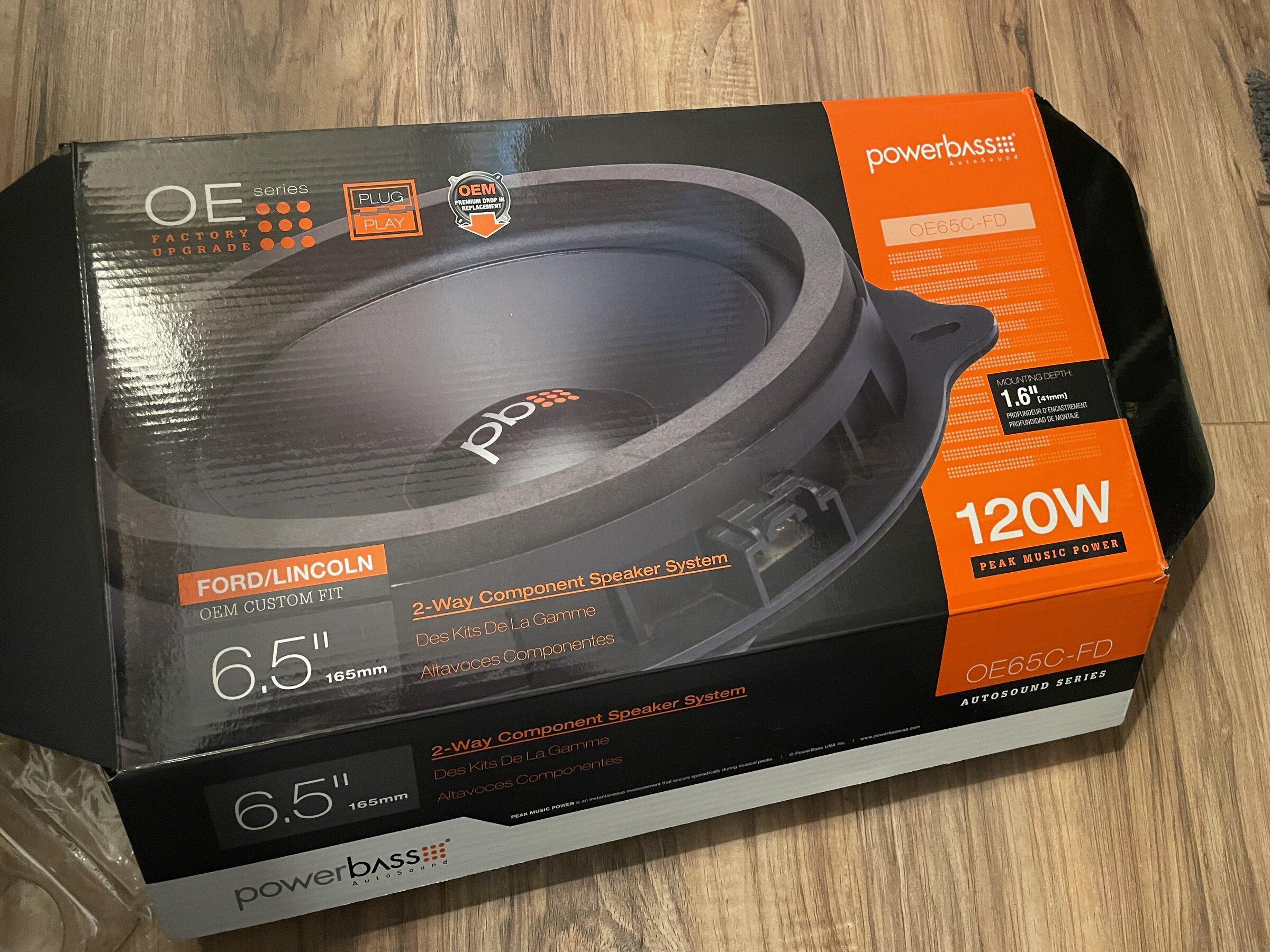

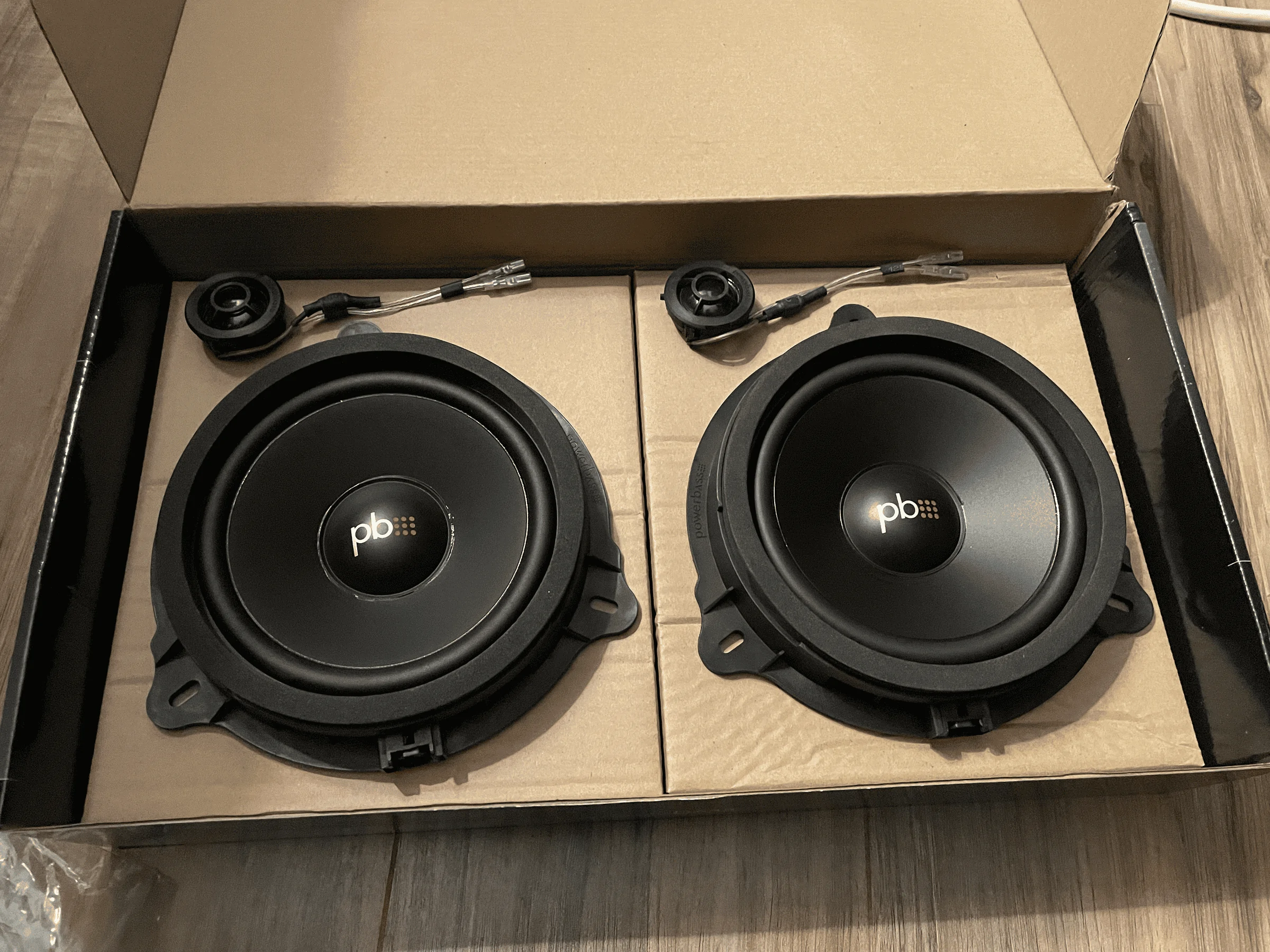

Ok, This is the product link here goes for $129, but its literally drop in and no existing modifications required includes upgrading the tweeters too.


Ford Maverick Easy Speakers Upgrade -- drop in and no existing modifications required tempImagePCQixy
Ford Maverick Easy Speakers Upgrade -- drop in and no existing modifications required tempImageu5VONV



Installed with this video guide (front)
Tweeter Installation video guide

Install Notes
* I recommend a plastic pry tool for door panels, you can easily get one from crutchfield or amazon.
* The plastics are tight, grip firmly and give it a little tug and eventually the plastic clips will give.
* The included foam on the new speaker is thick, the door panel will need some "Convincing" to snap back especially @ the bottom.

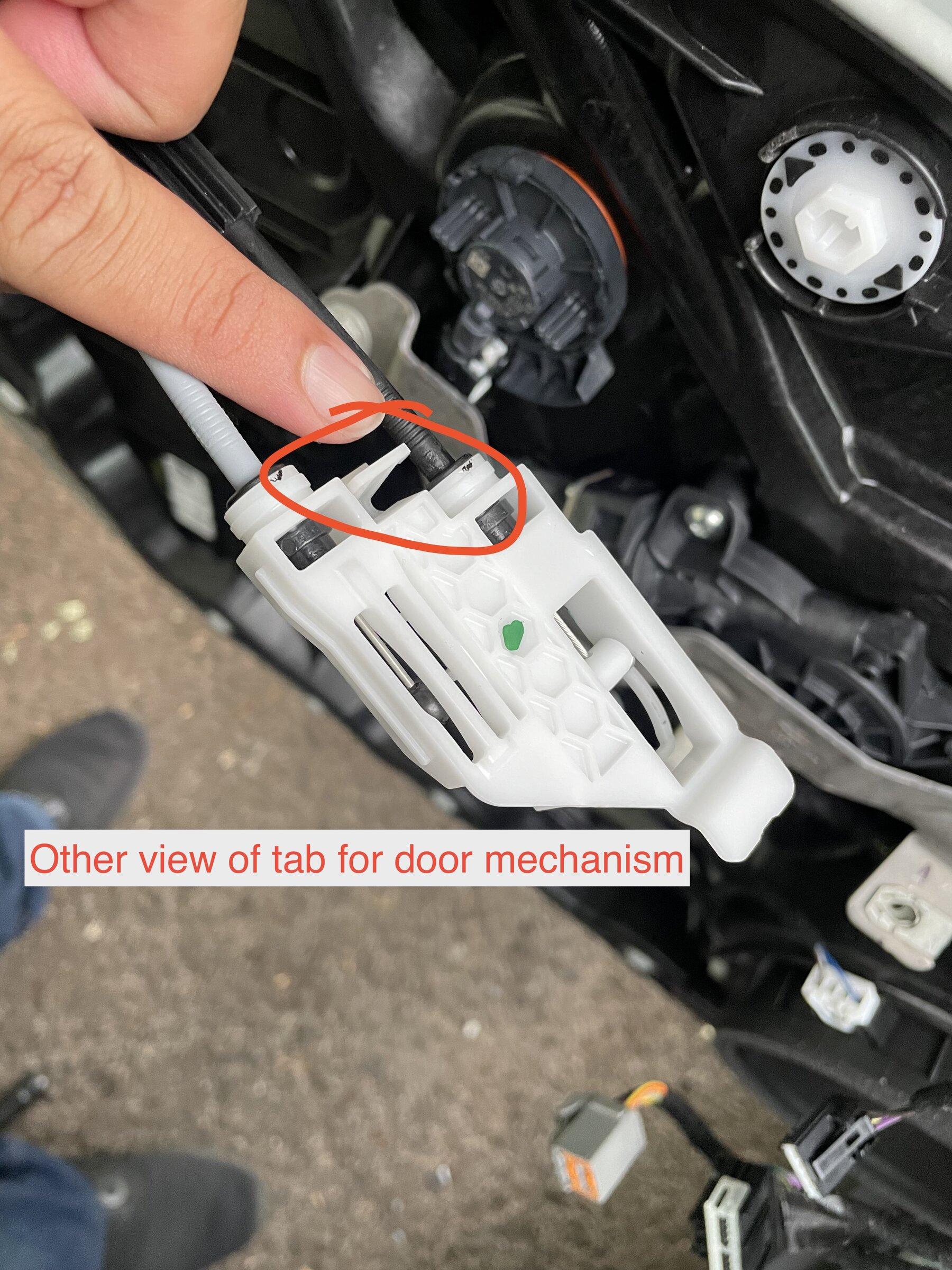

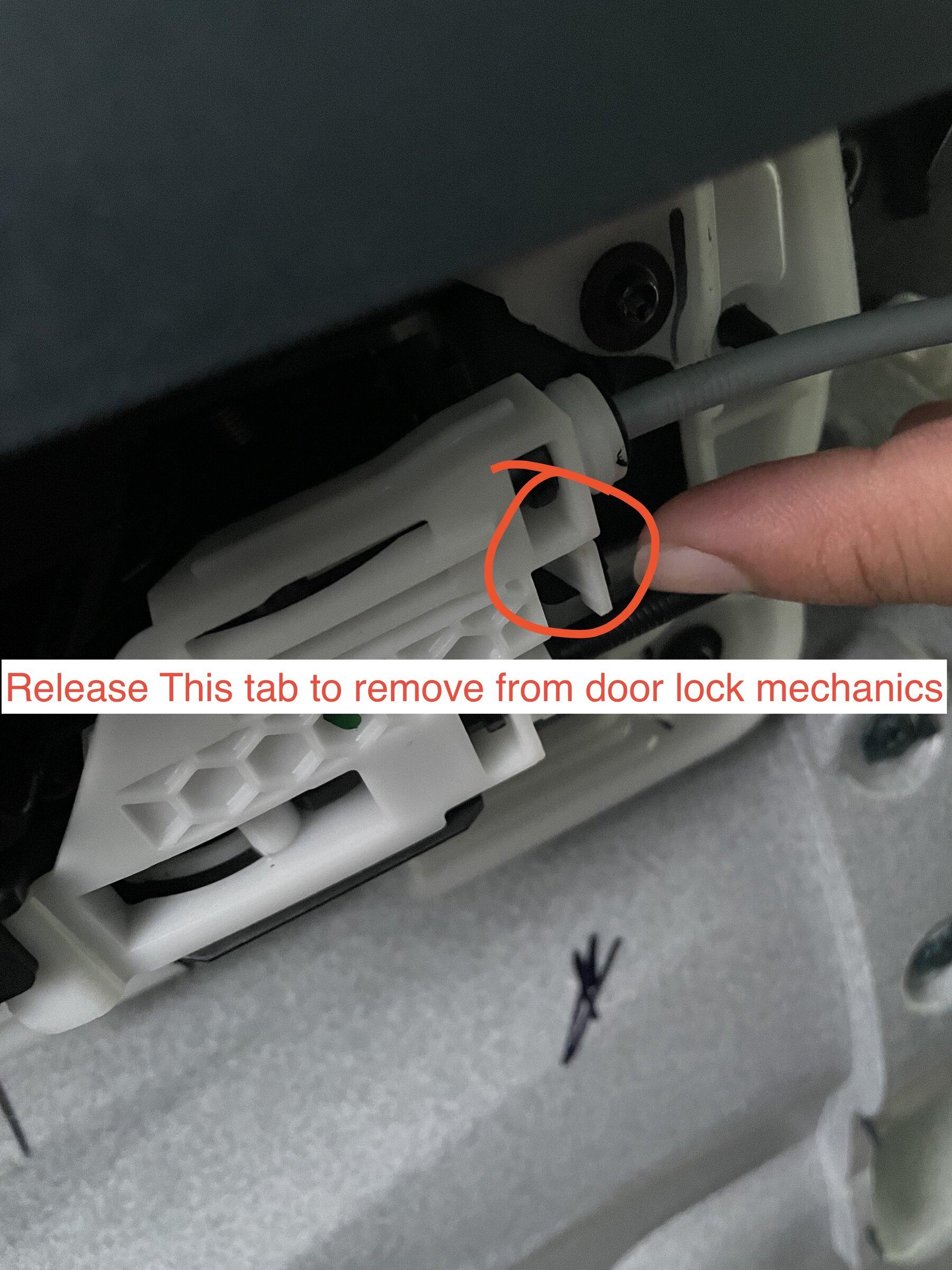

The video guide shows the door panel being tucked away to the side, I found that difficult.. imo Disconnecting the door lock mechanism was easy,
One tab and it releases as a whole and it just snaps back into place. You might need to move the actual manual door lock to "sync" its position.


Ford Maverick Easy Speakers Upgrade -- drop in and no existing modifications required C8318F91-84F0-40ED-8BBE-9EC9A5260B23_1_201_a
Ford Maverick Easy Speakers Upgrade -- drop in and no existing modifications required E4AA31D8-FAF0-44E6-80E9-70A0C4CD3262_1_201_a

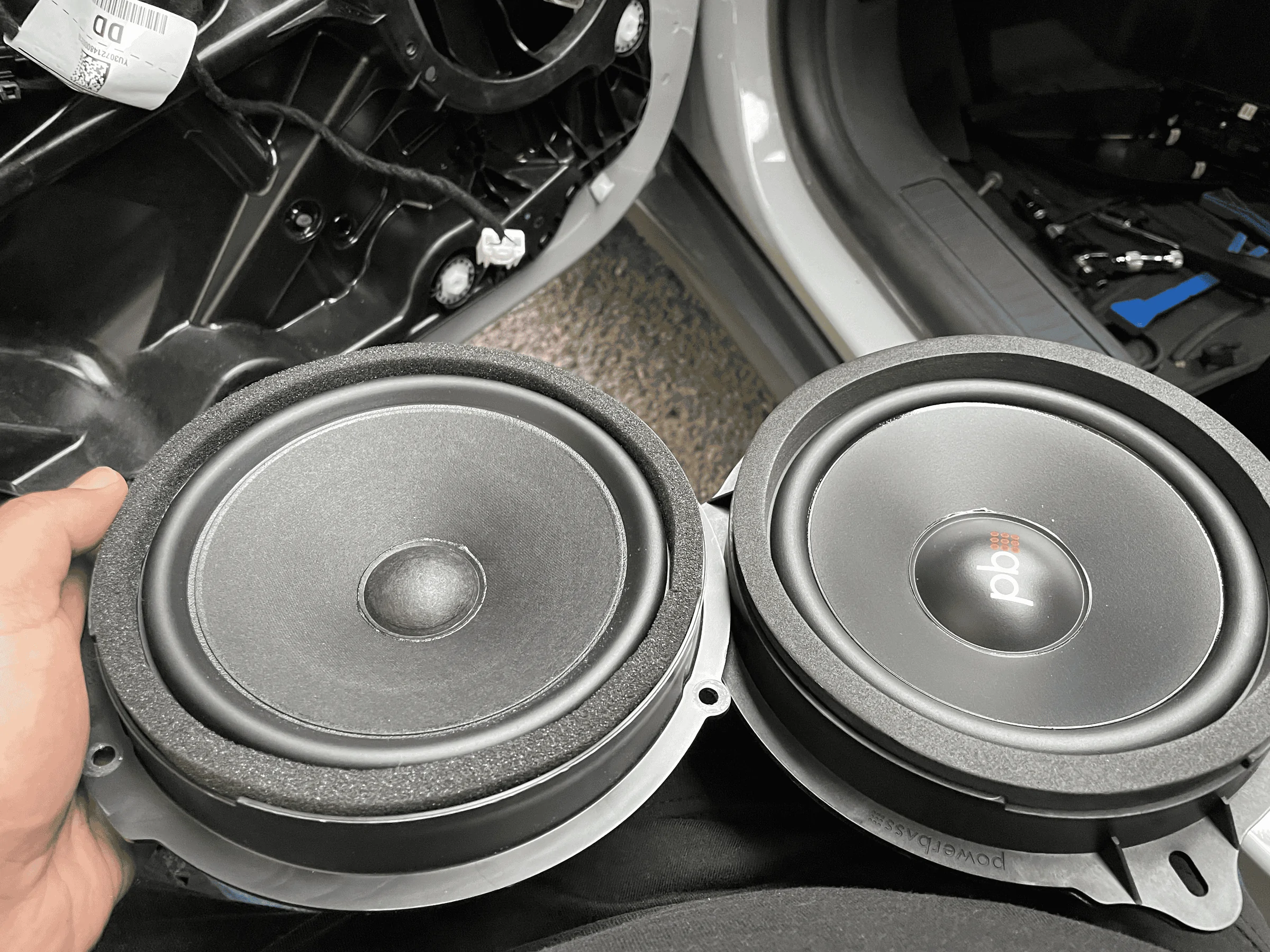

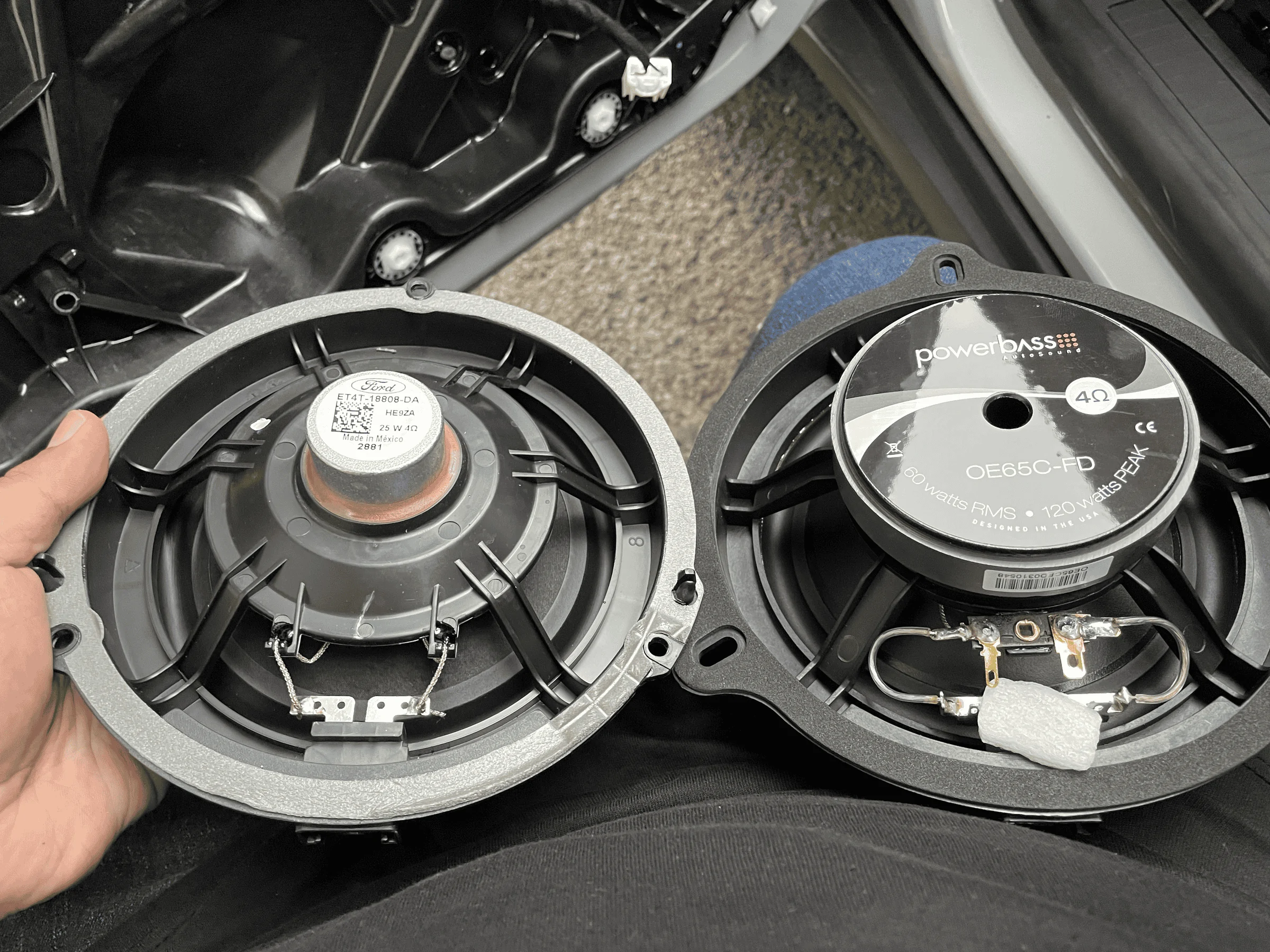

Old vs new speaker
Ford Maverick Easy Speakers Upgrade -- drop in and no existing modifications required tempImageKg2b7
Ford Maverick Easy Speakers Upgrade -- drop in and no existing modifications required tempImageQ7r5JL

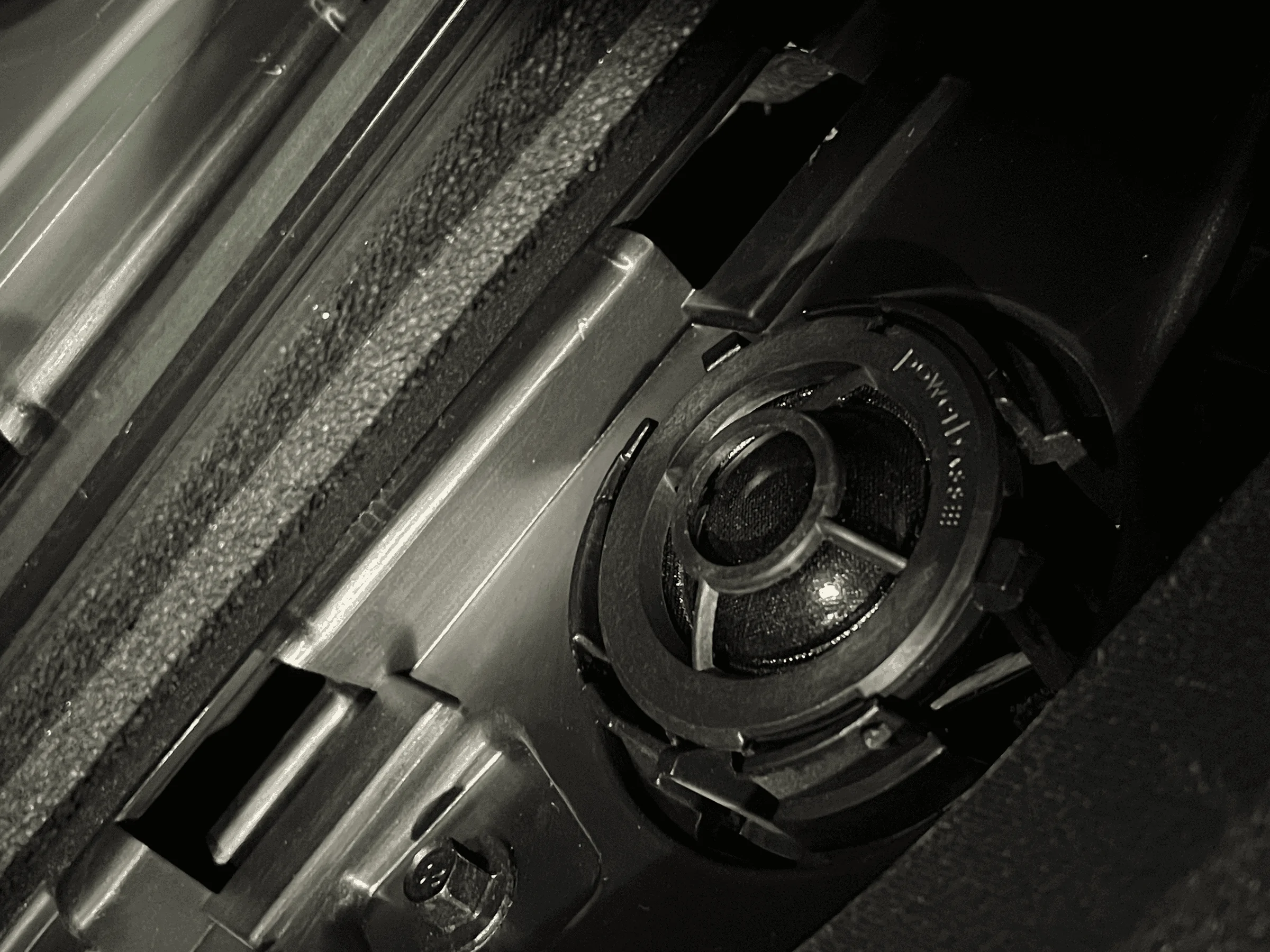

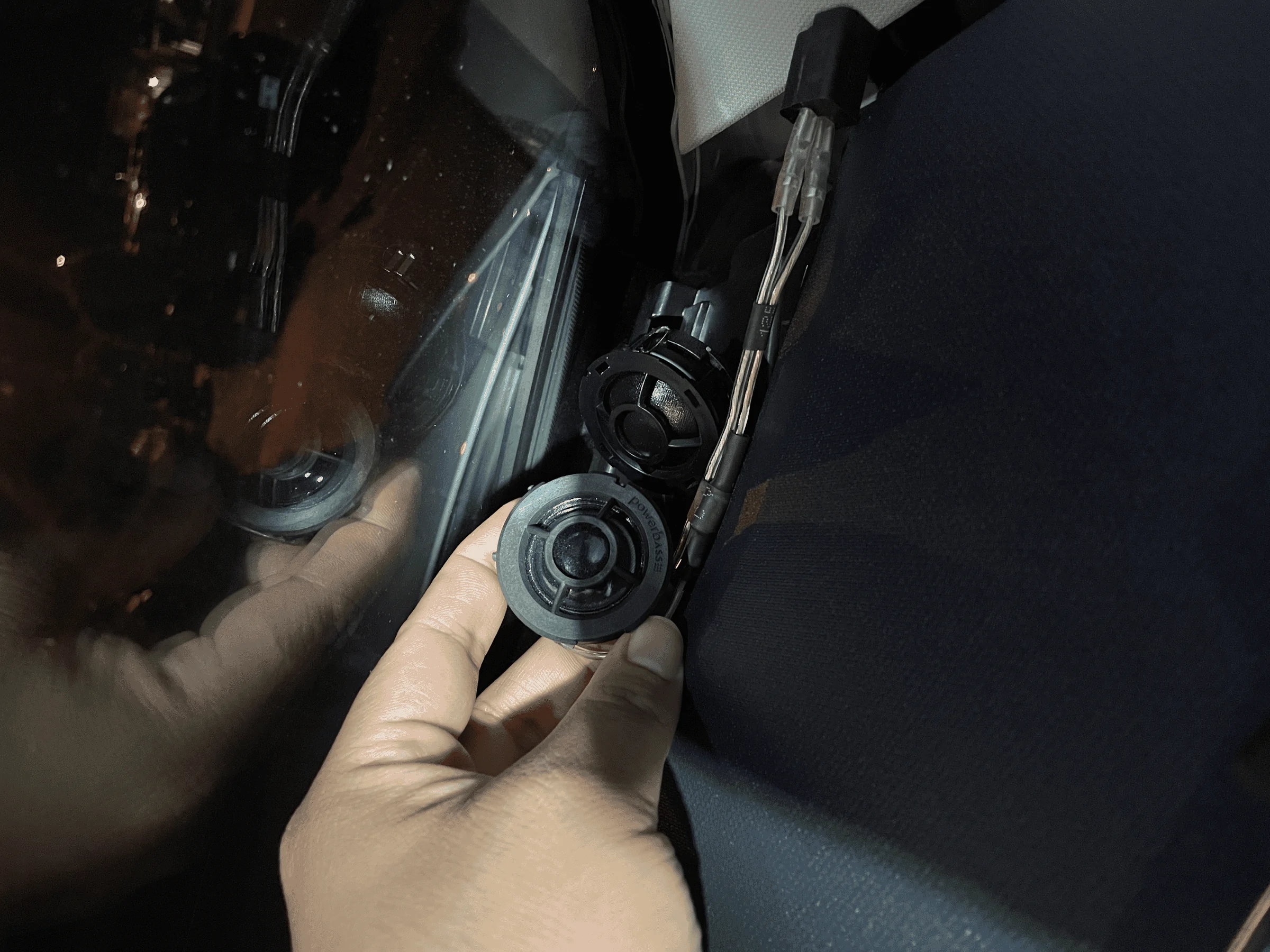

The tweeters will drop in to the housing using the original wiring harness and adaptor that comes in the box.
Ford Maverick Easy Speakers Upgrade -- drop in and no existing modifications required tempImageQnRwOG
Ford Maverick Easy Speakers Upgrade -- drop in and no existing modifications required tempImage3kTkqX


Overall I'm impressed at this drop in DIY, takes the guesswork of finding the correct depth, harness and fitment.
Huge improvement to the low end, mid's and high's. The audio system before the upgrade was very muddy even after messing with EQ settings.
Sponsored



Magog

2.0L EcoBoost
Member
First Name
Matt
Joined
Feb 22, 2022
Threads
1
Messages
17
Reaction score
11
Location
Chicago
Vehicle(s)
2023 Maverick XLT AWD
Engine
2.0L EcoBoost
I’m still waiting for my truck, but would like to order this now so I can switch them out right away. How many speakers (6.5”) do I purchase? Are front and rear same speakers. Do I have to order the tweeters separately? If so, could you post info on those? Thanks.

OP
OP

Stock411

2.5L Hybrid
Well-known member
Joined
Aug 7, 2021
Threads
15
Messages
222
Reaction score
274
Location
HI
Vehicle(s)
2022 Ford Maverick XLT Hybrid
Engine
2.5L Hybrid
I’m still waiting for my truck, but would like to order this now so I can switch them out right away. How many speakers (6.5”) do I purchase? Are front and rear same speakers. Do I have to order the tweeters separately? If so, could you post info on those? Thanks.
Just one set of 6 1/2, the rear speakers are a different size.


Sponsored

uh50

2.0L EcoBoost
Well-known member
First Name
Howard
Joined
Oct 4, 2021
Threads
29
Messages
1,180
Reaction score
1,316
Location
Brookhaven Lake O' the Pines, Texas
Website
www.hchaney.com
Vehicle(s)
2022 Maverick XL, VB, 2.0 EB
Engine
2.0L EcoBoost
Credit to this kind stranger on Reddit, easiest speaker upgrade to the Mav using existing wiring harness and plug and play!

Credit to BlakesCars2 for the useful video guide

Ok, This is the product link here goes for $129, but its literally drop in and no existing modifications required includes upgrading the tweeters too.





Installed with this video guide (front)
Tweeter Installation video guide

Install Notes
* I recommend a plastic pry tool for door panels, you can easily get one from crutchfield or amazon.
* The plastics are tight, grip firmly and give it a little tug and eventually the plastic clips will give.
* The included foam on the new speaker is thick, the door panel will need some "Convincing" to snap back especially @ the bottom.

The video guide shows the door panel being tucked away to the side, I found that difficult.. imo Disconnecting the door lock mechanism was easy,
One tab and it releases as a whole and it just snaps back into place. You might need to move the actual manual door lock to "sync" its position.




Old vs new speaker


The tweeters will drop in to the housing using the original wiring harness and adaptor that comes in the box.


Overall I'm impressed at this drop in DIY, takes the guesswork of finding the correct depth, harness and fitment.
Huge improvement to the low end, mid's and high's. The audio system before the upgrade was very muddy even after messing with EQ settings.
Thanks for the post with awesome details. Your hints will help us all that are planning to upgrade. Great job.


The Speaker Guy

2.5L Hybrid
Well-known member
First Name
John
Joined
Jul 7, 2021
Threads
13
Messages
72
Reaction score
153
Location
92648
Vehicle(s)
2022 A51 Lariat Lux CP360 SIBL Hybrid
Engine
2.5L Hybrid
Sponsored

JerseyMike

2.5L Hybrid
Well-known member
First Name
Mike
Joined
Oct 27, 2021
Threads
17
Messages
214
Reaction score
358
Location
Belmar NJ
Vehicle(s)
2019 Mazda 3
Engine
2.5L Hybrid
Is there a set that drops in for the rears too?


Nw_adventure

2.0L EcoBoost
Well-known member
Joined
Aug 3, 2021
Threads
80
Messages
2,448
Reaction score
2,072
Location
Salt Lake city
Vehicle(s)
Honda Element/ Toyota Highlander
Engine
2.0L EcoBoost
Is there a set that drops in for the rears too?
From what I have seen/read the rears are a nightmare to replace and don't make a big difference compared to what you get by upgrading the door speakers -


The Hater

Member
First Name
Josh
Joined
Jan 24, 2022
Threads
1
Messages
16
Reaction score
22
Location
Texas
Vehicle(s)
2005 GMC Yukon
Credit to this kind stranger on Reddit, easiest speaker upgrade to the Mav using existing wiring harness and plug and play!

Credit to BlakesCars2 for the useful video guide

Ok, This is the product link here goes for $129, but its literally drop in and no existing modifications required includes upgrading the tweeters too.





Installed with this video guide (front)
Tweeter Installation video guide

Install Notes
* I recommend a plastic pry tool for door panels, you can easily get one from crutchfield or amazon.
* The plastics are tight, grip firmly and give it a little tug and eventually the plastic clips will give.
* The included foam on the new speaker is thick, the door panel will need some "Convincing" to snap back especially @ the bottom.

The video guide shows the door panel being tucked away to the side, I found that difficult.. imo Disconnecting the door lock mechanism was easy,
One tab and it releases as a whole and it just snaps back into place. You might need to move the actual manual door lock to "sync" its position.




Old vs new speaker


The tweeters will drop in to the housing using the original wiring harness and adaptor that comes in the box.


Overall I'm impressed at this drop in DIY, takes the guesswork of finding the correct depth, harness and fitment.
Huge improvement to the low end, mid's and high's. The audio system before the upgrade was very muddy even after messing with EQ settings.
Thank you for spreading the knowledge. I've been wanting to do a speaker upgrade but didn't want to go full on audio file with it. I tried to see if there was a 4" set from this company on Amazon as well, but couldn't find any definitive information that they would work. Obviously they have the correct size, but the only mention in a customer review for them was for Bose audio systems and the buyer set them up in an Audi. So not sure if the wiring harness would match up, if it had one at all.

If anyone from this thread is able to find a plug and play set of 4" speakers for the rear please tag me.

Last edited:

MightyNando

Well-known member
First Name
Fernando
Joined
Nov 6, 2021
Threads
0
Messages
62
Reaction score
104
Location
Albuquerque
Vehicle(s)
2005 Chevy Silverado, sounds like it's giving up.
I'm not doing this to my Maverick just yet I'm working on some lights but it's amazing that we have people like you that take their time to show others how to do things I greatly appreciate and droping into you really thank you!!!!


Chowdayer

2.0L EcoBoost
Well-known member
First Name
Vince
Joined
Feb 1, 2022
Threads
4
Messages
54
Reaction score
84
Location
Los Angeles, CA
Vehicle(s)
2022 Ford Maverick 2.0 XLT FX4 Lightning Blue
Engine
2.0L EcoBoost
Thank you for spreading the knowledge. I've been wanting to do a speaker upgrade but didn't want to go full on audio file with it. I tried to see if there was a 4" set from this company on Amazon as well, but couldn't find any definitive information that they would work. Obviously they have the correct size, but the only mention in a customer review for them was for Bose audio systems and the buyer set them up in an Audi. So not sure if the wiring harness would match up, if it had one at all.

If anyone from this thread is able to find a plug and play set of 4" speakers for the rear please tag me.
I used this speaker harness to install these speakers in the rear. Fit perfect.

Ford Bronco (2021+), Ford Maverick (2022+) Speaker Wiring Harness Grey
https://www.crutchfield.com/p_20647KSC40/Kicker-47KSC404.html?omnews=17613083
