I’m cheap and didn’t want to spend over a grand on one. This is far from an original idea. I’ve seen a bunch of YouTube guys do this. Uses conveyor rollers.

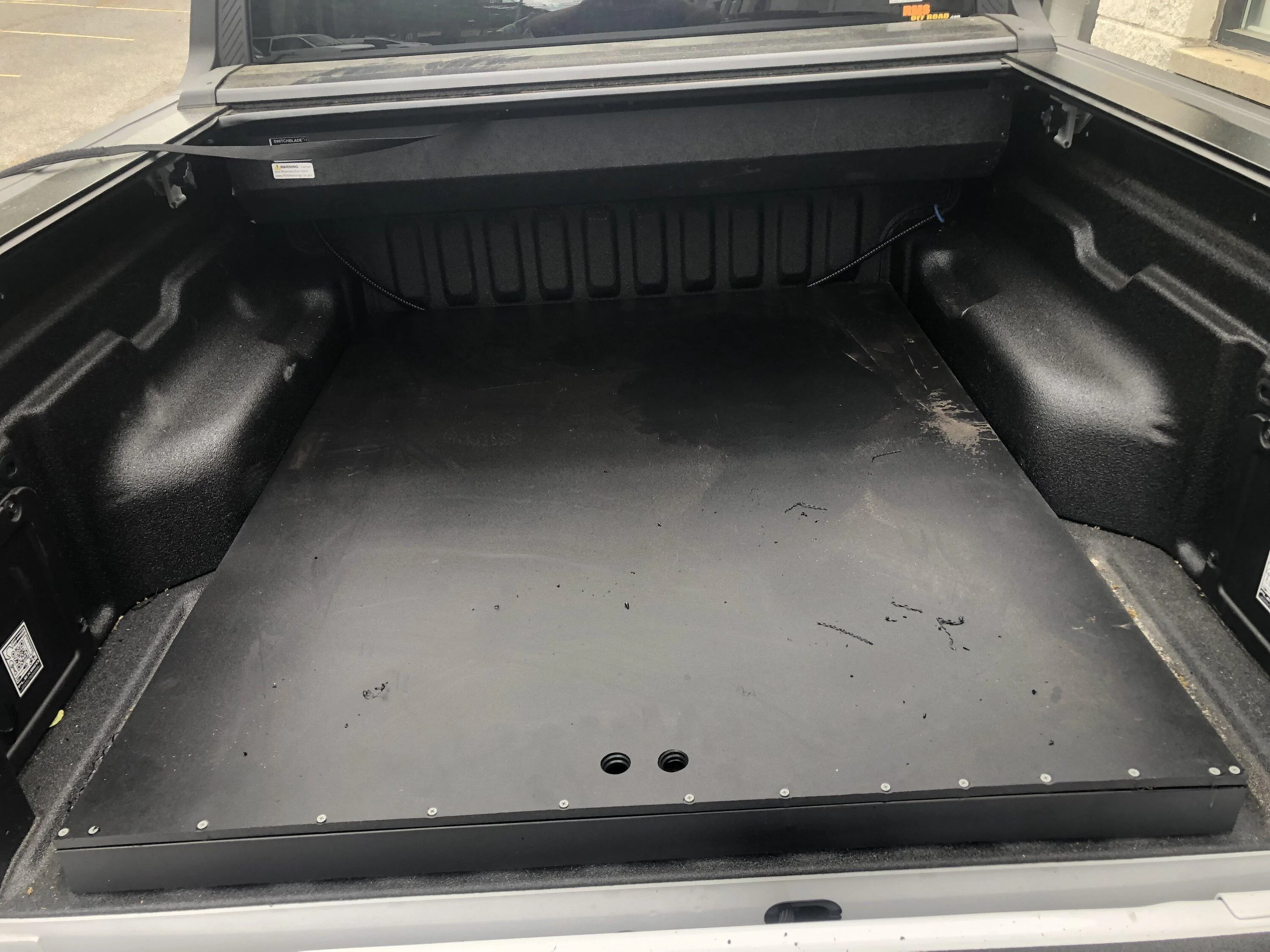

I don’t think it’s as quality as the big $ ones but it’s cheaper and lower profile than many. Total height is 2”

used
1/2” flake board i had laying around
1/2” king starboard in black.
(2) 2”x2”x4’ long aluminum L channel from local hardware store
(1) pack of 16 conveyor rollers off Amazon.
(1) roll diamond pattern rubber Matt, cheap crap forget where I got that

Ford Maverick DIY bed slide using conveyer rollers IMG_2381


Ford Maverick DIY bed slide using conveyer rollers IMG_2382


Ford Maverick DIY bed slide using conveyer rollers IMG_2384


Ford Maverick DIY bed slide using conveyer rollers IMG_2386


Ford Maverick DIY bed slide using conveyer rollers IMG_2391


Ford Maverick DIY bed slide using conveyer rollers IMG_2392


Ford Maverick DIY bed slide using conveyer rollers IMG_2393


Ford Maverick DIY bed slide using conveyer rollers IMG_2394
Sponsored



MM Mav

2.5L Hybrid
Well-known member
First Name
Amy
Joined
Sep 9, 2022
Threads
7
Messages
961
Reaction score
1,462
Location
Great Lakes Region
Vehicle(s)
2023 Hybrid Lariat Luxury w/CP360 + CP360A
Engine
2.5L Hybrid
This looks great!!!
How do you lock it in place?


MM Mav

2.5L Hybrid
Well-known member
First Name
Amy
Joined
Sep 9, 2022
Threads
7
Messages
961
Reaction score
1,462
Location
Great Lakes Region
Vehicle(s)
2023 Hybrid Lariat Luxury w/CP360 + CP360A
Engine
2.5L Hybrid

Sponsored

MM Mav

2.5L Hybrid
Well-known member
First Name
Amy
Joined
Sep 9, 2022
Threads
7
Messages
961
Reaction score
1,462
Location
Great Lakes Region
Vehicle(s)
2023 Hybrid Lariat Luxury w/CP360 + CP360A
Engine
2.5L Hybrid

Maverick Grabber

2.0L EcoBoost
Well-known member
First Name
Tom
Joined
Oct 7, 2022
Threads
4
Messages
502
Reaction score
507
Location
Indiana
Vehicle(s)
2015 Chrysler 200, 2022 Maverick XLT Red
Engine
2.0L EcoBoost
Good Job(y), the only thing I would do differently would be to hinge it half way to drop down for easier access to the rear items


thyITguy

2.0L EcoBoost
Well-known member
First Name
Robert
Joined
Apr 21, 2022
Threads
8
Messages
68
Reaction score
68
Location
El Paso, TX
Vehicle(s)
2022 Maverick
Engine
2.0L EcoBoost
Do you have a photo of the rails in place with the channels on the bed ?
How did you secure the channels

awesome idea


Dad

2.5L Hybrid
Well-known member
First Name
Tom
Joined
Jan 9, 2022
Threads
37
Messages
3,182
Reaction score
3,033
Location
SoCal
Vehicle(s)
2022 Maverick, - Lariat, Hyundai Palisade
Engine
2.5L Hybrid
Great idea! Many thanks for sharing.

Sponsored
OP
OP

Pool Fixer

2.0L EcoBoost
Active member
First Name
Kevin
Joined
Mar 21, 2023
Threads
11
Messages
43
Reaction score
136
Location
Long Island, NY
Vehicle(s)
2023 Maverick XL AWD
Engine
2.0L EcoBoost
Do you have a photo of the rails in place with the channels on the bed ?
How did you secure the channels

awesome idea

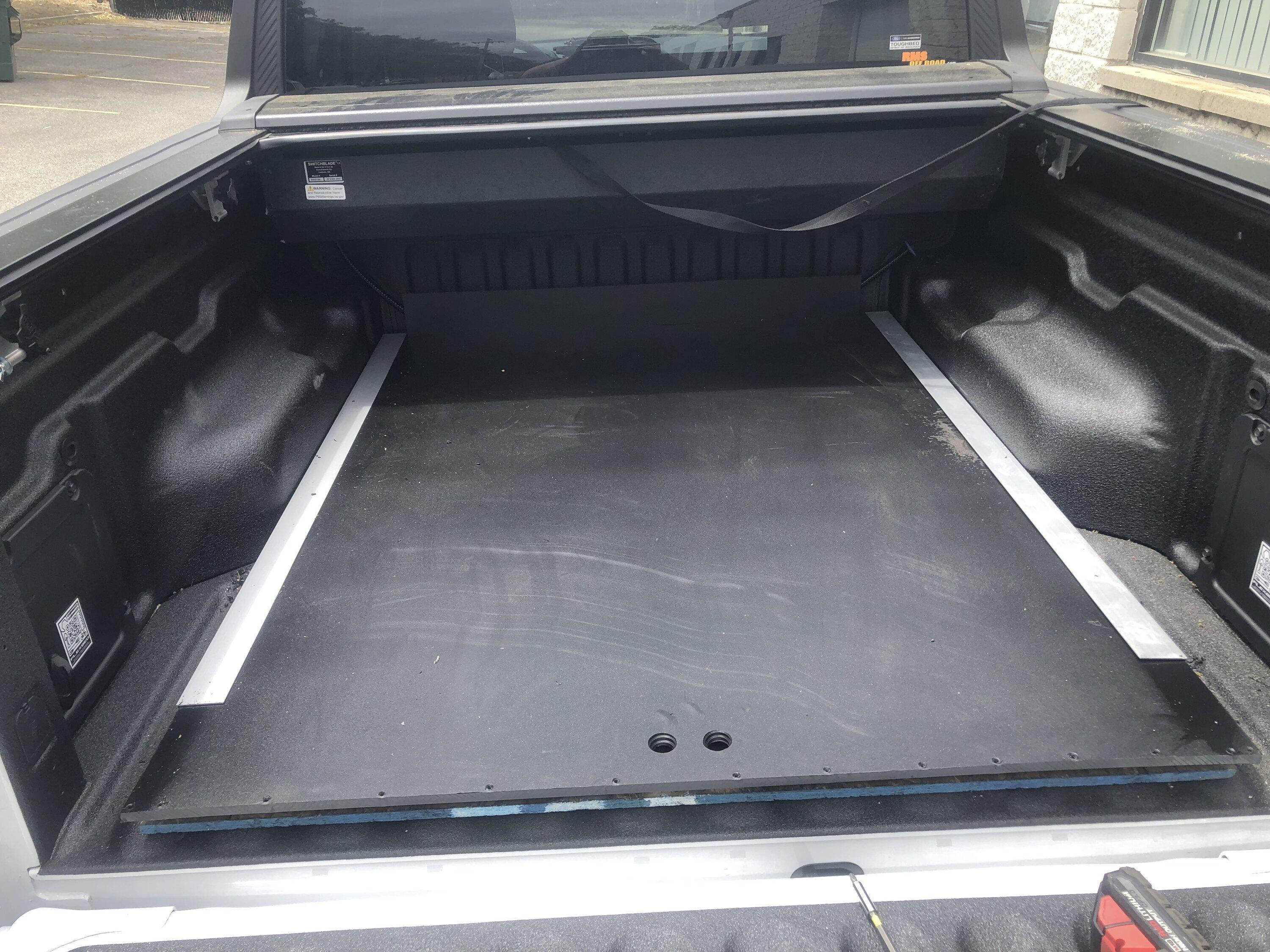

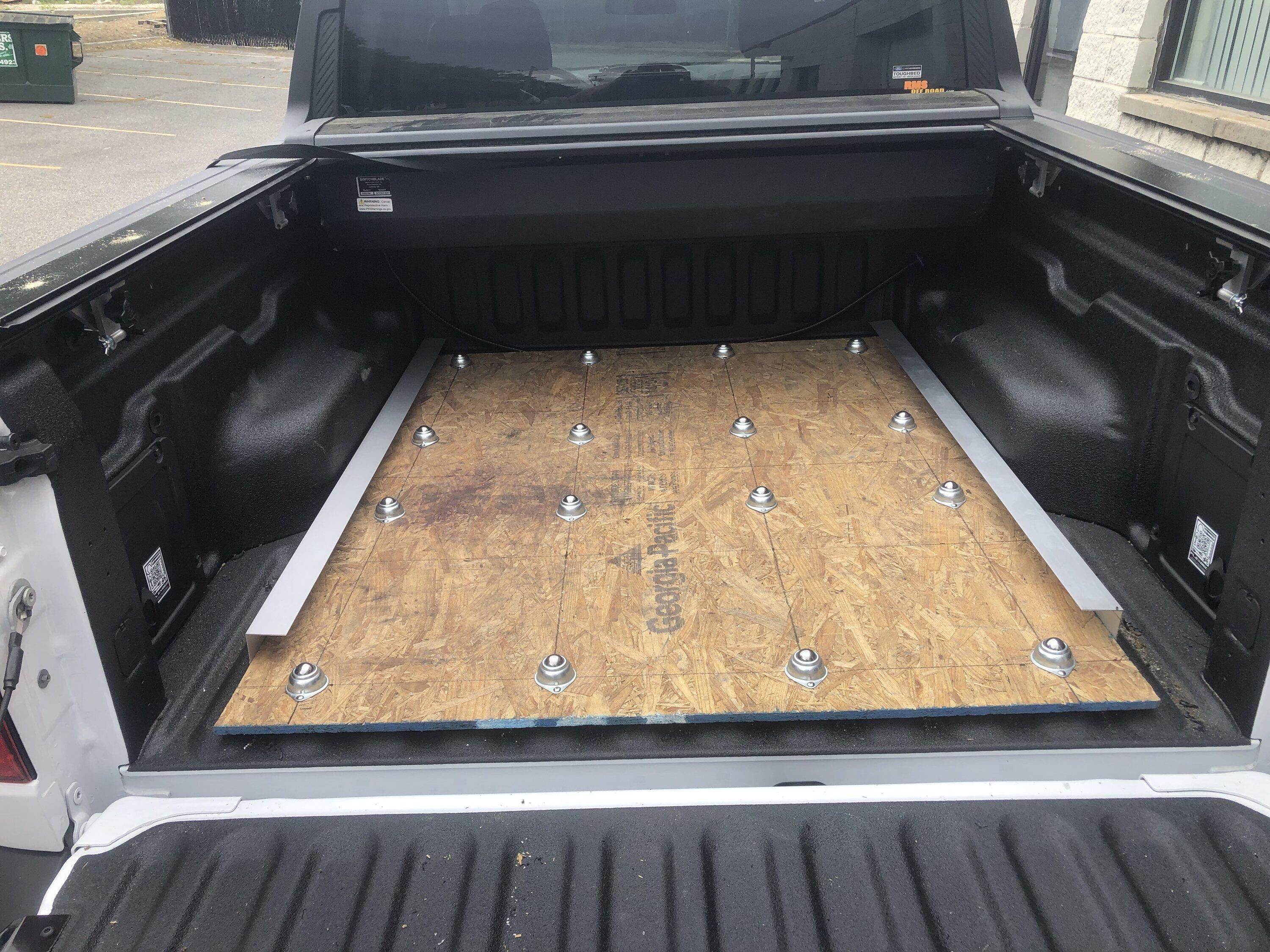

the channels are just L shaped 2x2 aluminum. I drilled holes in them and carefully screwed then to the edge of the wood with the rollers on it.

it’s NOT ideal. The 1/2” edge of particle board isn’t the smartest choice for a self tapping screw. I only used it because i had a full sheet of it laying around.

it holds for now but I plan on replacing it with a piece of good quality plywood. Predrill holes and put some glue before tightening the screws.

this whole “system” for lack of a better word is self contained and simply laying in the bed. there’s a lot of friction between the wood and the spray in bedliner. I don’t think you’d get away with only laying it in if you had a drop in liner or no liner.

I got some bins from Lowe’s today. I cut down a couple of small ones so I could utilize the space at the front where the housing for the switchblade tonneau is.

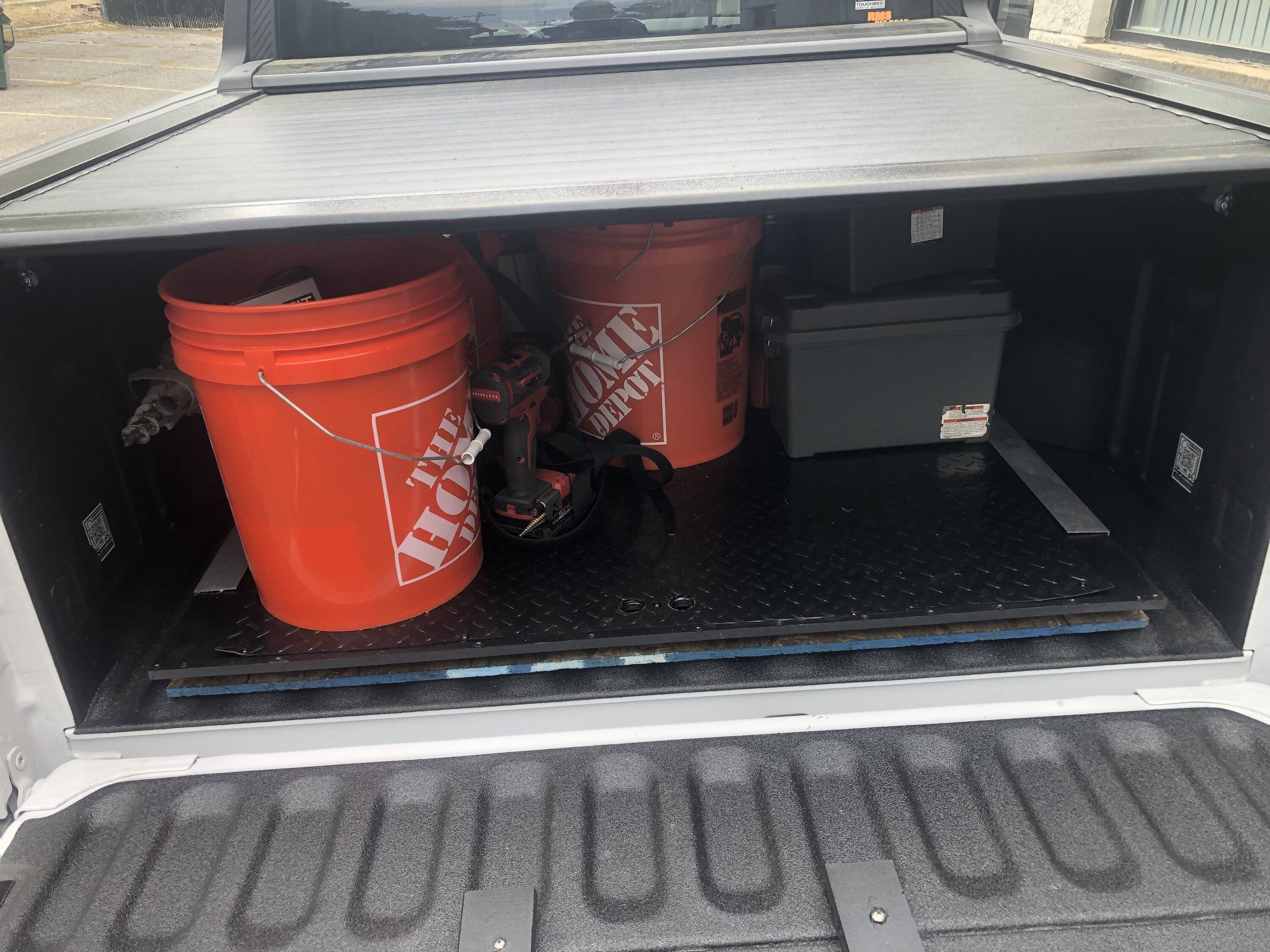

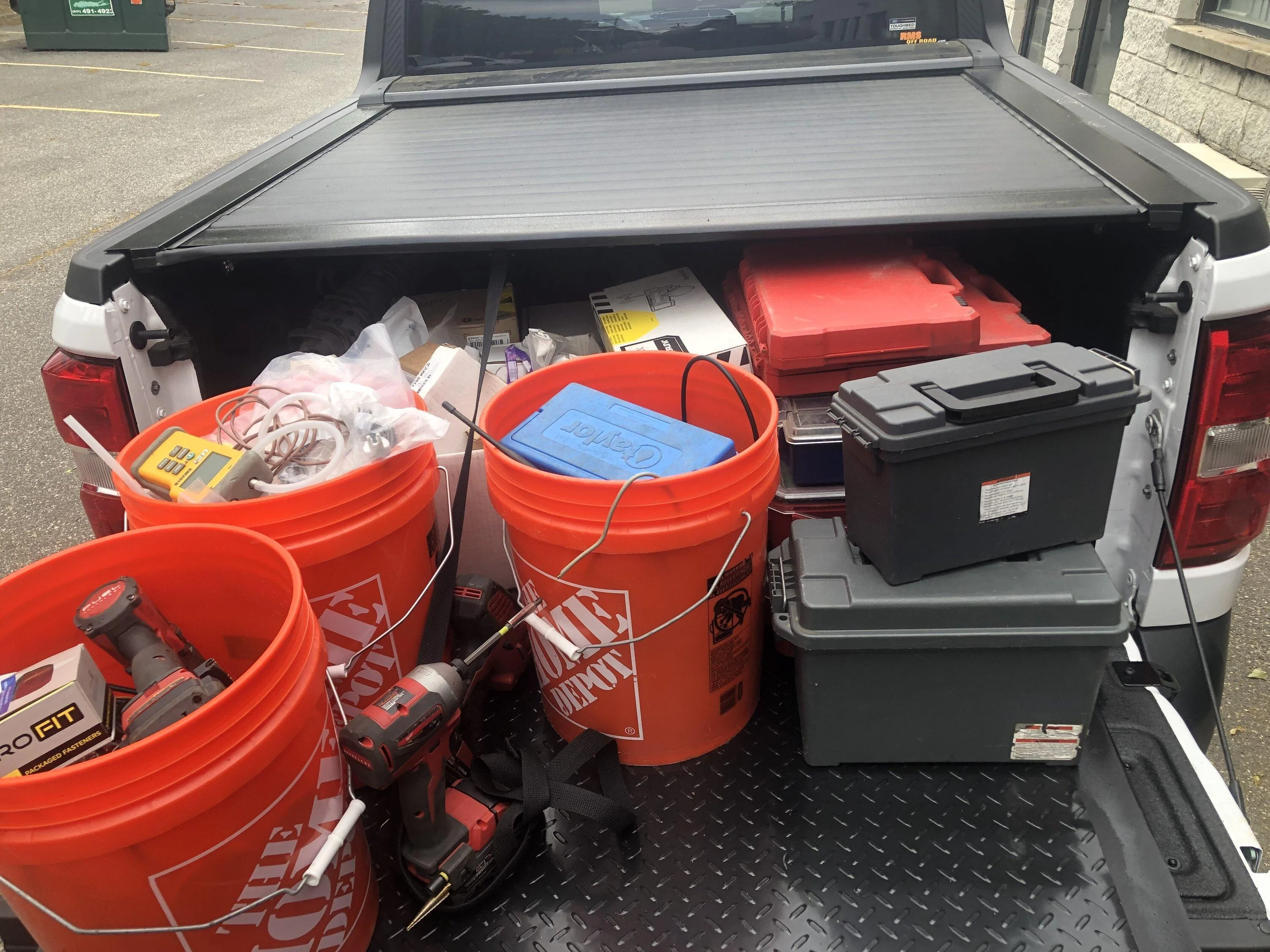

the way it is now, all I need to do is unload 4 bins, 2 buckets And my tools, slide the 2 boards out and I’m a factory bed again. 5 minute process.

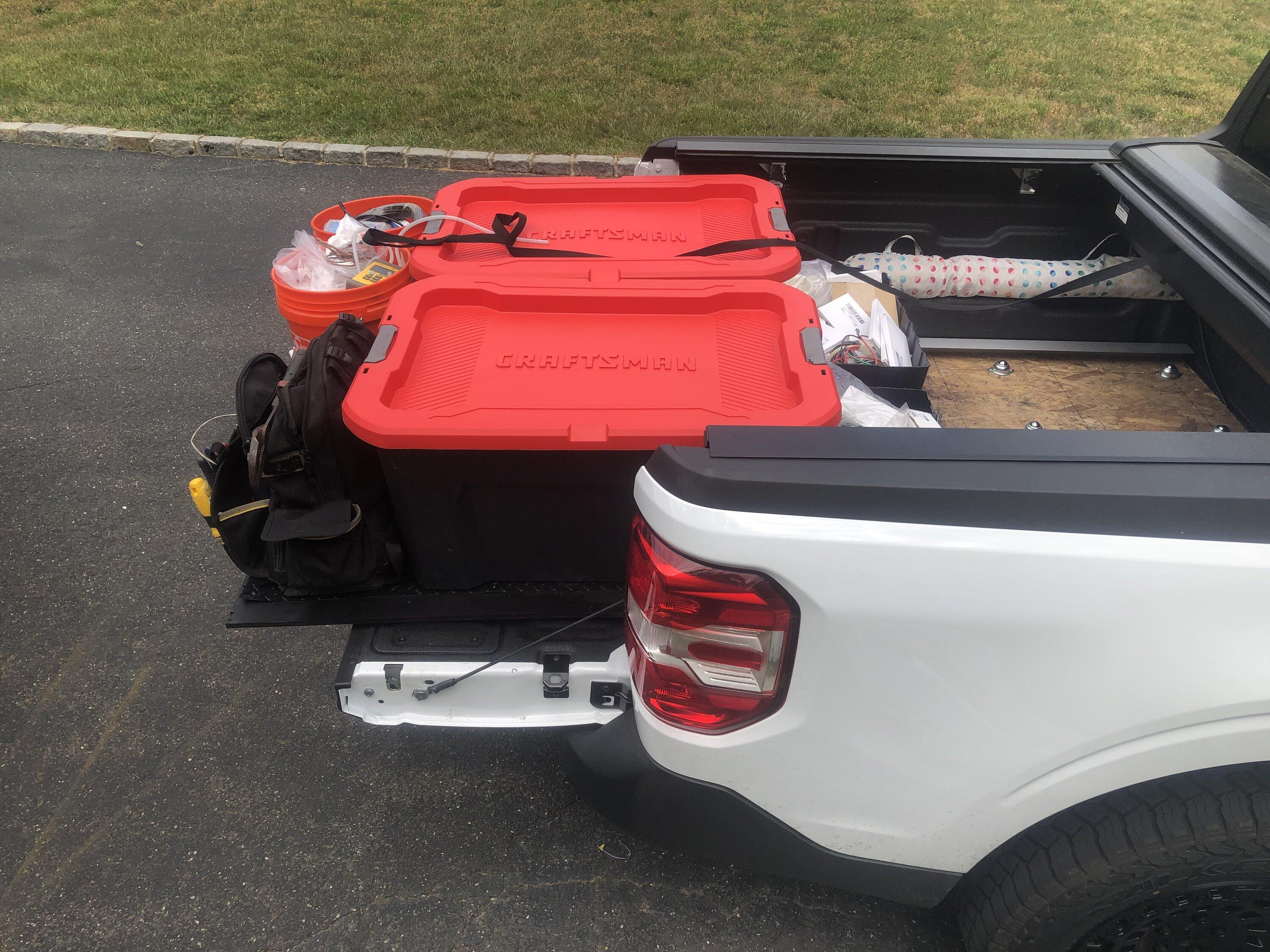

since it’s not bolted in, what you see is as far as I’d slide it out. But this bed is so small that’s all you need to reach everything
