Connectors for "Clean Side" Oil Catch Can

JohnnyApplespeed

2.0L EcoBoost
Active member
First Name
John
Joined
May 3, 2023
Threads
4
Messages
28
Reaction score
30
Location
Waukesha, WI
Vehicle(s)
'23 Maverick Lariat EB
Engine
2.0L EcoBoost

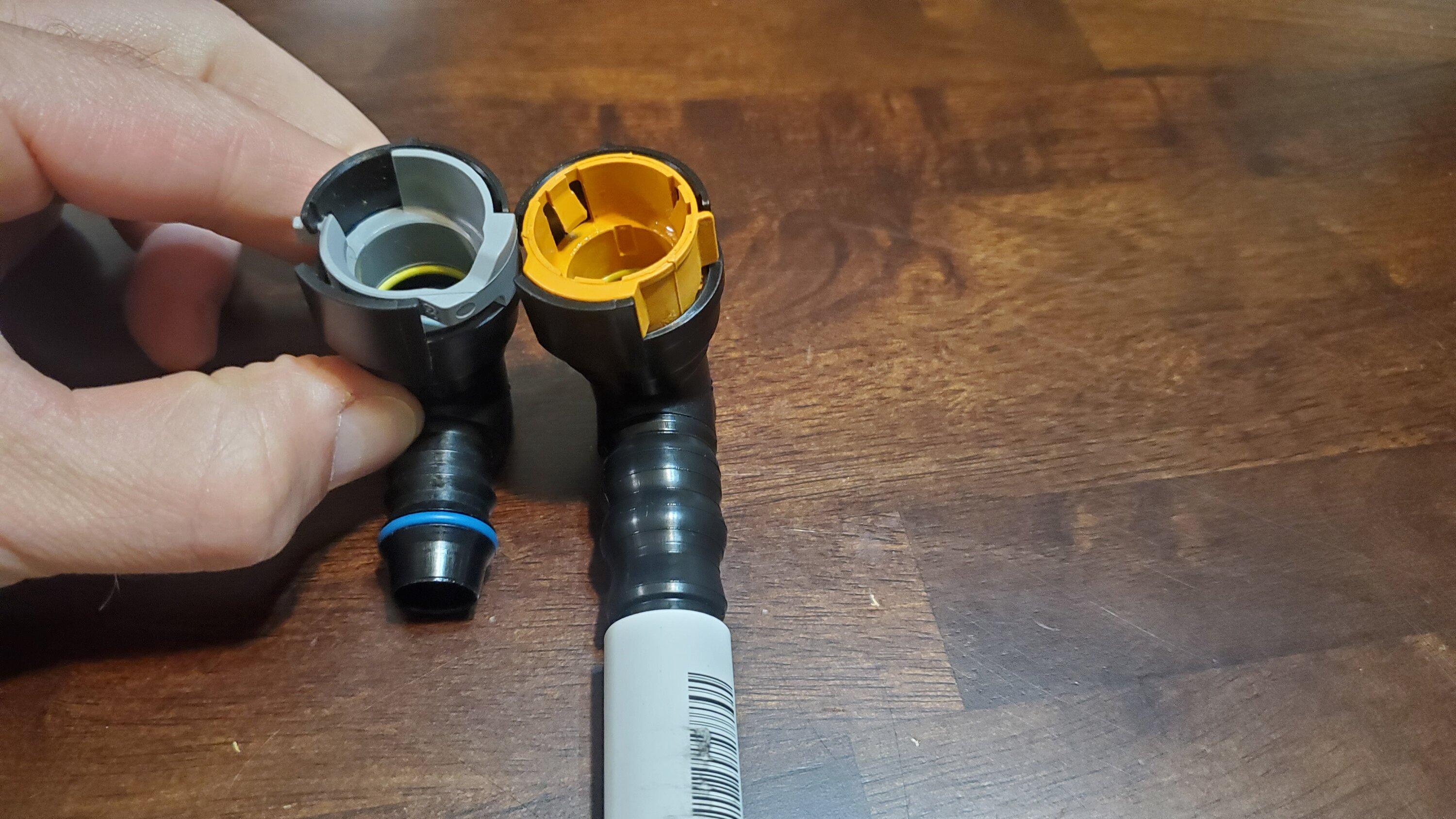

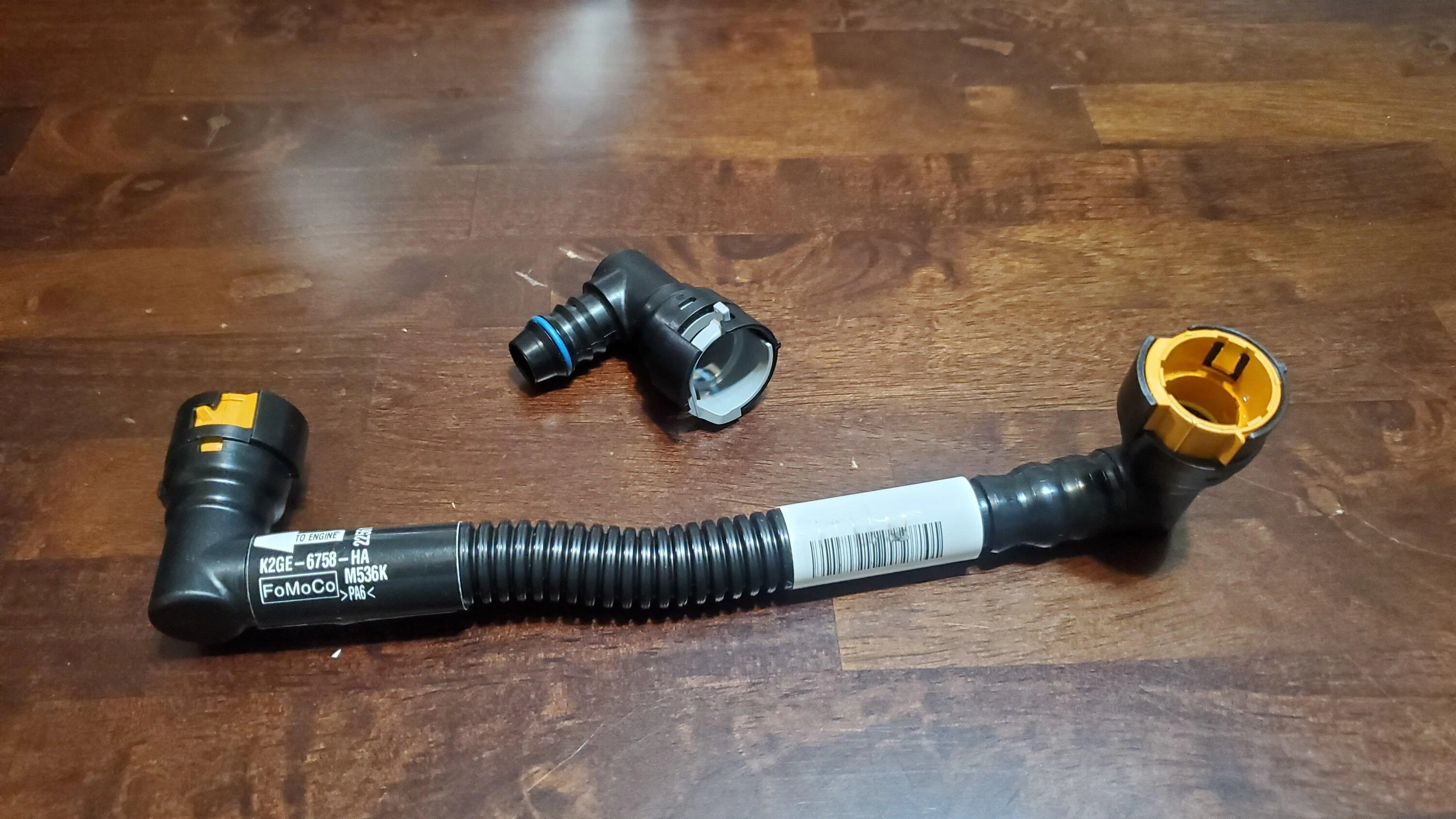

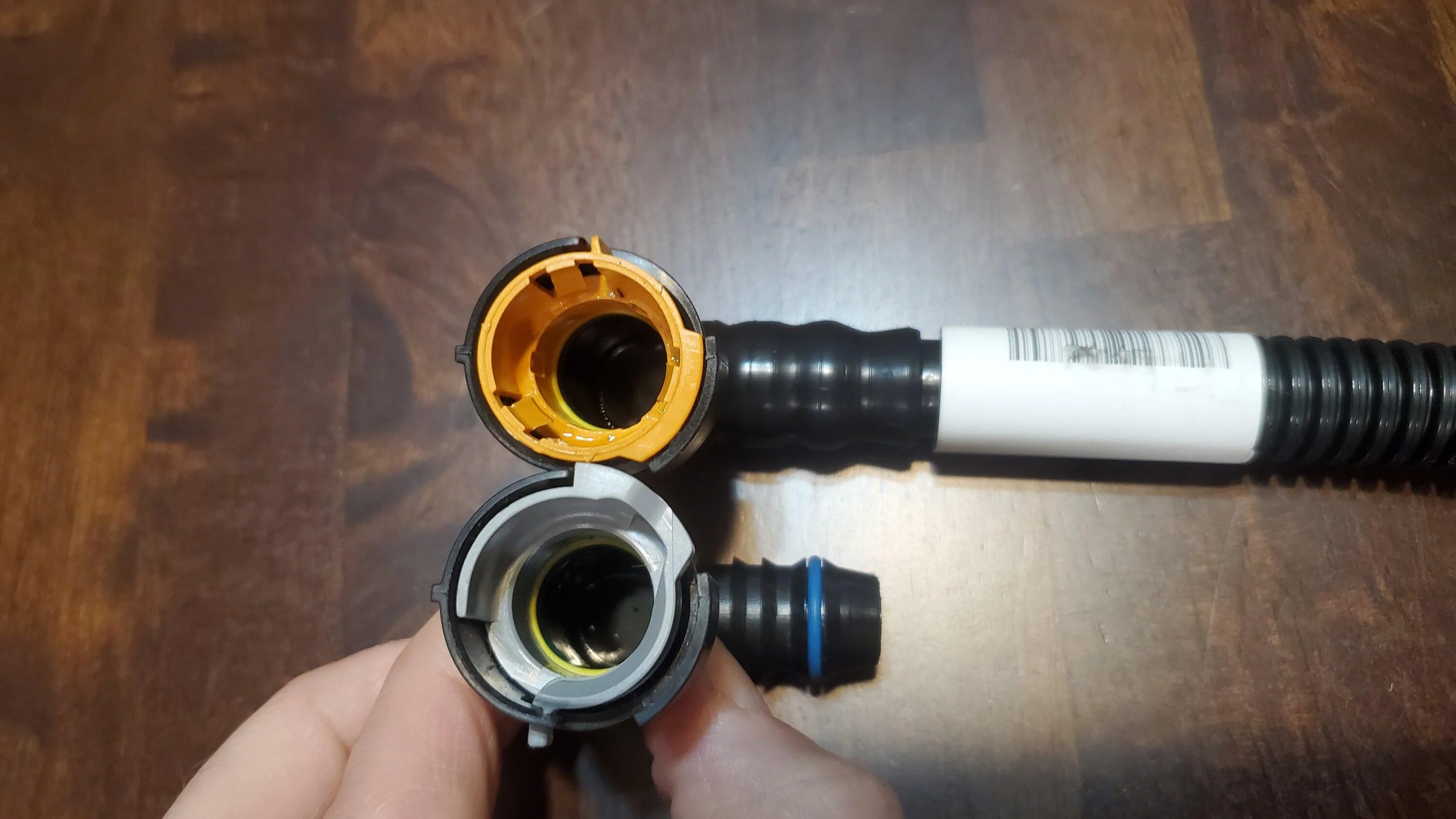

The photos below show a replacement "clean side" vent hose along with a connector for the "dirty side" hose, both of which I've purchased in preparation for a DIY double catch can installation. My understanding is that the clean side hose is difficult to remove without breaking the connectors and may well be designed for single use (not intended for reinstallation), whereas the dirty side connectors can be fairly easily removed without needing to replace them. I'm leery of attempting removal of the OEM clean side hose if there's a high likelihood the connectors will break, and I'm unsure which connector to use for the clean side catch can hose assembly.

My question is, are connectors on the dirty side compatible with the clean side? They look to be the same size fitting only with different hose diameter. Can I simply use 10AN hose and dirty side connectors (blue) for my clean side hose assembly? Will the same connectors work on either side of the vent system? Or do I have to somehow use the sacrificial (orange) connectors on the clean side with the expectation of having to replace every time I need to remove them (hopefully never)? Any insights/guidance would be appreciated.

Ford Maverick Connectors for "Clean Side" Oil Catch Can 20230709_141653


Ford Maverick Connectors for "Clean Side" Oil Catch Can 20230709_141727


Ford Maverick Connectors for "Clean Side" Oil Catch Can 20230709_141714
Sponsored



Dodeboost

2.0L EcoBoost
Well-known member
Joined
Nov 25, 2022
Threads
6
Messages
215
Reaction score
294
Location
Southern California
Vehicle(s)
2022 Maverick XL ecoboost AWD
Engine
2.0L EcoBoost
I purchased this, and used the connectors for the clean side with a 5/8 ID fuel hose.

https://a.co/d/0twh8s2

Clean Side connectors are difficult to get off without breaking, I ended up breaking both of mine when removing the stock hose. Be careful when doing this, as the orange clip may break off in small pieces which could potentially fall into the valve cover.

I’m not sure if the 2 are compatible. I did run the clean side for a while with the stock orange connectors before switching to the qd style like the dirty side has.

Last edited:
OP
OP

JohnnyApplespeed

2.0L EcoBoost
Active member
First Name
John
Joined
May 3, 2023
Threads
4
Messages
28
Reaction score
30
Location
Waukesha, WI
Vehicle(s)
'23 Maverick Lariat EB
Engine
2.0L EcoBoost
I purchased this, and used the connectors for the clean side with a 5/8 ID fuel hose.

https://a.co/d/0twh8s2

Clean Side connectors are difficult to get off without breaking, I ended up breaking both of mine when removing the stock hose. Be careful when doing this, as the orange clip may break off in small pieces which could potentially fall into the valve cover.

I’m not sure if the 2 are compatible. I did run the clean side for a while with the stock orange connectors before switching to the qd style like the dirty side has.
Thanks for your reply, @Dodeboost. The item in the link you provided sure looks to have identical connectors to the dirty side hose. I think I'll order parts for quick disconnect clean side hose and see how it works. Given your experience, I suspect it'll work well. Once I'm satisfied with my results, I'll make a new post with a start to finish process in case others might benefit.

OP
OP

JohnnyApplespeed

2.0L EcoBoost
Active member
First Name
John
Joined
May 3, 2023
Threads
4
Messages
28
Reaction score
30
Location
Waukesha, WI
Vehicle(s)
'23 Maverick Lariat EB
Engine
2.0L EcoBoost
@Dodeboost - What style of connections did you use on the can-end of your hoses? My hose kits came with fittings I was intending to use, but I think a hose clamp with a 3/8 NPT-10AN hose barb like THIS might be a simpler solution. Not sure which is less apt to leak.

Last edited:

Dodeboost

2.0L EcoBoost
Well-known member
Joined
Nov 25, 2022
Threads
6
Messages
215
Reaction score
294
Location
Southern California
Vehicle(s)
2022 Maverick XL ecoboost AWD
Engine
2.0L EcoBoost
@Dodeboost - What style of connections did you use on the can-end of your hoses? My hose kits came with fittings I was intending to use, but I think a hose clamp with a 3/8 NPT-10AN hose barb like THIS might be a simpler solution. Not sure which is less apt to leak.

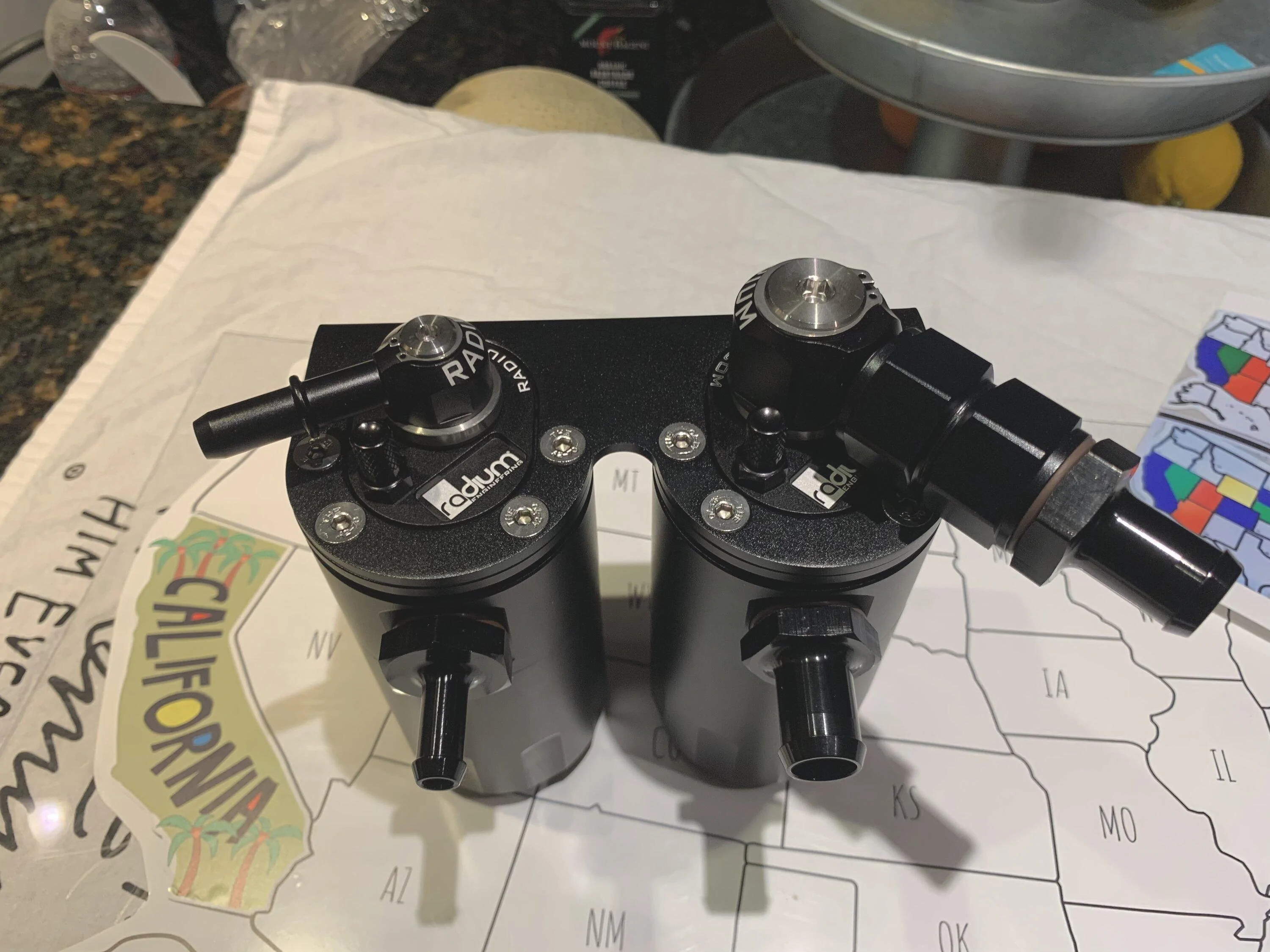

That link won’t open. But I used barbed fittings with hose clamps on the cans. This is my setup. 3/8 hose for dirty side, 5/8 for clean side. I haven’t seen any evidence of leaks, but I also haven’t caught much of anything in the cans yet either. Probably about 1500 miles on the clean side with a very small amount of liquid caught. Dirty side I hooked up about 250 miles ago and nothing yet, although there is oil residue in the hose coming out of the pcv, just hasn’t made it up to the can yet.
