Alto Blue Lariat FX4 Maverick Trainer Pics. Lots of Measurements / Dimensions Taken

[Piper2022]

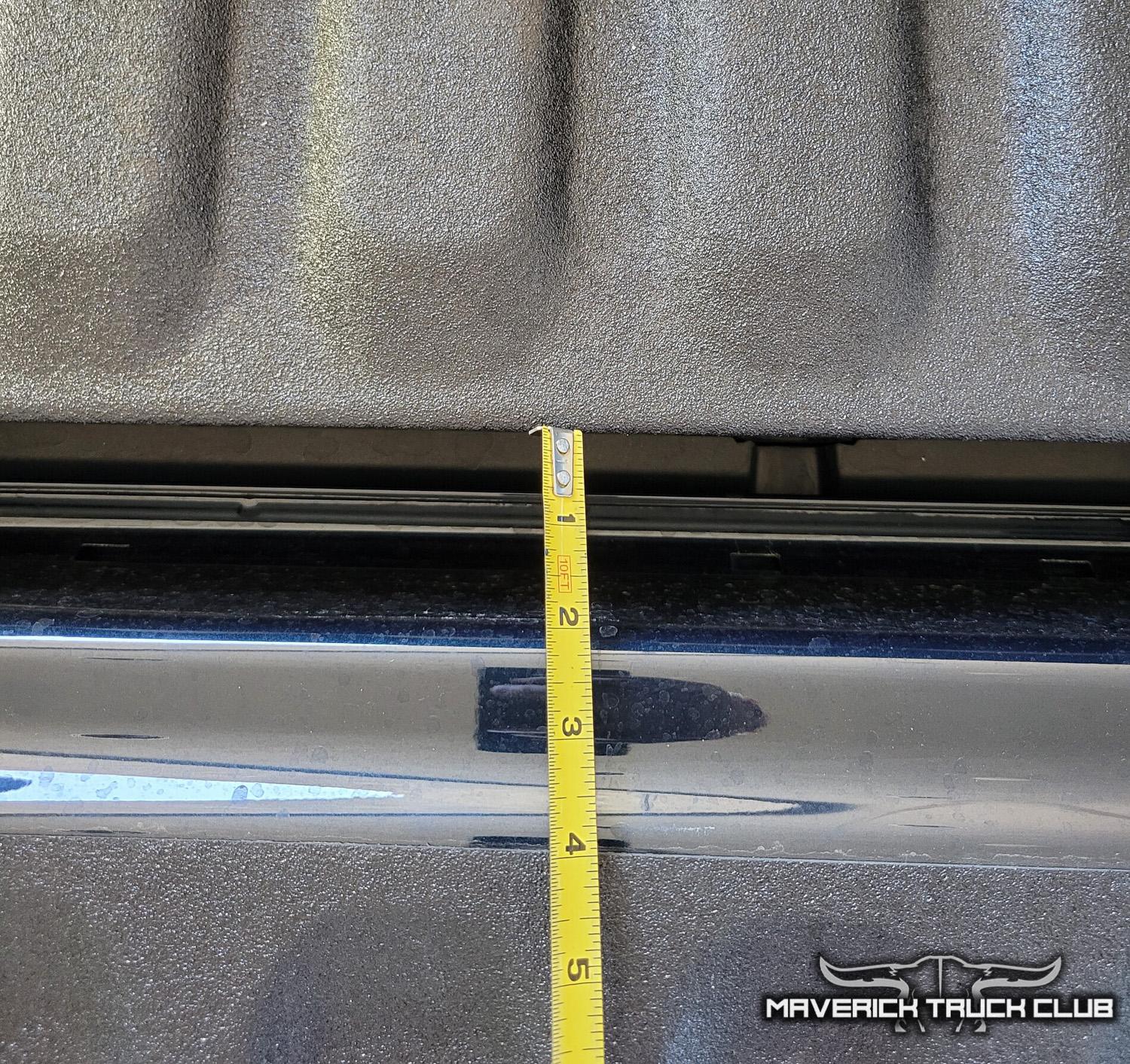

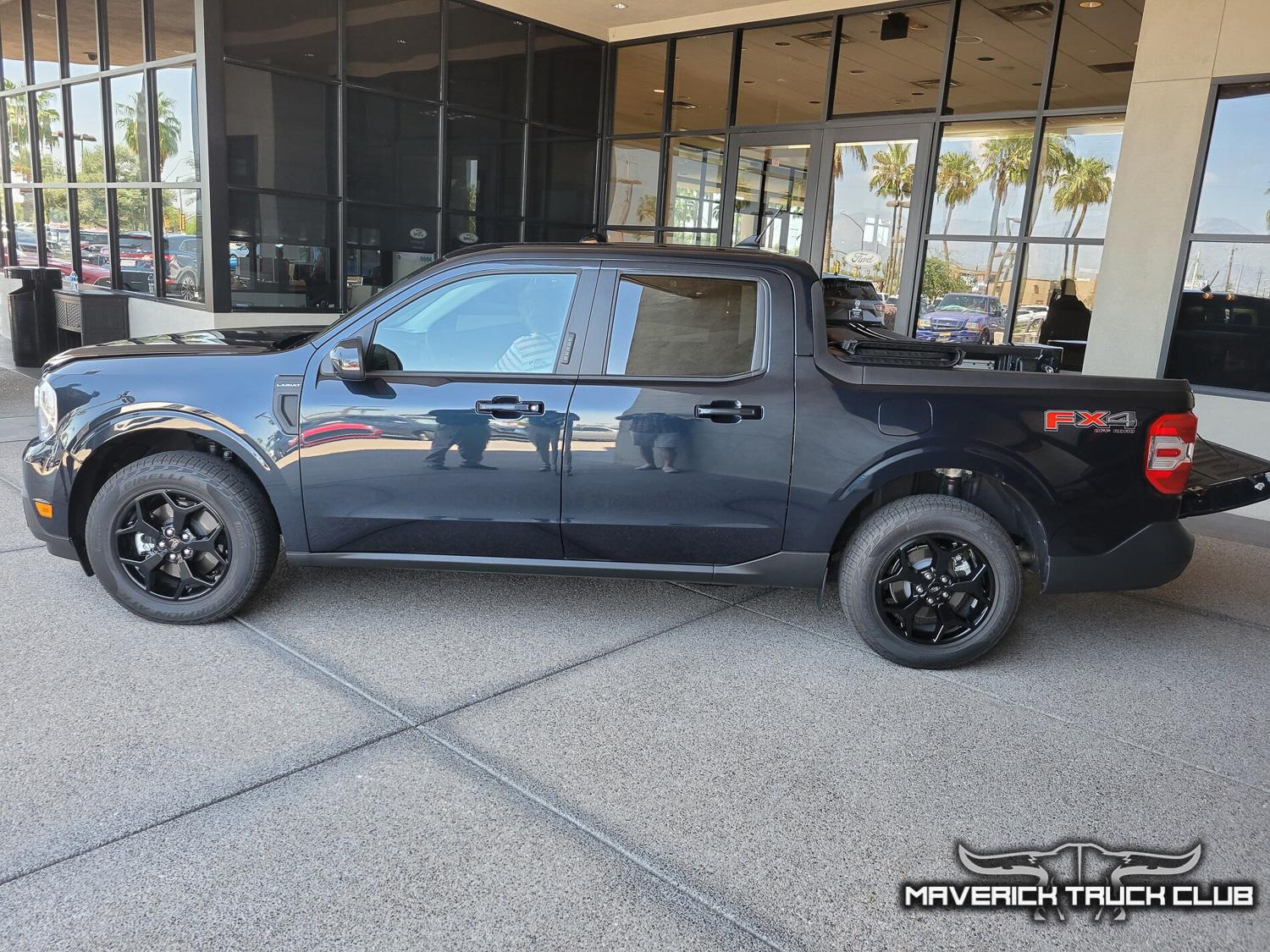

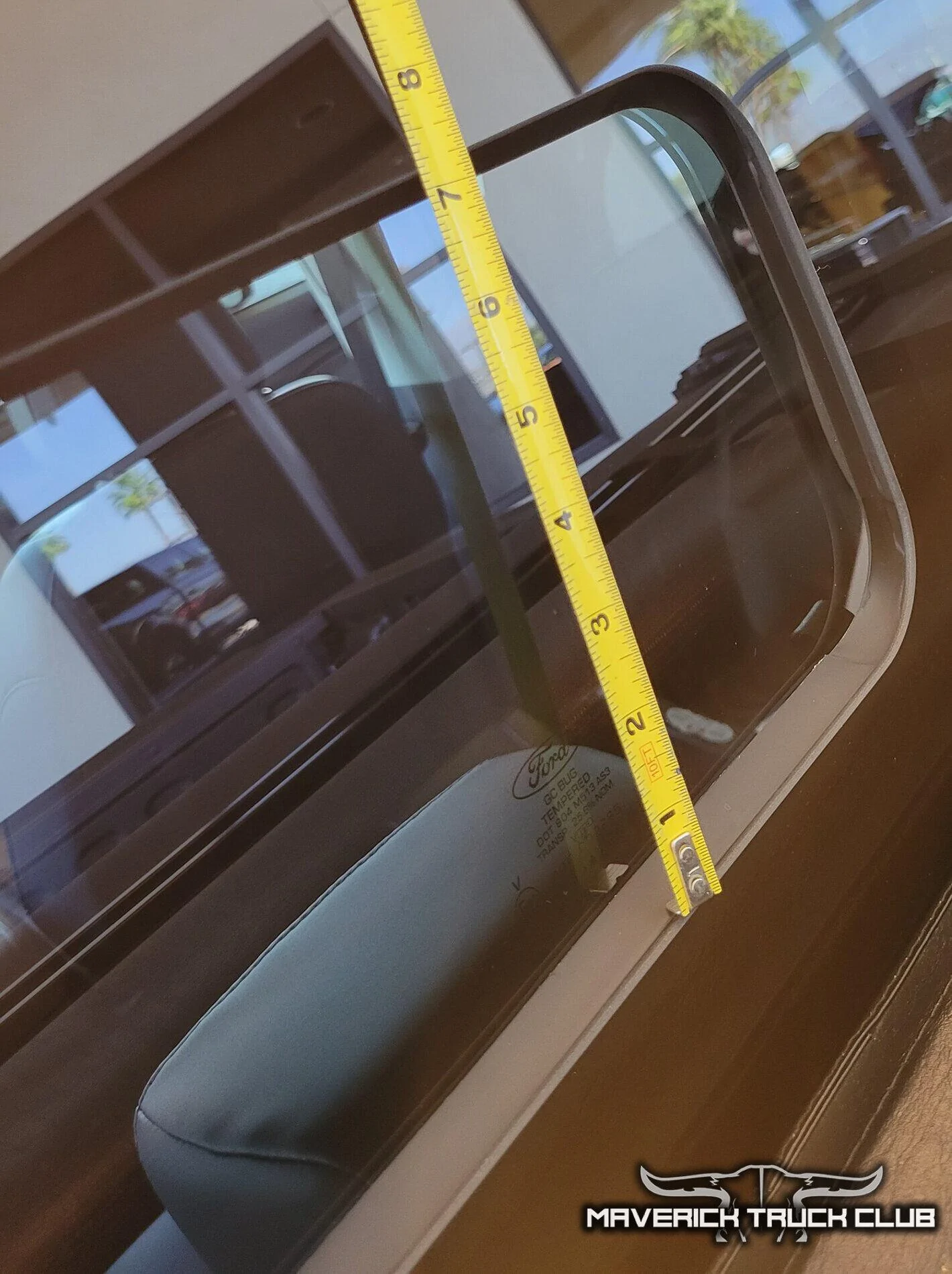

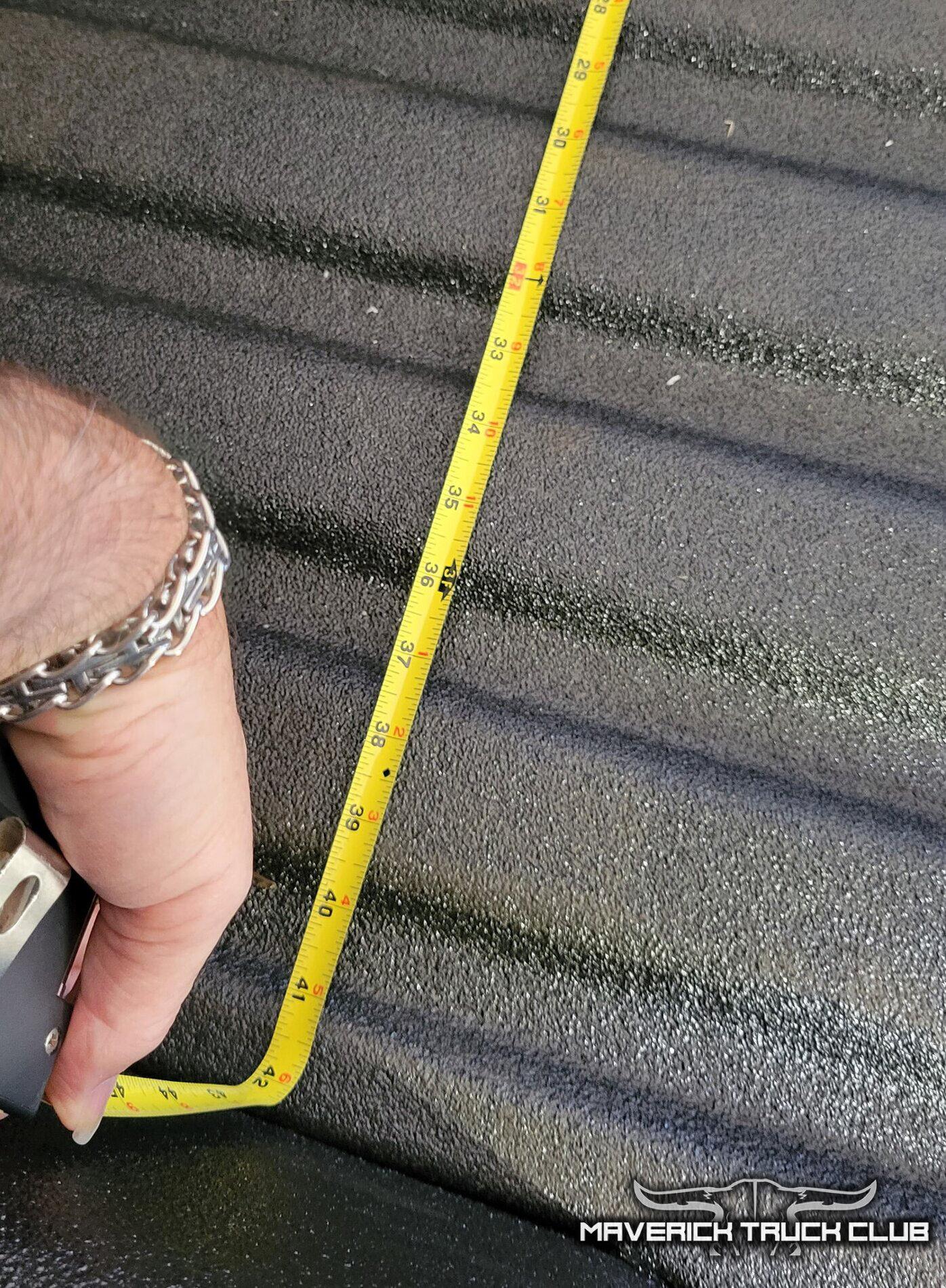

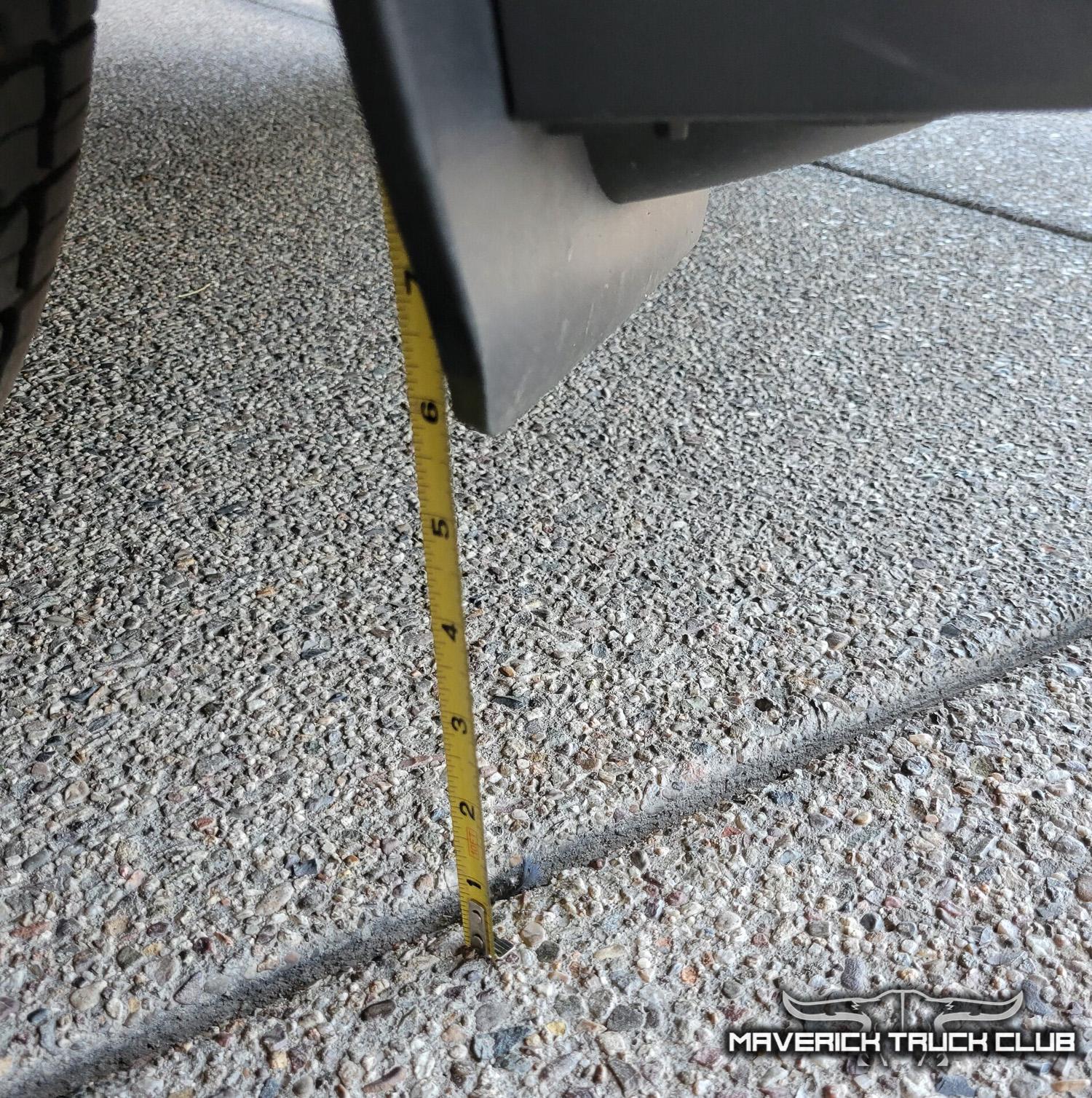

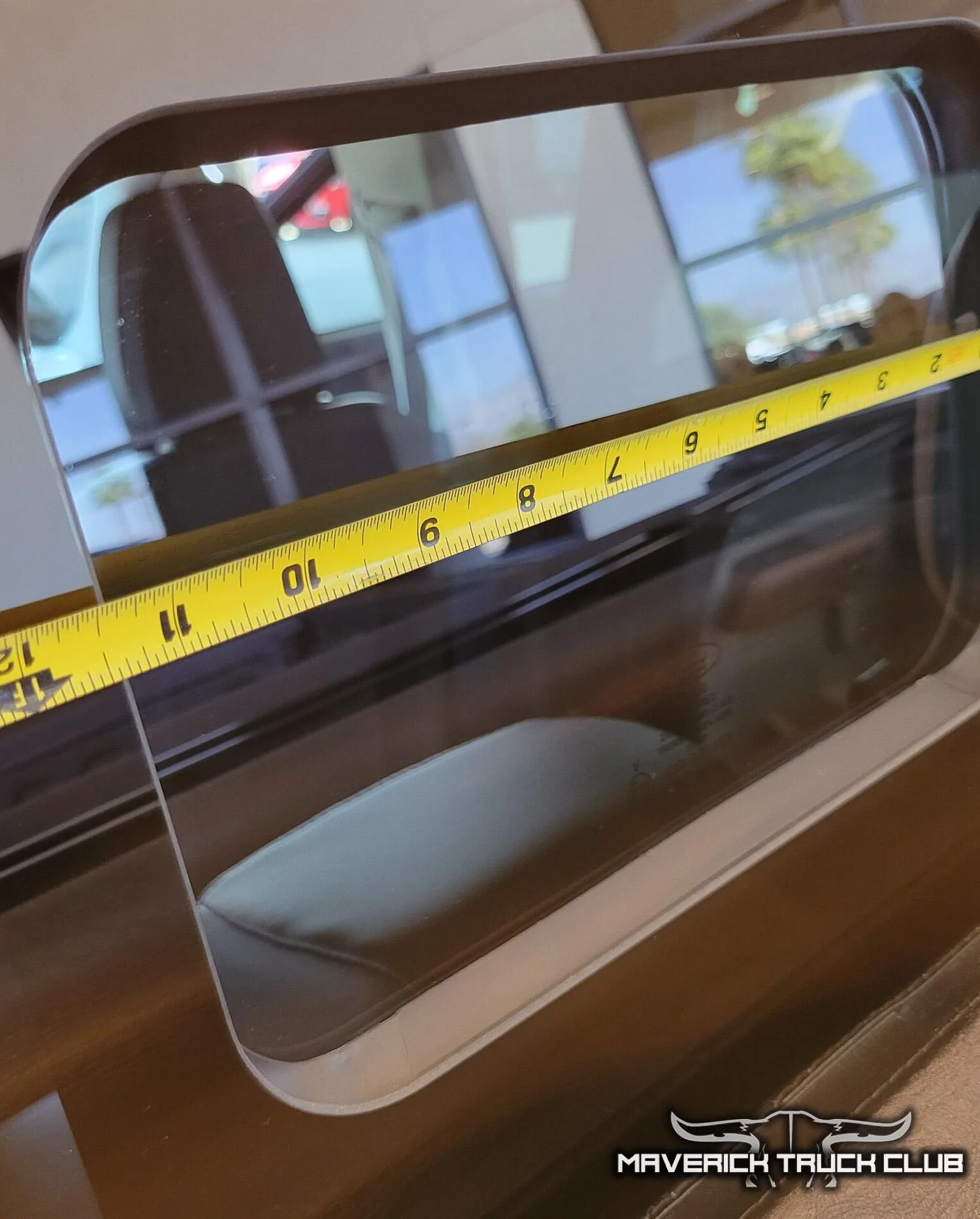

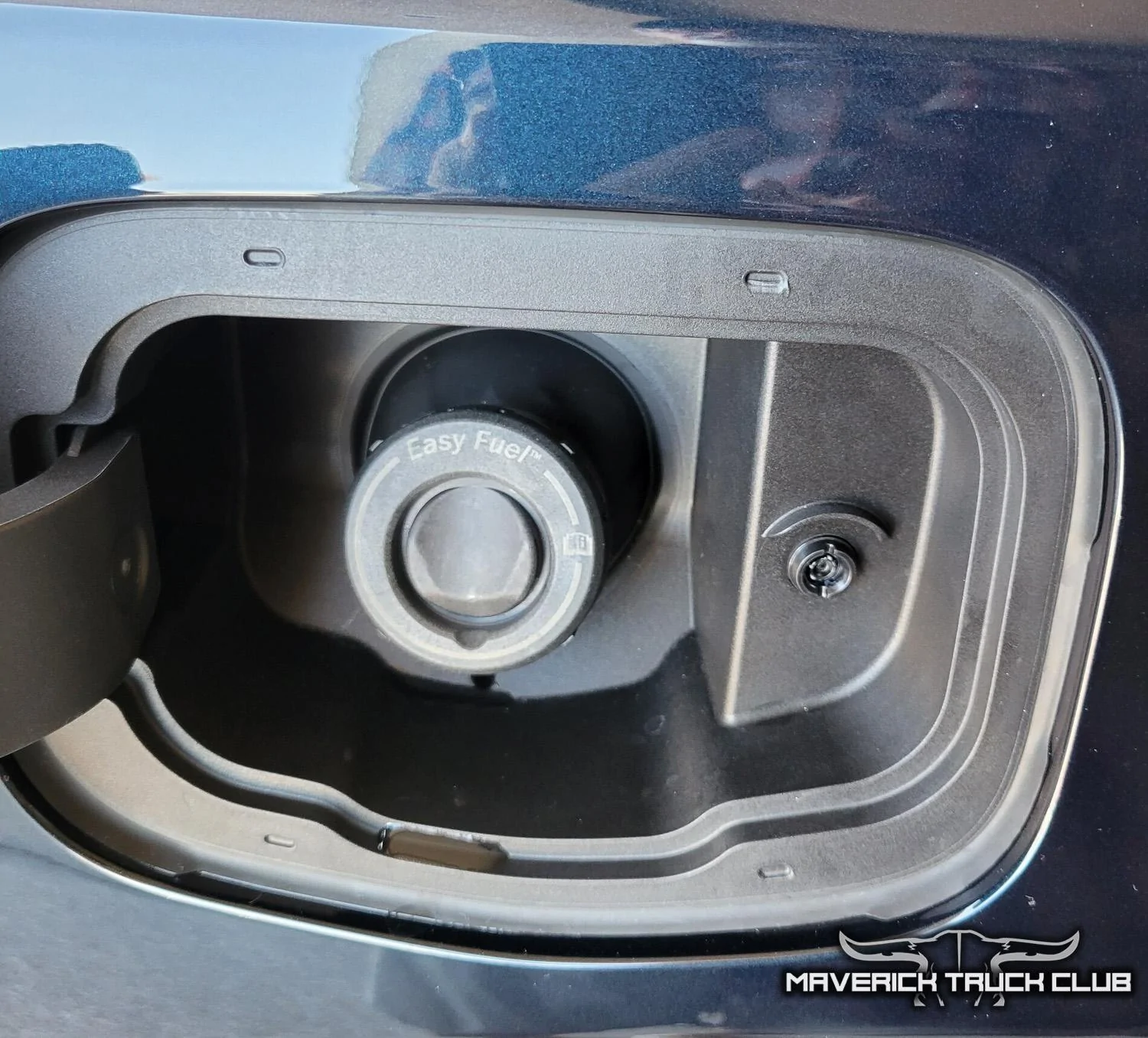

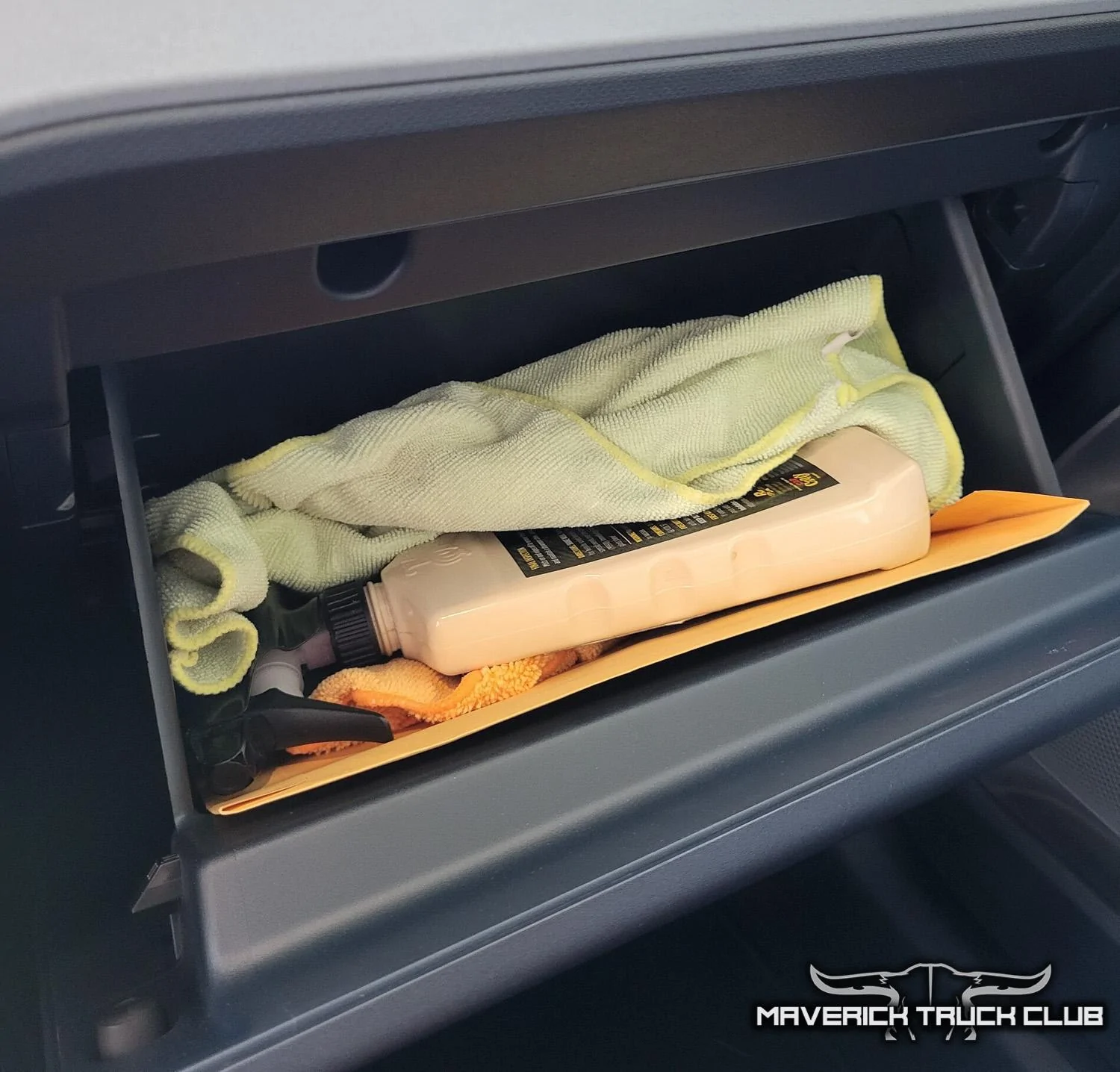

Today, 8-24 a training Maverick was at Jim Click Ford in Tucson. I stopped by and took a lot of photos, which I'm posting unless forum admin says there are too many! Had a nice chat with the Trainer and will go tomorrow to see the same truck again and maybe take more photos as I think of what I missed or if anyone has a specific request. I was mostly interested in measurements and tried to get those request I've seen here on the forum. Anyway enjoy the pictures!

Thank you so much for sharing these pictures. I was wondering if the rear wheel wells would be lined. Hopefully they're lined on all trim levels.

Sponsored



[22Mav]

Heh, knew I'd find one as soon as I saw that pic

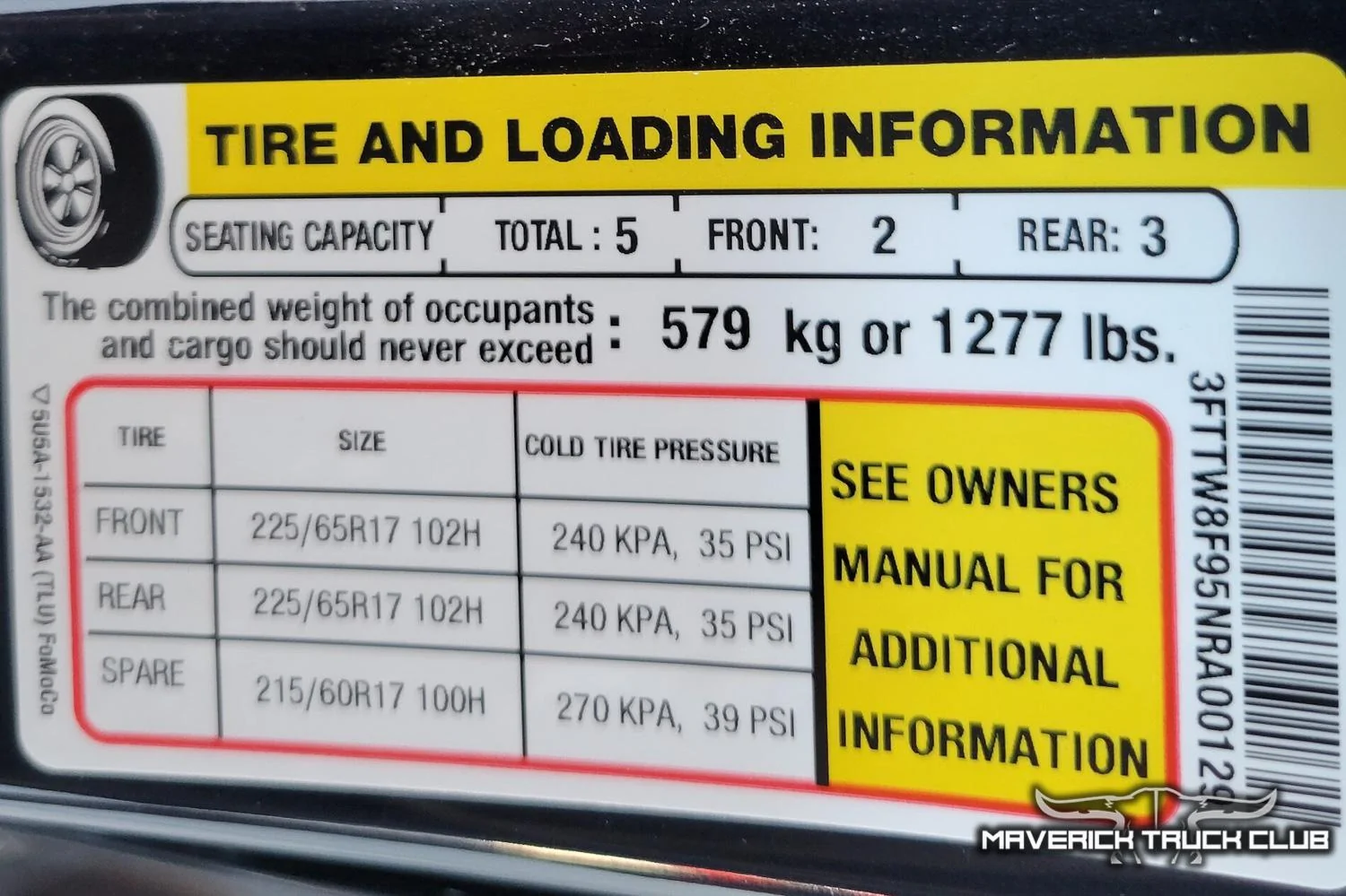

1,277lb what happened to 1,500lb

Oh come on, hope you're joking?

In the odd chance you're not; that is the cost of loading up a Maverick with a ton of features. AWD, LARIAT, FX4, LUX. All of those add-ons SUBTRACT from total payload.



[22Mav]

So much good content here. A lot of really helpful measurements.

Only thing I keep noticing are those fabric front wheel well liners. Really hope to see an aftermarket, plastic option available.



[Delzona]

Great pics with measurements

Thanks! I was hoping it didn't get to annoying, but I figured there are tons of pictures of doors, truck beds, front grills, I wanted some measurements to get ideas for aftermarket stuff, etc, plus I've seen some request on this forum for certain measurements so I tried to remember what people wanted.



[Delzona]

Thank you so much for sharing these pictures. I was wondering if the rear wheel wells would be lined. Hopefully they're lined on all trim levels.

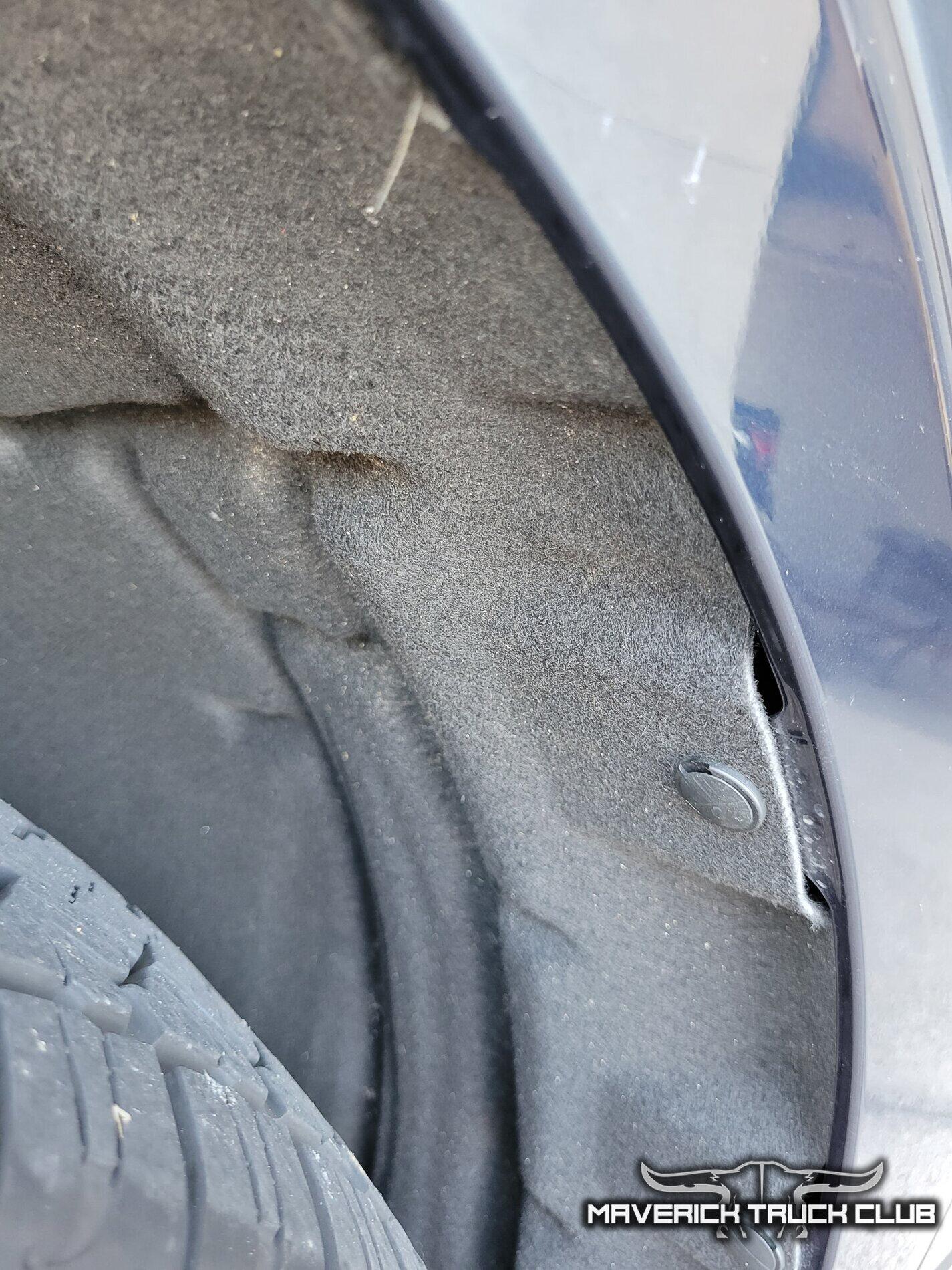

Yes, that's why I took those pictures! I didn't recall seeing pictures of them or anyone mentioning them being apart of the vehicle. I know that you can purchase them aftermarket. Now the only thing I didn't think to ask is if they are on all trim models or just Lariat or just FX4 package. I'm going to ask the Trainer tomorrow when I see the truck again.



[Mav]

Are the heights going to be the same on a non FX4?



[Tbone]

Today, 8-24 a training Maverick was at Jim Click Ford in Tucson. I stopped by and took a lot of photos, which I'm posting unless forum admin says there are too many! Had a nice chat with the Trainer and will go tomorrow to see the same truck again and maybe take more photos as I think of what I missed or if anyone has a specific request. I was mostly interested in measurements and tried to get those request I've seen here on the forum. Anyway enjoy the pictures!

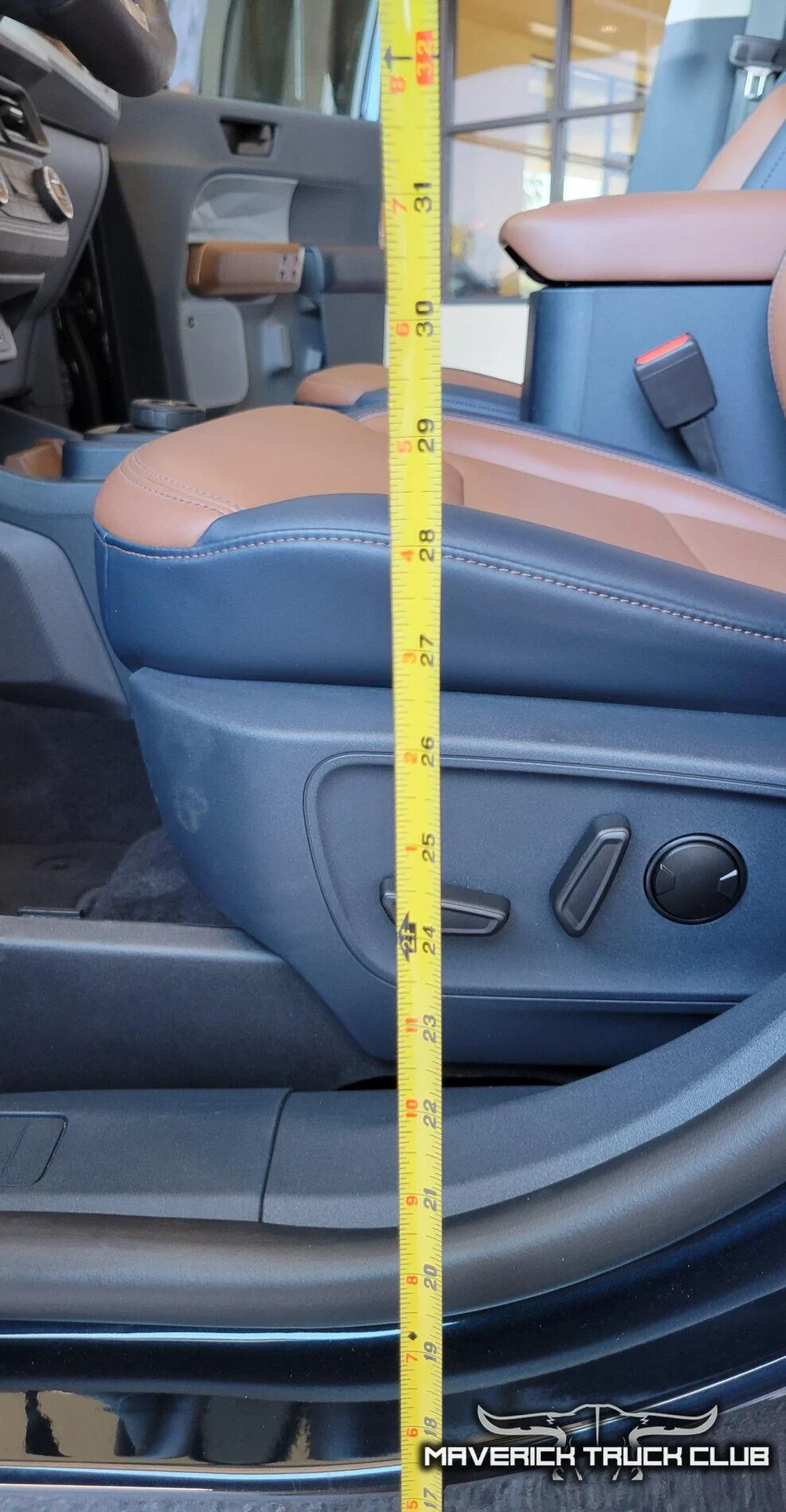

Very helpful, thanks. I'd like to know the height from ground to top of open door jam. Seat hight is the same as my Rav4.



[Delzona]

Absolutely perfect!!

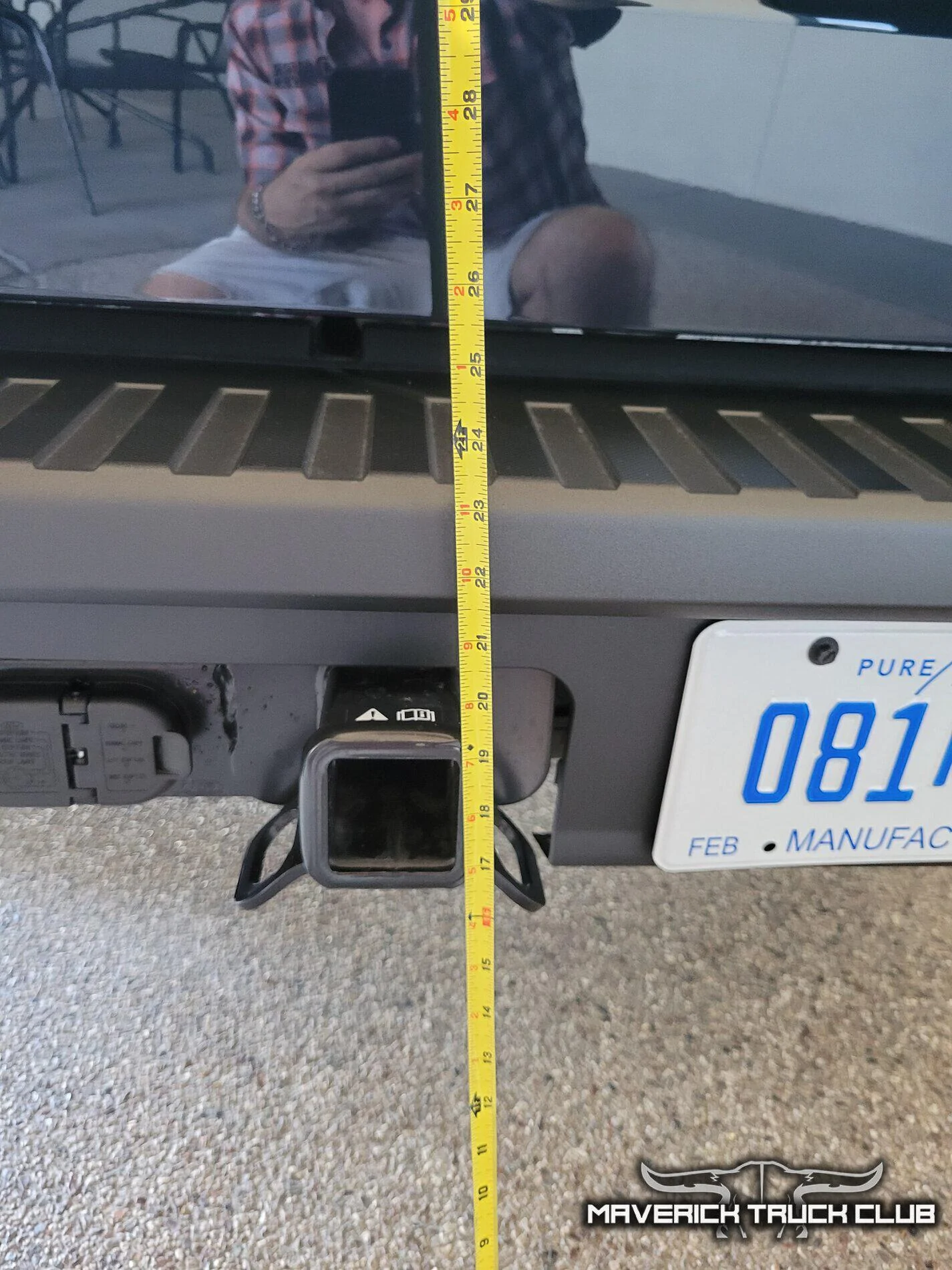

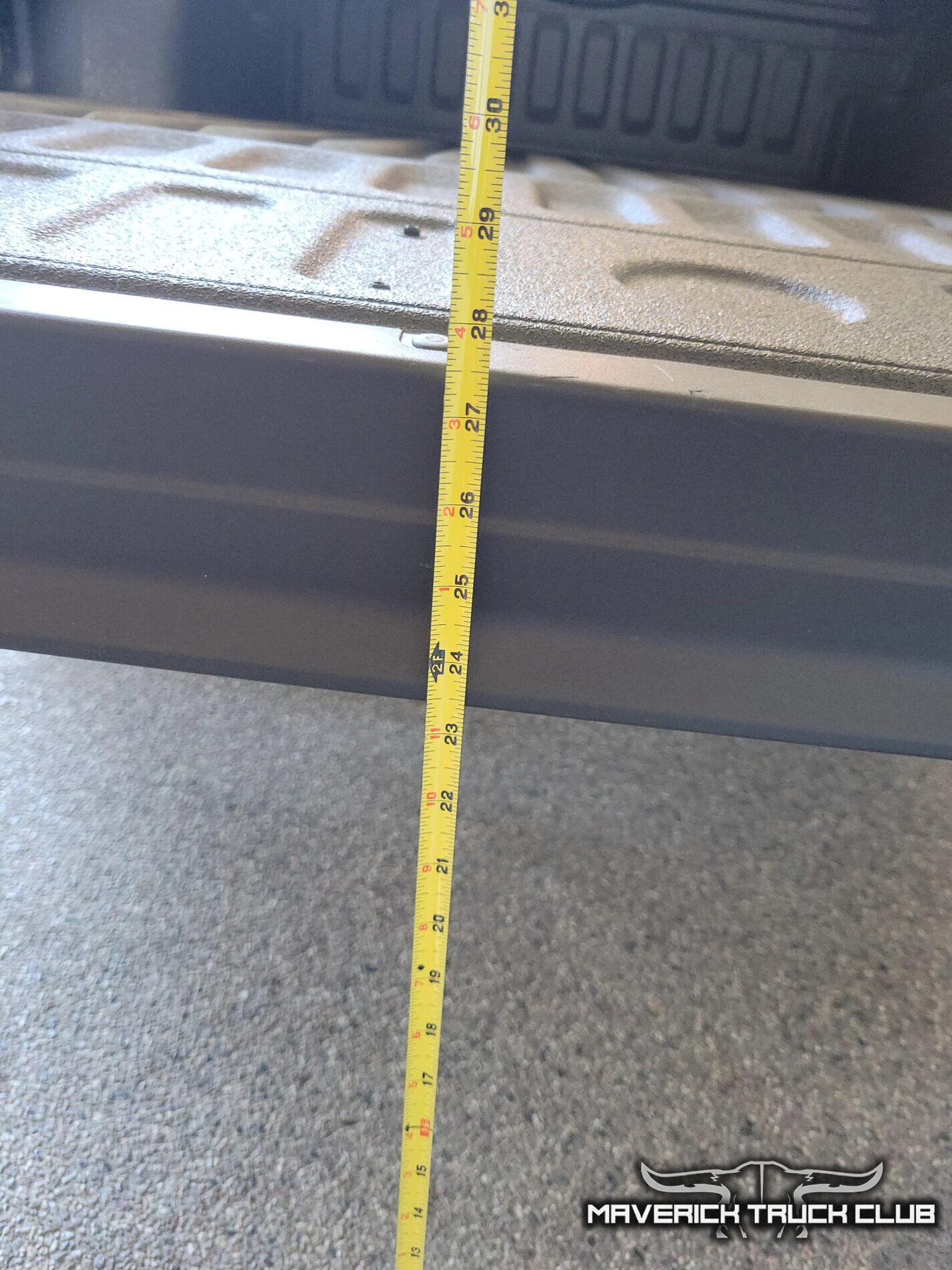

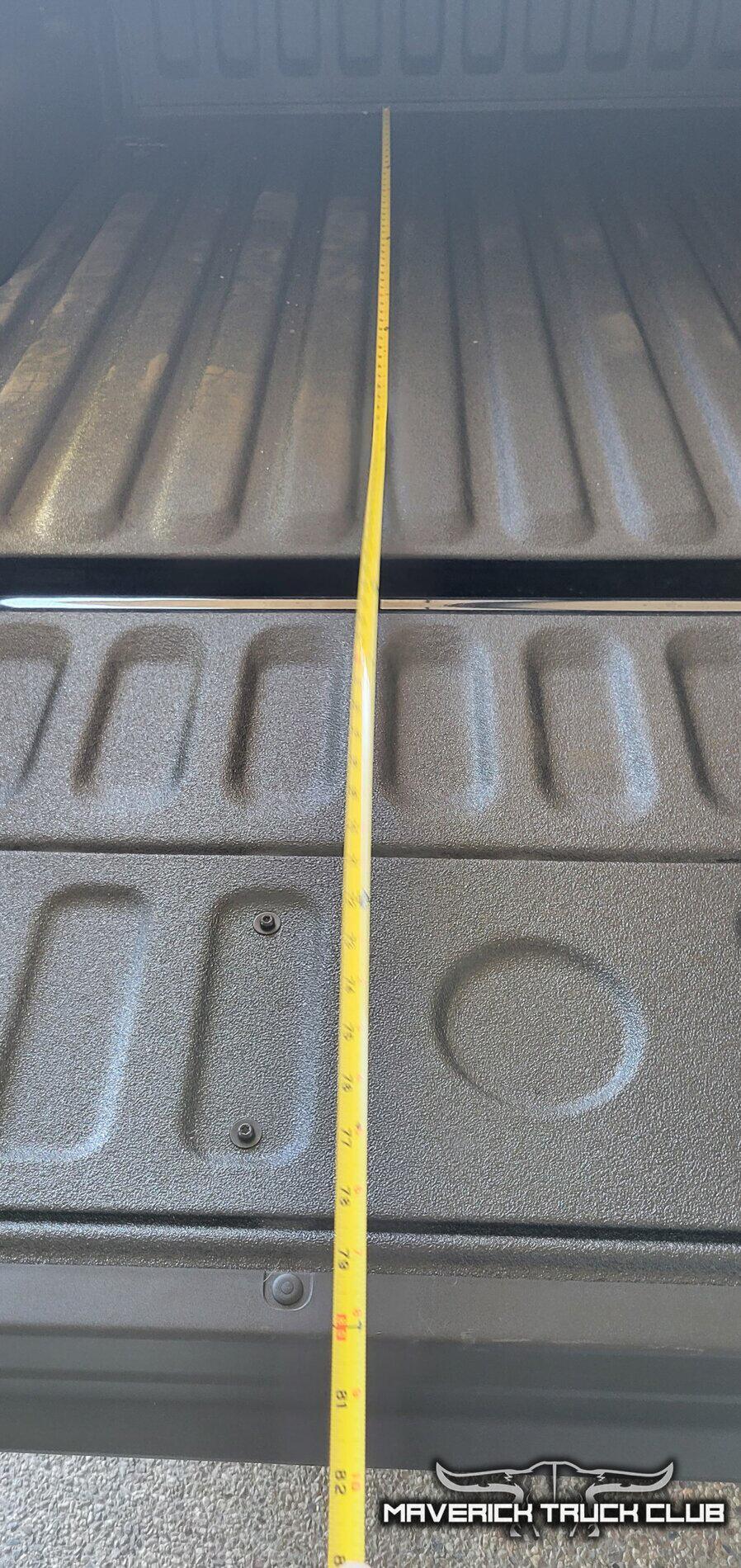

I am building a bed extender for the bed to support my kayaks and you gave me exactly what I needed. The measurements from the ground to the top of the receiver and the one from the ground the top of the tailgate in the down position.

Based on those I can finish the extender tee bar riser adjustment piece.

Thank you very much!!

You're very welcome! I tried to remember what measurements I seen people asked about getting. I'm glad I got good ones for you. I'm going to see the truck again tomorrow so if there are any other measurements you want just let know.



[Delzona]

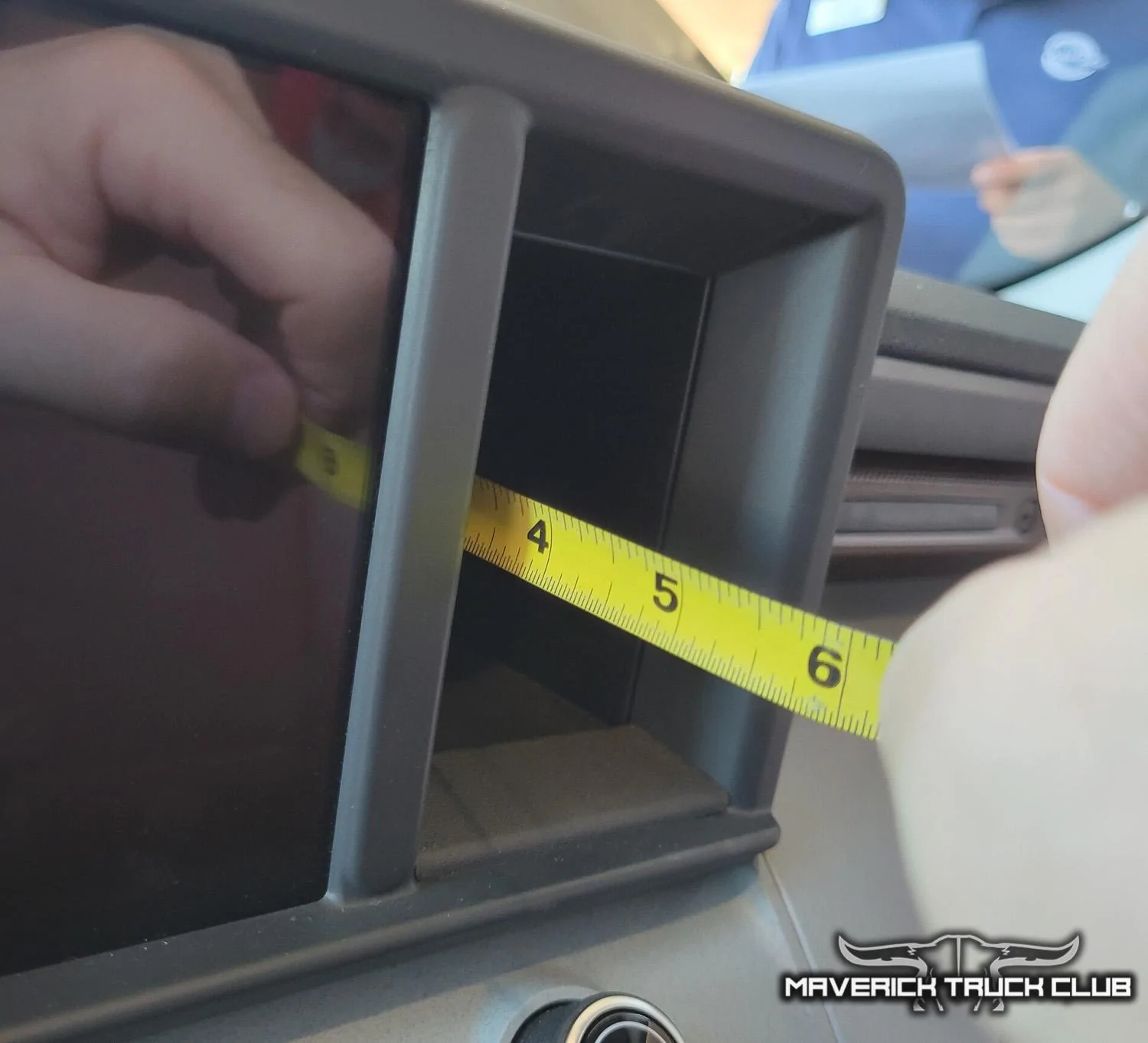

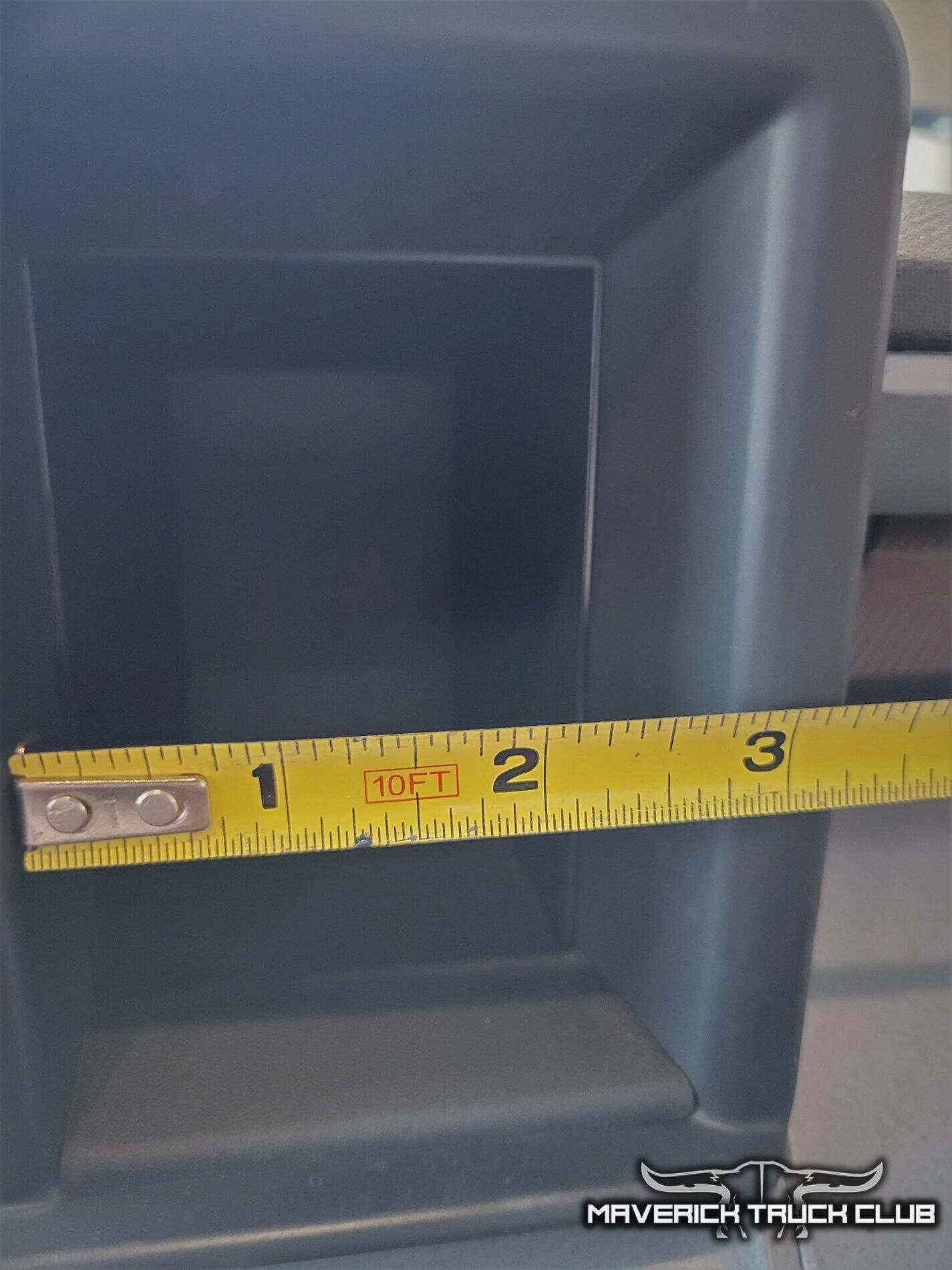

Thanks for all of that! Can I ask for the actual height and width of the cubby?

Which cubby are you talking about?



[Delzona]

Awesome pics, and now I definitely know I'll want to change out those fabric wheel well liners!

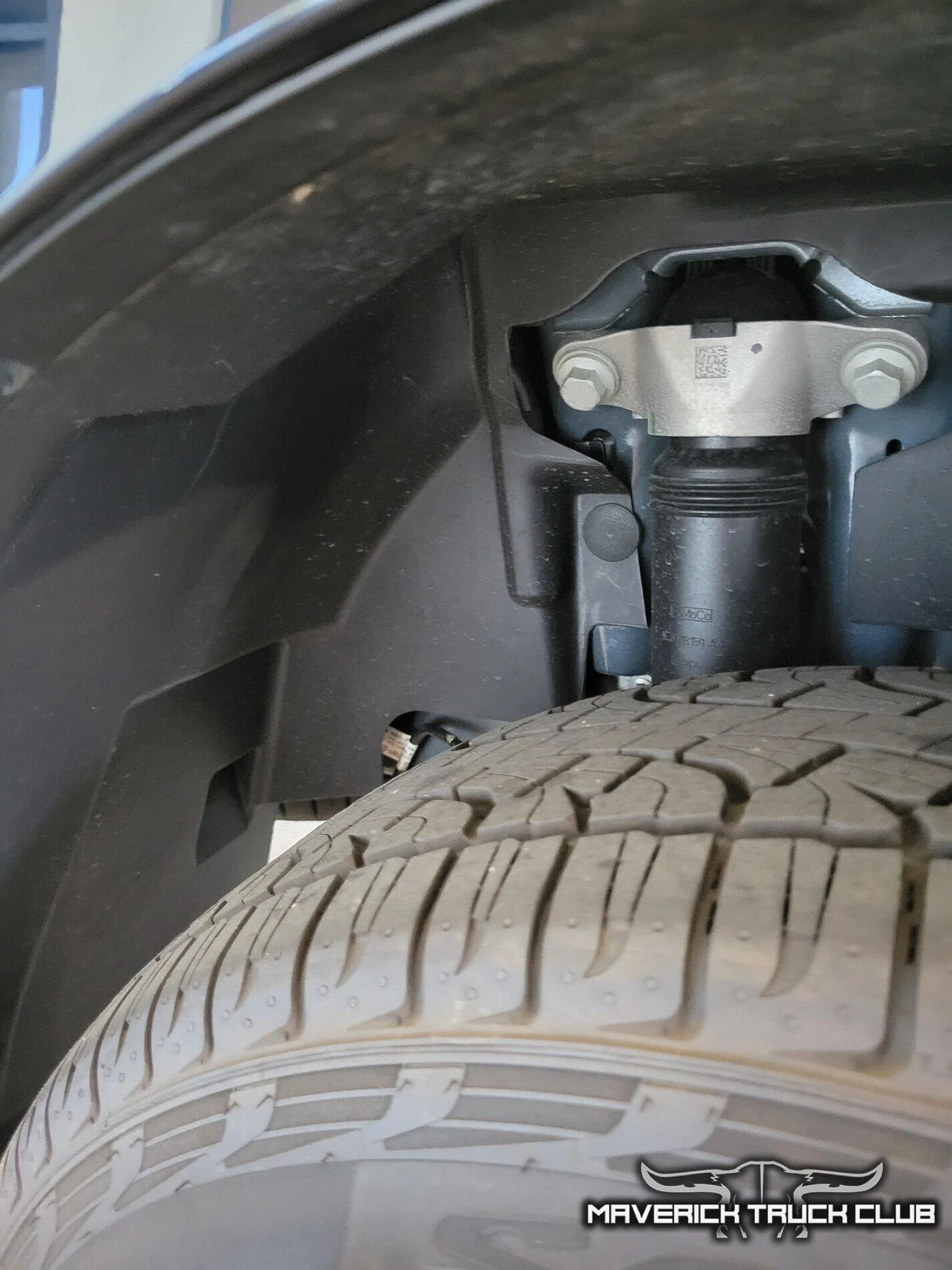

Yeah they had fabric in the front, but plastic in the rear, which I thought was strange.



[Delzona]

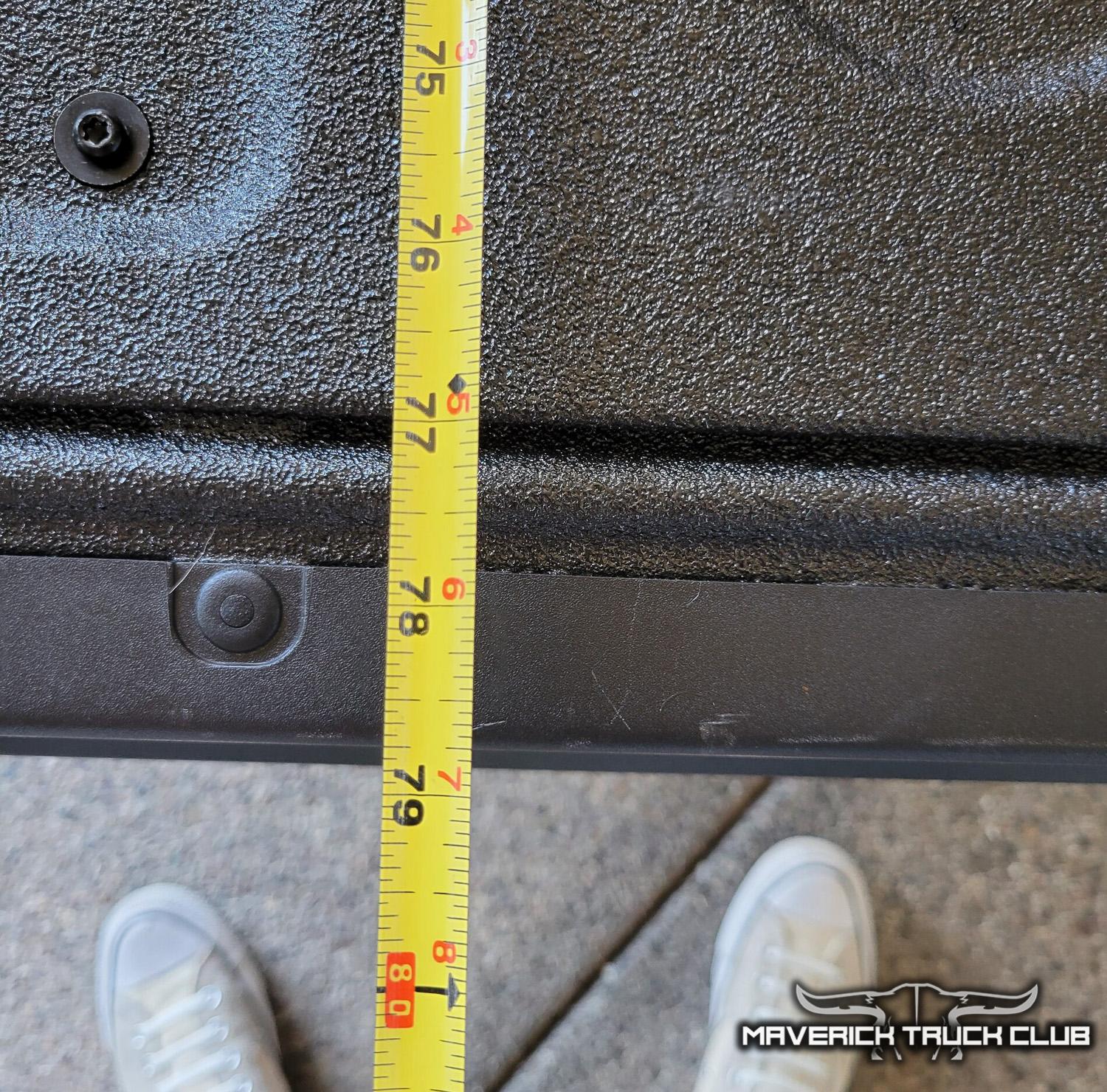

I'm so glad this bed length with tailgate down thing should HOPEFULLY, FINALLY be buried now. Thank you for the quality pics, sir.

I doubt I've ended the controversy, but can't say I didn't try!



[Delzona]

Very helpful, thanks. I'd like to know the height from ground to top of open door jam. Seat hight is the same as my Rav4.

Ok I'll see what I can do for ya!



[Delzona]

Are the heights going to be the same on a non FX4?

I would imagine they would be within an inch or two at the most. I don't recall the FX4 specs stating it sat higher. However, keep in mind that this model has the 18" wheels on it whereas the XL and XLT have 17" so they will slightly lower.
Update: I read that the FX4 actually has 17" wheels and the non-FX4 Lariat has the 18"



[TripleOption]

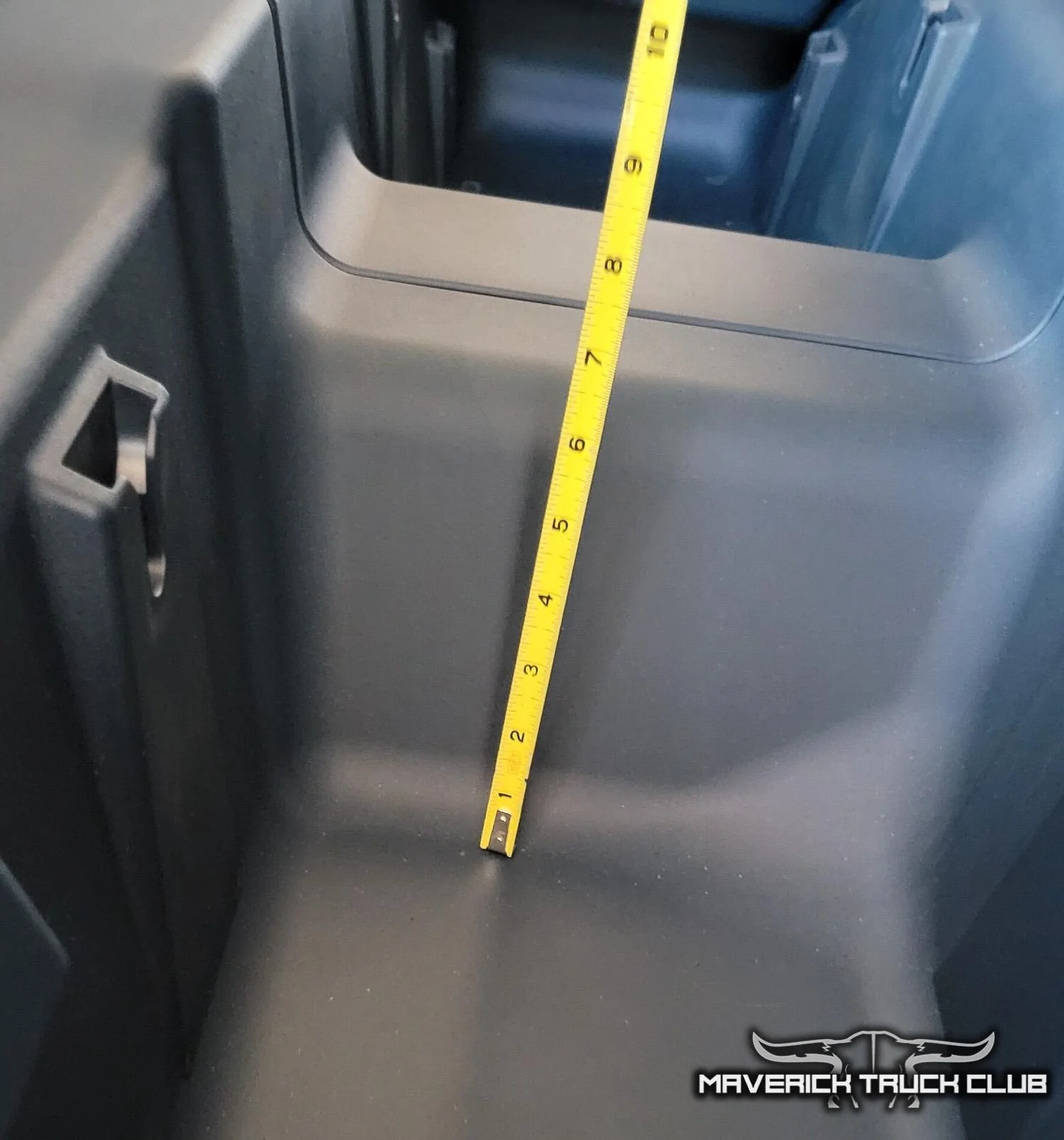

Those measurements are awesome! Any way you can measure the width and length of the under seat storage? I'd like to start planning a subwoofer box...



[Piper2022]

Yes, that's why I took those pictures! I didn't recall seeing pictures of them or anyone mentioning them being apart of the vehicle. I know that you can purchase them aftermarket. Now the only thing I didn't think to ask is if they are on all trim models or just Lariat or just FX4 package. I'm going to ask the Trainer tomorrow when I see the truck again.

Thanks so much! I have an XL ordered with just a few options. I'm hoping the liners are present on this trim level too.
