Well well well.....the new (not preliminary) Ford 2022 Towing Guide is out.

2022 Ford RV & Trailer Towing Guide

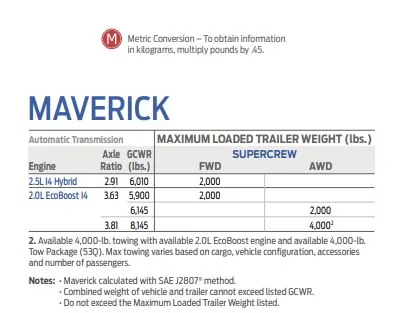

Maverick info same as the prelim. version earlier this year.
2022 towguide mav.JPG

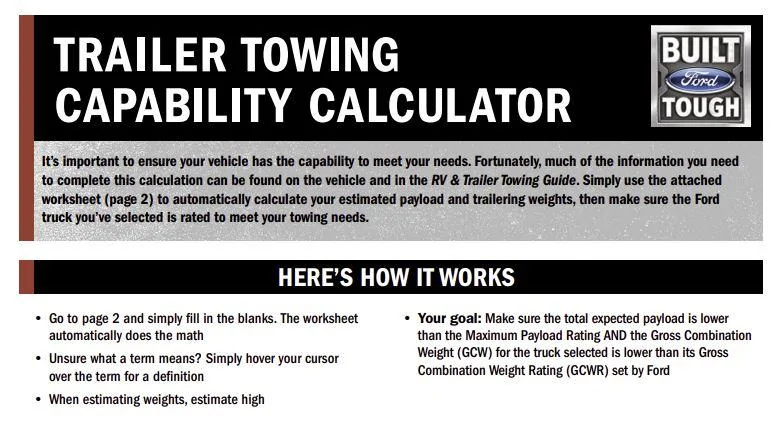

New for 2022 - Ford finally got smart and now shows a "Trailer Towing Capability Calculator in the 2022 Guide (first year I've ever seen Ford do this).
ford tow calc1.JPG



Good news is - the .pdf file automatically does the math. Good on Ford.

Enjoy.
Advertisement


OP
OP

Probity

XLT
Well-known member
Joined
Jul 6, 2021
Messages
166
Reaction score
254
Location
Covington LA
Vehicle(s)
2018 F150 Scab 2.7EB, 2017 CR-V
Trim
XLT
...........and already I see that it appears to be a little "buggy".
-it says Unsure what a term means? Simply hover your cursor over the term for a definition. Tried that but didn't work for me.
-the Step 2 "Calculate Payload Weight" doesn't have a way to input your assumed trailer tongue weight assuming you're using a conventional hitch. This should be one of those auto-calculate things; take 10% (or 13% to be conservative) of the total trailer weight. As it is now, in step 2, to include tongue weight as part of your "real" payload, you gotta add your tongue weight estimate to whatever you assume is 'other' Cargo Weight.
-in Step 2, that Yes or No box doesn't always work (didn't for me at least).

Anyway, for all you non-Hybrid new owners that can actually see what your GVWR and Payload door stickers say, have fun.


hcforde

XLT
Well-known member
First Name
Hawley
Joined
Jul 16, 2021
Messages
446
Reaction score
402
Location
Austin, TX
Vehicle(s)
Honda Insight, E350, Toyota Sequoia
Trim
XLT
Pages 45 & 46 are great information for people new to towing. Even most people just hook it up and go.

No doubt Ford realized a lot of new people are going to be on the road towing, and if a lot of Ford owners get in accidents it will reflect back on them rather than the drivers that did not know the parameters of towing. This becomes more pronounced because they want to dominate the truck market. and seem to be well on their way. This can make them a target for litigation if they are not pre-emptive.


atomguy245

XLT
Well-known member
First Name
Doug
Joined
Sep 18, 2021
Messages
187
Reaction score
269
Location
CT
Vehicle(s)
Chevrolet Cruze
Trim
XLT
So essentially a hybrid with 2 adults can tow the 2000lbs but have no cargo in the bed. At the most


hcforde

XLT
Well-known member
First Name
Hawley
Joined
Jul 16, 2021
Messages
446
Reaction score
402
Location
Austin, TX
Vehicle(s)
Honda Insight, E350, Toyota Sequoia
Trim
XLT
So essentially a hybrid with 2 adults can tow the 2000lbs but have no cargo in the bed. At the most
You Sir are on the right track. Many people see the payload number1500# and the tow number# and think they are mutually exclusive and think they have 3500# to play with when they do not. The more you have in the bed, the less you can tow.


atomguy245

XLT
Well-known member
First Name
Doug
Joined
Sep 18, 2021
Messages
187
Reaction score
269
Location
CT
Vehicle(s)
Chevrolet Cruze
Trim
XLT
You Sir are on the right track. Many people see the payload number1500# and the tow number# and think they are mutually exclusive and think they have 3500# to play with when they do not. The more you have in the bed, the less you can tow.
The GVWR on my Chevy Cruze is only 3843, and the curb weight is somewhere between 2900-3000lbs. So a 5 passenger load could totally max it out with no cargo. A little shocking...
